General Info
Condition:	Rental
Manufacturer:	Develon
Model:	DL480
Machine Type:	Wheel Loader

Engine

Performance

Hydraulics

Dimensions

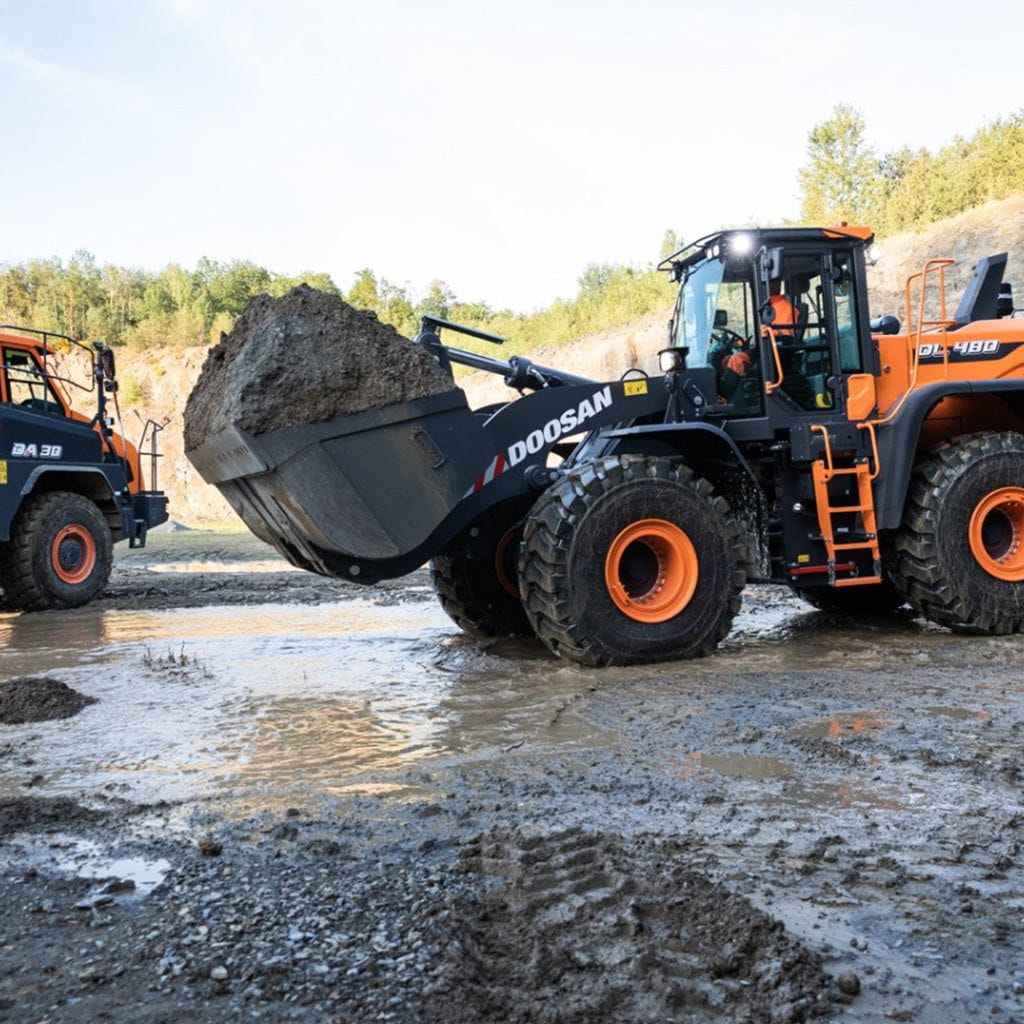

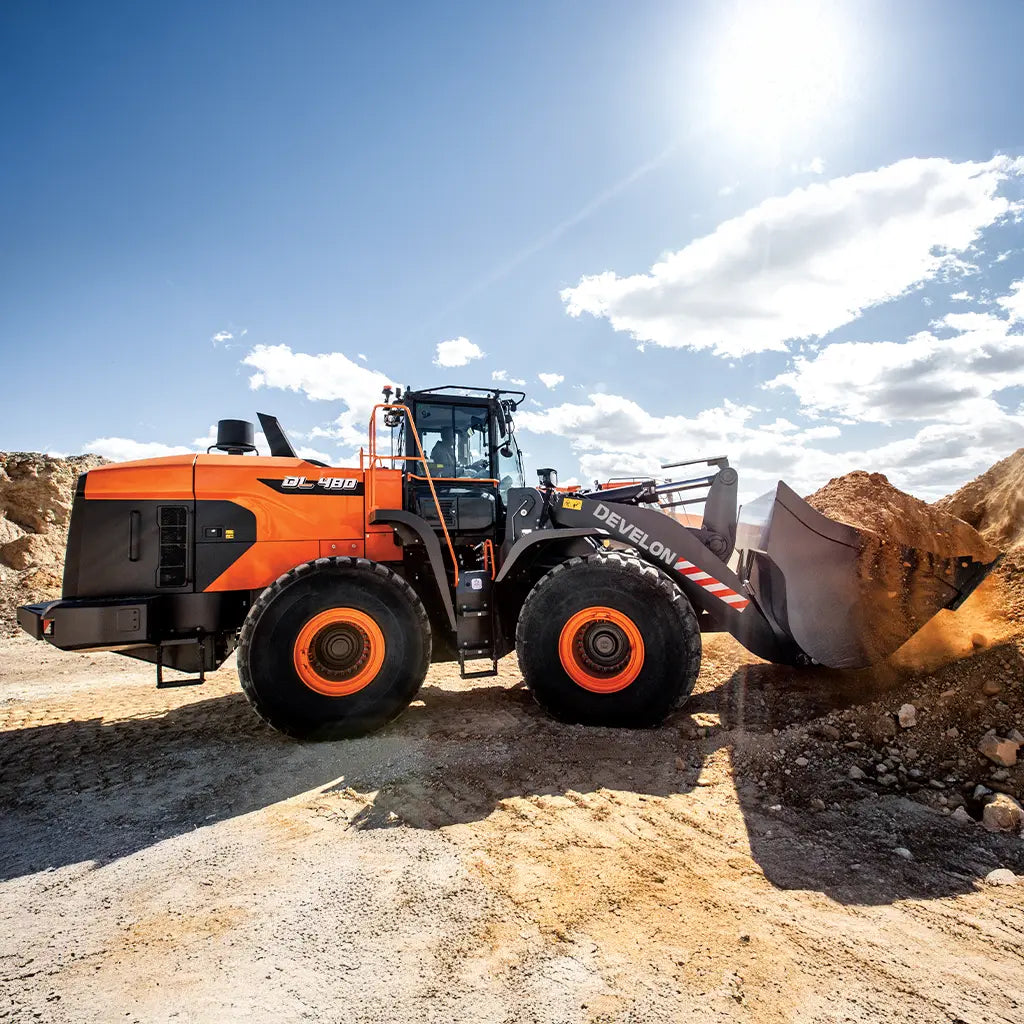

Develon DL480 Series - Rental

Ensure your jobsite runs smoothly and efficiently with the versatile Develon DL480 Series wheel loader. Built to tackle tough workloads, this machine features a 6.0-yard bucket capacity that helps you move materials quickly and safely. With a tipping load of 45,323 lb. and a 14' 9" lift height, it excels at managing large-scale tasks in construction and industrial environments. Its powerful 345 HP engine delivers exceptional performance, while the robust 58,354 lb. operating weight provides stability in rugged conditions. Count on the Develon DL480 Series to assist with everything from heavy lifting to earthmoving, making it an excellent choice for short-term or long-term rental needs.

Specs

Bucket Capacity	6.0 Yd
Weight	58,354 lb.
Tip Load	45,323 lb.
Horsepower	345 HP
Lift Height	14' 9"

Develon DL480 Series Rental Pricing

Daily	Weekly	Monthly
$700	$2,700	Call for Pricing Plans

DEVELON Wheel Loaders

Compare the Wheel Loader Family

Develon wheel loaders pair a hydrostatic transmission and Z-bar loader linkage with smart technology like the Transparent Bucket and 8" Smart Touch display. More models coming to the lineup.


	DL200-7	DL220-7	DL250-7	DL280-7	DL320-7	DL380-7	DL420-7	DL480-7	DL550-7	DL580-7
Specifications
Rated Power (net)	142.1 hp @ 2,200 rpm	159.6 hp @ 2,100 rpm	171.6 hp @ 2,100 rpm	189.1 hp @ 2,000 rpm	270.9 hp @ 1,800 rpm	270.9 hp @ 1,800 rpm	344.6 hp @ 1,800 rpm	344.6 hp @ 1,800 rpm	379.5 hp @ 1,800 rpm	394.3 hp @ 1,800 rpm
Operating Weight	26,559 lb (Std) / 27,189 lb (HL)	29,099 lb (Std) / 29,462 lb (HL)	30,527 lb (Std) / 30,891 lb (HL)	34,550 lb (Std) / 34,892 lb (HL)	43,572 lb (Std) / 43,975 lb (HL)	45,022 lb (Std) / 45,728 lb (HL)	53,414 lb (Std) / 54,017 lb (HL)	58,354 lb (Std) / 58,938 lb (HL)	70,598 lb (Std) / 71,390 lb (HL)	78,674 lb (Heavy-Duty)
Bucket Capacity	2.6 yd³ (2.0 m³)	3.0 yd³ (2.3 m³)	3.3 yd³ (2.5 m³)	3.7 yd³ (2.8 m³)	4.6 yd³ (3.5 m³)	5.1 yd³ (3.9 m³)	5.5 yd³ (4.2 m³)	6.3 yd³ (4.8 m³)	6.8 yd³ (5.2 m³)	8.4 yd³ (6.4 m³)
Breakout Force	21,806 lbf	21,544 lbf	23,987 lbf	32,822 lbf	33,946 lbf	36,342 lbf	41,365 lbf	51,931 lbf	56,202 lbf	60,249 lbf
Static Tipping Load (straight)	22,315 lb	23,210 lb	23,973 lb	27,064 lb	34,454 lb	36,074 lb	42,718 lb	45,322 lb	53,273 lb	58,555 lb
Transmission	Hydrostatic (HST), dual-motor	Powershift 4F/3R (torque converter)	Powershift 4F/3R (opt 5-speed lock-up)	Powershift 4F/3R (opt 5-speed)	Powershift 4F/3R (opt 5-speed lock-up)	Powershift 4F/3R (opt 5-speed lock-up)	Powershift 4F/3R (opt 5-speed lock-up)	Powershift 4F/3R (opt 5-speed lock-up)	Powershift 4F/3R (opt 5-speed lock-up)	Powershift 5F/3R lock-up (standard)
Features
Lift Arm Options	Standard US10 / High-Lift US20	Std US10/11/15 · HL US20/21	Std US10/11/15 · HL US20/21	Std US10/11/15/30 · HL US20/21/40	Std US10/11/50/51 · HL US20/21	Std US10/11/50/51 · HL US20/21	Std US10/11 · HL US20/21	Std US10/11/50/51 · HL US20/21	Std US11/50/51 · HL US20/21	Heavy-Duty US30/31
Ride Control	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Transparent Bucket	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Power Modes	P / S / E	P / S / E	P / S / E	P / S / E	P / S / E	P / S / E	P / S / E	P / S / E	P / S / E	P / S / E
Emissions	Tier 4 · DOC/SCR/DPF	Tier 4 · DOC/SCR (no DPF)	Tier 4 · DOC/SCR (no DPF)	Tier 4 · DOC/SCR (no DPF)	Tier 4 · DOC/SCR (no DPF)	Tier 4 · DOC/SCR (no DPF)	Tier 4 · DOC/SCR (no DPF)	Tier 4 · DOC/SCR (no DPF)	Tier 4 · DOC/SCR (no DPF)	Tier 4 · DOC/SCR (no DPF)
Standard Warranty	3 yr / 3,000 hr	3 yr / 3,000 hr	3 yr / 3,000 hr	3 yr / 3,000 hr	3 yr / 3,000 hr	3 yr / 3,000 hr	3 yr / 3,000 hr	3 yr / 3,000 hr	3 yr / 3,000 hr	3 yr / 3,000 hr

View All Wheel Loaders Find a Location

DEVELON DL200-7 Wheel Loader

Standard Arm vs High-Lift

The DL200-7 is offered with two front lift-arm configurations. The standard US10 arm maximizes lift capacity and tipping load; the optional high-lift US20 arm trades some capacity for greater reach and dump height to load taller trucks and hoppers.

	Standard ArmUS10	High-Lift ArmUS20
Shared
Engine	Perkins 1204F · 142.1 hp @ 2,200 rpm
Bucket Capacity	2.6 yd³ (2.0 m³)
Transmission	Hydrostatic (HST), dual-motor
Tire Size	20.5R25 L3 radial
Reach & Lift
Max. Hinge Pin Height	12' 3.0"	13' 10.0"
Dump Height (45°)	9' 0.0"	10' 8.0"
Dump Reach (45°)	3' 3.6"	3' 3.2"
Digging Depth	2.3"	7.9"
Overall Length	23' 6.5"	25' 0.0"
Capacity
Static Tipping Load (straight)	22,315 lb	18,373 lb
Static Tipping Load (full turn)	19,705 lb	16,224 lb
Breakout Force	21,806 lbf	22,031 lbf
Operating Weight	26,559 lb	27,189 lb

Specifications from the official DEVELON DL200-7 spec sheet; subject to change. Contact Carleton Equipment to confirm the right configuration.
