DL280-7 | Develon

Download Spec Sheet:

Download
General Info
Condition: Showroom
Manufacturer: Develon
Model: DL280-7
Machine Type: Wheel Loader
Engine
Horsepower: 189.0
Performance
Operating Weight: 34552 lb
Hydraulics
Dimensions
Height: 11'
Length: 25' 1"
Width: 8' 8"

Description

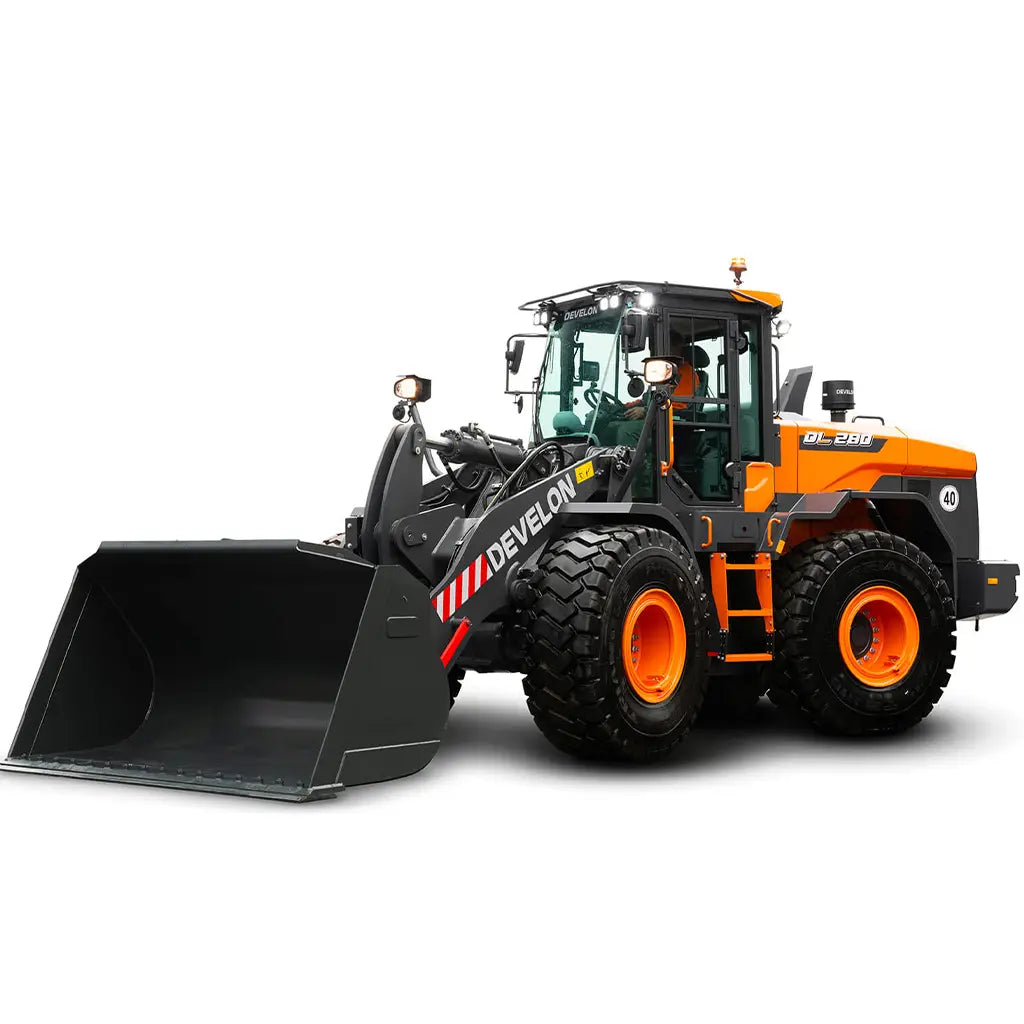

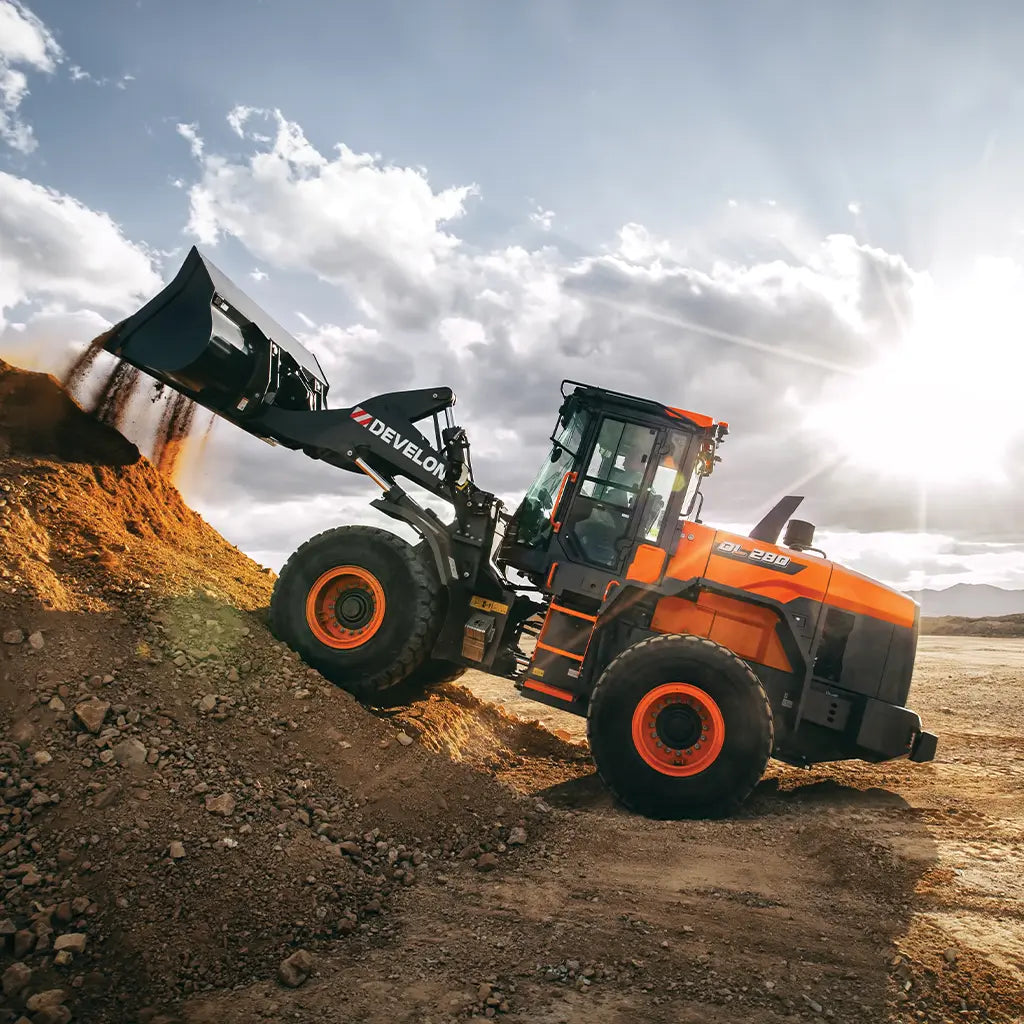

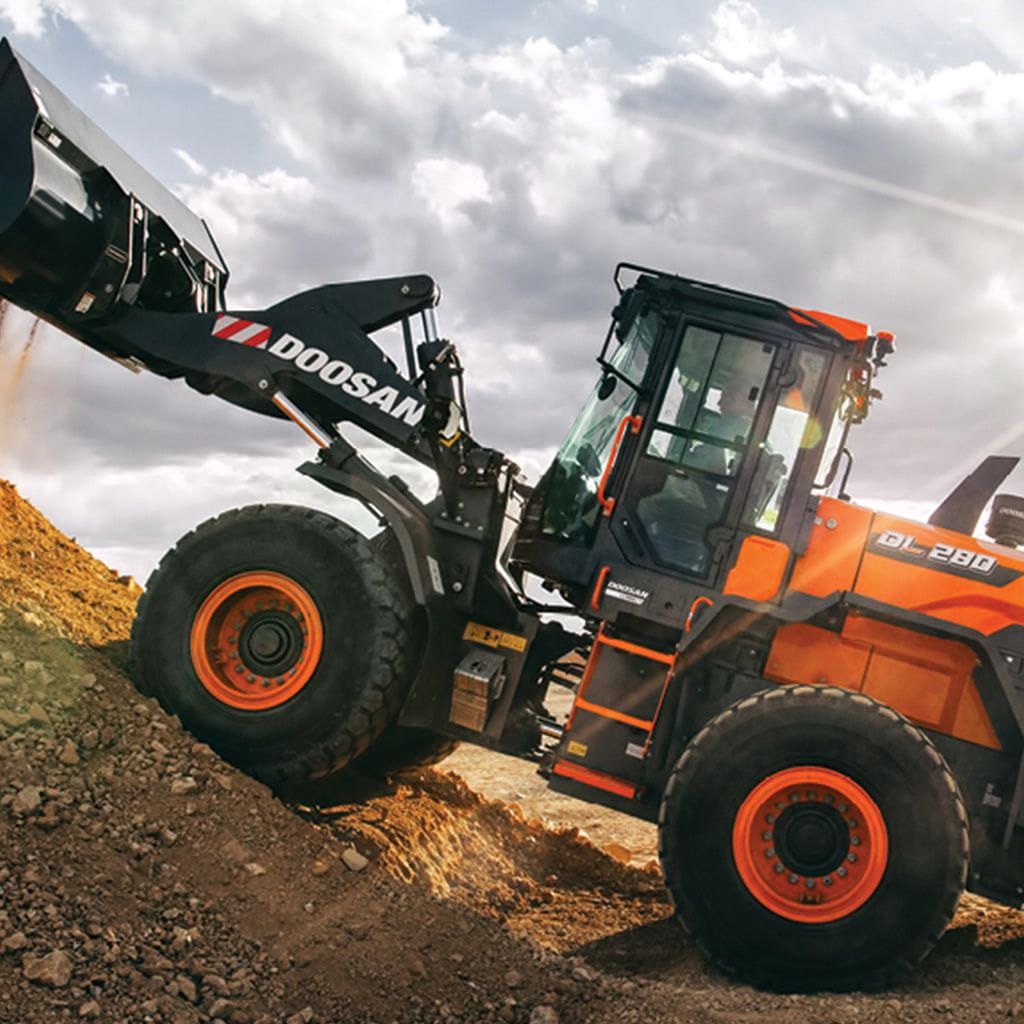

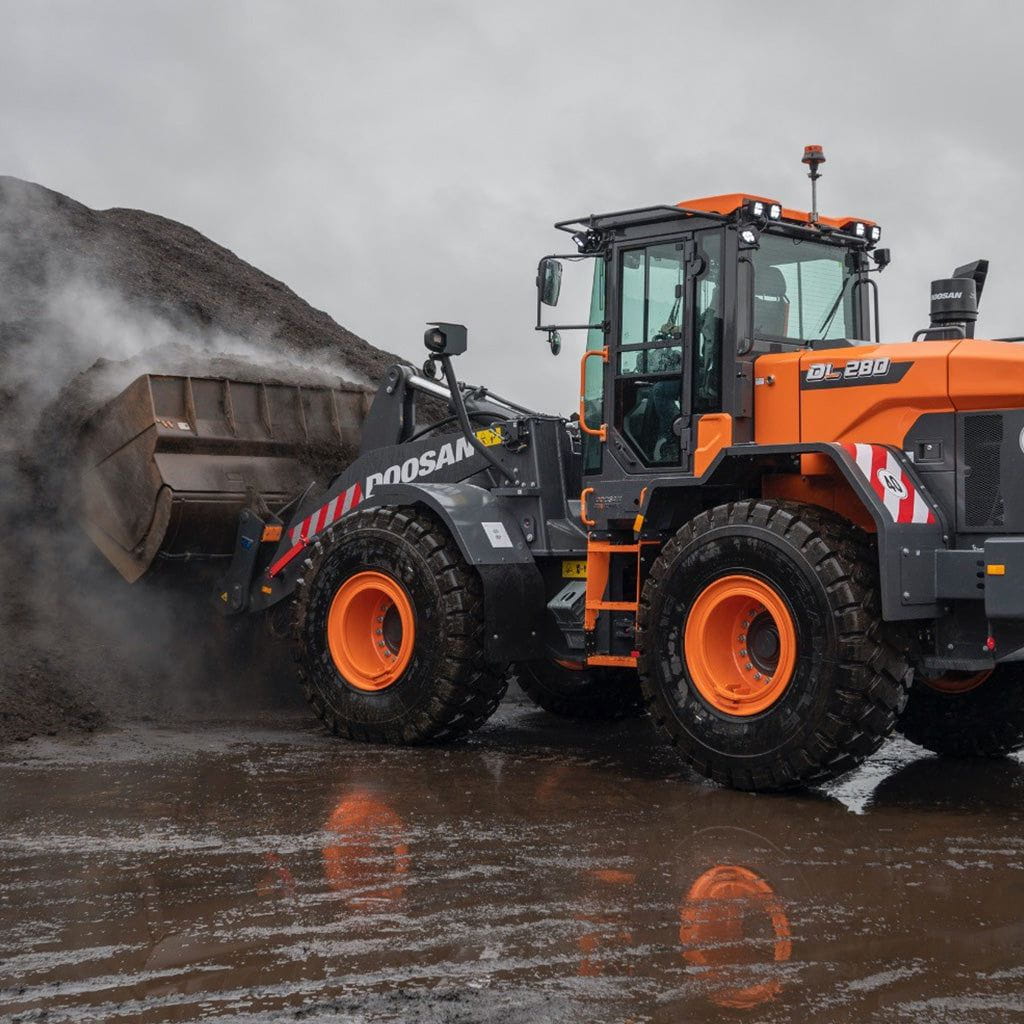

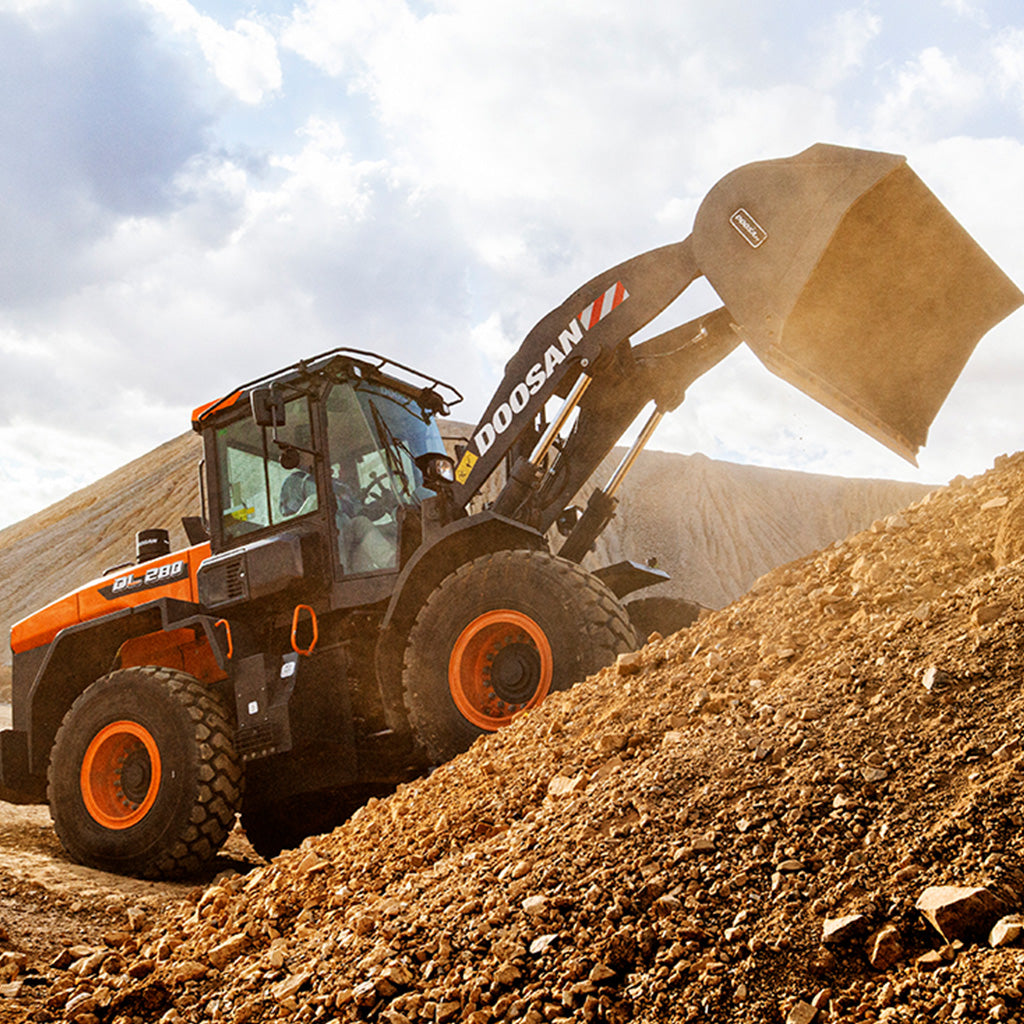

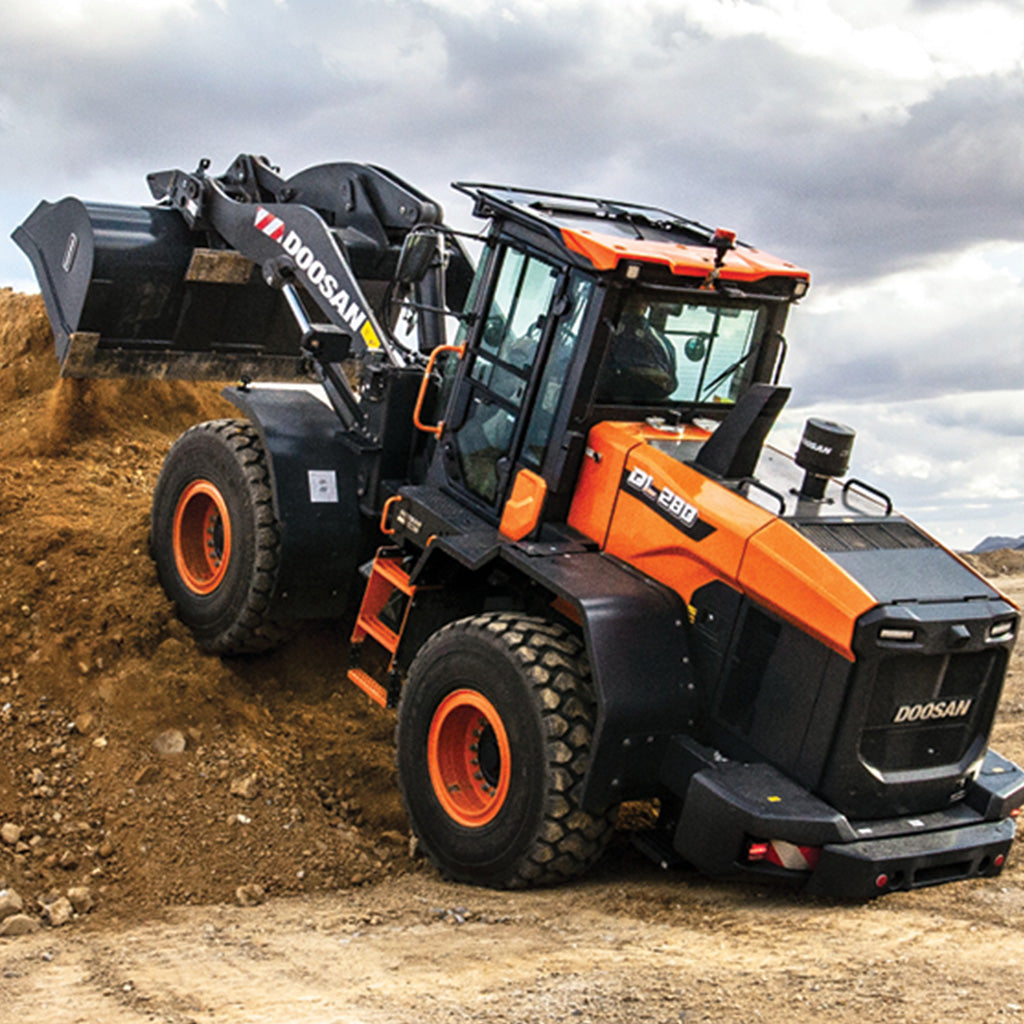

Develon DL280-7 Wheel Loader

Description

The DEVELON DL280-7 wheel loader offers durability and maneuverability for loading and carrying construction materials or transporting scrap. New optional stronger axles increase lift capacities and an optional larger counterweight can be added.

Wider radiator fin spacing and a standard reversible fan clear dirt, dust and other large debris to reduce clogging. The box frame offers added durability, and the articulating design provides excellent load distribution and rigidity for improved structural life.

A deeper front fender offers additional wheel coverage for better windshield protection. A rear full fender is optional for improved machine reliability.

Configuration US10 US11 US15 US20 US21 US30 US40
Model DL06
Rate Flywheel Power (Gross) 189.1 hp @ 2,000 rpm
Rated Horse Power (Net) 189.1 hp @ 2,000 rpm
Max Torque (Net) 902 lbf @ 1,400 rpm
Engine Emissions Tier (EPA) Tier 4
Engine After Treatment DOC+SCR
Engine Make Doosan
Number of Cylinders 6
Engine Displacement 360 in³
Configuration US10 US11 US15 US20 US21 US30 US40
MAIN PUMP: DISPLACEMENT 7.51 in³/rev
SYSTEM PRESSURE: WORK 3843 psi
MAIN PUMP: MAX. FLOW RATE (EACH) 64.99 gal/min
MAIN PUMP: QUANTITY 1
MAIN PUMP: MAIN RELIEF PRESSURE 3843 psi
TOTAL CYCLE TIME 10.1 s (±0.4 s)
Configuration US10 US11 US15 US20 US21 US30 US40
TIRE SIZE 20.5R25, L3
TREAD WIDTH 6' 8"
Configuration US10 US11 US15 US20 US21 US30 US40
TRAVEL PERFORMANCE: GRADEABILITY 58 ° @ 30 %
TRAVELING PERFORMANCE: MAX. TRACTIVE EFFORT 30,644 lb
Configuration US10 US11 US15 US20 US21 US30 US40
OPERATING WEIGHT 34,552 lb. 34,552 lb. 34,552 lb. 34,890 lb. 34,890 lb. 35,233 lb. 36,345 lb.
Configuration US10 US11 US15 US20 US21 US30 US40
BUCKET CAPACITY 3.66 yd³
BUCKET WIDTH 8' 11"
HINGE PIN HEIGHT 12' 11" 12' 11" 12' 11" 14' 5" 14' 5" 11' 11" 14' 5"
DUMP REACH AT 45° (FULLY RAISED) 3' 9" 3' 9" 3' 9" 3' 8" 3' 8" 3' 9" 3' 8"
DUMP HEIGHT AT 45° (FULLY RAISED) 9' 3" 9' 3" 9' 3" 10' 9" 10' 9" 9' 3" 10' 9"
OVERALL HEIGHT 10' 0"
OVERALL LENGTH 25' 1" 25' 1" 25' 1" 26' 5" 26' 5" 25' 1" 26' 5"
WHEEL BASE 10'
GROUND CLEARANCE 1' 3"
EXTERNAL TURNING RADIUS AT BUCKET EDGE 20' 1" 20' 1" 20' 1" 20' 8" 20' 8" 20' 1" 20' 8"
STATIC TIPPING LOAD (STRAIGHT) 27,064 lb. 27,064 lb. 27,064 lb. 22,181 lb. 22,181 lb. 27,064 lb. 22,181 lb.
STATIC TIPPING LOAD (FULL TURN) 23,856 lb. 23,856 lb. 23,856 lb. 19,553 lb. 19,553 lb. 23,856 lb. 19,553 lb.
BREAKOUT FORCE 32,822 lb. 32,822 lb. 32,822 lb. 31,024 lb. 31,024 lb. 32,822 lb. 31,024 lb.
REAR AXLE OSCILLATION 22°
DIGGING DEPTH 4.0" 4.0" 4.0" 7.0" 7.0" 4.0" 7.0"
Configuration US10 US11 US15 US20 US21 US30 US40
FUEL TANK 62.08 gal.
COOLING SYSTEM 8.98 gal.
HYRDAULIC SYSTEM 31.7 gal.
HYDRAULIC TANK 22.45 gal.
DEF/AD BLUE TANK 7.93 gal.
