T450 | Bobcat

M3-Series

Configuration: Starting at $59,057

Offers & Financing

Download Spec Sheet:

Download
General Info
Condition: Showroom
Manufacturer: Bobcat
Model: T450
Machine Type: Compact Track Loader
Coupler: Bob-Tach
Engine
Horsepower: 55.0
Performance
Rated Operating Capacity (ISO): 1,490 lb
Tipping Load: 4,257 lb
Operating Weight: 6424 lb
Travel Speed: 7 mph
Height to Bucket Hinge Pin: 109.5 IN.
Hydraulics
Aux. Standard Flow: 16.7 GPM
Dimensions
Height: 77.8 in
Length: 98.4 in
Width: 55 IN.
Turning Radius: 77.9 in
Fuel Tank: 17.1 GAL.

Description

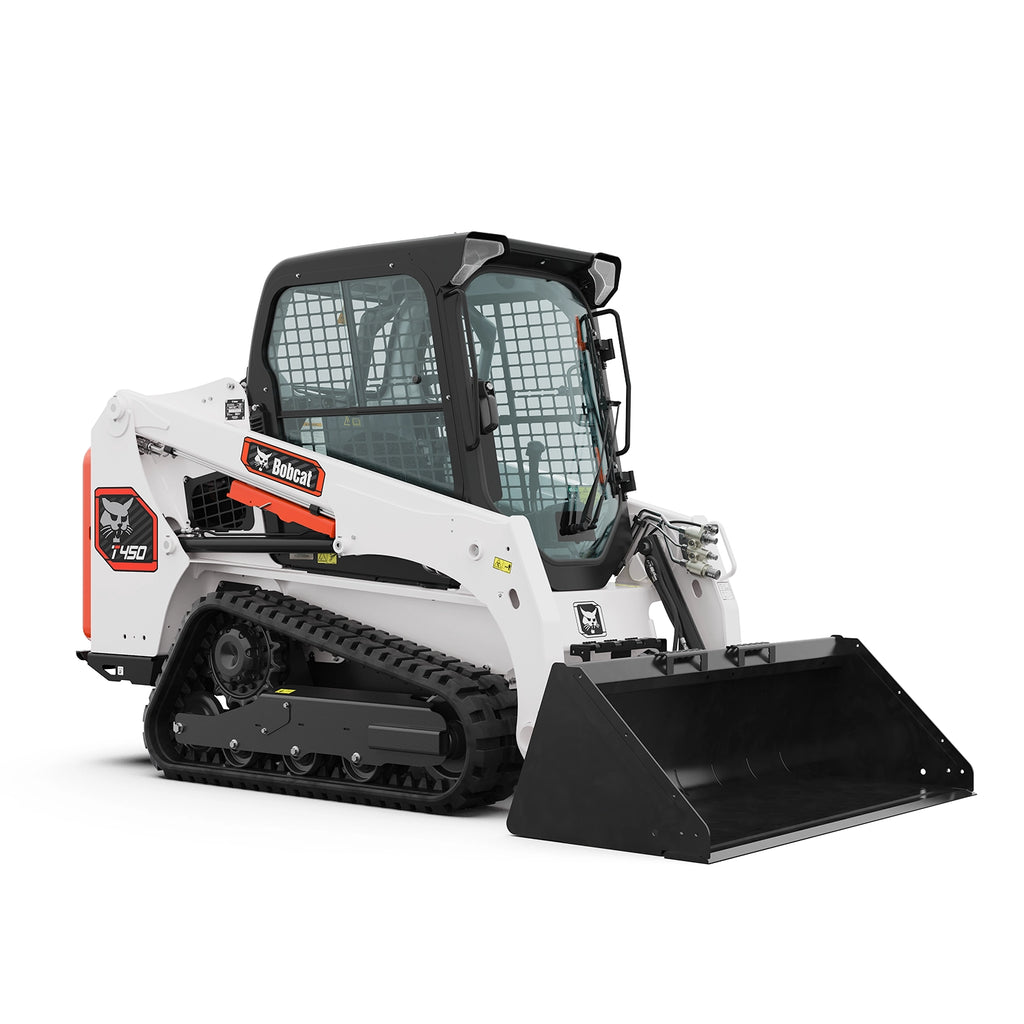

Bobcat T450 Compact Track Loader

Navigate through narrow spaces and challenging worksites effortlessly with the Bobcat T450 Compact Track Loader. The radius lift path excels at jobs with mid-range working heights such as dumping over walls, backfilling or unloading flatbed trucks. Whether it's construction, landscaping, or farming, the T450 offers the power and versatility needed to tackle a wide array of jobs with ease.

  • Ultra-Efficient Fuel System
  • Radius Lift Path for further reach at mid-range lift
  • Maneuver in tight work spaces with the power you need for your tasks

Specs

Rated Operating Capacity 1,490 lb
Operating Weight 6,424 in
Ground Pressure - Rubber Track 4.82 psi
Auxiliary Standard Flow 16.7 gal/min
Emissions Tier Tier 4
Engine Fuel Diesel
Horsepower 55 hp
Turbocharged Engine Yes
Rated Operating Capacity 1,490 lb
Operating Capacity - 50% of Tip 2,120 lb
Tipping Load 4,247 lb
Operating Weight 6,424 lb
Travel Speed 7 mph
Travel Speed - 2 Speed Option 11 mph
Ground Pressure 4.82 psi
Auxiliary Standard Flow 16.7 GPM
System Relief @ Quick Couplers 3,300 PSI
Length 98.4 in
Length without Attachment 98.4 in
Length with Standard Bucket 126.6 in
Width 55 in
Width with Bucket 56 in
Height 77.8 in
Height to Bucket Hinge Pin 109.5 in
Reach @ Maximum Height 23.5 in
Turning Radius 77.9 in
Length of Track on Ground 50.2 in
Track Width 11.8 in

Features

A radius lift path provides maximum reach at truck bed height. Arm movement forms an arc. More than 80% of that arc delivers better reach at truck bed height. A radius lift path excels in jobs at mid-range heights, like dumping, backfilling or unloading flatbed trucks.Bobcat Radius Lift Path
The Bobcat cooling system senses engine temperatures and only turns the fan as fast as needed, reducing sound levels and providing excellent protection from overheating. A patented dual-path cooling system draws cool, clean air from above, and forces hot air out two side vents, directing it away from the operator.Bobcat M-3 Series Cooling System
DRIVE RESPONSE MODE

Drive response mode allows you to choose how the drive responds to joystick movement. Whether you like a more gradual response, quicker response or something in between, three different settings put you in control.

Bobcat Selectable Joystick Controls

SPEED MANAGEMENT

Simply “dial in” your required travel speed in small increments to match speed to your operation requirements and maximize attachment performance. Speed management gives you a full range of joystick motion with maximum driveline torque and full hydraulic power at slower machine speed.

STEERING DRIFT COMPENSATION

Steering drift compensation keeps you on a straight path by helping you make minor adjustments to the steering. It’s beneficial when you side-shift certain attachments, such as planers or trenchers, as this will tend to pull the machine to one side. You can also use it while driving on surfaces that cause the loader to gradually drift left or right, such as crowned roads. Make fine steering adjustments to either side and stay on target.

HORSEPOWER MANAGEMENT

Bobcat horsepower management automatically adjusts the loader drive system to maximize pushing and digging power while minimizing your chance of stalling. Unlike other anti-stall systems, Bobcat horsepower management lets the operator obtain maximum engine and drive torque to match the toughest digging conditions. If you prefer to work without it, simply disengage with the push of a button.

Use your iPhone® to control your machine remotely. Bobcat MaxControl remote operation is an iOS app that makes operating your machines easier and more convenient than ever before. It acts like an extra set of hands when help is limited. Two-person jobs can now be handled by one worker, and you can say goodbye to unnecessary trips in and out of the cab. Bobcat Maxcontrol Remote Control on Iphone
