- Horsepower
- 362.1 hp
- Operating weight
- 51,147 lb
- Rated payload
- 61,729 lb
- Body volume
- 22.0 yd³
More specifications
|
General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Develon |
| Model: | DA30-7 |
| Machine Type: | Other |
|
Engine
|
|
|---|---|
| Engine: | DCO9 |
| Horsepower: | 362.1 |
|
Performance
|
|
|---|---|
| Operating Weight: | 51147 lb |
|
Hydraulics
|
|---|
|
Dimensions
|
|
|---|---|
| Fuel Tank: | 95.6 gal |
Description

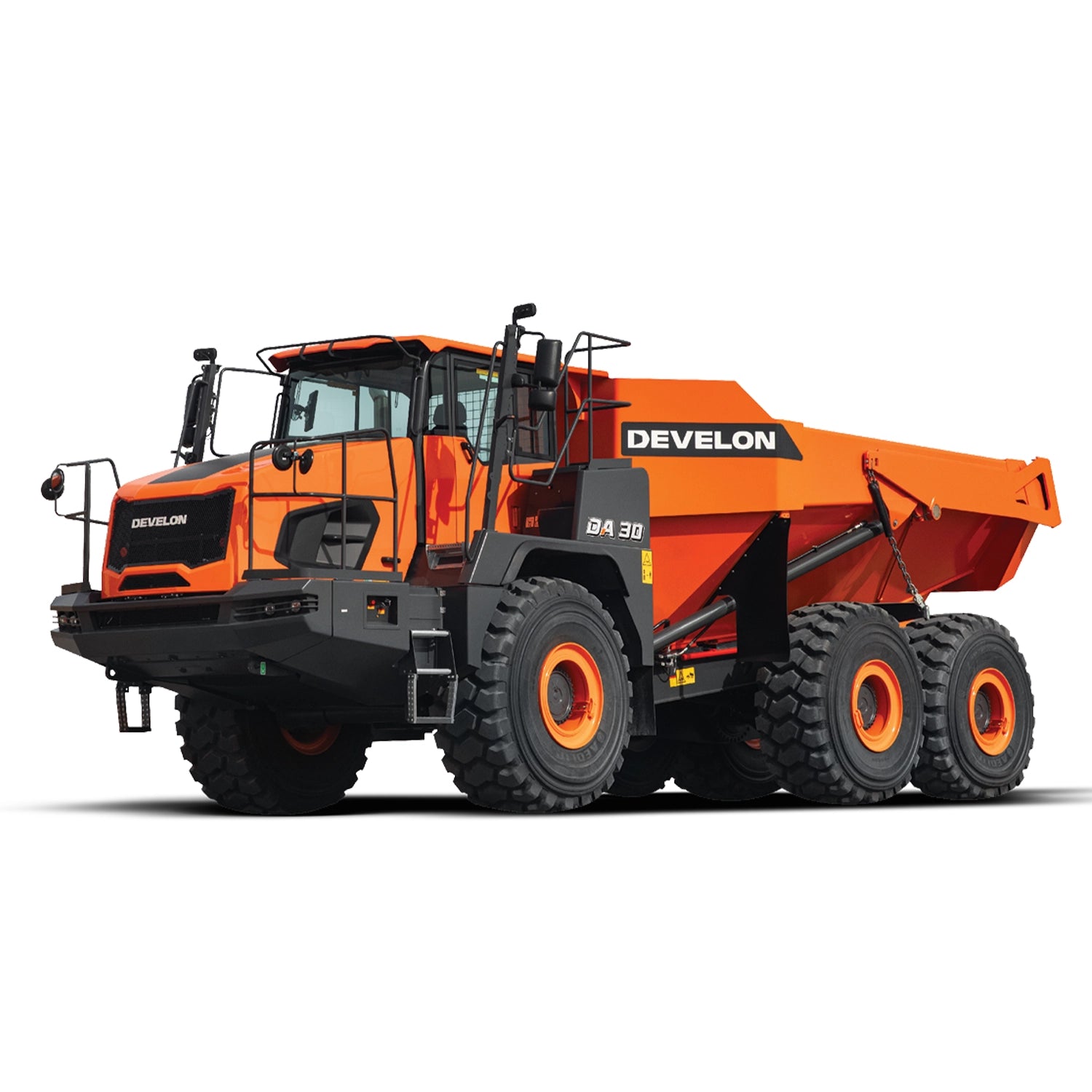

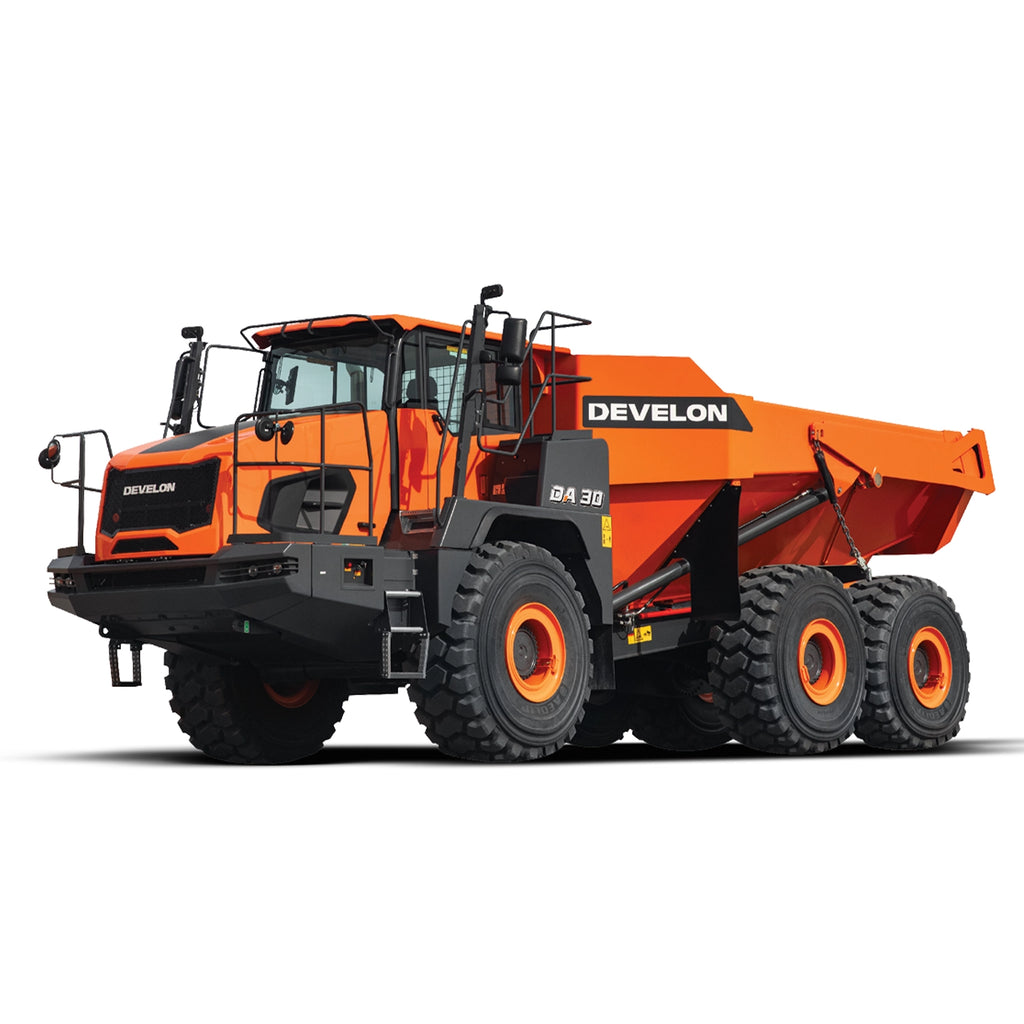

Develon DA30-7 Articulated Dump Truck
Built to Perform in Challenging Terrain
The Develon DA30-7 articulated dump truck is engineered to maximize productivity in demanding off-road applications, moving more material efficiently across rough terrain and challenging jobsites. Its innovative chassis design features a front-mounted turning ring, sloped rear frame, and free-swinging rear tandem bogie to maintain continuous six-wheel ground contact for superior traction and stability. A limited-slip differential automatically directs torque to the wheels with the best grip, delivering confident performance in difficult conditions, while the Auto Hold brake system reduces operator fatigue and minimizes transmission wear by automatically holding the truck in position when stopped.
Smooth Ride and Easy Transport
The DA30-7 is designed to provide exceptional ride quality and operator confidence. A hydro-gas, self-leveling front suspension system absorbs shocks and maintains stability over uneven terrain, delivering a smoother ride whether the truck is fully loaded or empty. Operators can also manually adjust suspension pressure to suit changing jobsite conditions. With an overall width of less than 10 feet, the DA30-7 is easy to transport between jobsites, reducing logistics challenges and increasing fleet flexibility.
Simplified Maintenance for Maximum Uptime
Routine maintenance is faster and more convenient thanks to ground-level access to fuel and diesel exhaust fluid (DEF) fill points, an easily accessible power module, and a centralized service panel. Common oil is shared between the wheel hubs, tandem rear bogie, and limited-slip differential to simplify servicing, while a larger 20-liter automatic grease system extends lubrication intervals and reduces maintenance time. Standard MY DEVELON fleet management allows owners to remotely monitor machine health, productivity, location, and maintenance information through lifetime cellular connectivity.
Premium Operator Comfort and Control
The redesigned automotive-style cab creates a comfortable and intuitive operating environment that helps operators stay productive throughout long workdays. Fully automatic climate control, a heated air-suspension seat, low interior noise levels, and responsive steering reduce fatigue while improving overall comfort. A high-performance vehicle control unit with a faster processor powers the intuitive 12-inch display, providing clear access to machine information, operating data, warnings, and multiple camera views. Standard electrically adjustable mirrors and convenient USB charging ports further enhance operator convenience.
Efficient Tier 4 Performance
The DA30-7 meets Tier 4 emissions requirements using a high-pressure common-rail (HPCR) fuel system combined with cooled exhaust gas recirculation (CEGR), a diesel oxidation catalyst (DOC), and selective catalytic reduction (SCR). This advanced emissions technology delivers dependable power, improved fuel efficiency, and environmentally compliant performance for demanding hauling applications.
Loan
Lease
Cash in Lieu
Warranty
See participating dealers for details.
*Program disclosure: 0% A.P.R. financing for up to 36 months and the cash-in-lieu rebate are mutually exclusive — select one or the other. Select models also carry an additional rebate that can be combined with either financing or cash in lieu; the up to $18,000 amount shown includes it. Lease options are available separately; contact dealer for terms and custom payment structures. Financing subject to credit approval through an authorized Develon financing provider. Rebate applied at time of purchase. 3 Year / 3,000-Hour Full Coverage standard warranty included with qualifying new Develon equipment purchases. Offers valid on qualifying new Develon models through participating dealers only. See dealer for complete details, eligibility requirements, and program end dates. Offers subject to change without notice.
What Makes the DA30-7 Different
A 28-metric-ton articulated hauler built for traction, stability and operator confidence on difficult terrain.
28-Metric-Ton Payload
A 61,729 lb rated payload and 23.3 yd³ heaped body with the standard tailgate move high volumes of dirt, rock, sand and gravel per cycle.
362.1 Net Horsepower
The 9.3 L Scania DC09 produces 362.1 net hp at 2,100 rpm and 1,381.5 lb-ft of gross torque at 1,300 rpm.
Permanent Six-Wheel Contact
A forward-mounted turning ring, sloping rear frame and free-swinging tandem bogie keep all six wheels engaged over uneven ground.
Full-Time 6×6 Traction
Limited-slip axle differentials and a lockable inter-axle differential distribute torque for grip in soft, muddy and steep conditions.
Self-Leveling Front Suspension
Semi-independent hydro-gas front suspension absorbs shocks and maintains ride quality, particularly when the truck is traveling empty.
Redesigned Automotive-Style Cab
A heated air-suspension seat, automatic climate control, 12-inch touch display and electrically adjustable heated mirrors support long shifts.
Auto-Hold Brake
Auto Hold secures the truck during loading, unloading and hill starts, then releases when sufficient drive torque is available.
Ground-Level Service Access
Ground-level fuel and DEF fill, a centralized maintenance panel, automatic lubrication and standard MY DEVELON simplify fleet care.
Compare the ADT Family
Choose the DA30-7 for lower ground pressure and small- to midsize earthmoving, or step up to the DA45-7 for larger construction and quarry payloads.
![]() | ![]() | |
| DA30-7 Viewing | DA45-7 | |
|---|---|---|
| Net Power | 362.1 hp @ 2,100 rpm | 482.8 hp @ 2,100 rpm |
| Rated Payload | 61,729 lb / 28,000 kg | 89,507 lb / 40,600 kg |
| Body Volume, Without Tailgate | 22.0 yd³ | 31.9 yd³ |
| Best Fit | Small- to midsize earthmoving; soft ground | Large construction, quarrying and longer hauls |
| Drive | Full-time 6×6 | Full-time 6×6 |
| Front Suspension | Self-leveling hydro-gas | Self-leveling hydro-gas |
| Operator Display | 12 in touch display | 12 in touch display |
| Fleet Management | MY DEVELON | MY DEVELON |
Current North American published figures. Body volume uses the without-tailgate configuration for a like-for-like family comparison.
DA30-7 Features & Benefits
Hauling Performance 6
61,729 lb Rated Payload
The DA30-7 is sized for small- to midsize earthmoving work and carries 28 metric tons per rated cycle.
High-Capacity Dump Body
The standard scissor tailgate increases heaped capacity from 22.0 to 23.3 yd³ and helps control material during travel.
Fast Dump Cycle
Twin double-acting hoist cylinders raise the body in 12 seconds and lower it in 10 seconds.
34.2 mph Maximum Speed
An electronically controlled eight-forward/four-reverse automatic transmission supports efficient travel between load and dump points.
Bed Heating
The standard bed heater helps prevent wet or cold material from sticking and reduces payload-robbing carryback.
Active Payload Information
The 12-inch monitor displays payload data so operators can optimize each cycle and avoid overloading.
Traction, Stability & Control 6
Free-Swinging Tandem Bogie
The gear-driven rear tandem oscillates independently to maintain ground contact and equal drive to the rear wheels.
Forward-Mounted Turning Ring
The articulation design and sloping rear frame improve weight distribution and stability through turns and uneven terrain.
Limited-Slip Differentials
The front axle has a 45% locking ratio and the rear axle has a 40% locking ratio to route torque where grip is available.
Lockable Inter-Axle Differential
The torque-proportioning center differential normally sends one-third of torque forward and two-thirds rearward and is 100% lockable.
Hydro-Gas Front Suspension
Self-leveling semi-independent suspension smooths rough haul roads and can be pressure-adjusted for operating conditions.
Four-Stage Retarder
The automatic hydrodynamic transmission retarder helps control downhill speed while reducing service-brake wear.
Operator Environment & Safety 6
12-Inch Touch Display
Large gauges and clear icons show speed, engine rpm, payload, gradient, temperatures, fuel and DEF information and camera views.
Auto-Hold Brake
The system automatically holds the stationary truck and supports smoother hill starts without two-foot operation.
Heated Air-Suspension Seat
A fully adjustable heated seat, automatic climate control and low 72 dB(A) interior sound level reduce fatigue.
ROPS/FOPS Cab
The pressurized, sound-suppressed cab meets ISO ROPS and FOPS standards and includes a rearview camera and all-around handrails.
Gradient Meter
Real-time incline and pitch information helps the operator monitor truck attitude on changing terrain.
Front Cab Entry
Front entry, a sloping hood and heated adjustable mirrors support visibility and safer access around the machine.
Serviceability & Fleet Support 5
Ground-Level Fill Points
Fuel and DEF fills and daily sight gauges are accessible from ground level for faster checks.
Tilting Cab & Accessible Power Module
The tilting cab, centralized maintenance panel and grouped hydraulic test ports simplify inspection and service.
Automatic Lubrication
A 20 L automatic grease system extends service intervals and supports consistent lubrication.
DPF-Free Tier 4 System
HPCR, cooled EGR, DOC and SCR/DEF meet Tier 4 requirements without a diesel particulate filter.
MY DEVELON
Standard telematics provides remote access to location, machine health, productivity and payload information.
Why Buyers Choose the DA30-7
61,729 lb rated payload for productive small- to midsize earthmoving
23.3 yd³ heaped capacity with the standard scissor tailgate
362.1 net hp and 34.2 mph maximum travel speed
Full-time 6×6 drive with limited-slip and lockable differentials
Permanent six-wheel contact from the free-swinging tandem bogie
Less-than-10-foot published width for easier site-to-site transport
Automotive-style cab with 12-inch display and Auto Hold
DPF-free Tier 4 system, automatic greasing and MY DEVELON
Who Uses the DA30-7 and What For
The DA30-7 fits operations that need high-volume hauling, low ground pressure and dependable traction without moving up to a larger 41-metric-ton truck.
Site Development
- Mass excavation
- Cut-and-fill work
- Road and utility projects
- Site grading support
Aggregates
- Sand and gravel hauling
- Quarry support
- Stockpile movement
- Crusher and plant feeding
Challenging Terrain
- Soft or muddy ground
- Uneven haul roads
- Steep grades
- Remote jobsites
Infrastructure
- Highway construction
- Land clearing
- Retention and drainage work
- Large commercial sites
The DA30-7 by the Numbers
A 28-metric-ton payload sized for productive small- to midsize earthmoving.
Published body capacity with the standard scissor tailgate installed.
Scania DC09 output at 2,100 rpm for loaded grades and haul roads.
Eight forward ratios support efficient cycling over longer jobsite hauls.
Limited-slip and lockable differentials work with the free-swinging tandem bogie.
Payload, gradient, cameras and operating data stay visible at eye level.
Talk to a person about the DA30-7
Carleton Equipment is a family-owned Michigan dealer, here since 1938. Sales, rental, service and parts all come from the same team, and we’ll connect you with the location nearest you.
- Chesterfield
- Coldwater
- Grand Rapids
- Howell
- Kalamazoo
- Livonia
- Saginaw
Full Specifications
Download Spec SheetGeneral
| Machine Type | Articulated dump truck |
| Rated Payload | 61,729 lbs / 28,000 kg |
| Operating Weight, Unloaded | 51,147 lbs |
| Drive | Full-time 6×6 |
| Standard Tires | 23.5 R25 radial |
Engine
| Make / Model | Scania DC09 |
| Cylinders | 5 |
| Displacement | 567.5 in³ / 9.3 L |
| Gross Power | 370.1 hp @ 2,100 rpm |
| Net Power | 362.1 hp @ 2,100 rpm |
| Maximum Gross Torque | 1,381.5 lb-ft @ 1,300 rpm |
| Emissions | Tier 4 Final; HPCR / CEGR / DOC / SCR / DEF; no DPF |
Performance
| Forward / Reverse Speeds | 8 / 4 |
| Maximum Forward Speed | 34.2 mph |
| Maximum Reverse Speed | 9.9 mph |
| Maximum Steering Angle | 45° |
| Turning Radius, Outer Wheel | 25 ft 7.4 in |
| Ground Clearance, Articulation | 2 ft 0.5 in |
| Transmission Retarder | Automatic hydrodynamic, 4 settings |
Dimensions
| Overall Length | 31 ft 3 in |
| Total Width, Outside Tires | 9 ft 10 in |
Dump Body
| Heaped Capacity, With Tailgate | 23.3 yd³ |
| Heaped Capacity, Without Tailgate | 22.0 yd³ |
| Level Capacity, With Tailgate | 18.6 yd³ |
| Level Capacity, Without Tailgate | 17.8 yd³ |
| Raise / Lower Time | 12 sec / 10 sec |
| Body Material | High-tensile HB400 steel |
| Tailgate / Bed Heating | Standard / Standard |
Hydraulics
| Main Pump Flow | 77.7 gpm |
| Main Relief Pressure | 4,061.1 psi |
| Emergency Steering Flow | 13.2 gpm |
| Steering System Pressure | 3,045.8 psi |
| Hoist / Steering Cylinders | 2 / 2 double-acting |
Capacities
| Fuel Tank | 95.6 gal |
| DEF Tank | 18.5 gal |
| Cooling System | 11.9 gal |
| Engine Oil | 9.2 gal |
| Transmission | 17.7 gal |
| Hydraulic Tank | 16.6 gal |
| Automatic Grease Tank | 20 L |
Chassis & Brakes
| Front Suspension | Semi-independent, self-leveling hydro-gas |
| Rear Suspension | Free-swinging tandem housing |
| Front / Rear Differential | Limited-slip, 45% / 40% locking ratio |
| Inter-Axle Differential | Torque proportioning, 100% lockable |
| Service Brakes | Dual circuit; oil-cooled wet multiple discs |
| Parking Brake | Spring applied, hydraulically released |
Operator & Service
| Display | 12 in touch-enabled |
| Cab Protection | ROPS / FOPS |
| Cab / Exterior Sound | 72 / 106 dB(A) |
| Climate Control | Automatic heat and air conditioning |
| Seat | Heated air suspension |
| Rearview Camera | Standard |
| MY DEVELON / Auto Lubrication | Standard / Standard |
Published North American specifications for the standard DA30-7 with 23.5 R25 tires. Equipment and operating conditions can affect dimensions, weights and capacities; confirm the selected configuration with Carleton Equipment.
