DA45-7 | Develon

Rebates & Special Offers

View Full Offer

Get as low as 0% for 36 months* or Up to $18,000 cash back* in lieu of financing.

Horsepower
482.8 hp
Operating weight
67,240 lb
Rated payload
89,507 lb
Body volume
31.9 yd³
See full specifications
More specifications
General Info
Condition: Showroom
Manufacturer: Develon
Model: DA45-7
Machine Type: Other
Engine
Engine: DC13
Horsepower: 482.8
Performance
Operating Weight: 67240 lb
Hydraulics
Dimensions
Fuel Tank: 129.7 gal

Description

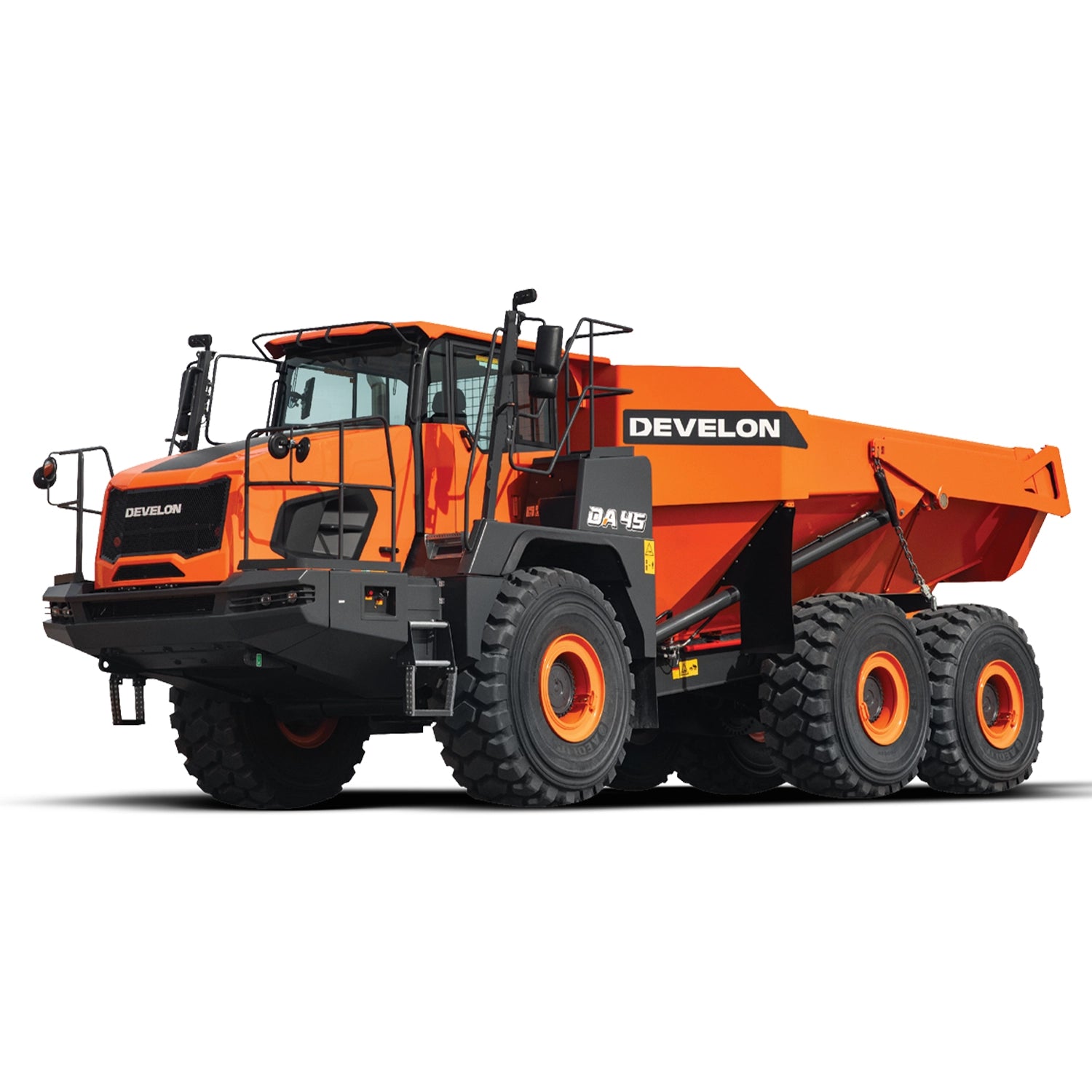

Develon DA45-7 Articulated Dump Truck

Maximum Performance with High Payload Capacity

The Develon DA45-7 articulated dump truck is built to handle the toughest hauling applications in construction, quarry, and mining environments. Its high payload capacity, advanced technology, and rugged design allow operators to move more material efficiently while maintaining excellent stability on challenging terrain. An integrated active payload meter uses a simple traffic light indicator to help prevent overloading and maximize hauling efficiency. Develon's unique chassis design, featuring a front-mounted turning ring, sloped rear frame, and free-swinging rear tandem bogie, maintains constant six-wheel ground contact for superior traction and control. A limited-slip differential automatically transfers torque to the wheels with the greatest grip, while the Auto Hold brake system reduces operator fatigue and minimizes transmission wear by holding the truck securely when stopped.

Smooth Ride and Operator Comfort

Designed for long hours in demanding conditions, the DA45-7 features a hydro-gas, self-leveling front suspension system that delivers exceptional ride quality and shock absorption. The suspension automatically adjusts to changing loads while allowing manual pressure adjustments to match specific operating conditions. This advanced system improves operator comfort and machine stability, especially when traveling with an empty truck. With an overall width of less than 12 feet, the DA45-7 is also easier to transport between jobsites, reducing transportation challenges and improving fleet flexibility.

Simplified Maintenance and Greater Uptime

Routine maintenance is streamlined with ground-level access to fuel and diesel exhaust fluid (DEF) fill points, a centralized maintenance panel, and an easily accessible power module. Common oil shared between the wheel hubs, tandem rear bogie, and limited-slip differential simplifies servicing, while a larger 20-liter automatic grease system extends lubrication intervals and reduces maintenance requirements. Improved grease distribution further minimizes service demands, and available options such as a diesel-powered engine heater and fuel pump enhance cold-weather operation. Standard MY DEVELON fleet management provides lifetime cellular connectivity for remote monitoring of machine health, location, maintenance schedules, and productivity.

Premium Cab Designed for Productivity

The redesigned automotive-style cab offers a comfortable, intuitive operating environment that helps operators remain productive throughout the workday. Fully automatic climate control, a heated air-suspension seat, responsive steering, and low interior noise levels reduce fatigue and improve overall comfort. A powerful vehicle control unit supports a large 12-inch display that provides clear access to machine information, engine data, warnings, and multiple camera views through easy-to-read graphics. Standard electrically adjustable mirrors and USB charging ports add convenience while enhancing operator awareness and efficiency.

Efficient Tier 4 Performance

The DA45-7 meets Tier 4 emissions requirements using a high-pressure common-rail (HPCR) fuel system combined with cooled exhaust gas recirculation (CEGR) and selective catalytic reduction (SCR). This advanced emissions technology delivers dependable power, improved fuel efficiency, and environmentally compliant performance while maintaining the productivity required for demanding hauling applications.

Loan

0%
for up to 36 months*
Financing Available

Lease

Flexible
Aggressive lease payments available. Custom or seasonal payment structures also available.
Lease Options

Cash in Lieu

Up to $18,000
cash back in lieu of financing
Customer Rebate

Warranty

3 Year / 3,000-Hour Full Coverage
Full machine coverage
Standard Included

See participating dealers for details.

*Program disclosure: 0% A.P.R. financing for up to 36 months and the cash-in-lieu rebate are mutually exclusive — select one or the other. Select models also carry an additional rebate that can be combined with either financing or cash in lieu; the up to $18,000 amount shown includes it. Lease options are available separately; contact dealer for terms and custom payment structures. Financing subject to credit approval through an authorized Develon financing provider. Rebate applied at time of purchase. 3 Year / 3,000-Hour Full Coverage standard warranty included with qualifying new Develon equipment purchases. Offers valid on qualifying new Develon models through participating dealers only. See dealer for complete details, eligibility requirements, and program end dates. Offers subject to change without notice.

DA45-7 Key Features

What Makes the DA45-7 Different

A 40.6-metric-ton articulated hauler built for high-volume off-road construction, quarry and mining work.

40.6-Metric-Ton Payload

An 89,507 lb rated payload and 34.1 yd³ heaped body with the standard tailgate move high volumes per cycle.

482.8 Net Horsepower

The 12.7 L Scania DC13 produces 482.8 net hp at 2,100 rpm and 1,750.2 lb-ft of gross torque at 1,300 rpm.

Permanent Six-Wheel Contact

A forward-mounted turning ring, sloping rear frame and free-swinging tandem bogie maintain contact over uneven ground.

Full-Time 6×6 Traction

Limited-slip axle differentials and a lockable inter-axle differential distribute torque in difficult off-road conditions.

Active Payload Meter

In-cab payload data and a standard external traffic-light indicator help loading operators fill the truck without overloading it.

Self-Leveling Front Suspension

Semi-independent hydro-gas suspension absorbs haul-road shocks and improves the empty-truck ride.

Automotive-Style Cab

Automatic climate control, a heated air-suspension seat, 12-inch display and electrically adjustable mirrors support long shifts.

Auto-Hold Brake

Auto Hold secures the truck during loading, unloading and hill starts, then releases when drive torque is available.

DEVELON Articulated Dump Trucks

Compare the ADT Family

Choose the DA30-7 for lower ground pressure and small- to midsize earthmoving, or the DA45-7 for larger construction and quarry payloads.

DEVELON DA30-7 articulated dump truckDEVELON DA45-7 articulated dump truck
DA30-7DA45-7 Viewing
Net Power362.1 hp @ 2,100 rpm482.8 hp @ 2,100 rpm
Rated Payload61,729 lb / 28,000 kg89,507 lb / 40,600 kg
Body Volume, Without Tailgate22.0 yd³31.9 yd³
Best FitSmall- to midsize earthmoving; soft groundLarge construction, quarrying and longer hauls
DriveFull-time 6×6Full-time 6×6
Front SuspensionSelf-leveling hydro-gasSelf-leveling hydro-gas
Operator Display12 in touch display12 in touch display
Fleet ManagementMY DEVELONMY DEVELON

Current North American published figures. Body volume uses the without-tailgate configuration for a like-for-like comparison.

DA45-7

DA45-7 Features & Benefits

Hauling Performance 6
89,507 lb Rated Payload

The DA45-7 is the larger DEVELON ADT for high-volume construction, quarry, mining and longer-haul applications.

High-Capacity Dump Body

The standard scissor tailgate increases heaped capacity from 31.9 to 34.1 yd³ and helps control material during travel.

10-Second Dump Cycle

Twin double-acting hoist cylinders raise the body in 10 seconds and lower it in 10 seconds.

34.2 mph Maximum Speed

The electronically controlled eight-forward/four-reverse transmission supports efficient loaded and empty travel.

Bed Heating

The standard bed heater helps prevent sticky material and cold-weather carryback from reducing effective payload.

Active Payload Measurement

The in-cab display and external indicator give both truck and loading operators real-time payload guidance.

Traction, Stability & Control 6
Free-Swinging Tandem Bogie

The gear-driven rear tandem oscillates independently to maintain ground contact and equal drive to the rear wheels.

Forward-Mounted Turning Ring

The articulation design and sloping rear frame improve weight distribution, stability and ground contact through turns.

Limited-Slip Differentials

The front axle has a 45% locking ratio and the rear axle has a 40% locking ratio.

Lockable Inter-Axle Differential

The torque-proportioning center differential normally sends one-third of torque forward and two-thirds rearward and is 100% lockable.

Hydro-Gas Front Suspension

Self-leveling semi-independent suspension smooths rough haul roads and can be pressure-adjusted for conditions.

Four-Stage Retarder

The automatic hydrodynamic transmission retarder helps control downhill speed and reduce service-brake wear.

Operator Environment & Safety 6
12-Inch Touch Display

The display shows speed, rpm, payload, gradient, temperatures, fuel and DEF data, warnings and camera views.

Auto-Hold Brake

The system holds the stationary truck and supports smoother hill starts without two-foot operation.

Heated Air-Suspension Seat

A heated adjustable seat, automatic climate control and 70 dB(A) published cab sound level reduce fatigue.

ROPS/FOPS Cab

The pressurized cab meets ISO ROPS and FOPS standards and includes a rearview camera and all-around handrails.

Gradient Meter

Real-time incline and pitch information helps operators monitor truck attitude on changing terrain.

External Payload Indicator

The standard traffic-light-style indicator helps the loading operator prevent underloading and overloading.

Serviceability & Fleet Support 5
Ground-Level Fill Points

Fuel and DEF fills and daily sight gauges are accessible from ground level.

Tilting Cab & Accessible Power Module

The tilting cab, centralized panel and grouped hydraulic test ports simplify service.

Automatic Lubrication

A 20 L automatic grease system supports consistent lubrication and longer service intervals.

DPF-Free Tier 4 System

HPCR, cooled EGR and SCR/DEF meet Tier 4 requirements without a diesel particulate filter.

MY DEVELON

Standard telematics provides remote access to location, health, productivity and payload information.

DEVELON DA45-7 Articulated Dump Truck

Why Buyers Choose the DA45-7

89,507 lb rated payload for large construction, quarry and mining work

34.1 yd³ heaped capacity with the standard scissor tailgate

482.8 net hp and 34.2 mph maximum travel speed

Full-time 6×6 drive with limited-slip and lockable differentials

Permanent six-wheel contact from the free-swinging tandem bogie

Active payload meter with standard external loading indicator

Automotive-style cab with 12-inch display and Auto Hold

DPF-free Tier 4 system, automatic greasing and MY DEVELON

Customers & Applications

Who Uses the DA45-7 and What For

The DA45-7 is built for operations where maximum payload per cycle matters across demanding terrain and longer haul distances.

Quarries & Aggregates

  • Rock and overburden hauling
  • Crusher and plant feeding
  • Stockpile movement
  • Sand and gravel production

Heavy Construction

  • Mass excavation
  • Highway and infrastructure
  • Large commercial sites
  • Long-haul cut-and-fill work

Mining

  • Mine development
  • Waste and aggregate movement
  • Support-road hauling
  • Challenging off-road cycles

Demanding Terrain

  • Uneven haul roads
  • Soft or muddy ground
  • Steep grades
  • Remote jobsites
DEVELON DA45-7 Articulated Dump Truck

The DA45-7 by the Numbers

Rated Payload
89,507 lb

A 40.6-metric-ton payload for high-volume hauling.

Heaped Capacity
34.1 yd³

Published body capacity with the standard tailgate.

Net Power
482.8 hp

Scania DC13 output at 2,100 rpm.

Maximum Speed
34.2 mph

Eight forward ratios support efficient haul cycles.

Driveline
Full-Time 6×6

Limited-slip and lockable differentials maintain traction.

Payload Guidance
Inside & Out

In-cab measurement plus an external loading indicator.

Talk to a person about the DA45-7

Carleton Equipment is a family-owned Michigan dealer, here since 1938. Sales, rental, service and parts all come from the same team, and we’ll connect you with the location nearest you.

  • Chesterfield
  • Coldwater
  • Grand Rapids
  • Howell
  • Kalamazoo
  • Livonia
  • Saginaw

Full Specifications

Download Spec Sheet
General
Machine TypeArticulated dump truck
Rated Payload89,507 lbs / 40,600 kg
Operating Weight, Unloaded67,240 lbs
DriveFull-time 6×6
Standard Tires29.5 R25 radial
Engine
Make / ModelScania DC13
Cylinders6
Displacement775.0 in³ / 12.7 L
Gross Power493.5 hp @ 2,100 rpm
Net Power482.8 hp @ 2,100 rpm
Maximum Gross Torque1,750.2 lb-ft @ 1,300 rpm
EmissionsTier 4 Final; HPCR / CEGR / SCR / DEF; no DPF
Performance
Forward / Reverse Speeds8 / 4
Maximum Forward Speed34.2 mph
Maximum Reverse Speed10.6 mph
Maximum Steering Angle45°
Turning Radius, Outer Wheel27 ft 11.5 in
Ground Clearance, Articulation2 ft 4.3 in
Transmission RetarderAutomatic hydrodynamic, 4 settings
Dimensions
Overall Length34 ft 11 in
Total Width, Outside Tires11 ft 5 in
Dump Body
Heaped Capacity, With Tailgate34.1 yd³
Heaped Capacity, Without Tailgate31.9 yd³
Level Capacity, With Tailgate26.8 yd³
Level Capacity, Without Tailgate25.9 yd³
Raise / Lower Time10 sec / 10 sec
Body MaterialHigh-tensile HB400 steel
Tailgate / Bed HeatingStandard / Standard
Hydraulics
Main Pump Flow77.7 gpm
Main Relief Pressure4,061.1 psi
Emergency Steering Flow13.2 gpm
Steering System Pressure3,045.8 psi
Hoist / Steering Cylinders2 / 2 double-acting
Capacities
Fuel Tank129.7 gal
DEF Tank18.5 gal
Cooling System13.2 gal
Engine Oil11.9 gal
Transmission18.2 gal
Hydraulic Tank16.6 gal
Automatic Grease Tank20 L
Chassis & Brakes
Front SuspensionSemi-independent, self-leveling hydro-gas
Rear SuspensionFree-swinging tandem housing
Front / Rear DifferentialLimited-slip, 45% / 40% locking ratio
Inter-Axle DifferentialTorque proportioning, 100% lockable
Service BrakesDual circuit; oil-cooled wet multiple discs
Parking BrakeSpring applied, hydraulically released
Operator & Service
Display12 in touch-enabled
Cab ProtectionROPS / FOPS
Cab / Exterior Sound70 / 104 dB(A)
Climate ControlAutomatic heat and air conditioning
SeatHeated air suspension
Rearview CameraStandard
External Payload IndicatorStandard
MY DEVELON / Auto LubricationStandard / Standard

Current DEVELON North America DA45-7 family-page values take precedence for headline payload and without-tailgate body volume. Detailed values are from official sales specifications 26909_002_D091726 for the standard truck with 29.5 R25 tires. Confirm the selected configuration with Carleton Equipment.
