T7X | Bobcat

ELECTRIC
Stock:
In stock
General Info
Condition: Showroom
Manufacturer: Bobcat
Model: T7X
Machine Type: Compact Track Loader
Engine
Performance
Tipping Load: 8429 lbs.
Operating Weight: 11970 lb
Hydraulics
Dimensions

Description

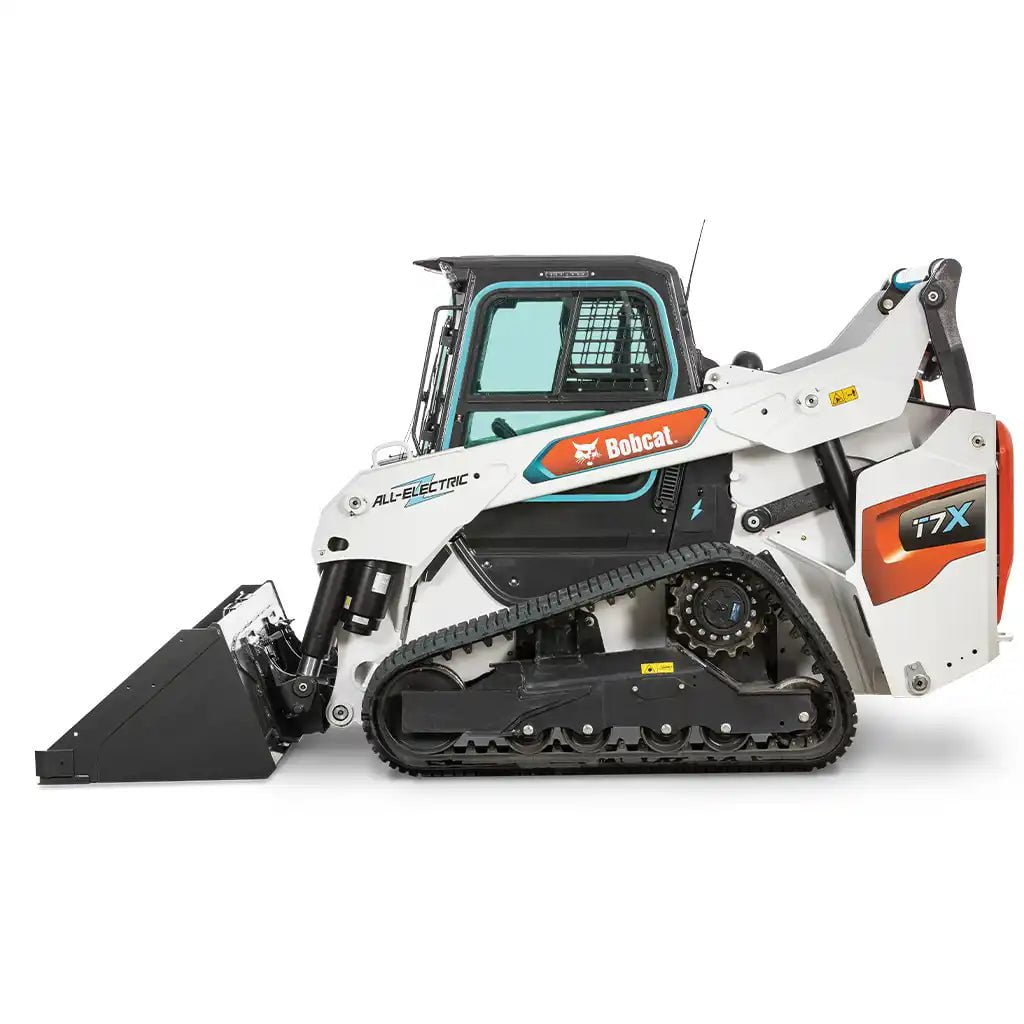

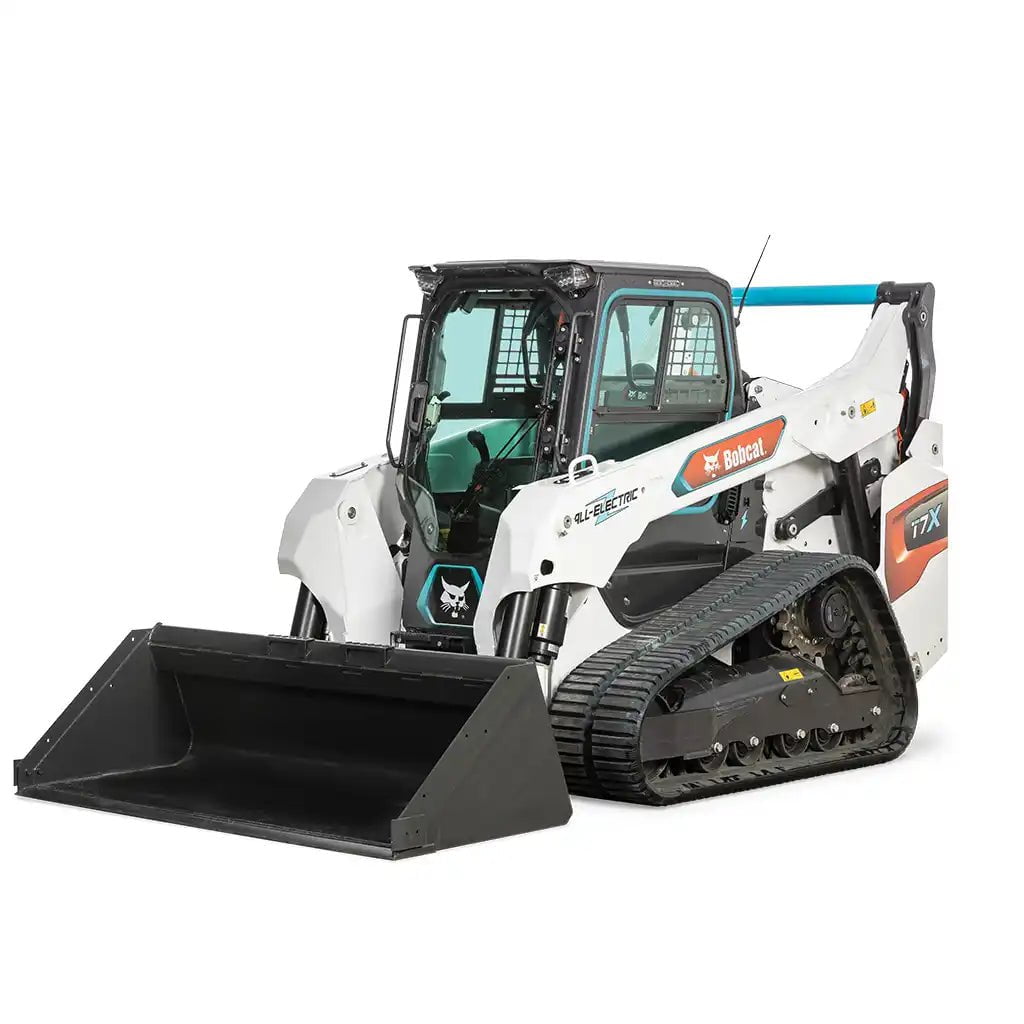

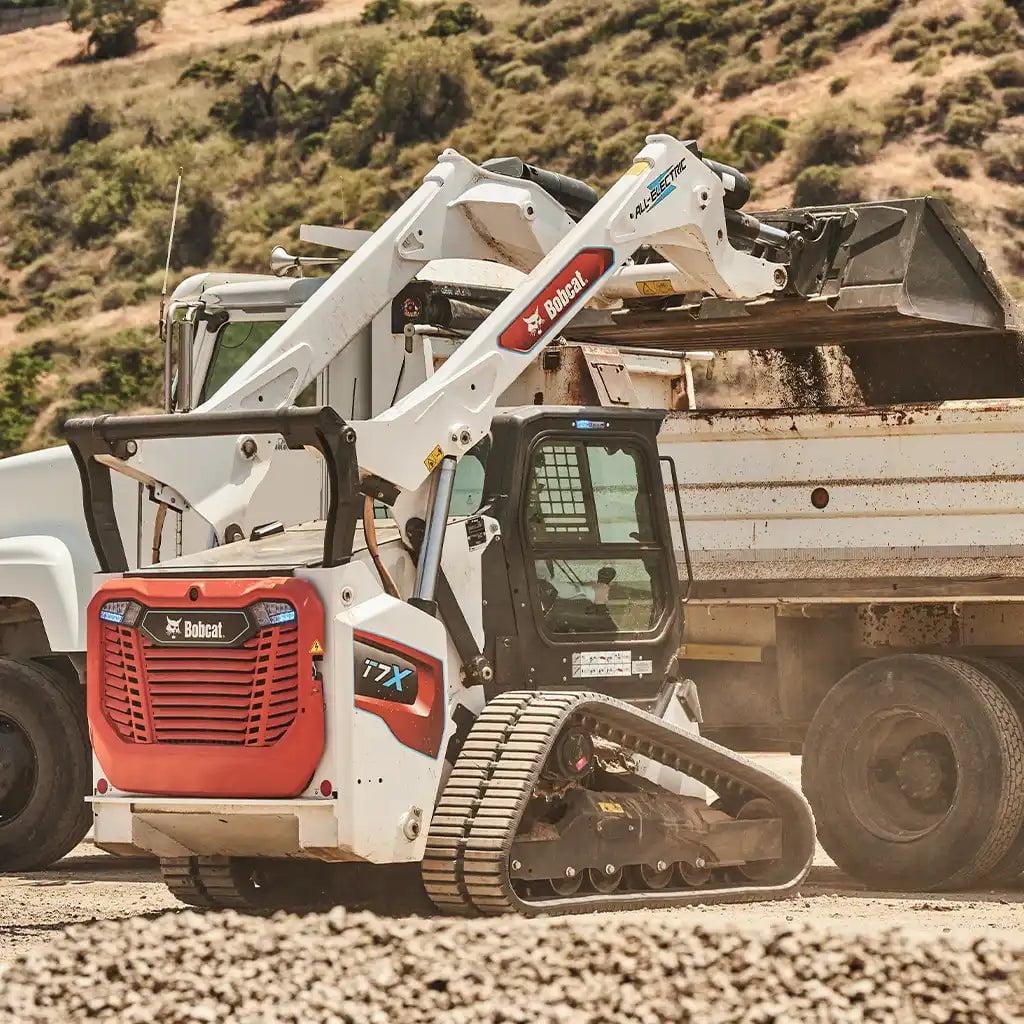

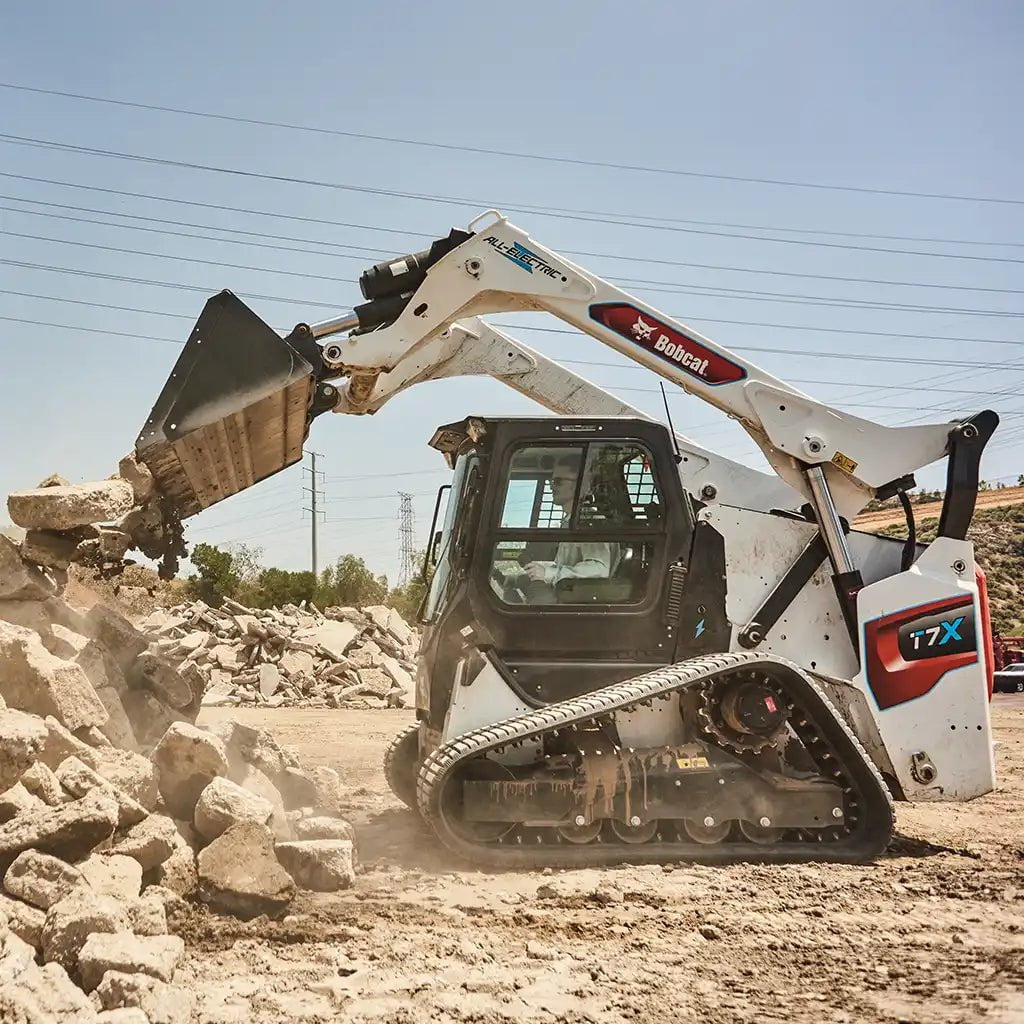

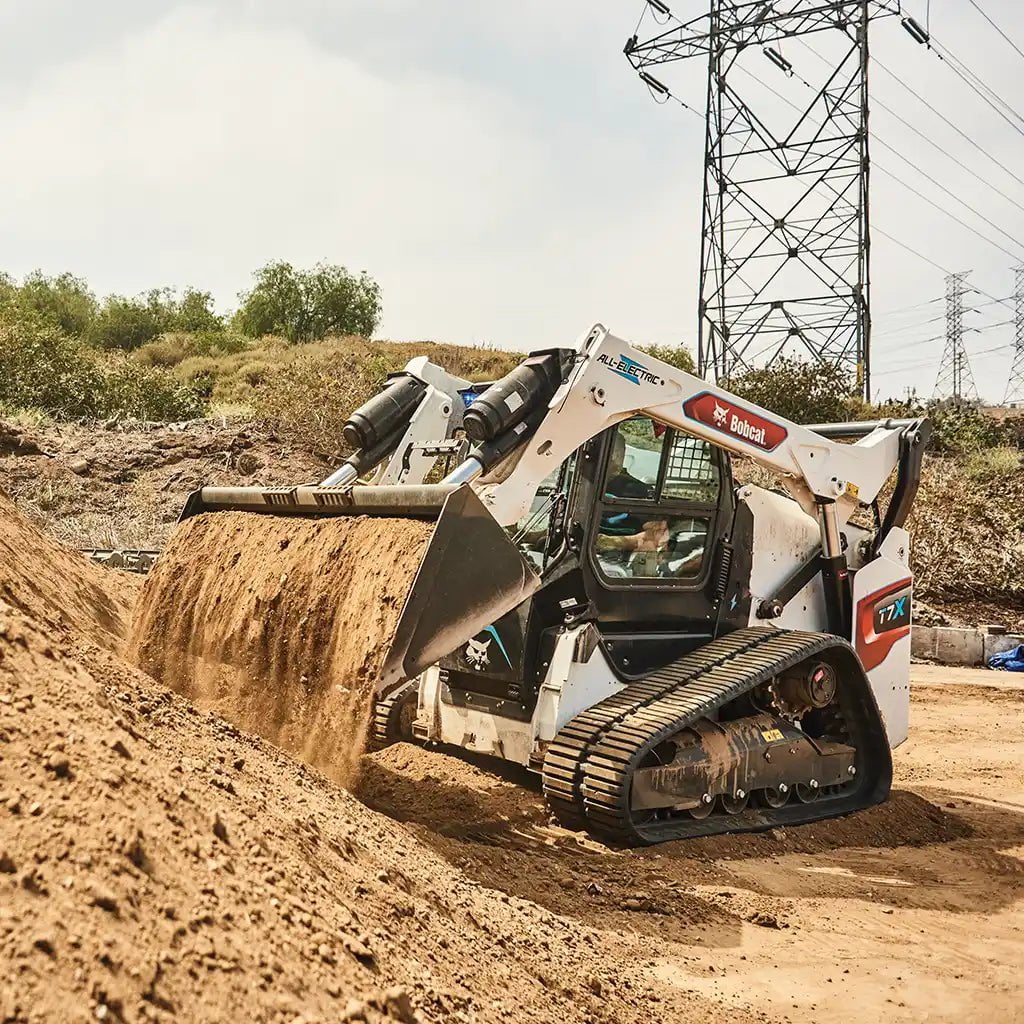

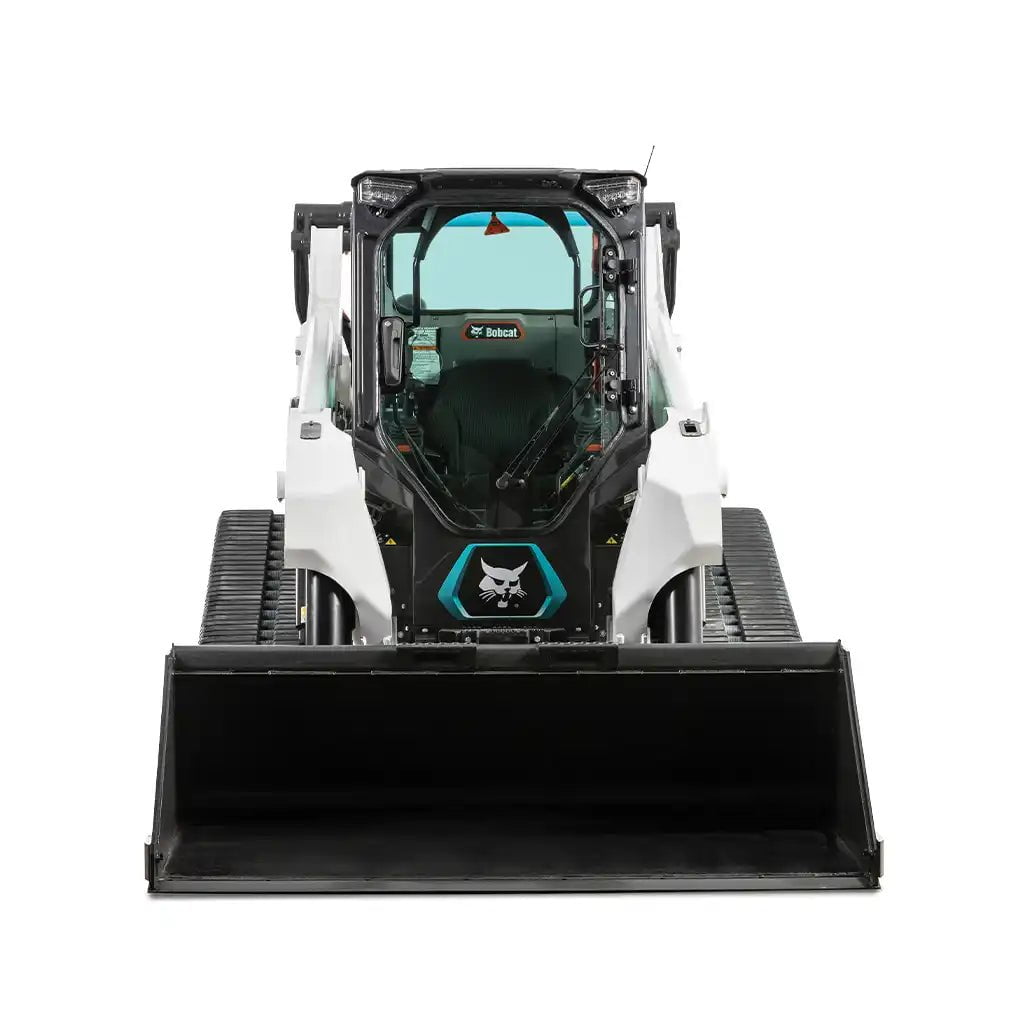

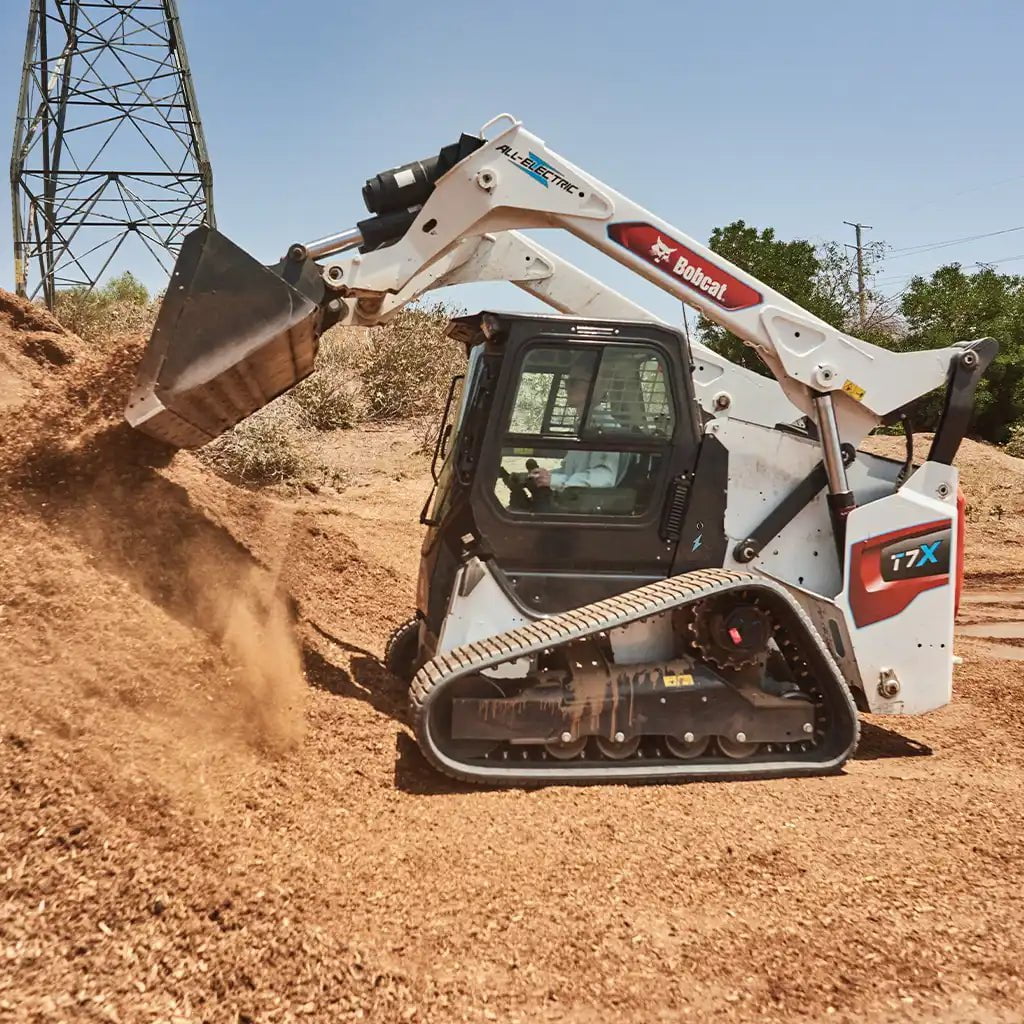

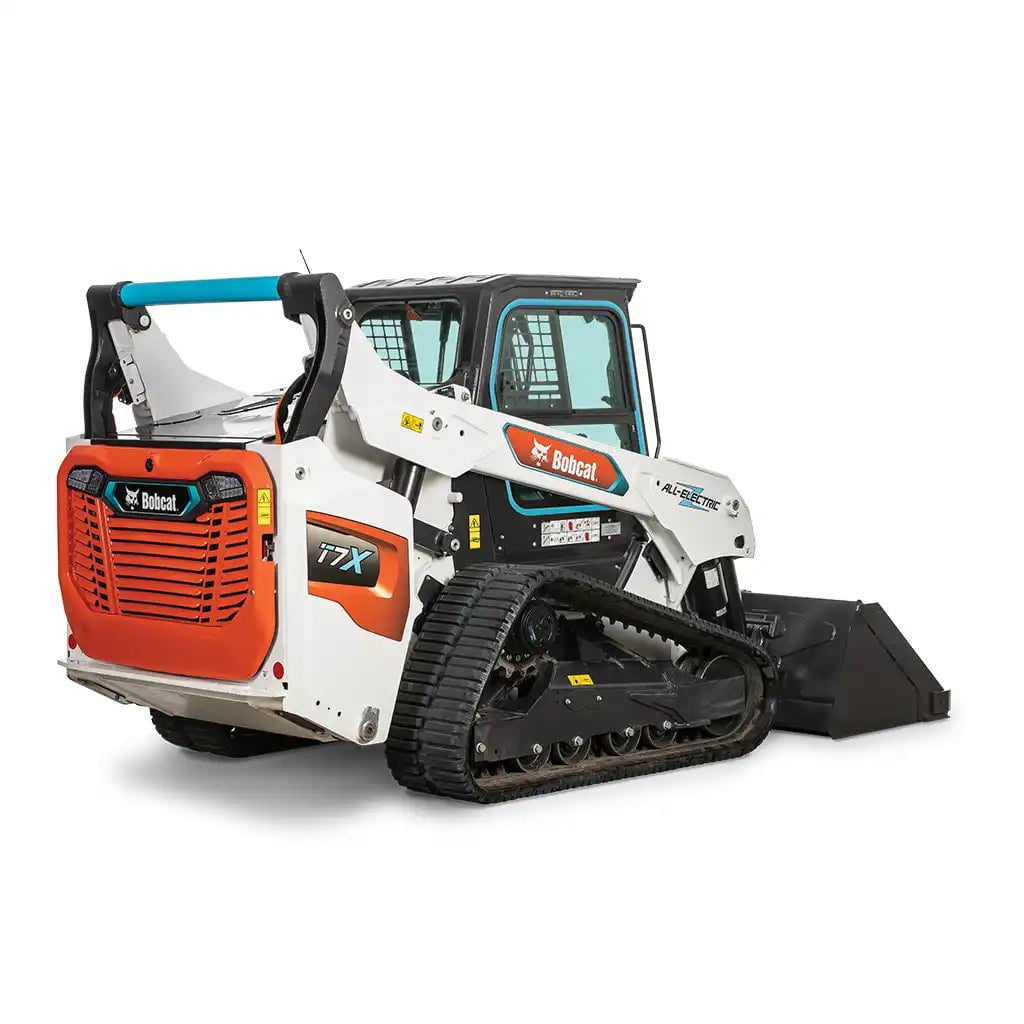

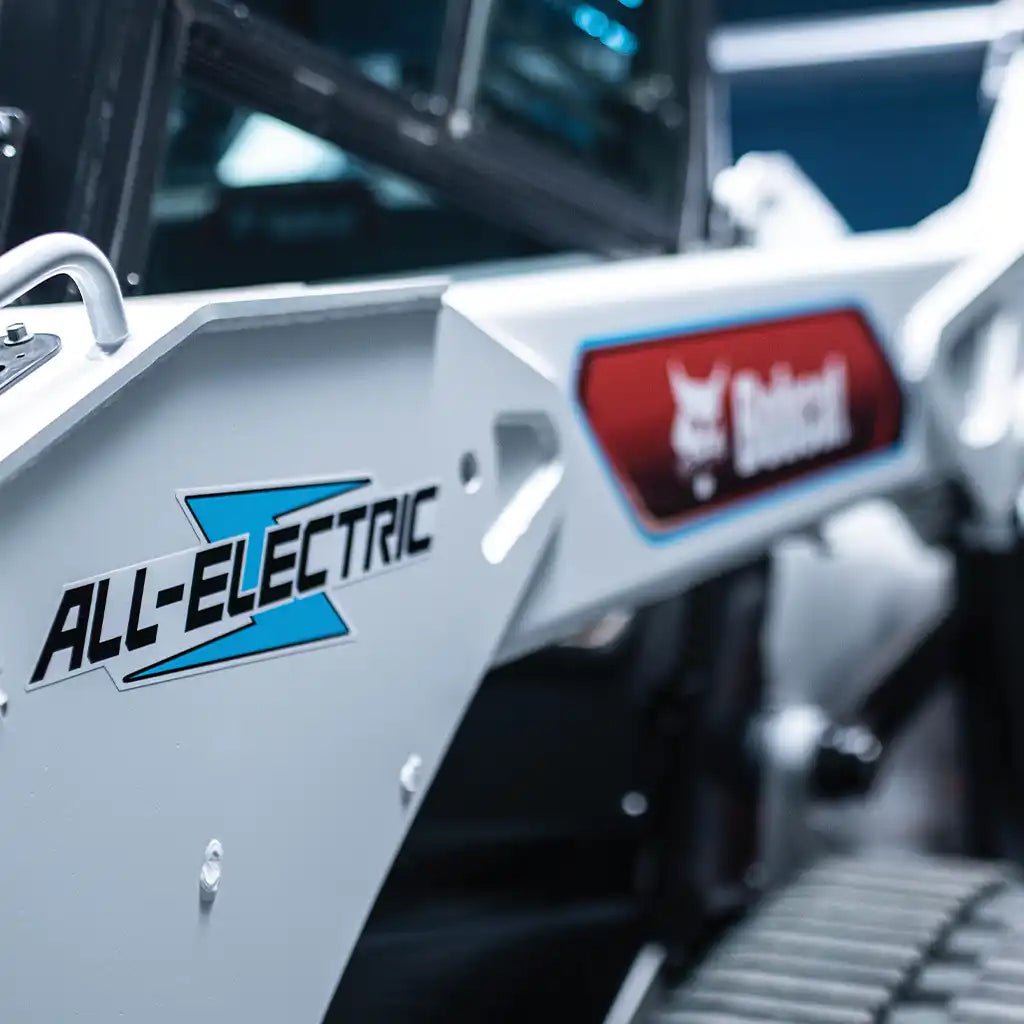

Bobcat T7X Electric Compact Track Loader

The T7X and S7X are leading the compact equipment industry’s charge to an all-electric, emissions-free future. Since inventing the world’s first skid-steer loader more than 60 years ago, Bobcat Company has continued to develop leading innovations that move the equipment industry forward and redefine what is possible. With the Bobcat® T7X and S7X, the world’s first all-electric compact loader equipment, we’re inventing for the jobsites of tomorrow.



Configuration T7X
Rated Operating Capacity (ROC) (35% of tipping loader) 2,900 lb.
Tipping Load 8,429 lb.
Lift Arm Path Vertical
Operating Weight 11,970 lb.
Breakout Force- Lift 7,500 lb.
Breakout Force- Lift- Machine Limitation (hyd/tip) Tip
Breakout Force- Tilt 8,108 lb.
Travel Speed- Single Speed 5.0 mph
Travel Speed- 2-Speed High 7.8 mph
Battery Type Lithium Ion
Gross Battery Capacity 60.5 kWh
System Voltage 336-465 VDC
Peak Power Appox. 80 kW (107 hp)
Motor Type Permanent Magnet (Brushless)
CO2 Emissions None
Bystander Noise Level 92.7 dB
Operator Position Noise Level 65.4 dB

Minimal Maintenance

With 50% fewer components, simple componentry, and 96% less fluid, you’ll drastically reduce maintenance and simplify troubleshooting with all-electric loaders.

Ultimate Bobcat Experience

The electric power system of the T7X and S7X takes Bobcat’s reputation for leading operator comfort to a whole new level, with drastically reduced noise and less vibration. Our all-electric compact loaders have familiar controls and instrumentation that are consistent with its diesel-powered counterparts.

Zero Emission, Quiet Operation

Tackle tough jobs indoors where the alternative is often intensive and costly manual labor. The near-silent T7X & S7X can also be operated at all hours of the day, even where noise restrictions can otherwise limit work hours.

Compare the Family

Bobcat Compact Track Loaders

Bobcat T450 compact track loader Bobcat T550 compact track loader Bobcat T595 compact track loader Bobcat T62 compact track loader Bobcat T64-2 compact track loader Bobcat T66-2 compact track loader Bobcat T650 compact track loader Bobcat T76-2 compact track loader Bobcat T86-2 compact track loader
T450 T550 T595 T62 T64-2 T66-2 T650 T76-2 T86-2
Frame / RoleCompact classicMid-size classicCurrent classicNon-current mid-frameMid-frameMid-frameLarger classicLarge-frameHigh-output large-frame
Horsepower55 hp68 hp70 hp68 hp68 hp74 hp74 hp74 hp115 hp
Rated Operating Capacity1,490 lbs1,995 lbs2,100 lbs2,150 lbs2,300 lbs2,400 lbs2,500 lbs2,900 lbs3,925 lbs
Tipping Load4,257 lbs5,700 lbs6,000 lbs6,143 lbs6,571 lbs6,857 lbs7,143 lbs8,285 lbs11,214 lbs
Operating Weight6,424 lbs7,557 lbs7,906 lbs8,612 lbs8,440 lbs8,560 lbs8,980 lbs9,592 lbs12,104 lbs
Travel Speed7 / 11 mph7.1 / 10.4 mph7.1 / 10.4 mph7.2 mph6.4 / 9.3 mph5.5 / 9.3 mph6 / 8.7 mph6.8 / 9.2 mph5.5 / 10.7 mph
Standard Aux Flow16.7 gpm17.1 gpm17.1 gpm17.6 gpm17.6 gpm17.6 gpm23 gpm23.3 gpm23 gpm
High / Super Flow26.7 gpm26.7 gpm26.9 gpm26.9 gpm26.9 gpm30.5 gpm30.3 gpm36.6 / 42 gpm
Height to Hinge Pin109.5 in114.5 in119 in114.5 in120 in120 in124 in128.3 in144 in
Overall Width55 in67 in66.6 in67 in67.8 in67.8 in72.9 in73.5 in78 in

Specs are model-level published values. Confirm final configuration, options and current availability with your Carleton Equipment location.

Compact Track Loaders

Two Paths: Classic or Pro

Not sure which tier fits your application? Compare the full CTL lineup side by side.

Explore the Lineup

Full Specifications

General
ConditionShowroom
Machine TypeCompact Track Loader
Engine
Performance
Tipping Load8429 lbs.
Hydraulics
Dimensions & Weight
Operating Weight11970 lb

Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
