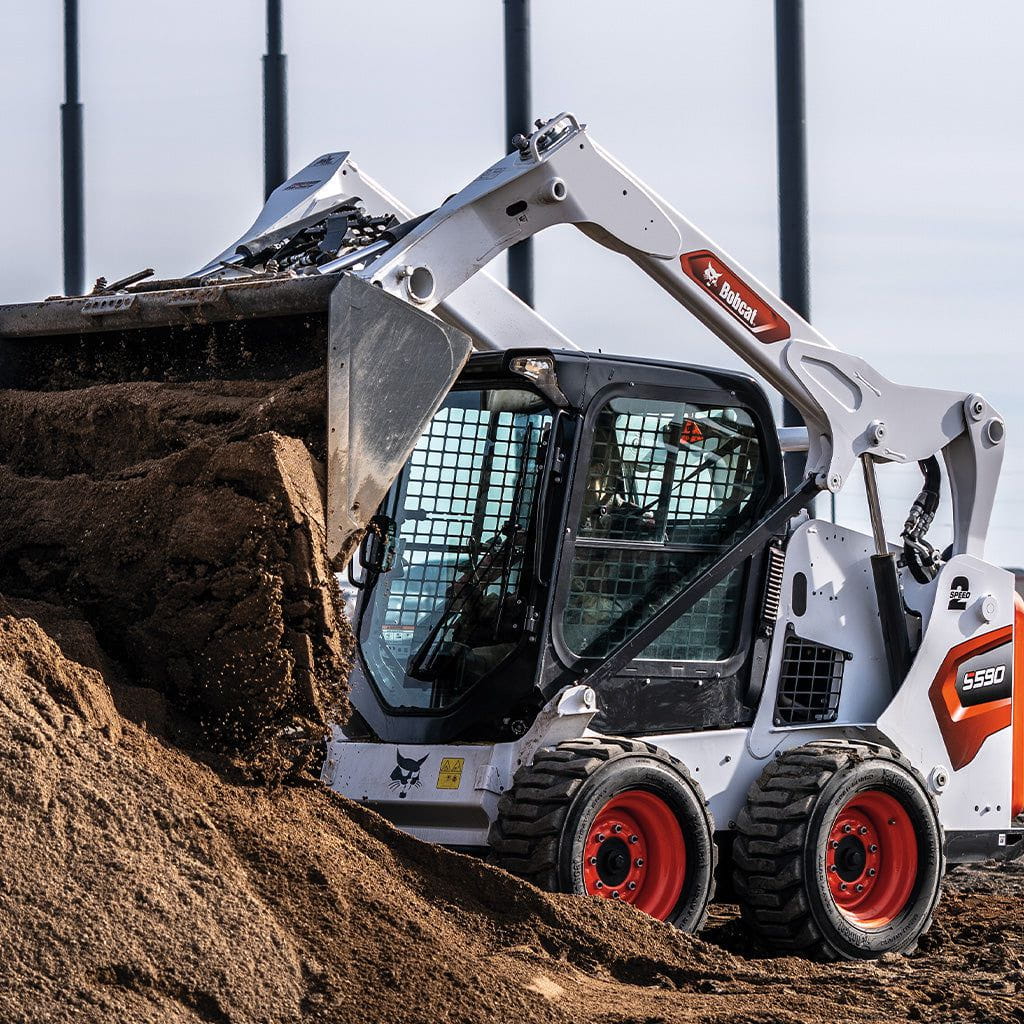

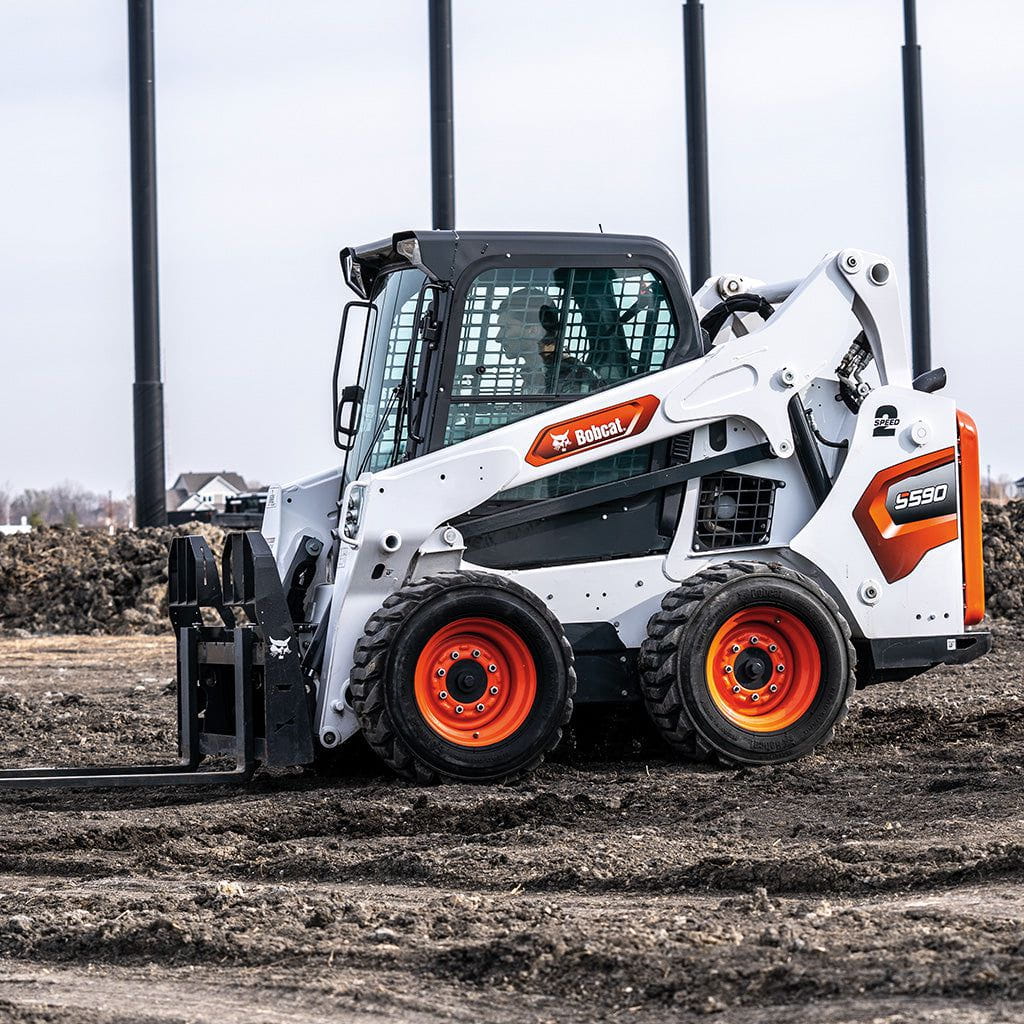

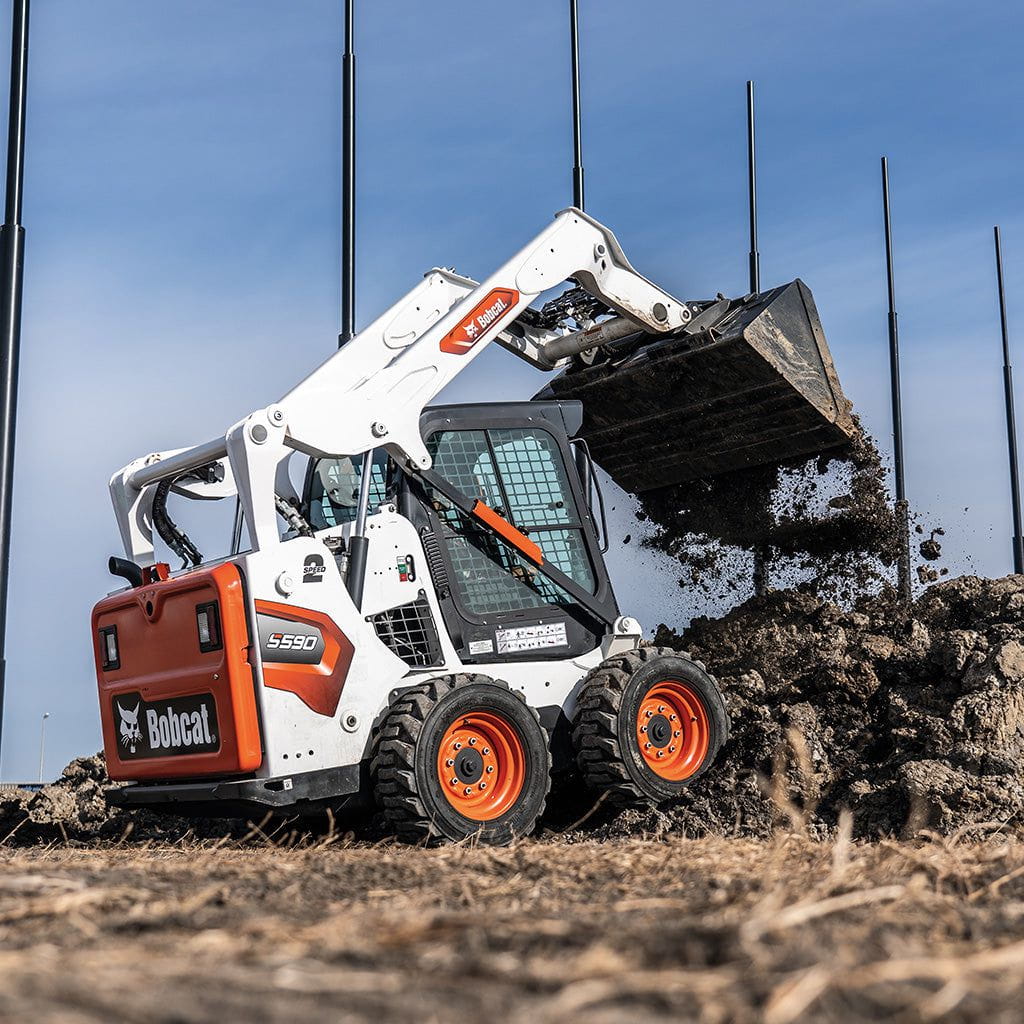

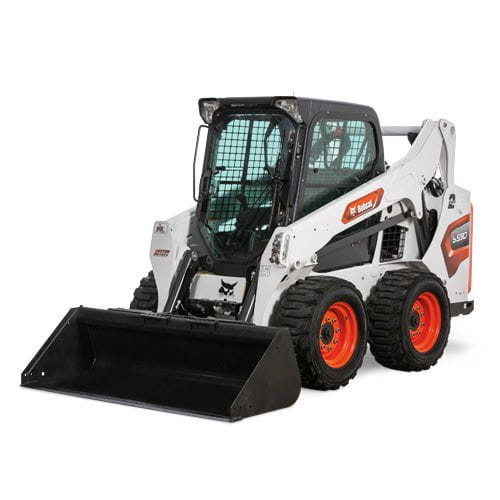

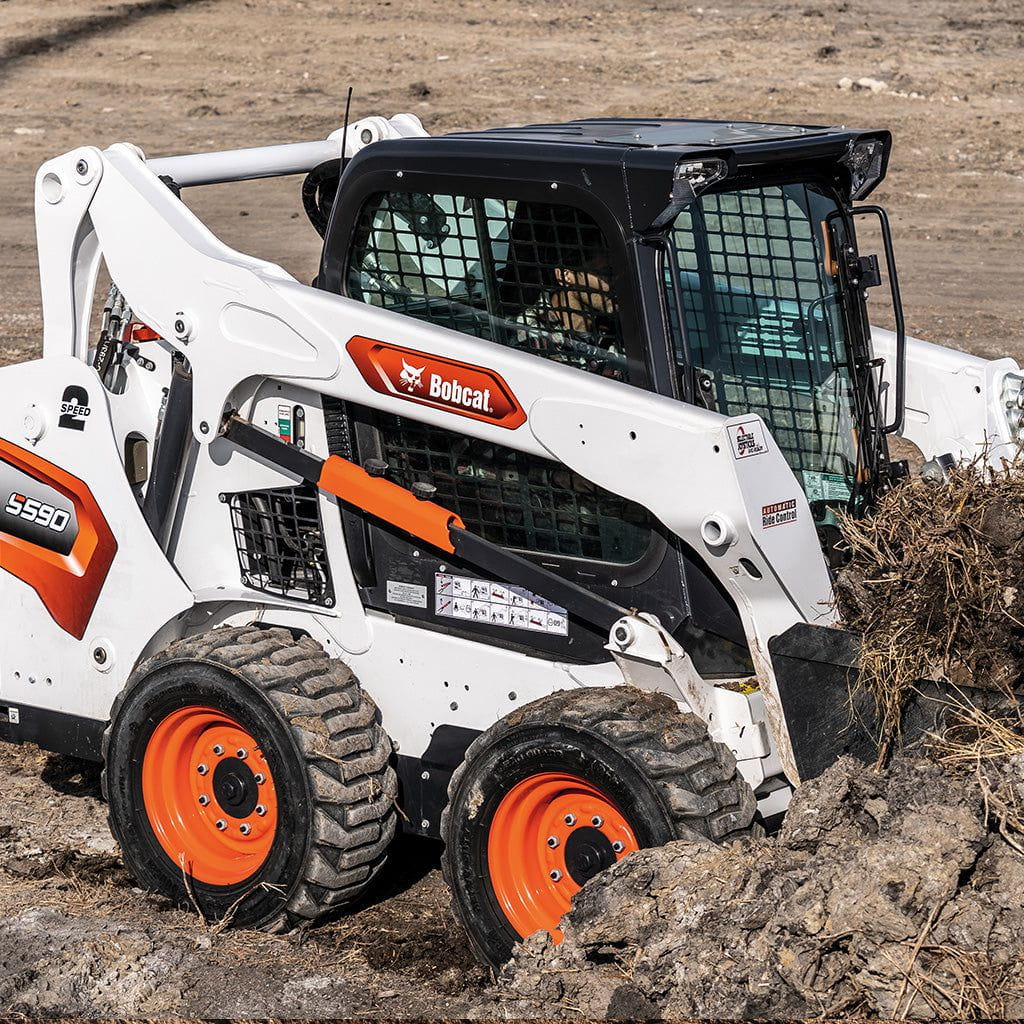

Bobcat® S590 Skid Steer Loader

Description

The Bobcat® S590 vertical path skid-steer loader provides more reach at full lift height than a radius lift path loader without sacrificing performance. It features a Tier 4 diesel engine.

Specs

Configuration

Standard

Engine



Emissions Tier (EPA)	Tier 4
Engine Cooling	Liquid
Engine Fuel	Diesel
Horsepower	66 hp
Turbocharged Engine	Optional

Performance

Rated Operating Capacity (ISO)	2,100 lb
Tipping Load	4,200 lb
Operating Weight	6,593 lb
Travel Speed	7.4 mph
Travel Speed (2 - Speed Option)	11 mph

Capacities

Fuel Tank

24.8 gal

Hydraulic System

System Relief @ Quick Couplers	3,500 psi
Auxiliary Std Flow	17.1 gal/min
Auxiliary High Flow	26.7 gal/min

Dimension

Length	133 in
Length Without Attachment	104.6 in
Length With Standard Bucket	133 in
Width	65.2 in
Width (With Bucket)	68 in
Height	77.8 in
Height With Operator Cab	77.8 in
Height to Bucket Hinge Pin	119 in
Reach @ Maximum Height	32.6 in
Turning Radius	79.7 in
Wheelbase	42.6 in

Attachments

Features may include:

• Powerful Hydraulics

• Standard & Advanced Control Systems

• Selectable Joystick Control

• Automatic Ride Control

• Superior Lift Arms

• Effective Weight Balance

• Deluxe Instrumentation

• 2-Speed Travel

• Smart Cooling

• Remote Control

• Protected Components

• Protection Technology

• Simple Machine Tie-Downs

• Cold Weather Protection

• Maintenance-Free Chaincase

• Keel-Shaped Undercarriage

• Premium Comfort

• Sound Dampening

• Clear Visibility

• Operator-Friendly Controls

• Adjustable Seat

• Maximum Headroom and Legroom

• Pressurized Cab

• Lift Cylinder Cushioning
