Develon
Stock:
In stock

Compare Buying vs Renting

Compare this DD100 | Develon with our rental option to find the best fit for your job, budget, and timeline.

View Rental Option →

Download Spec Sheet

Get detailed specifications, dimensions, and performance data for this DD100 | Develon.

Download Spec Sheet →
General Info
Condition: Showroom
Manufacturer: Develon
Model: DD100
Machine Type: Dozer
Engine
Engine: 1204J
Engine Make: Perkins
Horsepower: 156.9
Performance
Operating Weight: 30865 lb
Travel Speed: 0 - 5.6 mph
Hydraulics
Relief Pressure: 3,844 psi
Dimensions
Fuel Tank: 50 gal.

Description

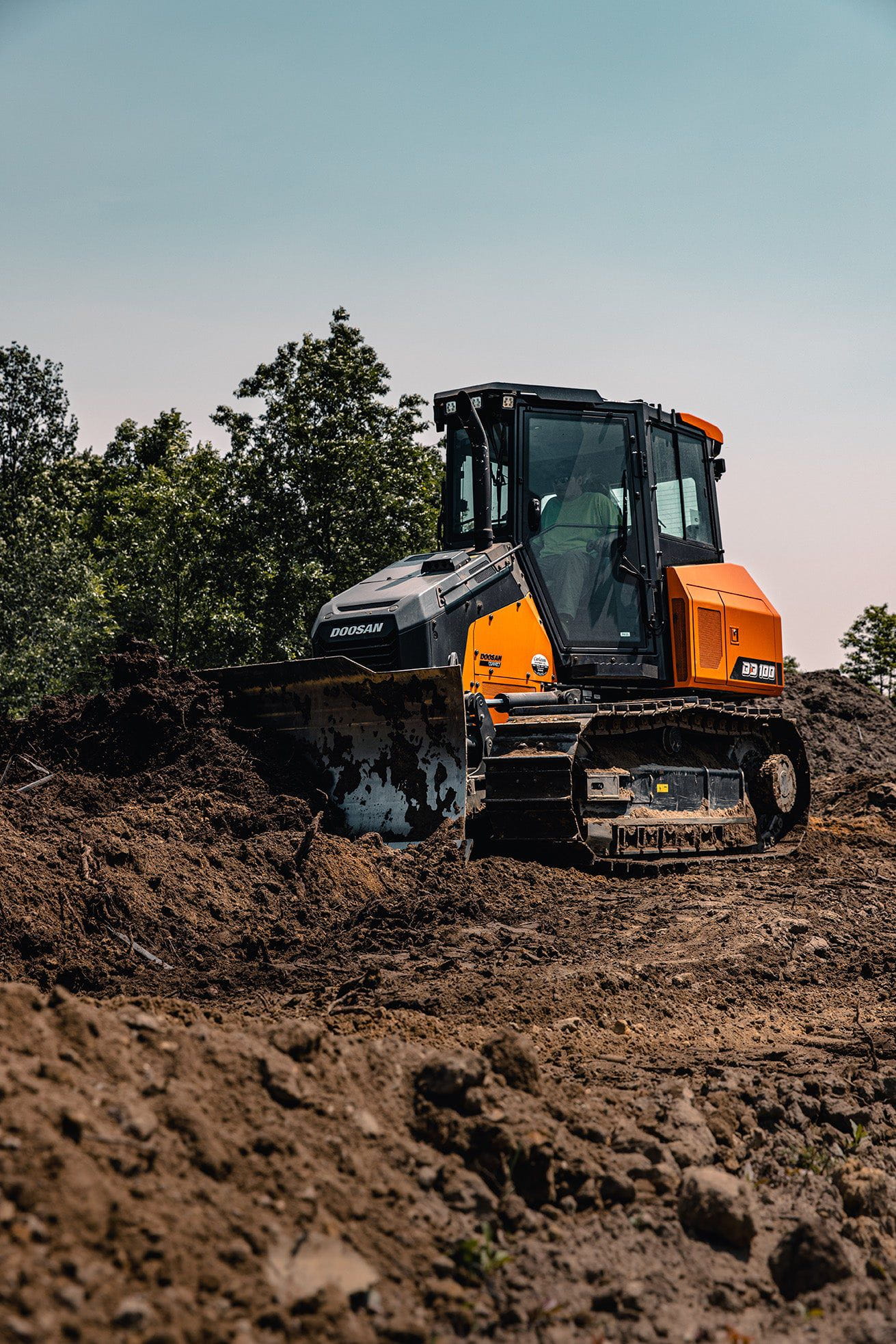

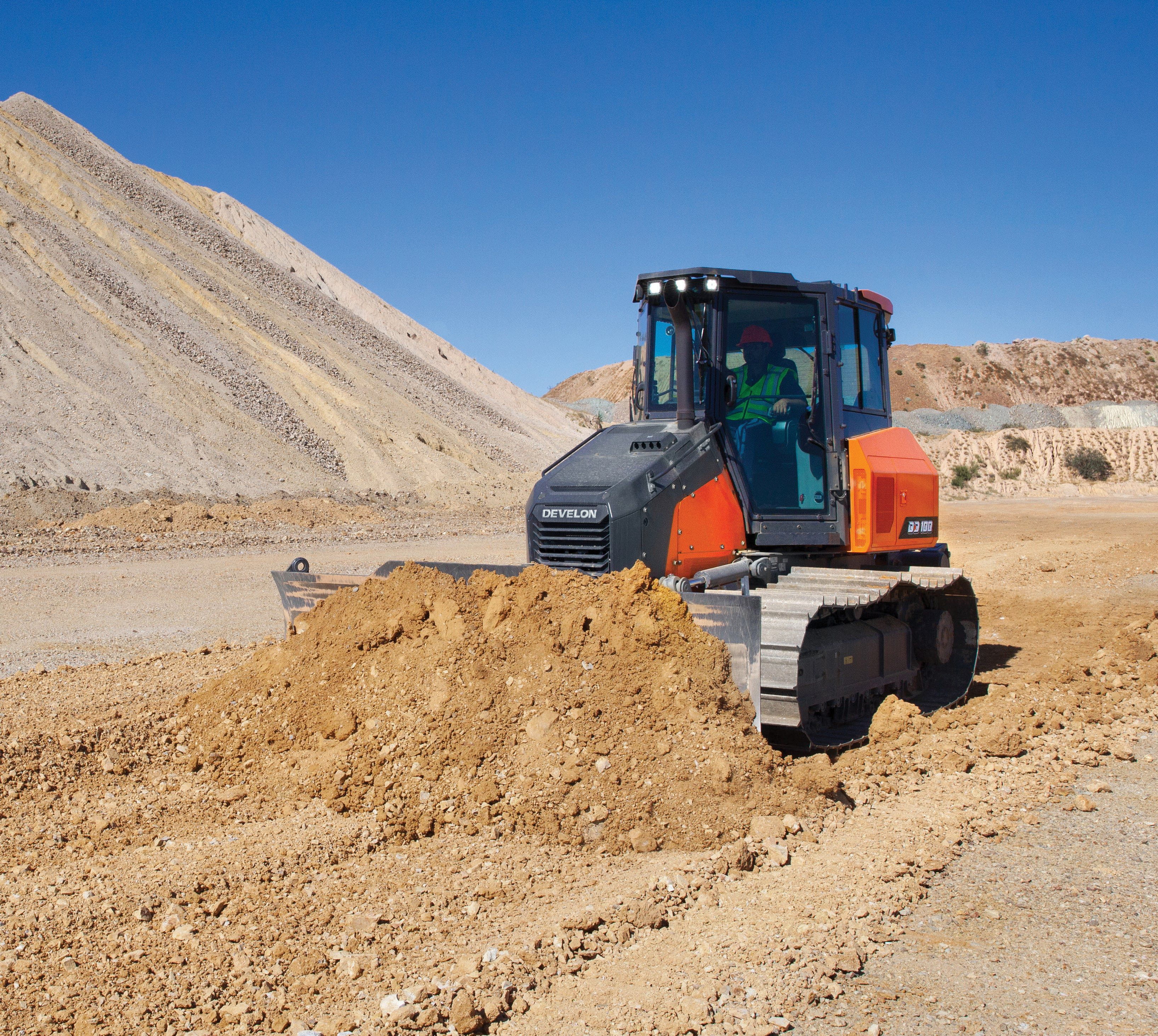

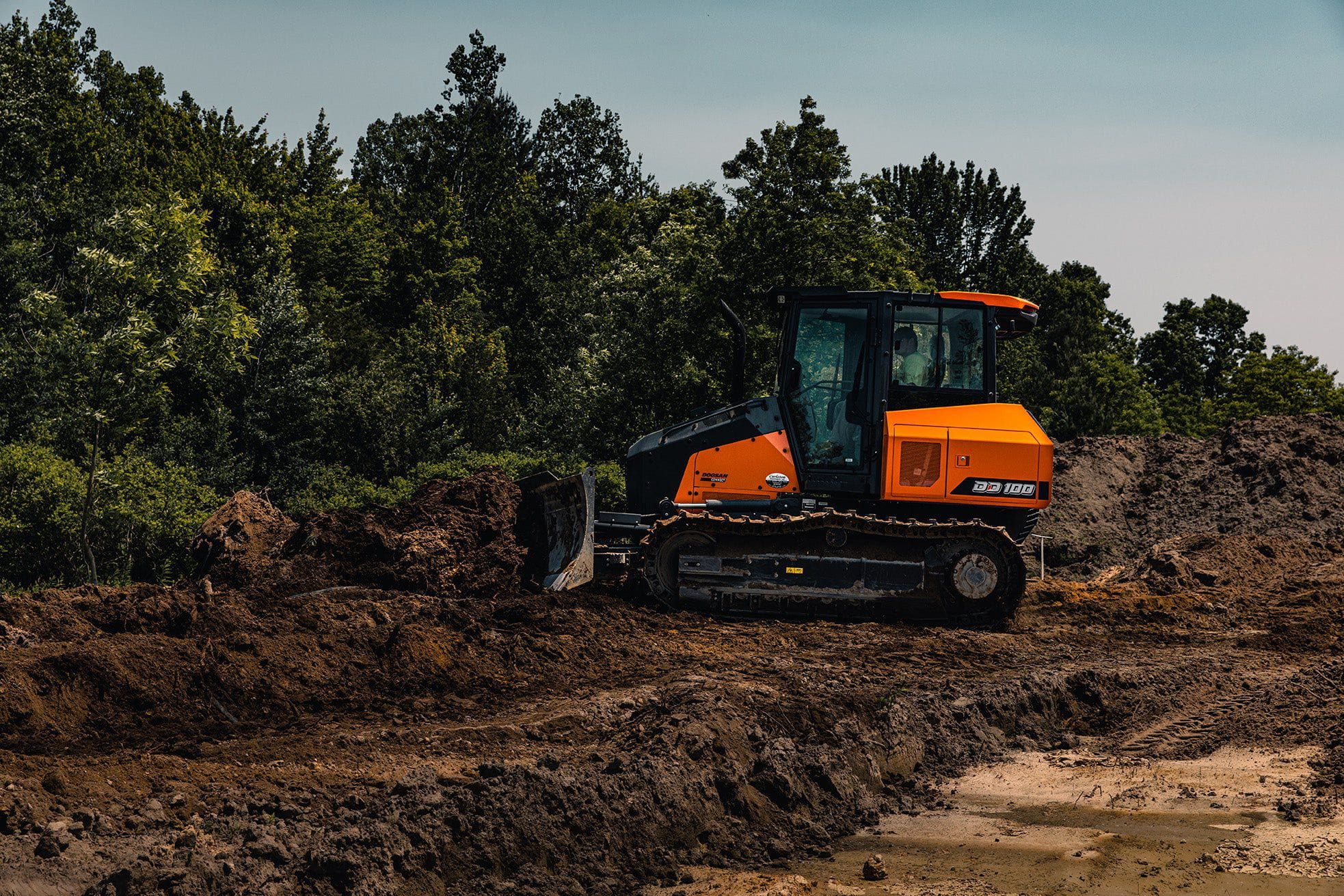

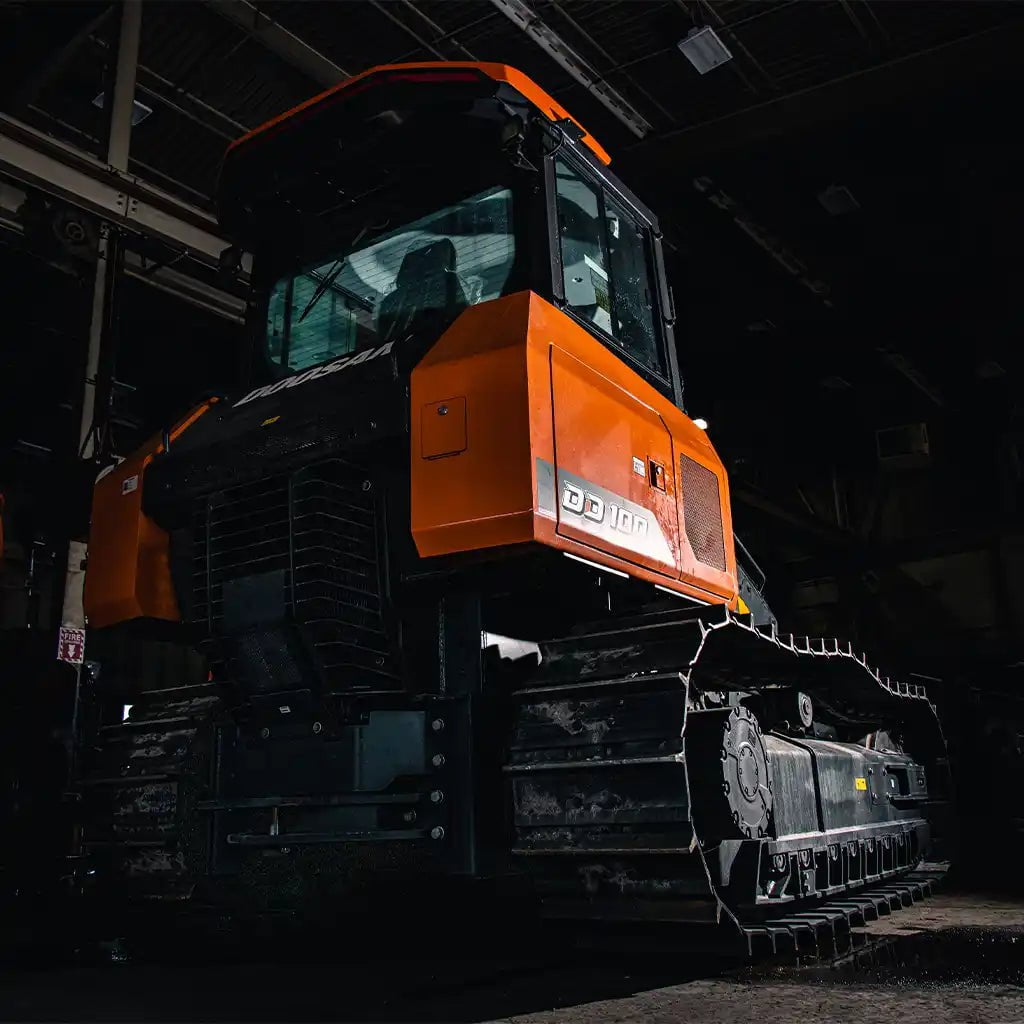

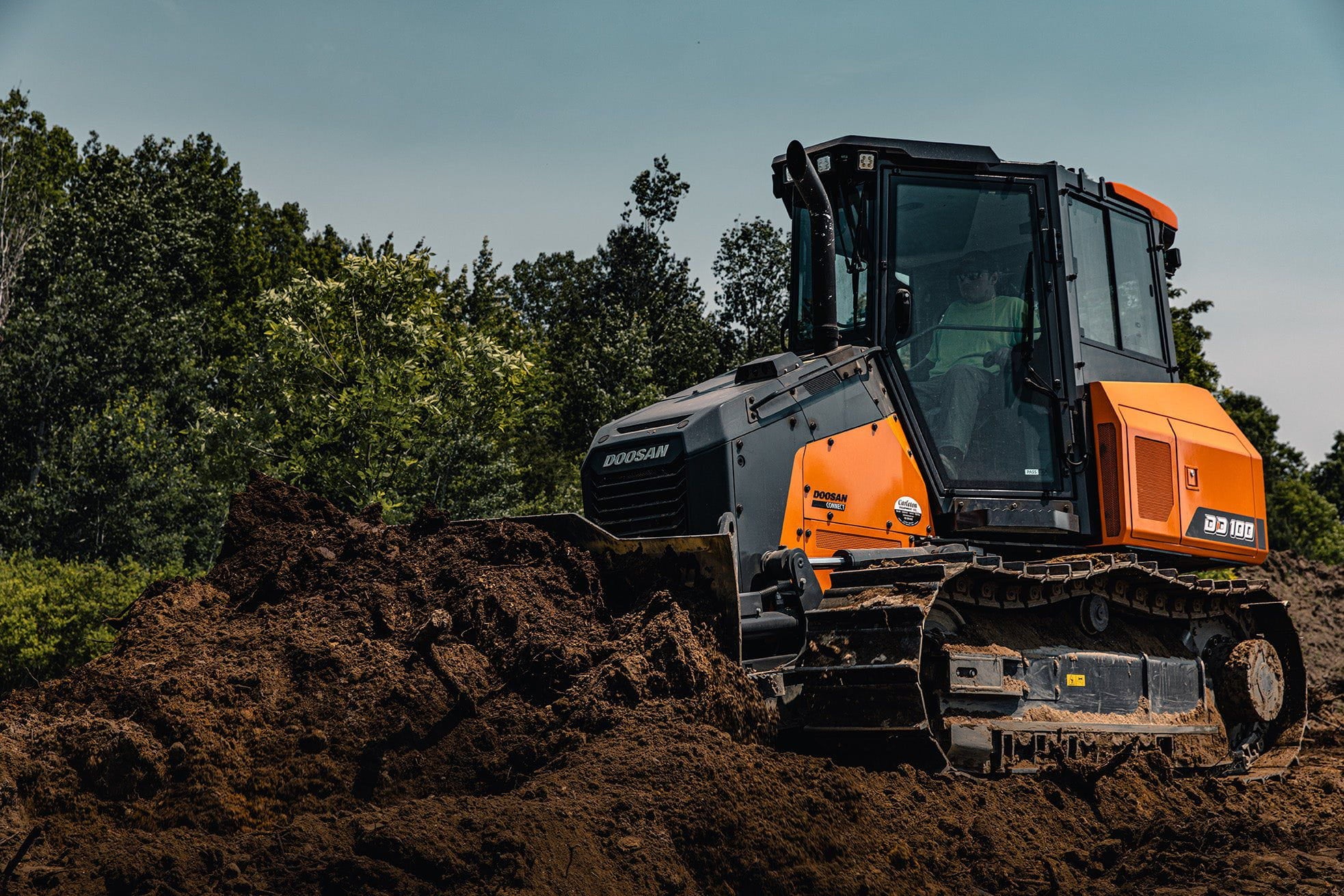

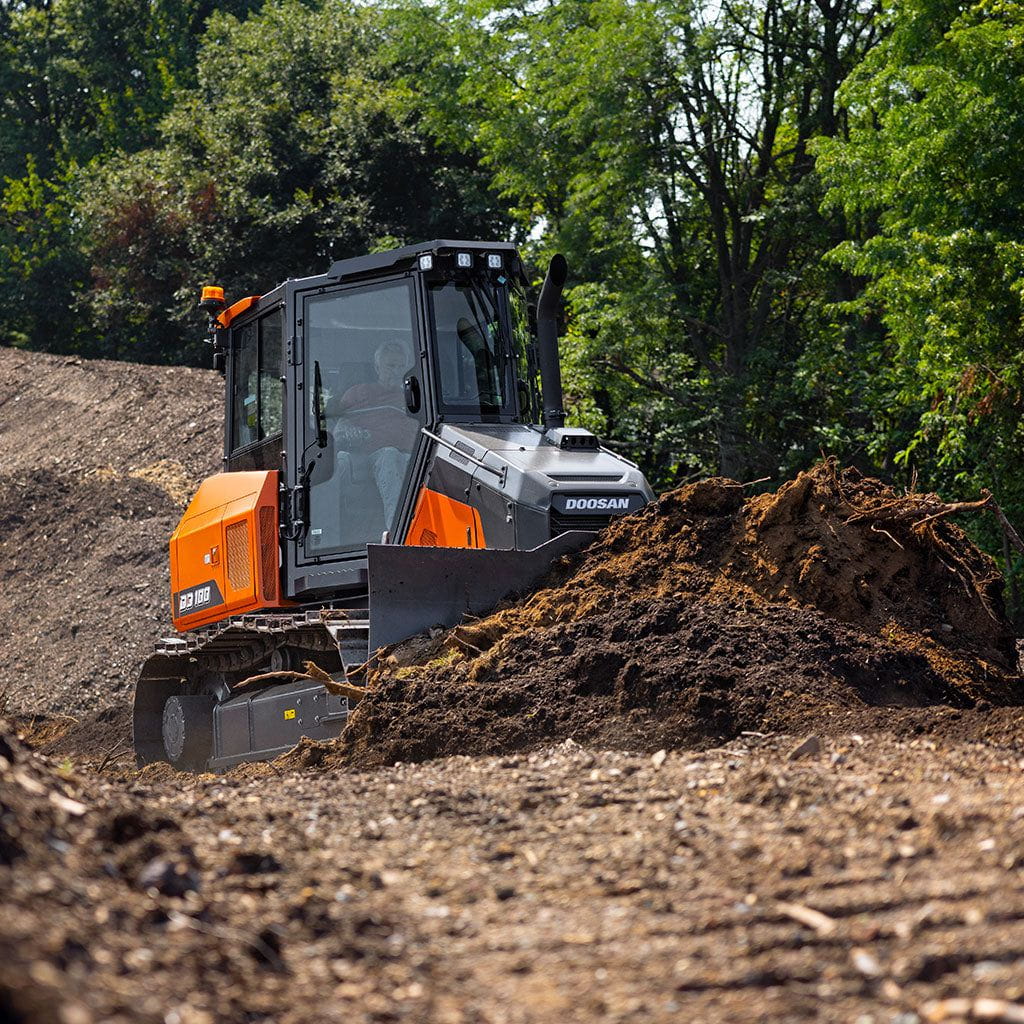

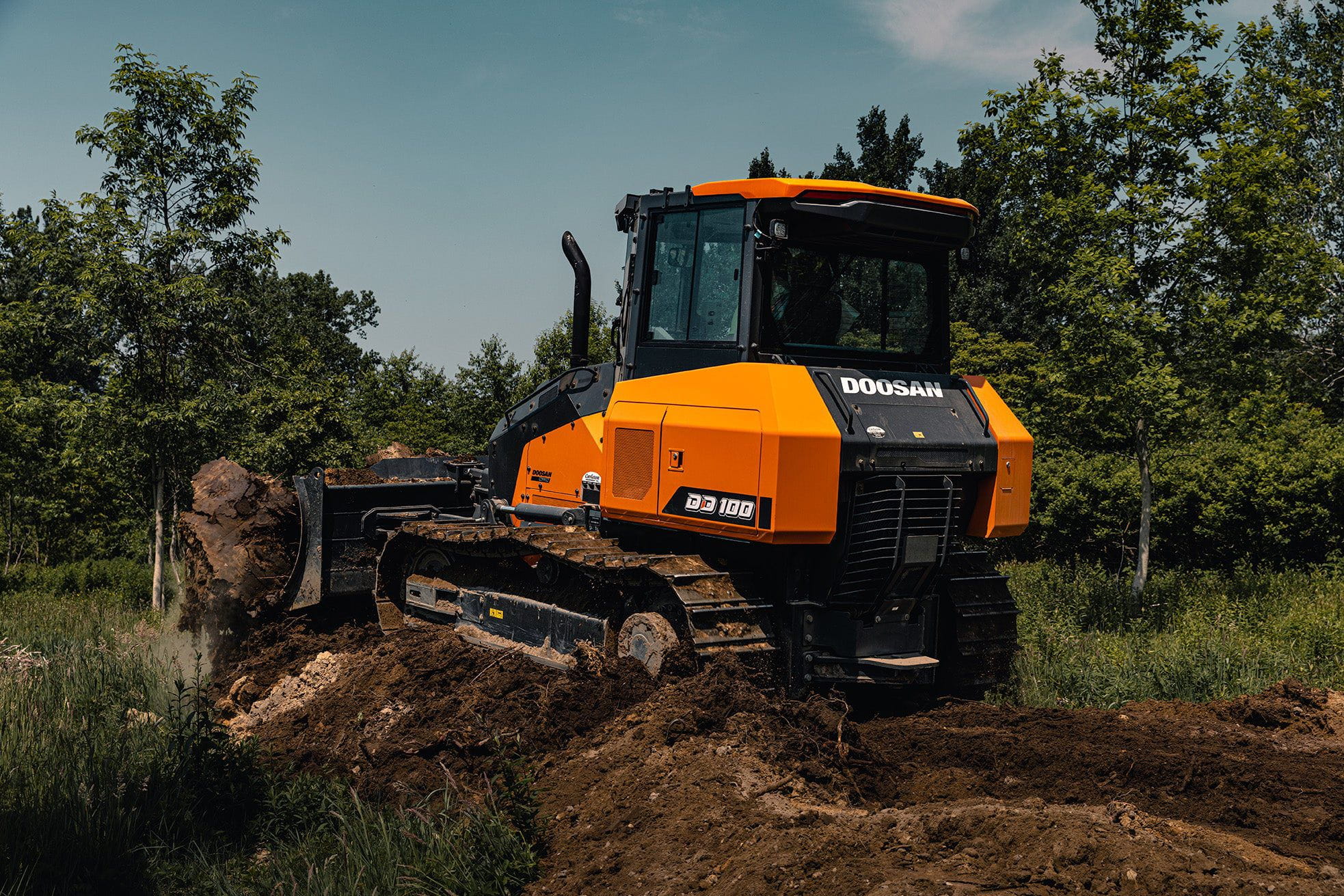

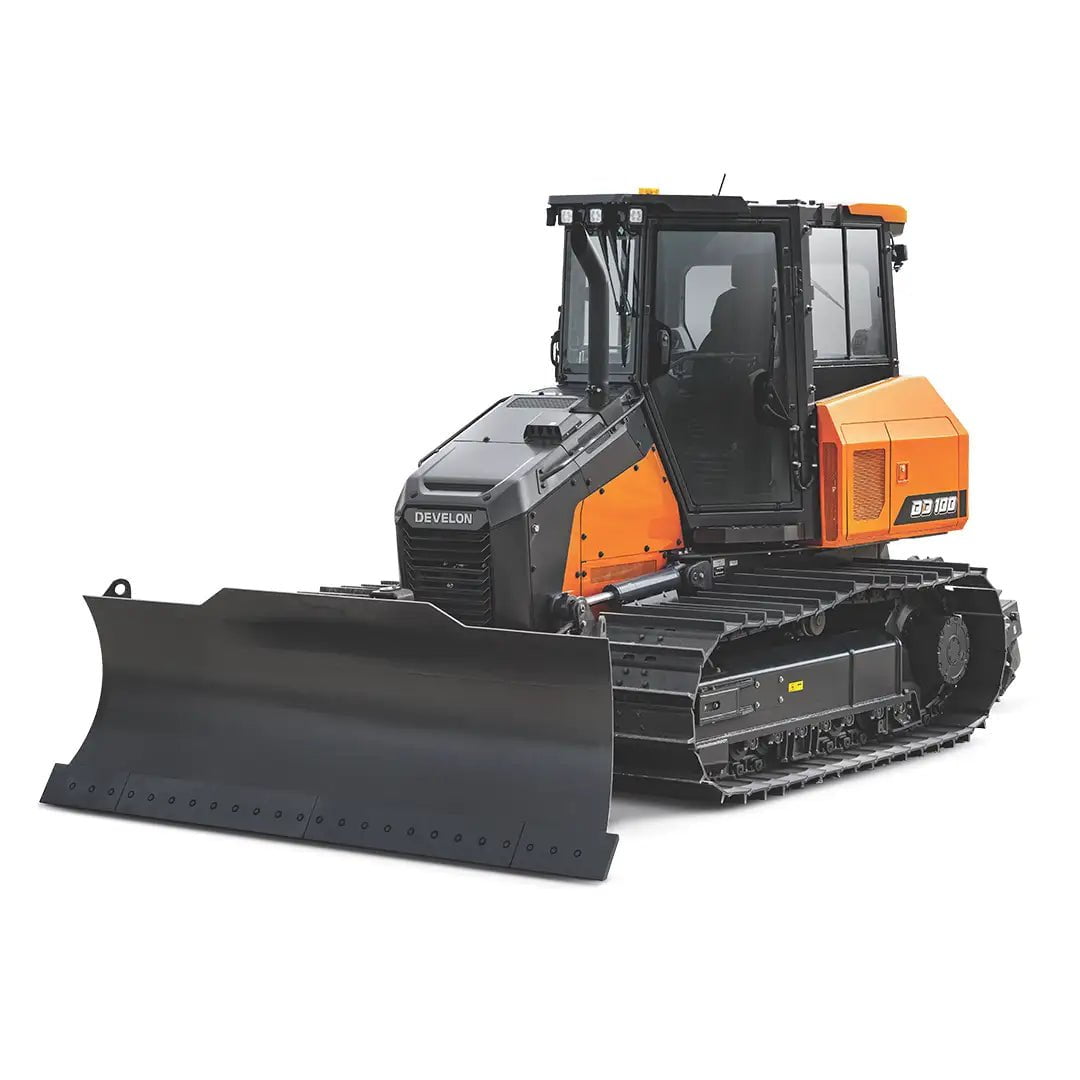

Develon DD100 Dozer Available in Michigan

The DEVELON DD100 Dozer delivers the perfect balance of power, precision, and efficiency for contractors who need big performance in a compact footprint. Whether you're grading, clearing land, or tackling tight job sites, the DD100 is built to get more done with less fuel and downtime.

Why Choose the DD100

  • 100 HP Class Power – Strong pushing force without oversized fuel consumption
  • Precision Control – Smooth hydrostatic transmission for fine grading work
  • Compact & Maneuverable – Ideal for residential, landscaping, and tight access jobs
  • Fuel Efficient – Designed to maximize productivity while minimizing operating costs
  • Built Tough – Backed by DEVELON durability and reliability

The DEVELON DD100 dozer features approximately 100 horsepower, an operating weight around 22,000–24,000 lbs, and a PAT blade designed for precision grading and versatility.

DD100
Make Develon
Engine Model Perkins 1204J (or equivalent)
Number of Cylinders 4
Rated Power Gross ~100 HP
Max Torque ~360–400 lbf. ft.
Displacement ~220–240 in³
Starter 12V / 24V System
Alternator ~80–100 amp
Air Cleaner Dual Element
DD100
Main Pump Type Hydrostatic Drive System
Relief Pressure ~3,500–4,000 psi
Control Type Joystick / Pilot Controls
DD100
Upper Rollers (Each Track) 2
Lower Rollers (Each Track) 6–7
Track Shoe Type Steel
Track Width ~16–20 in.
Ground Pressure Low Ground Pressure Design
DD100
Transmission Type Hydrostatic
Travel Speed (Low-High) 0 – ~5.5 mph
Steering Infinitely Variable, Dual Path
DD100
Operating Weight ~22,000 – 24,000 lbs

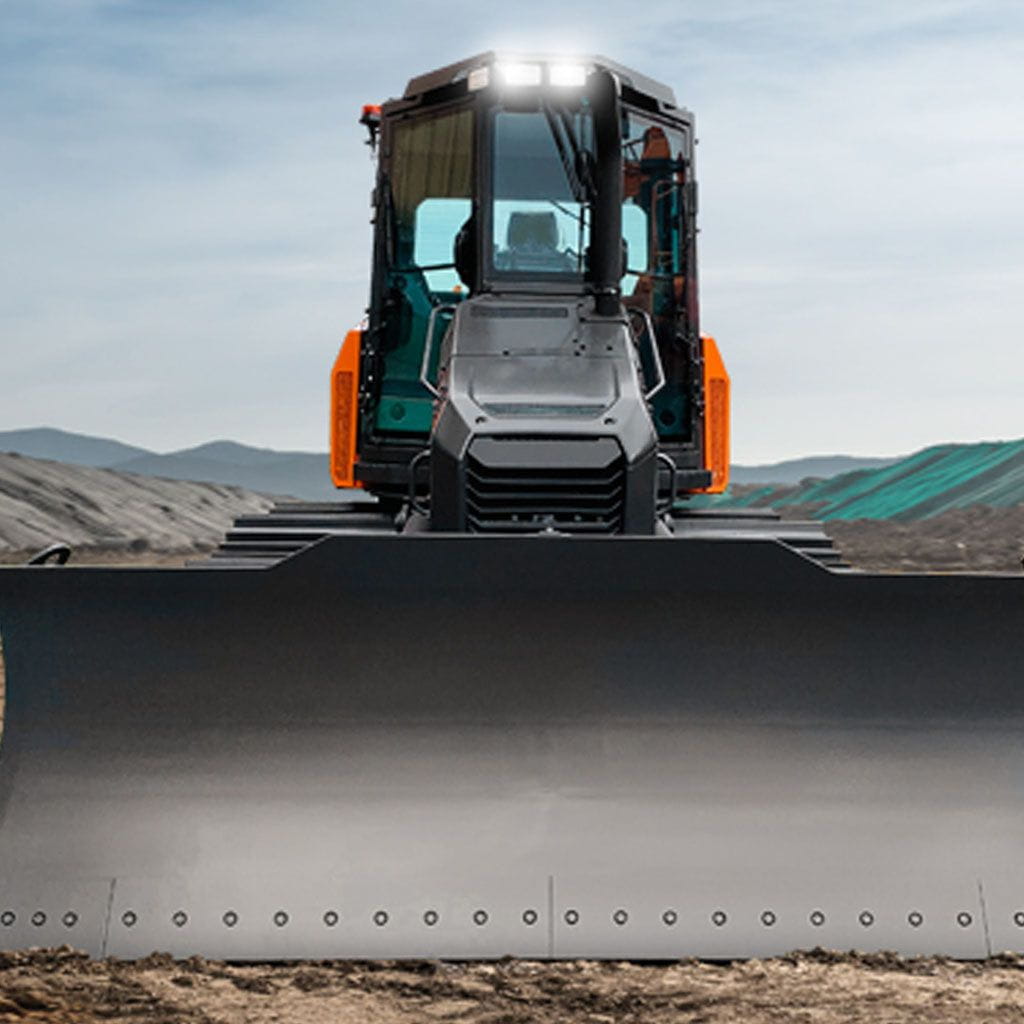

Blade Type PAT (Power Angle Tilt)
Blade Width ~9 ft
Fuel Tank Capacity ~50–60 gallons

Blade Types:

Blade Type XL Blade LGP Blade
Operating Weight (without ripper) ~22,000 lb. ~23,000 lb.
Ground Pressure ~5.0 psi ~4.0 psi
Blade Capacity ~3.0 yd³ ~3.8 yd³
Blade Width ~110" ~125"
Blade Width (Max Angle) ~100" ~115"
Blade Height ~38"
Blade Angle (Max) ± 25°
Blade Tilt ± 10°
Blade Digging Depth ~14"
Blade Clearance ~10"

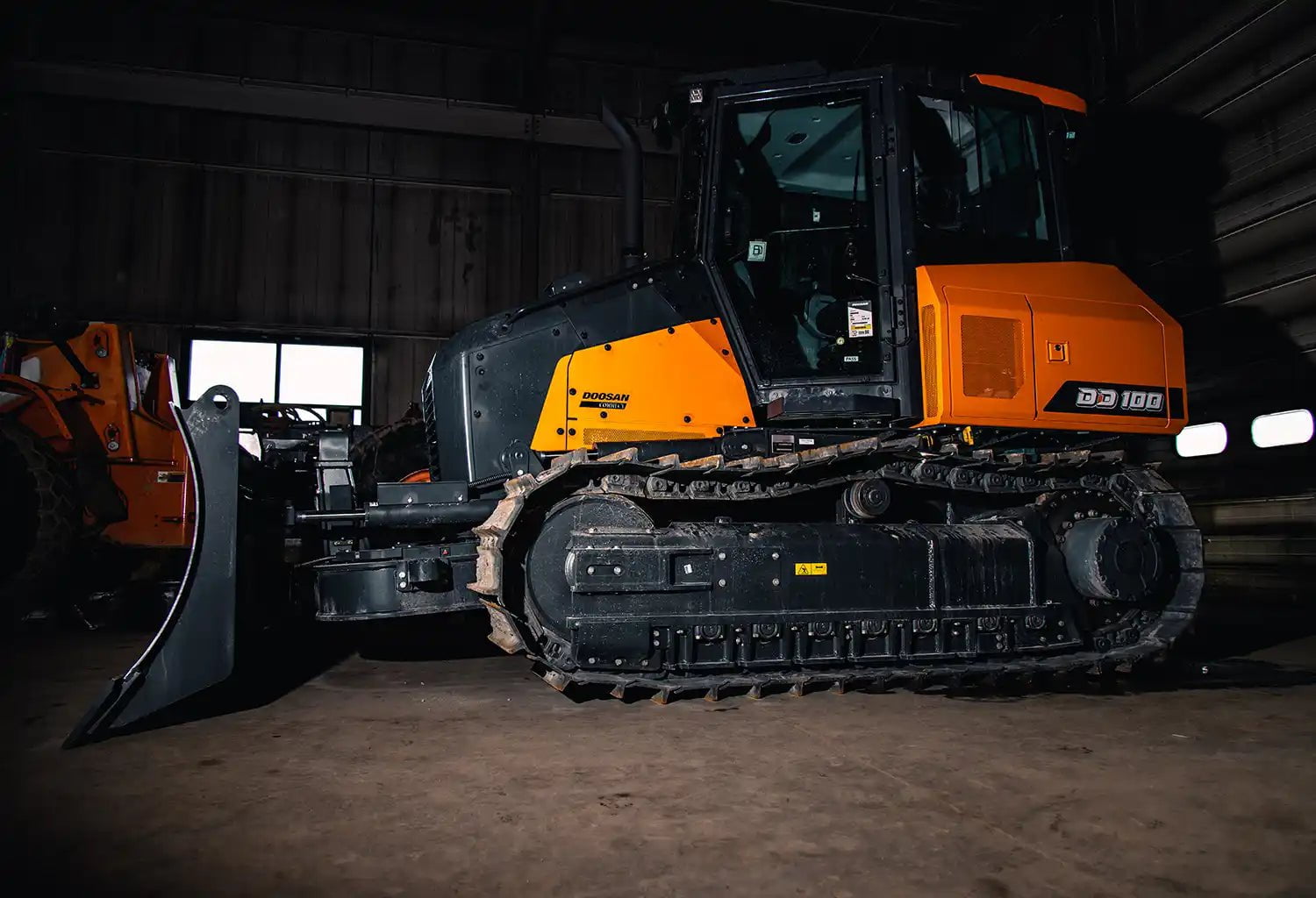

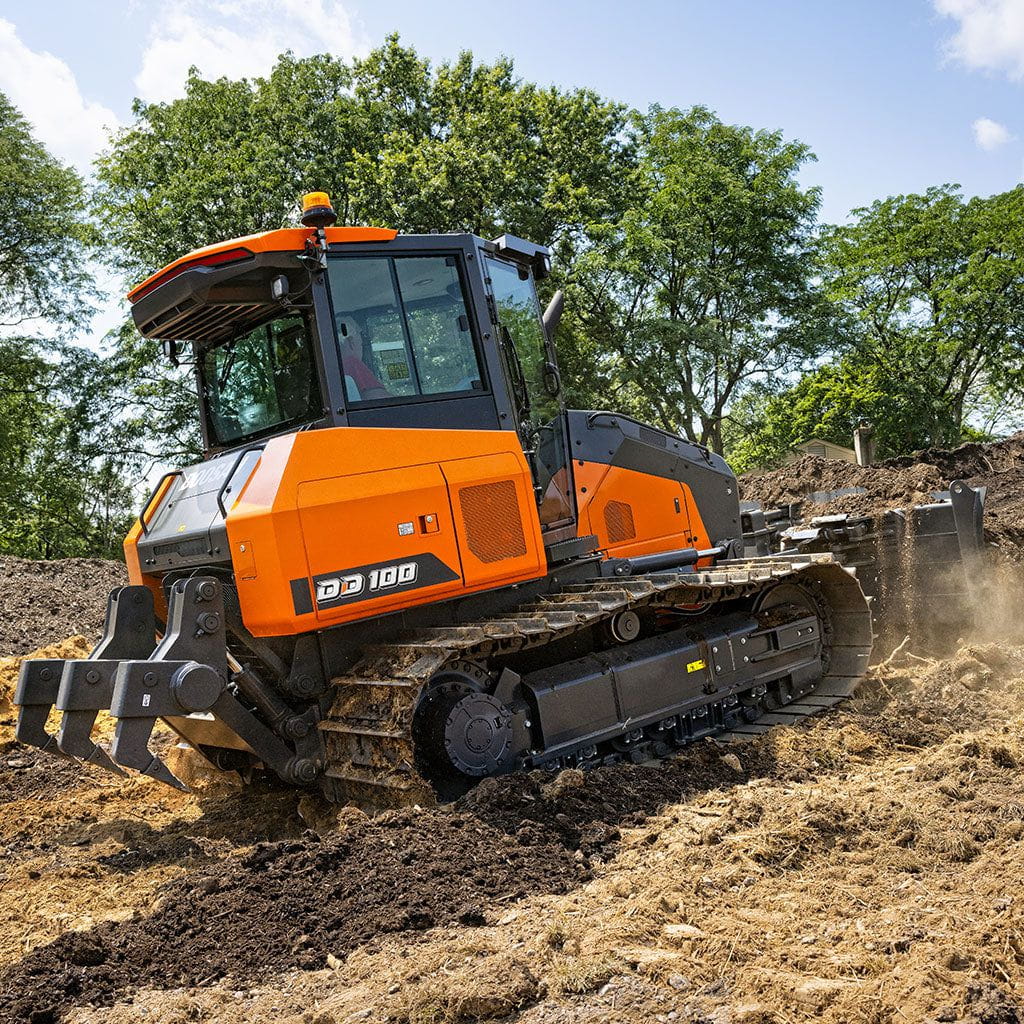

Optional Ripper:

Configuration Single Shank Multi-Shank
Ripper Penetration (Max) ~20–24"
Ripper Beam Width ~60–70"
Ripper Cut Width ~30–36"
Ripper Shank Spacing ~20–24"

Full Specifications

Download Spec Sheet
General
ConditionShowroom
Machine TypeDozer
Engine
Engine MakePerkins
Engine Model1204J
Horsepower156.9
Performance
Travel Speed0 - 5.6 mph
Hydraulics
Relief Pressure3,844 psi
Dimensions & Weight
Operating Weight30865 lb
Fuel Tank50 gal.

Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
