General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Bobcat |
| Model: | T86-2 |
| Machine Type: | Compact Track Loader |
| Coupler: | Bob-Tach |
|
Engine
|
|
|---|---|
| Horsepower: | 105.0 |
| Emissions: | Tier 4 |
|
Performance
|
|
|---|---|
| Rated Operating Capacity (ISO): | 3,800 lb |
| Tipping Load: | 10,587 lb |
| Operating Weight: | 12393 lb |
| Height to Bucket Hinge Pin: | 132 IN. |
|
Hydraulics
|
|
|---|---|
| Aux. Standard Flow: | 23.6 GPM |
| Aux. High Flow: | 36.6 GPM |
| Aux. Super High Flow: | 42 GPM |
|
Dimensions
|
|
|---|---|
| Height: | 83.1 IN. |
| Width: | 80 IN. |
| Fuel Tank: | 31.6 GAL. |
Description

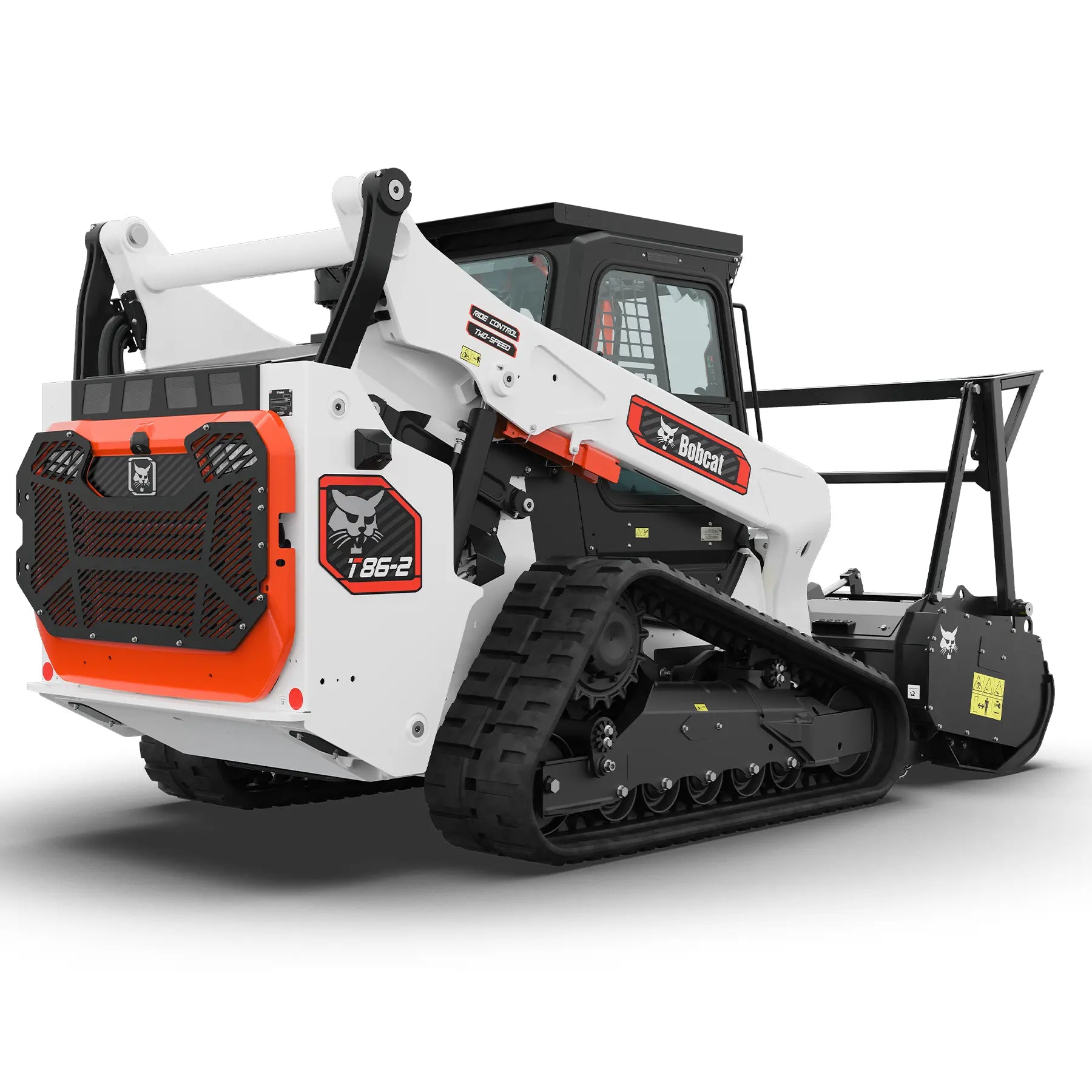

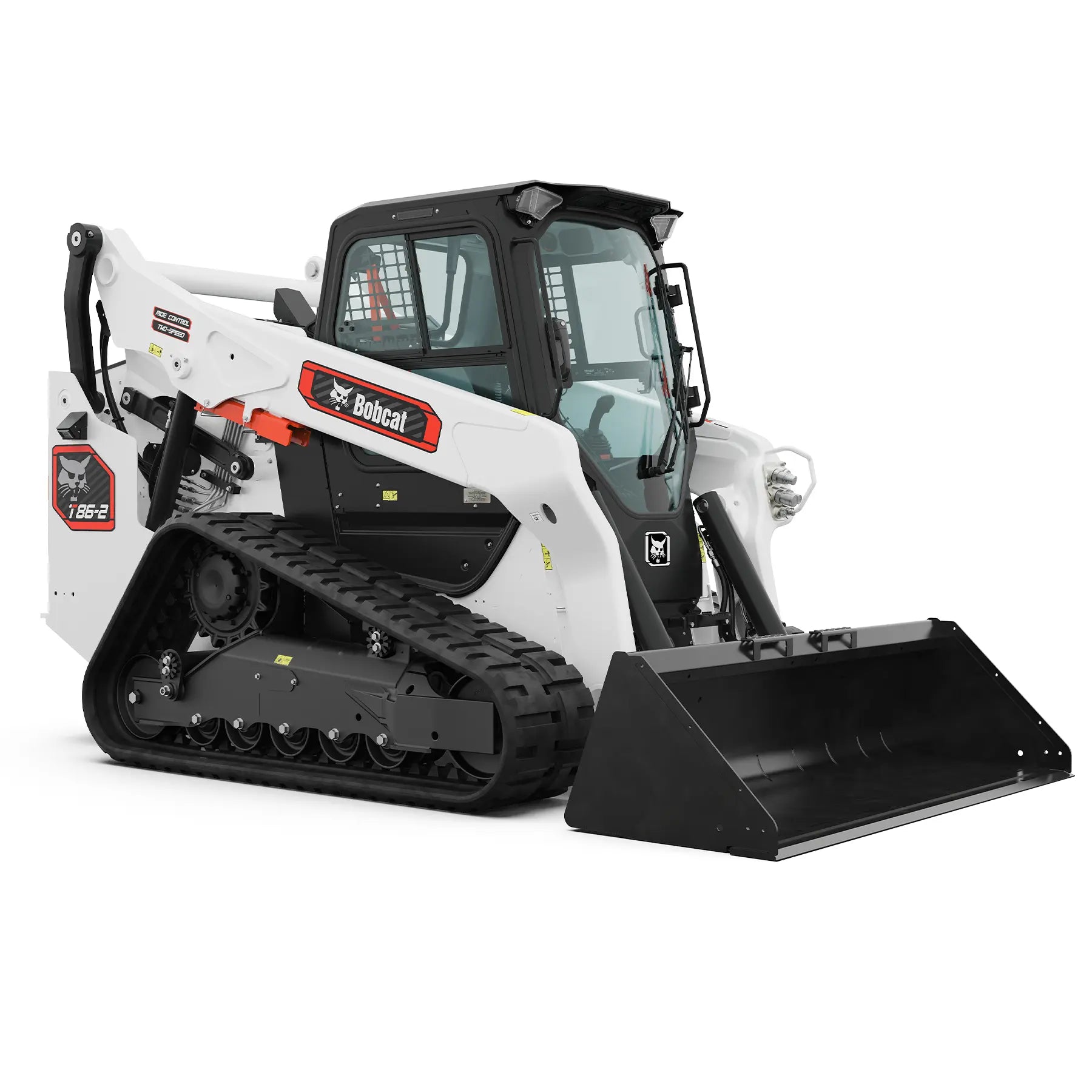

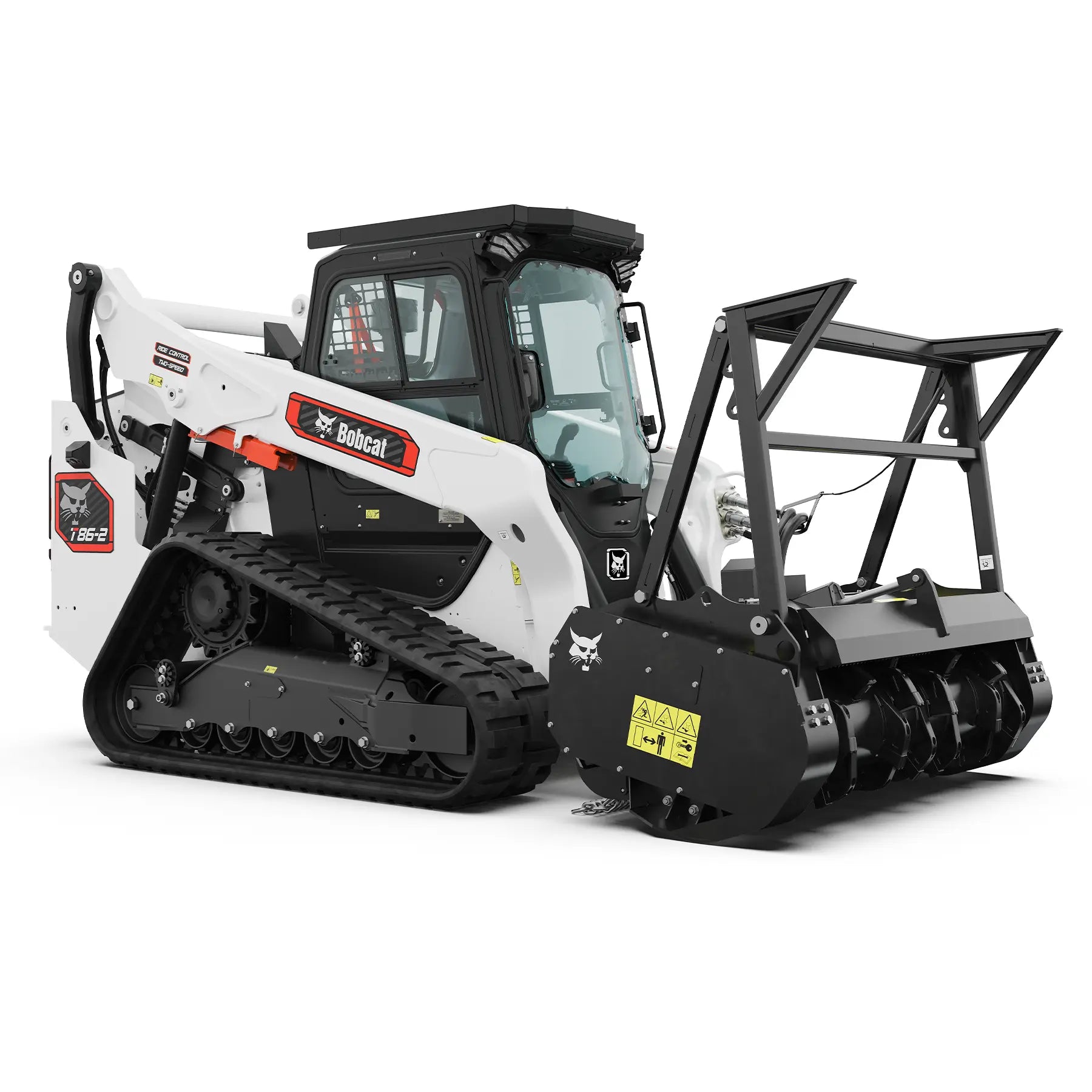

Bobcat T86-2 Compact Track Loader
The Bobcat® Pro T86-2 compact track loader is built for the most demanding environments like forestry, road construction, demolition and more. It combines maximum lift height, powerful hydraulics, premium cooling performance and advanced control, delivering strength and precision in a compact machine.What Makes the T86-2 Different
The T86-2 compact track loader is engineered for high-demand work, heavy attachments and long days on challenging jobsites. From lift height and hydraulic performance to operator comfort and advanced technology, every machine is designed to help crews stay productive.
Integrated In-Machine Cooling System
Industry-leading integrated in-machine cooling helps maintain peak performance during long workdays, even under load. It's built to support consistent output without overheating when the pace of work stays high.
Precision Drive Software
Selectable Joystick Controls (SJC) with precision drive software deliver smooth motion and faster response for more precise operation.
Four Drive Modes
Balanced, Agile, Dynamic and Charged drive modes let operators tailor machine drive response to their working style and the task at hand.
Super-Flow Hydraulics
Only the T86-2 compact track loader and S86-2 skid-steer loader offer three hydraulic flow options – standard, high and super flow – setting a new standard for performance with up to 42 gallons per minute to run demanding attachments.
Redesigned Electrical System
A redesigned electrical system helps improve reliability in wet and dusty conditions with upgraded sealing, optimized routing and better-protected components.
Jobsite Companion
Available in the Advanced package, Jobsite Companion adds voice-activated machine functions, automated attachment settings and real-time job insights.
Bobcat Sense Detection Systems
Select either Rear Object Detection & Avoidance to detect objects behind the machine or 360 People Detection to detect people within a 360-degree field of view.
Bobcat View Camera Systems
Standard rear or optional broad‑area camera systems provide additional views when backing up, working in tight spaces and operating near obstacles.
Bobcat Compact Track Loaders
 |
T550 |
 |
T62 |
 |
 |
 |
 |
 |
 |
 |
|
| T450 | T550 | T595 | T62 | T64-2 | T66-2 | T7X | T650 | T770 | T76-2 | T86-2Viewing | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Frame / Role | Compact classic | Mid-size classic | Current classic | Non-current mid-frame | Mid-frame | Mid-frame | All-electric | Larger classic | Largest classic | Large-frame | High-output large-frame |
| Horsepower | 55 hp | 68 hp | 70 hp | 68 hp | 68 hp | 74 hp | 100 hp | 74 hp | 92 hp | 74 hp | 115 hp |
| Rated Operating Capacity | 1,490 lbs | 1,995 lbs | 2,100 lbs | 2,150 lbs | 2,300 lbs | 2,400 lbs | 3,056 lbs | 2,500 lbs | 3,475 lbs | 2,900 lbs | 3,925 lbs |
| Tipping Load | 4,257 lbs | 5,700 lbs | 6,000 lbs | 6,143 lbs | 6,571 lbs | 6,857 lbs | 8,743 lbs | 7,143 lbs | 9,929 lbs | 8,285 lbs | 11,214 lbs |
| Operating Weight | 6,424 lbs | 7,557 lbs | 7,906 lbs | 8,612 lbs | 8,440 lbs | 8,560 lbs | 12,590 lbs | 8,980 lbs | 10,515 lbs | 9,592 lbs | 12,104 lbs |
| Travel Speed | 7 / 11 mph | 7.1 / 10.4 mph | 7.1 / 10.4 mph | 7.2 mph | 6.4 / 9.3 mph | 5.5 / 9.3 mph | 5.7 / 8.7 mph | 6 / 8.7 mph | 6.6 / 10.7 mph | 6.8 / 9.2 mph | 5.5 / 10.7 mph |
| Standard Aux Flow | 16.7 gpm | 17.1 gpm | 17.1 gpm | 17.6 gpm | 17.6 gpm | 17.6 gpm | No hydraulics | 23 gpm | 23 gpm | 23.3 gpm | 23 gpm |
| High / Super Flow | — | 26.7 gpm | 26.7 gpm | 26.9 gpm | 26.9 gpm | 26.9 gpm | — | 30.5 gpm | 36.6 gpm | 30.3 gpm | 36.6 / 42 gpm |
| Height to Hinge Pin | 109.5 in | 114.5 in | 119 in | 114.5 in | 120 in | 120 in | 128.4 in | 124 in | 132 in | 128.3 in | 144 in |
| Overall Width | 55 in | 67 in | 66.6 in | 67 in | 67.8 in | 67.8 in | 78 in | 72.9 in | 78 in | 73.5 in | 78 in |
Specs are model-level published values. Confirm final configuration, options and current availability with your Carleton Equipment location.
T86-2 Features & Benefits
Performance
Maximum Pro CTL Output
The Bobcat T86-2 delivers 115 hp with a 3,925 lb ROC, 11,214 lb tipping load and 12,104 lb operating weight for demanding forestry, road construction, demolition and land-management work.
Super-Flow Hydraulics
Three hydraulic flow options include 23 gpm standard flow, 36.6 gpm high flow and 42 gpm super flow for running demanding attachments.
12-Foot Lift Height
A 144 in hinge-pin height and 34.5 in reach at maximum height support truck loading, elevated placement and high-production material handling.
Two-Speed Travel
Standard two-speed travel gives the T86-2 a 10.7 mph high range, helping crews move faster across larger jobsites.
Comfort & Control
Precision Drive Software
Selectable Joystick Controls with precision drive software deliver smooth motion and faster response for more precise operation.
Four Drive Modes
Balanced, Agile, Dynamic and Charged drive modes let operators tailor machine drive response to their working style and the task at hand.
Premium Cab Equipment
Standard air conditioning, heated cloth air-ride seat, sound option, heater air conditioning and LED front and rear lights support long workdays.
Awareness Technology
Bobcat Sense detection systems and Bobcat View camera systems add available awareness tools for backing up, tight-space work and operating near obstacles.
Serviceability

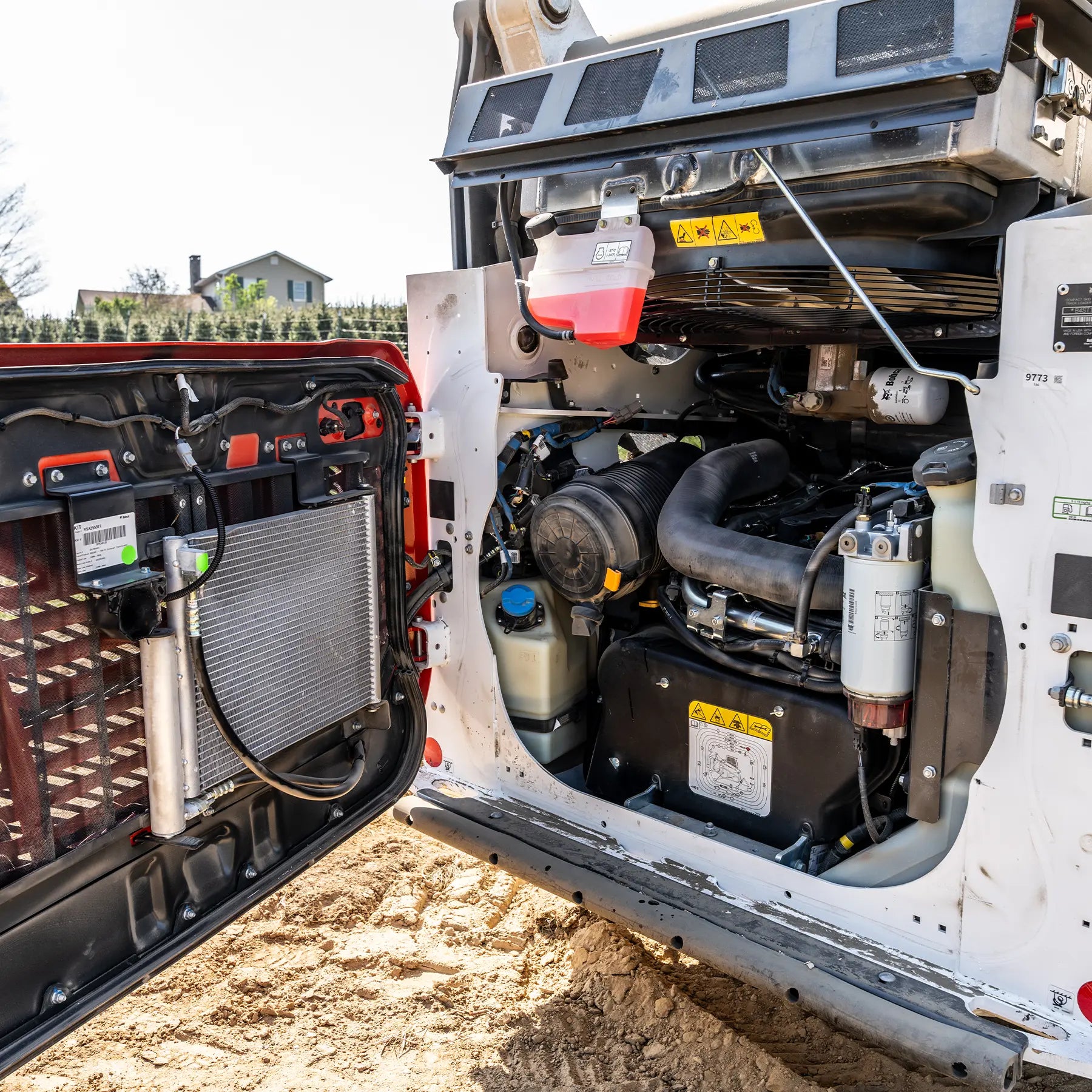

Integrated In-Machine Cooling
Integrated in-machine cooling helps maintain peak performance during long workdays, even under load.
Redesigned Electrical System
A redesigned electrical system helps improve reliability in wet and dusty conditions with upgraded sealing, optimized routing and better-protected components.
Pressure Release Hydraulic Quick Couplers
Standard pressure release hydraulic quick couplers help simplify attachment changes and support everyday uptime.
Bobcat Dealer Support
Carleton Equipment supports the T86-2 with Bobcat parts, service, attachments and local product knowledge across Michigan.
Versatility
Standard Power Bob-Tach
Standard Power Bob-Tach lets operators change many non-hydraulic attachments quickly from the cab.
Optional 5-Link Torsion Undercarriage
Optional 5-Link torsion suspension undercarriage gives buyers another way to tailor ride quality and undercarriage performance.
Package-Based Configuration
Work, Core, Plus and Advanced packages make it easier to choose the right mix of comfort, control, attachment and technology features.
Digital Connectivity
Machine IQ Telematics
Machine IQ helps owners monitor machine health, security and utilization so they can stay ahead of service needs and equipment location questions.
Learn MoreWhy Buyers Choose the T86-2
115 hp, 3,925 lb ROC and 11,214 lb tipping load support high-demand work in a compact track loader footprint
Three hydraulic flow options include 23 gpm standard, 36.6 gpm high flow and 42 gpm super flow for demanding attachments

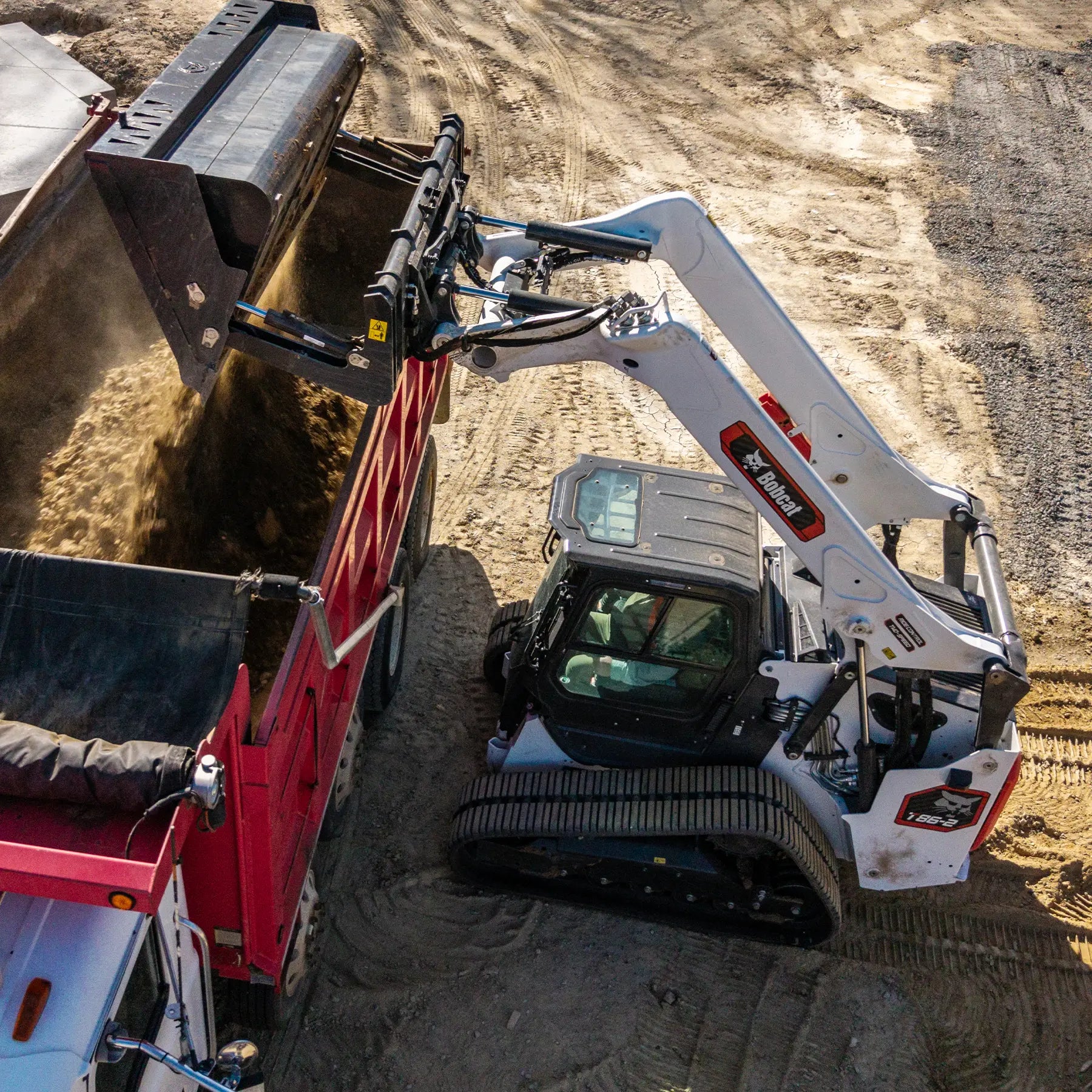

144 in hinge-pin height and 34.5 in reach help with truck loading, elevated placement and production material handling
Integrated in-machine cooling helps maintain performance during long workdays and heavy hydraulic demand
Precision drive software and four drive modes let operators tailor response to the task and their working style
Available Jobsite Companion, Bobcat Sense and Bobcat View systems add advanced technology and jobsite awareness
Who Uses the T86-2 and What For
The T86-2 is a high-output Pro compact track loader for crews that need maximum lift height, premium hydraulics, advanced controls and track-loader traction for demanding jobsites.

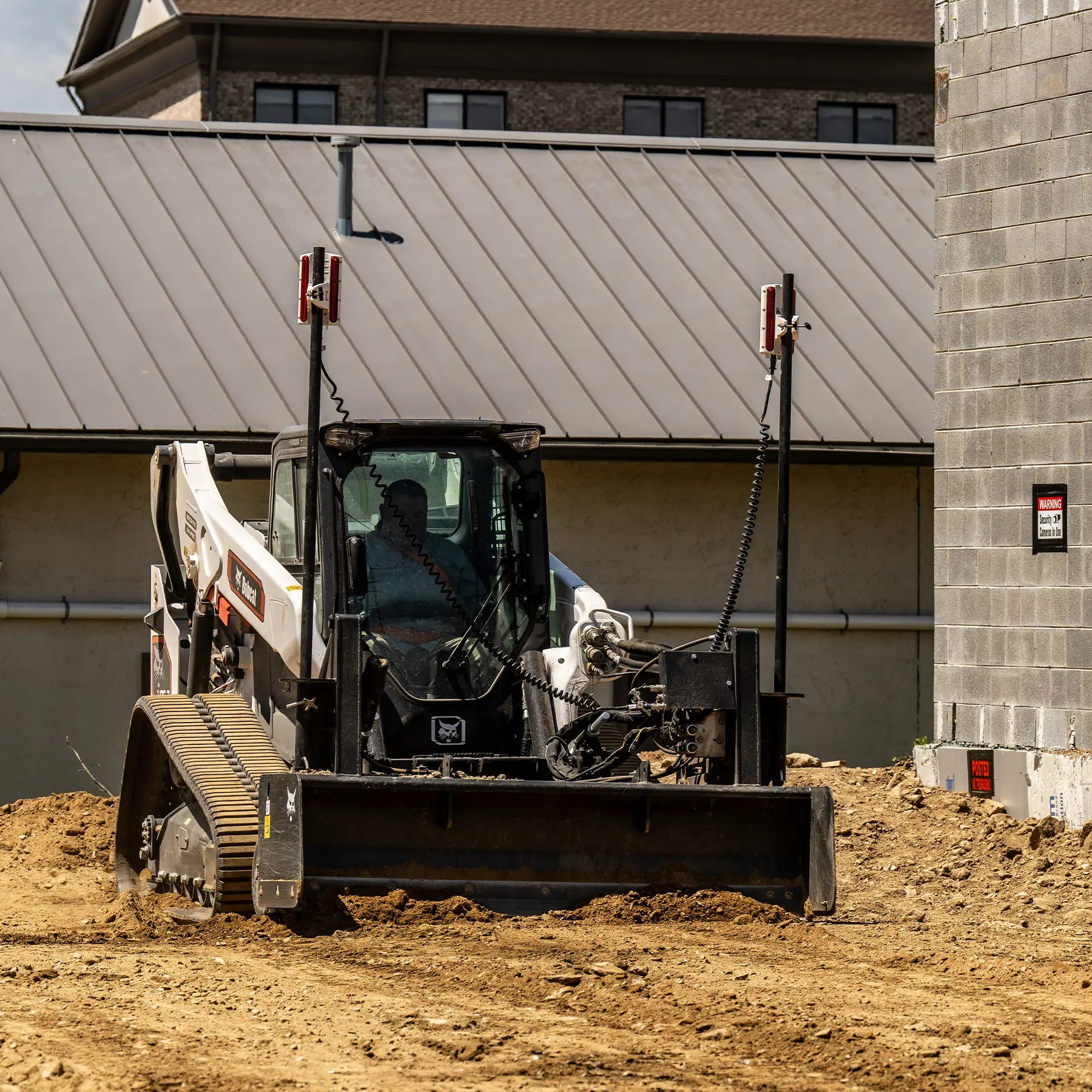

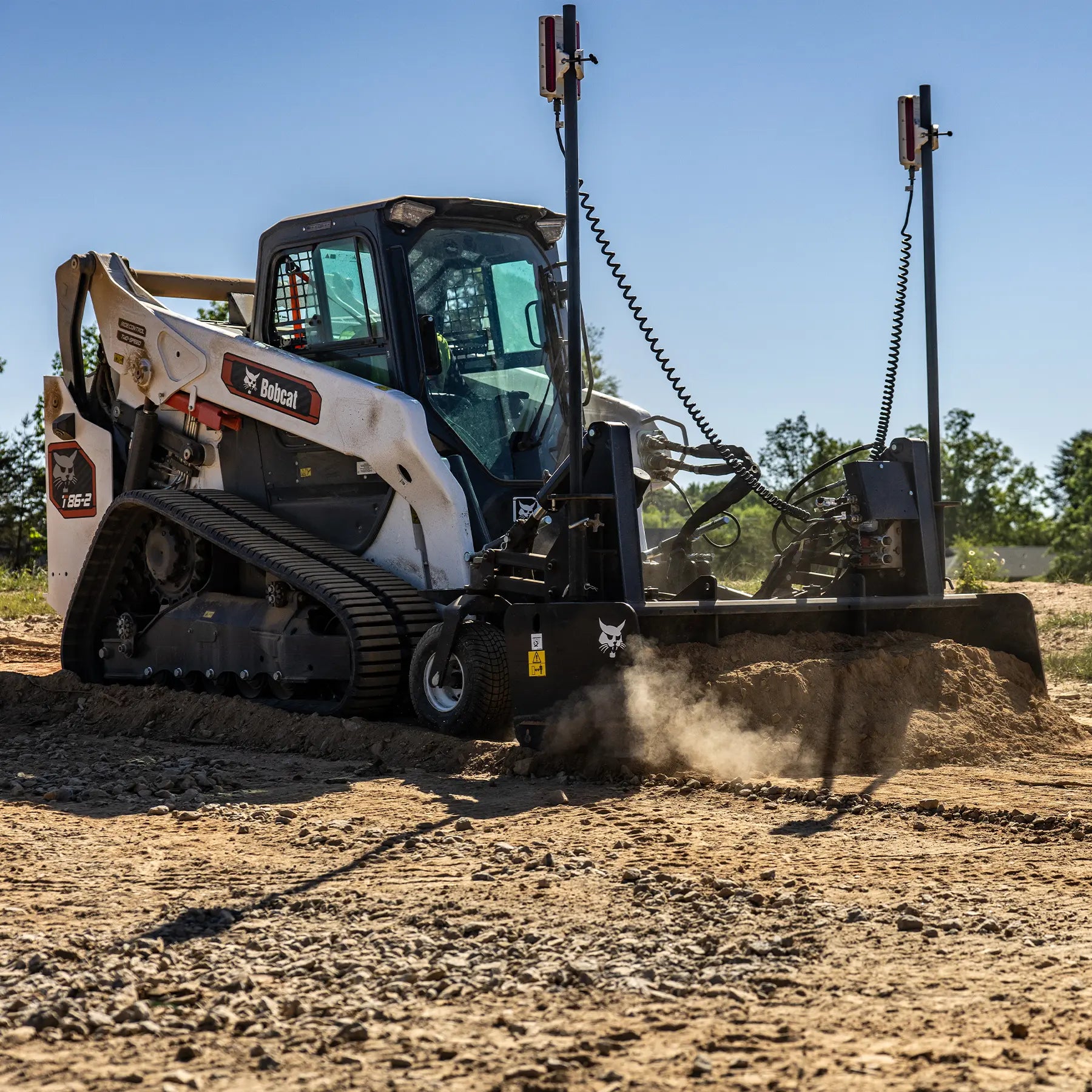

- Digging, loading, grading, backfilling and site cleanup

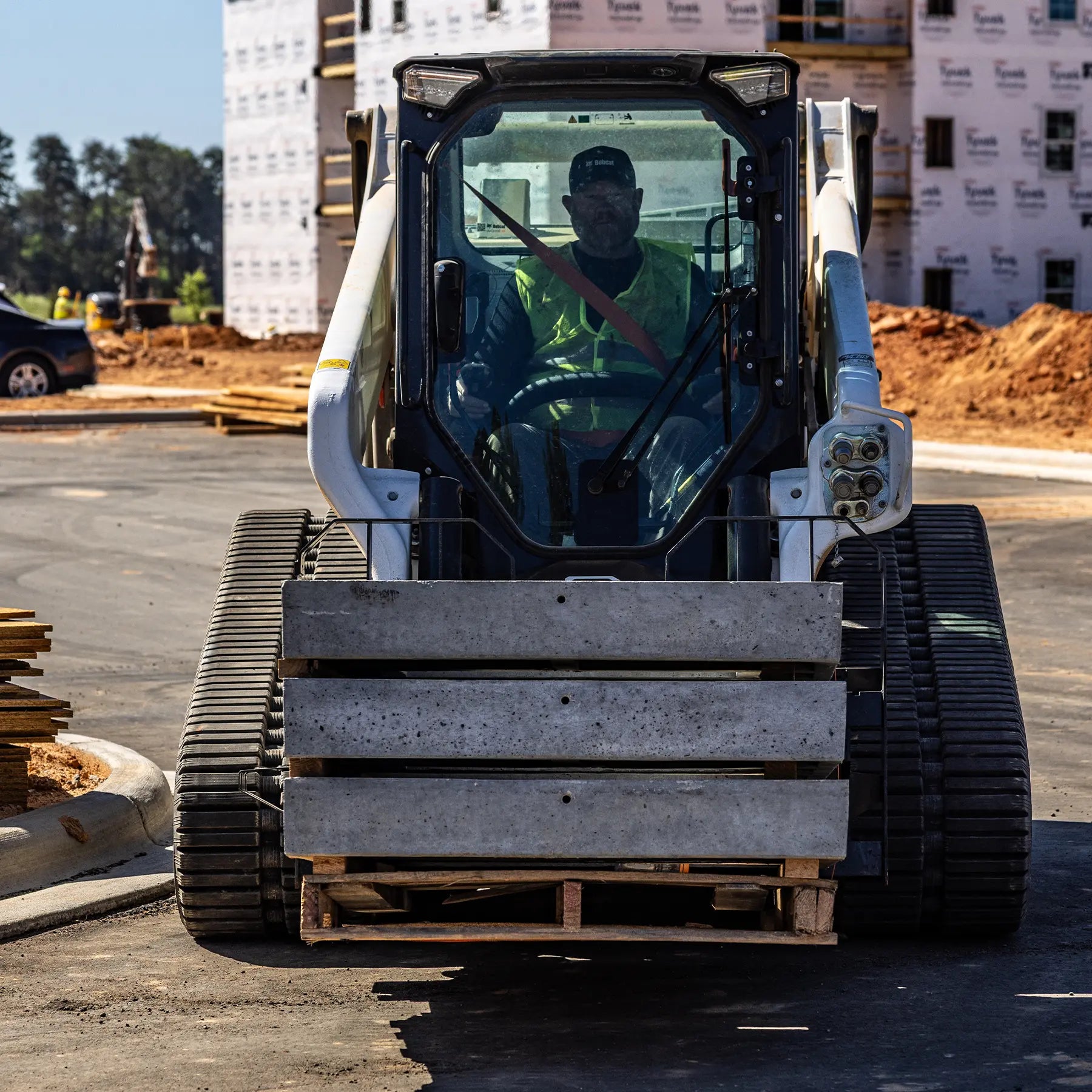

- Moving pallets, aggregate, spoil, concrete and demolition debris

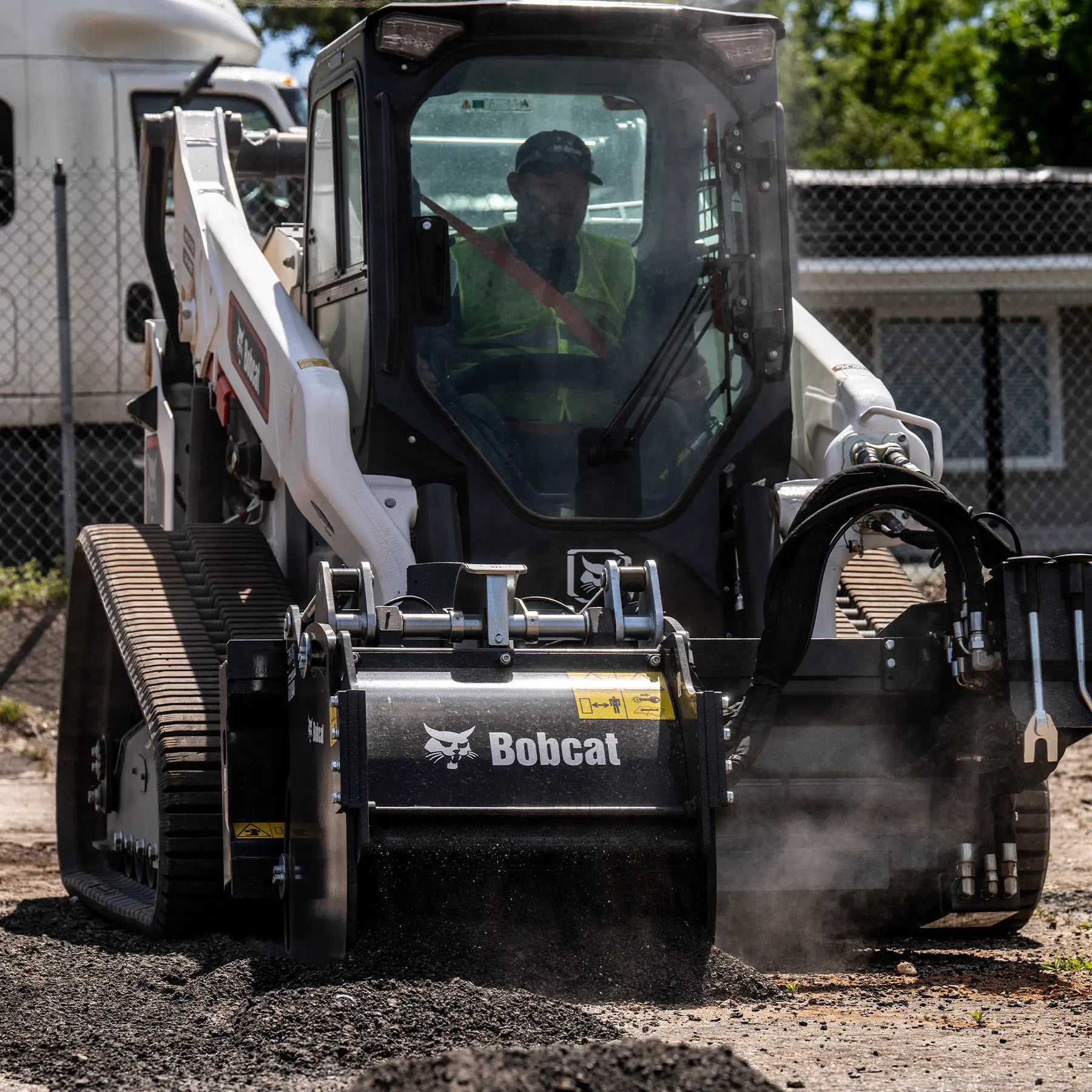

- Running breakers, planers, wheel saws, buckets, forks and grapples
- Working where lift height, hydraulic power and traction all matter

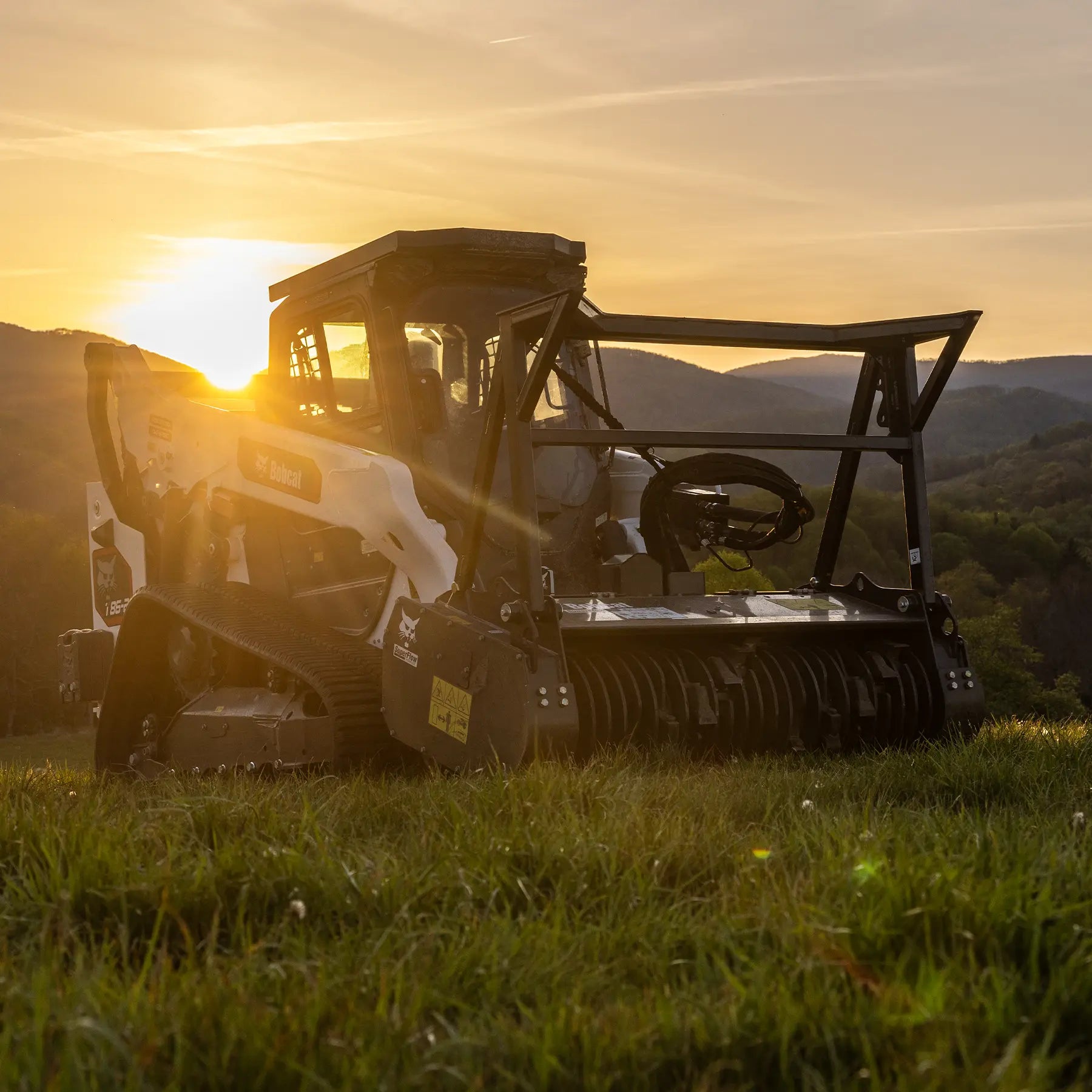

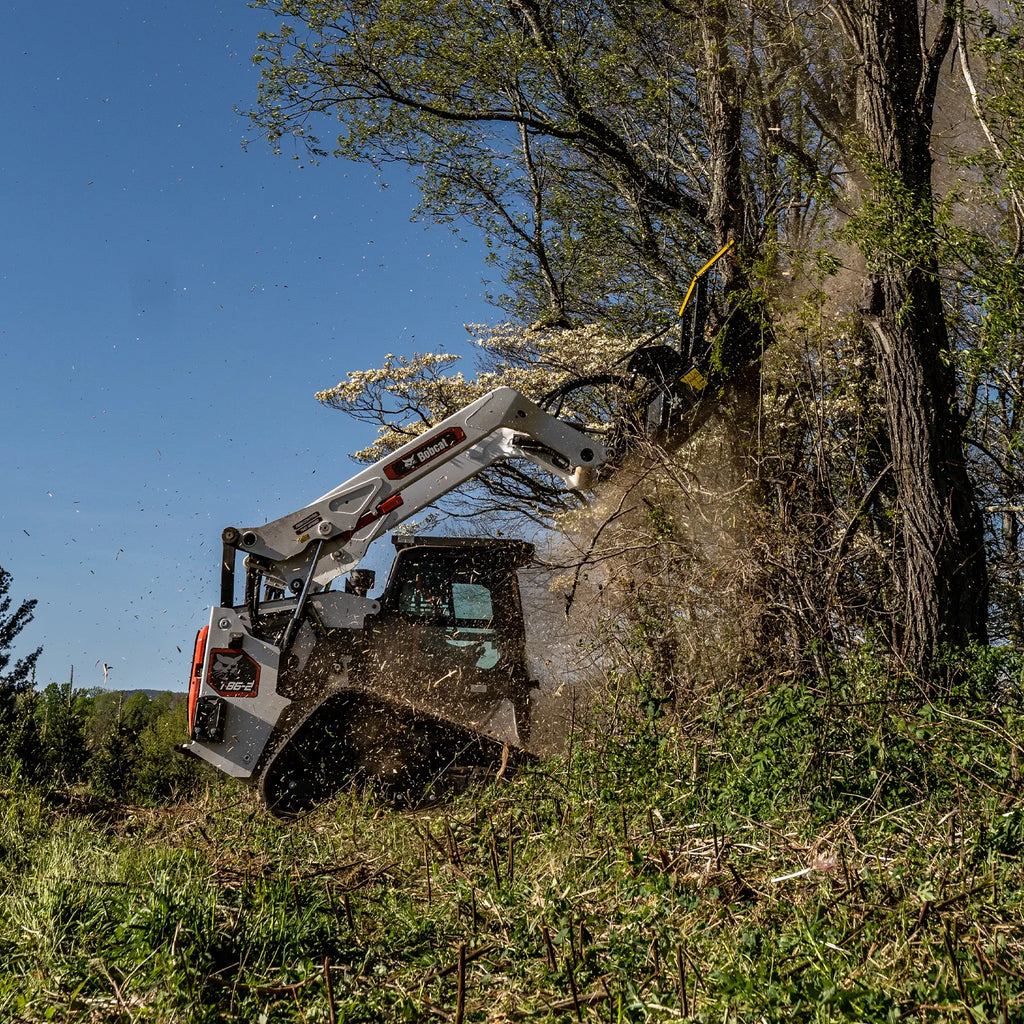

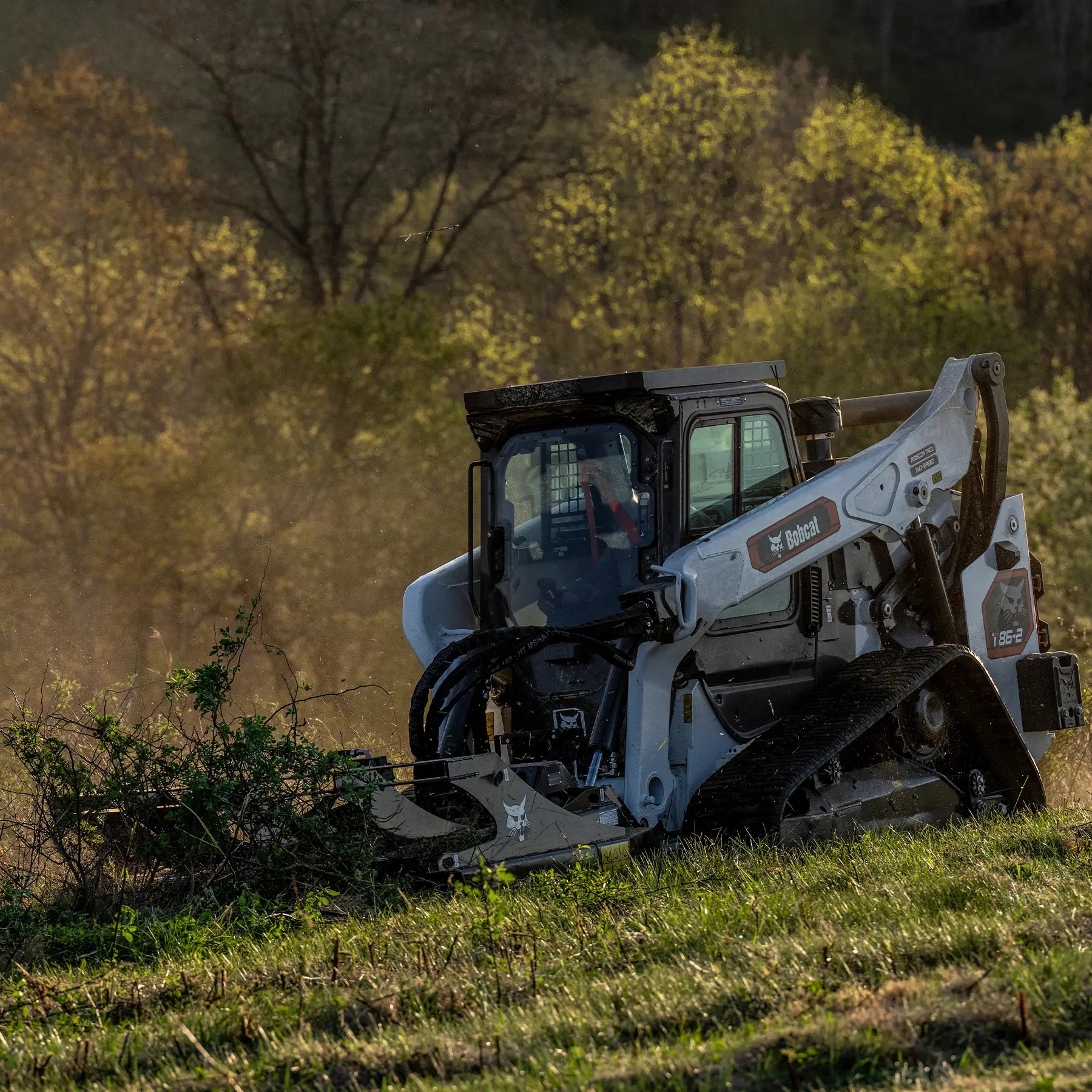

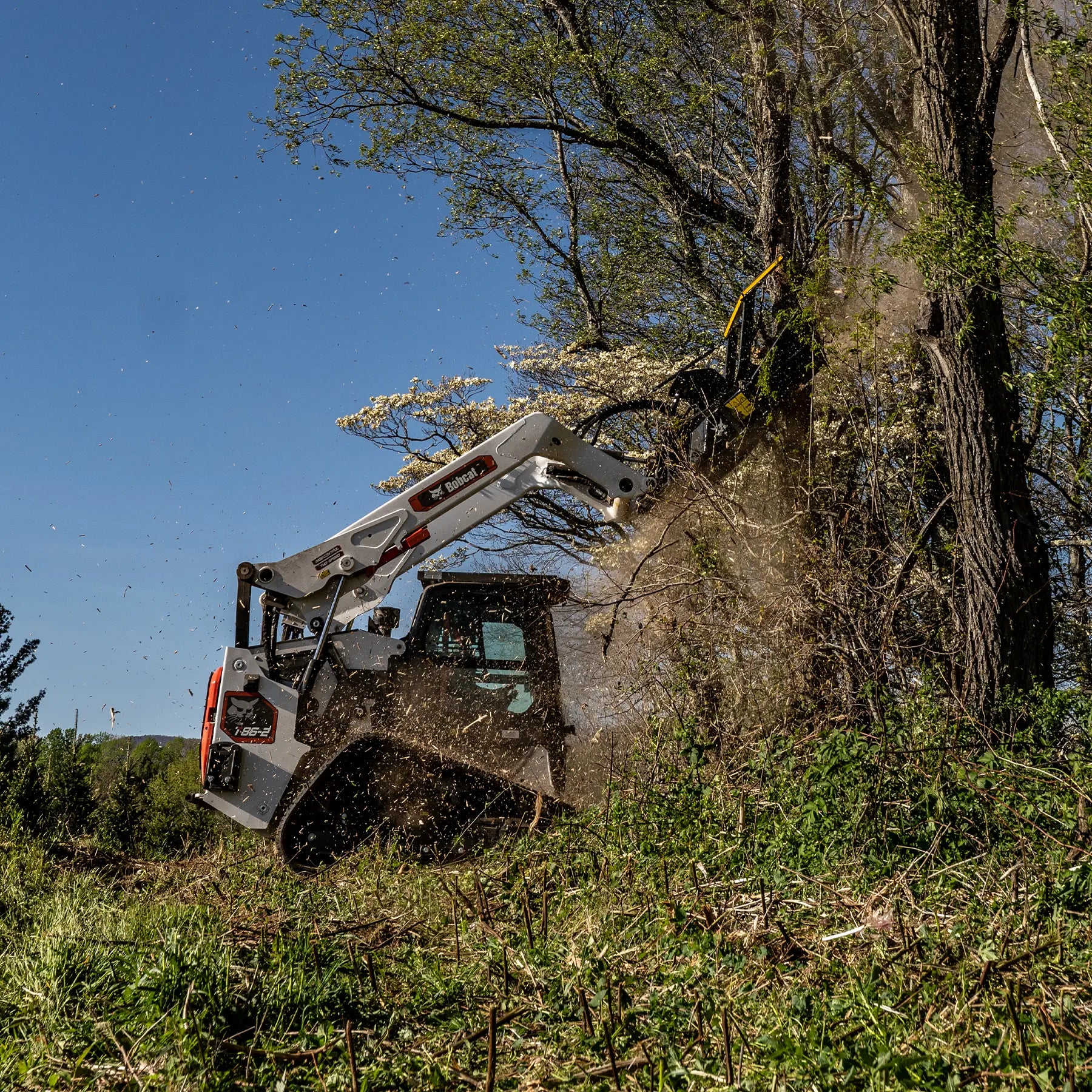

- Running high-demand attachments such as drum mulchers and stump grinders

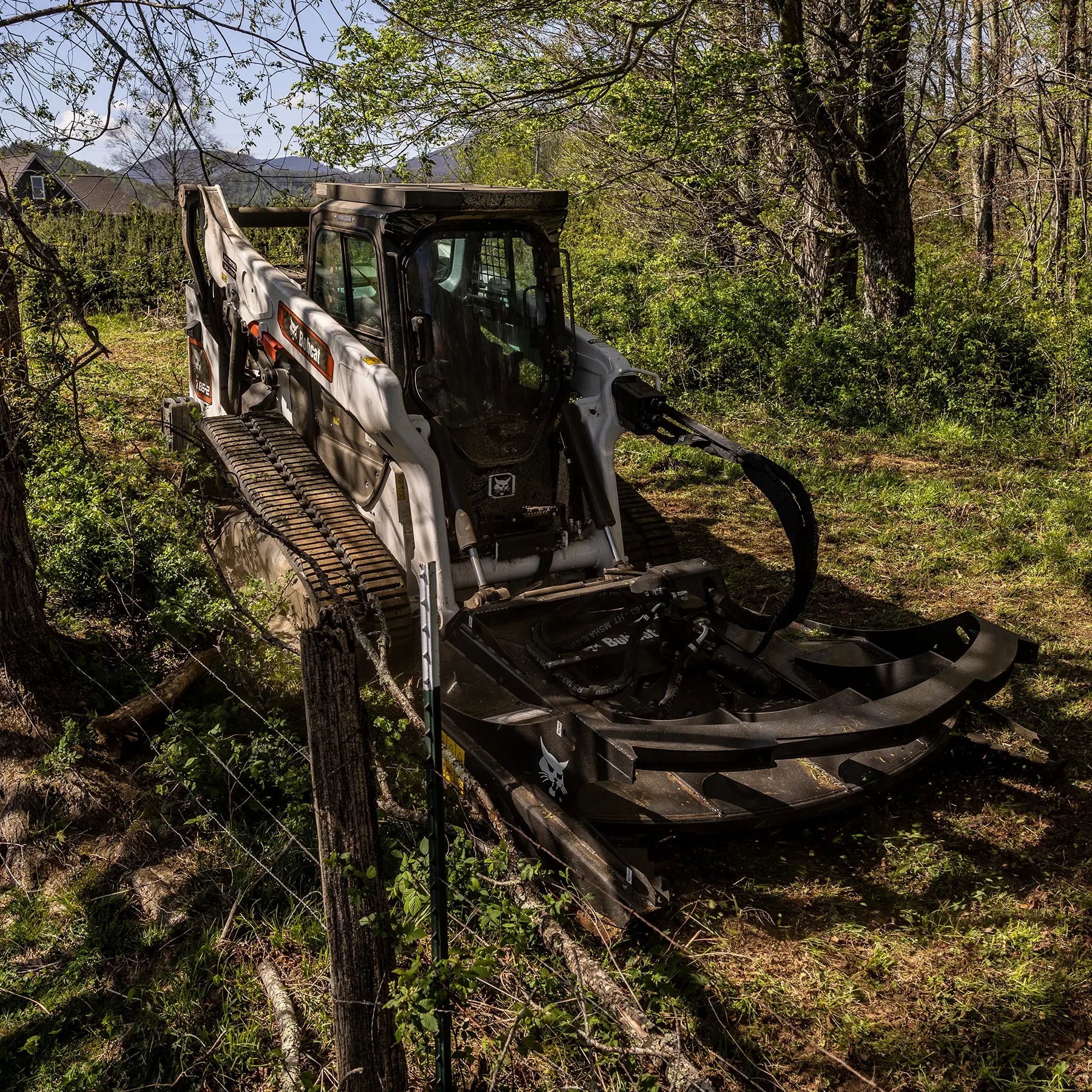

- Clearing brush, maintaining trails and preparing undeveloped sites
- Operating on rough, soft or unfinished terrain where tracks help flotation
- Using available 5-Link torsion suspension to tailor ride quality
- High-output Pro loader platform for demanding attachment fleets
- Work, Core, Plus and Advanced packages simplify machine selection
- Available Jobsite Companion and awareness systems support advanced operation
- Supported by Carleton Equipment parts, service and attachment expertise
Pro Loader Packages
Find the Right Package for the Way You Work
Find the Right Package for the Way You Work
Package options make it easier to choose the right mix of advanced comfort, control and technology for the way you work. Compare package levels below to find the Pro Bobcat loader setup that matches your jobsites, applications and operator preferences.
WORK, CORE, PLUS and ADVANCED packages are available across Pro Bobcat loaders.
| Work | Core | Plus | Advanced | |
|---|---|---|---|---|
| Overview | ||||
| Summary | Pro control and operation at a competitive price. | Pro control and operation with upgraded comfort and performance options. | Pro control and operation with premium comfort and performance standard. | Plus package with Jobsite Companion. |
| Standard Features | ||||
| Power Bob-Tach® | ✔ | ✔ | ✔ | ✔ |
| Keyless Ignition | ✔ | ✔ | ✔ | ✔ |
| 7-Pin Attachment Control | ✔ | ✔ | ✔ | ✔ |
| 2-Speed | ✔ | ✔ | ✔ | ✔ |
| Auto-Throttle | ✔ | ✔ | ✔ | ✔ |
| Dual-Direction Bucket Positioning | ✔ | ✔ | ✔ | ✔ |
| Bluetooth Radio | ✔ | ✔ | ✔ | ✔ |
| Main Package Differences | ||||
| Suspension Seat | Vinyl | High-Back Heated Cloth Air-RideWith Enclosed Cab | High-Back Heated Cloth Air-Ride | High-Back Heated Cloth Air-Ride |
| Display | 8" | 8" w/ InfotainmentWith Enclosed Cab | 8" w/ Infotainment | 8" w/ Infotainment |
| Lights | LED | Premium LED | Premium LED w/ Side Lights | Premium LED w/ Side Lights |
| Machine IQ Telematics | 2YR Basics | 2YR Basics | 1YR H&S + 1YR Basics | 1YR H&S + 1YR Basics |
| Automatic Ride Control | — | ✔ | ✔ | ✔ |
| Sound Reduction | — | ✔With Enclosed Cab | ✔ | ✔ |
| Jobsite Companion | — | — | — | ✔ |
| Package Options | ||||
| Cab | Open or Enclosed HVAC | Open or Enclosed HVAC | Enclosed HVAC W/ Clear-Side Enclosure | Enclosed HVAC W/ Clear-Side Enclosure |
| Controls | SJC STD Hand & Foot OPT |
SJC STD Hand & Foot OPT |
SJC STD Hand & Foot OPT |
SJC |
| Camera(s) | Rear View | Rear View | Rear View STD Broad Area OPT |
Rear View STD Broad Area OPT |
| Undercarriage | Solid Mount | Solid Mount | Solid Mount | Solid Mount |
| Auxiliary Flow | Standard Flow | Standard Flow STD Standard+High OPT |
Standard+High STD | Standard+High STD |
| Reversing Fan | — | Included w/ High Flow | ✔ | ✔ |
| Bobcat Sense | Rear Object Detection and Avoidance OPT | Rear Object Detection and Avoidance OPT | Rear Object Detection and Avoidance OPT | 360 People Detection OPT |
| Tracks | C-Pattern 12.6" STD C-Pattern 15.7" OPT MBL 15.7" OPT |
C-Pattern 12.6" STD C-Pattern 15.7" OPT MBL 15.7" OPT |
C-Pattern 12.6" STD C-Pattern 15.7" OPT MBL 15.7" OPT |
C-Pattern 12.6" STD C-Pattern 15.7" OPT MBL 15.7" OPT |
Full Specifications
General
| Condition | Showroom |
| Machine Type | Compact Track Loader |
Engine
| Engine Make | Bobcat |
| Battery Size | 1000A CC |
| Engine-High Idle | 2600 |
| Engine-Low Idle | 1050 |
| Horsepower | 105.0 |
| Hydraulic Horsepower - Standard Flow | 47 hp |
| Hydraulic Horsepower - High Flow | 74.7 hp |
| Hydraulic Horsepower - Super Flow | 99.5 hp |
| Emissions | Tier 4 |
| Pre-Heat | Yes |
Performance
| ROC Solid Undercarriage | 3,800 lb |
| Rated Operating Capacity with Torsion | 3,700 lbs |
| Rated Operating Capacity 200 lb. Counterweight | 4,075 lbs |
| Rated Operating Capacity 400 lb. Counterweight | 4,225 lbs |
| Rated Operating Capacity 300 lb. Counterweight | 4,150 lbs |
| Loader Lift Height | 144 in |
| Bucket Hinge Pin Height | 132 IN. |
| Reach @ Max Height | 34.5 in |
| Tipping Load | 10,587 lb |
| Travel Speed - Low (2-Speed) | 5.5 mph |
| Travel Speed - High (2-Speed) | 10.7 mph |
| Ground Pressure (Rubber) | 4.6 psi |
Capacities
| Fuel Tank | 31.6 GAL. |
Hydraulics
| Hydraulic High Flow (optional) | 36.6 gpm |
| System Relief @ Quick Couplers | 3,500 psi |
| Auxiliary Std Flow | 23.6 GPM |
| Auxiliary High Flow | 36.6 GPM |
| Aux. Super High Flow | 42 GPM |
| Aux System Pressure | 3,500 psi |
| Aux System Pressure (Super) | 4,061 psi |
Dimensions & Weight
| Ground Pressure (Standard Tracks) | 4.6 psi |
| Height | 83.1 IN. |
| Length | 120.4 in |
| Width | 80 IN. |
| Operating Weight | 12393 lb |
| Turning Radius | 85.1 in |
| Length of track on ground | 66.3 in |
| Track Width | 17.7 in |
| Track Width - Optional | 17.7 in |
| Length with Standard Bucket | 148.9 in |
Serviceability
Features
| Joystick Control | ■ Standard |
| Reversing Fan | ○ Optional |
| Radio Remote Control (SJC Required) | ○ Optional |
| Pressure Release Hydraulic Quick Couplers | ■ Standard |
| LED Front and Rear Lights | ■ Standard |
| Dual-Direction Bucket Positioning | ■ Standard |
| 5-Link Torsion Suspension Undercarriage | ○ Optional |
| Speed Management | ■ Standard |
| Heated Cloth Air-Ride Seat | ■ Standard |
| Standard Display (includes keyless start) | ■ Standard |
| Air Conditioning | ■ Standard |
| Backup Alarm | ■ Standard |
| BICS System (Interlock) | ■ Standard |
| ROPS/FOPS Approved | ■ Standard |
| ROPS-Step | — Not Applicable |
| Sound Option | ■ Standard |
| Heater Air Conditioning | ■ Standard |
| Radio | ○ Optional |
| Turbocharged Engine | ■ Standard |
| Grab Handles | — Not Applicable |
| Suspension Seat | — Not Applicable |
| Two Speed Travel | ■ Standard |
| Lockable Ignition | — Not Applicable |
| Auxiliary Hydraulics | ■ Standard |
| 3-Spool Valve | — Not Applicable |
| Grease Track Tension | ○ Optional |
| Bob-Tach Attachment System | ■ Standard |
| Power Bob-Tach | ■ Standard |
| Ride Control | ○ Optional |
| Horn | ■ Standard |
Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
Rebates & Special Offers
Get as low as 0% for 48 months* or $9,000 cash rebate* in lieu of financing.
Download Spec Sheet
Get detailed specifications, dimensions, and performance data for this T86-2 | Bobcat.
|
General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Bobcat |
| Model: | T86-2 |
| Machine Type: | Compact Track Loader |
| Coupler: | Bob-Tach |
|
Engine
|
|
|---|---|
| Horsepower: | 105.0 |
| Emissions: | Tier 4 |
|
Performance
|
|
|---|---|
| Rated Operating Capacity (ISO): | 3,800 lb |
| Tipping Load: | 10,587 lb |
| Operating Weight: | 12393 lb |
| Height to Bucket Hinge Pin: | 132 IN. |
|
Hydraulics
|
|
|---|---|
| Aux. Standard Flow: | 23.6 GPM |
| Aux. High Flow: | 36.6 GPM |
| Aux. Super High Flow: | 42 GPM |
|
Dimensions
|
|
|---|---|
| Height: | 83.1 IN. |
| Width: | 80 IN. |
| Fuel Tank: | 31.6 GAL. |
