Portable Generator Models

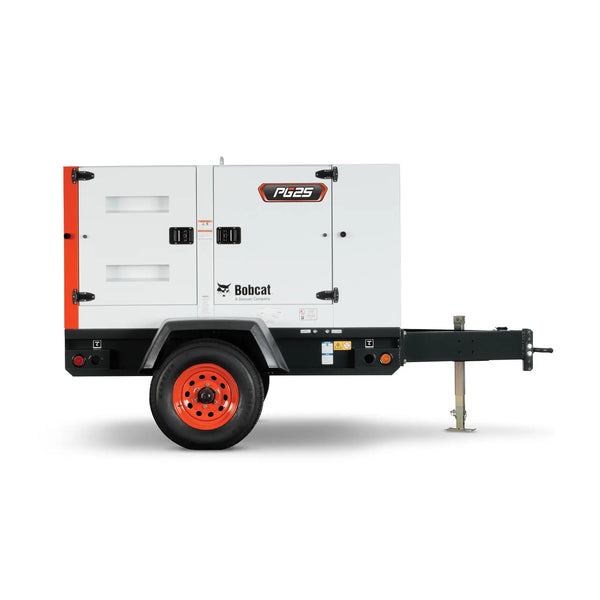

PG25
- 75% Load Output: 30 Hours
- Power @ 1,800 RPM: 33 hp
- Sound Level: 62 dBA
- Weight: 3060 lb

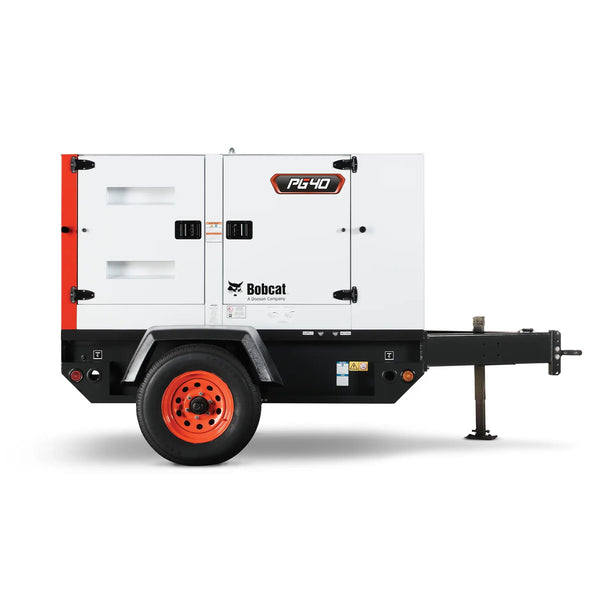

PG40
- 75% Load Output: 49.8 Hours
- Power @ 1,800 RPM: 48.8 hp
- Sound Level: 64 dBA
- Weight: 3826 lb

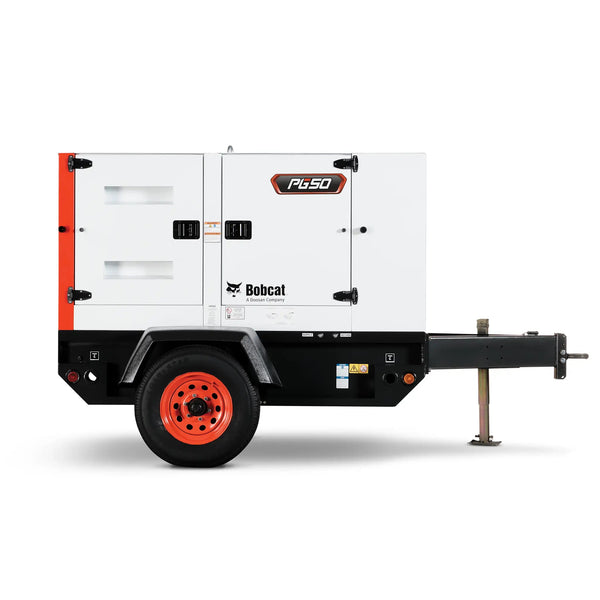

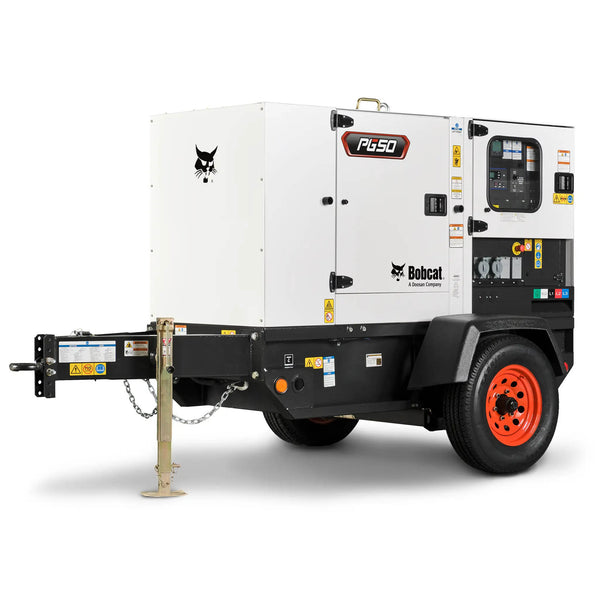

PG50
- 75% Load Output: 40.3 Hours
- Power @ 1,800 RPM: 62.2 hp
- Sound Level: 66 dBA
- Weight: 3930 lb

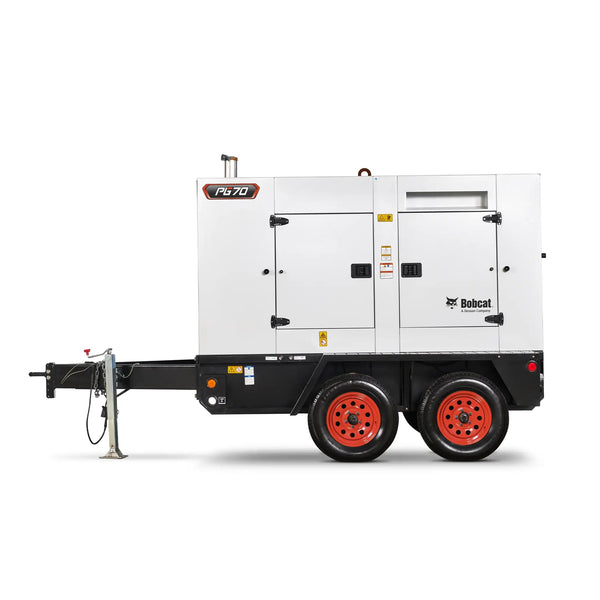

PG70
- 75% Load Output: 50 Hours
- Power @ 1,800 RPM: 84 hp
- Sound Level: 65 dBA
- Weight: 6000 lb

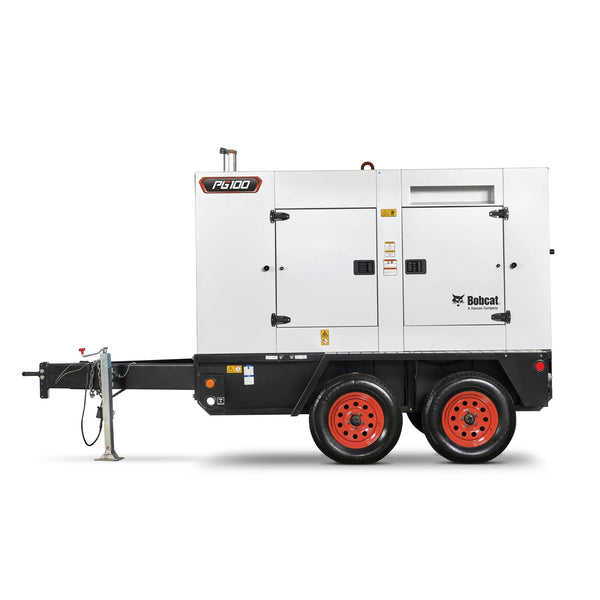

PG100
- 75% Load Output: 37 Hours
- Power @ 1,800 RPM: 129 hp
- Sound Level: 67 dBA
- Weight: 6300 lb

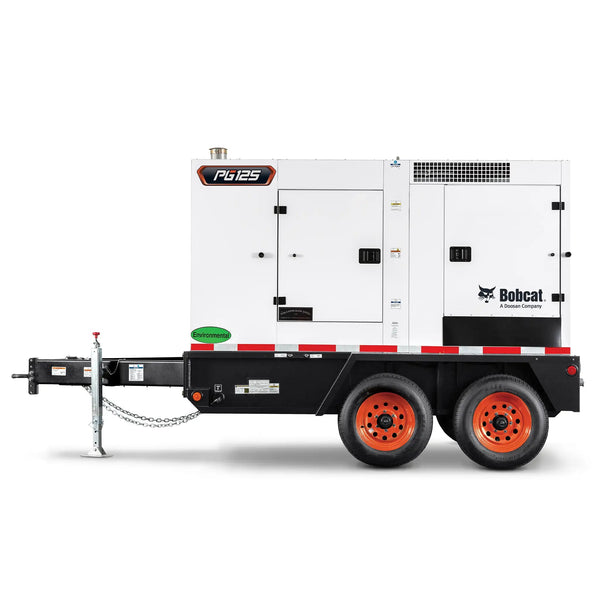

PG125
- 75% Load Output: 32.4 Hours
- Power @ 1,800 RPM: 153 hp
- Sound Level: 68 dBA
- Weight: 6990 lb

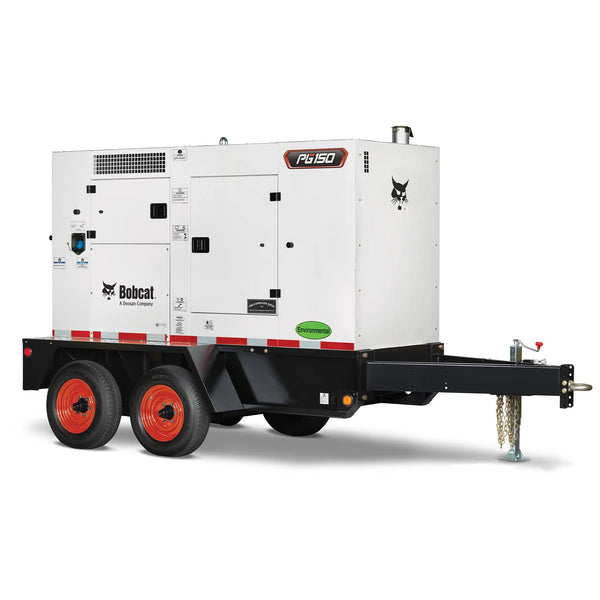

PG150
- 75% Load Output: 26.8 Hours
- Power @ 1,800 RPM: 186 hp
- Sound Level: 69 dBA
- Weight: 6990 lb

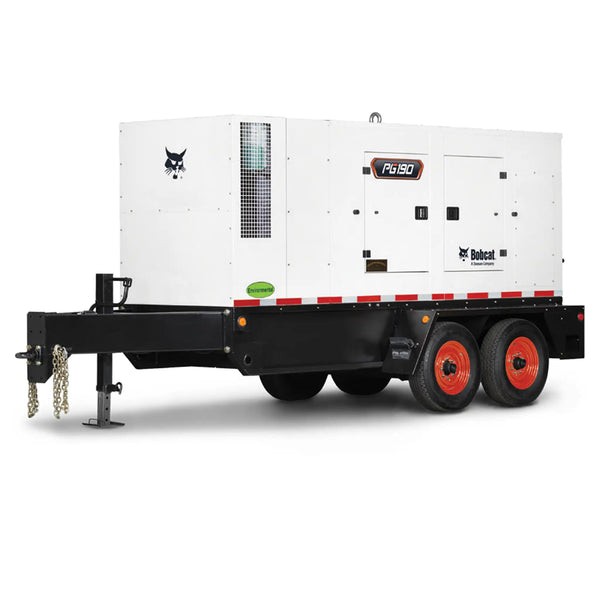

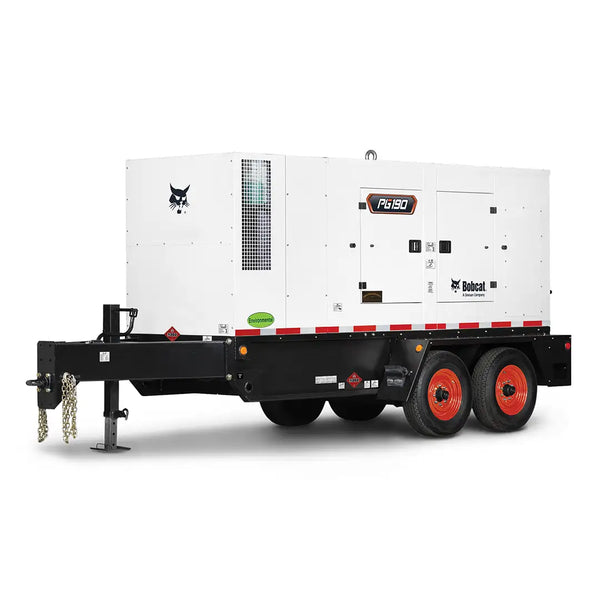

PG190
- 75% Load Output: 46 Hours
- Power @ 1,800 RPM: 219 hp
- Sound Level: 69 dBA
- Weight: 11377 lb

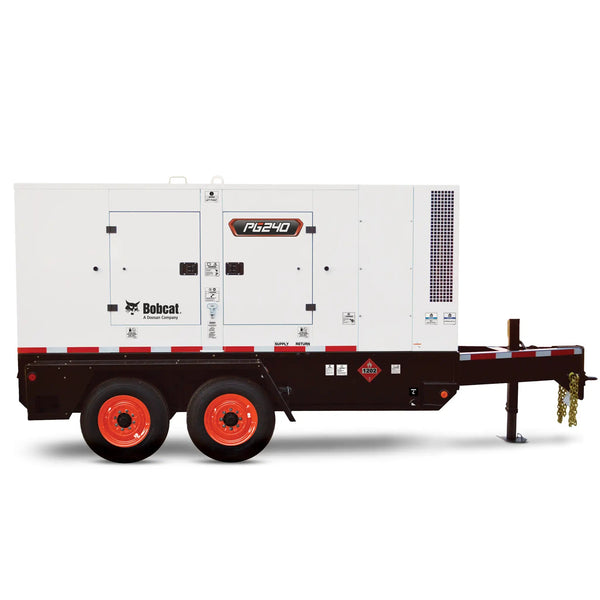

PG240
- 75% Load Output: 35.5 Hours
- Power @ 1,800 RPM: 282 hp
- Sound Level: 69 dBA
- Weight: 11377 lb

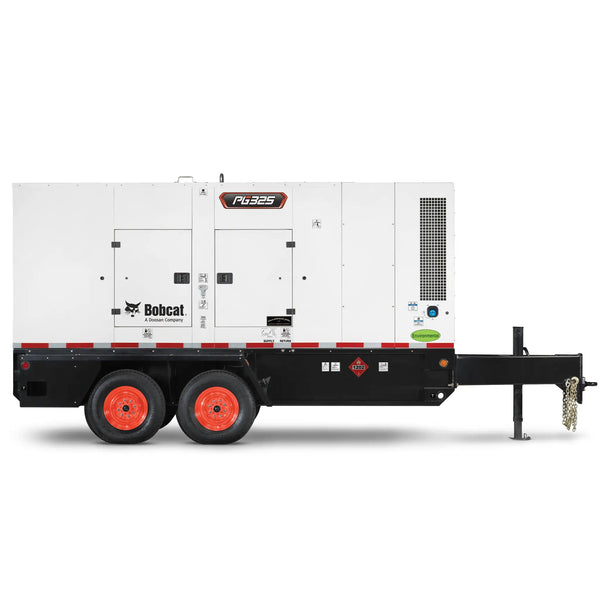

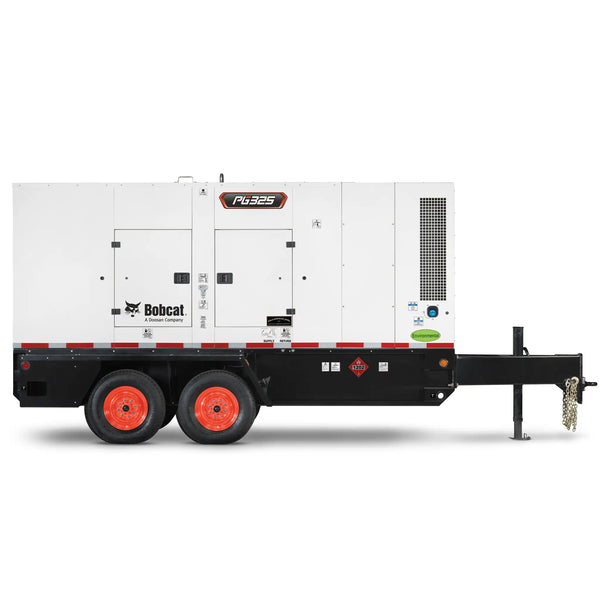

PG325
- 75% Load Output: 32.5 Hours
- Power @ 1,800 RPM: 393 hp
- Sound Level: 76 dBA
- Weight: 14032 lb

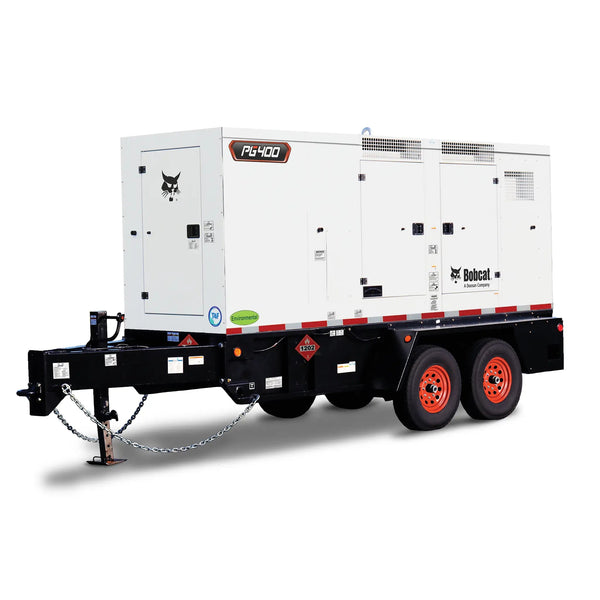

PG400
- 75% Load Output: 27 Hours
- Power @ 1,800 RPM: 475 hp
- Sound Level: 76 dBA
- Weight: 15450 lb

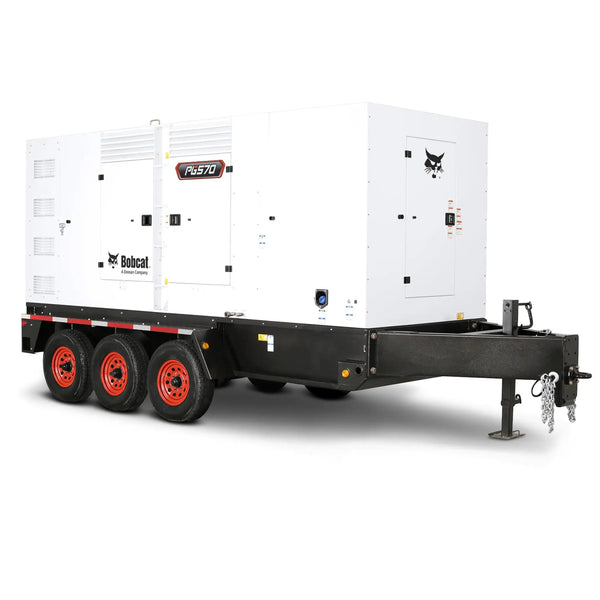

PG570
- 75% Load Output: 27.8 Hours
- Power @ 1,800 RPM: 680 hp
- Sound Level: 75 dBA
- Weight: 23574 lb
Bobcat Portable Generators
Compare the Full Generator Family
From 25 kVA compact towables to the 570 kVA no-minimum-load powerhouse — compare every Bobcat portable generator by prime power, voltage, engine and sound level.
| Model | Prime Power | Voltages | Engine | Sound @ 23 ft | Operating Weight | |
|---|---|---|---|---|---|---|
| Small — Compact Towable | ||||||
| 25 kVA20 kW prime | 120 / 208 / 240 / 480 V1Ø & 3Ø · 50/60 Hz | Doosan D1833 hp · 3-cyl | 63 dB(A) | 3,060 lbs | View | |
| 40 kVA32 kW prime | 120 / 208 / 240 / 480 V1Ø & 3Ø · 50/60 Hz | Doosan D1849 hp · 3-cyl | 64 dB(A) | 3,826 lbs | View | |
| 50 kVA40 kW prime | 120 / 208 / 240 / 480 V1Ø & 3Ø · 50/60 Hz | Doosan D2462 hp · 4-cyl | 66 dB(A) | 3,930 lbs | View | |
| Medium — Mid-Range | ||||||
| 70 kVA56 kW prime | 120 / 208 / 240 / 480 V1Ø & 3Ø · 50/60 Hz | Cummins F3.884 hp · 4-cyl | 65 dB(A) | 6,000 lbs | View | |
| 100 kVA80 kW prime | 120 / 208 / 240 / 480 V1Ø & 3Ø · 50/60 Hz | Cummins F3.8129 hp · 4-cyl | 67 dB(A) | 6,300 lbs | View | |
| Large | ||||||
| 125 kVA100 kW prime | 120 / 208 / 240 / 480 V1Ø & 3Ø · 50/60 Hz | Cummins QSB5153 hp · 4-cyl | 68 dB(A) | 6,990 lbs | View | |
| 154 kVA123 kW prime | 120 / 208 / 240 / 480 V1Ø & 3Ø · 50/60 Hz | Cummins QSB5186 hp · 4-cyl | 69 dB(A) | 6,990 lbs | View | |
| Extra-Large — Big Industrial | ||||||
| 181 kVA145 kW prime | 120 / 208 / 240 / 480 V1Ø & 3Ø · 50/60 Hz | Cummins QSB7219 hp · 6-cyl | 69 dB(A) | 11,377 lbs | View | |
| 236 kVA189 kW prime | 120 / 208 / 240 / 480 V1Ø & 3Ø · 50/60 Hz | Cummins QSB7282 hp · 6-cyl | 69 dB(A) | 11,377 lbs | View | |
| 334 kVA267 kW prime | 120 / 208 / 240 / 480 V1Ø & 3Ø · 50/60 Hz | Cummins QSL9393 hp · 6-cyl | 76 dB(A) | 14,032 lbs | View | |
| 400 kVA+ — No Minimum Load | ||||||
| 402 kVA322 kW prime | 120 / 208 / 240 / 480 V1Ø & 3Ø · 50/60 Hz | Cummins QSG12475 hp · 6-cyl | 76 dB(A) | 15,450 lbs | View | |
| 570 kVA456 kW prime | 208 / 240 / 480 V1Ø & 3Ø · 60 Hz | Cummins X15680 hp · 6-cyl | 75 dB(A) | 23,574 lbs | View | |
Prime power is the maximum continuous power rating at 0.8 power factor; standby ratings are higher. All models are multi-voltage (single- and three-phase) — small/medium units select voltage on a 3-position switch, while PG240 and up use a Link Board Panel. Sound is measured at 23 ft (7 m) at 100% load. Operating weight is for the enclosed unit with running gear, ready to run. The PG70, PG100, PG325, PG400 and PG570 are paralleling-capable. Specifications subject to change — contact Carleton Equipment to confirm.
Understanding the Lineup
Five Tiers, One Lineup
Bobcat portable generators sort into five classes by prime power (kVA / kW) and the kind of job they're built for. Here's how to read the lineup before you compare specs.
Small
25–50 kVA
20–40 kW
Compact, Doosan-powered towables. Light, maneuverable power for jobsite trailers, lighting, hand tools and small backup.
PG25 · PG40 · PG50
Medium
70–100 kVA
56–80 kW
Cummins-powered, paralleling-capable mid-range units — the quietest in their class. Multi-tool sites, small commercial backup and events.
PG70 · PG100
Large
125–154 kVA
100–123 kW
Higher-output towables for roadwork, utilities and mid-size commercial standby — a wide range of selectable output voltages.
PG125 · PG150
Extra-Large
181–334 kVA
145–267 kW
Big-industrial power on a Link Board Panel — tower cranes, large jobsites, utilities and infrastructure. PG325 is paralleling-capable.
PG190 · PG240 · PG325
400 kVA+ · No Min Load
402–570 kVA
322–456 kW
The industry's only 400-kVA-or-larger generators with no minimum load requirement. Major construction, large events and standby; both parallel.
PG400 · PG570
Prime vs Standby Power Prime power is continuous output for the full duration of the job; standby is emergency-only backup at a higher rating but limited hours. Size to the prime rating for working power.
Single- vs Three-Phase Single-phase (120/240 V) runs lighting, hand tools and small loads; three-phase (208/480 V) is required for motors, HVAC, pumps and most industrial equipment. Bobcat units are multi-voltage.
kVA vs kW kVA is apparent power, kW is real (working) power — related by power factor (0.8 typical, so 100 kVA ≈ 80 kW). Size to both your kW load and the kVA rating.
How to Choose
Sizing It Right — Running & Starting Watts
Generators size by power, not airflow. Add up the running watts of everything you'll run at once, then account for starting (surge) watts — motors briefly draw 2–3× their running load to start. Match a generator whose prime kW covers the running total and whose surge capacity handles your largest motor start.
| Equipment / Load | Typical Running | Starting Surge |
|---|---|---|
| LED light tower | 1–2 kW | Minimal |
| Electric hand tools (per circuit) | 1.5–3 kW | 1–2× |
| Concrete mixer / small 3Ø motor | 2–7 kW | 2–3× |
| Submersible / trash pump | 3–15 kW | 2–3× |
| Stick welder (~200 A) | 7–12 kW | Moderate |
| Site office / trailer (HVAC + lights) | 5–15 kW | Moderate |
| Temporary HVAC / electric heat | 20–100 kW | Moderate |
| Tower crane | 30–75 kW | High (hoist start) |
| Event stage, sound & lighting rig | 50–300 kW | Moderate |
| Industrial / facility standby | 100–456 kW | Varies |
Lighting, jobsite trailers, small tools, light backup — single small loads
→ Small · PG25 / PG40 / PG50
Multiple tools, small commercial backup, small events
→ Medium · PG70 / PG100
Roadwork, utilities, mid-size commercial standby
→ Large · PG125 / PG150
Tower cranes, large industrial sites, infrastructure
→ Extra-Large · PG190–PG325
Major construction, large events, industrial standby — no minimum load, parallel-ready
→ 400 kVA+ · PG400 / PG570
Rule of thumb: total the running watts of everything running at once, confirm the unit can handle your largest motor's starting surge (often 2–3× its running watts), then add about 20–25% headroom for growth and voltage stability. Choose three-phase for motor, HVAC and industrial loads. Not sure? Tell us your equipment and we'll calculate the load for you.
Where They Work
Applications by Industry
Construction
Jobsite power for tools, cranes, pumps and site trailers on sites without grid access.
Medium → 400 kVA+Events & Production
Quiet, clean power for stages, sound, lighting and vendor villages.
Medium → 400 kVA+Utilities & Infrastructure
Three-phase power for roadwork, water, telecom and grid projects.
Large → Extra-LargeEmergency / Standby
Reliable backup for facilities, data and critical operations.
All TiersRental Fleets
Easy-service enclosures and versatile multi-voltage output for mixed demand.
All Tiers
Power You Can Count On
Clean, Reliable Power
Three Bobcat technologies work together to deliver steady, protected, scalable power — so your generator runs clean under any load and grows with the job.
1
Automatic Voltage Regulation
AVR holds output voltage steady as loads come and go — clean, stable power that protects sensitive tools, electronics and motors.
2
Intelligent Load Management (ILMS)
Bobcat's exclusive ILMS option protects the engine and aftertreatment during low-load operation — minimizing wet stacking, sludge buildup and costly repairs.
3
Paralleling
Synchronize multiple units for more power or redundancy — the PG70, PG100, PG325, PG400 and PG570 parallel (up to 32 machines on the PG570).
Every current model is a Tier 4 Final clean-diesel unit with a heavy-duty, sound-attenuated enclosure and easy-access service panels — dependable, efficient power that's ready to tow to the next job.
Good to Know
Emissions & Towing
Every current model is a Tier 4 Final (T4F) clean-diesel unit. The larger units (PG125 and up) use SCR aftertreatment with Diesel Exhaust Fluid (DEF) — keep the DEF tank topped off (roughly 24 gal on the PG190–PG325, 46 gal on the PG400 and PG570). The PG400 adds a diesel particulate filter (DOC/DPF/SCR), while the PG570 runs SCR with no EGR. It's modern, efficient diesel power with minimal emissions upkeep.
Operating weights run from about 3,060 lbs (PG25) up to roughly 23,574 lbs (PG570), so match the unit to the right tow vehicle and hitch class. Larger units ride on heavy-duty, NHTSA-compliant tandem/dual-axle running gear with lights, fenders and brakes for road-ready towing. Ask us about the right towing setup for your fleet.
Towable Generators
Engineered to perform in any conditions.
- Output from 25–570 kVA
- Best-in-class serviceability
- Easy-to-read gauges
- Simple controls with built-in safety measures
- Low-load management technology
- Truly towable & easy to maneuver
EPA Certified for Fuel Efficiency & Sound Levels
Engineered to meet or exceed EPA regulations, Bobcat portable generators offer industry-leading Tier 4 fuel efficiency and long runtimes, along with impressively quiet operation suitable for any application.
User-Friendly Interface
Easy-to-read analog gauges make it easy for you to monitor your generator's performance with a quick glance. Intuitive controls with built-in safety measures protect both you and your machine.
Intelligent Load Management System
Exclusive to Bobcat, the ILMS option protects your generator's engine and exhaust aftertreatment system during unfavorable low-load operating conditions by minimizing wet stacking, harmful sludge buildup, and the need for costly repairs.
Paralleling is Painless
For applications that require additional power or redundancy, Bobcat offers an advanced control system that allows multiple generators to be synchronized and paralleled together.
Available for models: PG70, PG100, PG325, PG400, & PG570
Exclusive Bobcat Technology
Intelligent Load Management System
Low-load operation is one of the biggest causes of generator engine wear and costly repairs — wet stacking, sludge buildup, and aftertreatment system damage all stem from running a generator below its optimal load range. Bobcat's exclusive ILMS option actively monitors and manages load conditions, protecting your engine and exhaust system automatically so you can focus on the job, not the machine.
Bobcat Portable Generators
Frequently Asked Questions
Have a question about buying, renting, or servicing a Bobcat portable generator? Find answers below or reach out to your nearest Carleton Equipment location.
What is a portable generator?
A portable generator is a mobile power unit that converts diesel fuel into reliable electrical power for tools, lighting, and equipment on jobsites without grid access. Bobcat portable generators deliver dependable performance wherever you need electricity — construction sites, events, disaster recovery, or remote operations. Towable, diesel-powered generators range from 25–1140 kVA, providing single- and three-phase power to run everything from hand tools to jobsite trailers and tower cranes. Each model is built with heavy-duty enclosures and sound attenuation for quiet operation, automatic voltage regulation (AVR) for steady clean output, Tier 4 diesel engines for efficiency and emissions compliance, and easy-access service panels for minimal downtime.
How do I choose a portable generator?
Selecting the right generator depends on your power demand and operating conditions. Consider: Power output — match the generator's kW, kVA, or amperage rating to the total running load of your equipment. Voltage needs — choose single-phase for smaller tools and lighting, or three-phase for industrial applications. Runtime requirements — larger fuel tanks support long shifts without refueling. Mobility — compact, trailer-mounted units are ideal for moving between jobsites. Environment — sound-attenuated, weather-protected enclosures are essential for urban or harsh environments. Our team at Carleton Equipment can help calculate your total load and recommend the best model — submit a quote request or contact your nearest location.
What's the difference between a portable generator and other power sources?
Portable generators stand apart for their flexibility and reliability. Compared to standby generators: portable units are mobile and designed for temporary use, while standby generators are fixed installations for permanent backup power. Compared to inverter generators: industrial portable generators offer far greater capacity (25–570 kVA) and three-phase capability for heavy-duty equipment — small inverter generators typically only offer single-phase and less than 15 kW output. Compared to light towers: light towers are primarily for integrated lighting with limited power output, while dedicated portable generators provide scalable, multi-connection power for any jobsite condition.
What sizes are available for Bobcat portable generators?
PG25–PG150: Compact towable models producing 25–150 kVA, ideal for residential construction, small jobsite power, and jobsite trailers. PG240–PG325: Mid-size units delivering 200–325 kVA for roadwork, utilities, and tower cranes. PG400–PG1140: Large diesel models producing 400–1140 kVA with load management technology and paralleling capability for major construction projects or emergency power applications. Every Bobcat portable generator is built for easy towing, quiet operation, and superior efficiency in the field.
What is the Bobcat ILMS and why does it matter?
ILMS stands for Intelligent Load Management System — an option exclusive to Bobcat generators. It protects the engine and exhaust aftertreatment system during low-load operation by minimizing wet stacking, harmful sludge buildup, and the need for costly repairs. If your generator will frequently run at partial load, ILMS is a worthwhile investment in long-term reliability and reduced maintenance costs.
Can Bobcat generators be paralleled together?
Yes. Select Bobcat generator models — PG70, PG100, PG325, PG400, and PG570 — are available with an advanced paralleling control system that allows multiple units to be synchronized and run together. This is ideal for applications requiring more power than a single unit can provide, or for redundancy and backup power configurations. See the models listed above or contact your nearest Carleton Equipment location to discuss paralleling options.
Does Carleton Equipment offer financing on Bobcat generators?
Yes. We offer competitive A.P.R. financing on qualifying new Bobcat portable generator models through participating dealers. Buying through Carleton Equipment also ensures expert guidance, access to demos, genuine parts, maintenance, and factory-authorized service to maximize uptime. See the current offer displayed above or submit a quote request for details. Financing is subject to credit approval.
Can I rent a portable generator before buying?
Yes, Carleton Equipment offers portable generator rentals at our Michigan locations — ideal for short-term jobsite power, events, emergency situations, or evaluating a unit before purchase. Submit a rental request online or contact your nearest branch to check availability.
Where can I buy a Bobcat portable generator in Michigan?
Carleton Equipment is Michigan's authorized Bobcat dealer with 7 locations statewide: Chesterfield, Coldwater, Grand Rapids, Howell, Kalamazoo, Livonia, and Saginaw. Visit our locations page to find your nearest branch and confirm current inventory.
Do you offer service and parts for Bobcat generators?
Yes. Carleton Equipment operates a full-service shop staffed by factory-certified Bobcat technicians capable of handling everything from routine maintenance to major repairs. We stock genuine Bobcat parts to minimize downtime and keep your generator running at peak performance throughout the season.
