Download Spec Sheet
Get detailed specifications, dimensions, and performance data for this PG570 | Bobcat Portable Power.
|
General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Bobcat |
| Model: | PG570 |
| Machine Type: | Other |
|
Engine
|
|
|---|---|
| Engine: | X15 |
| Engine Make: | Cummins |
| Emissions: | Tier 4 Final |
|
Performance
|
|
|---|---|
| Operating Weight: | 23574 lb |
|
Hydraulics
|
|---|
|
Dimensions
|
|
|---|---|
| Height: | 119.8 in |
| Length: | 260 in |
| Width: | 98.5 in |
| Fuel Tank: | 656 gal |
Description

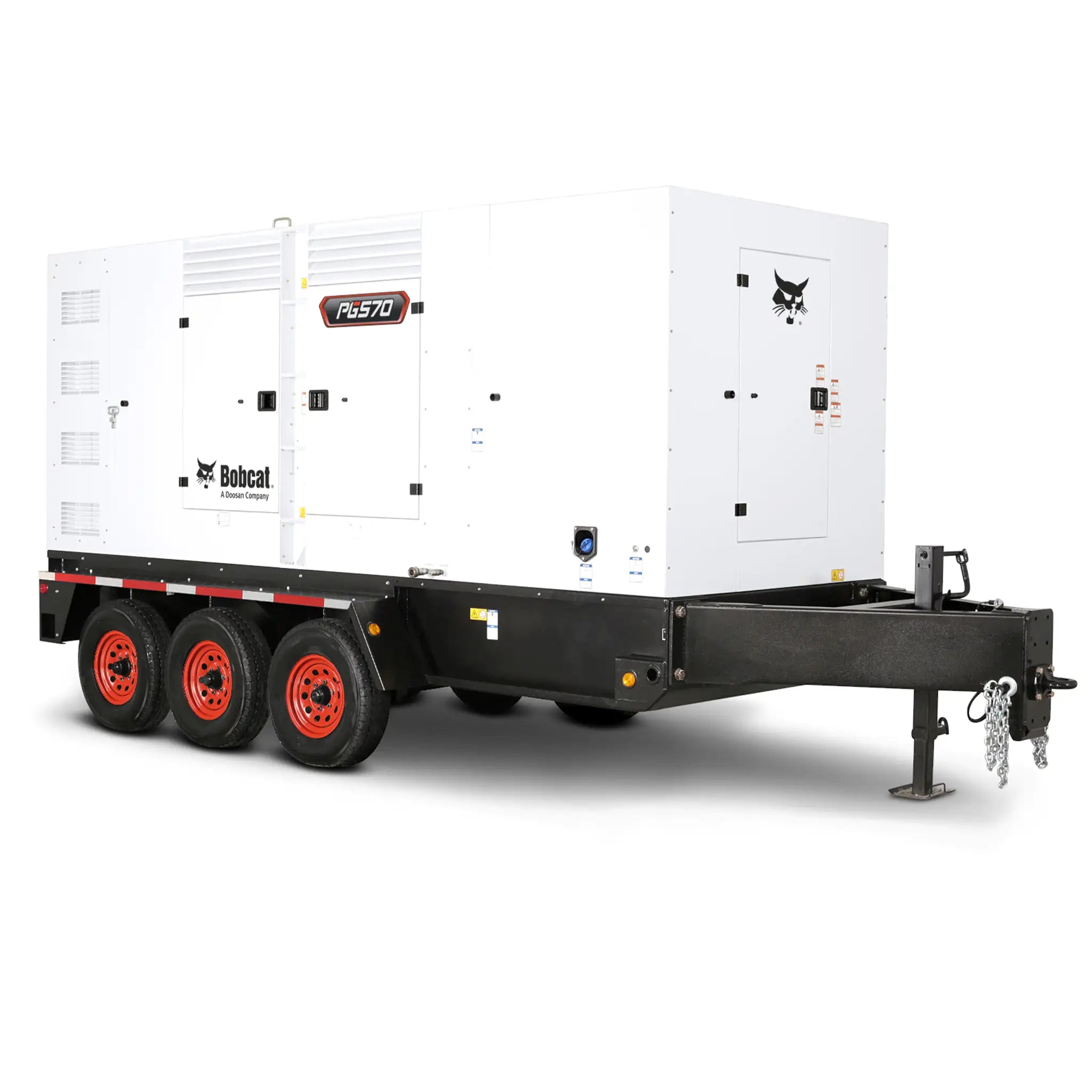

PG570 Portable Generator
Designed with ease of serviceability in mind, the Bobcat® PG570 is compact, thoughtfully engineered and built to perform in tough conditions.
- Powered by a reliable Cummins® X15 engine
- Delivers 570 kVA (456 kW) with 50 Hz/60 Hz switchable frequency
- 20% smaller than comparable models on the market
- Excellent motor starting capabilities with no minimum load
With the PG570 portable generator, Bobcat delivers heavy-duty power combined with unmatched versatility for the most demanding jobsite operations.
Featuring the powerful Cummins X15 engine with the latest performance technology, the PG570 has no EGR and no minimum load requirements in working temperatures down to -13° F (-25° C). Its upsized alternator allows for better motor starting capabilities, superior reaction to harmonics and improved overall alternator life. It’s roughly 20% smaller, in both size and weight, than comparable models on the market, making the PG570 a true towable generator capable of navigating the toughest jobsites.
Ideal for rental, construction and special event applications, the PG570 portable generator has a prime power rating of 570 kVA (456 kW) and voltage configurations of 480V, 208V and 120/240 1Ø. It will give you up to 24 hours of reliable power in most applications.
The PG570 comes standard with a DEIF paralleling controller, allowing you to parallel up to 32 machines for maximum reliability. The convenience receptacles provide single-phase power regardless of primary voltage selection.
As with all Bobcat portable generators, the PG570 was engineered with ease of serviceability in mind. The after-treatment system requires minimal maintenance and is easily accessible from the front of the machine. All user interface components, such as the controller, link board panel and convenience receptacles, are located on the rear of the machine for easy operation. The CoolBox solution maximizes performance to achieve industry-leading noise levels and minimum water ingression.
What Makes the PG570 Different
Heavy-Duty Power, Unmatched Versatility
The PG570 delivers heavy-duty power combined with unmatched versatility for the most demanding jobsite operations — a prime power rating of 570 kVA (456 kW) with voltage configurations of 480 V, 208 V and 120/240 V 1Ø.
Cummins X15 — No EGR, No Minimum Load
The powerful Cummins X15 engine with the latest performance technology has no EGR and no minimum load requirements, in working temperatures down to −13°F (−25°C).
Upsized Alternator
An upsized alternator allows for better motor-starting capabilities, superior reaction to harmonics and improved overall alternator life.
Roughly 20% Smaller — A True Towable
The PG570 is roughly 20% smaller, in both size and weight, than comparable models on the market — making it a true towable generator capable of navigating the toughest jobsites.
Parallel Up to 32 Machines
It comes standard with a DEIF paralleling controller, allowing you to parallel up to 32 machines for maximum reliability.
Convenience Receptacles
The convenience receptacles provide single-phase power regardless of the primary voltage selection — and deliver up to 24 hours of reliable power in most applications.
Engineered for Easy Serviceability
The after-treatment system requires minimal maintenance and is easily accessible from the front, while the controller, link board panel and convenience receptacles are all located on the rear for easy operation.
CoolBox Solution
The CoolBox solution maximizes performance to achieve industry-leading noise levels and minimum water ingression.

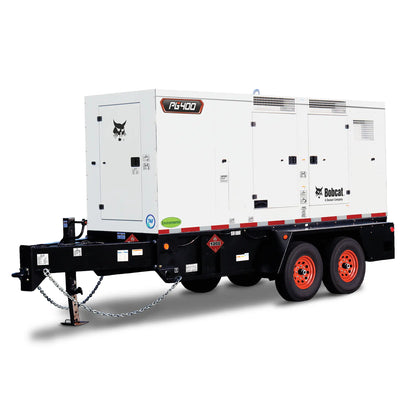

Compare the 400 kVA+ Generators
 |
 |
|
| PG400 | PG570Viewing | |
|---|---|---|
| Prime Power Rating | ||
| Prime Power (max) | 402 kVA (322 kW) | 570 kVA (456 kW) |
| 480 V · 3-phase · 60 Hz | 402 kVA / 322 kW / 484 A | 570 kVA / 456 kW / 686 A |
| 240 V · 3-phase · 60 Hz | 402 kVA / 322 kW / 967 A | 570 kVA / 456 kW / 1,371 A |
| 208 V · 3-phase · 60 Hz | 402 kVA / 322 kW / 1,116 A | 570 kVA / 456 kW / 1,582 A |
| 240 V · single-phase · 60 Hz | 216 kVA / 216 kW / 900 A | 255 kVA / 255 kW / 1,063 A |
| 120 V · single-phase · 60 Hz | 216 kVA / 216 kW / 900×2 A | — |
| 400 V · 3-phase · 50 Hz | 387 kVA / 310 kW / 559 A | — |
| Voltage Configuration | Link Board Panel | Link Board Panel |
| Frequency | 50 / 60 Hz Switchable | 60 Hz |
| Engine | ||
| Make & Model | Cummins QSG12 | Cummins X15 |
| Displacement | 11.8 L | 14.95 L |
| Cylinders | 6 | 6 |
| Power Output @ 1,800 rpm | 475 hp (354 kW) | 680 hp (507 kW) |
| Emissions | Tier 4 Final | Tier 4 Final |
| Aftertreatment | DOC / DPF / SCR | SCR |
| Usable Fuel Tank | 470 gal (1,780 L) | 656 gal (2,483 L) |
| DEF Tank | 46 gal (174 L) | 46 gal (174 L) |
| Runtime @ 75% Load | 27 hr | 28 hr |
| Dimensions & Weight (with Running Gear) | ||
| Length | 241.0 in | 260.0 in |
| Width | 83.0 in | 98.5 in |
| Height | 115.0 in | 119.8 in |
| Weight (Ready to Run) | 15,450 lbs | 23,574 lbs |
| Sound @ 23 ft, 100% | 76 dB | 75 dB |
The industry's only 400-kVA-or-larger generators with no minimum load requirement. Both come standard with an oversized alternator for best-in-class motor starting, a two-position Link Board Panel (with on-board storage for an optional single-phase link board), a CoolBox enclosure, separate diesel & DEF fills and a NHTSA-compliant heavy-duty trailer. The PG570 (Cummins X15) steps up to 570 kVA at 60 Hz and comes standard with a DEIF AGC4 paralleling controller. Dimensions and weights are for the enclosed unit with running gear (weight is ready-to-run).
PG570 Features & Benefits
Power & Versatility 4
570 kVA, No Minimum Load
Heavy-duty power combined with unmatched versatility — a 570 kVA (456 kW) prime rating with no minimum load requirement for the most demanding jobsite operations.
Cummins X15 — No EGR
The powerful Cummins X15 with the latest performance technology has no EGR and operates in working temperatures down to −13°F (−25°C).
Multiple Voltage Configurations
Voltage configurations of 480 V, 208 V and 120/240 V 1Ø, with up to 24 hours of reliable power in most applications.
Upsized Alternator
An upsized alternator allows for better motor-starting capabilities, superior reaction to harmonics and improved overall alternator life.
Paralleling & Power Distribution 2
DEIF Paralleling — Up to 32 Machines
A standard DEIF paralleling controller lets you parallel up to 32 machines for maximum reliability and scalable power.
Convenience Receptacles
The convenience receptacles provide single-phase power regardless of the primary voltage selection.
Size, Mobility & Cooling 2
Roughly 20% Smaller & Lighter
About 20% smaller in both size and weight than comparable models on the market — a true towable generator capable of navigating the toughest jobsites.
CoolBox Solution
The CoolBox solution maximizes performance to achieve industry-leading noise levels (75 dB(A)) and minimum water ingression.
Serviceability 2
Front-Accessible After-Treatment
Engineered for ease of serviceability — the after-treatment system requires minimal maintenance and is easily accessible from the front of the machine.
Rear-Mounted User Interface
The controller, link board panel and convenience receptacles are all located on the rear of the machine for easy operation.
Why Buyers Choose the PG570
570 kVA (456 kW) of heavy-duty power with no minimum load requirement
Cummins X15 with no EGR — operates down to −13°F (−25°C)
Upsized alternator for better motor starting and harmonic handling
Standard DEIF controller — parallel up to 32 machines
Convenience receptacles deliver single-phase power at any primary voltage
Roughly 20% smaller & lighter than comparable models — a true towable
CoolBox solution for industry-leading 75 dB(A) noise levels
Front-accessible after-treatment & rear-mounted controls for easy service
Who Uses the PG570 and What For
Ideal for rental, construction and special-event applications, the PG570 pairs 570 kVA of no-minimum-load power with a compact, true-towable build and DEIF paralleling for scalable, reliable power.
- 570 kVA for the most demanding operations
- Upsized alternator for hard motor starts
- ~20% smaller — navigates tough jobsites
- Operates down to −13°F (−25°C)
- No minimum load for any application
- Parallel up to 32 machines via DEIF
- Convenience receptacles at any voltage
- Easy front/rear service access
- Industry-leading 75 dB(A) noise levels
- 480 V, 208 V and 120/240 V 1Ø configs
- Up to 24 hr of power in most applications
- Minimum water ingression from CoolBox
What Makes the PG570 Different
Heavy-duty power combined with unmatched versatility for the most demanding jobsite operations — 570 kVA (456 kW) with no minimum load requirement.
The powerful Cummins X15 with the latest performance technology has no EGR and works in temperatures down to −13°F (−25°C).
A standard DEIF paralleling controller lets you parallel up to 32 machines for maximum reliability and scalable power.
An upsized alternator allows for better motor-starting capabilities, superior reaction to harmonics and improved overall alternator life.
Roughly 20% smaller in both size and weight than comparable models — a true towable capable of navigating the toughest jobsites.
The CoolBox solution maximizes performance to achieve industry-leading noise levels and minimum water ingression.
Full Specifications
Power Output
| Prime Power Rating | 570 kVA (456 kW) prime |
| Frequency Capability | 60 Hz |
| Voltage Configuration | Link Board Panel — 480 V, 208 V, 120 / 240 V 1Ø |
| Runtime @ 75% Load | 28 hr @ 75% load (up to 24 hr in most applications) |
| Sound Level | 75 dB(A) @ 23 ft, 100% load |
| 480 V · 3-phase · 0.8 PF · 60 Hz | 570 kVA (456 kW) · 686 A |
| 240 V · 3-phase · 0.8 PF · 60 Hz | 570 kVA (456 kW) · 1,371 A |
| 208 V · 3-phase · 0.8 PF · 60 Hz | 570 kVA (456 kW) · 1,582 A |
| 240 V · single-phase · 1.0 PF · 60 Hz | 255 kVA (255 kW) · 1,063 A |
Engine
| Engine Make | Cummins |
| Engine Model | X15 |
| Displacement | 912 cu in (14.95 L) |
| Fuel | Diesel |
| Power Output @ 1,800 rpm | 680 hp (507 kW) @ 1,800 rpm |
| Emissions | Tier 4 Final |
| Cylinders | 6 |
Dimensions & Capacities
| Length | 260 in |
| Width | 98.5 in |
| Height | 119.8 in |
| Operating Weight | 23574 lb |
| Fuel Tank | 656 gal |
| DEF Tank | 46 gal (174 L) |
Standard Equipment
| No Minimum Load · No EGR | No minimum load requirement and no EGR — maximum versatility for the most demanding jobsite operations |
| Cold-Weather Operation | Reliable operation in working temperatures down to −13°F (−25°C) |
| Upsized Alternator | Better motor-starting capability, superior reaction to harmonics and improved overall alternator life |
| Paralleling | Standard DEIF paralleling controller — parallel up to 32 machines for maximum reliability |
| Convenience Receptacles | Provide single-phase power regardless of the primary voltage selection |
| Compact & Light | Roughly 20% smaller in both size and weight than comparable models — a true towable able to navigate the toughest jobsites |
| Engine | Powerful Cummins X15 with the latest performance technology, Tier 4 Final (T4F) |
| Aftertreatment | SCR aftertreatment requires minimal maintenance and is easily accessible from the front of the machine; high-capacity DEF tank with separate diesel & DEF fills |
| User Interface | Controller, link board panel and convenience receptacles all located on the rear of the machine for easy operation |
| CoolBox Enclosure | The CoolBox solution maximizes performance for industry-leading noise levels and minimum water ingression |
| Running Gear | Heavy-duty trailer & running gear meeting NHTSA standards |
Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
