Download Spec Sheet
Get detailed specifications, dimensions, and performance data for this PG400 | Bobcat Portable Power.
|
General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Bobcat |
| Model: | PG400 |
| Machine Type: | Other |
|
Engine
|
|
|---|---|
| Engine: | QSG12 |
| Engine Make: | Cummins |
| Emissions: | Tier 4 Final |
|
Performance
|
|
|---|---|
| Operating Weight: | 15450 lb |
|
Hydraulics
|
|---|
|
Dimensions
|
|
|---|---|
| Height: | 115 in |
| Length: | 241 in |
| Width: | 83 in |
| Fuel Tank: | 470 gal |
Description

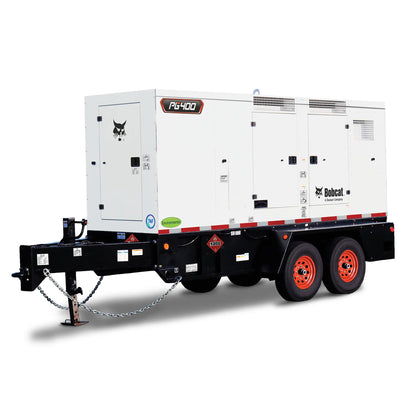

PG400 Portable Generator
The PG400 is one of the most powerful towable generators on the market, yet its compact footprint allows for easy jobsite maneuverability.
- Powered by a reliable Cummins® QSG12 engine
- 20-hour runtime at 100% load
- Delivers 402 kVA (322 kW) at 79 dB(A)
For heavy-duty jobs that require mobility and versatility, choose the Bobcat® PG400 portable generator. It leads its class in power density, delivery ruggedly reliable power in a compact footprint made for maneuvering around difficult jobsites.
Built in the frame, the PG400 is not just another standby generator that’s been placed on a trailer. It’s a true towable generator built with the intent to be moved around your jobsite even in the toughest conditions.
Featuring the proven CoolBox Plus galvanized steel enclosure, the variable speed cooling fan ensures precision package cooling, reduced noise levels and improved fuel economy. The powerful Cummins QSG12 engine features advanced engineering to reduce sludge build up at load operating loads, reducing your overall maintenance costs and keeping you up and running for maximum productivity.
And like all Bobcat portable generators, the PG400 was built for ease of operation. With all service components easily accessible, on-the-job maintenance can be completed quickly and efficiently. Its analog gauges are easy-to-read, allowing operators to keep an eye on machine performance and diagnostics with a quick glance.
The PG400 is powerful and versatile enough to support any application.
What Makes the PG400 Different
Leads Its Class in Power Density
For heavy-duty jobs that require mobility and versatility, the PG400 leads its class in power density — delivering ruggedly reliable power in a compact footprint made for maneuvering around difficult jobsites.
A True Towable — Built in the Frame
The PG400 is not just another standby generator placed on a trailer — it's a true towable generator built in the frame, with the intent to be moved around your jobsite even in the toughest conditions.
Powerful Cummins QSG12 Engine
A powerful Cummins QSG12 engine features advanced engineering to reduce sludge buildup at low operating loads — reducing your overall maintenance costs and keeping you up and running for maximum productivity.
Proven CoolBox Plus Enclosure
The proven CoolBox Plus galvanized steel enclosure with a variable-speed cooling fan ensures precision package cooling, reduced noise levels and improved fuel economy.
Built for Ease of Operation
Like all Bobcat portable generators, the PG400 was built for ease of operation — with all service components easily accessible, on-the-job maintenance can be completed quickly and efficiently.
Easy-to-Read Analog Gauges
Easy-to-read analog gauges let operators keep an eye on machine performance and diagnostics with a quick glance.
No Minimum Load — Maximum Versatility
The PG400 is one of the industry's only 400-kVA-or-larger generators with no minimum load requirement — powerful and versatile enough to support any application, with an oversized alternator for best-in-class motor starting and an easily accessible two-position link board.
Compare the 400 kVA+ Generators
 |
 |
|

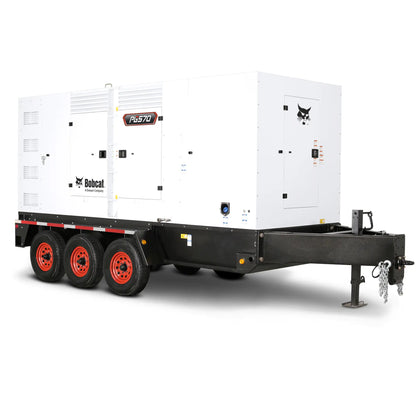

| PG400Viewing | PG570 | |
|---|---|---|
| Prime Power Rating | ||
| Prime Power (max) | 402 kVA (322 kW) | 570 kVA (456 kW) |
| 480 V · 3-phase · 60 Hz | 402 kVA / 322 kW / 484 A | 570 kVA / 456 kW / 686 A |
| 240 V · 3-phase · 60 Hz | 402 kVA / 322 kW / 967 A | 570 kVA / 456 kW / 1,371 A |
| 208 V · 3-phase · 60 Hz | 402 kVA / 322 kW / 1,116 A | 570 kVA / 456 kW / 1,582 A |
| 240 V · single-phase · 60 Hz | 216 kVA / 216 kW / 900 A | 255 kVA / 255 kW / 1,063 A |
| 120 V · single-phase · 60 Hz | 216 kVA / 216 kW / 900×2 A | — |
| 400 V · 3-phase · 50 Hz | 387 kVA / 310 kW / 559 A | — |
| Voltage Configuration | Link Board Panel | Link Board Panel |
| Frequency | 50 / 60 Hz Switchable | 60 Hz |
| Engine | ||
| Make & Model | Cummins QSG12 | Cummins X15 |
| Displacement | 11.8 L | 14.95 L |
| Cylinders | 6 | 6 |
| Power Output @ 1,800 rpm | 475 hp (354 kW) | 680 hp (507 kW) |
| Emissions | Tier 4 Final | Tier 4 Final |
| Aftertreatment | DOC / DPF / SCR | SCR |
| Usable Fuel Tank | 470 gal (1,780 L) | 656 gal (2,483 L) |
| DEF Tank | 46 gal (174 L) | 46 gal (174 L) |
| Runtime @ 75% Load | 27 hr | 28 hr |
| Dimensions & Weight (with Running Gear) | ||
| Length | 241.0 in | 260.0 in |
| Width | 83.0 in | 98.5 in |
| Height | 115.0 in | 119.8 in |
| Weight (Ready to Run) | 15,450 lbs | 23,574 lbs |
| Sound @ 23 ft, 100% | 76 dB | 75 dB |
The industry's only 400-kVA-or-larger generators with no minimum load requirement. Both come standard with an oversized alternator for best-in-class motor starting, a two-position Link Board Panel (with on-board storage for an optional single-phase link board), a CoolBox enclosure, separate diesel & DEF fills and a NHTSA-compliant heavy-duty trailer. The PG570 (Cummins X15) steps up to 570 kVA at 60 Hz and comes standard with a DEIF AGC4 paralleling controller. Dimensions and weights are for the enclosed unit with running gear (weight is ready-to-run).
PG400 Features & Benefits
Power & Versatility 4
No Minimum Load Requirement
One of the industry's only 400-kVA-or-larger generators with no minimum load requirement — versatile enough for any application, from light loads to 402 kVA (322 kW) prime.
Leads Its Class in Power Density
For heavy-duty jobs that require mobility and versatility, the PG400 leads its class in power density — ruggedly reliable power in a compact footprint made for maneuvering around difficult jobsites.
Oversized Alternator
An oversized alternator delivers best-in-class motor-starting capacity for the toughest startup loads.
Two-Position Link Board
An easily accessible two-position link board is configured for operation at most common voltages, with on-board storage for an optional single-phase link board.
Engine & Cooling 2
Powerful Cummins QSG12
A powerful Cummins QSG12 (475 hp / 354 kW, 6-cylinder, 11.8 L, Tier 4 Final) features advanced engineering to reduce sludge buildup at low operating loads — reducing maintenance costs and keeping you up and running.
CoolBox Plus Enclosure
The proven CoolBox Plus galvanized steel enclosure with a variable-speed cooling fan ensures precision package cooling, reduced noise levels and improved fuel economy.
Serviceability & Controls 3
Easily Accessible Service Components
Built for ease of operation — with all service components easily accessible, on-the-job maintenance can be completed quickly and efficiently.
Easy-to-Read Analog Gauges + Digital Display
A standard Bobcat control panel features easy-to-read analog gauges for at-a-glance monitoring, plus an advanced digital control display, so operators can watch performance and diagnostics with a quick glance.
Separate Diesel & DEF Fills
Separation of the diesel fuel and DEF fill points reduces the possibility of cross-contamination — a 470-gallon fuel tank and 46-gallon DEF tank for long run intervals.
Mobility & Durability 2
A True Towable — Built in the Frame
Not just another standby generator placed on a trailer — the PG400 is a true towable built in the frame, with the intent to be moved around your jobsite even in the toughest conditions.
Heavy-Duty NHTSA-Compliant Trailer
A heavy-duty trailer and running gear that meets National Highway Traffic Safety Administration (NHTSA) standards for safe, road-ready towing.
Why Buyers Choose the PG400
No minimum load — one of the industry's only 400-kVA-or-larger generators without one
Leads its class in power density — 402 kVA (322 kW) in a compact, maneuverable footprint
Oversized alternator for best-in-class motor-starting capacity
Powerful Cummins QSG12 engineered to reduce sludge at low loads
CoolBox Plus enclosure with a variable-speed fan for quiet, efficient cooling
Easily accessible two-position link board (optional single-phase link board on board)
Separate diesel & DEF fills reduce cross-contamination
A true towable built in the frame, on a heavy-duty NHTSA-compliant trailer
Who Uses the PG400 and What For
The PG400 pairs 400 kVA+ of no-minimum-load power with class-leading density and a true-towable build — versatile and powerful enough to support any application, however the job moves.
- 402 kVA for high-demand three-phase loads
- Oversized alternator for hard motor starts
- Compact footprint maneuvers tough sites
- Easy service for minimal downtime
- No minimum load for variable demand
- CoolBox Plus runs quiet at 76 dB(A)
- Two-position link board for common voltages
- Analog gauges + digital display
- Versatile across many voltage requirements
- True towable, built in the frame
- 470 gal fuel + 46 gal DEF for long runs
- NHTSA-compliant heavy-duty trailer
What Makes the PG400 Different
One of the industry's only 400-kVA-or-larger generators with no minimum load requirement — maximum versatility for any application.
Leads its class in power density — ruggedly reliable power in a compact footprint made for maneuvering around difficult jobsites.
A powerful Cummins QSG12 (11.8 L) with advanced engineering to reduce sludge buildup at low operating loads, lowering maintenance costs.
An oversized alternator delivers best-in-class motor-starting capacity for the toughest startup loads.
The proven CoolBox Plus galvanized steel enclosure with a variable-speed cooling fan ensures precision cooling, low noise and improved fuel economy.
Not a standby unit placed on a trailer — a true towable built in the frame, on a heavy-duty NHTSA-compliant trailer, to move around the toughest jobsites.
Full Specifications
Power Output
| Prime Power Rating | 402 kVA (322 kW) prime |
| Frequency Capability | 50 / 60 Hz switchable |
| Voltage Configuration | Two-position Link Board Panel (optional single-phase link board) |
| Runtime @ 75% Load | 27 hr @ 75% load |
| Sound Level | 76 dB(A) @ 23 ft, 100% load |
| 480 V · 3-phase · 0.8 PF · 60 Hz | 402 kVA (322 kW) · 484 A |
| 240 V · 3-phase · 0.8 PF · 60 Hz | 402 kVA (322 kW) · 967 A |
| 208 V · 3-phase · 0.8 PF · 60 Hz | 402 kVA (322 kW) · 1,116 A |
| 240 V · single-phase · 1.0 PF · 60 Hz | 216 kVA (216 kW) · 900 A |
| 120 V · single-phase · 1.0 PF · 60 Hz | 216 kVA (216 kW) · 900 × 2 A |
| 400 V · 3-phase · 0.8 PF · 50 Hz | 387 kVA (310 kW) · 559 A |
Engine
| Engine Make | Cummins |
| Engine Model | QSG12 |
| Displacement | 720 cu in (11.8 L) |
| Fuel | Diesel |
| Power Output @ 1,800 rpm | 475 hp (354 kW) @ 1,800 rpm |
| Emissions | Tier 4 Final |
| Cylinders | 6 |
Dimensions & Capacities
| Length | 241 in |
| Width | 83 in |
| Height | 115 in |
| Operating Weight | 15450 lb |
| Fuel Tank | 470 gal |
| DEF Tank | 46 gal (174 L) |
Standard Equipment
| No Minimum Load | One of the industry's only 400-kVA-or-larger generators with no minimum load requirement — maximum versatility for any application |
| Voltage Selection | Easily accessible two-position Link Board Panel, configured for most common voltages; on-board storage for an ○ optional single-phase link board |
| Frequency | 50 / 60 Hz switchable |
| Alternator | Oversized — best-in-class motor-starting capacity |
| Engine | Powerful Cummins QSG12 with advanced engineering to reduce sludge buildup at low operating loads (lower maintenance costs), Tier 4 Final (T4F) |
| Aftertreatment | DOC / DPF / SCR + high-capacity DEF tank; separate diesel & DEF fills reduce cross-contamination |
| Enclosure & Cooling | Proven CoolBox Plus galvanized steel enclosure; variable-speed cooling fan for precision cooling, reduced noise & improved fuel economy |
| Control Panel | Standard Bobcat panel — easy-to-read analog gauges plus an advanced digital control display for at-a-glance monitoring & diagnostics |
| Mobility | A true towable built in the frame (not a standby unit on a trailer) — leads its class in power density, compact footprint for difficult jobsites |
| Running Gear | Heavy-duty trailer & running gear meeting NHTSA standards |
| Serviceability | All service components easily accessible for quick, efficient on-the-job maintenance |
Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
