Rebates & Special Offers
Get as low as 0% for 36 months* or $800 cash rebate* in lieu of financing.
|
General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Bobcat |
| Model: | MT100 |
| Machine Type: | Mini Track Loader |
| Coupler: | Mini Bob-Tach |
|
Engine
|
|
|---|---|
| Horsepower: | 24.8 |
| Emissions: | Tier 4 |
|
Performance
|
|
|---|---|
| Rated Operating Capacity (ISO): | 1,000 LB. |
| Operating Weight: | 3390 lb |
| Travel Speed: | 4.1 MPH |
| Height to Bucket Hinge Pin: | 80.9 IN. |
|
Hydraulics
|
|
|---|---|
| Aux. Standard Flow: | 12 GPM |
|
Dimensions
|
|
|---|---|
| Height: | 54.6 IN. |
| Length: | 106.2 IN. |
| Width: | 35.6 IN. |
| Fuel Tank: | 7 gal. |
Description

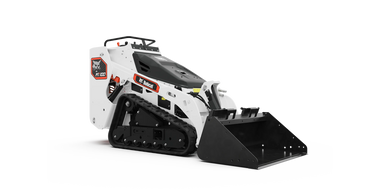

Bobcat MT100 Mini Track Loader
Redirect manual labor and get the most out of your operation with the powerful Bobcat® MT100 mini track loader. With a 1,000-pound rated operating capacity, and incredible 39.9 ft-lb of torque, the MT100 is engineered to push, pull, rip, level and haul with dozens of rugged attachments.
Package Includes:
- 36" Bucket
- Standard Track
What Makes the MT100 Different
Extra-Soft Hip Pads
The MT100 features extra-soft hip pads with 30% more space between the pads, allowing operators to take on long days in greater comfort.
Built-To-Last Premium Materials
Decaling and styling fabricated from extra-durable materials to stand up to pressure-washing, ultraviolet light and harsh conditions — keeping the machine looking brand new even after punishing use.
Dent-Resistant Hood With Easy-Access Maintenance
The bold redesign of the MT100 includes a dent-resistant hood built to take on worksite punishment. Gain tool-free access to easy maintenance areas to maximize uptime — simply lift the hood to check coolant, fuel, oil and hydraulic levels.
Optimized Track System
The MT100's optimized track system with high-flotation tracks allows it to travel confidently over wet, muddy or sensitive ground while minimizing turf disturbance.
Integrated Ride-On Platform
Operators get a clear view of attachment performance and jobsite surroundings with an integrated ride-on platform that raises you above surface conditions. Optimized roller spacing on the track system offers greater comfort for operators working or traveling on the jobsite.
ISO Joystick
Precision-focused and ergonomically designed, the ISO Joystick gives operators total control of the MT100 and attachments in a familiar, comfortable pattern for dialed-in accuracy.
Bob-Tach® Mounting System
Quickly hook up dozens of attachments and make short work of grading, backfilling, digging, hauling and loading of materials. The Bob-Tach mounting system provides hydraulic power to operate an angle broom, auger, hydraulic breaker, landplane and soil conditioner.
Bobcat Mini Track Loaders
![]() |
![]() |
|

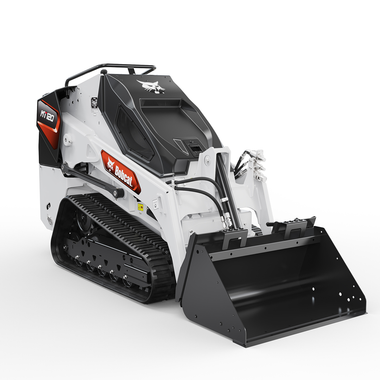

| MT100Viewing | MT120 | |
|---|---|---|
| Frame / Role | Compact ride-on labor saver | Higher-capacity mini track loader |
| Horsepower | 24.8 hp | 24.5 hp |
| Rated Operating Capacity | 1,000 lbs | 1,200 lbs |
| Tipping Load | 2,898 lbs | 3,469 lbs |
| Operating Weight | 3,390 lbs | 3,720 lbs |
| Travel Speed | 4.1 mph forward | 4.7 mph forward |
| Auxiliary Standard Flow | 11 gpm | 11.8 gpm |
| System Relief | 2,900 psi | 3,045 psi |
| Height to Hinge Pin | 80.9 in | 88.2 in |
| Reach at Maximum Height | 18.6 in | 22.2 in |
| Overall Width | 35.6 in | 35.6 in |
| Ground Pressure | 5.3 psi standard / 4.0 psi wide | 4.3 psi standard / 3.9 psi wide |
| Best Fit | Gates, doorways, landscaping and cleanup | Higher lift, heavier loads and newer operator tech |
Specs are model-level published values. Confirm final configuration, options and current availability with your Carleton Equipment location.
See the MT100 in Action
MT100 Features & Benefits
Performance 5
Compact Size
Bobcat mini track loaders can travel and work where other machines can't, easily maneuvering in confined spaces both indoors and outdoors. The smaller size allows them to pass through doorways and fence gates, and they are easy to load and transport on a trailer.

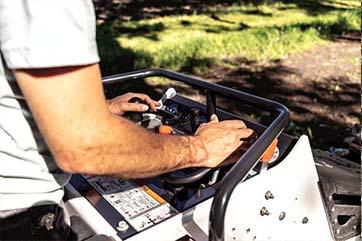

ISO Joystick Controls
Precision-focused and ergonomically designed, the ISO Joystick gives operators total control of the MT100 and attachments in a familiar, comfortable pattern for dialed-in accuracy.
Minimal Ground Disturbance
Bobcat mini track loaders allow you to travel over established surfaces with less worry about repair time and costs associated with surface damage. The MT100 offers a ground pressure of 5.25 psi with the standard narrow tracks and provides good protection for most turf and finished surfaces. Optional wide tracks further reduce ground pressure and increase machine stability at just 3.97 psi, and the MT100 is still only 41.1 inches wide.
Engine Advantage
The Bobcat MT100 is powered by a robust 24.8-hp, 3-cylinder, Tier 4 diesel engine that delivers dependable worksite performance in a compact package. Its engine produces 39.9 ft-lb of torque, giving the machine strong low-end pulling power and breakout force to handle digging, lifting and heavy material movement with confidence.
Safety Features
Like their larger Bobcat loader counterparts, mini track loaders have many of the industry's leading safety features. Neutral-start interlocks prevent the unit from being started while travel controls are engaged. An attachment shutdown system engages when the operator leaves the machine. Lift arm and tilt lockout systems prevent accidental movement of the lift arms or attachments. A parking brake prevents the mini track loader from moving when not in use.
Versatility 3
Attachment Versatility
More than a single-task loader, the MT100 is a multi-functional workhorse and an industry leader for attachment versatility. Accommodating landscaping and construction-oriented tools, the MT100 eliminates the need for added crew members with wheelbarrows and hand tools.
Choose from dozens of powerful, purpose-built attachments that give you the ability to increase jobsite versatility while maximizing productivity and profitability.
Bob-Tach Mounting System
Use your Bobcat mini track loader to make quick work of grading, backfilling, digging, hauling and loading materials. It also provides the hydraulic power to operate a wide range of Bobcat attachments, including an angle broom, auger, hydraulic breaker, landplane and soil conditioner.
Using the standard Bob-Tach mounting system, you can quickly change attachments. Bobcat Company developed this exclusive and time-tested system more than 35 years ago.
Attachment Interfaces
Two attachment interface choices help you make quick work of grading, backfilling, digging holes, hauling and loading materials, and other tasks.
The Bob-Tach attachment mounting system's two robust, over-center latching pins provide the fastest attachment changes in the industry, and spring-loaded, wear-compensating wedges ensure a secure fit, time after time and year after year. You can also choose the common industry interface (CII) to utilize your existing mini track loader attachments.
Comfort 7
Integrated Ride-On Platform
Operators get a clear view of attachment performance and jobsite surroundings with an integrated ride-on platform that raises you above surface conditions. Plus, optimized roller spacing on the track system offers greater comfort for operators working or traveling on the jobsite.
Extra-Soft Hip Pads
The MT100 features extra-soft hip pads with 30% more space between the pads, allowing operators to take on long days in greater comfort.
Optimized Roller Spacing
Optimized roller spacing on the track system and an integrated ride-on platform create a smoother ride for operators with an optional vibration dampening rubber mat for all-day comfort.
Simple Travel Operation
The ISO joystick controls on the Bobcat MT100 mini track loader are ergonomically designed and provide finely tuned precision so it's easy and comfortable to maneuver your machine.
Cup Holders
Store your supplies and keep your beverage within reach. The MT100 has two cup holders to add convenience to your day.
Optional Rubber Mat
The optional rubber mat dampens vibration to increase operator comfort. Drainage holes allow mud and water to pass through.
Maximized Ride Comfort
The MT100 mini track loader offers optimized roller spacing on the track system and an integrated ride-on platform to improve comfort for operators working or traveling on the jobsite.
Serviceability 3
Easy Service Access
Easier to maintain, quicker to service and more dependable to use, the MT100 ranks as an industry leader in serviceability. Easy, tool-free access to maintenance areas allow operators to lift the hood to check or service key components like coolant, fuel and oil levels. Plus, advanced safety features like neutral start interlocks protect the machine and rider during routine maintenance.
Dent-Resistant Hood With Easy-Access Maintenance
The bold redesign of the MT100 includes a dent-resistant hood built to take on worksite punishment.
Sealed Rollers
The MT100's rollers are sealed and constantly bathed in oil for continuous lubrication. There's no need for daily roller maintenance.
Why Buyers Choose the MT100
1,000 lb rated operating capacity in a compact ride-on loader footprint
35.6-inch width with standard tracks helps fit through gates, doorways and tight access points
24.8 hp Tier 4 diesel engine delivers dependable power for digging, hauling, leveling and cleanup
11 gpm auxiliary flow and Bob-Tach attachment interface support dozens of Bobcat attachments
Optimized track system keeps ground pressure low for turf, mud and sensitive finished surfaces
Tool-free hood access and sealed rollers help simplify daily checks and routine maintenance
Who Uses the MT100 and What For
The MT100 is built for crews that need more productivity than hand labor in places where larger loaders cannot fit.
- Moving mulch, soil, stone and plants through narrow access points
- Preparing beds, grading small areas and repairing turf-sensitive spaces
- Running augers, soil conditioners, buckets and light material tools
- Backfilling, hauling debris and staging material in tight work areas
- Working through gates, alleys, sidewalks and interior access routes
- Replacing wheelbarrow labor with compact ride-on loader productivity
- Broad attachment fit supports high utilization across customer types
- Simple service access helps keep the machine ready between rentals
- Compact size makes transport, storage and jobsite delivery easier
Full Specifications
General
| Horsepower | 24.8 hp |
| Engine Model | D902-E4B-BC-1 |
| Ground Pressure (Optional Tracks) | 4 psi |
| Ground Pressure (Standard Tracks) | 5.3 psi |
| Rated Operating Capacity with Bucket (Straight) | 1,000 lbs |
| Operating Weight | 3,390 lbs |
| Travel Speed - Forward | 4.1 mph |
| Travel Speed - Reverse | 2.9 mph |
| System Relief @ Quick Couplers | 2,900 psi |
| Auxiliary Std Flow | 11 gpm |
| Length without Attachment | 84.5 in |
| Width | 35.6 in |
| Height to Bucket Hinge Pin | 80.9 in |
| Reach @ Maximum Height | 18.6 in |
| Track Width - Wide | 9.8 in |
| Track Width - Standard | 7.1 in |
Engine
| Engine Model | D902-E4B-BC-1 |
| Horsepower | 24.8 hp |
| Displacement | 55 cubic in |
Performance
| Ground Pressure (Optional Tracks) | 4 psi |
| Ground Pressure (Standard Tracks) | 5.3 psi |
| Rated Operating Capacity with Bucket (Straight) | 1,000 lbs |
| Tipping Load | 2,898 lbs |
| Operating Weight | 3,390 lbs |
| Travel Speed - Forward | 4.1 mph |
| Travel Speed - Reverse | 2.9 mph |
| Travel Speed - Low | 4.1 mph |
| Travel Speed - High | 4.1 mph |
Capacities
| Fuel Tank | 7 gal |
Hydraulic System
| System Relief @ Quick Couplers | 2,900 psi |
| Auxiliary Std Flow | 11 gpm |
Dimensions & Weight
| Length without Attachment | 84.5 in |
| Width | 35.6 in |
| Height to Bucket Hinge Pin | 80.9 in |
| Reach @ Maximum Height | 18.6 in |
| Track Width - Standard | 7.1 in |
| Track Width - Wide | 9.8 in |
Features
| Bob-Tach Attachment System | Optional |
| Common Industry Interface | Optional |
Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
