Portable Air Compressor Models
Bobcat Portable Air Compressors
Compare the Full Air Compressor Family
From compact 185 cfm towables to 1,170 cfm high-pressure powerhouses — compare every Bobcat portable air compressor by airflow, pressure, engine and weight.
| Model | Free Air Delivery | Rated Pressure | Pressure Range | Engine | Operating Weight | |
|---|---|---|---|---|---|---|
| Small — FlexAir | ||||||

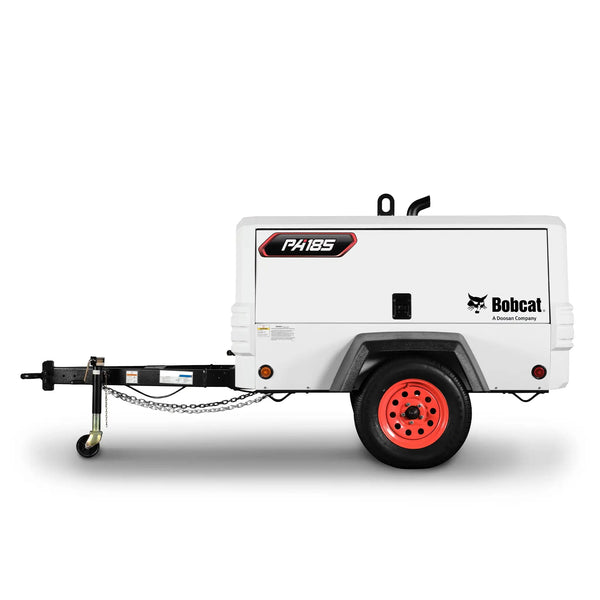

| 185 cfm | 100 psig | 80–100 psig | Doosan D1849 bhp · 3-cyl | 2,359 lbs | View | |
| 185 cfm (FlexAir) | 100 psig | 80–150 psig | Doosan D2449 bhp · 4-cyl | 2,477 lbs | View | |

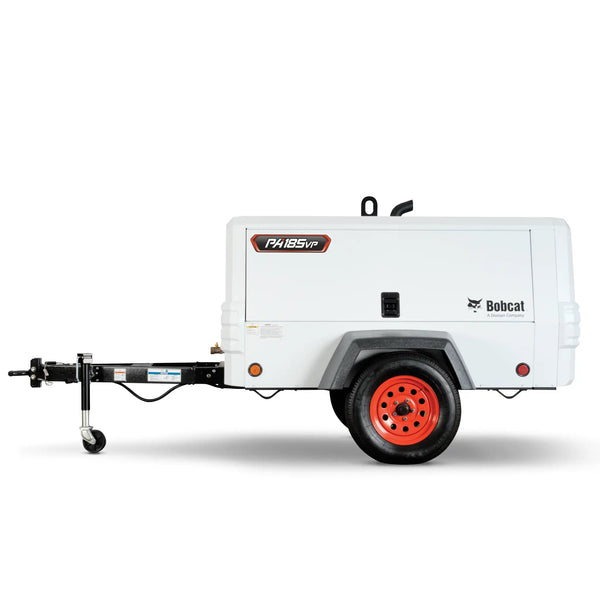

| 185 cfm (FlexAir) | 125 psig | 80–200 psig | Doosan D2474 bhp · 4-cyl | 2,594 lbs | View | |

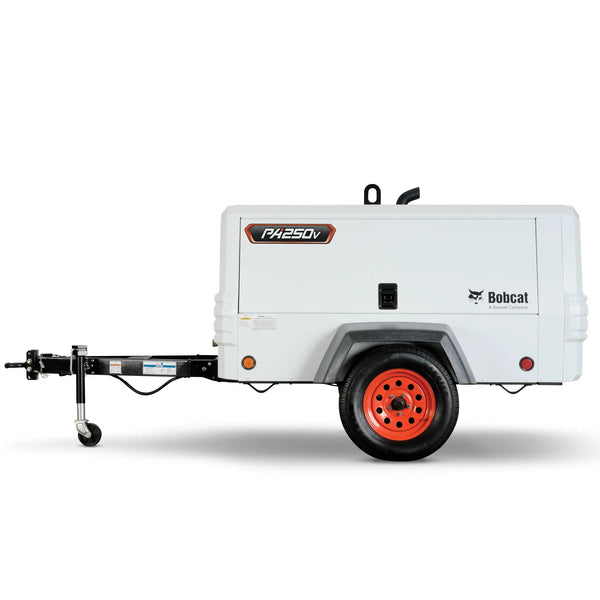

| 250 cfm (FlexAir) | 100 psig | 80–175 psig | Doosan D24 (turbo)74 bhp · 4-cyl | 2,594 lbs | Soon | |
| Medium — Dual Pressure | ||||||

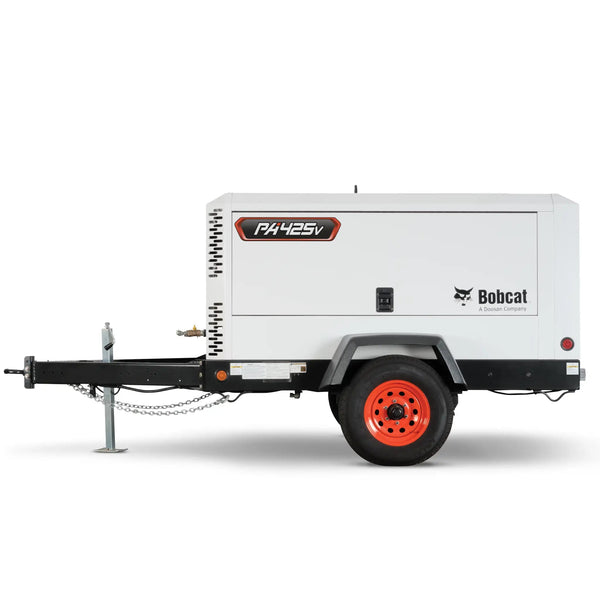

| 425 / 375 cfm | 100 / 150 psig | 80–175 psig | Cummins F3.8L135 bhp · 4-cyl | 4,776 lbs | Soon | |

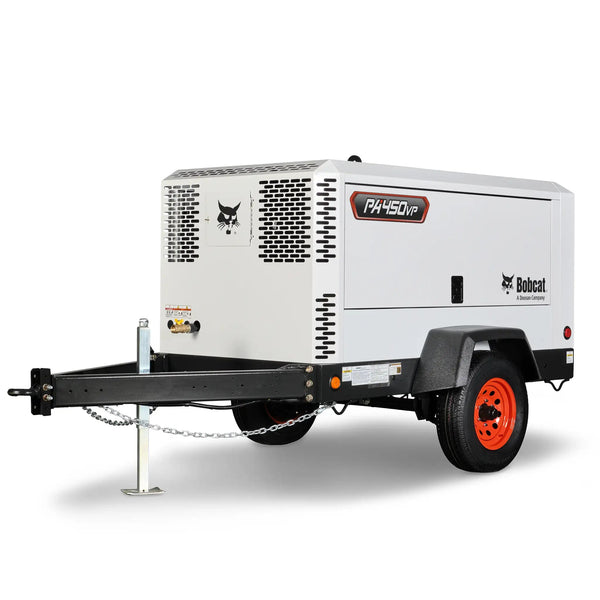

| 450 / 400 cfm | 150 / 200 psig | 80–225 psig | Cummins F3.8L173 bhp · 4-cyl | 4,776 lbs | View | |
| Large — High-Pressure | ||||||
| 750 cfm | 350 psig | 140–365 psig | Cummins L9325 bhp · 6-cyl | 12,015 lbs | View | |

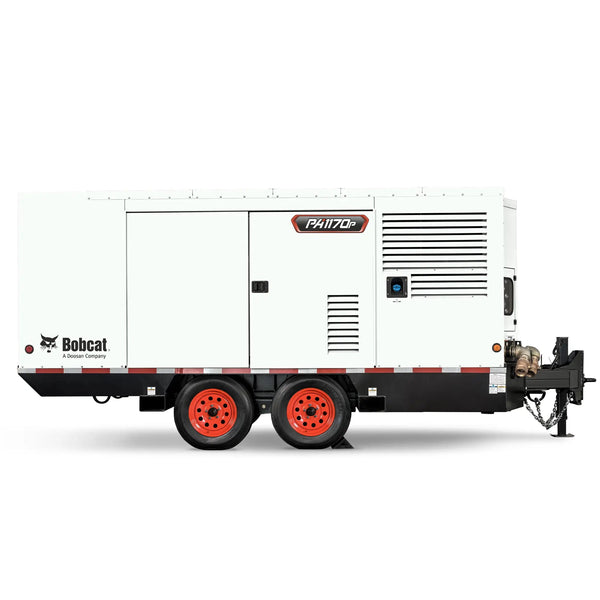

| 1,170 cfm | 365 psig | 140–365 psig | Caterpillar C13B536 bhp · 6-cyl | 19,025 lbs | View | |
| Large — Low-Pressure | ||||||

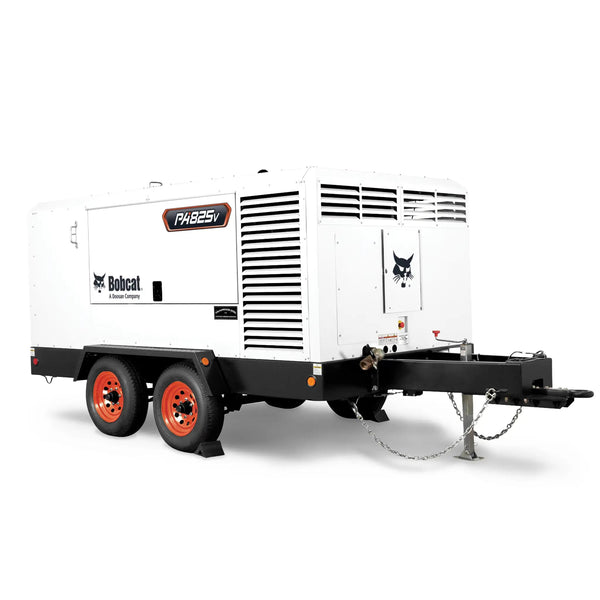

| 825 / 750 cfm | 125 / 150 psig | 80–175 psig | Cummins QSB6.7266 bhp · 6-cyl | 9,330 lbs | View | |

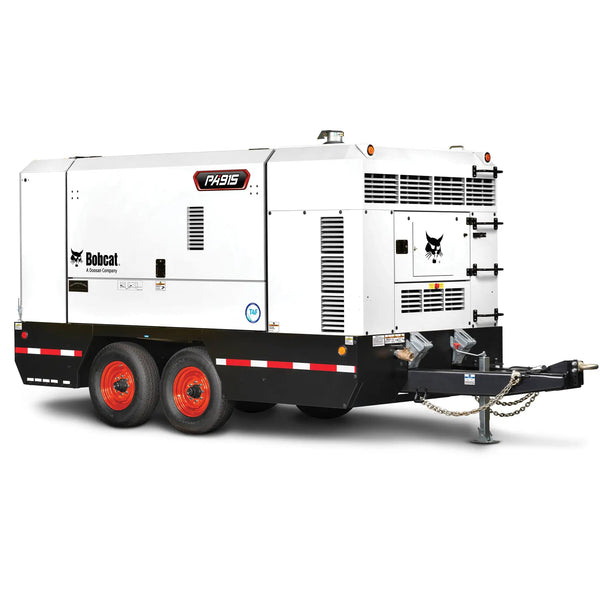

| 915 cfm | 150 psig | 80–175 psig | Cummins B6.7298 bhp · 6-cyl | 10,692 lbs | View | |
Free air delivery and rated pressure shown as low/high for dual-pressure units (PA425V, PA450VP, PA825V) and as the FlexAir base output for the variable-pressure small units. Operating weight is for the enclosed unit with running gear (includes fuel where applicable). All large units offer the optional patented IQ System® for instrument-quality air. Specifications subject to change — contact Carleton Equipment to confirm.
Understanding the Lineup
Four Tiers, One Lineup
Bobcat portable air compressors sort into four classes by airflow (CFM), pressure (PSI), and how they deliver it. Here's how to read the lineup before you compare specs.
Small · FlexAir
185–250 CFM
up to 200 psi
Compact, Doosan-powered towables. FlexAir fine-tunes pressure and flow from the panel — great for hand tools, small blasting and cable work.

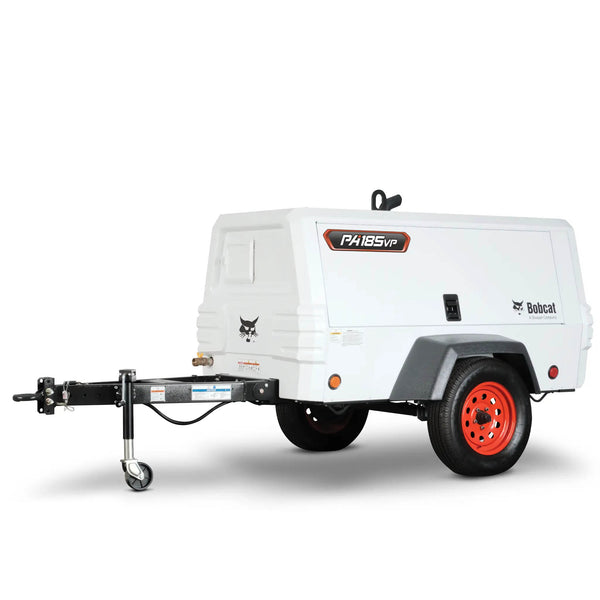

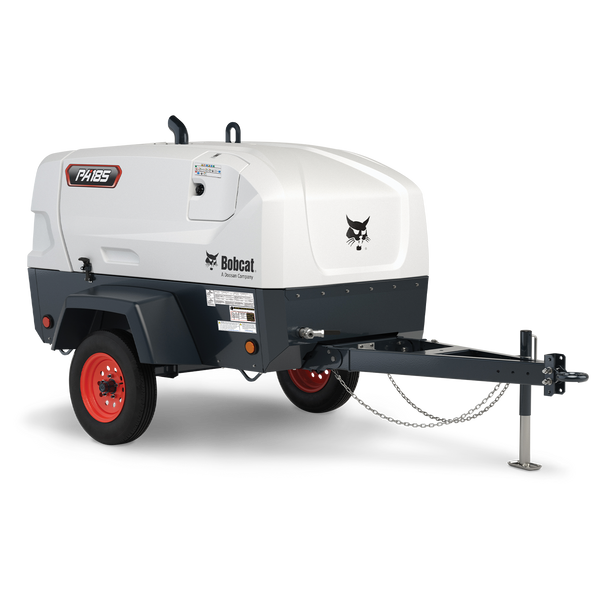

PA185 · PA185V · PA185VP · PA250V
Medium · Dual Pressure
375–450 CFM
up to 225 psi
Cummins-powered Dual Pressure units — switch HI/LOW on the fly so one machine covers two pressure/flow programs. Multi-tool work and mid-size blasting.

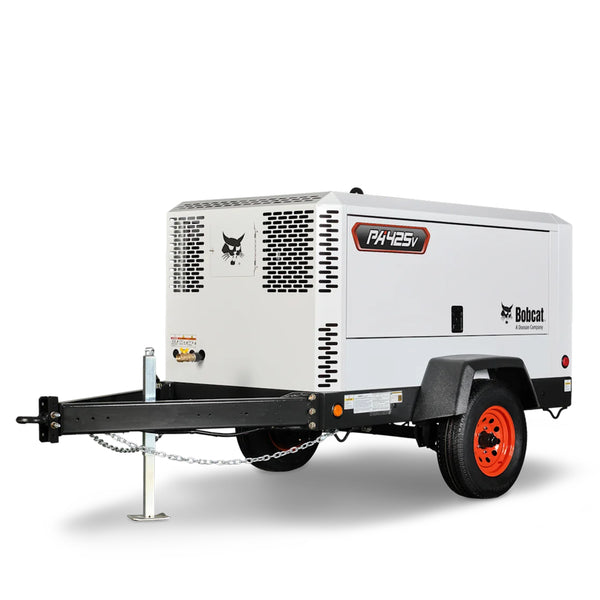

PA425V · PA450VP
Large · High-Pressure
750–1,170 CFM
up to 365 psi
Single-stage powerhouses for high-pressure work — down-the-hole and rock drilling, deep pipeline jobs. Optional IQ System® for clean air.

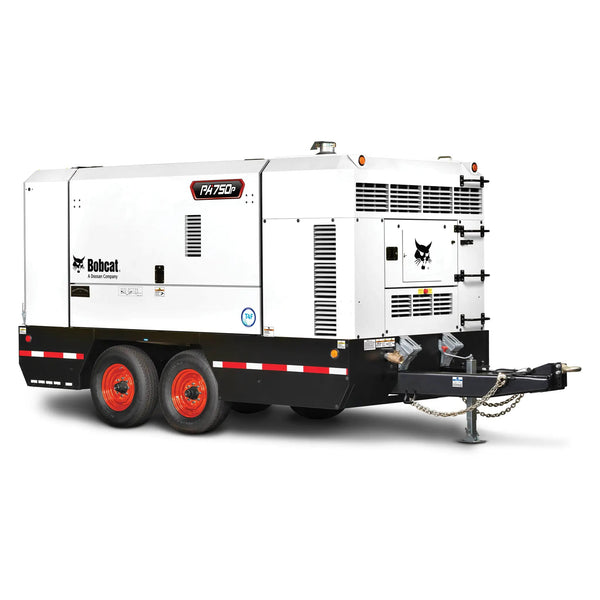

PA750P · PA1170P
Large · Low-Pressure
825–915 CFM
up to 175 psi
High-volume air for big low-pressure jobs — general construction, road & bridge work, abrasive blasting. The PA825V adds Dual Pressure; both offer the IQ System®.
PA825V · PA915
FlexAir Continuously variable pressure and flow, dialed in from the control panel — tune one compressor to the exact tool.
Dual Pressure (HI/LOW) Two preset pressure/flow combinations, switchable on the fly — one machine does the work of two compressors.
Low vs High Pressure Most air tools run at 100–150 psi (low-pressure units); rock drilling and deep pipeline work need 200–365 psi (high-pressure units).
How to Choose
Sizing It Right — CFM & PSI
Two numbers decide the unit: CFM (cubic feet per minute) is how much air a tool consumes, and PSI (pressure) is how hard it pushes. Add up the CFM of every tool you'll run at once, then match a compressor that meets both that total flow and your highest-pressure tool.
| Tool / Application | Typical CFM | Typical PSI |
|---|---|---|
| 3/8″–1/2″ impact wrench | 3–5 cfm | 90 psi |
| 1″ impact wrench | ~10 cfm | 90 psi |
| Air hammer / chisel | 4–5 cfm | 90 psi |
| Cut-off tool / die grinder | 5–8 cfm | 90 psi |
| Sandblasting — small nozzle | 10–25 cfm | 90–125 psi |
| Sandblasting — production | 100–600+ cfm | 90–150 psi |
| 60–90 lb paving breaker (each) | 40–55 cfm | 90–110 psi |
| Pneumatic rock drill / jackleg | 80–100 cfm | 90–125 psi |
| Pipeline pressure testing / purging | High volume | up to 175 psi |
| Down-the-hole (DTH) drilling | 750–1,200+ cfm | 200–365 psi |
Hand & finish tools, small blasting, cable work — single tools, light duty
→ Small · PA185 family
Multiple tools, mid-size blasting, breakers — two pressure programs in one
→ Medium · PA425V / PA450VP
High-volume blasting, road & bridge, pipeline testing — big low-pressure flow
→ Large Low-Pressure · PA825V / PA915
Rock & down-the-hole drilling, deep / high-pressure work
→ Large High-Pressure · PA750P / PA1170P
Rule of thumb: size to your largest simultaneous air demand and add about 20–30% headroom for hose loss and future tools — then confirm the unit's pressure meets your highest-PSI tool. Not sure? Tell us your tools and we'll spec it for you.
Where They Work
Applications by Industry
Construction
General, road & bridge work running breakers, tampers and air tools.
Medium → LargeSandblasting
Surface prep and coatings — sustained high-volume airflow.
Large Low-PressurePipeline
Pressure testing and purging on utility and energy projects.
LargeDrilling
Rock and down-the-hole drilling that needs high pressure.
Large High-PressureRental Fleets
Easy-service enclosures and versatile output for mixed demand.
All Tiers
Optional Clean-Air Package
The Patented IQ System®
For jobs that demand clean, dry air, the large Bobcat compressors can be equipped with the patented IQ System® — three components working together to deliver instrument-quality, ISO-standard air.
1
Onboard Aftercooler
Cools the compressed air stream so moisture condenses out before it reaches your tools.
2
Coalescing Dual Filtration
A two-stage coalescing filter strips out aerosol oil vapors and microscopic dust particles.
3
Zero-Discharge Condensate Removal
Captures and removes condensate with no discharge onto the jobsite — clean air, clean ground.
The result is clean, dry, instrument-quality air that protects downstream tools and meets strict air-quality standards for sandblasting, painting, instrumentation and other specialized work. Available on the PA750P, PA1170P, PA825V and PA915.
Good to Know
Emissions & Towing
Every current model is a Tier 4 Final (T4F) clean-diesel unit with largely maintenance-free aftertreatment — several use a diesel oxidation catalyst with no regeneration cycles. The large units add SCR with Diesel Exhaust Fluid (DEF), so keep the DEF tank topped off (about 15 gal on the PA750P, 25 gal on the PA1170P). It's clean, modern diesel power with minimal emissions upkeep.
Operating weights run from about 2,300 lbs (PA185) up to roughly 19,000 lbs (PA1170P), so match the unit to the right tow vehicle and hitch class. Larger units ride on heavy-duty tandem/dual-axle running gear with lights, fenders and brakes for road-ready towing, and the PA1170P and PA915 can be flatbed-mounted for transport or long-term placement. Ask us about the right towing setup for your fleet.
Towable Air Compressors
Reliable air power for your entire jobsite.
- Easy serviceability
- Versatile pressure & flow options
- Optional IQ System for specialized applications
- Intuitive controls for safe operation
FlexAir System
Complete control of pressure and airflow, adjustable from the control panel for precise output.
Dual Pressure Capacity
Selectable HI/LOW modes for flexible use across multiple tools or applications — all in one unit.
Proprietary Airends
Precision-engineered for long life, low noise, and efficient air production — built in North Carolina.
Precision Rotors
Durable gearbox with premium bearings and wide gear ratio range for optimal efficiency and lifespan.
FlexAir System
Full Control of Pressure & Flow.
The Bobcat FlexAir system puts precise output control at the operator's fingertips. Adjust pressure and airflow independently from the control panel to match the exact demands of your tools and application — whether you're running a pneumatic hammer, sandblasting, or powering multiple outlets simultaneously. One compressor, fully tunable for any job.
Bobcat Air Compressors
Frequently Asked Questions
Have a question about buying, renting, or servicing a Bobcat portable air compressor? Find answers below or reach out to your nearest Carleton Equipment location.
What size air compressor do I need for my job?
The right size depends on the tools you're running and how many outlets you need simultaneously. Key specs to match are CFM (cubic feet per minute) and PSI (pressure). Bobcat towable compressors range from compact single-tool units to high-capacity models for multi-tool job sites. Our team can help you match the right unit — submit a quote request or contact your nearest location.
Does Carleton Equipment offer financing on Bobcat air compressors?
Yes. We offer competitive A.P.R. financing and customer rebate options on qualifying new Bobcat portable air compressor models through participating dealers. See the current offer displayed above or submit a quote request below for details. Financing is subject to credit approval.
Can I rent a portable air compressor before buying?
Yes, Carleton Equipment offers portable air compressor rentals at our Michigan locations. Renting before buying is a great way to evaluate a unit for your specific application. Submit a rental request online or contact your nearest branch to check availability.
What is the FlexAir system on Bobcat compressors?
The FlexAir system allows operators to independently adjust pressure and airflow from the control panel, giving precise control over output. This makes a single compressor highly adaptable — you can dial in the exact settings needed for different tools and applications without swapping equipment.
Where can I buy a Bobcat air compressor in Michigan?
Carleton Equipment is Michigan's authorized Bobcat dealer with 7 locations statewide: Chesterfield, Coldwater, Grand Rapids, Howell, Kalamazoo, Livonia, and Saginaw. Visit our locations page to find your nearest branch and confirm current inventory.
What warranty comes with a new Bobcat air compressor?
New Bobcat portable air compressors include the standard Bobcat limited warranty. Extended warranty options are also available. Contact your local Carleton Equipment dealer for full warranty terms and eligibility.
Do you offer service and parts for Bobcat air compressors?
Yes. Carleton Equipment operates a full-service shop staffed by factory-certified Bobcat technicians. We stock genuine Bobcat parts to minimize downtime and keep your compressor running at peak performance.
