Download Spec Sheet
Get detailed specifications, dimensions, and performance data for this PA185VP | Bobcat Portable Power.
|
General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Bobcat |
| Model: | PA185VP |
|
Engine
|
|---|
|
Performance
|
|
|---|---|
| Operating Weight: | 2353 lb |
|
Hydraulics
|
|---|
|
Dimensions
|
|---|
Description

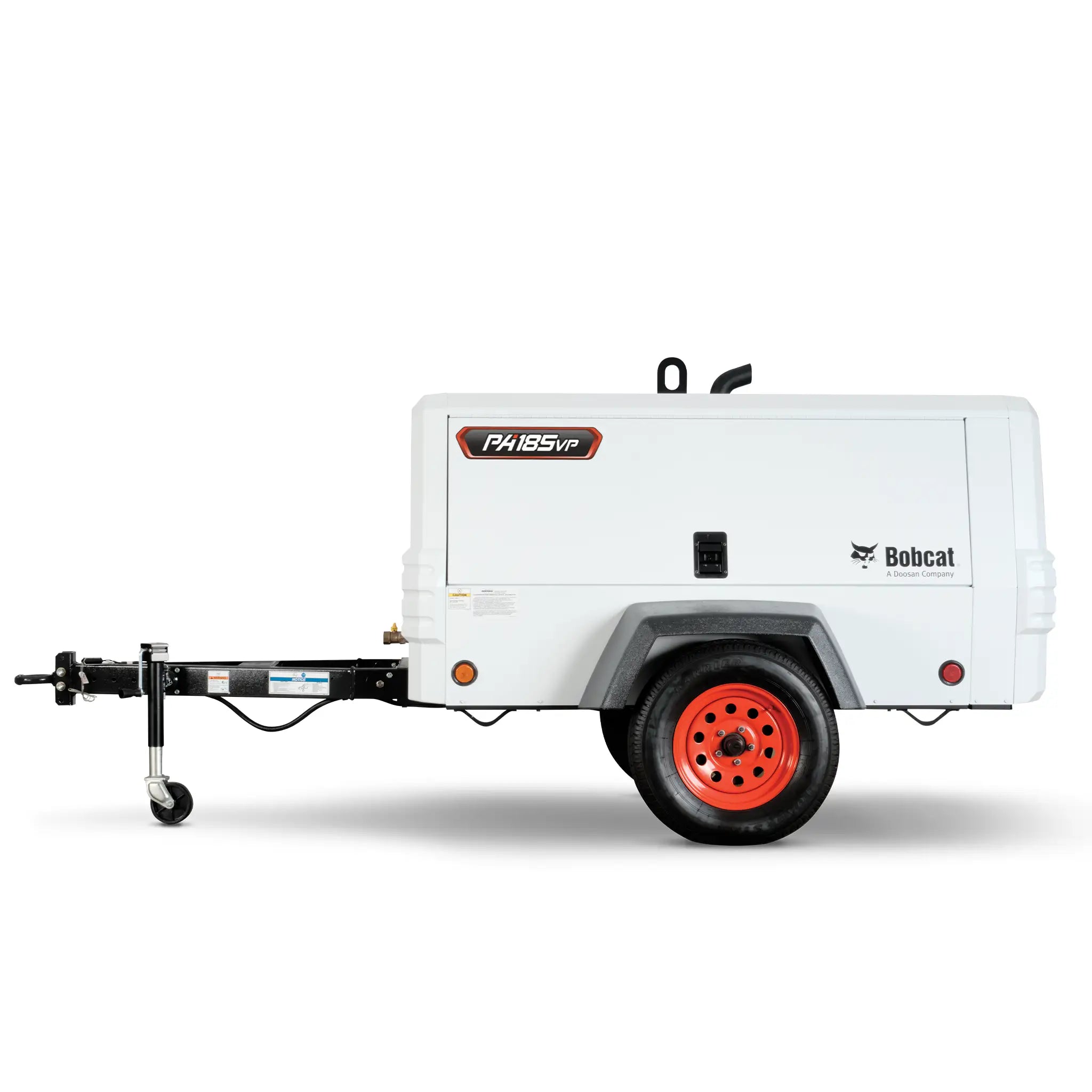

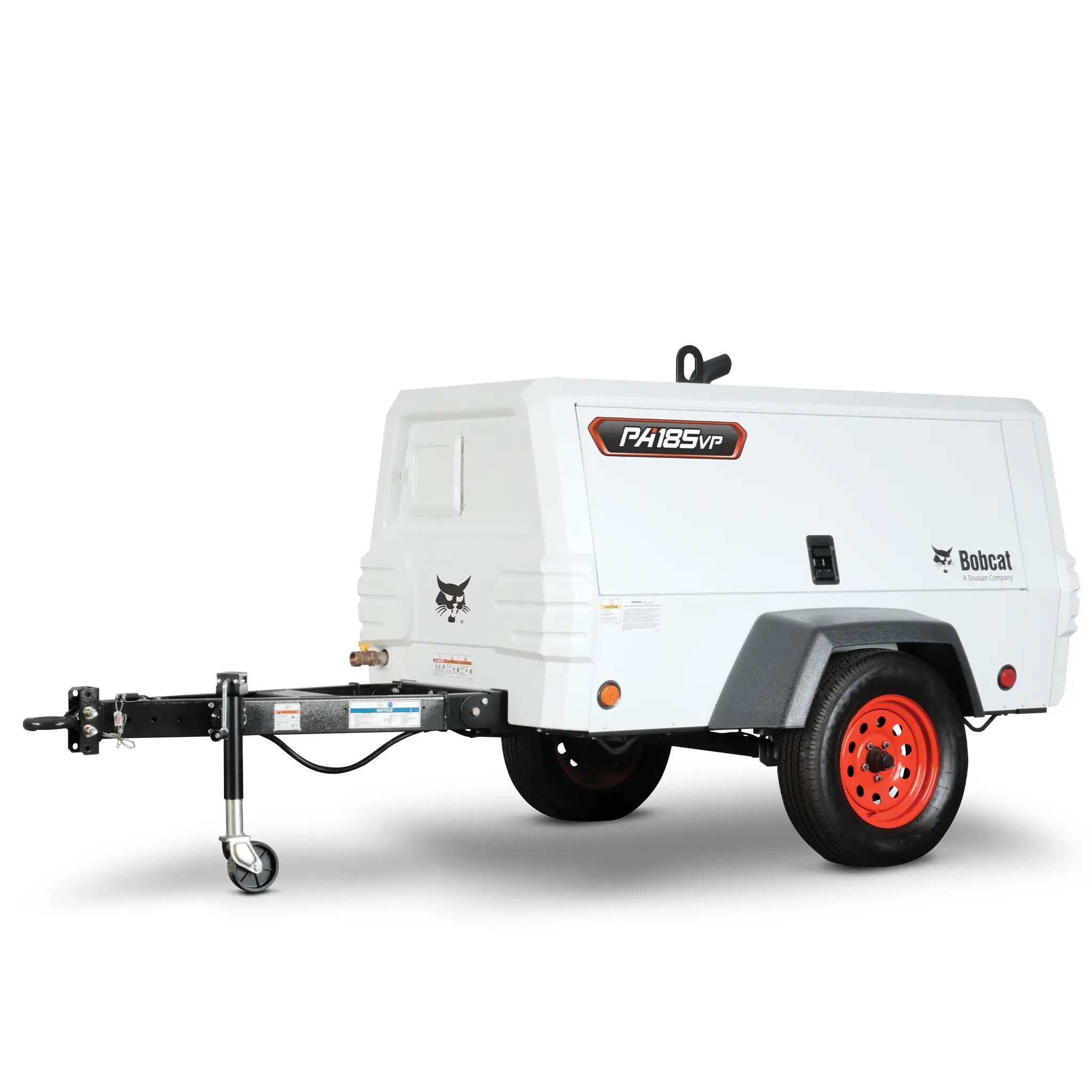

PA185VP Portable Air Compressor
The Bobcat® PA185VP portable air compressor gives you high-powered versatility with the legendary FlexAir system, allowing you to easily adjust the pressure to dial in your air power needs.
- FlexAir system provides tool-free adjustable air power
- Optional 4 kW on-board generator with 120V duplex outlets
- Ideal for high power needs across various applications
- Hand-held air tools, sandblasting, sprinkler blowout, cable laying, fiber optic cable laying and pipeline testing
The Bobcat PA185VP portable air compressor was designed for ultimate jobsite flexibility to maximize your productivity.
With the FlexAir System, you maintain complete control of both air pressure and airflow. From the control panel, you can dial in the exact combination of pressure and flow within the compressor’s operational range. The FlexAir System gives you ultimate versatility to power a variety of jobsite applications all with a single machine.
The control panel, hose connections, spacious 8,700-cubic-inch toolbox and optional 4 kW generator with 120V duplex outlets are all safely located on the curb side of the air compressor.
The premium control panel’s intuitive design ensures ease of use, and the spin-on separator element makes for quick and easy maintenance without having to enter the separator tank itself.
The PA185VP comes with a trusted track record, U.S.-based customer support and local service options for maximum uptime. Expand your jobsite opportunities by increasing your productivity with the ultra-versatile and high-powered PA185VP portable air compressor.
What Makes the PA185VP Different
FlexAir System — Variable Air Power
Designed for ultimate jobsite flexibility. With the FlexAir System you maintain complete control of both air pressure and airflow — dial in the exact combination of pressure and flow from the control panel to power a variety of applications with a single machine.
High Pressure — Up to 200 psig
The "VP" delivers a rated 125 psig (8.6 bar) and an operating range up to 200 psig (5.5–13.7 bar) — the high-pressure choice for demanding applications, with a 184–165 cfm FlexAir flow range.
74 HP Doosan D24 Diesel
A high-powered 74 bhp (55.2 kW) Doosan D24 diesel — 4-cylinder, 2.4 L — meets Tier 4 Final with a maintenance-free DOC aftertreatment (no DPF) for ultra-versatile, high-output performance.
Curb-Side Serviceability
The control panel, hose connections, spacious 8,700 cu in toolbox and optional generator are all safely located on the curb side. The premium control panel's intuitive design ensures ease of use.
Spin-On Separator Element
The spin-on separator element makes for quick and easy maintenance — without ever having to enter the separator tank itself.
185 CFM & 11+ Hours Runtime
185 cfm (5.2 m³/min) free air delivery with two 0.75 in service outlets, plus 11 hours of runtime at full load from a 34.5 gal (130.6 L) tank.
U.S.-Based Support & Local Service
The PA185VP comes with a trusted track record, U.S.-based customer support and local service options through Carleton Equipment for maximum uptime.
Optional Onboard Generator
Add the optional 4 kW generator with 120V duplex outlets to run electric tools, charge devices and power more from a single unit on the jobsite.
Compare the Small Air Compressors
 |
 |
 |
 |
|

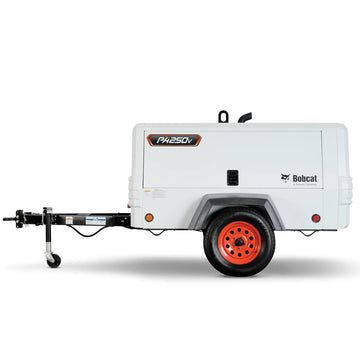

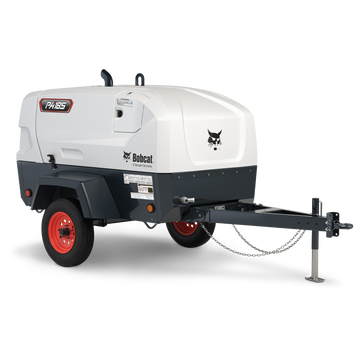

| PA185 | PA185V | PA185VPViewing | PA250V | |
|---|---|---|---|---|
| Compressed Air | ||||
| Free Air Delivery (FAD) | 185 cfm (5.2 m³/min) | 185 cfm (5.2 m³/min) | 185 cfm (5.2 m³/min) | 250 cfm (7.0 m³/min) |
| Rated Operating Pressure | 100 psig (6.9 bar) | 100 psig (6.9 bar) | 125 psig (8.6 bar) | 100 psig (6.9 bar) |
| Pressure Range | 80–100 psig | 80–150 psig (5.5–10.3 bar) | 80–200 psig (5.5–13.7 bar) | 80–175 psig (5.5–12.0 bar) |
| FlexAir Flow Range | — | 184–150 cfm (5.2–4.2 m³/min) | 184–165 cfm (5.2–4.7 m³/min) | 249–185 cfm (7.0–5.2 m³/min) |
| Air Service Outlets | 2 × 0.75 in (19 mm) | 2 × 0.75 in (19 mm) | 2 × 0.75 in (19 mm) | 2 × 0.75 in (19 mm) |
| Fuel Tank Capacity | 34.5 gal (130.6 L) | 34.5 gal (130.6 L) | 34.5 gal (130.6 L) | 34.5 gal (130.6 L) |
| Engine | ||||
| Make & Model | Doosan D18 | Doosan D24 | Doosan D24 | Doosan D24 |
| Bhp @ Rated Speed | 49.0 bhp (36.6 kW) | 49.0 bhp (36.6 kW) | 74.0 bhp (55.2 kW) | 74.0 bhp (55.2 kW) |
| Cylinders | 3 | 4 | 4 | 4 |
| Displacement | 110 cu in (1.8 L) | 147 cu in (2.4 L) | 147 cu in (2.4 L) | 147 cu in (2.4 L) |
| Emissions | Tier 4 Final | Tier 4 Final | Tier 4 Final | Tier 4 Final |
| Runtime @ Full Load | 12.6 hr | 12.2 hr | 11.0 hr | 8.7 hr |
| Dimensions & Weight (Enclosed) | ||||
| Working Weight (w/ fuel) | 2,359 lbs | 2,477 lbs | 2,594 lbs | 2,594 lbs |
| Length | 137.4 in | 137.4 in | 142.9 in | 142.9 in |
| Width | 68.5 in | 68.5 in | 68.5 in | 68.5 in |
| Height | 67.5 in | 67.5 in | 67.5 in | 67.7 in |
FlexAir variable flow & pressure is available on the V / VP / 250V models; the PA185 is the fixed-output base unit. Dimensions and weights shown are for the enclosed unit (working weight includes fuel).
Bobcat Air Compressor Technology
Precision Rotors
The rotors used in Bobcat proprietary airends feature a versatile gearbox design with case carburized gears, providing a wide gear ratio range. Premium bearings also add greater durability and improve operational efficiency.
FlexAir System
Bobcat compressors, featuring the variable FlexAir System, let you maintain complete control of both air pressure and airflow. From the control panel, you can dial in the exact combination of pressure and flow within the compressor's operational range.
Dual Pressure Capability
Dual pressure compressors offer two-in-one versatility with clear HI/LOW options on the control panel. Operators can select between two adjustable airflow and air pressure combinations to power multiple applications, eliminating the need for multiple compressors.
Proprietary Airends
With tighter rotor tolerances comes better performance. Bobcat proprietary airends are engineered to deliver exceptional performance, low vibration and reduced noise, and they're manufactured at our state-of-the-art facility in Statesville, North Carolina.
PA185VP Features & Benefits
FlexAir & High Pressure 4
Ultimate Jobsite Flexibility
Designed for ultimate jobsite flexibility to maximize productivity. The FlexAir System gives you complete control of both air pressure and airflow — dial in the exact combination from the control panel to power a variety of applications with a single machine.
High Pressure Up to 200 psig
Rated 125 psig (8.6 bar) with an operating range up to 200 psig (5.5–13.7 bar) — the high-pressure VP is built for demanding applications other 185-class units can't reach.
184–165 cfm FlexAir Flow Range
185 cfm (5.2 m³/min) free air delivery with a 184–165 cfm FlexAir flow range, so you can match output to the task.
Two Air Service Outlets
Two 0.75 in (19 mm) NPT discharge outlets let you run multiple tools or hoses at the same time.
Performance 3
High-Powered 74 HP Doosan D24
A high-output 74 bhp (55.2 kW) Doosan D24 diesel — 4-cylinder, 2.4 L — delivers the power behind the VP's high-pressure capability.
More Than 11 Hours of Runtime
A 34.5 gal (130.6 L) fuel tank delivers 11 hours of operation at full load — plenty of runtime for long days on the job.
Tier 4 Final with DOC Aftertreatment
The Doosan D24 meets Tier 4 Final emissions with a maintenance-free DOC (diesel oxidation catalyst) aftertreatment — no diesel particulate filter to regenerate.
Serviceability & Layout 4
Curb-Side Layout
The control panel, hose connections, spacious 8,700-cubic-inch toolbox and optional 4 kW generator with 120V duplex outlets are all safely located on the curb side of the compressor.
Premium, Intuitive Control Panel
The premium control panel's intuitive design ensures ease of use — dial in pressure and flow quickly and confidently.
Spin-On Separator Element
The spin-on separator element makes for quick and easy maintenance, without having to enter the separator tank itself.
U.S.-Based Support & Local Service
A trusted track record with U.S.-based customer support and local service options through Carleton Equipment for maximum uptime.
Durability & Versatility 3
Robust Towable Frame & Suspension
A robust frame, integrated drawbar and independent suspension provide stability for confident towing on and off the road.
Optional Onboard 4 kW Generator
Add the optional 4 kW generator with 120V duplex outlets to run electric tools, charge devices and power more — expanding your jobsite opportunities.
Full-Length Toolbox
A full-length toolbox keeps tools and necessities within reach, with 8,700 cubic inches of onboard storage.
Why Buyers Choose the PA185VP
FlexAir System — dial in the exact pressure and airflow for ultimate jobsite flexibility
High pressure: 125 psig rated with an operating range up to 200 psig (5.5–13.7 bar)
185 cfm free air with a 184–165 cfm FlexAir flow range — one machine for many tasks
High-powered 74 hp Doosan D24 diesel, Tier 4 Final with DOC aftertreatment (no DPF)
Curb-side layout — control panel, hoses, toolbox and generator all on one side
Spin-on separator element for quick maintenance without entering the separator tank
More than 11 hours of runtime from a 34.5 gal (130.6 L) fuel tank
Optional 4 kW generator with 120V duplex outlets, plus U.S.-based support
Who Uses the PA185VP and What For
The ultra-versatile, high-powered PA185VP pairs FlexAir variable pressure/flow with a 74 hp engine and up to 200 psig — expanding your jobsite opportunities with a single machine that handles both everyday air tools and high-pressure work.
- Tasks needing up to 200 psig
- Specialty tools beyond standard 100 psi
- Dial-in pressure from the control panel
- One machine instead of several
- Sandblasting and surface prep
- Sustained airflow for long runs
- Tune pressure to media and nozzle
- All-day runtime to limit refueling
- Pipeline pressure testing
- Irrigation blowouts
- Remote sites needing self-contained air
- Optional generator for on-site power
What Makes the PA185VP Different
The high-pressure "VP" reaches an operating range up to 200 psig (5.5–13.7 bar) — built for demanding applications other 185-class units can't reach.
Maintain complete control of both air pressure and airflow — dial in the exact combination from the control panel for ultimate jobsite flexibility with one machine.
Deliver a range of airflow to match the task, so you get the right output for everything from air tools to heavy continuous-duty work.
A high-powered 4-cylinder, 2.4 L Doosan D24 diesel meets Tier 4 Final with a maintenance-free DOC aftertreatment (no DPF) — the muscle behind the VP's high-pressure output.
Control panel, hose connections, the 8,700 cu in toolbox and optional 4 kW generator with 120V duplex outlets are all safely on the curb side for easy, intuitive use.
The spin-on separator element makes for quick, easy maintenance — without having to enter the separator tank — backed by U.S.-based support and local Carleton Equipment service.
Full Specifications
Engine
| Engine Make | Doosan |
| Engine Model | Doosan D24 |
| Displacement | 147 cu in (2.4 L) |
| Fuel | Diesel |
| Horsepower | 74 hp (74.0 bhp / 55.2 kW) @ 2,550 rpm |
| Emissions | Tier 4 Final (T4F) |
| Rated Speed | 2,550 rpm |
| Idle Speed | 1,400 rpm |
| Cylinders | 4 |
Compressed Air System
| Free Air Delivery (FAD) | 185 cfm (5.2 m³/min) |
| FlexAir Flow Range | 184–165 cfm (5.2–4.7 m³/min) |
| Rated Operating Pressure | 125 psig (8.6 bar) |
| Pressure Range | 80–200 psig (5.5–13.7 bar) |
| Compressor Type | Rotary screw (FlexAir variable pressure & flow) |
| Air Service Outlets | 2 × 0.75 in (19 mm) NPT |
| Runtime @ Full Load | 11 hr @ full load |
Dimensions & Weight
| Height | 67.5 in (with running gear) |
| Length | 142.9 in (with running gear) |
| Width | 68.5 in (with running gear) |
| Operating Weight | 2353 lb |
| Track Width (Running Gear) | 60 in |
| Tire Size (Running Gear) | 15 in |
| Shipping Weight (with running gear) | 2,353 lbs |
| Length (without running gear) | 94.6 in |
| Width (without running gear) | 49.3 in |
| Height (without running gear) | 56.3 in |
| Operating Weight (without running gear) | 2,384 lbs |
| Shipping Weight (without running gear) | 2,143 lbs |
| Fuel Tank | 34.5 gal (130.6 L) |
Standard Equipment
| FlexAir System | ■ Standard — variable pressure & flow (up to 200 psig) |
| Premium Control Panel | Curb-side, intuitive dial-in pressure/flow |
| Curb-Side Layout | Control panel, hose connections, toolbox & generator all curb-side |
| Frame & Drawbar | Robust frame with integrated drawbar |
| Suspension | Independent (on/off-road stability) |
| Aftertreatment | DOC (diesel oxidation catalyst) |
| Oil Separation | Spin-on separator element (no tank entry) |
| Toolbox | Full-length, 8,700 cu in storage |
| System Voltage | 12 V |
| Onboard Generator | ○ Optional (4 kW, 120V duplex outlets) |
Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
