M2-Series
BobcatSKU: BC-S70

General Info
Condition: Showroom
Manufacturer: Bobcat
Model: S70
Machine Type: Skid Steer Loader
Engine
Horsepower: 23.5
Performance
Rated Operating Capacity (ISO): 700 lb
Operating Weight: 2795 lb
Hydraulics
Aux. Standard Flow: 9.8 GPM
Dimensions

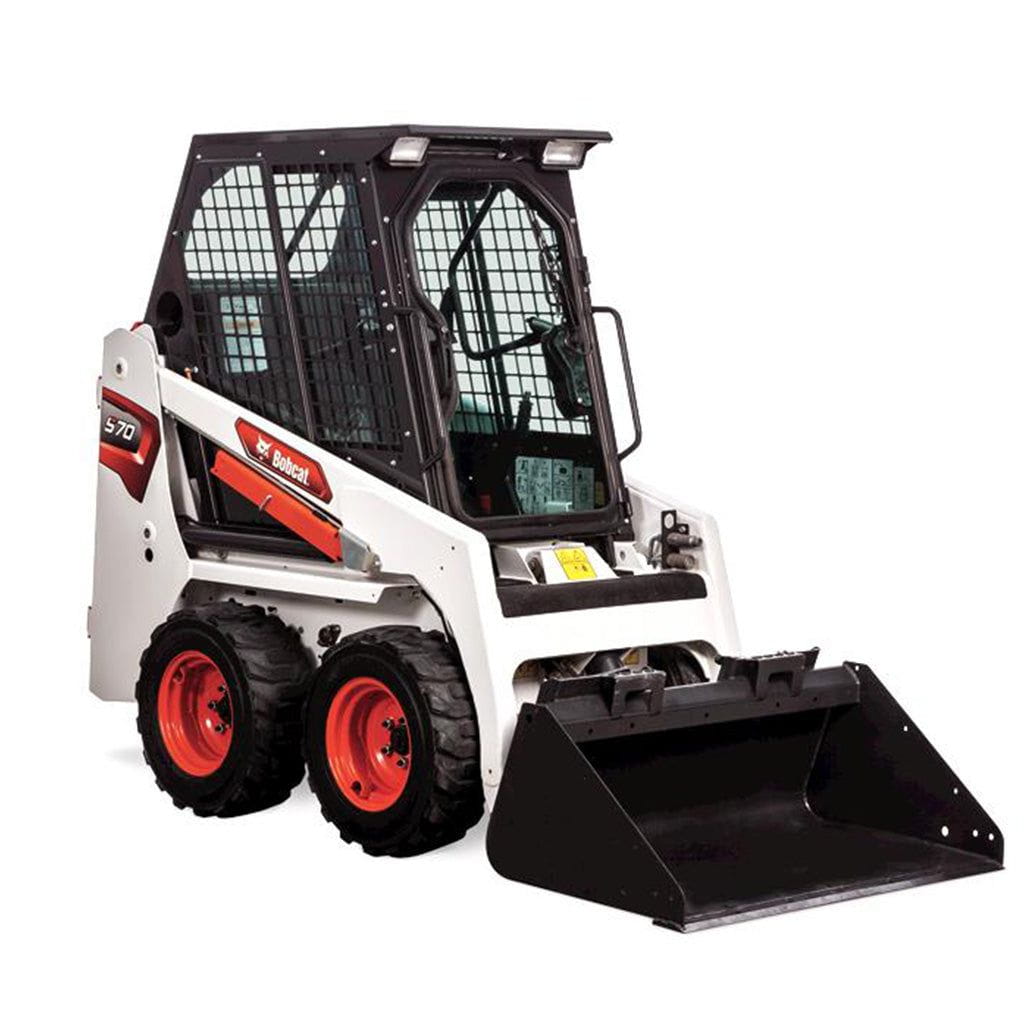

Bobcat® S70 Skid Steer Loader

Description

The compact Bobcat® S70 skid-steer loader is small enough to get in the tight spots, yet tough enough to get you out. This agile little workhorse is only 6 ft. tall and 3 ft. wide — the ideal size for scooting through narrow doorways, corridors, aisles, alleys and gates, and for working under low ceilings. It's the perfect loader whenever the job is too big for a shovel or the space is too small for a larger machine.

Specs
 Configuration Standard

Engine



 Emissions Tier (EPA) Tier 4
Engine Cooling Liquid
Engine Fuel Diesel
Horsepower 23.5 hp
Turbocharged Engine

n/a

Performance

 Rated Operating Capacity (ISO) 700 lb
Tipping Load 1,512 lb
Operating Weight 2,795 lb
Travel Speed 6.1 mph

Capacities

 Fuel Tank 6.5 gal

Hydraulic System

System Relief @ Quick Couplers 3,000 psi
Auxiliary Std Flow 9.8 gal/min
Auxiliary High Flow n/a

Dimension

 Length 75.6 in
Length Without Attachment 75.6 in
Length With Standard Bucket 97.3 in
Width 35.5 in
Width (With Bucket)  36 in
Height 71.4 in
Height With Operator Cab 71.4 in
Height to Bucket Hinge Pin 94.5 in
Reach @ Maximum Height 15.8 in
Turning Radius 58.7 in
Wheelbase

28.4 in
