General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Bobcat |
| Model: | T66-2 |
| Machine Type: | Compact Track Loader |
| Coupler: | Bob-Tach |
|
Engine
|
|
|---|---|
| Horsepower: | 74.0 |
| Emissions: | Tier 4 |
|
Performance
|
|
|---|---|
| Rated Operating Capacity (ISO): | 2,450 lb |
| Operating Weight: | 8927 lb |
| Height to Bucket Hinge Pin: | 120 IN. |
|
Hydraulics
|
|
|---|---|
| Aux. Standard Flow: | 17.6 GPM |
| Aux. High Flow: | 26.9 GPM |
|
Dimensions
|
|
|---|---|
| Width: | 67 IN. |
| Fuel Tank: | 28.3 GAL. |
Description

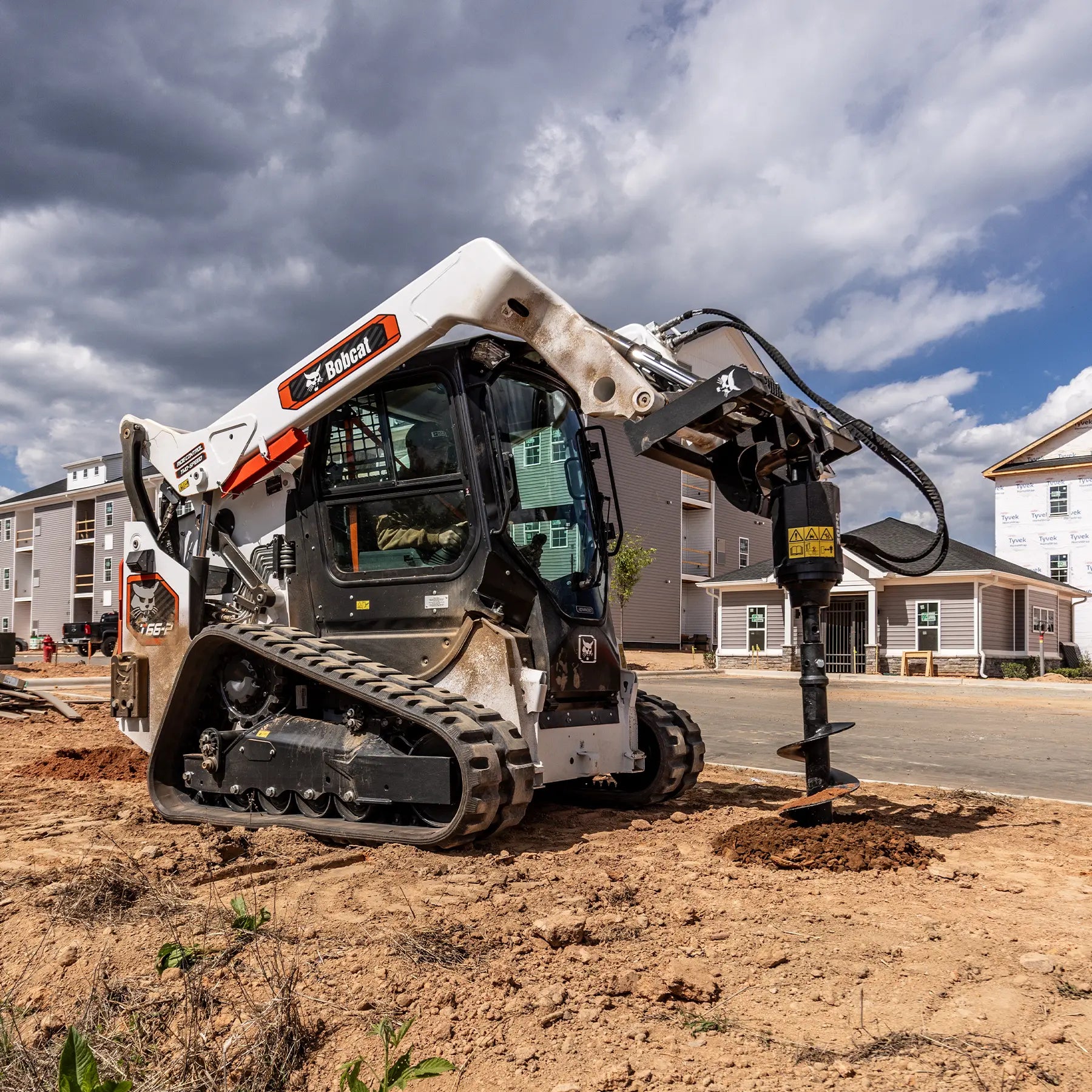

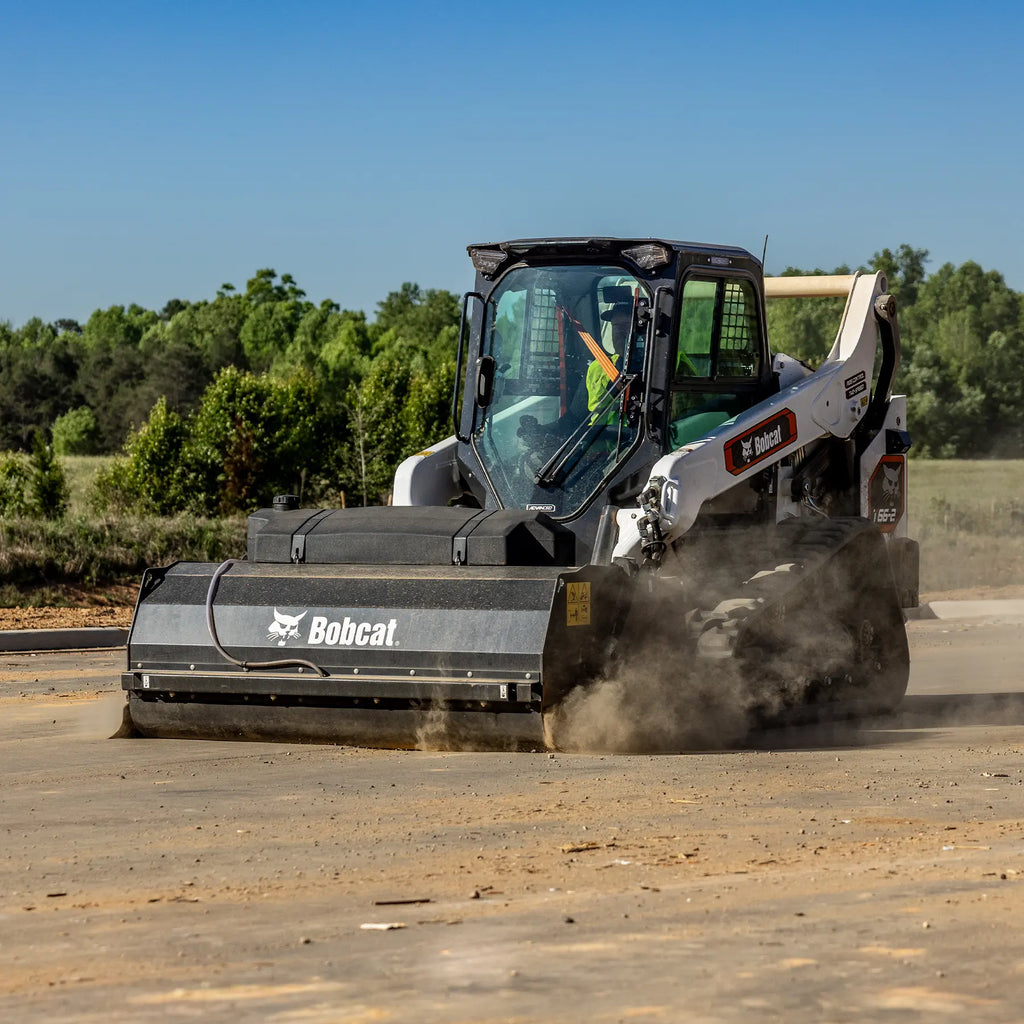

Bobcat T66-2 Compact Track Loader
What Makes the T66-2 Different
Two-Speed Travel
Spend less time traveling across the jobsite or between jobs with 2-speed standard on Pro models. Move faster — and get the job done sooner.
Precision Drive Software
Selectable Joystick Controls (SJC) with precision drive software deliver smooth motion and faster response for more precise operation.
Four Drive Modes
Balanced, Agile, Dynamic and Charged drive modes let operators tailor machine drive response to their working style and the task at hand.
8-Inch Touch Display with Infotainment
The 8-inch touch display with infotainment gives operators an intuitive command center for machine settings, key information and connected convenience.

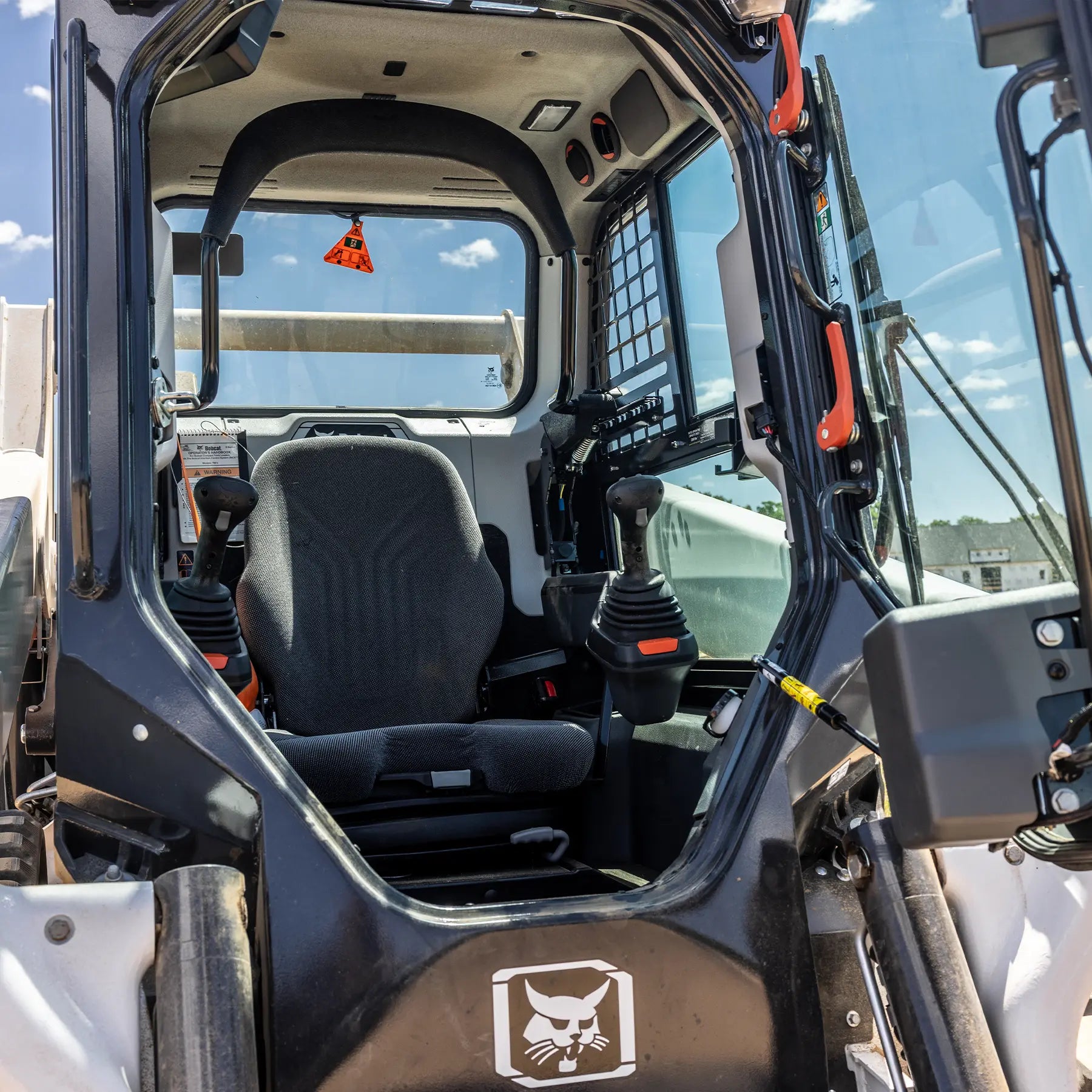

Heated High-Back Air-Ride Seat
Available heated high-back air-ride seating helps improve comfort and reduce operator fatigue during long workdays.
Jobsite Companion
Available in the Advanced package, Jobsite Companion adds voice-activated machine functions, automated attachment settings and real-time job insights.
Learn MoreBobcat Sense Detection Systems
Select either Rear Object Detection & Avoidance to detect objects behind the machine or 360° People Detection to detect people within a 360-degree field of view.
Bobcat View Camera Systems
Standard rear or optional broad‑area camera systems provide additional views when backing up, working in tight spaces and operating near obstacles.
Pro Loader Packages
Find the Right Package for the Way You Work
Find the Right Package for the Way You Work
All Pro compact track loaders — T64-2, T66-2, T76-2, and T86-2 — are available with four package levels that scale comfort, control, and technology to the demands of the job.
Compare packages below to find the right combination of features for the way you work.
| Work | Core | Plus | Advanced | |
|---|---|---|---|---|
| Overview | ||||
| Summary | Pro control at a competitive price. | Upgraded comfort and performance options. | Premium comfort and performance standard. | Plus package with Jobsite Companion. |
| Standard Features | ||||
| Power Bob-Tach® | ✔ | ✔ | ✔ | ✔ |
| Keyless Ignition | ✔ | ✔ | ✔ | ✔ |
| 7-Pin Attachment Control | ✔ | ✔ | ✔ | ✔ |
| 2-Speed | ✔ | ✔ | ✔ | ✔ |
| Auto-Throttle | ✔ | ✔ | ✔ | ✔ |
| Dual-Direction Bucket Positioning | ✔ | ✔ | ✔ | ✔ |
| Bluetooth Radio | ✔ | ✔ | ✔ | ✔ |
| Main Package Differences | ||||
| Suspension Seat | Vinyl | High-Back Heated Cloth Air-RideWith Enclosed Cab | High-Back Heated Cloth Air-Ride | High-Back Heated Cloth Air-Ride |
| Display | 8" | 8" w/ InfotainmentWith Enclosed Cab | 8" w/ Infotainment | 8" w/ Infotainment |
| Lights | LED | Premium LED | Premium LED w/ Side Lights | Premium LED w/ Side Lights |
| Machine IQ Telematics | 2YR Basics | 2YR Basics | 1YR H&S + 1YR Basics | 1YR H&S + 1YR Basics |
| Automatic Ride Control | — | ✔ | ✔ | ✔ |
| Sound Reduction | — | ✔With Enclosed Cab | ✔ | ✔ |
| Jobsite Companion | — | — | — | ✔ |
| Package Options | ||||
| Cab | Open or Enclosed HVAC | Open or Enclosed HVAC | Enclosed HVAC w/ Clear-Side Enclosure | Enclosed HVAC w/ Clear-Side Enclosure |
| Controls | SJC STD Hand & Foot OPT |
SJC STD Hand & Foot OPT |
SJC STD Hand & Foot OPT |
SJC |
| Camera(s) | Rear View | Rear View | Rear View STD Broad Area OPT |
Rear View STD Broad Area OPT |
| Undercarriage | Solid Mount | Solid Mount STD 5-Link Torsion OPTWith Enclosed Cab |
Solid Mount STD 5-Link Torsion OPT |
Solid Mount STD 5-Link Torsion OPT |
| Auxiliary Flow | Standard Flow | Standard Flow STD Standard+High OPT |
Standard+High STD | Standard+High STD |
| Reversing Fan | — | Included w/ High Flow | ✔ | ✔ |
| Bobcat Sense | Rear Detection & Avoidance OPT | Rear Detection & Avoidance OPT | Rear Detection & Avoidance OPT | 360° People Detection OPT |
| Tracks | C-Pattern 12.6" STD C-Pattern 15.7" OPT MBL 15.7" OPT |
C-Pattern 12.6" STD C-Pattern 15.7" OPT MBL 15.7" OPT |
C-Pattern 12.6" STD C-Pattern 15.7" OPT MBL 15.7" OPT |
C-Pattern 12.6" STD C-Pattern 15.7" OPT MBL 15.7" OPT |
Full Specifications
General
| Condition | Showroom |
| Machine Type | Compact Track Loader |
Engine
| Engine Make | Bobcat |
| Battery Size | 1000A CC |
| Engine High Idle | 2,600 RPM |
| Engine Low Idle | 1,050 RPM |
| Horsepower | 74.0 |
| Emissions | Tier 4 |
Performance
| Rated Operating Capacity | 2,450 lb |
| ROC with Torsion | 2,350 lbs |
| Loader Lift Height | 120 in |
| Bucket Hinge Pin Height | 120 IN. |
| Reach @ Max Height | 36.7 in |
| Tipping Load | 6,857 lbs |
| Travel Speed | 5.5 / 9.3 mph (2-Speed) |
Hydraulics
| Aux. Standard Flow | 17.6 GPM |
| Aux. High Flow | 26.9 GPM |
| Relief Pressure | 3,500 psi |
Dimensions & Weight
| Ground Pressure | 5.8 psi |
| Height | 80.5 in |
| Length | 107 in |
| Width | 67 IN. |
| Operating Weight | 8927 lb |
| Turning Radius | 81.5 in |
| Track Contact Length | 54.2 in |
| Track Width | 12.6 in |
| Track Width (Optional) | 15.8 in |
| Length with Bucket | 134.9 in |
| Fuel Tank | 28.3 GAL. |
Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
|
