General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Bobcat |
| Model: | PA185V |
| Machine Type: | Other |
|
Engine
|
|
|---|---|
| Emissions: | Tier 4 Final |
|
Performance
|
|
|---|---|
| Operating Weight: | 2269 lb |
|
Hydraulics
|
|---|
|
Dimensions
|
|---|
Description

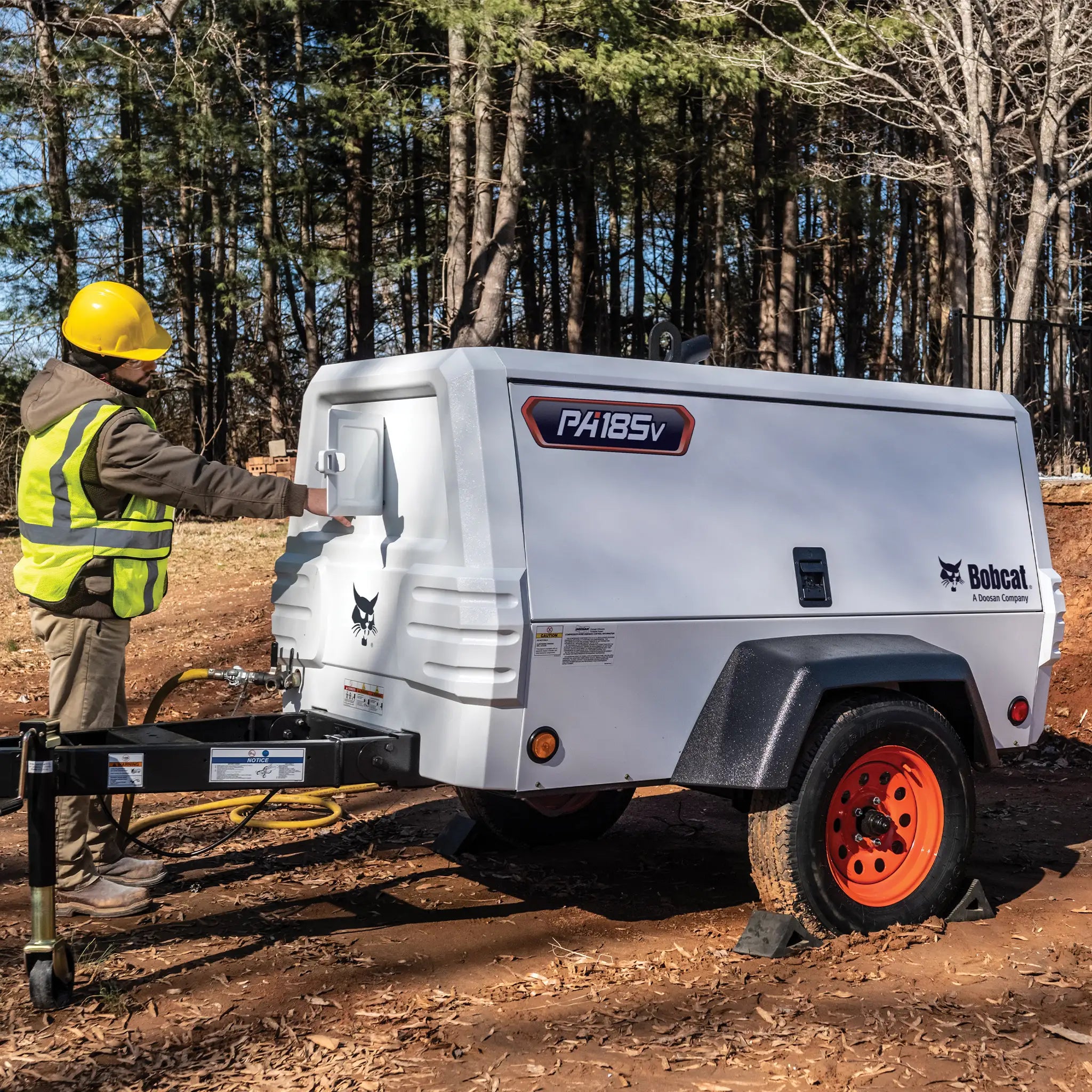

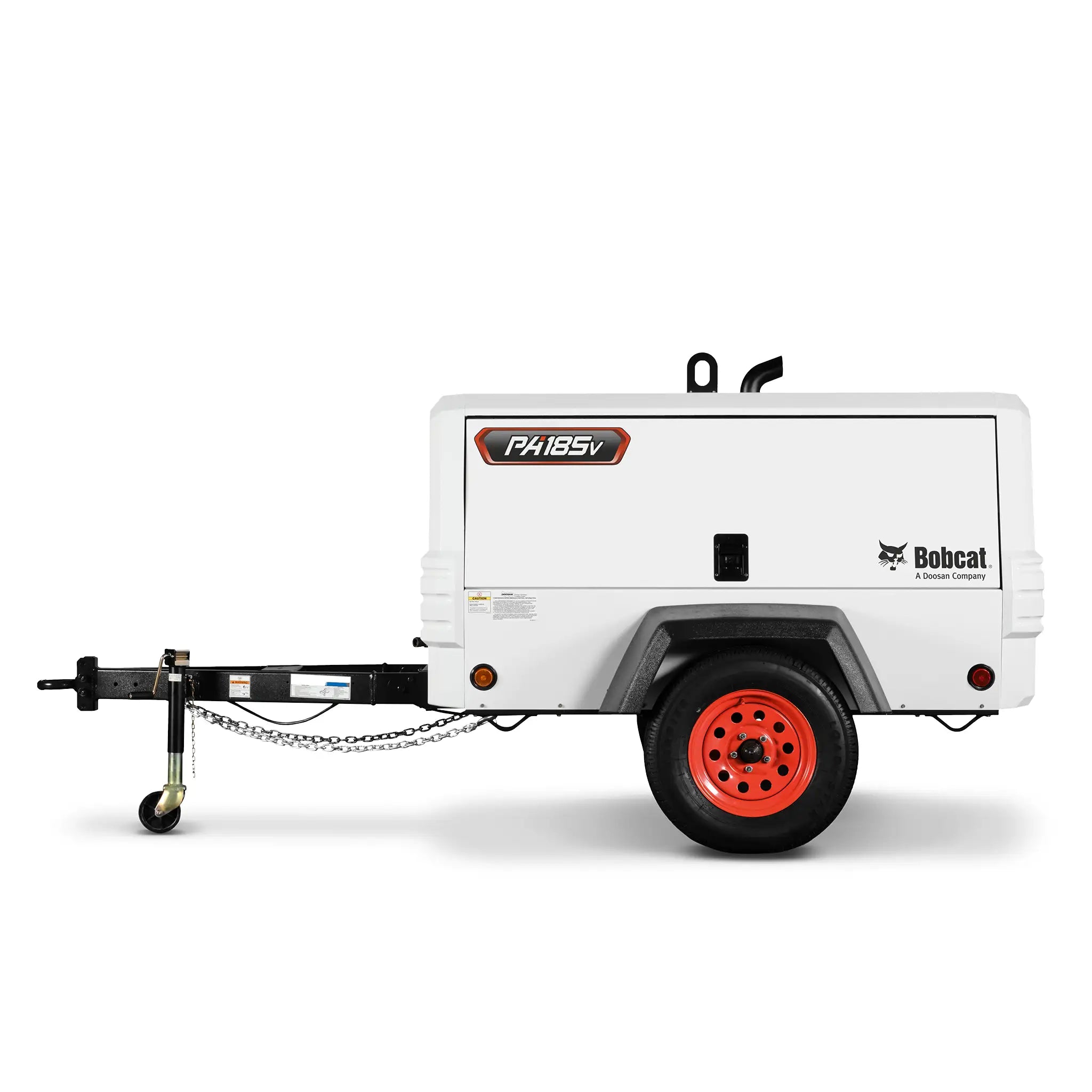

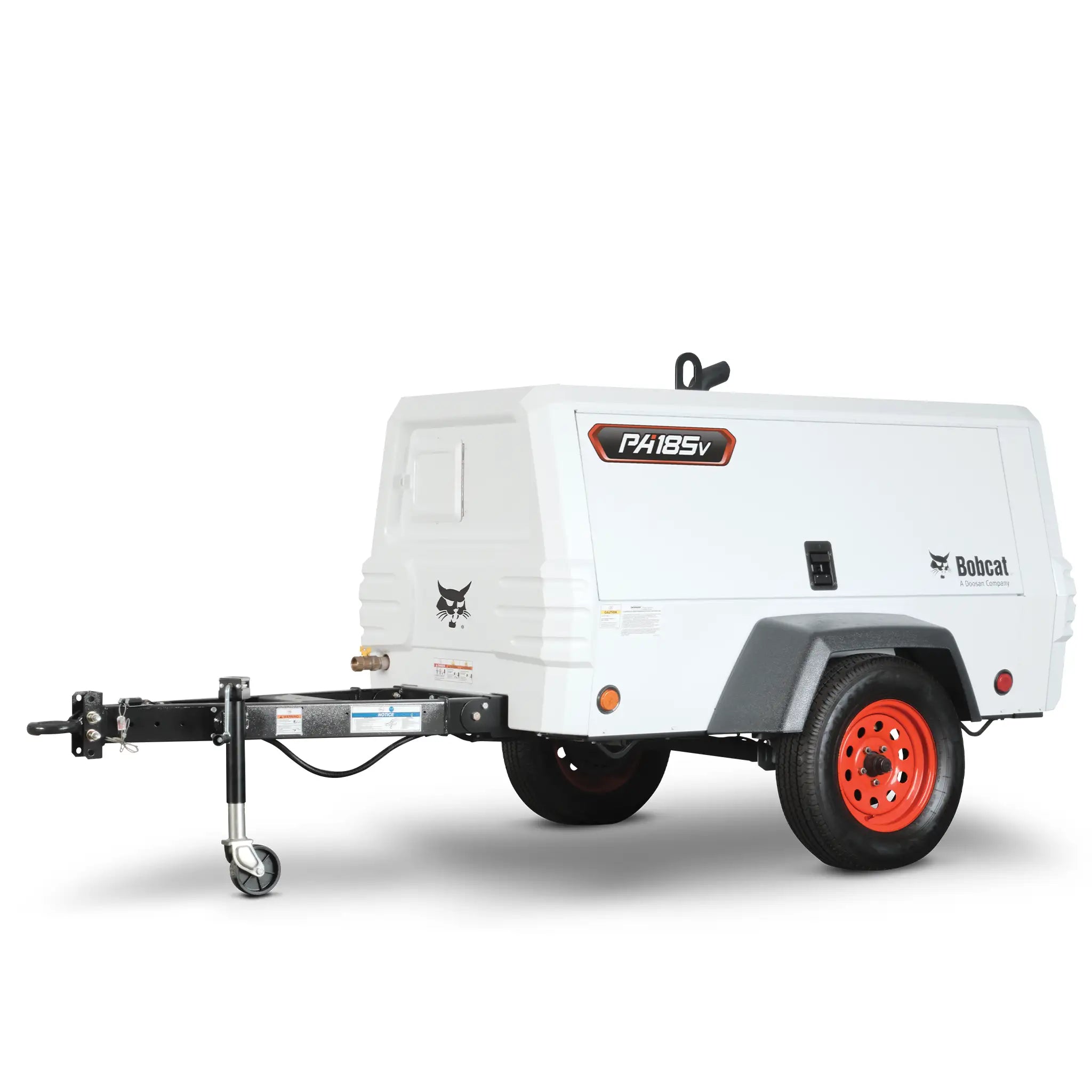

PA185V Portable Air Compressor
The Bobcat® PA185V portable air compressor gives you ultimate versatility at the jobsite thanks to the legendary FlexAir system, allowing you to easily adjust the flow rate from the curbside control panel to dial in your air power needs.
- FlexAir system provides tool-free adjustable air power
- Just one button to adjust flow and pressure settings
- Suitable for hand-held air tools, sandblasting, sprinkler blowout, cable laying, pipeline testing and much more
The Bobcat PA185V towable air compressor, featuring FlexAir technology, is a versatile and reliable machine that gives you a range of air power to meet your varying jobsite needs.
With the FlexAir System, you maintain complete control of both air pressure and airflow. From the control panel, you can dial in the exact combination of pressure and flow within the compressor’s operational range. The FlexAir System gives you ultimate versatility to power a variety of jobsite applications, all with a single machine.
From hand-held air tools and sandblasting to irrigation blowouts and pipeline testing, the FlexAir System allows you to adjust the pressure from 100-150 psi right at the curbside control panel (with just one button).
Powered by a Doosan D24 diesel engine, refined with expert engineering, the PA185V comes with a trusted track record, U.S.-based customer support and local service options for maximum uptime.
What Makes the PA185V Different
FlexAir System — Variable Air Power
FlexAir technology gives you complete control of both air pressure and airflow. From the curbside control panel you can dial in the exact combination of pressure and flow within the machine's operational range — ultimate versatility to power a variety of jobsite applications with a single machine.
One-Button Pressure Adjustment
Adjust the pressure from 100–150 psi right at the curbside control panel with just one button — from hand-held air tools and sandblasting to irrigation blowouts and pipeline testing.
185 CFM of Jobsite Air
Delivers 185 cfm (5.2 m³/min) at 100 psig with a FlexAir flow range of 184–150 cfm. Two 0.75 in service outlets let you put multiple tools to work at once.
Doosan D24 Diesel Power
Powered by a 49 bhp Doosan D24 diesel (4-cylinder, 2.4 L), refined with expert engineering and a trusted track record — Tier 4 Final with a maintenance-free DOC aftertreatment (no DPF).
More Than 12 Hours of Runtime
A 34.5 gal (130.6 L) fuel tank keeps the unit running for 12.2 hours at full load, so you get a full day of productivity before refueling.
Robust Towable Frame & Suspension
A durable frame, drawbar and independent suspension provide stability on and off the road, so the PA185V tows easily between jobsites and handles rough ground.
U.S.-Based Support & Local Service
The PA185V comes with a trusted track record, U.S.-based customer support and local service options through Carleton Equipment for maximum uptime.
Optional Onboard Generator
Add the optional 4 kW generator to run electric tools, charge devices and power more from a single unit on the jobsite.
Compare the Small Air Compressors
 |
 |
 |
 |
|
| PA185 | PA185VViewing | PA185VP | PA250V | |
|---|---|---|---|---|
| Compressed Air | ||||
| Free Air Delivery (FAD) | 185 cfm (5.2 m³/min) | 185 cfm (5.2 m³/min) | 185 cfm (5.2 m³/min) | 250 cfm (7.0 m³/min) |
| Rated Operating Pressure | 100 psig (6.9 bar) | 100 psig (6.9 bar) | 125 psig (8.6 bar) | 100 psig (6.9 bar) |
| Pressure Range | 80–100 psig | 80–150 psig (5.5–10.3 bar) | 80–200 psig (5.5–13.7 bar) | 80–175 psig (5.5–12.0 bar) |
| FlexAir Flow Range | — | 184–150 cfm (5.2–4.2 m³/min) | 184–165 cfm (5.2–4.7 m³/min) | 249–185 cfm (7.0–5.2 m³/min) |
| Air Service Outlets | 2 × 0.75 in (19 mm) | 2 × 0.75 in (19 mm) | 2 × 0.75 in (19 mm) | 2 × 0.75 in (19 mm) |
| Fuel Tank Capacity | 34.5 gal (130.6 L) | 34.5 gal (130.6 L) | 34.5 gal (130.6 L) | 34.5 gal (130.6 L) |
| Engine | ||||
| Make & Model | Doosan D18 | Doosan D24 | Doosan D24 | Doosan D24 |
| Bhp @ Rated Speed | 49.0 bhp (36.6 kW) | 49.0 bhp (36.6 kW) | 74.0 bhp (55.2 kW) | 74.0 bhp (55.2 kW) |
| Cylinders | 3 | 4 | 4 | 4 |
| Displacement | 110 cu in (1.8 L) | 147 cu in (2.4 L) | 147 cu in (2.4 L) | 147 cu in (2.4 L) |
| Emissions | Tier 4 Final | Tier 4 Final | Tier 4 Final | Tier 4 Final |
| Runtime @ Full Load | 12.6 hr | 12.2 hr | 11.0 hr | 8.7 hr |
| Dimensions & Weight (Enclosed) | ||||
| Working Weight (w/ fuel) | 2,359 lbs | 2,477 lbs | 2,594 lbs | 2,594 lbs |
| Length | 137.4 in | 137.4 in | 142.9 in | 142.9 in |
| Width | 68.5 in | 68.5 in | 68.5 in | 68.5 in |
| Height | 67.5 in | 67.5 in | 67.5 in | 67.7 in |
FlexAir variable flow & pressure is available on the V / VP / 250V models; the PA185 is the fixed-output base unit. Dimensions and weights shown are for the enclosed unit (working weight includes fuel).
Bobcat Air Compressor Technology
Precision Rotors
The rotors used in Bobcat proprietary airends feature a versatile gearbox design with case carburized gears, providing a wide gear ratio range. Premium bearings also add greater durability and improve operational efficiency.
FlexAir System
Bobcat compressors, featuring the variable FlexAir System, let you maintain complete control of both air pressure and airflow. From the control panel, you can dial in the exact combination of pressure and flow within the compressor's operational range.
Dual Pressure Capability
Dual pressure compressors offer two-in-one versatility with clear HI/LOW options on the control panel. Operators can select between two adjustable airflow and air pressure combinations to power multiple applications, eliminating the need for multiple compressors.
Proprietary Airends
With tighter rotor tolerances comes better performance. Bobcat proprietary airends are engineered to deliver exceptional performance, low vibration and reduced noise, and they're manufactured at our state-of-the-art facility in Statesville, North Carolina.
PA185V Features & Benefits
FlexAir Versatility 4
Complete Control of Pressure & Flow
With the FlexAir System you maintain complete control of both air pressure and airflow. From the control panel you can dial in the exact combination of pressure and flow within the compressor's operational range — one machine that adapts to many applications.
One-Button Pressure Adjustment (100–150 psi)
Adjust the pressure from 100–150 psi right at the curbside control panel with just one button — no tools, no guesswork. The full rated pressure range runs 80–150 psig (5.5–10.3 bar).
A Range of Air Power for Varying Needs
From hand-held air tools and sandblasting to irrigation blowouts and pipeline testing, the FlexAir System gives you the versatility to power a variety of jobsite applications — all with a single machine.
Two Air Service Outlets
Two 0.75 in (19 mm) NPT discharge outlets let you run multiple tools or hoses at the same time, keeping crews productive.
Performance 4
185 CFM Free Air Delivery
Delivers 185 cfm (5.2 m³/min) of free air, with a FlexAir flow range of 184–150 cfm to match output to the task.
Doosan D24 Diesel
Powered by a 49 bhp (36.6 kW) Doosan D24 diesel — a 4-cylinder, 2.4 L engine refined with expert engineering and a trusted track record.
More Than 12 Hours of Runtime
A 34.5 gal (130.6 L) fuel tank delivers 12.2 hours of operation at full load — plenty of runtime for long days on the job.
Better Cold-Starting Capability
Dependable, reliable startups in frigid temperatures ignite your productivity faster — important for early starts in Michigan winters.
Durability & Stability 3
Robust Frame & Drawbar
A robust frame and integrated drawbar are built to handle towing and rough jobsite conditions day after day.
Independent Suspension
Independent suspension provides stability for confident towing on and off the road, protecting the unit over uneven terrain.
Tier 4 Final with DOC Aftertreatment
The Doosan D24 meets Tier 4 Final emissions with a maintenance-free DOC (diesel oxidation catalyst) aftertreatment — no diesel particulate filter to regenerate.
Serviceability & Support 4
U.S.-Based Customer Support
The PA185V comes with a trusted track record and U.S.-based customer support, with local service options through Carleton Equipment for maximum uptime.
Spin-On Oil Separation
The spin-on oil separation system is easy to install and replace, simplifying routine maintenance and reducing downtime.
Full-Length Toolbox
A full-length toolbox keeps tools and necessities within reach, with 8,700 cubic inches of onboard storage.
Optional Onboard 4 kW Generator
Add the optional 4 kW generator to use electric tools, charge devices and power more — turning the PA185V into a versatile jobsite power source.
Why Buyers Choose the PA185V
FlexAir System — dial in the exact pressure and airflow for the job from the control panel
Adjust pressure 100–150 psi at the curbside panel with one button (80–150 psig rated range)
185 cfm free air with a 184–150 cfm FlexAir flow range — one machine for many applications
49 hp Doosan D24 diesel, Tier 4 Final with DOC aftertreatment (no DPF)
More than 12 hours of runtime from a 34.5 gal (130.6 L) fuel tank
Robust frame, drawbar and independent suspension for stability on and off the road
Trusted track record with U.S.-based support and local Carleton Equipment service
Optional onboard 4 kW generator for electric tools and device charging
Who Uses the PA185V and What For
The Bobcat PA185V adds FlexAir variable pressure and flow to the towable 185-class compressor — a single machine that gives you a range of air power to meet varying jobsite needs, from hand-held air tools and sandblasting to irrigation blowouts and pipeline testing.
- One machine for many tools and pressures
- Dial in pressure/flow from the control panel
- Eliminates the need for multiple compressors
- One-button 100–150 psi adjustment
- Sandblasting and surface prep
- Sustained airflow for long blasting runs
- Tune pressure to the media and nozzle
- All-day runtime to limit refueling stops
- Pipeline pressure testing
- Irrigation blowouts
- Higher-pressure tasks up to 150 psi
- Optional generator for on-site electric power
What Makes the PA185V Different
Dial in the exact combination of pressure and flow from the control panel — one machine with the versatility to power a variety of jobsite applications.
Adjust the pressure right at the curbside control panel with just one button — from hand-held air tools and sandblasting to irrigation blowouts and pipeline testing.
Deliver a range of airflow to match the task, so you get the right amount of air for everything from light tools to heavy continuous-duty applications.
A 4-cylinder, 2.4 L Doosan D24 diesel — refined with expert engineering and a trusted track record — meets Tier 4 Final with a maintenance-free DOC aftertreatment (no DPF).
More than 12 hours of runtime at full load means a full day of productivity on a single tank, with fewer refueling stops on the job.
A trusted track record backed by U.S.-based customer support and local service through Carleton Equipment for maximum uptime.
Full Specifications
Engine
| Engine Make | Doosan |
| Engine Model | Doosan D24 |
| Displacement | 147 cu in (2.4 L) |
| Fuel | Diesel |
| Horsepower | 49 hp (49.0 bhp / 36.6 kW) @ 2,600 rpm |
| Emissions | Tier 4 Final |
| Rated Speed | 2,600 rpm |
| Idle Speed | 1,400 rpm |
| Cylinders | 4 |
Compressed Air System
| Free Air Delivery (FAD) | 185 cfm (5.2 m³/min) |
| FlexAir Flow Range | 184–150 cfm (5.2–4.2 m³/min) |
| Rated Operating Pressure | 100 psig (6.9 bar) |
| Pressure Range | 80–150 psig (5.5–10.3 bar) |
| Compressor Type | Rotary screw (FlexAir variable pressure & flow) |
| Air Service Outlets | 2 × 0.75 in (19 mm) NPT |
| Runtime @ Full Load | 12.2 hr @ full load |
Dimensions & Weight
| Height | 67.5 in (with running gear) |
| Length | 137.4 in (with running gear) |
| Width | 68.5 in (with running gear) |
| Operating Weight | 2269 lb |
| Track Width (Running Gear) | 60 in |
| Tire Size (Running Gear) | 15 in |
| Shipping Weight (with running gear) | 2,269 lbs |
| Length (without running gear) | 88.5 in |
| Width (without running gear) | 49.3 in |
| Height (without running gear) | 56.3 in |
| Operating Weight (without running gear) | 2,267 lbs |
| Shipping Weight (without running gear) | 2,059 lbs |
| Fuel Tank | 34.5 gal (130.6 L) |
Standard Equipment
| FlexAir System | ■ Standard — variable pressure & flow |
| Curbside Control Panel | Dial-in pressure/flow, durable backlit controls |
| Frame & Drawbar | Robust frame with integrated drawbar |
| Suspension | Independent (on/off-road stability) |
| Aftertreatment | DOC (diesel oxidation catalyst) |
| Oil Separation | Spin-on, easy-service |
| Toolbox | Full-length, 8,700 cu in storage |
| System Voltage | 12 V |
| Onboard Generator | ○ Optional (4 kW) |
Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
