Download Spec Sheet
Get detailed specifications, dimensions, and performance data for this PA915 | Bobcat Portable Power.
|
General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Bobcat |
| Model: | PA915 |
| Machine Type: | Other |
|
Engine
|
|---|
|
Performance
|
|
|---|---|
| Operating Weight: | 9789 lb |
|
Hydraulics
|
|---|
|
Dimensions
|
|---|
Description

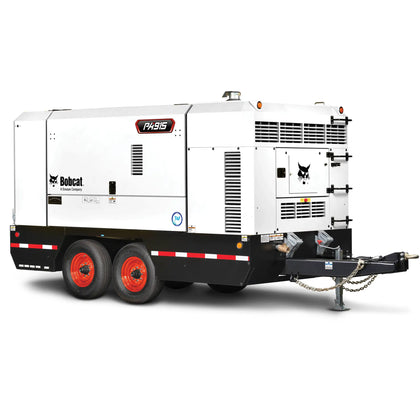

PA915 Portable Air Compressor
One of the most innovative portable air compressors on the market, the Bobcat® PA915 maximizes your jobsite productivity with reliable, high pressure air power.
- Wide doors for easy jobsite servicing
- Delivers 915 cfm at 150 psi
- Ideal for construction, mining and abrasive blasting
- Heavy-duty tandem-axle running gear for easy towing
- Optional IQ System® for clean air needs
The Bobcat PA915 high-pressure portable air compressor features an innovative enclosure design that makes it one of the most accessible towable air compressors ever built, assuring that maintenance is completed safely and efficiently whether on the jobsite or in the shop.
Access panels on all four sides of the machine give you safe and simple access to all service components. The PA915 designed with serviceability in mind, has two large doors that offer easy access to key service components. Enabling you to get back on the job and maximize uptime.
Efficient maintenance on the PA915 air compressor is further improved with its unique central drain system. Centralized tubing and valve system drains allow operators to easily drain fluids from the radiator and oil and fuel tanks to a central location, without having to crawl under the machine.
The PA915 is also more compact compared to similar models on the market, totaling just 226 inches. With a smaller footprint, it is easy to transport and maneuver, giving you more flexibility on the rental yard and jobsite. Built to excel in rugged conditions, this air compressor features a heavy-gauge steel enclosure, heavy-duty tandem-axle running gear for easy towing, and construction-grade pedestal jack stand.
For specialized jobs requiring cleaner air, the PA915 can be equipped with the patented IQ System®, which adds an onboard aftercooler, a coalescing dual filtration system and an exclusive, zero-discharge condensate removal system. These components work together to produce clean air that protects the tools downstream from contaminants, such as aerosol oil vapors and microscopic dust particles.
For heavy-duty jobs, rely on the Bobcat PA915 to limit service downtime and maximize your jobsite productivity.
What Makes the PA915 Different
915 CFM of High-Flow Air Power
The PA915 delivers 915 cfm (25.9 m³/min) of free air at 150 psig, with an 80–175 psig range — heavy-duty, high-volume air power for the biggest jobs.
Most Accessible Towable Compressor
An innovative enclosure design makes the PA915 one of the most accessible towable air compressors ever built — access panels on all four sides give you safe, simple access to all service components, whether on the jobsite or in the shop.
Two Large Service Doors
Two large doors offer easy access to key service components, enabling you to get back on the job and maximize uptime.
Unique Central Drain System
Centralized tubing and valves drain fluids from the radiator, oil and fuel tanks to a single location — efficient maintenance without ever having to crawl under the machine.
Compact 226-Inch Footprint
More compact than similar models on the market at just 226 inches, the PA915 is easy to transport and maneuver — giving you more flexibility on the rental yard and jobsite.
Reliable Cummins B6.7 — 298 BHP
A reliable Cummins B6.7 — 298 bhp (222 kW), 6-cylinder, 6.7 L, Tier 4 Final — delivers dependable, durable air power for heavy-duty jobs.
Rugged, Towable Build
Built to excel in rugged conditions with a heavy-gauge steel enclosure, heavy-duty tandem-axle running gear for easy towing, and a construction-grade pedestal jack stand. Add the optional patented IQ System® for clean, dry air that protects downstream tools.
Compare the Large, Low-Pressure Air Compressors
 |
 |
|

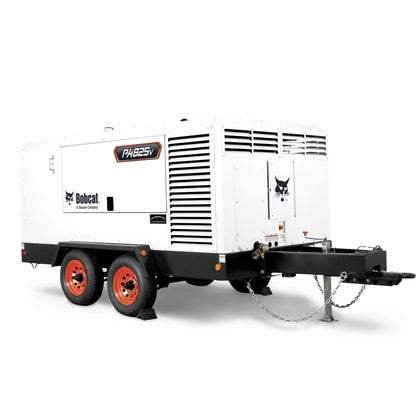

| PA825V | PA915Viewing | |
|---|---|---|
| Compressed Air | ||
| Free Air Delivery | 825 / 750 cfm (23.4 / 21.2 m³/min) — low/high | 915 cfm (25.9 m³/min) |
| Rated Operating Pressure | 125 / 150 psig (8.6 / 10.3 bar) — low/high | 150 psig (10.3 bar) |
| Pressure Range | 80–175 psig (5.5–12.1 bar) | 80–175 psig (5.5–12.1 bar) |
| Air Discharge Outlet | 1 × 2.0 in (50 mm) | 1 × 2.0 in (50 mm) |
| Fuel Tank Capacity | 100 gal (379 L) | 128 gal (485 L) |
| Engine | ||
| Make & Model | Cummins QSB6.7 | Cummins B6.7 |
| Bhp @ Rated Speed | 266 / 262 bhp (198 / 195 kW) | 298 bhp (222 kW) |
| Rated Speed | 2,100 / 1,935 rpm | 1,800 rpm |
| Cylinders | 6 | 6 |
| Displacement | 408 cu in (6.7 L) | 408 cu in (6.7 L) |
| Emissions | Tier 4 Final | Tier 4 Final |
| Runtime @ Full Load | 9.1 / 9.3 hr | 9.2 hr |
| Dimensions & Weight (Enclosed, with Running Gear) | ||
| Working Weight (w/ fuel) | 9,330 lbs | 10,692 lbs |
| Length | 203.3 in | 226.6 in |
| Width | 90.2 in | 82.6 in |
| Height | 88.5 in | 101.3 in |
Both large, low-pressure units are built for long-term, heavy-duty use on big jobs like general construction, road & bridge work and abrasive blasting. The PA825V offers Bobcat dual pressure / dual flow (825 cfm @ 125 psi or 750 cfm @ 150 psi); the PA915 delivers a single high-flow 915 cfm output. Both can be equipped with the optional patented IQ System® for instrument-quality air. Dimensions and weights are for the enclosed unit with running gear (working weight includes fuel).
Bobcat Air Compressor Technology
Precision Rotors
The rotors used in Bobcat proprietary airends feature a versatile gearbox design with case carburized gears, providing a wide gear ratio range. Premium bearings also add greater durability and improve operational efficiency.
FlexAir System
Bobcat compressors, featuring the variable FlexAir System, let you maintain complete control of both air pressure and airflow. From the control panel, you can dial in the exact combination of pressure and flow within the compressor's operational range.
Dual Pressure Capability
Dual pressure compressors offer two-in-one versatility with clear HI/LOW options on the control panel. Operators can select between two adjustable airflow and air pressure combinations to power multiple applications, eliminating the need for multiple compressors.
Proprietary Airends
With tighter rotor tolerances comes better performance. Bobcat proprietary airends are engineered to deliver exceptional performance, low vibration and reduced noise, and they're manufactured at our state-of-the-art facility in Statesville, North Carolina.
PA915 Features & Benefits
High-Flow Performance 3
915 CFM of High-Flow Air
The PA915 delivers 915 cfm (25.9 m³/min) of free air at 150 psig — heavy-duty, high-volume air power for the most demanding jobs.
Reliable Cummins B6.7 — 298 BHP
A reliable Cummins B6.7 — 298 bhp (222 kW), 6-cylinder, 6.7 L, Tier 4 Final — delivers dependable, durable air power shift after shift.
2.0 in NPT Air Discharge Outlet
A large 2.0 in (50 mm) NPT service outlet feeds high-demand tools and hoses with the full output of the compressor.
Best-in-Class Serviceability 4
Most Accessible Towable Compressor
An innovative enclosure design makes the PA915 one of the most accessible towable air compressors ever built, assuring maintenance is completed safely and efficiently — whether on the jobsite or in the shop.
Access Panels on All Four Sides
Access panels on all four sides of the machine, plus two large doors, give you safe and simple access to all service components so you can get back on the job and maximize uptime.
Unique Central Drain System
Centralized tubing and a valve system drain fluids from the radiator, oil and fuel tanks to a central location — efficient maintenance without crawling under the machine.
Limit Service Downtime
Every serviceability feature is engineered to limit service downtime and maximize your jobsite productivity on heavy-duty jobs.
Compact & Towable 3
Compact 226-Inch Footprint
More compact than similar models on the market at just 226 inches, the PA915 has a smaller footprint that makes it easy to transport and maneuver — more flexibility on the rental yard and jobsite.
Heavy-Gauge Steel Enclosure
Built to excel in rugged conditions, the PA915 features a heavy-gauge steel enclosure engineered to protect the machine on the toughest jobsites.
Tandem-Axle Running Gear + Jack Stand
Heavy-duty tandem-axle running gear makes for easy towing, and a construction-grade pedestal jack stand provides a stable, durable setup wherever the work takes you.
Clean Air — Optional IQ System® 3
Patented IQ System®
For specialized jobs requiring cleaner air, the PA915 can be equipped with the patented IQ System®, producing clean air that protects downstream tools from contaminants such as aerosol oil vapors and microscopic dust particles.
Onboard Aftercooler & Dual Filtration
An onboard aftercooler and a coalescing dual filtration system work together to remove moisture and contaminants from the air stream.
Zero-Discharge Condensate Removal
An exclusive, zero-discharge condensate removal system keeps the jobsite clean while delivering consistently clean, dry air.
Why Buyers Choose the PA915
High-flow air power — 915 cfm (25.9 m³/min) of free air at 150 psig
One of the most accessible towable compressors ever built — access panels on all four sides
Two large service doors for easy access to key service components
Unique central drain system — drain radiator, oil & fuel from one spot, no crawling under
Compact 226-inch footprint — easy to transport and maneuver on the rental yard
Reliable Cummins B6.7 engine (298 bhp) — Tier 4 Final
Rugged build — heavy-gauge steel enclosure, tandem-axle running gear, pedestal jack stand
Optional patented IQ System® for clean, dry air that protects downstream tools
Who Uses the PA915 and What For
The PA915 pairs 915 cfm of high-flow air with the most accessible enclosure in its class — a compact, rugged towable built to limit service downtime and maximize jobsite productivity on heavy-duty jobs.
- High-demand multi-tool operation
- 915 cfm to keep several tools running
- Compact footprint for tight jobsites
- Fast service to limit downtime
- High-volume sandblasting and coatings prep
- Sustained high airflow for big jobs
- Optional IQ System® for clean, dry air
- Protects downstream tools from contaminants
- Most accessible enclosure for fast fleet service
- Central drain system speeds maintenance
- Compact 226-inch footprint, easy to transport
- 128 gal fuel tank for long runtime
What Makes the PA915 Different
Heavy-duty, high-volume air — 915 cfm (25.9 m³/min) of free air delivery with an 80–175 psig range for the biggest jobs.
An innovative enclosure with access panels on all four sides plus two large doors makes the PA915 one of the most accessible towable compressors ever built.
A unique central drain system routes radiator, oil and fuel drains to a single location — efficient maintenance without ever crawling under the machine.
More compact than similar models at just 226 inches — a smaller footprint that's easy to transport and maneuver on the rental yard and jobsite.
A reliable 6-cylinder Cummins B6.7 (6.7 L) delivers dependable, durable air power for heavy-duty jobs, on rugged tandem-axle running gear.
The patented IQ System® adds an onboard aftercooler, coalescing dual filtration and zero-discharge condensate removal — clean air that protects downstream tools from oil vapors and dust.
Full Specifications
Engine
| Engine Make | Cummins |
| Engine Model | Cummins B6.7 |
| Displacement | 408 cu in (6.7 L) |
| Fuel | Diesel |
| Horsepower | 298 bhp (222 kW) @ 1,800 rpm |
| Emissions | Tier 4 Final (T4F) |
| Rated Speed | 1,800 rpm |
| Idle Speed | 1,200 rpm |
| Cylinders | 6 |
Compressed Air System
| Free Air Delivery (FAD) | 915 cfm (25.9 m³/min) |
| Rated Operating Pressure | 150 psig (10.3 bar) |
| Pressure Range | 80–175 psig (5.5–12.1 bar) |
| Compressor Type | Rotary screw / single stage |
| Air Service Outlets | 1 × 2.0 in (50 mm) NPT |
| Aftercooler | Optional — patented IQ System® (onboard aftercooler, coalescing dual filtration & zero-discharge condensate removal) |
| Runtime @ Full Load | 9.2 hr @ full load |
Dimensions & Weight
| Height | 101.3 in (with running gear) |
| Length | 226.6 in (with running gear) |
| Width | 82.6 in (with running gear) |
| Operating Weight | 9789 lb |
| Track Width (Running Gear) | 68.2 in |
| Tire Size (Running Gear) | 16.0 in (406 mm) |
| Shipping Weight (with running gear) | 9,789 lbs (without fuel) |
| Length (without running gear) | 171.0 in |
| Width (without running gear) | 83.0 in |
| Height (without running gear) | 95.0 in |
| Operating Weight (without running gear) | 9,855 lbs (working, with fuel) |
| Shipping Weight (without running gear) | 8,642 lbs (without fuel) |
| Fuel Tank | 128 gal (485 L) |
Standard Equipment
| Enclosure | Innovative heavy-gauge steel design — one of the most accessible towable air compressors ever built |
| Service Access | Access panels on all four sides plus two large doors — safe, simple access to all service components |
| Central Drain System | Centralized tubing & valve system drains the radiator, oil & fuel tanks to one location — no crawling under the machine |
| Compact Footprint | Just 226 in long — easy to transport and maneuver on the rental yard and jobsite |
| Running Gear | Heavy-duty tandem-axle for easy towing |
| Jack Stand | Construction-grade pedestal jack stand |
| Aftertreatment | Tier 4 Final (T4F) |
| IQ System® | ○ Optional — onboard aftercooler, coalescing dual filtration & zero-discharge condensate removal for clean air |
| System Voltage | 24 V |
Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
