Download Spec Sheet
Get detailed specifications, dimensions, and performance data for this PA450VP | Bobcat Portable Power.
|
General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Bobcat |
| Model: | PA450VP |
| Machine Type: | Other |
|
Engine
|
|---|
|
Performance
|
|
|---|---|
| Operating Weight: | 4334 lb |
|
Hydraulics
|
|---|
|
Dimensions
|
|---|
Description

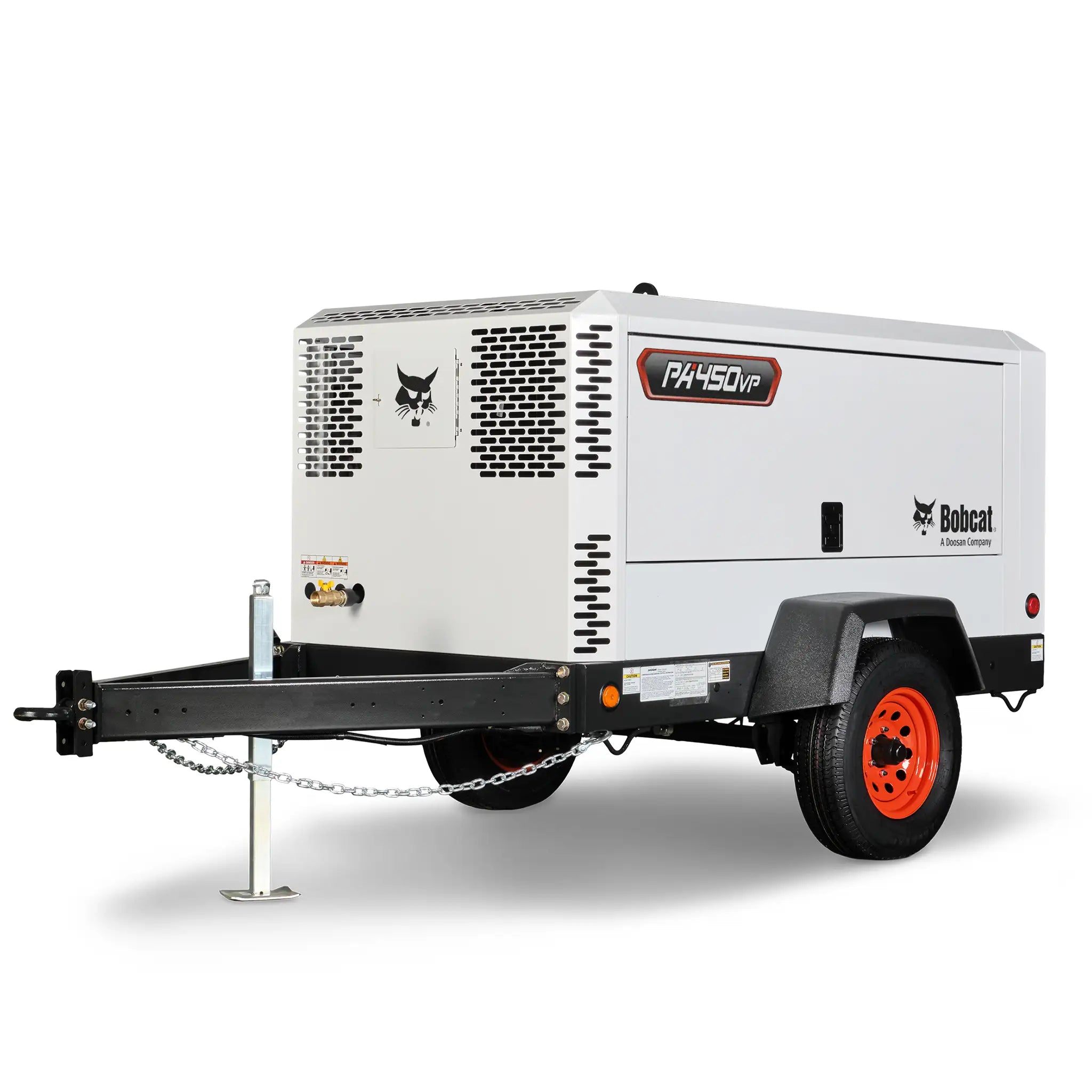

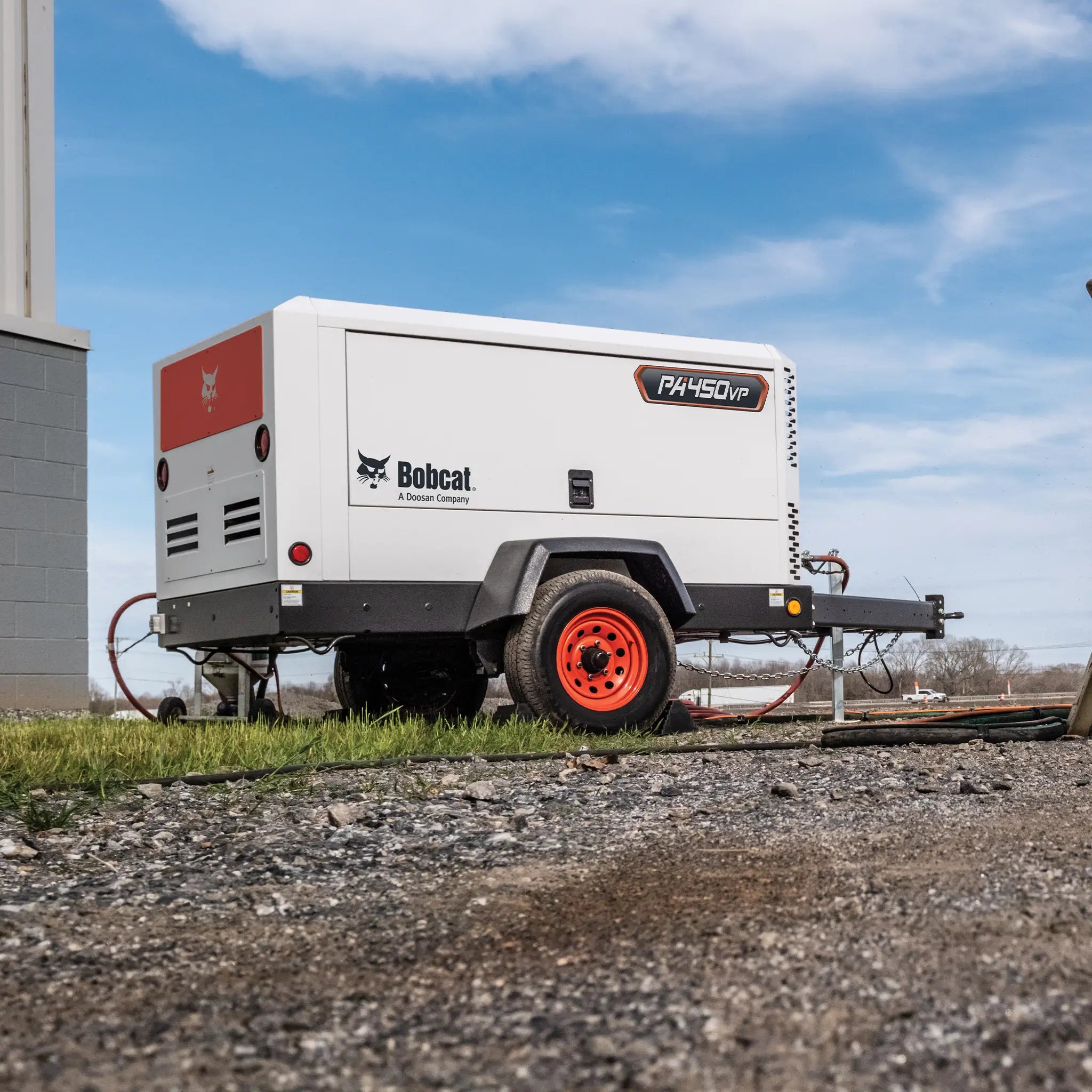

PA450VP Portable Air Compressor
The Bobcat® PA450VP dual pressure portable air compressor delivers versatile air power in a compact, easy-to-maneuver footprint.
- Two-in-one performance with programmable HI/LO pressure options
- 400 to 450 cfm at 150 to 200 psi
- Compact design with large access doors for easy serviceability
- Ideal for construction, abrasive blasting and fiber optic cable installation
The Bobcat PA450VP portable air compressor offers two-in-one versatility thanks to its dual pressure/airflow capability, which delivers either low airflow with high pressure or low pressure and high flow. Operators can make the adjustment on the fly (while the compressor is operating) with a single switch on the intuitively designed control panel. It’s an ideal setup for jobsites requiring support of multiple applications.
The dual pressure technology from Bobcat gives you the versatile air power you need to maximize productivity. With the HI/LOW options on the control panel, you can easily select between the two adjustable air flow and air pressure combinations to power multiple applications (without needing multiple compressors).
Service points on the PA450VP are easily accessible – and its simplified wiring and piping design makes servicing even easier. Automatic shutdowns (relative to several critical operational parameters) help avoid costly damage and subsequent repairs, increasing your overall uptime and productivity.
The PA425V delivers air power you can depend on with its power dense Tier 4 Final Cummins engine, engineered with DOC and SCR emissions technology. The Mini-Port full gauge control panel displays engine and airend temperature and pressure, as well as the percentage of fan speed and engine load. You can change the pressure and flow settings during compressor operation – delivering low airflow with high pressure or high airflow with low pressure. Automatic shutdowns, relative to several critical operational parameters, help avoid downtime for repairs.
The included mini-port full gauge control panel makes the PA450VP easy to operate in the field with selectable languages and display features. The machines intuitive control panel displays a wide variety of key machine parameters.
What Makes the PA450VP Different
Dual Pressure — Two Compressors in One
Two-in-one versatility: deliver low airflow with high pressure or high flow with low pressure. With HI/LOW options on the control panel, select between two adjustable airflow and pressure combinations to power multiple applications without needing multiple compressors.
450 / 400 CFM up to 200 PSI
The highest-output medium unit — 450 / 400 cfm (12.7 / 11.3 m³/min) at 150 to 200 psi, stepping up the pressure range over the PA425V for demanding high-pressure applications.
Adjust On the Fly — Single Switch
Operators make the adjustment while the compressor is running with a single switch on the intuitively designed control panel — ideal for jobsites that need to support multiple applications back-to-back.
Cummins F3.8L Performance Series
A power-dense Tier 4 Final Cummins engine (173 / 172 bhp, 4-cylinder, 3.8 L) engineered with DOC and SCR emissions technology for dependable, durable air power.
Mini-Port Full-Gauge Control Panel
Easy to operate in the field with selectable languages and display features. The intuitive panel displays engine and airend temperature and pressure, plus the percentage of fan speed and engine load.
Simplified Service — Less Downtime
Service points are easily accessible and a simplified wiring and piping design makes servicing even easier. Automatic shutdowns on critical parameters help avoid costly damage and increase uptime.
U.S.-Based Support & Local Service
When maintenance and repairs are needed, count on U.S.-based customer support and local service options through Carleton Equipment to keep you up and running.
Compare the Medium Air Compressors
 |
 |
|
| PA425V | PA450VPViewing | |
|---|---|---|
| Compressed Air | ||
| Free Air Delivery (low/high) | 425 / 375 cfm (12.0 / 10.6 m³/min) | 450 / 400 cfm (12.7 / 11.3 m³/min) |
| Rated Operating Pressure (low/high) | 100 / 150 psig (6.9 / 10.3 bar) | 150 / 200 psig (10.3 / 13.8 bar) |
| Pressure Range | 80–175 psig (5.5–12.1 bar) | 80–225 psig (5.5–15.5 bar) |
| Air Discharge Outlet | 1 × 1.25 in (31.8 mm) | 1 × 1.25 in (31.8 mm) |
| Fuel Tank Capacity | 60 gal (227 L) | 60 gal (227 L) |
| Engine | ||
| Make & Model | Cummins F3.8L | Cummins F3.8L |
| Bhp @ Rated Speed (low/high) | 135 / 134 bhp (100.6 / 99 kW) | 173 / 172 bhp (129 / 128 kW) |
| Rated Speed (low/high) | 2,300 / 2,075 rpm | 2,500 / 2,250 rpm |
| Cylinders | 4 | 4 |
| Displacement | 231 cu in (3.8 L) | 231 cu in (3.8 L) |
| Emissions | Tier 4 Final (DOC + SCR) | Tier 4 Final (DOC + SCR) |
| Runtime @ Full Load | 10 / 9 hr | 8 hr |
| Dimensions & Weight (Enclosed, with Running Gear) | ||
| Working Weight (w/ fuel) | 4,776 lbs | 4,776 lbs |
| Length | 154.2 in | 154.2 in |
| Width | 78.2 in | 78.2 in |
| Height | 73.3 in | 73.3 in |
Both medium units share the Bobcat Dual Pressure system (HI/LOW two-in-one airflow & pressure) and the Cummins F3.8L Performance Series engine. The PA450VP steps up to higher pressure (up to 200 psig) and flow. Dimensions and weights are for the enclosed unit with running gear (working weight includes fuel).
Bobcat Air Compressor Technology
Precision Rotors
The rotors used in Bobcat proprietary airends feature a versatile gearbox design with case carburized gears, providing a wide gear ratio range. Premium bearings also add greater durability and improve operational efficiency.
FlexAir System
Bobcat compressors, featuring the variable FlexAir System, let you maintain complete control of both air pressure and airflow. From the control panel, you can dial in the exact combination of pressure and flow within the compressor's operational range.
Dual Pressure Capability
Dual pressure compressors offer two-in-one versatility with clear HI/LOW options on the control panel. Operators can select between two adjustable airflow and air pressure combinations to power multiple applications, eliminating the need for multiple compressors.
Proprietary Airends
With tighter rotor tolerances comes better performance. Bobcat proprietary airends are engineered to deliver exceptional performance, low vibration and reduced noise, and they're manufactured at our state-of-the-art facility in Statesville, North Carolina.
PA450VP Features & Benefits
Dual Pressure & High Flow 4
Two-in-One Dual Pressure Versatility
Deliver either low airflow with high pressure or low pressure and high flow. With HI/LOW options on the control panel, select between two adjustable airflow and air pressure combinations to power multiple applications without needing multiple compressors.
450 / 400 CFM up to 200 PSI
The highest-output medium unit — 450 / 400 cfm (12.7 / 11.3 m³/min) at 150 to 200 psi, stepping the pressure range up to 225 psig for the most demanding high-pressure applications.
Adjust On the Fly — Single Switch
Operators make the adjustment while the compressor is operating with a single switch on the intuitively designed control panel — ideal for jobsites that need to support multiple applications.
1.25 in NPT Air Discharge Outlet
A large 1.25 in (31.8 mm) NPT service outlet feeds high-demand tools and hoses with the full output of the compressor.
Performance 3
Cummins F3.8L Performance Series
A power-dense Tier 4 Final Cummins engine — 173 / 172 bhp (129 / 128 kW), 4-cylinder, 3.8 L — delivers air power you can depend on for years of reliable performance and durability.
DOC + SCR Emissions Technology
Engineered with DOC (diesel oxidation catalyst) and SCR (selective catalytic reduction) emissions technology to meet Tier 4 Final standards.
Mini-Port Full-Gauge Control Panel
Easy to operate in the field with selectable languages and display features. The intuitive panel displays engine and airend temperature and pressure, plus the percentage of fan speed and engine load.
Serviceability & Uptime 3
Easy, Simplified Service
Service points on the PA450VP are easily accessible, and its simplified wiring and piping design makes servicing even easier — less time wrenching, more time producing air.
Automatic Shutdown Protection
Automatic shutdowns, relative to several critical operational parameters, help avoid costly damage and subsequent repairs — increasing your overall uptime and productivity.
U.S.-Based Support & Local Service
When maintenance and repairs are needed, count on U.S.-based customer support and local service options through Carleton Equipment to keep you up and running.
Durability 2
Robust Towable Frame
A robust frame with integrated drawbar and 15 in running gear delivers stability for confident towing between jobsites.
60 Gallon Fuel Tank
A 60 gal (227 L) fuel tank keeps the high-output PA450VP working through long shifts between fills (8 hr at full load).
Why Buyers Choose the PA450VP
Dual pressure — two-in-one airflow and pressure combinations from a single machine
Highest output of the medium units — 450 / 400 cfm (12.7 / 11.3 m³/min) at 150 to 200 psi
Adjust pressure and flow on the fly with a single switch on the control panel
Power-dense Tier 4 Final Cummins F3.8L engine (173 / 172 bhp) with DOC + SCR
Mini-Port full-gauge control panel with selectable languages and display features
Easily accessible service points and simplified wiring & piping for faster service
Automatic shutdowns on critical parameters help avoid costly damage and downtime
U.S.-based customer support and local service options for maximum uptime
Who Uses the PA450VP and What For
The PA450VP offers two-in-one versatility for jobsites that need to support multiple applications — the highest-pressure, highest-flow medium towable in the lineup, with on-the-fly dual pressure control from a single machine.
- Demanding tools needing up to 200 psi
- Down-the-hole and rock drilling support
- Up to 450 cfm to keep multiple tools running
- Switch HI/LOW to match the task on the fly
- High-volume sandblasting and coatings prep
- Sustained high airflow for big jobs
- Dial in pressure/flow for the media
- Power-dense Cummins engine for long shifts
- Pipeline pressure testing and purging
- Remote sites needing self-contained air
- One unit covers two pressure/flow programs
- 60 gal fuel tank for long runtime
What Makes the PA450VP Different
Deliver low airflow with high pressure or low pressure with high flow — and make the adjustment while the compressor is operating with a single switch on the control panel.
The highest-output medium unit — 450 / 400 cfm (12.7 / 11.3 m³/min) — stepping the pressure range up to 225 psig for demanding high-pressure work.
A power-dense Cummins Performance Series engine engineered with DOC and SCR emissions technology for dependable, durable air power.
Easy to operate in the field, the full-gauge panel displays engine and airend temperature and pressure plus fan speed and engine load percentages, with selectable languages and display features.
Service points are easily accessible and a simplified wiring and piping design makes servicing even easier — keeping the machine on the job.
Automatic shutdowns on several critical parameters help avoid costly damage, and U.S.-based customer support with local service keeps you productive.
Full Specifications
Engine
| Engine Make | Cummins |
| Engine Model | Cummins F3.8L (Performance Series) |
| Displacement | 231 cu in (3.8 L) |
| Fuel | Diesel |
| Horsepower | 173 / 172 bhp (129 / 128 kW) @ 2,500 / 2,250 rpm (low/high) |
| Emissions | Tier 4 Final (T4F) — DOC + SCR |
| Rated Speed | 2,500 / 2,250 rpm (low/high) |
| Idle Speed | 1,500 rpm |
| Cylinders | 4 |
Compressed Air System
| Free Air Delivery (FAD) | 450 / 400 cfm (12.7 / 11.3 m³/min) — low/high |
| Rated Operating Pressure | 150 / 200 psig (10.3 / 13.8 bar) — low/high |
| Pressure Range | 80–225 psig (5.5–15.5 bar) |
| Compressor Type | Rotary screw / single stage (Dual Pressure HI/LOW) |
| Air Service Outlets | 1 × 1.25 in (31.8 mm) NPT |
| Runtime @ Full Load | 8 hr @ full load |
Dimensions & Weight
| Height | 73.3 in (with running gear) |
| Length | 154.2 in (with running gear) |
| Width | 78.2 in (with running gear) |
| Operating Weight | 4334 lb |
| Track Width (Running Gear) | 66.6 in |
| Tire Size (Running Gear) | 15.0 in |
| Shipping Weight (with running gear) | 4,334 lbs (without fuel) |
| Length (without running gear) | 107.0 in |
| Width (without running gear) | 60.7 in |
| Height (without running gear) | 61.0 in |
| Operating Weight (without running gear) | 4,513 lbs (operating, with fuel) |
| Shipping Weight (without running gear) | 4,071 lbs (without fuel) |
| Fuel Tank | 60 gal (227 L) |
Standard Equipment
| Dual Pressure Technology | ■ Standard — HI/LOW two-in-one airflow & pressure (450 cfm @ 150 psi / 400 cfm @ 200 psi) |
| Adjust On The Fly | Single switch changes pressure & flow while the compressor is operating |
| Control Panel | Mini-Port full-gauge — engine & airend temp/pressure, fan speed %, engine load %; selectable languages & display features |
| Automatic Shutdowns | On several critical operational parameters, to avoid costly damage and downtime |
| Serviceability | Easily accessible service points; simplified wiring & piping design |
| Aftertreatment | DOC + SCR (diesel oxidation catalyst + selective catalytic reduction) |
| Frame & Drawbar | Robust frame with integrated drawbar |
| System Voltage | 24 V |
Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
