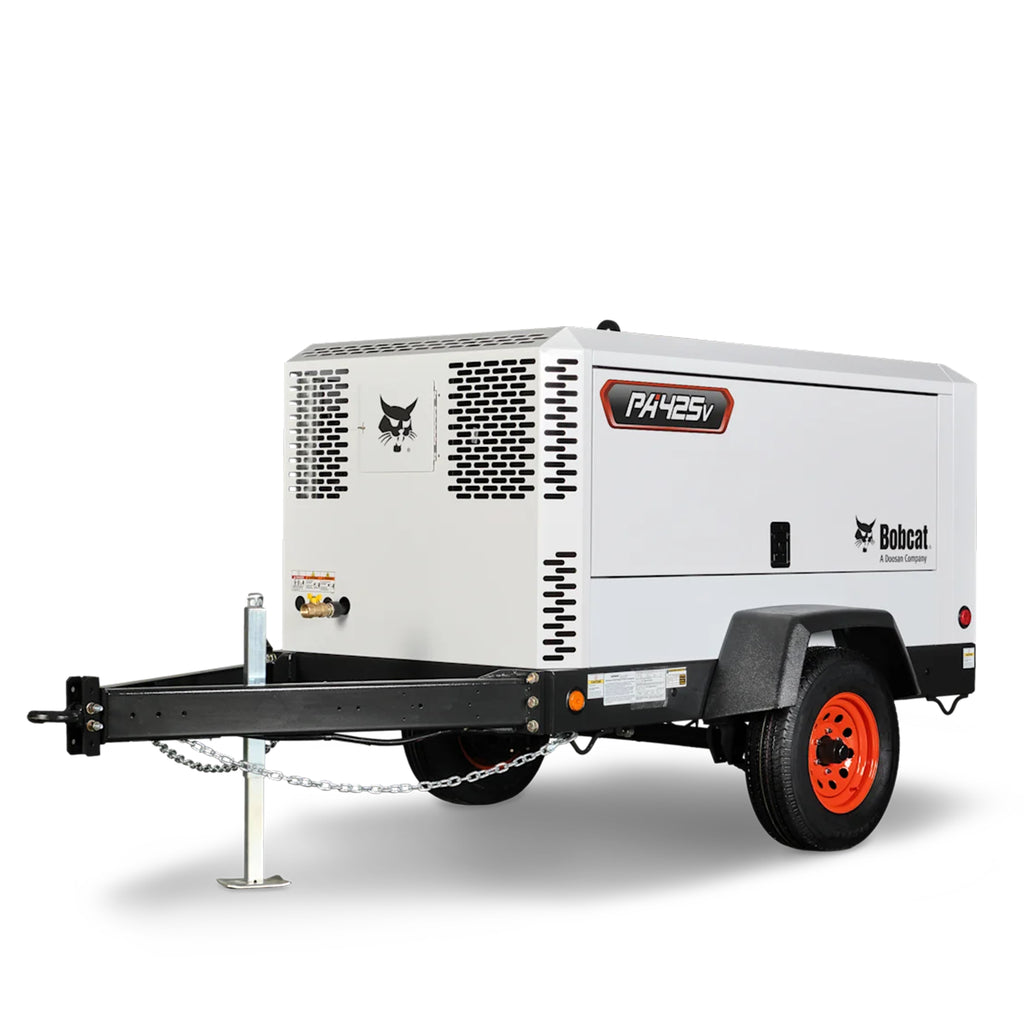

PA425V Portable Air Compressor
Description
The Bobcat® PA425V portable air compressor delivers dual air pressure options that give you the ability to switch between low airflow with high pressure or high airflow with low pressure during operation.
- 375 to 425 cfm airflow at 100 to 150 psi pressure
- Engineered with large access doors for easy serviceability
- Advanced control panel with intuitive operation
- Powered by a Cummins® performance series engine
Overview
The Bobcat PA425V portable air compressor combines two pressure and airflow settings in one compact machine, giving crews the versatility to handle multiple applications without bringing additional compressors to the jobsite. Bobcat dual-pressure technology delivers airflow of 375 or 425 cfm with operating pressures from 100 to 150 psi. Simple HI/LOW controls allow operators to switch between high-airflow/low-pressure and low-airflow/high-pressure settings to match changing job requirements.
Powered by a Tier 4 Final Cummins engine with DOC and SCR emissions technology, the PA425V is engineered for dependable performance and efficient operation. The Mini-Port full-gauge control panel provides real-time information on engine and airend temperature and pressure, fan speed percentage, and engine load. Operators can adjust pressure and airflow during operation, while automatic shutdown protection monitors critical operating parameters to help prevent damage and reduce unexpected downtime.
A compact footprint makes the PA425V easy to transport and position on crowded jobsites without sacrificing serviceability. Key maintenance components are conveniently accessible without removing the durable enclosure, helping simplify routine service and keep the compressor working. Backed by U.S.-based customer support and local service options, the PA425V provides versatile, dependable compressed-air performance for demanding construction, utility, and industrial applications.
What Makes the PA425V Different
Dual Pressure — Two Compressors in One
Accomplish more with two-in-one versatility: select low airflow with high pressure or high airflow with low pressure right from the HI/LOW control panel — eliminating the need for multiple compressors on the jobsite.
375 / 425 CFM at 100–150 PSI
Versatile airflow ranging from 375 to 425 cfm (12.0 / 10.6 m³/min) at pressures between 100 and 150 psi — and you can change the pressure and flow settings during compressor operation.
Cummins F3.8L Performance Series
A power-dense Tier 4 Final Cummins engine (135 / 134 bhp, 4-cylinder, 3.8 L) engineered with DOC and SCR emissions technology for years of reliable performance and durability.
Mini-Port Full-Gauge Control Panel
An advanced, intuitive panel displays engine and airend temperature and pressure, plus the percentage of fan speed and engine load — for a user-friendly operating experience.
Automatic Shutdown Protection
Automatic shutdowns relative to several critical operational parameters help you avoid downtime for repairs and protect your investment.
Compact Design, Easy Serviceability
A compact design adds versatility without sacrificing ease of operation. Large access doors put key service components within reach — no need to remove the durable enclosure.
U.S.-Based Support & Local Service
When maintenance and repairs are needed, count on U.S.-based customer support and local service options through Carleton Equipment to keep you up and running.
Compare the Medium Air Compressors
 |
 |
 |
 |
|
| PA375V | PA425VViewing | PA450VP | PA460V | |
|---|---|---|---|---|
| Compressed Air | ||||
| Free Air Delivery (low/high) | 375 / 350 cfm (10.6 / 9.9 m³/min) | 425 / 375 cfm (12.0 / 10.6 m³/min) | 450 / 400 cfm (12.7 / 11.3 m³/min) | 460 / 350 cfm (10.6 / 9.9 m³/min) |
| Rated Operating Pressure (low/high) | 125 / 150 psig (8.6 / 10.3 bar) | 100 / 150 psig (6.9 / 10.3 bar) | 150 / 200 psig (10.3 / 13.8 bar) | 100 psig (6.9 bar) |
| Pressure Range | 80–150 psig (5.5–10.6 bar) | 80–175 psig (5.5–12.1 bar) | 80–225 psig (5.5–15.5 bar) | 80–175 psig (5.5–12 bar) |
| Air Discharge Outlet | 1 × 1.5 in | 1 × 1.2 in | 1 × 1.2 in | 1 × 1.5 in |
| Fuel Tank Capacity | 60 gal | 60 gal (227 L) | 60 gal (227 L) | 60 gal |
| Engine | ||||
| Make & Model | Bobcat DM03 HD 3.4 | Cummins F3.8L | Cummins F3.8L | Bobcat DM03 HD 3.4 |
| Bhp @ Rated Speed | 135 hp (101 kW) | 135 / 134 bhp (100.6 / 99 kW) | 173 / 172 bhp (129 / 128 kW) | 135 hp (101 kW) |
| Rated Speed | 2,500 rpm | 2,300 / 2,075 rpm | 2,500 / 2,250 rpm | 2,500 rpm |
| Cylinders | 4 | 4 | 4 | 4 |
| Displacement | 208 cu in (3.4 L) | 231 cu in (3.8 L) | 231 cu in (3.8 L) | 208 cu in (3.4 L) |
| Emissions | Tier 4 Final | Tier 4 Final (DOC + SCR) | Tier 4 Final (DOC + SCR) | Tier 4 Final |
| Runtime @ Full Load | 9 hr | 10 / 9 hr | 8 hr | 9 hr |
| Dimensions & Weight (Enclosed, with Running Gear) | ||||
| Working Weight (w/ fuel) | 4,311 lbs | 4,776 lbs | 4,776 lbs | 4,311 lbs |
| Length | 137 in | 154.2 in | 154.2 in | 137 in |
| Width | 79 in | 78.2 in | 78.2 in | 79 in |
| Height | 76 in | 73.3 in | 73.3 in | 76 in |
The PA375V and PA460V combine adaptive FlexAir output with rental-ready serviceability. The PA425V and PA450VP use Bobcat Dual Pressure HI/LOW technology and Cummins F3.8L engines; the PA450VP steps up to higher pressure (up to 200 psig) and flow. Dimensions and weights are for the enclosed unit with running gear (working weight includes fuel).
Bobcat Air Compressor Technology
Precision Rotors
The rotors used in Bobcat proprietary airends feature a versatile gearbox design with case carburized gears, providing a wide gear ratio range. Premium bearings also add greater durability and improve operational efficiency.
FlexAir System
Bobcat compressors, featuring the variable FlexAir System, let you maintain complete control of both air pressure and airflow. From the control panel, you can dial in the exact combination of pressure and flow within the compressor's operational range.
Dual Pressure Capability
Dual pressure compressors offer two-in-one versatility with clear HI/LOW options on the control panel. Operators can select between two adjustable airflow and air pressure combinations to power multiple applications, eliminating the need for multiple compressors.
Proprietary Airends
With tighter rotor tolerances comes better performance. Bobcat proprietary airends are engineered to deliver exceptional performance, low vibration and reduced noise, and they're manufactured at our state-of-the-art facility in Statesville, North Carolina.
PA425V Features & Benefits
Dual Pressure & High Flow 4
Two-in-One Dual Pressure Versatility
Dual pressure technology gives you the air power to maximize productivity — with HI/LOW options on the control panel, select between two adjustable airflow and air pressure combinations to power multiple applications, eliminating the need for multiple compressors.
375 / 425 CFM at 100–150 PSI
Versatile airflow ranging from 375 to 425 cfm (12.0 / 10.6 m³/min) at pressures between 100 and 150 psi — low airflow with high pressure, or high airflow with low pressure.
Adjustable During Operation
You can change the pressure and flow settings while the compressor is running — delivering exactly the air power each task needs without stopping the machine.
1.25 in NPT Air Discharge Outlet
A large 1.25 in (31.8 mm) NPT service outlet feeds high-demand tools and hoses with the full output of the compressor.
Performance 3
Cummins F3.8L Performance Series
A power-dense Tier 4 Final Cummins engine — 135 / 134 bhp (100.6 / 99 kW), 4-cylinder, 3.8 L — delivers air power you can depend on for years of reliable performance and durability.
DOC + SCR Emissions Technology
Engineered with DOC (diesel oxidation catalyst) and SCR (selective catalytic reduction) emissions technology to meet Tier 4 Final standards.
Mini-Port Full-Gauge Control Panel
An advanced, intuitive Mini-Port panel displays engine and airend temperature and pressure, plus the percentage of fan speed and engine load — a user-friendly operating experience.
Serviceability & Uptime 3
Large Access Doors
A compact design adds versatility without sacrificing ease of operation or serviceability — key service components are thoughtfully placed and easily accessible without having to remove the durable enclosure.
Automatic Shutdown Protection
Automatic shutdowns, relative to several critical operational parameters, help avoid downtime for repairs and protect the machine.
U.S.-Based Support & Local Service
When maintenance and repairs are needed, count on U.S.-based customer support and local service options through Carleton Equipment to keep you up and running for maximum productivity.
Durability 2
Robust Towable Frame
A robust frame with integrated drawbar and 15 in running gear delivers stability for confident towing between jobsites.
60 Gallon Fuel Tank
A 60 gal (227 L) fuel tank keeps the PA425V working through long shifts between fills (up to 10 hr at full load on the low setting).
Why Buyers Choose the PA425V
Dual pressure — two-in-one versatility with HI/LOW airflow and pressure combinations from one machine
Versatile airflow from 375 to 425 cfm (12.0 / 10.6 m³/min) at 100 to 150 psi
Change pressure and flow settings during operation — no need to stop the machine
Power-dense Tier 4 Final Cummins F3.8L engine (135 / 134 bhp) with DOC + SCR
Mini-Port full-gauge control panel shows temps, pressures, fan speed % and engine load %
Automatic shutdowns on critical parameters help you avoid downtime for repairs
Compact design with large access doors — service without removing the enclosure
U.S.-based customer support and local service options for maximum uptime
Who Uses the PA425V and What For
Accomplish more at the jobsite with the two-in-one versatility of the PA425V — a medium-class towable compressor whose dual pressure technology powers multiple applications from a single machine, eliminating the need to haul more than one unit.

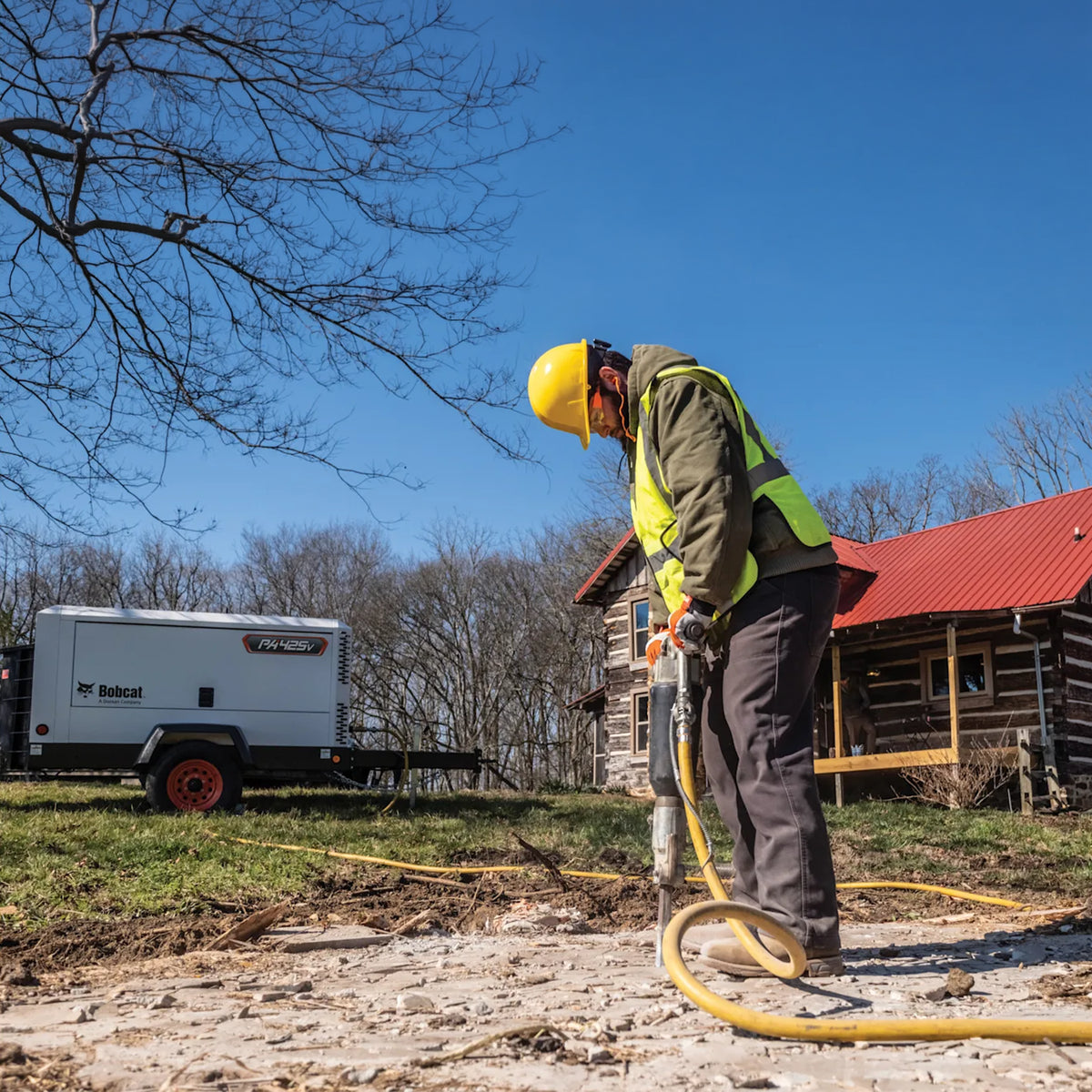

Construction & Pneumatic Tools
- High-demand multi-tool operation
- Breakers, drills and impact wrenches
- Up to 425 cfm to keep several tools running
- Switch HI/LOW to match the task

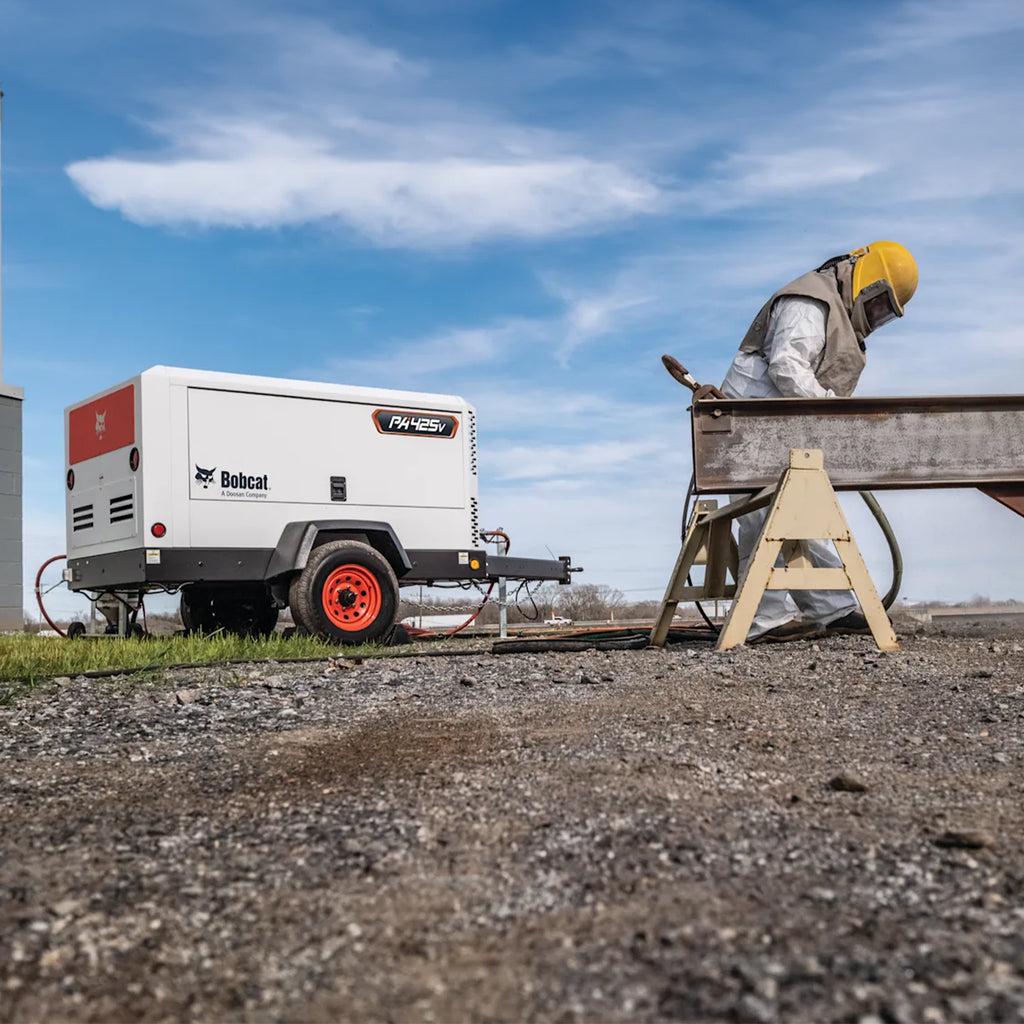

Sandblasting & Surface Prep
- High-volume sandblasting and coatings prep
- Sustained airflow for big jobs
- Dial in pressure/flow for the media
- Power-dense Cummins engine for long shifts
Pipeline, Utility & Rental
- Pipeline pressure testing and purging
- Remote sites needing self-contained air
- One unit covers two pressure/flow programs
- 60 gal fuel tank for long runtime
The PA425V by the Numbers
Switch between low airflow with high pressure or high airflow with low pressure — two adjustable combinations from one machine, eliminating the need for multiple compressors.
Versatile airflow ranging from 375 to 425 cfm (12.0 / 10.6 m³/min) — and you can change the pressure and flow settings during compressor operation.
A power-dense Cummins Performance Series engine engineered with DOC and SCR emissions technology for years of reliable, durable air power.
An advanced, intuitive panel displays engine and airend temperature and pressure, plus the percentage of fan speed and engine load for a user-friendly experience.
A compact design with thoughtfully placed key service components — reach them through large access doors without having to remove the durable enclosure.
Automatic shutdowns on several critical parameters help avoid downtime, and U.S.-based customer support with local service keeps you productive.
Talk to a person about the PA425V
Carleton Equipment is a family-owned Michigan dealer, here since 1938. Sales, rental, service and parts all come from the same team, and we’ll connect you with the location nearest you.
- Chesterfield
- Coldwater
- Grand Rapids
- Howell
- Kalamazoo
- Livonia
- Saginaw
Full Specifications
Engine
| Engine Make | Cummins |
| Engine Model | Cummins F3.8L (Performance Series) |
| Displacement | 231 cu in (3.8 L) |
| Fuel | Diesel |
| Horsepower | 135 / 134 bhp (100.6 / 99 kW) @ 2,300 / 2,075 rpm (low/high) |
| Emissions | Tier 4 Final (T4F) — DOC + SCR |
| Rated Speed | 2,300 / 2,075 rpm (low/high) |
| Idle Speed | 1,500 rpm |
| Cylinders | 4 |
Compressed Air System
| Free Air Delivery (FAD) | 425 / 375 cfm (12.0 / 10.6 m³/min) — low/high |
| Rated Operating Pressure | 100 / 150 psig (6.9 / 10.3 bar) — low/high |
| Pressure Range | 80–175 psig (5.5–12.1 bar) |
| Compressor Type | Rotary screw / single stage (Dual Pressure HI/LOW) |
| Air Service Outlets | 1 × 1.25 in (31.8 mm) NPT |
| Runtime @ Full Load | 10 / 9 hr @ full load (low/high) |
Dimensions & Weight
| Height | 73.3 in (with running gear) |
| Length | 154.2 in (with running gear) |
| Width | 78.2 in (with running gear) |
| Operating Weight | 4,776 lbs (working, with fuel, with running gear) |
| Track Width (Running Gear) | 66.6 in |
| Tire Size (Running Gear) | 15.0 in |
| Shipping Weight (with running gear) | 4,334 lbs (without fuel) |
| Length (without running gear) | 107.0 in |
| Width (without running gear) | 60.7 in |
| Height (without running gear) | 61.0 in |
| Operating Weight (without running gear) | 4,513 lbs (working, with fuel) |
| Shipping Weight (without running gear) | 4,071 lbs (without fuel) |
| Fuel Tank | 60 gal (227 L) |
Standard Equipment
| Dual Pressure Technology | ■ Standard — HI/LOW two-in-one airflow & pressure (375 cfm @ 150 psi / 425 cfm @ 100 psi) |
| Adjustable On The Fly | Change pressure & flow settings during compressor operation |
| Control Panel | Mini-Port full-gauge — engine & airend temp/pressure, fan speed %, engine load % |
| Automatic Shutdowns | On several critical operational parameters, to avoid downtime |
| Serviceability | Large access doors — key service components reachable without removing the enclosure |
| Aftertreatment | DOC + SCR (diesel oxidation catalyst + selective catalytic reduction) |
| Frame & Drawbar | Robust frame with integrated drawbar |
| System Voltage | 24 V |
Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
|
