Download Spec Sheet
Get detailed specifications, dimensions, and performance data for this PA750P | Bobcat Portable Power.
|
General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Bobcat |
| Model: | PA750P |
| Machine Type: | Other |
|
Engine
|
|---|
|
Performance
|
|
|---|---|
| Operating Weight: | 11023 lb |
|
Hydraulics
|
|---|
|
Dimensions
|
|---|
Description

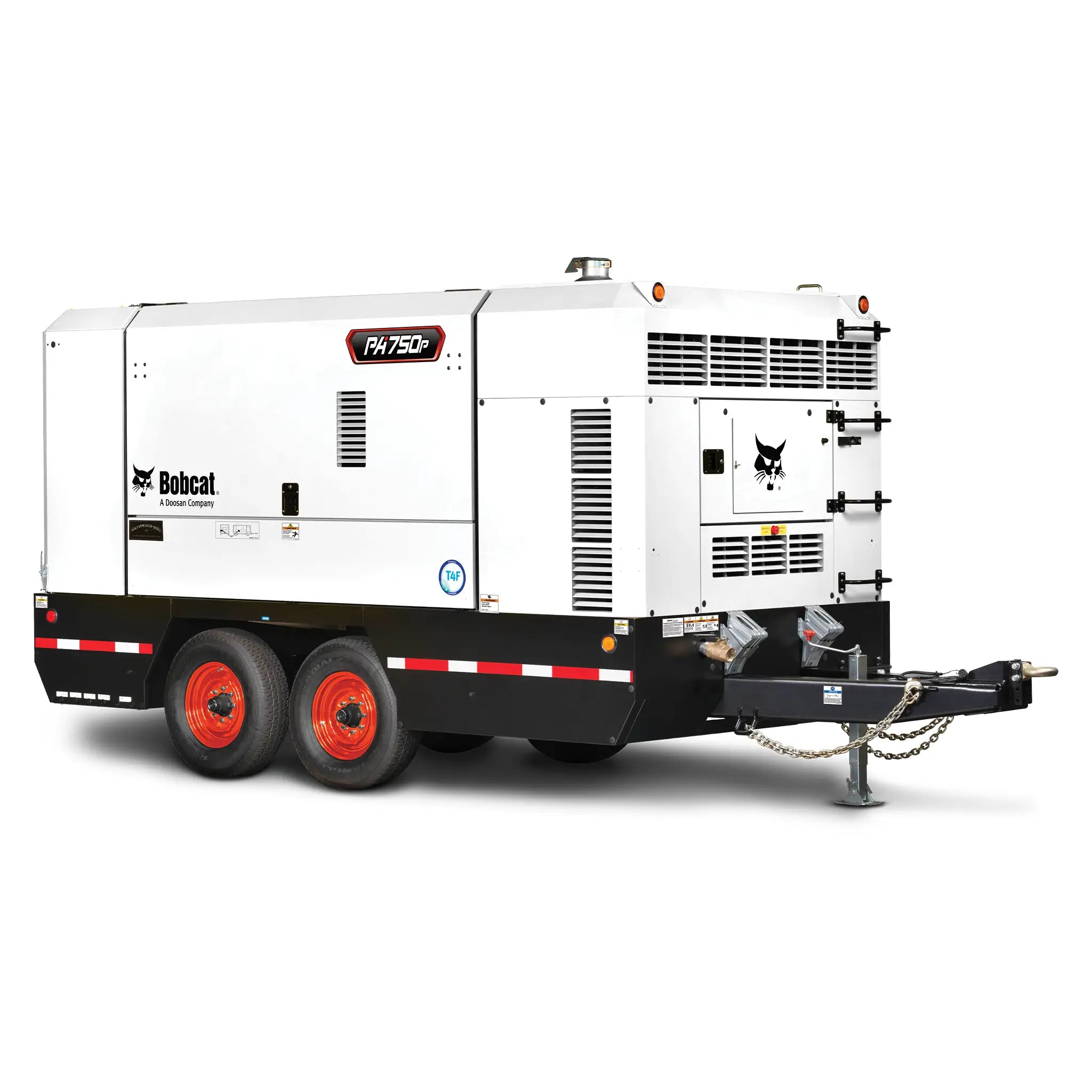

PA750P Portable Air Compressor
The Bobcat® PA750P portable air compressor is designed for productivity and durability, with safe and easy jobsite serviceability to keep you up and running when it matters most.
- Engineered for easy serviceability for maximum uptime
- Ideal for foundation drilling, mining, and oil & gas applications
- Can be equipped with the IQ System® for cleaner and drier air
With the Bobcat PA750P portable air compressor, you get a durable, reliable and powerful machine designed for easy operation - and even easier serviceability.
This heavy-duty, towable air compressor features a completely redesigned enclosure that maximizes your jobsite productivity. Engineered for the everyday operator, it offers the best servicing capabilities in the industry, along with intuitive features and legendary Bobcat innovation.
The PA750P designed with serviceability in mind, has two large doors that offer easy access to key service components. Enabling you to get back on the job and maximize uptime.
Fluid system maintenance is just as easy on the PA750P with a built-in central drainage system. The centralized tubing and valve system drains let you easily drain fluids from the radiator and oil and fuel tanks to a central location, without having to crawl under the machine.
Built for rugged reliability in harsh conditions, the PA750P features a heavy-gauge steel enclosure, heavy-duty tandem-axle running gear for easy towing, and a construction-grade pedestal jack stand.
For specialized jobs requiring cleaner air, the PA750P can be equipped with the patented IQ System®, which adds an onboard aftercooler, a coalescing dual filtration system and an exclusive, zero-discharge condensate removal system. These components work together to produce clean air that protects the tools downstream from contaminants, such as aerosol oil vapors and microscopic dust particles.
What Makes the PA750P Different
750 CFM at 350 PSI — Works Harder, Not Bigger
A high-pressure powerhouse delivering 750 cfm (21.2 m³/min) of free air at 350 psig, with a 140–365 psig pressure range — the efficient Bobcat airend gives you more output from the smallest possible footprint.
Cummins L9 — 325 BHP
A power-dense Tier 4 Final Cummins L9 (325 bhp / 242 kW, 6-cylinder, 8.9 L) with SCR + DEF aftertreatment provides the dependable, durable air power that demanding jobsites require.
Best-in-Class Serviceability
A completely redesigned enclosure with two large doors gives you easy access to key service components — get back on the job and maximize uptime.
Built-In Central Drainage System
Centralized tubing and valves drain the radiator, oil and fuel tanks to a single location — easy fluid maintenance without ever having to crawl under the machine.
Rugged, Towable Build
A heavy-gauge steel enclosure, heavy-duty tandem-axle running gear for easy towing, and a construction-grade pedestal jack stand keep the PA750P reliable in harsh conditions.
Optional IQ System® — Clean Air on Demand
For jobs that require cleaner air, the patented IQ System® adds an onboard aftercooler, a coalescing dual filtration system and an exclusive zero-discharge condensate removal system — protecting downstream tools from aerosol oil vapors and microscopic dust.
128-Gallon Fuel Tank
A 128.1 gal (485 L) fuel tank plus a 15.0 gal (57 L) DEF tank keep the PA750P producing high-volume air through long shifts between fills.
Compare the Large, High-Pressure Air Compressors
 |
 |
|
| PA750PViewing | PA1170P | |
|---|---|---|
| Compressed Air | ||
| Free Air Delivery | 750 cfm (21.2 m³/min) | 1,170 cfm (33.1 m³/min) |
| Rated Operating Pressure | 350 psig (24.1 bar) | 365 psig (25.1 bar) |
| Pressure Range | 140–365 psig (9.7–25.1 bar) | 140–365 psig (9.7–25.1 bar) |
| Air Discharge Outlet | 1 × 3 in (76 mm) NPT | 1 × 3.0 in (76 mm) NPT (2 with IQ) |
| Fuel Tank Capacity | 128.1 gal (485 L) | 200.0 gal (750 L) |
| Engine | ||
| Make & Model | Cummins L9 | Caterpillar C13B |
| Bhp @ Rated Speed | 325 bhp (242 kW) | 536 bhp (400 kW) |
| Rated Speed | 1,800 rpm | 1,825 rpm |
| Cylinders | 6 | 6 |
| Displacement | 543 cu in (8.9 L) | 763 cu in (12.5 L) |
| Emissions | Tier 4 Final | Tier 4 Final |
| DEF Tank Capacity | 15.0 gal (57 L) | 25.4 gal (96 L) |
| Dimensions & Weight (Enclosed, with Running Gear) | ||
| Operating Weight (w/ fuel) | 12,015 lbs | 19,025 lbs |
| Length | 226.6 in | 235.0 in |
| Width | 82.6 in | 90.1 in |
| Height (without exhaust pipe) | 101.3 in | 102.0 in |
Both large units feature a redesigned heavy-gauge steel enclosure, heavy-duty tandem-axle running gear and the optional IQ System® clean-air package (onboard aftercooler, coalescing dual filtration & zero-discharge condensate removal). The PA1170P steps up to a Caterpillar C13B engine and higher 1,170 cfm output. Dimensions and weights are for the enclosed unit with running gear (working weight includes fuel).
Bobcat Air Compressor Technology
Precision Rotors
The rotors used in Bobcat proprietary airends feature a versatile gearbox design with case carburized gears, providing a wide gear ratio range. Premium bearings also add greater durability and improve operational efficiency.
FlexAir System
Bobcat compressors, featuring the variable FlexAir System, let you maintain complete control of both air pressure and airflow. From the control panel, you can dial in the exact combination of pressure and flow within the compressor's operational range.
Dual Pressure Capability
Dual pressure compressors offer two-in-one versatility with clear HI/LOW options on the control panel. Operators can select between two adjustable airflow and air pressure combinations to power multiple applications, eliminating the need for multiple compressors.
Proprietary Airends
With tighter rotor tolerances comes better performance. Bobcat proprietary airends are engineered to deliver exceptional performance, low vibration and reduced noise, and they're manufactured at our state-of-the-art facility in Statesville, North Carolina.
PA750P Features & Benefits
High-Pressure Performance 4
750 CFM at 350 PSI
The PA750P delivers 750 cfm (21.2 m³/min) of free air at 350 psig with a 140–365 psig pressure range — high-volume, high-pressure air for the most demanding jobs.
Works Harder, Not Bigger
The efficient Bobcat airend requires less horsepower to deliver high-volume cfm output, giving you more air from the smallest possible footprint.
Cummins L9 — 325 BHP
A power-dense Tier 4 Final Cummins L9 — 325 bhp (242 kW), 6-cylinder, 8.9 L — delivers dependable, durable air power shift after shift.
3 in NPT Air Discharge Outlet
A large 3 in (76 mm) NPT service outlet feeds high-demand tools and hoses with the full output of the compressor.
Serviceability & Uptime 4
Best-in-Class Service Access
A completely redesigned enclosure with two large doors offers easy access to key service components — get back on the job and maximize uptime.
Built-In Central Drainage System
Centralized tubing and a valve system drain the radiator, oil and fuel tanks to a single location — making fluid maintenance easy without crawling under the machine.
No Regeneration Cycles
A diesel oxidation catalyst with selective catalytic reduction (SCR + DEF) eliminates emissions maintenance and regeneration downtime.
128 Gallon Fuel + 15 Gallon DEF
A 128.1 gal (485 L) fuel tank and 15.0 gal (57 L) DEF tank keep the PA750P producing high-volume air through long shifts between fills.
Durability & Towing 3
Heavy-Gauge Steel Enclosure
Built for rugged reliability in harsh conditions, the PA750P features a heavy-gauge steel enclosure engineered to protect the machine on the toughest jobsites.
Heavy-Duty Tandem-Axle Running Gear
Heavy-duty tandem-axle running gear makes the PA750P easy to tow between jobsites with confident on- and off-road stability.
Construction-Grade Pedestal Jack Stand
A construction-grade pedestal jack stand provides a stable, durable setup wherever the work takes you.
Clean Air — Optional IQ System® 3
Patented IQ System®
For specialized jobs requiring cleaner air, the PA750P can be equipped with the patented IQ System®, producing clean air that protects downstream tools from contaminants such as aerosol oil vapors and microscopic dust particles.
Onboard Aftercooler & Dual Filtration
An onboard aftercooler and a coalescing dual filtration system work together to remove moisture and contaminants from the air stream.
Zero-Discharge Condensate Removal
An exclusive, zero-discharge condensate removal system keeps the jobsite clean while delivering consistently clean, dry air.
Why Buyers Choose the PA750P
High-pressure output — 750 cfm (21.2 m³/min) of free air at 350 psig, with a 140–365 psig range
Efficient Bobcat airend works harder, not bigger — more cfm output from the smallest possible footprint
Power-dense Tier 4 Final Cummins L9 (325 bhp) with SCR + DEF — no regeneration cycles
Best-in-class serviceability — completely redesigned enclosure with two large service doors
Built-in central drainage system — drain radiator, oil & fuel from one spot, no crawling under
Rugged build — heavy-gauge steel enclosure, heavy-duty tandem-axle running gear, pedestal jack stand
Optional patented IQ System® for clean, dry air that protects downstream tools
128 gal fuel tank for high-volume air through long shifts between fills
Who Uses the PA750P and What For
The PA750P is a heavy-duty, towable high-pressure compressor built for the everyday operator — durable, reliable and powerful, with the best serviceability in the industry to keep big jobs moving.
- Down-the-hole and rock drilling
- High-pressure tools needing up to 365 psig
- 750 cfm to keep demanding tools running
- Power-dense Cummins L9 for long shifts
- High-volume sandblasting and coatings prep
- Sustained high airflow for big jobs
- Optional IQ System® for clean, dry air
- Protects downstream tools from contaminants
- Pipeline pressure testing and purging
- Remote sites needing self-contained air
- Easy serviceability + central drainage for fleets
- 128 gal fuel tank for long runtime
What Makes the PA750P Different
High-volume, high-pressure air — 750 cfm of free air delivery from the efficient Bobcat airend that works harder, not bigger, for the smallest possible footprint.
Rated at 350 psig (24.1 bar) with a 140–365 psig operating range to power demanding high-pressure tools and applications.
A power-dense 6-cylinder Cummins L9 (8.9 L) with SCR + DEF aftertreatment — and no regeneration cycles — delivers dependable, durable air power.
A redesigned enclosure with two large doors and a built-in central drainage system lets you reach service components and drain fluids from one spot — without crawling under the machine.
Built for rugged reliability — a heavy-gauge steel enclosure, heavy-duty tandem-axle running gear for easy towing, and a construction-grade pedestal jack stand.
The patented IQ System® adds an onboard aftercooler, coalescing dual filtration and zero-discharge condensate removal — clean air that protects downstream tools from oil vapors and dust.
Full Specifications
Engine
| Engine Make | Cummins |
| Engine Model | Cummins L9 |
| Displacement | 543 cu in (8.9 L) |
| Fuel | Diesel |
| Horsepower | 325 bhp (242 kW) @ 1,800 rpm |
| Emissions | Tier 4 Final (T4F) |
| Rated Speed | 1,800 rpm |
| Idle Speed | 1,350 rpm |
| Cylinders | 6 |
Compressed Air System
| Free Air Delivery (FAD) | 750 cfm (21.2 m³/min) |
| Rated Operating Pressure | 350 psig (24.1 bar) |
| Pressure Range | 140–365 psig (9.7–25.1 bar) |
| Compressor Type | Rotary screw / single stage |
| Air Service Outlets | 1 × 3 in (76 mm) NPT |
| Aftercooler | Optional — IQ System® (onboard aftercooler, coalescing dual filtration & zero-discharge condensate removal) |
| Runtime @ Full Load | 8.2 hr @ full load |
Dimensions & Weight
| Height | 101.3 in (with running gear, without exhaust pipe) |
| Length | 226.6 in (with running gear) |
| Width | 82.6 in (with running gear) |
| Operating Weight | 11023 lb |
| Track Width (Running Gear) | 68.2 in |
| Tire Size (Running Gear) | 16.0 in (406 mm) |
| Shipping Weight (with running gear) | 11,023 lbs (without fuel) |
| Length (without running gear) | 171.0 in |
| Width (without running gear) | 83.0 in |
| Height (without running gear) | 95.0 in (with stack mounts) |
| Operating Weight (without running gear) | 11,177 lbs (working, with fuel) |
| Shipping Weight (without running gear) | 9,855 lbs (without fuel) |
| Fuel Tank | 128.1 gal (485 L) |
| DEF Tank | 15.0 gal (57 L) |
Standard Equipment
| Enclosure | Completely redesigned heavy-gauge steel enclosure |
| Service Access | Two large doors — easy access to key service components |
| Central Drainage System | Centralized tubing & valve system drains the radiator, oil & fuel tanks to one location — no crawling under the machine |
| Running Gear | Heavy-duty tandem-axle for easy towing |
| Jack Stand | Construction-grade pedestal jack stand |
| Aftertreatment | Tier 4 Final (SCR + DEF) |
| IQ System® | ○ Optional — onboard aftercooler, coalescing dual filtration & zero-discharge condensate removal for clean air |
| System Voltage | 24 V |
Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
