Download Spec Sheet
Get detailed specifications, dimensions, and performance data for this PA1170P | Bobcat Portable Power.
|
General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Bobcat |
| Model: | PA1170P |
| Machine Type: | Other |
|
Engine
|
|---|
|
Performance
|
|
|---|---|
| Operating Weight: | 17625 lb |
|
Hydraulics
|
|---|
|
Dimensions
|
|---|
Description

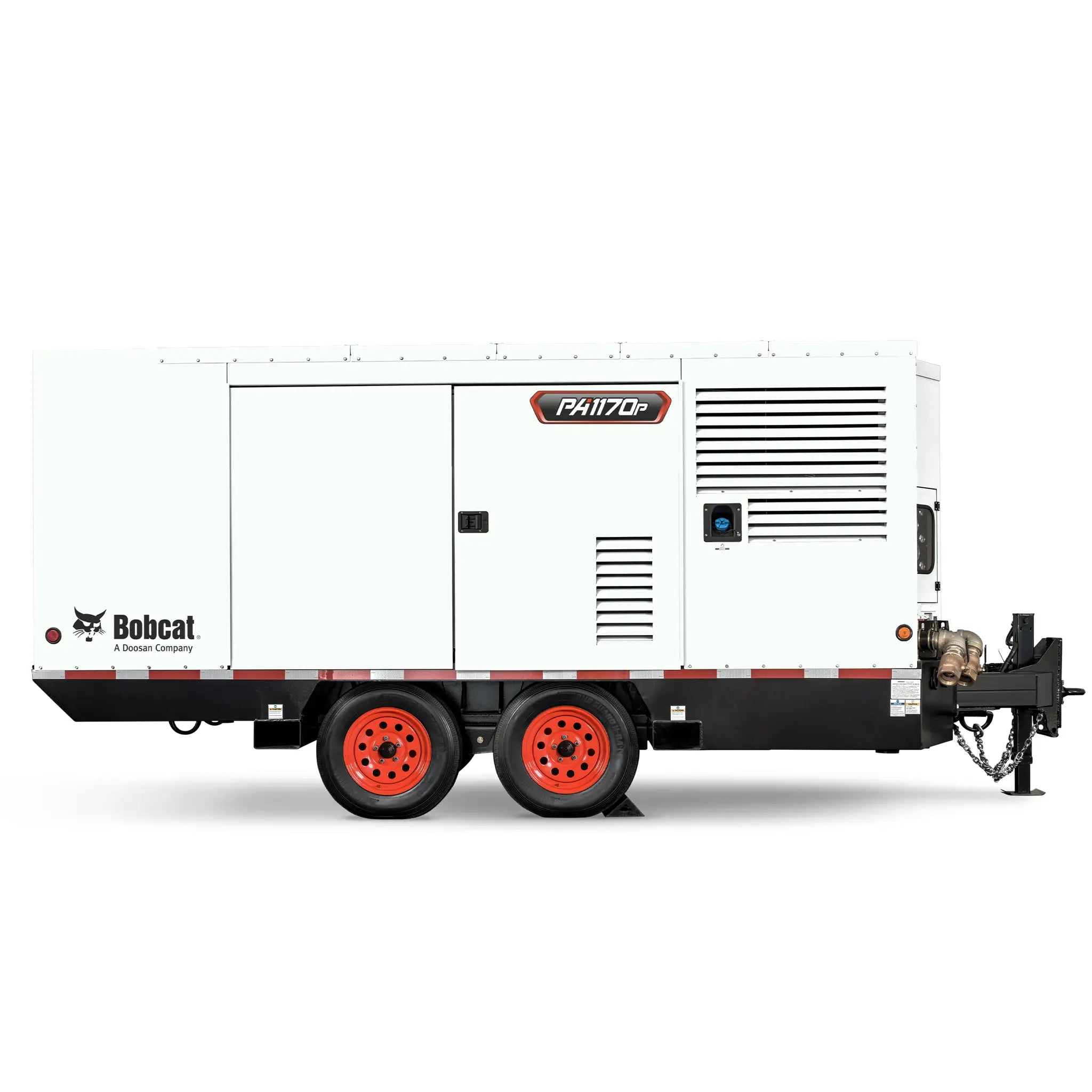

PA1170P Portable Air Compressor
Powered by the CAT® C13B engine, the Bobcat® PA1170P portable compressor delivers high-powered efficiency with best-in-class serviceability.
- Delivers 1,170 cfm at up to 365 psi
- Ideal for foundation drilling, mining, or oil and gas applications
- Large doors offer easy access for jobsite maintenance
- Available IQ System® option for clean air needs
The Bobcat PA1170P delivers heavy-duty air power with adjustable pressure to fit your varied jobsite needs. Powered by the reliable CAT C13B engine, this newly redesigned towable compressor features a more compact design, an efficient airend with a wider pressure range, and best-in-class serviceability.
The PA1170P was engineered for maximum jobsite productivity with easy serviceability in mind. Large extra-wide doors and thoughtful placement of service items ensure minimal downtime during routine maintenance and on-the-job service.
The proprietary airend, custom designed for this machine, offers a highly efficient rotor profile that requires less horsepower to deliver the high-volume cfm output you need for big jobs. Yet the compact design makes it easy to maneuver around the jobsite with exceptional towability and cooling performance. It can also be mounted to a flatbed for easier transportation or long-term placement.
For specialized jobs requiring cleaner air, the PA1170P can be equipped with the patented IQ System, which adds an onboard aftercooler, a coalescing dual filtration system and an exclusive zero-discharge condensate removal system. These components work together to produce clean air that protects the tools downstream from contaminants, such as aerosol oil vapors and microscopic dust particles.
For heavy-duty jobs, rely on the Bobcat PA1170P to increase uptime and maximize your jobsite productivity.
What Makes the PA1170P Different
1,170 CFM up to 365 PSI — Heavy-Duty Air Power
The PA1170P delivers 1,170 cfm (33.1 m³/min) of free air at 365 psig, with adjustable pressure across a 140–365 psig range to fit your varied jobsite needs — heavy-duty air power for the biggest jobs.
Reliable Caterpillar C13B — 536 BHP
Powered by the reliable CAT C13B engine — 536 bhp (400 kW), 6-cylinder, 12.5 L, Tier 4 Final with SCR + DEF — for dependable, durable air power on heavy-duty jobs.
Proprietary Airend — Efficient by Design
A proprietary airend custom-designed for this machine offers a highly efficient rotor profile that requires less horsepower to deliver the high-volume cfm output you need, with a wider pressure range.
Best-in-Class Serviceability
Engineered for easy serviceability — large, extra-wide doors and thoughtful placement of service items ensure minimal downtime during routine maintenance and on-the-job service.
Compact, Towable & Flatbed-Mountable
A newly redesigned, more compact design makes the PA1170P easy to maneuver around the jobsite with exceptional towability and cooling performance — and it can be mounted to a flatbed for easier transport or long-term placement.
Optional IQ System® — Clean Air on Demand
For jobs that require cleaner air, the patented IQ System® adds an onboard aftercooler, a coalescing dual filtration system and an exclusive zero-discharge condensate removal system — protecting downstream tools from aerosol oil vapors and microscopic dust.
200-Gallon Fuel Tank
A 200 gal (750 L) fuel tank plus a 25.4 gal (96 L) DEF tank keep the PA1170P producing high-volume air through long shifts between fills (8 hr at full load).

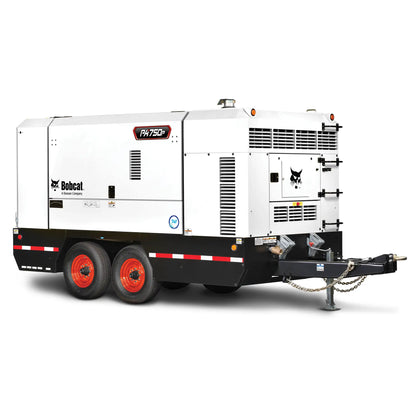

Compare the Large, High-Pressure Air Compressors
 |
 |
|
| PA750P | PA1170PViewing | |
|---|---|---|
| Compressed Air | ||
| Free Air Delivery | 750 cfm (21.2 m³/min) | 1,170 cfm (33.1 m³/min) |
| Rated Operating Pressure | 350 psig (24.1 bar) | 365 psig (25.1 bar) |
| Pressure Range | 140–365 psig (9.7–25.1 bar) | 140–365 psig (9.7–25.1 bar) |
| Air Discharge Outlet | 1 × 3 in (76 mm) NPT | 1 × 3.0 in (76 mm) NPT (2 with IQ) |
| Fuel Tank Capacity | 128.1 gal (485 L) | 200.0 gal (750 L) |
| Engine | ||
| Make & Model | Cummins L9 | Caterpillar C13B |
| Bhp @ Rated Speed | 325 bhp (242 kW) | 536 bhp (400 kW) |
| Rated Speed | 1,800 rpm | 1,825 rpm |
| Cylinders | 6 | 6 |
| Displacement | 543 cu in (8.9 L) | 763 cu in (12.5 L) |
| Emissions | Tier 4 Final | Tier 4 Final |
| DEF Tank Capacity | 15.0 gal (57 L) | 25.4 gal (96 L) |
| Dimensions & Weight (Enclosed, with Running Gear) | ||
| Operating Weight (w/ fuel) | 12,015 lbs | 19,025 lbs |
| Length | 226.6 in | 235.0 in |
| Width | 82.6 in | 90.1 in |
| Height (without exhaust pipe) | 101.3 in | 102.0 in |
Both large units feature a redesigned heavy-gauge steel enclosure, heavy-duty tandem-axle running gear and the optional IQ System® clean-air package (onboard aftercooler, coalescing dual filtration & zero-discharge condensate removal). The PA1170P steps up to a Caterpillar C13B engine and higher 1,170 cfm output. Dimensions and weights are for the enclosed unit with running gear (working weight includes fuel).
Bobcat Air Compressor Technology
Precision Rotors
The rotors used in Bobcat proprietary airends feature a versatile gearbox design with case carburized gears, providing a wide gear ratio range. Premium bearings also add greater durability and improve operational efficiency.
FlexAir System
Bobcat compressors, featuring the variable FlexAir System, let you maintain complete control of both air pressure and airflow. From the control panel, you can dial in the exact combination of pressure and flow within the compressor's operational range.
Dual Pressure Capability
Dual pressure compressors offer two-in-one versatility with clear HI/LOW options on the control panel. Operators can select between two adjustable airflow and air pressure combinations to power multiple applications, eliminating the need for multiple compressors.
Proprietary Airends
With tighter rotor tolerances comes better performance. Bobcat proprietary airends are engineered to deliver exceptional performance, low vibration and reduced noise, and they're manufactured at our state-of-the-art facility in Statesville, North Carolina.
PA1170P Features & Benefits
High-Pressure Performance 4
1,170 CFM up to 365 PSI
The PA1170P delivers 1,170 cfm (33.1 m³/min) of free air at 365 psig — heavy-duty, high-volume, high-pressure air for the most demanding jobs.
Adjustable Pressure for Varied Needs
Adjustable pressure across a 140–365 psig range lets one machine fit your varied jobsite needs, with an efficient airend and a wider pressure range than before.
Reliable Caterpillar C13B — 536 BHP
The reliable CAT C13B — 536 bhp (400 kW), 6-cylinder, 12.5 L, Tier 4 Final with SCR + DEF — delivers dependable, durable air power shift after shift.
3 in NPT Air Discharge Outlet
A large 3 in (76 mm) NPT service outlet (a second outlet is added with the IQ System®) feeds high-demand tools and hoses with the full output of the compressor.
Serviceability & Uptime 3
Best-in-Class Service Access
Engineered for maximum jobsite productivity with easy serviceability in mind — large, extra-wide doors and thoughtful placement of service items ensure minimal downtime during routine maintenance and on-the-job service.
Proprietary, Efficient Airend
A proprietary airend custom-designed for this machine offers a highly efficient rotor profile that requires less horsepower to deliver the high-volume cfm output you need for big jobs.
200 Gallon Fuel + 25.4 Gallon DEF
A 200 gal (750 L) fuel tank and 25.4 gal (96 L) DEF tank keep the PA1170P producing high-volume air through long shifts between fills (8 hr at full load).
Durability & Towing 3
Newly Redesigned, Compact Build
A newly redesigned, more compact towable design makes the PA1170P easy to maneuver around the jobsite — packing heavy-duty air power into a manageable footprint.
Exceptional Towability & Cooling
The compact design delivers exceptional towability and cooling performance, keeping the machine running cool and easy to move between jobsites.
Flatbed-Mountable
The PA1170P can also be mounted to a flatbed for easier transportation or long-term placement wherever the work takes you.
Clean Air — Optional IQ System® 3
Patented IQ System®
For specialized jobs requiring cleaner air, the PA1170P can be equipped with the patented IQ System®, producing clean air that protects downstream tools from contaminants such as aerosol oil vapors and microscopic dust particles.
Onboard Aftercooler & Dual Filtration
An onboard aftercooler and a coalescing dual filtration system work together to remove moisture and contaminants from the air stream.
Zero-Discharge Condensate Removal
An exclusive, zero-discharge condensate removal system keeps the jobsite clean while delivering consistently clean, dry air.
Why Buyers Choose the PA1170P
Heavy-duty air power — 1,170 cfm (33.1 m³/min) of free air at up to 365 psig
Adjustable pressure across a 140–365 psig range to fit varied jobsite needs
Reliable Caterpillar C13B engine (536 bhp) — Tier 4 Final with SCR + DEF
Proprietary, efficient airend — less horsepower for the high-volume cfm output big jobs need
Best-in-class serviceability — large, extra-wide doors and thoughtful service-item placement
Newly redesigned, more compact build for exceptional towability and cooling
Flatbed-mountable for easier transport or long-term placement
Optional patented IQ System® for clean, dry air that protects downstream tools
Who Uses the PA1170P and What For
The PA1170P delivers heavy-duty air power with adjustable pressure for the most demanding jobs — a newly redesigned, more compact towable built to increase uptime and maximize jobsite productivity.
- Down-the-hole and rock drilling
- High-pressure tools needing up to 365 psig
- 1,170 cfm to keep big tools running
- Reliable CAT C13B for long shifts
- High-volume sandblasting and coatings prep
- Sustained high airflow for big jobs
- Optional IQ System® for clean, dry air
- Protects downstream tools from contaminants
- Pipeline pressure testing and purging
- Remote sites needing self-contained air
- Extra-wide service doors for fleet uptime
- 200 gal fuel tank + flatbed-mountable
What Makes the PA1170P Different
Heavy-duty, high-volume air — 1,170 cfm of free air delivery from a proprietary, highly efficient airend that requires less horsepower for the big jobs.
Rated at 365 psig (25.1 bar) with adjustable pressure across a 140–365 psig range to fit your varied jobsite needs.
Powered by the reliable CAT C13B — a 6-cylinder, 12.5 L engine with SCR + DEF aftertreatment — for dependable, durable heavy-duty air power.
Engineered for easy serviceability — large, extra-wide doors and thoughtful placement of service items keep downtime to a minimum during routine maintenance.
A newly redesigned, more compact build maneuvers easily with exceptional towability and cooling — and can be mounted to a flatbed for transport or long-term placement.
The patented IQ System® adds an onboard aftercooler, coalescing dual filtration and zero-discharge condensate removal — clean air that protects downstream tools from oil vapors and dust.
Full Specifications
Engine
| Engine Make | Caterpillar |
| Engine Model | Caterpillar C13B |
| Displacement | 763 cu in (12.5 L) |
| Fuel | Diesel |
| Horsepower | 536 bhp (400 kW) @ 1,825 rpm |
| Emissions | Tier 4 Final (T4F) |
| Rated Speed | 1,825 rpm |
| Idle Speed | 1,300 rpm |
| Cylinders | 6 |
Compressed Air System
| Free Air Delivery (FAD) | 1,170 cfm (33.1 m³/min) |
| Rated Operating Pressure | 365 psig (25.1 bar) |
| Pressure Range | 140–365 psig (9.7–25.1 bar) |
| Compressor Type | Rotary screw / single stage |
| Air Service Outlets | 1 × 3 in (76 mm) NPT (2 with IQ System®) |
| Aftercooler | Optional — IQ System® (onboard aftercooler, coalescing dual filtration & zero-discharge condensate removal) |
| Runtime @ Full Load | 8 hr @ full load |
Dimensions & Weight
| Height | 102.0 in (with running gear, without exhaust pipe) |
| Length | 235.0 in (with running gear) |
| Width | 90.1 in (with running gear) |
| Operating Weight | 17625 lb |
| Track Width (Running Gear) | 71.0 in |
| Tire Size (Running Gear) | 17.5 in (444.5 mm) |
| Shipping Weight (with running gear) | 17,625 lbs (without fuel) |
| Length (without running gear) | 209.0 in |
| Width (without running gear) | 90.1 in |
| Height (without running gear) | 96.5 in |
| Operating Weight (without running gear) | 18,050 lbs (operating, without running gear) |
| Shipping Weight (without running gear) | 16,650 lbs (without fuel) |
| Fuel Tank | 200.0 gal (750 L) |
| DEF Tank | 25.4 gal (96 L) |
Standard Equipment
| Enclosure | Newly redesigned, more compact towable enclosure |
| Proprietary Airend | Custom-designed efficient rotor profile — less horsepower for high-volume cfm, with a wider pressure range |
| Service Access | Large, extra-wide doors with thoughtful service-item placement — minimal downtime |
| Towing & Cooling | Compact design for exceptional towability & cooling performance; flatbed-mountable |
| Aftertreatment | Tier 4 Final (SCR + DEF) |
| IQ System® | ○ Optional — onboard aftercooler, coalescing dual filtration & zero-discharge condensate removal for clean air |
| System Voltage | 24 V |
Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
