Download Spec Sheet
Get detailed specifications, dimensions, and performance data for this PG125 | Bobcat Portable Power.
|
General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Bobcat |
| Model: | PG125 |
| Machine Type: | Other |
|
Engine
|
|
|---|---|
| Engine: | QSB5-G11 |
| Engine Make: | Cummins |
| Emissions: | Tier 4 Final |
|
Performance
|
|
|---|---|
| Operating Weight: | 6990 lb |
|
Hydraulics
|
|---|
|
Dimensions
|
|
|---|---|
| Height: | 94.9 in |
| Length: | 169.9 in |
| Width: | 71.3 in |
| Fuel Tank: | 171.6 gal |
Description

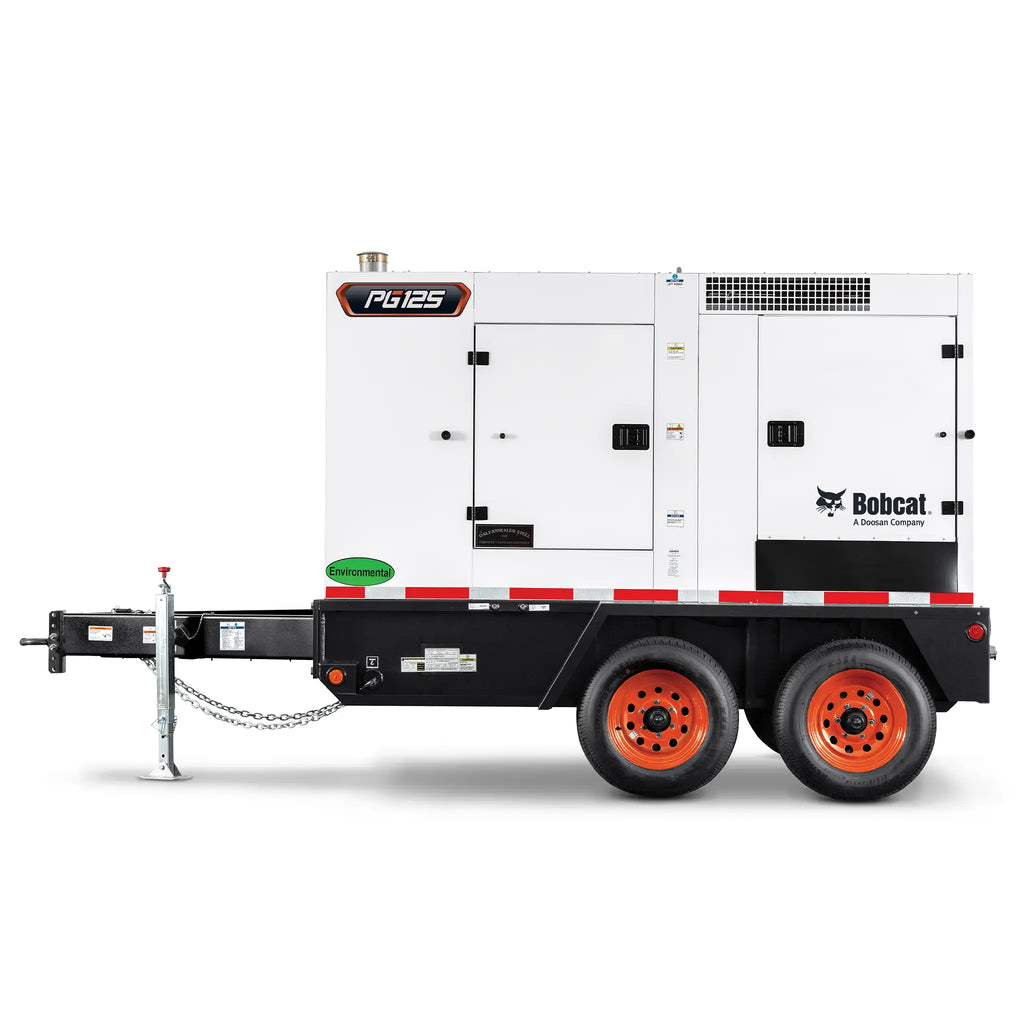

PG125 Portable Generator
The Bobcat® PG125 portable generator offers a wide range of output voltages and multiple connection options to deliver ruggedly reliable portable power.
- Provides 125 kVA (100 kW) output at a quiet 68 dB(A)
- Spacious connection panel accepts a wide variety of power cables
- Powered by a dependable Cummins® QSB5-G11 engine
- 24-hour runtime at 100% load
The Bobcat PG125 portable generator is all about reliability and usability to maximize your jobsite productivity and efficiency. It was engineered for easy accessibility to all service components, keeping you up and running with minimal downtime. It boasts tough running gear and a hardened, galvanized steel enclosure that protects the inner components from the elements, improving longevity while lowering total lifetime cost of operation.
Powered by a Cummins QSB5-G11 engine that delivers fuel economy and performance with built-in load management to decrease sludge buildup for low-load operation, the PG125 generator is a towable workhorse. It gives you ultimate versatility with the capability of producing a wide range of output voltages. The voltage change feature is blocked from unauthorized access and will shut the generator down to prevent switching during operation, protecting both the operator and the machine.
The PG125 comes with even more safety features built in to protect the operator and the machine. For example, the magnetized door for the switch board will automatically turn off the engine when open to drastically reduce the chance of accidental injury. The customer connection panel is spacious and designed to accept a wide variety of power cables. The convenience receptacle panel includes 240V single phase twist-lock receptacles and 120V GFCI receptacles that are powered any time the unit is running.
The PG125 also features the upgraded CoolBox Plus™ enclosure design, which adds a temperature-controlled, variable-speed cooling fan. This allows enhanced performance in extreme ambient temperatures while further improving sound attenuation and reducing water ingression across the operating range.
The advanced control panel on the PG125 includes an LCD display that annunciates any warnings or shutdowns. In addition, the controller logs all system faults, greatly aiding technicians with diagnostics. The system also supports remote auto start/stop control, plus integration with various telematics systems.
What Makes the PG125 Different
125 kVA — Reliable, Usable Power
The PG125 is all about reliability and usability to maximize your jobsite productivity and efficiency — a towable workhorse built to keep you up and running.
Cummins QSB5-G11 + Built-In Load Management
A Cummins QSB5-G11 engine delivers fuel economy and performance, with built-in load management that decreases sludge buildup for low-load operation.
Wide Range of Output Voltages
Ultimate versatility with the capability of producing a wide range of output voltages. The voltage change feature is blocked from unauthorized access and shuts the generator down to prevent switching during operation — protecting both the operator and the machine.
CoolBox Plus™ Enclosure
The upgraded CoolBox Plus™ enclosure adds a temperature-controlled, variable-speed cooling fan — enhanced performance in extreme ambient temperatures, improved sound attenuation, and reduced water ingression across the operating range.
Built-In Safety Features
A magnetized door for the switchboard automatically turns off the engine when open to drastically reduce the chance of accidental injury — part of a suite of safety features built in to protect the operator and the machine.
Spacious Customer Connection Panel
A spacious customer connection panel accepts a wide variety of power cables, and a convenience receptacle panel includes 240V single-phase twist-lock receptacles and 120V GFCI receptacles, powered any time the unit is running.
Advanced LCD Control Panel
An advanced control panel with an LCD display annunciates any warnings or shutdowns and logs all system faults to aid technician diagnostics — plus remote auto start/stop control and integration with various telematics systems.
Built Tough, Easy to Service
Tough running gear and a hardened, galvanized steel enclosure protect the inner components from the elements — improving longevity and lowering total lifetime cost of operation — while easy access to all service components keeps downtime to a minimum.
Compare the Large Generators
 |
 |
|
| PG125Viewing | PG150 | |
|---|---|---|
| Prime Power Rating | ||
| Prime Power (max) | 125 kVA (100 kW) | 154 kVA (123 kW) |
| 480 V · 3-phase · 60 Hz | 125 kVA / 100 kW / 151 A | 154 kVA / 123 kW / 186 A |
| 240 V · 3-phase · 60 Hz | 125 kVA / 100 kW / 301 A | 154 kVA / 123 kW / 371 A |
| 208 V · 3-phase · 60 Hz | 121 kVA / 97 kW / 336 A | 148 kVA / 118 kW / 411 A |
| 240 V · single-phase · 60 Hz | 86.5 kVA / 86.5 kW / 360 A | 104 kVA / 104 kW / 433 A |
| 120 V · single-phase · 60 Hz | 86.5 kVA / 86.5 kW / 360×2 A | 104 kVA / 104 kW / 433×2 A |
| 400 V · 3-phase · 50 Hz | 105 kVA / 84 kW / 152 A | 132 kVA / 106 kW / 191 A |
| Voltage Configuration | 3-Position Switch | 3-Position Switch |
| Frequency | 50 / 60 Hz Switchable | 50 / 60 Hz Switchable |
| Engine | ||
| Make & Model | Cummins QSB5-G11 | Cummins QSB5-G12 |
| Displacement | 4.5 L | 4.5 L |
| Cylinders | 4 | 4 |
| Power Output @ 1,800 rpm | 153 hp (114 kW) | 186 hp (139 kW) |
| Emissions | Tier 4 Final | Tier 4 Final |
| Aftertreatment | DOC / SCR | DOC / SCR |
| Usable Fuel Tank | 171.6 gal (649.6 L) | 171.6 gal (649.6 L) |
| DEF Tank | 24 gal (91 L) | 24 gal (91 L) |
| Runtime @ 75% Load | 32.4 hr | 26.8 hr |
| Dimensions & Weight (with Running Gear) | ||
| Length | 169.9 in | 169.9 in |
| Width | 71.3 in | 71.3 in |
| Height | 94.9 in | 94.9 in |
| Weight (Ready to Run) | 6,990 lbs | 6,990 lbs |
| Sound @ 23 ft, 100% | 68 dB | 69 dB |
Both large generators pair a Cummins QSB5 engine (4.5 L) with an oversized Stamford alternator and ILMS load management to keep aftertreatment healthy at light loads — plus a CoolBox enclosure, integrated trailer and 110% fluid containment. These are standalone prime/standby units (no paralleling). The PG150 steps up to 154 kVA / 123 kW. Dimensions and weights are for the enclosed unit with running gear (weight is ready-to-run).
PG125 Features & Benefits
Power & Versatility 3
125 kVA — Reliable, Usable Power
The PG125 is all about reliability and usability to maximize your jobsite productivity and efficiency — a 125 kVA towable workhorse.
Wide Range of Output Voltages
Ultimate versatility with the capability of producing a wide range of output voltages. The voltage change feature is blocked from unauthorized access and shuts the generator down to prevent switching during operation.
Spacious Customer Connection Panel
A spacious customer connection panel accepts a wide variety of power cables. A convenience receptacle panel adds 240V single-phase twist-lock receptacles and 120V GFCI receptacles, powered any time the unit is running.
Engine & Efficiency 2
Cummins QSB5-G11 Engine
A Cummins QSB5-G11 engine delivers fuel economy and performance, making the PG125 a dependable towable workhorse.
Built-In Load Management
Built-in load management decreases sludge buildup for low-load operation, helping protect the engine and extend service life.
Safety & Control 3
Built-In Safety Features
A magnetized switchboard door automatically turns off the engine when opened to drastically reduce the chance of accidental injury, and the voltage-change feature shuts the unit down to prevent switching during operation — protecting both operator and machine.
Advanced LCD Control Panel
An advanced control panel with an LCD display annunciates warnings and shutdowns and logs all system faults to aid technician diagnostics.
Remote Start & Telematics
The system supports remote auto start/stop control plus integration with various telematics systems for visibility and control.
Durability & Cooling 3
CoolBox Plus™ Enclosure
The upgraded CoolBox Plus™ enclosure adds a temperature-controlled, variable-speed cooling fan — enhanced performance in extreme ambient temperatures, improved sound attenuation and reduced water ingression across the operating range.
Hardened Galvanized Steel Enclosure
Tough running gear and a hardened, galvanized steel enclosure protect the inner components from the elements — improving longevity while lowering total lifetime cost of operation.
Engineered for Easy Service
Engineered for easy accessibility to all service components, keeping you up and running on the jobsite with minimal downtime.
Why Buyers Choose the PG125
125 kVA of reliable, usable power to maximize jobsite productivity and efficiency
Cummins QSB5-G11 engine with built-in load management to decrease sludge buildup
Capable of a wide range of output voltages for ultimate versatility
Upgraded CoolBox Plus™ enclosure for extreme temps, quieter running and less water ingression
Built-in safety features protect the operator and the machine
Spacious connection panel with 240V twist-lock and 120V GFCI receptacles
Advanced LCD control panel with fault logging, remote start/stop and telematics
Hardened galvanized steel enclosure lowers total lifetime cost of operation
Who Uses the PG125 and What For
The PG125 pairs 125 kVA of reliable, versatile power with usability and safety built in — a ruggedly reliable, true-towable workhorse for demanding jobsites and facilities.
- High-output three-phase power
- Wide range of output voltages
- Easy service access for minimal downtime
- Built tough for harsh conditions
- CoolBox Plus™ for quieter operation
- 240V twist-lock + 120V GFCI receptacles
- Stable, usable power for sensitive loads
- Built-in safety for crowded sites
- Reliable backup and utility power
- Remote start/stop and telematics
- Galvanized enclosure for long life
- Low-load management protects the engine
What Makes the PG125 Different
All about reliability and usability to maximize your jobsite productivity and efficiency — a true towable workhorse built to keep you running.
A Cummins QSB5-G11 delivers fuel economy and performance, with built-in load management that decreases sludge buildup for low-load operation.
Capable of producing a wide range of output voltages. The voltage-change feature is blocked from unauthorized access and shuts the unit down to prevent switching during operation.
The upgraded CoolBox Plus™ enclosure adds a temperature-controlled, variable-speed fan — extreme-temp performance, better sound attenuation and less water ingression.
A magnetized switchboard door automatically turns off the engine when opened to drastically reduce the chance of accidental injury — protecting operator and machine.
A spacious customer connection panel accepts a wide variety of cables, with 240V single-phase twist-lock and 120V GFCI receptacles powered any time the unit is running.
Full Specifications
Power Output
| Prime Power Rating | 125 kVA (100 kW) prime |
| Frequency Capability | 50 / 60 Hz switchable |
| Voltage Configuration | Multi-voltage — 3-position switch (wide range of output voltages) |
| Runtime @ 75% Load | 32.4 hr @ 75% load |
| Sound Level | 68 dB(A) @ 23 ft, 100% load |
| 480 V · 3-phase · 0.8 PF · 60 Hz | 125 kVA (100 kW) · 151 A |
| 240 V · 3-phase · 0.8 PF · 60 Hz | 125 kVA (100 kW) · 301 A |
| 208 V · 3-phase · 0.8 PF · 60 Hz | 121 kVA (97 kW) · 336 A |
| 240 V · single-phase · 1.0 PF · 60 Hz | 86.5 kVA (86.5 kW) · 360 A |
| 120 V · single-phase · 1.0 PF · 60 Hz | 86.5 kVA (86.5 kW) · 360 × 2 A |
| 400 V · 3-phase · 0.8 PF · 50 Hz | 105 kVA (84 kW) · 152 A |
Engine
| Engine Make | Cummins |
| Engine Model | QSB5-G11 |
| Displacement | 4.5 L |
| Fuel | Diesel |
| Power Output @ 1,800 rpm | 153 hp (114 kW) @ 1,800 rpm |
| Emissions | Tier 4 Final |
| Cylinders | 4 |
Dimensions & Capacities
| Length | 169.9 in |
| Width | 71.3 in |
| Height | 94.9 in |
| Operating Weight | 6990 lb |
| Fuel Tank | 171.6 gal |
| DEF Tank | 24 gal (91 L) |
Standard Equipment
| Voltage Selection | 3-position switch — wide range of output voltages (120 / 208 / 240 / 480 V); voltage change blocked from unauthorized access & locked out during operation |
| Frequency | 50 / 60 Hz switchable |
| Engine | Cummins QSB5-G11 with ILMS (Intelligent Load Management) — keeps aftertreatment hot at light load to burn off deposits, preventing soot plugging & nuisance codes, Tier 4 Final (T4F) |
| Alternator | Oversized Stamford — added thermal & electrical headroom for demanding starts and step-load events |
| Aftertreatment | DOC / SCR + high-capacity DEF tank (no DPF) |
| Power Mode | Standalone prime or standby — paralleling not supported |
| Enclosure | CoolBox Plus™ — temperature-controlled, variable-speed cooling fan; enhanced extreme-temp performance, sound attenuation & reduced water ingression |
| Fluid Containment | Integrated 110% fluid containment — added environmental protection & jobsite peace of mind |
| Safety Interlocks | Magnetized switchboard door shuts the engine off when opened; voltage-change lockout/shutdown prevents switching while running |
| Connection Panel | Spacious — accepts a wide variety of cables; 240V single-phase twist-lock & 120V GFCI receptacles powered whenever the unit is running |
| Control Panel | Advanced LCD — annunciates warnings & shutdowns, logs all system faults, remote auto start/stop, telematics integration |
| Running Gear | Purpose-built — tailored running gear for balanced towing, easy tracking & quick site moves; hardened galvanized steel enclosure |
Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
