Download Spec Sheet
Get detailed specifications, dimensions, and performance data for this PG150 | Bobcat Portable Power.
|
General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Bobcat |
| Model: | PG150 |
| Machine Type: | Other |
|
Engine
|
|
|---|---|
| Engine: | QSB5-G12 |
| Engine Make: | Cummins |
| Emissions: | Tier 4 Final |
|
Performance
|
|
|---|---|
| Operating Weight: | 6990 lb |
|
Hydraulics
|
|---|
|
Dimensions
|
|
|---|---|
| Height: | 94.9 in |
| Length: | 169.9 in |
| Width: | 71.3 in |
| Fuel Tank: | 171.6 gal |
Description

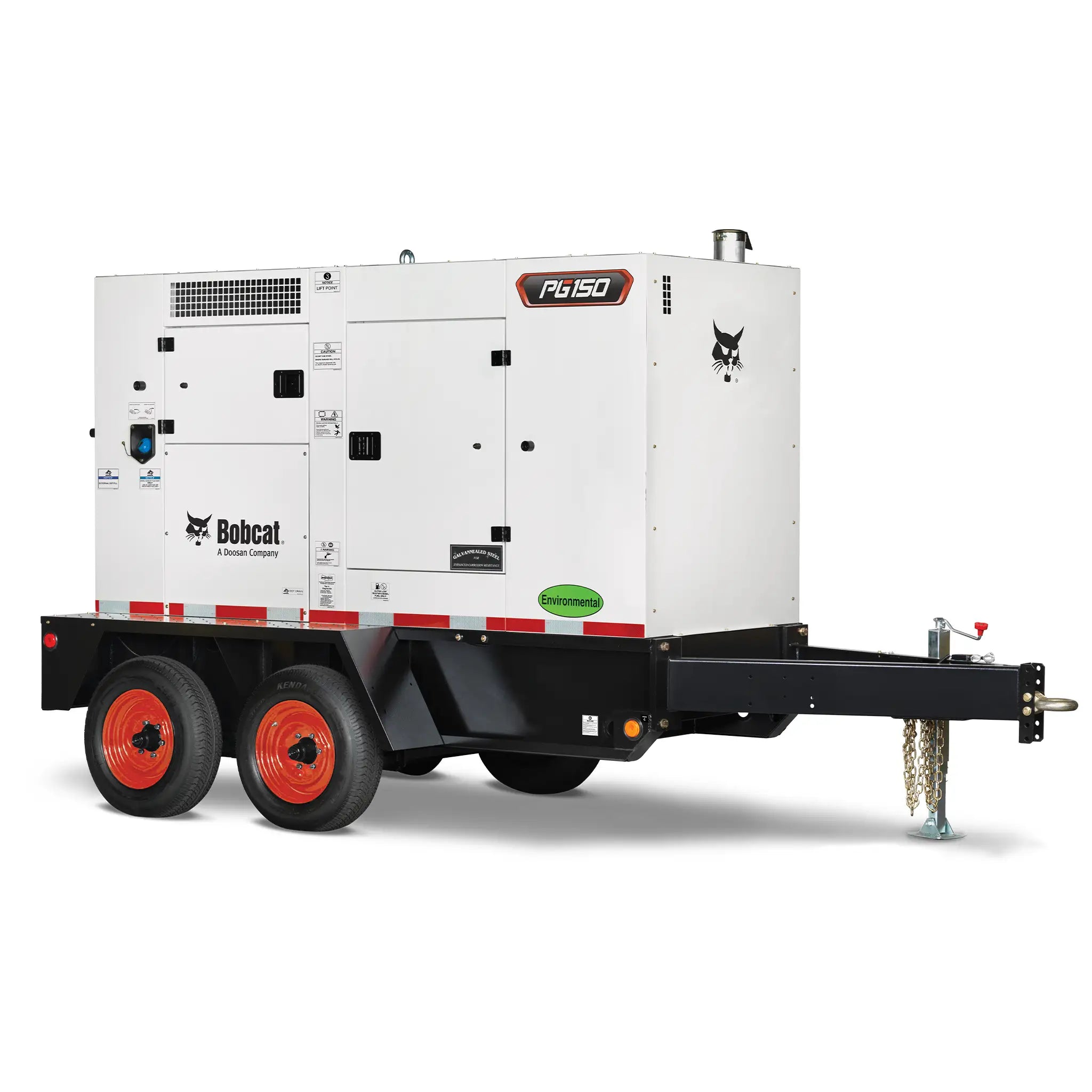

PG150 Portable Generator
Cool and quiet, the Bobcat® PG150 portable generator delivers ruggedly reliable power even in the most challenging working conditions.
- 154 kVA (123 kW) output at 69 dB(A)
- Powered by a Cummins QSB5-G12 engine
- Optional Tundra Package engineered for extreme cold
- Designed for easy serviceability on the jobsite
One of the coolest and quietest generators on the market, the PG150 portable generator from Bobcat features is also one of the most reliable generators able to withstand the harshest working conditions. At 100% load, it delivers 154 kVA (123 kW) of power output at a stunningly quiet 69 dB(A).
The PG150 was engineered for easy serviceability, whether on the jobsite or back at the shop. It features a user-friendly, galvanized steel enclosure design with separate compartments for the powertrain and cooling system, which utilizes radial cooling fan technology – an industry first.
Easy to tow and maneuver around the jobsite, the PG150 is powered by a Cummins QSB5-G12 engine with improved fuel efficiency, allowing the generator to run for 27 hours at 75% load. It also comes equipped with a standard dual-frequency switch that allows the generator to change from 50Hz to 60Hz.
Connection panels on the PG150 portable generator are easily accessible for improved safety and convenience. The panels also feature more power wiring connections, a terminal board that accepts bare wire or lugged cable, an array of twist-lock and GFCI receptacles, and an optional camlock panel to further expand connection versatility.
Engineered tough for a long, hardworking lifespan, the PG150 offers best-in-class serviceability for maximum productivity and uptime with 500-hour service intervals. It’s equipped with an upsized alternator with AREP, protecting against overload and short-circuiting, offering voltage stability and greater motor starting capacity. And the optional Tundra Package – added coolant heater, oil pan heater, battery charger, battery heater pad and heated breather hose – keeps the power flowing even in extreme cold (as low as -40˚F).
Answering the call for easier to read diagnostics, the PG150 features an analog control panel enhanced with large, brightly lit meters for at-a-glance monitoring. The onboard engine diagnostic display panel also contains the necessary controls and indicators that operate and maintain the aftertreatment regeneration process.
A run/idle switch on the control panel helps to reduce unnecessary engine wear during startup, especially in extreme cold temperatures, while the voltage selector switch provides quick, easy voltage configuration. This signature safety feature protects against costly downtime by preventing operators from switching voltage during operation.
What Makes the PG150 Different
154 kVA at a Stunningly Quiet 69 dB(A)
One of the coolest and quietest generators on the market — at 100% load the PG150 delivers 154 kVA (123 kW) of power output at just 69 dB(A), and it's built to withstand the harshest working conditions.
Cummins QSB5-G12 — 27 Hr Runtime
A Cummins QSB5-G12 engine with improved fuel efficiency lets the generator run for 26.8 hours at 75% load, with a standard dual-frequency switch to change from 50 Hz to 60 Hz.
Upsized Alternator with AREP
An upsized alternator with AREP protects against overload and short-circuiting, offering voltage stability and greater motor-starting capacity.
Radial Cooling Fan — An Industry First
A user-friendly galvanized steel enclosure with separate compartments for the powertrain and cooling system, using radial cooling fan technology — an industry first — for cool, quiet operation.
500-Hour Service Intervals
Engineered tough for a long, hardworking lifespan, the PG150 offers best-in-class serviceability for maximum productivity and uptime — with 500-hour service intervals, on the jobsite or back at the shop.
Versatile, Accessible Connections
Easily accessible connection panels add more power wiring connections, a terminal board that accepts bare wire or lugged cable, an array of twist-lock and GFCI receptacles, and an optional camlock panel for even more versatility.
Easy-Read Analog Panel + Run/Idle Switch
An analog control panel with large, brightly lit meters gives at-a-glance monitoring, an onboard diagnostic display manages the aftertreatment regeneration process, and a run/idle switch reduces unnecessary engine wear during startup. The voltage selector prevents switching during operation.
Optional Tundra Package — to −40°F
The optional Tundra Package — added coolant heater, oil pan heater, battery charger, battery heater pad and heated breather hose — keeps the power flowing even in extreme cold, as low as −40°F.
Compare the Large Generators
 |
 |
|

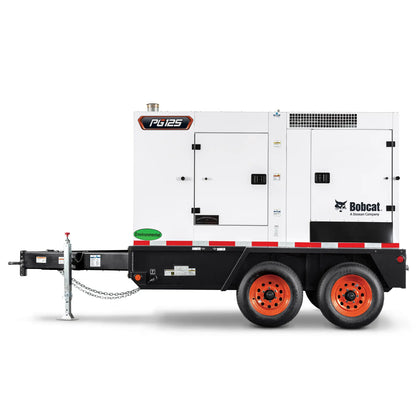

| PG125 | PG150Viewing | |
|---|---|---|
| Prime Power Rating | ||
| Prime Power (max) | 125 kVA (100 kW) | 154 kVA (123 kW) |
| 480 V · 3-phase · 60 Hz | 125 kVA / 100 kW / 151 A | 154 kVA / 123 kW / 186 A |
| 240 V · 3-phase · 60 Hz | 125 kVA / 100 kW / 301 A | 154 kVA / 123 kW / 371 A |
| 208 V · 3-phase · 60 Hz | 121 kVA / 97 kW / 336 A | 148 kVA / 118 kW / 411 A |
| 240 V · single-phase · 60 Hz | 86.5 kVA / 86.5 kW / 360 A | 104 kVA / 104 kW / 433 A |
| 120 V · single-phase · 60 Hz | 86.5 kVA / 86.5 kW / 360×2 A | 104 kVA / 104 kW / 433×2 A |
| 400 V · 3-phase · 50 Hz | 105 kVA / 84 kW / 152 A | 132 kVA / 106 kW / 191 A |
| Voltage Configuration | 3-Position Switch | 3-Position Switch |
| Frequency | 50 / 60 Hz Switchable | 50 / 60 Hz Switchable |
| Engine | ||
| Make & Model | Cummins QSB5-G11 | Cummins QSB5-G12 |
| Displacement | 4.5 L | 4.5 L |
| Cylinders | 4 | 4 |
| Power Output @ 1,800 rpm | 153 hp (114 kW) | 186 hp (139 kW) |
| Emissions | Tier 4 Final | Tier 4 Final |
| Aftertreatment | DOC / SCR | DOC / SCR |
| Usable Fuel Tank | 171.6 gal (649.6 L) | 171.6 gal (649.6 L) |
| DEF Tank | 24 gal (91 L) | 24 gal (91 L) |
| Runtime @ 75% Load | 32.4 hr | 26.8 hr |
| Dimensions & Weight (with Running Gear) | ||
| Length | 169.9 in | 169.9 in |
| Width | 71.3 in | 71.3 in |
| Height | 94.9 in | 94.9 in |
| Weight (Ready to Run) | 6,990 lbs | 6,990 lbs |
| Sound @ 23 ft, 100% | 68 dB | 69 dB |
Both large generators pair a Cummins QSB5 engine (4.5 L) with an oversized Stamford alternator and ILMS load management to keep aftertreatment healthy at light loads — plus a CoolBox enclosure, integrated trailer and 110% fluid containment. These are standalone prime/standby units (no paralleling). The PG150 steps up to 154 kVA / 123 kW. Dimensions and weights are for the enclosed unit with running gear (weight is ready-to-run).
PG150 Features & Benefits
Power & Output 3
154 kVA at 69 dB(A)
One of the coolest and quietest generators on the market — at 100% load the PG150 delivers 154 kVA (123 kW) of power at a stunningly quiet 69 dB(A).
Multi-Voltage, 50 / 60 Hz Switchable
A 3-position selector covers single- and three-phase output, and a standard dual-frequency switch changes the generator from 50 Hz to 60 Hz.
Reliable in the Harshest Conditions
One of the most reliable generators available, engineered tough to withstand the harshest working conditions for a long, hardworking lifespan.
Engine & Alternator 3
Cummins QSB5-G12 — Improved Efficiency
A Cummins QSB5-G12 engine (186 hp / 139 kW, 4-cylinder, 4.5 L, Tier 4 Final) with improved fuel efficiency runs for 26.8 hours at 75% load.
Upsized Alternator with AREP
An upsized alternator with AREP protects against overload and short-circuiting, offering voltage stability and greater motor-starting capacity.
Radial Cooling Fan — An Industry First
Separate compartments for the powertrain and cooling system use radial cooling fan technology — an industry first — for one of the coolest, quietest packages on the market.
Serviceability & Controls 4
500-Hour Service Intervals
Best-in-class serviceability for maximum productivity and uptime — with 500-hour service intervals and easy serviceability whether on the jobsite or back at the shop.
Easy-Read Analog Control Panel
An analog control panel enhanced with large, brightly lit meters gives at-a-glance monitoring, and an onboard engine diagnostic display contains the controls and indicators that operate and maintain the aftertreatment regeneration process.
Run/Idle Switch + Voltage Lockout
A run/idle switch reduces unnecessary engine wear during startup, especially in extreme cold, while the voltage selector switch provides quick, easy configuration and prevents switching voltage during operation — protecting against costly downtime.
Versatile, Accessible Connections
Easily accessible connection panels add more power wiring connections, a terminal board that accepts bare wire or lugged cable, an array of twist-lock and GFCI receptacles, and an optional camlock panel.
Cold-Weather & Durability 3
Optional Tundra Package — to −40°F
The optional Tundra Package — added coolant heater, oil pan heater, battery charger, battery heater pad and heated breather hose — keeps the power flowing even in extreme cold, as low as −40°F.
User-Friendly Galvanized Steel Enclosure
A user-friendly, galvanized steel enclosure with separate powertrain and cooling compartments is engineered tough for a long, hardworking lifespan.
Easy to Tow & Maneuver
Easy to tow and maneuver around the jobsite, on purpose-built running gear with integrated 110% fluid containment.
Why Buyers Choose the PG150
154 kVA (123 kW) at a stunningly quiet 69 dB(A) — one of the coolest, quietest on the market
Reliable Cummins QSB5-G12 with improved fuel efficiency — 26.8 hours at 75% load
Upsized alternator with AREP — overload/short-circuit protection and strong motor starting
Industry-first radial cooling fan with separate powertrain & cooling compartments
Best-in-class serviceability with 500-hour service intervals
Versatile connections — terminal board, twist-lock & GFCI receptacles, optional camlock panel
Easy-read analog panel with run/idle switch and voltage-change lockout
Optional Tundra Package keeps power flowing in extreme cold — to −40°F
Who Uses the PG150 and What For
The PG150 pairs 154 kVA of clean, quiet power with industry-leading serviceability and cold-weather capability — built tough for demanding jobsites, events and standby power in any conditions.
- High-output three-phase power
- Strong motor starting via AREP alternator
- 500-hour service intervals for uptime
- Easy to tow and maneuver
- Stunningly quiet — 154 kVA at 69 dB(A)
- Stable voltage for sensitive loads
- Twist-lock, GFCI & optional camlock panel
- Dual-frequency for varied equipment
- Reliable backup power in harsh conditions
- Optional Tundra Package down to −40°F
- Run/idle switch eases cold startups
- Remote start/stop and telematics
What Makes the PG150 Different
One of the coolest and quietest on the market — 154 kVA (123 kW) of output at 100% load at a stunningly quiet 69 dB(A).
A Cummins QSB5-G12 with improved fuel efficiency runs for 26.8 hours at 75% load, with a standard 50/60 Hz dual-frequency switch.
An upsized alternator with AREP protects against overload and short-circuiting, with voltage stability and greater motor-starting capacity.
Separate compartments for the powertrain and cooling system use radial cooling fan technology — an industry first — for cool, quiet running.
Best-in-class serviceability for maximum productivity and uptime — with 500-hour service intervals, on the jobsite or back at the shop.
The optional Tundra Package — coolant & oil-pan heaters, battery charger & heater pad and heated breather hose — keeps power flowing to −40°F.
Full Specifications
Power Output
| Prime Power Rating | 154 kVA (123 kW) prime |
| Frequency Capability | 50 / 60 Hz switchable |
| Voltage Configuration | Multi-voltage — 3-position switch |
| Runtime @ 75% Load | 26.8 hr @ 75% load |
| Sound Level | 69 dB(A) @ 23 ft, 100% load |
| 480 V · 3-phase · 0.8 PF · 60 Hz | 154 kVA (123 kW) · 186 A |
| 240 V · 3-phase · 0.8 PF · 60 Hz | 154 kVA (123 kW) · 371 A |
| 208 V · 3-phase · 0.8 PF · 60 Hz | 148 kVA (118 kW) · 411 A |
| 240 V · single-phase · 1.0 PF · 60 Hz | 104 kVA (104 kW) · 433 A |
| 120 V · single-phase · 1.0 PF · 60 Hz | 104 kVA (104 kW) · 433 × 2 A |
| 400 V · 3-phase · 0.8 PF · 50 Hz | 132 kVA (106 kW) · 191 A |
Engine
| Engine Make | Cummins |
| Engine Model | QSB5-G12 |
| Displacement | 4.5 L |
| Fuel | Diesel |
| Power Output @ 1,800 rpm | 186 hp (139 kW) @ 1,800 rpm |
| Emissions | Tier 4 Final |
| Cylinders | 4 |
Dimensions & Capacities
| Length | 169.9 in |
| Width | 71.3 in |
| Height | 94.9 in |
| Operating Weight | 6990 lb |
| Fuel Tank | 171.6 gal |
| DEF Tank | 24 gal (91 L) |
Standard Equipment
| Voltage Selection | 3-position voltage selector switch — quick, easy configuration; signature safety feature prevents switching during operation |
| Frequency | 50 / 60 Hz switchable (standard dual-frequency switch) |
| Engine | Cummins QSB5-G12 with ILMS (Intelligent Load Management) — improved fuel efficiency, Tier 4 Final (T4F) |
| Alternator | Upsized Stamford with AREP — overload & short-circuit protection, voltage stability, greater motor-starting capacity |
| Aftertreatment | DOC / SCR + high-capacity DEF tank (no DPF); onboard engine diagnostic display manages the regeneration process |
| Cooling | Separate powertrain & cooling compartments with radial cooling fan technology — an industry first |
| Enclosure | User-friendly galvanized steel CoolBox enclosure — one of the coolest & quietest (154 kVA at 69 dB) |
| Connection Panel | Easily accessible — terminal board accepts bare wire or lugged cable; twist-lock & GFCI receptacles; ○ optional camlock panel |
| Control Panel | Analog panel with large, brightly lit meters; run/idle switch reduces startup wear; remote auto start/stop + telematics |
| Service Intervals | Best-in-class serviceability — 500-hour service intervals |
| Power Mode | Standalone prime or standby — paralleling not supported |
| Cold Weather | ○ Optional Tundra Package — coolant & oil-pan heaters, battery charger & heater pad, heated breather hose (to −40°F) |
| Fluid Containment | Integrated 110% fluid containment |
Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
