Download Spec Sheet
Get detailed specifications, dimensions, and performance data for this PG100 | Bobcat Portable Power.
|
General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Bobcat |
| Model: | PG100 |
| Machine Type: | Other |
|
Engine
|
|
|---|---|
| Engine: | F3.8 |
| Engine Make: | Cummins |
| Emissions: | Tier 4 Final |
|
Performance
|
|
|---|---|
| Operating Weight: | 6300 lb |
|
Hydraulics
|
|---|
|
Dimensions
|
|
|---|---|
| Height: | 94.7 in |
| Length: | 166.1 in |
| Width: | 72.4 in |
| Fuel Tank: | 172 gal |
Description

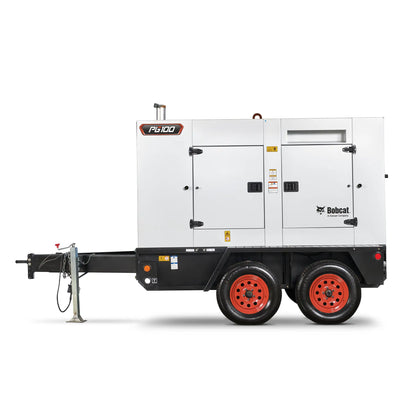

PG100 Portable Generator
The diesel-powered mobile and towable Bobcat® PG100 portable generator (100 kVA/80 kW) delivers power you can depend on, even in the toughest jobsite conditions.
- Powered by a reliable Cummins® F3.8 engine
- 100 kVA (80 kW) output with ability to switch between 50 Hz and 60 Hz
- Ideal for construction sites, municipalities, special events and entertainment
Engineered to be a true towable and maneuverable jobsite generator, the Bobcat PG100 portable generator delivers ruggedly reliable power you can count on even in the harshest of conditions.
The PG100 was engineered for easy accessibility to all service components, keeping you up and running on the jobsite with minimal downtime. It boasts tough running gear and a hardened, galvanized steel enclosure that protects the inner components from the elements, improving longevity while lowering total lifetime cost of operation.
Powered by a Cummins F3.8 engine that delivers fuel economy and performance with built-in load management to decrease sludge buildup, the PG100 generator is a towable workhorse. The Stamford alternator provides excellent motor starting capability, stable voltage regulation and fast transient response.
The PG100 also offers the quietest mid-range package in the market by delivering 100 kVA (80 kW) at 67 dB(A). A dual-frequency switch comes standard, allowing the generator to change from 50Hz to 60Hz, making it one of the most versatile portable generators available.
The PG100 portable generator also comes with important safety precautions built in to protect the operator and the machine. For example, the magnetized door for the switch board will automatically turn off the engine when open to drastically reduce accidental injury. Another door prevents operators from changing between 50Hz and 60Hz while the generator is running, protecting the machine from damage.
The PG100 portable generator from Bobcat provides unmatched versatility to support a variety of applications, including construction sites, special events and entertainment, de-watering and municipalities.
What Makes the PG100 Different
100 kVA / 80 kW Prime Power
A true towable, maneuverable jobsite generator delivering ruggedly reliable 100 kVA (80 kW) prime power you can count on, even in the harshest conditions.
Quietest Mid-Range Package — 67 dB(A)
The PG100 offers the quietest mid-range package on the market, delivering 100 kVA (80 kW) at just 67 dB(A) — serious output without the noise.
Stamford Alternator
A Stamford alternator provides excellent motor-starting capability, stable voltage regulation and fast transient response for clean, dependable power.
Cummins F3.8 + Built-In Load Management
A Cummins F3.8 engine delivers fuel economy and performance, with built-in load management that decreases sludge buildup — a towable workhorse.
Dual-Frequency Switch — Standard
A standard dual-frequency switch changes the generator from 50 Hz to 60 Hz, making the PG100 one of the most versatile portable generators available.
Built-In Safety Interlocks
Safety is built in: a magnetized switchboard door automatically shuts off the engine when opened to reduce accidental injury, and another door prevents switching between 50 Hz and 60 Hz while running to protect the machine.
Hardened Galvanized Steel Enclosure
Tough running gear and a hardened, galvanized steel enclosure protect the inner components from the elements — improving longevity and lowering total lifetime cost of operation.
Engineered for Easy Service
Engineered for easy accessibility to all service components, the PG100 keeps you up and running on the jobsite with minimal downtime.

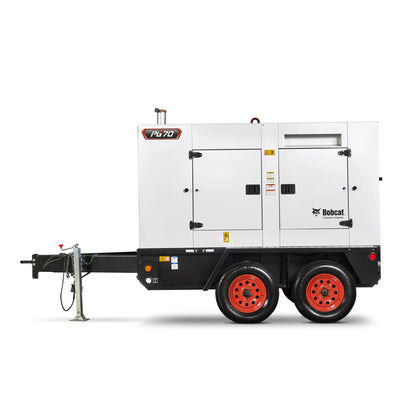

Compare the Medium Generators
 |
 |
|
| PG70 | PG100Viewing | |
|---|---|---|
| Prime Power Rating | ||
| Prime Power (max) | 70 kVA (56 kW) | 100 kVA (80 kW) |
| 480 V · 3-phase · 60 Hz | 70 kVA / 56 kW / 84 A | 100 kVA / 80 kW / 120 A |
| 240 V · 3-phase · 60 Hz | 70 kVA / 56 kW / 168 A | 100 kVA / 80 kW / 241 A |
| 208 V · 3-phase · 60 Hz | 70 kVA / 56 kW / 194 A | 100 kVA / 80 kW / 278 A |
| 240 V · single-phase · 60 Hz | 50 kVA / 50 kW / 208 A | 72 kVA / 72 kW / 300 A |
| 120 V · single-phase · 60 Hz | 50 kVA / 50 kW / 208×2 A | 72 kVA / 72 kW / 300×2 A |
| 400 V · 3-phase · 50 Hz | 65 kVA / 52 kW / 94 A | 100 kVA / 80 kW / 144 A |
| Voltage Configuration | 3-Position Switch | 3-Position Switch |
| Frequency | 50 / 60 Hz Switchable | 50 / 60 Hz Switchable |
| Engine | ||
| Make & Model | Cummins F3.8 | Cummins F3.8 |
| Displacement | 3.8 L | 3.8 L |
| Cylinders | 4 | 4 |
| Power Output @ 1,800 rpm | 84 hp (62 kW) | 129 hp (96 kW) |
| Emissions | Tier 4 Final | Tier 4 Final |
| Aftertreatment | DOC / SCR / DPF | DOC / SCR / DPF |
| Usable Fuel Tank | 172 gal (651 L) | 172 gal (651 L) |
| DEF Tank | 14.7 gal (55.5 L) | 14.7 gal (55.5 L) |
| Runtime @ 75% Load | 50 hr | 37 hr |
| Dimensions & Weight (with Running Gear) | ||
| Length | 166.1 in | 166.1 in |
| Width | 72.5 in | 72.5 in |
| Height | 94.7 in | 94.7 in |
| Weight (Ready to Run) | 6,000 lbs | 6,300 lbs |
| Sound @ 23 ft, 100% | 65 dB | 67 dB |
Both medium generators run a Cummins F3.8 Performance Series engine (Tier 4 Final, DOC / SCR / DPF) with a high-capacity DEF tank, multi-voltage 3-position selector, 50/60 Hz switchable output, tool-less camlock connections and an advanced LCD 3-in-1 control panel — with optional DEIF-controlled paralleling and a cold-weather package. The PG100 steps up to 100 kVA / 80 kW. Dimensions and weights are for the enclosed unit with running gear (weight is ready-to-run).
PG100 Features & Benefits
Power & Versatility 4
100 kVA / 80 kW Prime Power
A true towable, maneuverable jobsite generator delivering ruggedly reliable 100 kVA (80 kW) prime power you can count on, even in the harshest conditions.
Quietest Mid-Range Package — 67 dB(A)
The PG100 offers the quietest mid-range package on the market, delivering 100 kVA (80 kW) at just 67 dB(A).
Dual-Frequency Switch — Standard
A standard dual-frequency switch changes the generator from 50 Hz to 60 Hz, with a 3-position multi-voltage selector for single- and three-phase loads.
Unmatched Application Versatility
Versatile power for a variety of applications, including construction sites, special events and entertainment, de-watering and municipalities.
Engine & Alternator 3
Cummins F3.8 + Built-In Load Management
A Cummins F3.8 engine (129 hp / 96 kW, 4-cylinder, 3.8 L, Tier 4 Final) delivers fuel economy and performance, with built-in load management that decreases sludge buildup.
Stamford Alternator
A Stamford alternator provides excellent motor-starting capability, stable voltage regulation and fast transient response.
DOC / SCR / DPF + High-Capacity DEF
Tier 4 Final aftertreatment (DOC / SCR / DPF) with a right-sized 14.7 gal (55.5 L) DEF tank aligned to the 172-gallon fuel supply, supporting similar run intervals.
Safety & Serviceability 3
Built-In Safety Interlocks
A magnetized switchboard door automatically shuts off the engine when opened to drastically reduce accidental injury, and another door prevents changing between 50 Hz and 60 Hz while running to protect the machine from damage.
Engineered for Easy Service
Engineered for easy accessibility to all service components, the PG100 keeps you up and running on the jobsite with minimal downtime.
U.S.-Based Support & Local Service
When maintenance and repairs are needed, count on U.S.-based customer support and local service options through Carleton Equipment to keep you up and running.
Durability & Towing 3
Hardened Galvanized Steel Enclosure
A hardened, galvanized steel enclosure protects the inner components from the elements, improving longevity while lowering total lifetime cost of operation.
True Towable & Maneuverable
Engineered to be a true towable and maneuverable jobsite generator with tough running gear for harsh conditions.
Optional DEIF-Controlled Paralleling
Add DEIF-controlled paralleling to synchronize multiple units for scalable output and built-in redundancy to match demand.
Why Buyers Choose the PG100
100 kVA (80 kW) prime power — ruggedly reliable in the harshest conditions
Quietest mid-range package on the market — 100 kVA at just 67 dB(A)
Stamford alternator — excellent motor starting, stable voltage, fast transient response
Cummins F3.8 with built-in load management to decrease sludge buildup
Standard dual-frequency switch — change 50 Hz to 60 Hz for maximum versatility
Built-in safety interlocks protect the operator and the machine
Hardened galvanized steel enclosure lowers total lifetime cost of operation
Engineered for easy service access — minimal downtime on the jobsite
Who Uses the PG100 and What For
The PG100 provides unmatched versatility to support a variety of applications — a quiet, ruggedly reliable, true-towable 100 kVA workhorse built for the harshest conditions.
- Three-phase power for heavy equipment
- 80 kW continuous for sustained loads
- True towable & maneuverable jobsite unit
- Easy service access for minimal downtime
- Quietest mid-range package at 67 dB(A)
- Stamford alternator for clean, stable power
- Dual-frequency for varied equipment
- Built-in safety interlocks for crowded sites
- Reliable power for pumps and utilities
- Ruggedly reliable in harsh conditions
- Hardened galvanized enclosure for long life
- 172 gal fuel + DEF for long run intervals
What Makes the PG100 Different
A true towable, maneuverable jobsite generator delivering ruggedly reliable power you can count on, even in the harshest conditions.
The PG100 offers the quietest mid-range package on the market — serious output without the noise.
A Stamford alternator provides excellent motor-starting capability, stable voltage regulation and fast transient response.
Fuel economy and performance from a Cummins F3.8, with built-in load management that decreases sludge buildup — a towable workhorse.
A magnetized switchboard door shuts off the engine when opened, and another door prevents switching 50/60 Hz while running — protecting operator and machine.
A hardened galvanized steel enclosure protects the inner components from the elements — improving longevity and lowering total lifetime cost of operation.
Full Specifications
Power Output
| Prime Power Rating | 100 kVA (80 kW) prime |
| Frequency Capability | 50 / 60 Hz switchable |
| Voltage Configuration | Multi-voltage — 3-position switch |
| Runtime @ 75% Load | 37 hr @ 75% load |
| Sound Level | 67 dB(A) @ 23 ft, 100% load — quietest mid-range package |
| 480 V · 3-phase · 0.8 PF · 60 Hz | 100 kVA (80 kW) · 120 A |
| 240 V · 3-phase · 0.8 PF · 60 Hz | 100 kVA (80 kW) · 241 A |
| 208 V · 3-phase · 0.8 PF · 60 Hz | 100 kVA (80 kW) · 278 A |
| 240 V · single-phase · 1.0 PF · 60 Hz | 72 kVA (72 kW) · 300 A |
| 120 V · single-phase · 1.0 PF · 60 Hz | 72 kVA (72 kW) · 300 × 2 A |
| 400 V · 3-phase · 0.8 PF · 50 Hz | 100 kVA (80 kW) · 144 A |
Engine
| Engine Make | Cummins |
| Engine Model | F3.8 |
| Displacement | 231 cu in (3.8 L) |
| Fuel | Diesel |
| Power Output @ 1,800 rpm | 129 hp (96 kW) @ 1,800 rpm |
| Emissions | Tier 4 Final |
| Cylinders | 4 |
Dimensions & Capacities
| Length | 166.1 in |
| Width | 72.4 in |
| Height | 94.7 in |
| Operating Weight | 6300 lb |
| Fuel Tank | 172 gal |
| DEF Tank | 14.7 gal (55.5 L) |
Standard Equipment
| Voltage Selection | 3-position switch — single- & three-phase, 120 / 208 / 240 / 480 V |
| Frequency | 50 / 60 Hz switchable (standard dual-frequency switch) |
| Alternator | Stamford — excellent motor starting, stable voltage regulation, fast transient response |
| Engine | Cummins F3.8 with built-in load management (decreases sludge buildup), Tier 4 Final (T4F) |
| Aftertreatment | DOC / SCR / DPF + high-capacity DEF tank |
| Sound | Quietest mid-range package — 100 kVA (80 kW) at 67 dB(A) |
| Safety Interlocks | Magnetized switchboard door shuts the engine off when opened; door interlock prevents 50/60 Hz changes while running |
| Enclosure | Hardened galvanized steel — protects components from the elements, lowers lifetime cost |
| Paralleling | ○ Optional — DEIF-controlled paralleling for scalable capacity & redundancy |
| Running Gear | Tough running gear, heavy-duty tandem-axle — a true towable, maneuverable workhorse |
Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
