Download Spec Sheet
Get detailed specifications, dimensions, and performance data for this PG240 | Bobcat Portable Power.
|
General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Bobcat |
| Model: | PG240 |
| Machine Type: | Other |
|
Engine
|
|
|---|---|
| Engine: | QSB7-G9 |
| Engine Make: | Cummins |
| Emissions: | Tier 4 Final |
|
Performance
|
|
|---|---|
| Operating Weight: | 11377 lb |
|
Hydraulics
|
|---|
|
Dimensions
|
|
|---|---|
| Height: | 102.9 in |
| Length: | 224 in |
| Width: | 83.2 in |
| Fuel Tank: | 368 gal |
Description

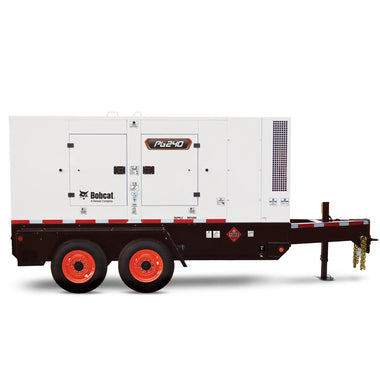

PG240 Portable Generator
The quiet, long-running, easily serviceable PG240 portable generator from Bobcat is strong enough to power rock crushers, tower cranes and oilfield equipment.
- Delivers 235 kVA (188 kW) output at just 69 dB(A)
- 24-hour runtime at 100% load
- Powered by a reliable Cummins QSB7-G9 engine
- Engineered for easy accessibility to all service points
The Bobcat® PG240 portable generator is designed to bring ease-of-use to heavy-duty jobs. Large service doors provide unmatched access to all interior components for easy serviceability. Built-in engine cooling technology allows for optimum performance in a wide range of working conditions. And impressive starting capacity gives you the power you need to cover all your jobsite needs.
The PG240 features the exclusive DualBox™ enclosure design, which separates the powertrain from the cooling system, allowing independent control of the cooling performance in each compartment. The engine compartment is cooled by dual, variable speed, electric cooling fans designed to maximize sound attenuation and minimize water ingression. The cooling compartment features a high efficiency, centrifugal style cooling fan which improves fuel economy for the powerful Cummins QSB7-G9 engine.
Equipped with separately-excited, brushless alternators, the PG240 has the motor starting capability required to power tower cranes, rock crushers and oilfield equipment, while the solid-state automatic voltage regulators provide the precise voltage control needed in sensitive applications like concerts, film production and special events.
To maximize uptime and jobsite productivity, the Bobcat PG240 portable generator can go up to 500 hours between fluid and filter changes, minimizing overall maintenance time. When it is time to perform routine maintenance – or jobsite repairs – all maintenance points are easily accessible and designed for fast and easy service.
What Makes the PG240 Different
235 kVA — Ease-of-Use for Heavy-Duty Jobs
The PG240 is designed to bring ease-of-use to heavy-duty jobs — 236 kVA (189 kW) of prime power with the impressive starting capacity you need to cover all your jobsite needs.
Large Service Doors — Unmatched Access
Large service doors provide unmatched access to all interior components for easy serviceability — all maintenance points are easily accessible and designed for fast, easy jobsite service.
Separately-Excited Brushless Alternators
Separately-excited brushless alternators give the PG240 the motor-starting capability required to power tower cranes, rock crushers and oilfield equipment.
Powerful Cummins QSB7-G9 Engine
A powerful Cummins QSB7-G9 engine with built-in engine cooling technology delivers optimum performance across a wide range of working conditions.
Exclusive DualBox™ Enclosure
The exclusive DualBox™ enclosure design separates the powertrain from the cooling system, allowing independent control of the cooling performance in each compartment.
Dual Variable-Speed + Centrifugal Cooling
Dual variable-speed electric cooling fans maximize sound attenuation and minimize water ingression, while a high-efficiency centrifugal-style fan improves fuel economy for the QSB7-G9 engine.
Solid-State Automatic Voltage Regulators
Solid-state automatic voltage regulators provide the precise voltage control needed in sensitive applications like concerts, film production and special events.
Up to 500 Hours Between Services
To maximize uptime and jobsite productivity, the PG240 can go up to 500 hours between fluid and filter changes, minimizing overall maintenance time.
Compare the Extra-Large Generators
 |
 |
 |
|

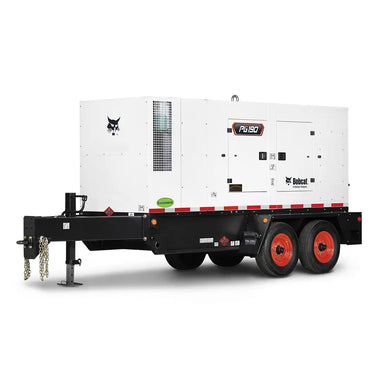

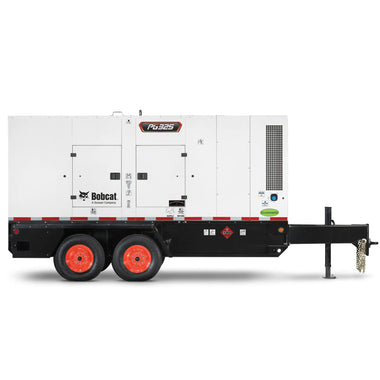

| PG190 | PG240Viewing | PG325 | |
|---|---|---|---|
| Prime Power Rating | |||
| Prime Power (max) | 181 kVA (145 kW) | 236 kVA (189 kW) | 334 kVA (267 kW) |
| 480 V · 3-phase · 60 Hz | 181 kVA / 145 kW / 218 A | 236 kVA / 189 kW / 284 A | 334 kVA / 267 kW / 401 A |
| 240 V · 3-phase · 60 Hz | 181 kVA / 145 kW / 436 A | 236 kVA / 189 kW / 568 A | 334 kVA / 267 kW / 803 A |
| 208 V · 3-phase · 60 Hz | 181 kVA / 145 kW / 503 A | 219 kVA / 175 kW / 607 A | 316 kVA / 253 kW / 877 A |
| 240 V · single-phase · 60 Hz | 110 kVA / 110 kW / 458 A | 136 kVA / 136 kW / 567 A | 197 kVA / 197 kW / 821 A |
| 120 V · single-phase · 60 Hz | 110 kVA / 110 kW / 458×2 A | 136 kVA / 136 kW / 567×2 A | 197 kVA / 197 kW / 821×2 A |
| 400 V · 3-phase · 50 Hz | 165 kVA / 132 kW / 238 A | 200 kVA / 160 kW / 289 A | 280 kVA / 224 kW / 404 A |
| Voltage Configuration | 3-Position Switch | Link Board Panel | Link Board Panel |
| Frequency | 50 / 60 Hz Switchable | 50 / 60 Hz Switchable | 50 / 60 Hz Switchable |
| Engine | |||
| Make & Model | Cummins QSB7-G8 | Cummins QSB7-G9 | Cummins QSL9-G9 |
| Displacement | 6.7 L | 6.7 L | 8.9 L |
| Cylinders | 6 | 6 | 6 |
| Power Output @ 1,800 rpm | 219 hp (163 kW) | 282 hp (210 kW) | 393 hp (293 kW) |
| Emissions | Tier 4 Final | Tier 4 Final | Tier 4 Final |
| Aftertreatment | DOC / SCR | DOC / SCR | DOC / SCR |
| Usable Fuel Tank | 368 gal (1,393 L) | 368 gal (1,393 L) | 480 gal (1,817 L) |
| DEF Tank | 24 gal (91 L) | 24 gal (91 L) | 24 gal (91 L) |
| Runtime @ 75% Load | 46 hr | 35.5 hr | 32.5 hr |
| Dimensions & Weight (with Running Gear) | |||
| Length | 224.0 in | 224.0 in | 240.0 in |
| Width | 83.2 in | 83.2 in | 83.0 in |
| Height | 102.9 in | 102.9 in | 113.0 in |
| Weight (Ready to Run) | 11,377 lbs | 11,377 lbs | 14,032 lbs |
| Sound @ 23 ft, 100% | 69 dB | 69 dB | 76 dB |
All three run a Cummins QSB7 / QSL9 engine with a powerful, separately-excited brushless alternator and solid-state AVR — increased starting capacity for tower cranes, rock crushers, oilfield and other heavy-duty loads — plus a DualBox enclosure, dual variable-speed cooling fans, highest-grade insulation and 500-hour service intervals. The PG325 steps up to 334 kVA / 267 kW on an 8.9 L engine. Dimensions and weights are for the enclosed unit with running gear (weight is ready-to-run).
PG240 Features & Benefits
Power & Alternator 3
235 kVA — Built for Heavy-Duty Jobs
236 kVA (189 kW) of prime power with impressive starting capacity, designed to bring ease-of-use to heavy-duty jobs and cover all your jobsite needs.
Separately-Excited Brushless Alternators
Separately-excited brushless alternators give the PG240 the motor-starting capability required to power tower cranes, rock crushers and oilfield equipment.
Solid-State Automatic Voltage Regulators
For sensitive applications — concerts, film production and special events — solid-state automatic voltage regulators provide the precise voltage control needed.
Engine & Cooling 3
Powerful Cummins QSB7-G9
A powerful Cummins QSB7-G9 (282 hp / 210 kW, 6-cylinder, 6.7 L, Tier 4 Final) with built-in engine cooling technology for optimum performance across a wide range of working conditions.
Exclusive DualBox™ Enclosure
The exclusive DualBox™ enclosure separates the powertrain from the cooling system, allowing independent control of cooling performance in each compartment.
Dual Variable-Speed + Centrifugal Cooling
Dual variable-speed electric cooling fans maximize sound attenuation and minimize water ingression, while a high-efficiency centrifugal-style fan improves fuel economy.
Serviceability 3
Large Service Doors — Unmatched Access
Large service doors provide unmatched access to all interior components for easy serviceability, with all maintenance points easily accessible and designed for fast, easy service.
Up to 500 Hours Between Services
To maximize uptime and jobsite productivity, the PG240 can go up to 500 hours between fluid and filter changes, minimizing overall maintenance time.
U.S.-Based Support & Local Service
When maintenance and repairs are needed, count on U.S.-based customer support and local service options through Carleton Equipment to keep you up and running.
Versatility & Capacity 3
Multi-Voltage, 50 / 60 Hz Switchable
A Link Board Panel covers single- and three-phase output at 120, 208, 240 and 480 V, with switchable 50/60 Hz frequency for broad equipment compatibility.
36 Hours of Runtime
A 368-gallon (1,393 L) fuel tank delivers 35.5 hours of runtime at 75% load for long shifts and uninterrupted power.
High-Capacity DEF Tank
A high-capacity 24 gal (91 L) DEF tank is sized to match the fuel supply, preventing downtime for refills.
Why Buyers Choose the PG240
236 kVA (189 kW) prime power with impressive starting capacity
Designed for ease-of-use on heavy-duty jobs — large service doors for unmatched access
Separately-excited brushless alternators for tower-crane, rock-crusher and oilfield starting
Powerful Cummins QSB7-G9 with built-in engine cooling for any conditions
Exclusive DualBox™ enclosure separates powertrain from cooling for independent control
Solid-state AVR for precise voltage on sensitive loads
Up to 500 hours between fluid and filter changes for less maintenance time
Multi-voltage Link Board Panel, 50/60 Hz switchable
Who Uses the PG240 and What For
The PG240 delivers 236 kVA of heavy-duty power with brushless alternators built for hard motor starts and large doors for easy service — covering the most demanding industrial jobsites with ease.
- Strong motor starting via brushless alternator
- 235 kVA for high-demand three-phase loads
- Impressive starting capacity for big motors
- Large service doors minimize downtime
- Built to power rock crushers and oilfield gear
- Built-in engine cooling for any conditions
- DualBox™ cooling for high ambient temps
- 500-hour service intervals for uptime
- Solid-state AVR for precise, stable voltage
- Quiet operation at 69 dB(A)
- Clean power for sensitive equipment
- Multi-voltage, 50/60 Hz switchable
What Makes the PG240 Different
Designed to bring ease-of-use to heavy-duty jobs, with the impressive starting capacity to cover all your jobsite needs.
Large service doors provide unmatched access to all interior components — every maintenance point is easily reached for fast, easy service.
Separately-excited brushless alternators deliver the motor-starting capability required for tower cranes, rock crushers and oilfield equipment.
A powerful Cummins QSB7-G9 with built-in engine cooling technology delivers optimum performance across a wide range of working conditions.
The exclusive DualBox™ enclosure separates the powertrain from the cooling system, allowing independent control of cooling performance in each compartment.
Solid-state automatic voltage regulators provide the precise voltage control needed in sensitive applications like concerts, film and special events.
Full Specifications
Power Output
| Prime Power Rating | 236 kVA (189 kW) prime |
| Frequency Capability | 50 / 60 Hz switchable |
| Voltage Configuration | Multi-voltage — Link Board Panel |
| Runtime @ 75% Load | 35.5 hr @ 75% load |
| Sound Level | 69 dB(A) @ 23 ft, 100% load |
| 480 V · 3-phase · 0.8 PF · 60 Hz | 236 kVA (189 kW) · 284 A |
| 240 V · 3-phase · 0.8 PF · 60 Hz | 236 kVA (189 kW) · 568 A |
| 208 V · 3-phase · 0.8 PF · 60 Hz | 219 kVA (175 kW) · 607 A |
| 240 V · single-phase · 1.0 PF · 60 Hz | 136 kVA (136 kW) · 567 A |
| 120 V · single-phase · 1.0 PF · 60 Hz | 136 kVA (136 kW) · 567 × 2 A |
| 400 V · 3-phase · 0.8 PF · 50 Hz | 200 kVA (160 kW) · 289 A |
Engine
| Engine Make | Cummins |
| Engine Model | QSB7-G9 |
| Displacement | 408 cu in (6.7 L) |
| Fuel | Diesel |
| Power Output @ 1,800 rpm | 282 hp (210 kW) @ 1,800 rpm |
| Emissions | Tier 4 Final |
| Cylinders | 6 |
Dimensions & Capacities
| Length | 224 in |
| Width | 83.2 in |
| Height | 102.9 in |
| Operating Weight | 11377 lb |
| Fuel Tank | 368 gal |
| DEF Tank | 24 gal (91 L) |
Standard Equipment
| Voltage Selection | Link Board Panel — single- & three-phase, 120 / 208 / 240 / 480 V |
| Frequency | 50 / 60 Hz switchable |
| Service Access | Large service doors — unmatched access to all interior components for easy serviceability |
| Alternator | Separately-excited, brushless — motor-starting capacity to power tower cranes, rock crushers & oilfield equipment |
| Voltage Regulator | Solid-state automatic voltage regulator — precise control for sensitive applications (concerts, film production, special events) |
| Engine | Powerful Cummins QSB7-G9 with built-in engine cooling technology for optimum performance across a wide range of conditions, Tier 4 Final (T4F) |
| Aftertreatment | DOC / SCR + high-capacity DEF tank — DEF sized to match the fuel supply (no DPF) |
| Enclosure & Cooling | Exclusive DualBox™ — separates powertrain from cooling for independent control; high-efficiency centrifugal cooling fan + two variable-speed electric fans (sound attenuation, reduced water ingression, fuel economy) |
| Service Intervals | Up to 500 hours between fluid & filter changes; easily accessible maintenance points |
| Running Gear | Heavy-duty tandem-axle towable |
Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
