Download Spec Sheet
Get detailed specifications, dimensions, and performance data for this PG190 | Bobcat Portable Power.
|
General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Bobcat |
| Model: | PG190 |
| Machine Type: | Other |
|
Engine
|
|
|---|---|
| Engine: | QSB7-G8 |
| Emissions: | Tier 4 Final |
|
Performance
|
|
|---|---|
| Operating Weight: | 11377 lb |
|
Hydraulics
|
|---|
|
Dimensions
|
|
|---|---|
| Height: | 102.9 in |
| Length: | 224 in |
| Width: | 83.2 in |
| Fuel Tank: | 368 gal |
Description

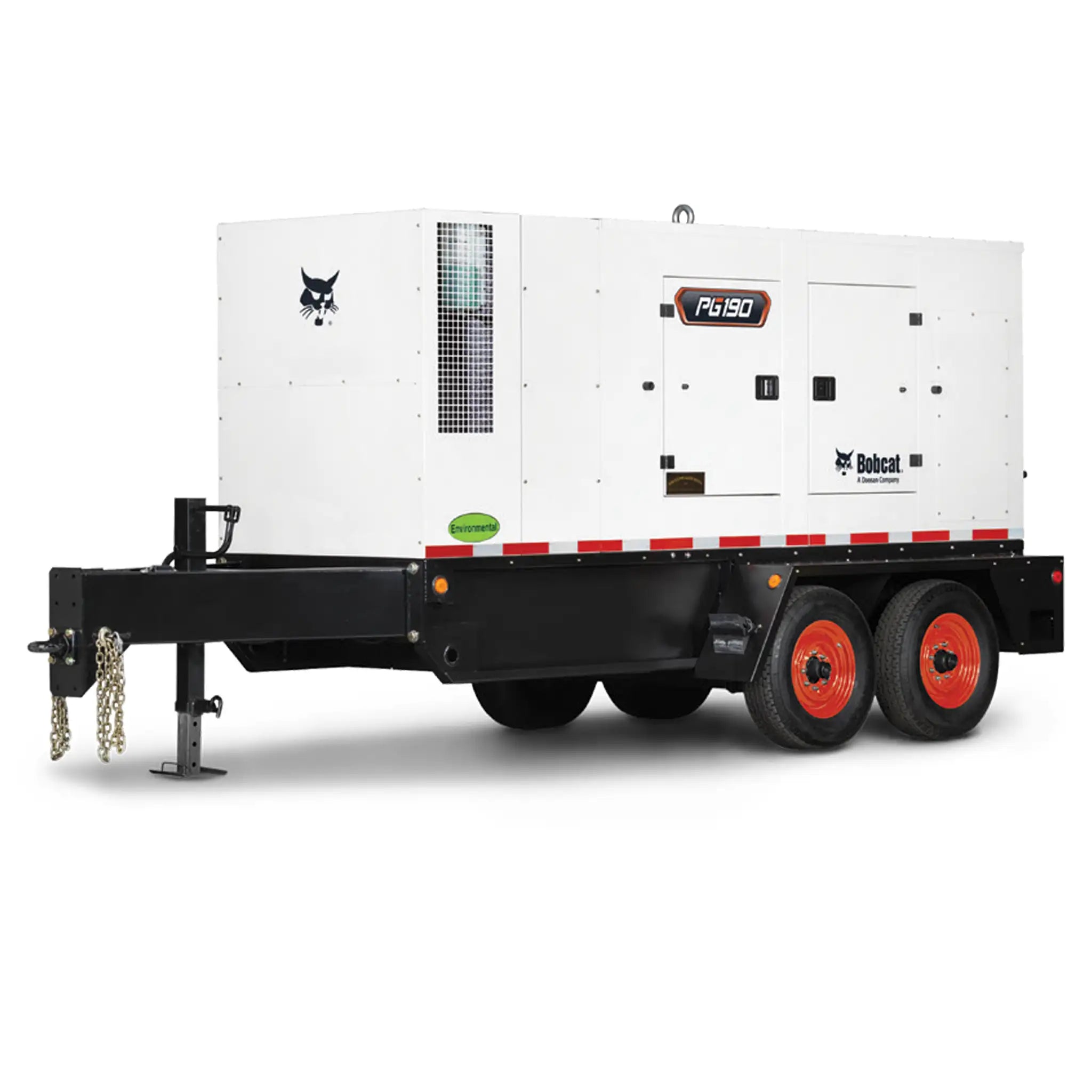

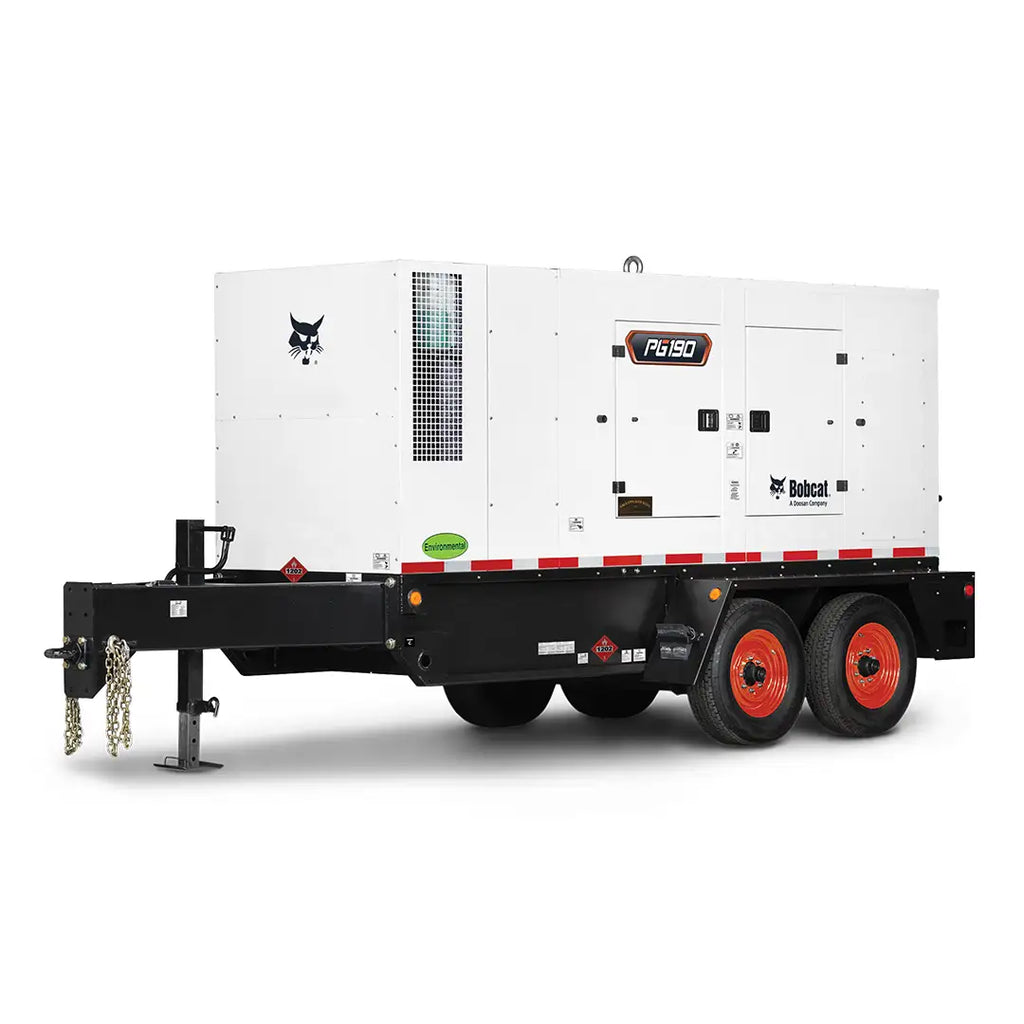

PG190 Portable Generator
The diesel-powered Bobcat® PG190 portable generator (181 kVA/145 kW) from Bobcat delivers reliable power with industry-leading serviceability to maximize uptime and productivity.
- Powered by the rugged Cummins® QSB7-G8 engine
- 181 kVA (145 kW) power output at just 69 dB(A)
- Engineered for easy serviceability in the field
- 500-hour routine maintenance intervals
The Bobcat PG190 portable generator was engineered with operators and technicians in mind. All maintenance points on the generator are easily accessible and designed for fast and easy service on the jobsite. With 500-hour intervals between fluid and filter exchanges, the PG190 maximizes your productivity by minimizing downtime for maintenance.
To further improve serviceability, the PG190 portable generator features the exclusive DualBox™ enclosure design, which separates the powertrain from the cooling system, allowing independent control of the cooling performance in each compartment.
The engine compartment is cooled by dual variable-speed electric cooling fans designed to maximize sound attenuation and minimize water ingression. The cooling compartment features a high efficiency centrifugal-style cooling fan that improves fuel economy and provides the cooling performance needed for the Cummins QSB7-G8 engine.
The high-performance Cummins engine was engineered to deliver a long lifespan. It features an innovative low-load management solution that significantly minimizes sludge buildup that would otherwise bog down and damage the engine.
The Bobcat PG190 comes equipped with separately excited brushless alternators that deliver the motor starting capability required to power tower cranes, rock crushers and oil field equipment. For more sensitive applications, like concerts, film production and special events, the solid-state automatic voltage regulators provide the precise voltage control you need for safe operation. A dual-frequency switch also comes standard on the PG190, giving operators the ability to change from 50 Hz to 60 Hz, further increasing overall versatility.
To ensure long life and resistance to dust and moisture common in mobile generator applications, Bobcat uses the highest-grade insulating materials available to protect your investment and reduce maintenance costs.
What Makes the PG190 Different
181 kVA — Overpower Any Challenge
A heavy-duty 181 kVA (145 kW) prime power source built to overpower any challenge — easily powering tower cranes, rock crushers, oilfield equipment and other demanding applications.
Separately-Excited Brushless Alternators
Separately-excited brushless alternators deliver the motor-starting capability required to power tower cranes, rock crushers and oilfield equipment.
Cummins QSB7-G8 + Low-Load Management
A high-performance Cummins QSB7-G8 engineered for a long lifespan, with an innovative low-load management solution that significantly minimizes the sludge buildup that would otherwise bog down and damage the engine.
Exclusive DualBox™ Enclosure
The exclusive DualBox™ enclosure design separates the powertrain from the cooling system, allowing independent control of the cooling performance in each compartment.
Dual Variable-Speed + Centrifugal Cooling
Dual variable-speed electric cooling fans maximize sound attenuation and minimize water ingression, while a high-efficiency centrifugal-style fan in the cooling compartment improves fuel economy and keeps the QSB7-G8 cool.
Solid-State Automatic Voltage Regulators
For sensitive applications like concerts, film production and special events, solid-state automatic voltage regulators provide the precise voltage control you need for safe operation. A standard dual-frequency switch changes 50 Hz to 60 Hz for even more versatility.
500-Hour Service Intervals
Engineered with operators and technicians in mind: all maintenance points are easily accessible for fast, easy jobsite service, and 500-hour fluid and filter exchange intervals maximize productivity by minimizing downtime.
Highest-Grade Insulation
Bobcat uses the highest-grade insulating materials available to ensure long life and resistance to the dust and moisture common in mobile generator applications — protecting your investment and reducing maintenance costs.
Compare the Extra-Large Generators
 |
 |
 |
|
| PG190Viewing | PG240 | PG325 | |
|---|---|---|---|
| Prime Power Rating | |||
| Prime Power (max) | 181 kVA (145 kW) | 236 kVA (189 kW) | 334 kVA (267 kW) |
| 480 V · 3-phase · 60 Hz | 181 kVA / 145 kW / 218 A | 236 kVA / 189 kW / 284 A | 334 kVA / 267 kW / 401 A |
| 240 V · 3-phase · 60 Hz | 181 kVA / 145 kW / 436 A | 236 kVA / 189 kW / 568 A | 334 kVA / 267 kW / 803 A |
| 208 V · 3-phase · 60 Hz | 181 kVA / 145 kW / 503 A | 219 kVA / 175 kW / 607 A | 316 kVA / 253 kW / 877 A |
| 240 V · single-phase · 60 Hz | 110 kVA / 110 kW / 458 A | 136 kVA / 136 kW / 567 A | 197 kVA / 197 kW / 821 A |
| 120 V · single-phase · 60 Hz | 110 kVA / 110 kW / 458×2 A | 136 kVA / 136 kW / 567×2 A | 197 kVA / 197 kW / 821×2 A |
| 400 V · 3-phase · 50 Hz | 165 kVA / 132 kW / 238 A | 200 kVA / 160 kW / 289 A | 280 kVA / 224 kW / 404 A |
| Voltage Configuration | 3-Position Switch | Link Board Panel | Link Board Panel |
| Frequency | 50 / 60 Hz Switchable | 50 / 60 Hz Switchable | 50 / 60 Hz Switchable |
| Engine | |||
| Make & Model | Cummins QSB7-G8 | Cummins QSB7-G9 | Cummins QSL9-G9 |
| Displacement | 6.7 L | 6.7 L | 8.9 L |
| Cylinders | 6 | 6 | 6 |
| Power Output @ 1,800 rpm | 219 hp (163 kW) | 282 hp (210 kW) | 393 hp (293 kW) |
| Emissions | Tier 4 Final | Tier 4 Final | Tier 4 Final |
| Aftertreatment | DOC / SCR | DOC / SCR | DOC / SCR |
| Usable Fuel Tank | 368 gal (1,393 L) | 368 gal (1,393 L) | 480 gal (1,817 L) |
| DEF Tank | 24 gal (91 L) | 24 gal (91 L) | 24 gal (91 L) |
| Runtime @ 75% Load | 46 hr | 35.5 hr | 32.5 hr |
| Dimensions & Weight (with Running Gear) | |||
| Length | 224.0 in | 224.0 in | 240.0 in |
| Width | 83.2 in | 83.2 in | 83.0 in |
| Height | 102.9 in | 102.9 in | 113.0 in |
| Weight (Ready to Run) | 11,377 lbs | 11,377 lbs | 14,032 lbs |
| Sound @ 23 ft, 100% | 69 dB | 69 dB | 76 dB |
All three run a Cummins QSB7 / QSL9 engine with a powerful, separately-excited brushless alternator and solid-state AVR — increased starting capacity for tower cranes, rock crushers, oilfield and other heavy-duty loads — plus a DualBox enclosure, dual variable-speed cooling fans, highest-grade insulation and 500-hour service intervals. The PG325 steps up to 334 kVA / 267 kW on an 8.9 L engine. Dimensions and weights are for the enclosed unit with running gear (weight is ready-to-run).
PG190 Features & Benefits
Power & Alternator 3
181 kVA — Overpower Any Challenge
Heavy-duty 181 kVA (145 kW) prime power built to easily run tower cranes, rock crushers, oilfield equipment and other demanding applications.
Separately-Excited Brushless Alternators
Separately-excited brushless alternators deliver the motor-starting capability required to power tower cranes, rock crushers and oilfield equipment.
Solid-State Automatic Voltage Regulators
For sensitive applications — concerts, film production and special events — solid-state automatic voltage regulators provide the precise voltage control needed for safe operation.
Engine & Cooling 3
Cummins QSB7-G8 + Low-Load Management
A high-performance Cummins QSB7-G8 (219 hp / 163 kW, 6-cylinder, 6.7 L, Tier 4 Final) engineered for a long lifespan, with low-load management that minimizes the sludge buildup that would otherwise bog down and damage the engine.
Exclusive DualBox™ Enclosure
The exclusive DualBox™ enclosure separates the powertrain from the cooling system, allowing independent control of cooling performance in each compartment.
Dual Variable-Speed + Centrifugal Cooling
Dual variable-speed electric cooling fans maximize sound attenuation and minimize water ingression, while a high-efficiency centrifugal-style fan improves fuel economy and keeps the engine cool.
Serviceability 3
Engineered for Operators & Technicians
All maintenance points are easily accessible and designed for fast, easy service on the jobsite — engineered with operators and technicians in mind.
500-Hour Service Intervals
With 500-hour intervals between fluid and filter exchanges, the PG190 maximizes productivity by minimizing downtime for maintenance.
Highest-Grade Insulation
The highest-grade insulating materials available ensure long life and resistance to the dust and moisture common in mobile applications — protecting your investment and reducing maintenance costs.
Versatility & Capacity 3
Standard Dual-Frequency Switch
A standard dual-frequency switch gives operators the ability to change from 50 Hz to 60 Hz, further increasing overall versatility, with a 3-position multi-voltage selector for single- and three-phase loads.
46 Hours of Runtime
A 368-gallon (1,393 L) fuel tank delivers 46 hours of runtime at 75% load for long shifts and uninterrupted power.
High-Capacity DEF Tank
A high-capacity 24 gal (91 L) DEF tank is sized to match the fuel supply, preventing downtime for refills.
Why Buyers Choose the PG190
181 kVA (145 kW) prime power to overpower any challenge
Separately-excited brushless alternators for tower-crane, rock-crusher and oilfield starting
High-performance Cummins QSB7-G8 with low-load management to minimize sludge
Exclusive DualBox™ enclosure separates powertrain from cooling for independent control
Dual variable-speed + centrifugal cooling fans for quiet, efficient operation
Solid-state AVR for precise voltage on sensitive loads; standard dual-frequency switch
500-hour service intervals with easily accessible maintenance points
Highest-grade insulation for dust/moisture resistance and lower maintenance costs
Who Uses the PG190 and What For
The PG190 delivers 181 kVA of heavy-duty power with brushless alternators built for hard motor starts — engineered for operators and technicians to overpower the most demanding industrial applications.
- Strong motor starting via brushless alternator
- 181 kVA for high-demand three-phase loads
- 46-hour runtime for long shifts
- Easy service to minimize downtime
- Built to power rock crushers and oilfield gear
- DualBox™ cooling for high ambient temps
- Highest-grade insulation for dust & moisture
- 500-hour service intervals for uptime
- Solid-state AVR for precise, stable voltage
- Quiet operation at 69 dB(A)
- Dual-frequency 50/60 Hz switch
- Clean power for sensitive equipment
What Makes the PG190 Different
Heavy-duty power built to overpower any challenge — easily running tower cranes, rock crushers, oilfield equipment and other demanding applications.
Separately-excited brushless alternators deliver the motor-starting capability required for tower cranes, rock crushers and oilfield equipment.
A high-performance Cummins QSB7-G8 engineered for a long lifespan, with low-load management that minimizes the sludge buildup that bogs down and damages engines.
The exclusive DualBox™ enclosure separates the powertrain from the cooling system, allowing independent control of cooling performance in each compartment.
Solid-state automatic voltage regulators give precise voltage for sensitive loads — concerts, film, events — and a standard dual-frequency switch changes 50 to 60 Hz.
Engineered for operators and technicians — easily accessible maintenance points and 500-hour fluid & filter intervals maximize uptime.
Full Specifications
Power Output
| Prime Power Rating | 181 kVA (145 kW) prime |
| Frequency Capability | 50 / 60 Hz switchable |
| Voltage Configuration | Multi-voltage — 3-position switch |
| Runtime @ 75% Load | 46 hr @ 75% load |
| Sound Level | 69 dB(A) @ 23 ft, 100% load |
| 480 V · 3-phase · 0.8 PF · 60 Hz | 181 kVA (145 kW) · 218 A |
| 240 V · 3-phase · 0.8 PF · 60 Hz | 181 kVA (145 kW) · 436 A |
| 208 V · 3-phase · 0.8 PF · 60 Hz | 181 kVA (145 kW) · 503 A |
| 240 V · single-phase · 1.0 PF · 60 Hz | 110 kVA (110 kW) · 458 A |
| 120 V · single-phase · 1.0 PF · 60 Hz | 110 kVA (110 kW) · 458 × 2 A |
| 400 V · 3-phase · 0.8 PF · 50 Hz | 165 kVA (132 kW) · 238 A |
Engine
| Engine Make | Cummins |
| Engine Model | QSB7-G8 |
| Displacement | 408 cu in (6.7 L) |
| Fuel | Diesel |
| Power Output @ 1,800 rpm | 219 hp (163 kW) @ 1,800 rpm |
| Emissions | Tier 4 Final |
| Cylinders | 6 |
Dimensions & Capacities
| Length | 224 in |
| Width | 83.2 in |
| Height | 102.9 in |
| Operating Weight | 11377 lb |
| Fuel Tank | 368 gal |
| DEF Tank | 24 gal (91 L) |
Standard Equipment
| Voltage Selection | 3-position switch — single- & three-phase, 120 / 208 / 240 / 480 V |
| Frequency | 50 / 60 Hz switchable |
| Alternator | Powerful separately-excited, brushless — increased starting capacity to power tower cranes, rock crushers, oilfield & other heavy-duty equipment |
| Voltage Regulator | Solid-state automatic voltage regulator — precise control for sensitive applications (concerts, film production, special events) |
| Engine | High-performance Cummins QSB7-G8 with innovative low-load management (minimizes sludge buildup), Tier 4 Final (T4F) |
| Aftertreatment | DOC / SCR + high-capacity DEF tank — DEF sized to match the fuel supply (no DPF) |
| Enclosure & Cooling | Exclusive DualBox™ — separates powertrain from cooling for independent control; high-efficiency centrifugal cooling fan + two variable-speed electric fans (sound attenuation, reduced water ingression) |
| Insulation | Highest-grade insulating materials — long life, dust & moisture resistance for mobile applications |
| Service Intervals | 500-hour fluid & filter exchange intervals; easy access to key maintenance points |
| Running Gear | Heavy-duty tandem-axle towable |
Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
