DL200-7 | Develon


Option: Standard Arm

Download Spec Sheet:

Download
General Info
Condition: Showroom
Manufacturer: Develon
Model: DL200-7
Machine Type: Wheel Loader
Engine
Engine: 1204F
Engine Make: Perkins
Horsepower: 142.0
Performance
Operating Weight: 26559 lb
Hydraulics
Dimensions
Height: 10' 10"
Length: 23' 6"
Fuel Tank: 62.1 gal.

Description

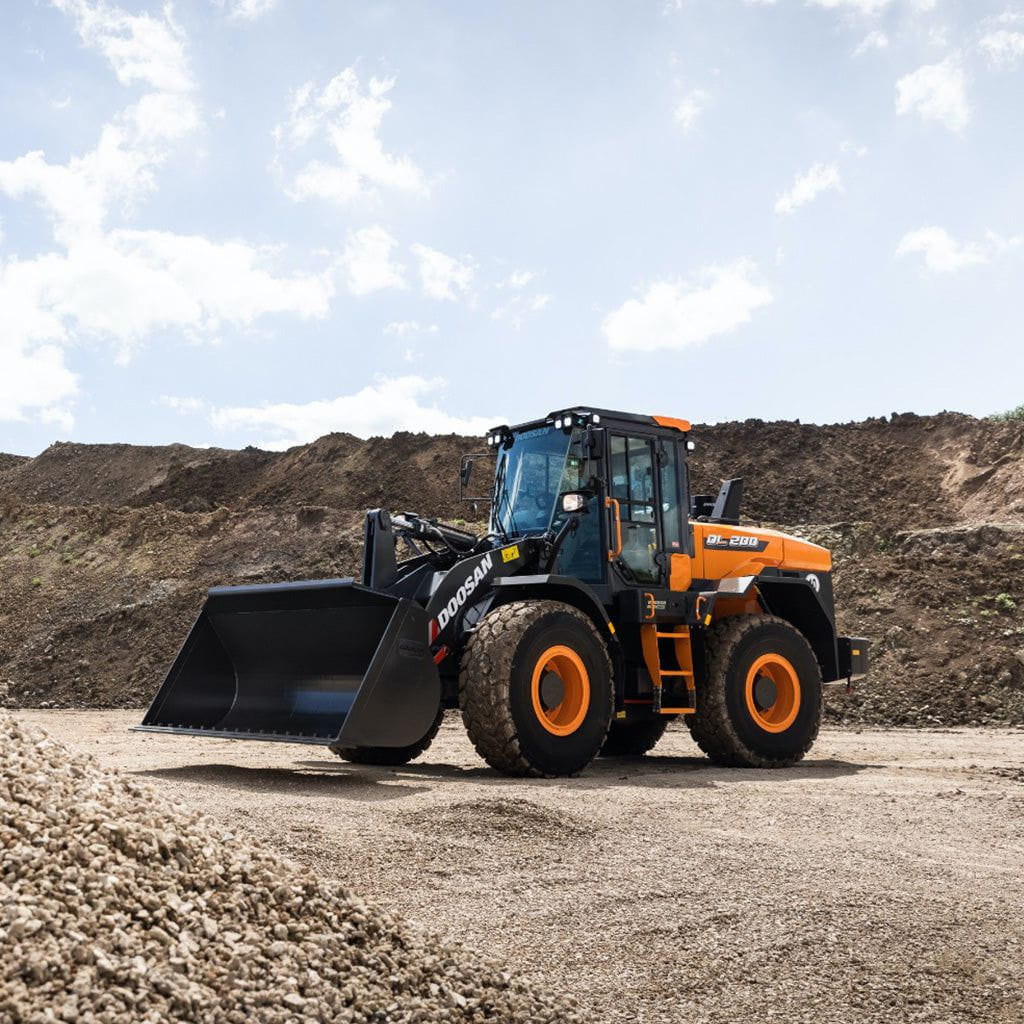

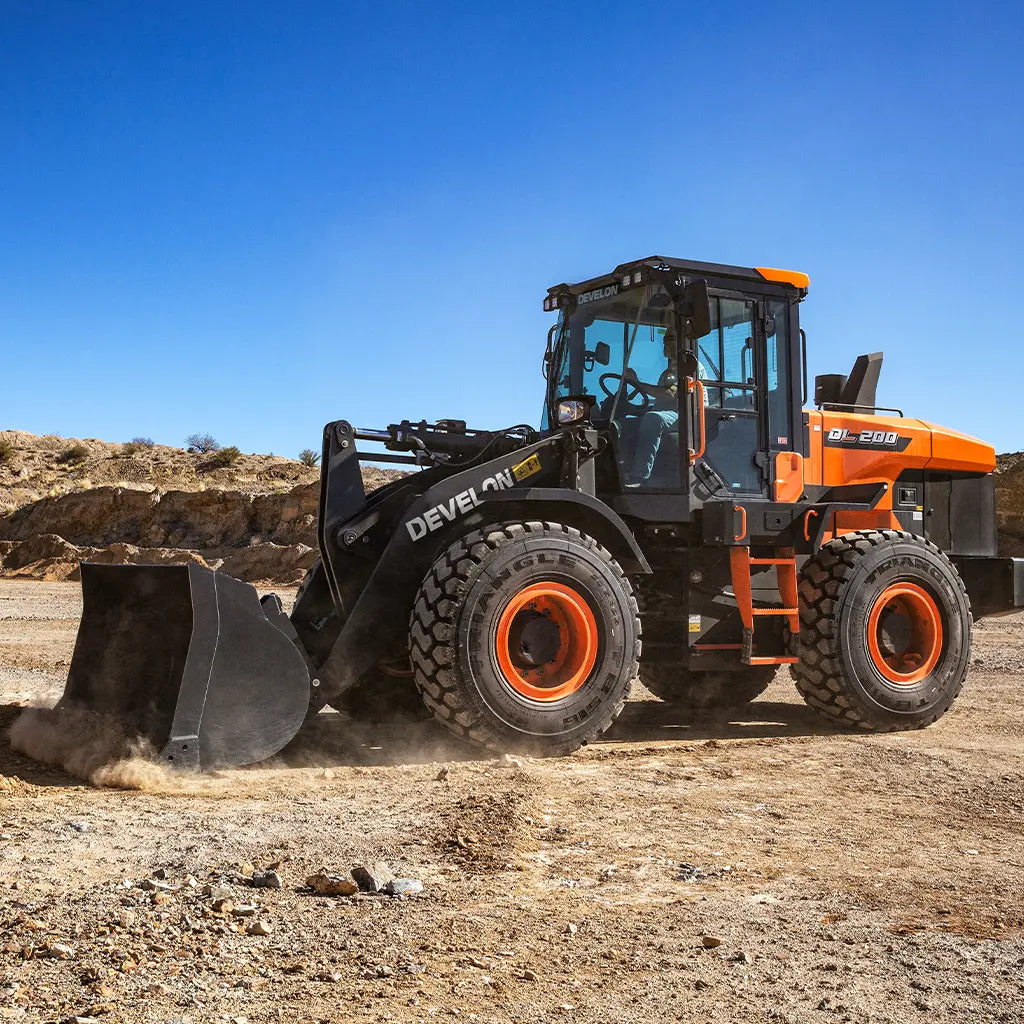

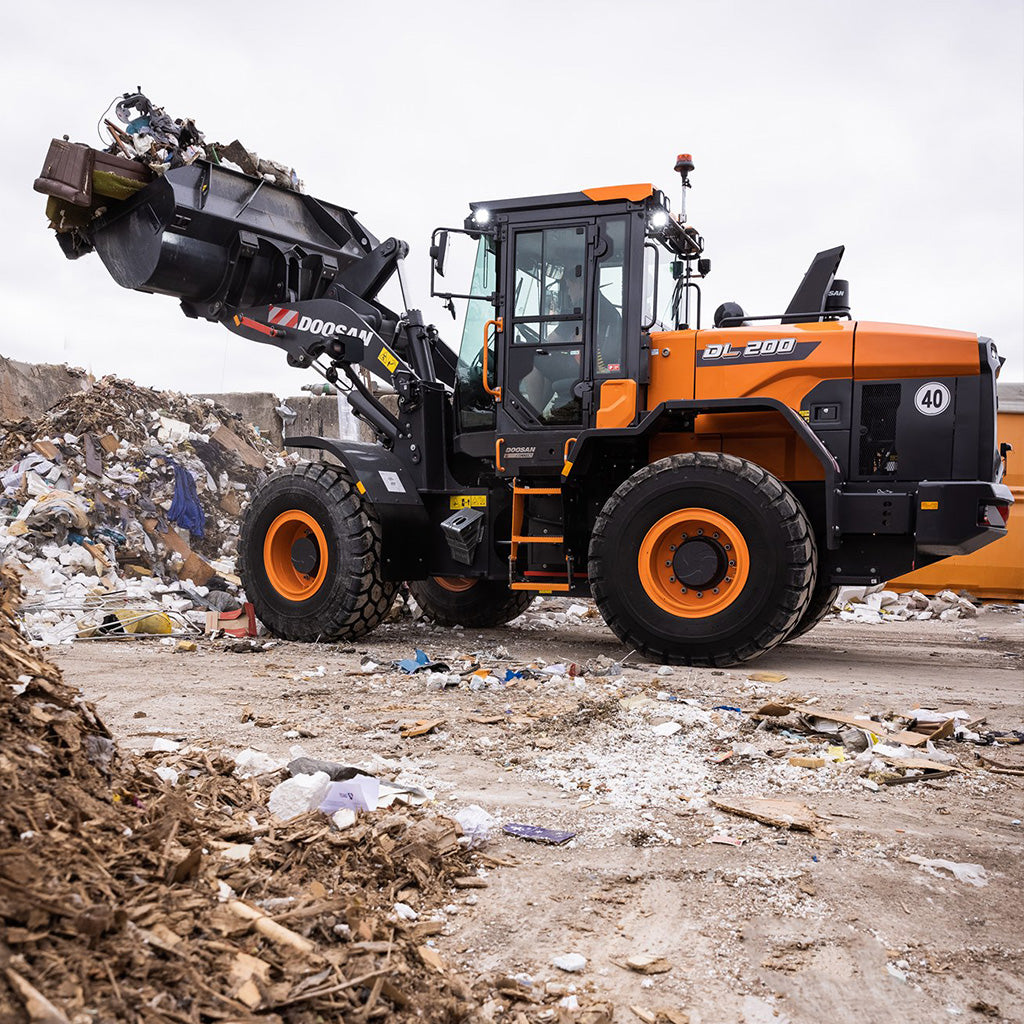

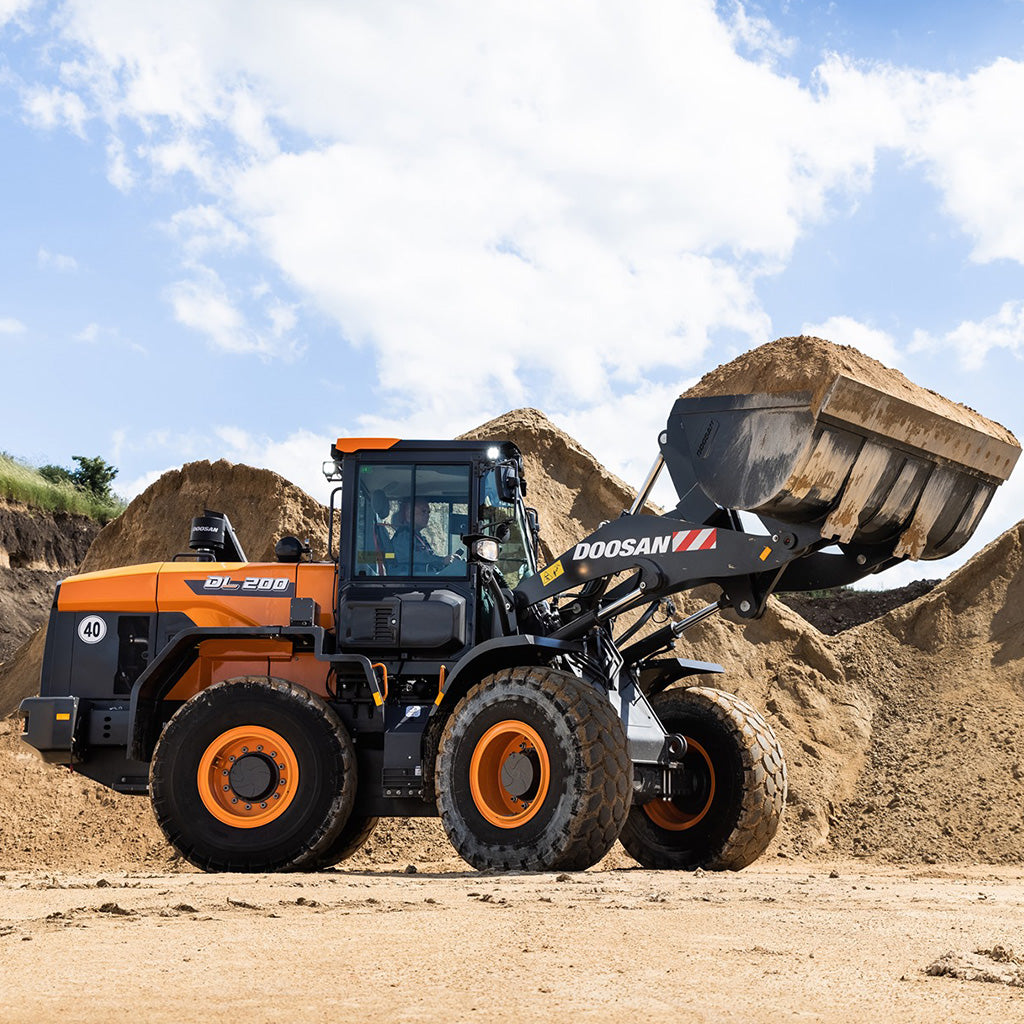

Develon DL200-7 Wheel Loader

The rugged 2.6-cubic-yard DEVELON DL200-7 wheel loader is ideally sized and equipped for construction and agriculture work and snow removal. It features a hydrostatic transmission (HST) for enhanced fuel efficiency, machine positional control and reduced wear on the brakes.

Limited slip differentials are included on both front and rear axles. The high-lift option provides easier loading of materials into high-sided trucks, hoppers and mixers.

An optional Load Isolation System improves stability while the machine is moving to reduce material loss.

Add the optional quick coupler to quickly change non-hydraulic attachments.

Configuration US10 - Standard US20 - High Lift
Model 1204F
Rate Flywheel Power (Gross) 142.1 hp @ 2,200 rpm
Rated Horse Power (Net) 142.1 hp @ 2,200 rpm
Max Torque (Net) 413 lbf @ 1,400 rpm
Engine Emissions Tier (EPA) Tier 5
Engine After Treatment CEGR+DOC+SCR with DEF
Engine Make Perkins
Number of Cylinders 4
Engine Displacement 269 in³
Configuration US10 - Standard US20 - High Lift
MAIN PUMP: DISPLACEMENT 4.52 in³/rev
SYSTEM PRESSURE: WORK 3843 psi
MAIN PUMP: MAX. FLOW RATE (EACH) 40.95 gal/min
MAIN PUMP: QUANTITY 1
MAIN PUMP: MAIN RELIEF PRESSURE 3843 psi
TOTAL CYCLE TIME 9.8 s (±0.3 s)
Configuration US10 - Standard US20 - High Lift
TRAVEL PERFORMANCE: GRADEABILITY 30 ° @ 58 %
TRAVELING PERFORMANCE: MAX. TRACTIVE EFFORT 18,298 lb
Configuration US10 - Standard US20 - High Lift
OPERATING WEIGHT 26,559 lb. 26,969 lb.
Configuration US10 - Standard US20 - High Lift
BUCKET CAPACITY 2.62 yd³
BUCKET WIDTH 8' 4"
HINGE PIN HEIGHT 12' 3" 13' 9"
DUMP REACH AT 45° (FULLY RAISED) 3' 3" 3' 3"
DUMP HEIGHT AT 45° (FULLY RAISED) 9' 0" 10' 7"
OVERALL HEIGHT 10' 10"
OVERALL LENGTH 23' 6" 24' 11"
WHEEL BASE 9' 9"
GROUND CLEARANCE 1' 5"
EXTERNAL TURNING RADIUS AT BUCKET EDGE 19' 1" 19' 9"
STATIC TIPPING LOAD (STRAIGHT) 22,315 lb. 18,373 lb.
STATIC TIPPING LOAD (FULL TURN) 19,705 lb. 16,224 lb.
BREAKOUT FORCE 21,806 lb. 22,031 lb.
REAR AXLE OSCILLATION 22°
DIGGING DEPTH 2.0" 7.0"

Built for Challenging Work Conditions

Heavy-duty Dana axles help lift larger loads, and a larger counterweight is an available option. The DL200-7 features wider radiator fin spacing and a standard reversible fan to clear dirt, dust and other large debris and help prevent clogging.

The durable box frame and articulating design offer excellent load distribution and rigidity.

A deeper front fender delivers additional wheel coverage for better windshield protection. A rear full fender is optional for improved machine reliability.

Smooth, Easy Operation

The hydrostatic transmission enables a variety of features that result in smooth, easy operation.

You can easily fine-tune the machine’s position without pressing the accelerator pedal using the convenient creep function.

Variable speed control with seven preset speeds within first gear delivers more control when doing precision work.

Load-sensing hydraulics adjust hydraulic flow to optimal levels based on working conditions for improved fuel efficiency.

Use the traction control management system to easily adjust traction force to match jobsite conditions for more efficient operation in digging, stockpiling and loading applications.
