DL220-7 | Develon

Download Spec Sheet:

Download
General Info
Condition: Showroom
Manufacturer: Develon
Model: DL220-7
Machine Type: Wheel Loader
Engine
Horsepower: 160.0
Performance
Operating Weight: 29095 lb
Hydraulics
Dimensions
Height: 10' 10"
Length: 24' 5"
Width: 8' 1"
Fuel Tank: 62.1 gal.

Description

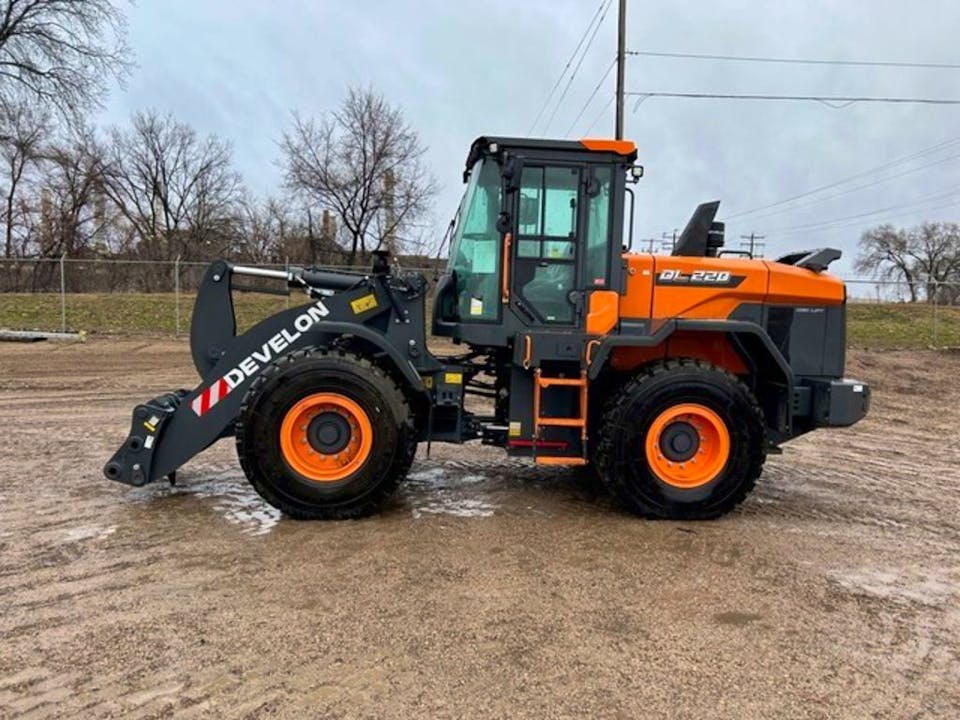

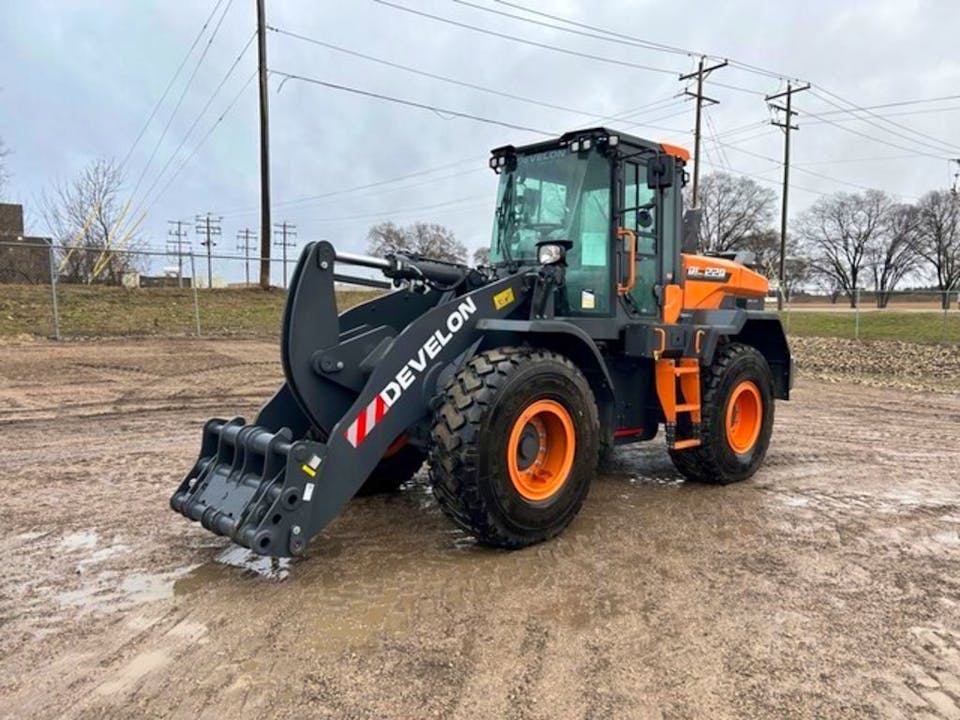

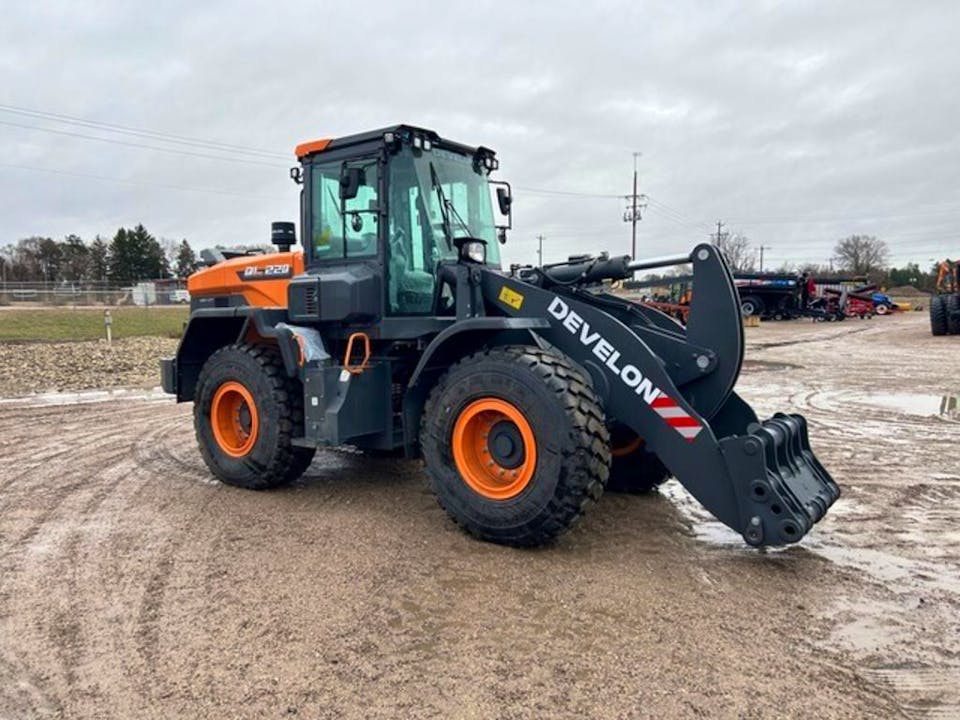

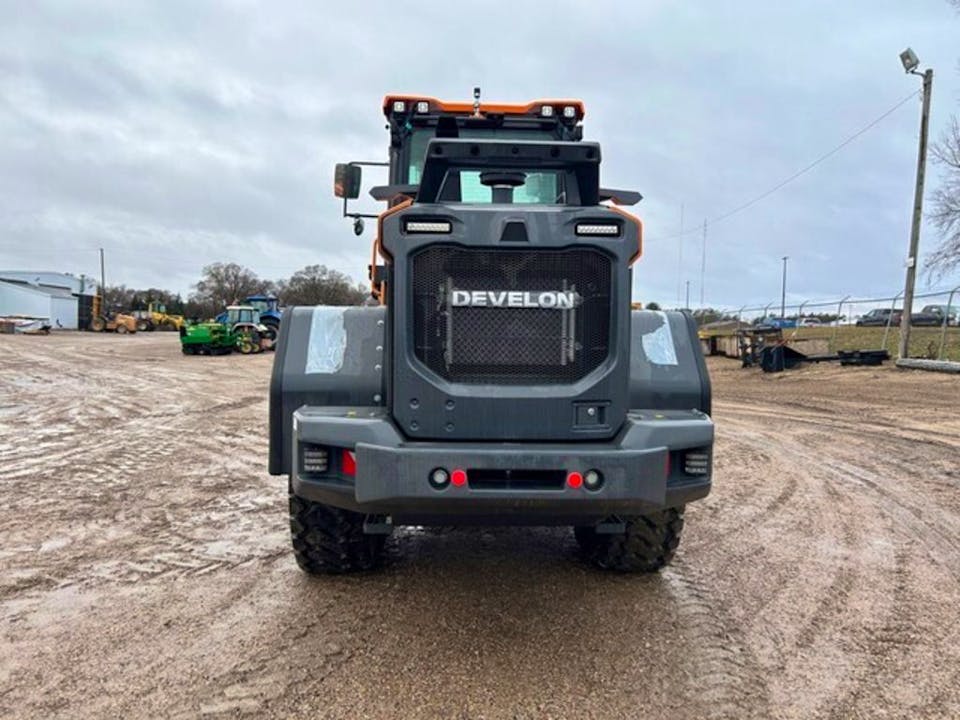

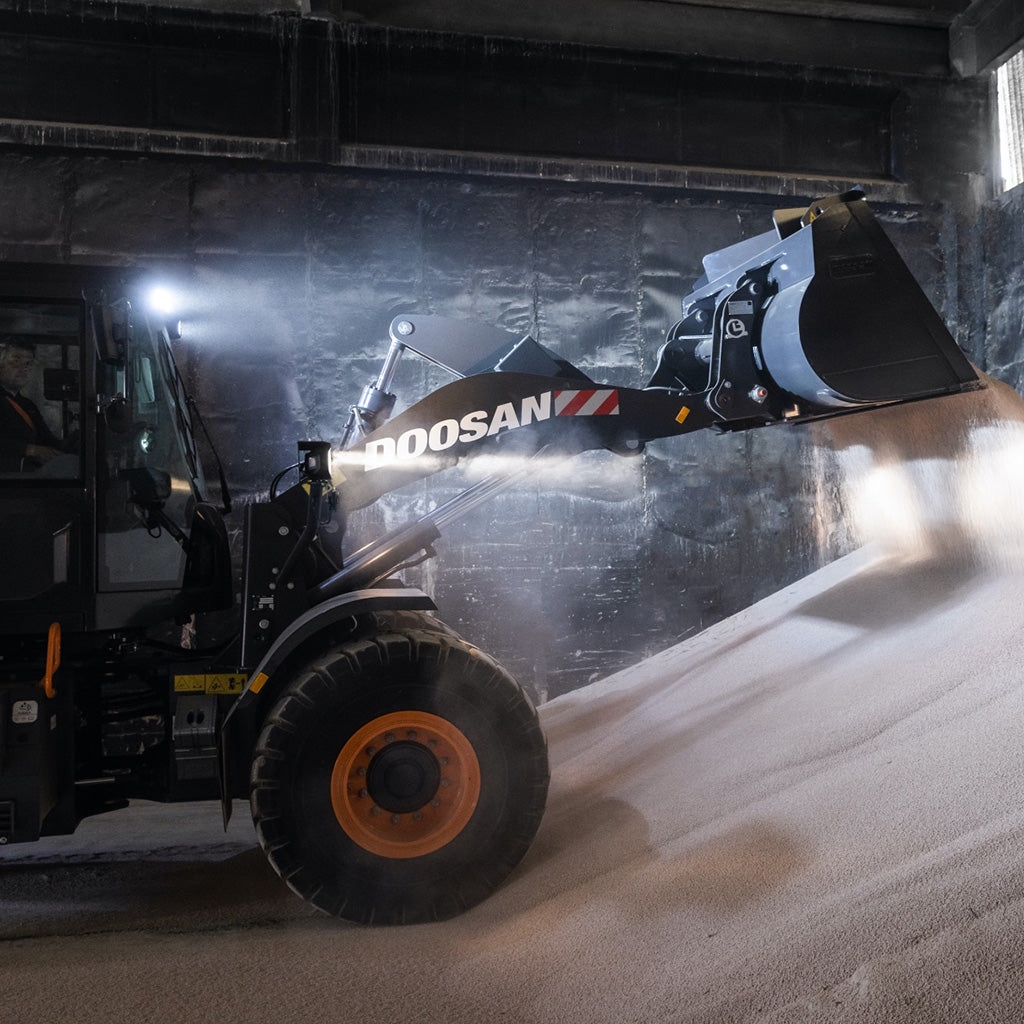

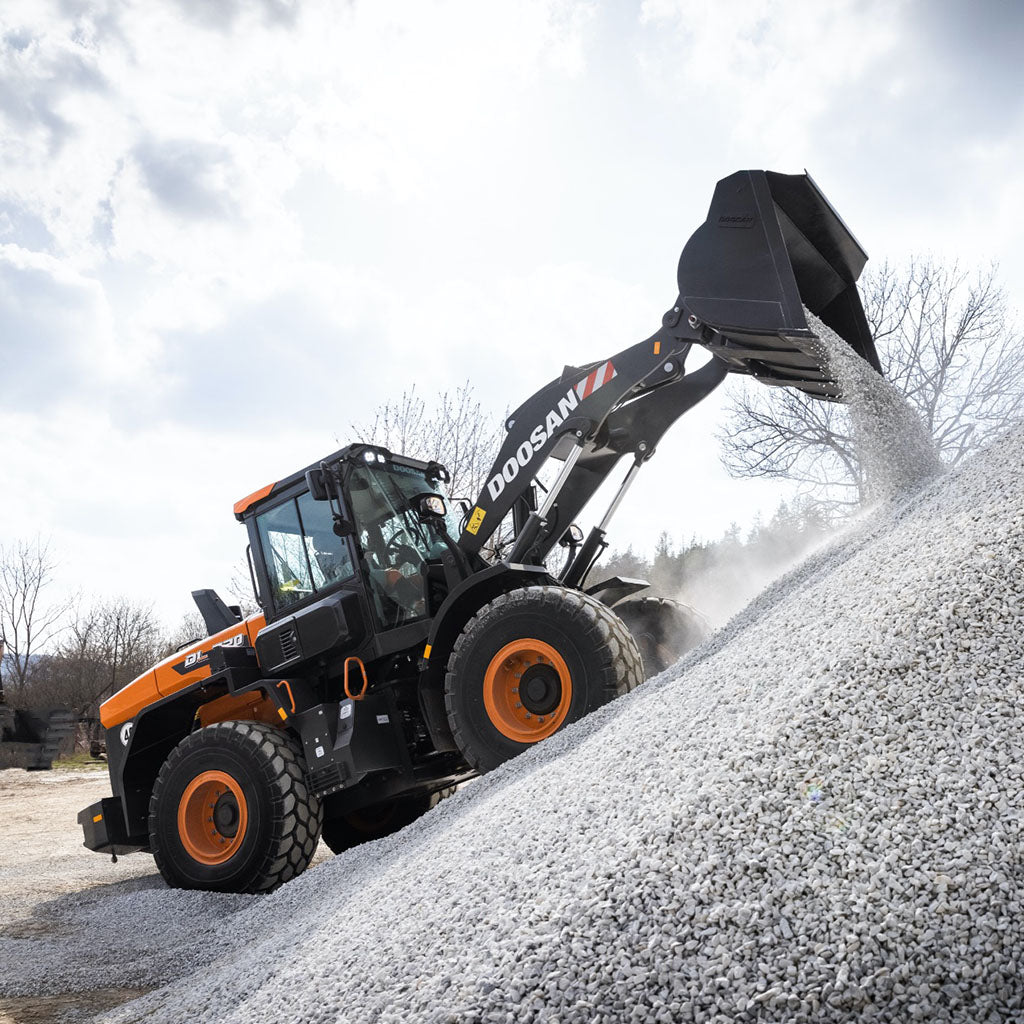

Develon DL220-7 Wheel Loader

The DEVELON DL220-7 wheel loader offers the durability and maneuverability needed for carrying and loading materials on rugged ag and construction worksites. The heavy-duty axles offer impressive lift capacities, and an optional larger counterweight further enhances performance.

The box frame boasts added strength, while an articulating design ensures excellent load distribution and rigidity. To reduce clogging, wider radiator fin spacing and the standard reversible fan clear dirt, dust and other large debris.

A deeper front fender offers additional wheel coverage, and an optional rear full fender also improves machine reliability.

Configuration US10 US11 US15 US20 US21
Model DL06
Rate Flywheel Power (Gross) 159.6 hp @ 2,100 rpm
Rated Horse Power (Net) 159.6 hp @ 2,100 rpm
Max Torque (Net) 543 lbf @ 1,400 rpm
Engine Emissions Tier (EPA) Tier 4
Engine After Treatment CEGR+DOC+SCR with DEF
Engine Make Doosan
Number of Cylinders 6
Engine Displacement 359 in³
Configuration US10 US11 US15 US20 US21
MAIN PUMP: DISPLACEMENT 4.52 in³/rev
SYSTEM PRESSURE: WORK 3626 psi
MAIN PUMP: MAX. FLOW RATE (EACH) 40.95 gal/min
MAIN PUMP: QUANTITY 1
MAIN PUMP: MAIN RELIEF PRESSURE 3626 psi
TOTAL CYCLE TIME 11.4 s (±0.3 s)
Configuration US10 US11 US15 US20 US21
TIRE SIZE 20.5R25, L3
TREAD WIDTH 6' 3"
Configuration US10 US11 US15 US20 US21
TRAVEL PERFORMANCE: GRADEABILITY 30 ° @ 58 %
TRAVELING PERFORMANCE: MAX. TRACTIVE EFFORT 24,912 lb
Configuration US10 US11 US15 US20 US21
OPERATING WEIGHT 28,922 lb. 28,922 lb. 28,922 lb. 29,463 lb. 29,463 lb.
Configuration US10 US11 US15 US20 US21
BUCKET CAPACITY 3.01 yd³
BUCKET WIDTH 8' 4"
HINGE PIN HEIGHT 12' 7" 12' 7" 12' 7" 14' 1" 14' 1"
DUMP REACH AT 45° (FULLY RAISED) 3' 6" 3' 6" 3' 6" 3' 4" 3' 4"
DUMP HEIGHT AT 45° (FULLY RAISED) 9' 2" 9' 2" 9' 2" 10' 8" 10' 8"
OVERALL HEIGHT 10' 10"
OVERALL LENGTH 24' 5" 24' 5" 24' 5" 25' 8" 25' 8"
WHEEL BASE 10'
GROUND CLEARANCE 1' 5"
EXTERNAL TURNING RADIUS AT BUCKET EDGE 19' 7" 19' 7" 19' 7" 20' 2" 20' 2"
STATIC TIPPING LOAD (STRAIGHT) 23,210 lb. 23,210 lb. 23,210 lb. 19,520 lb. 19,520 lb.
STATIC TIPPING LOAD (FULL TURN) 20,461 lb. 20,461 lb. 20,461 lb. 17,207 lb. 17,207 lb.
BREAKOUT FORCE 21,537 lb. 21,537 lb. 21,537 lb. 21,649 lb. 21,649 lb.
REAR AXLE OSCILLATION 22°
DIGGING DEPTH 2.0" 2.0" 2.0" 5.0" 5.0"
Configuration US10 US11 US15 US20 US21
FUEL TANK 62.08 gal.
COOLING SYSTEM 8.98 gal.
HYRDAULIC SYSTEM 31.7 gal.
HYDRAULIC TANK 22.45 gal.
DEF/AD BLUE TANK 7.93 gal.
