Develon
Option: Standard Arm
Stock:
In stock

Download Spec Sheet

Get detailed specifications, dimensions, and performance data for this DL320-7 | Develon.

Download Spec Sheet →
General Info
Condition: Showroom
Manufacturer: Develon
Model: DL320-7
Machine Type: Wheel Loader
Engine
Horsepower: 271.0
Performance
Operating Weight: 43506 lb
Hydraulics
Dimensions
Height: 11' 6"
Length: 27' 2"
Width: 9' 10"
Fuel Tank: 76.9 gal.

Description

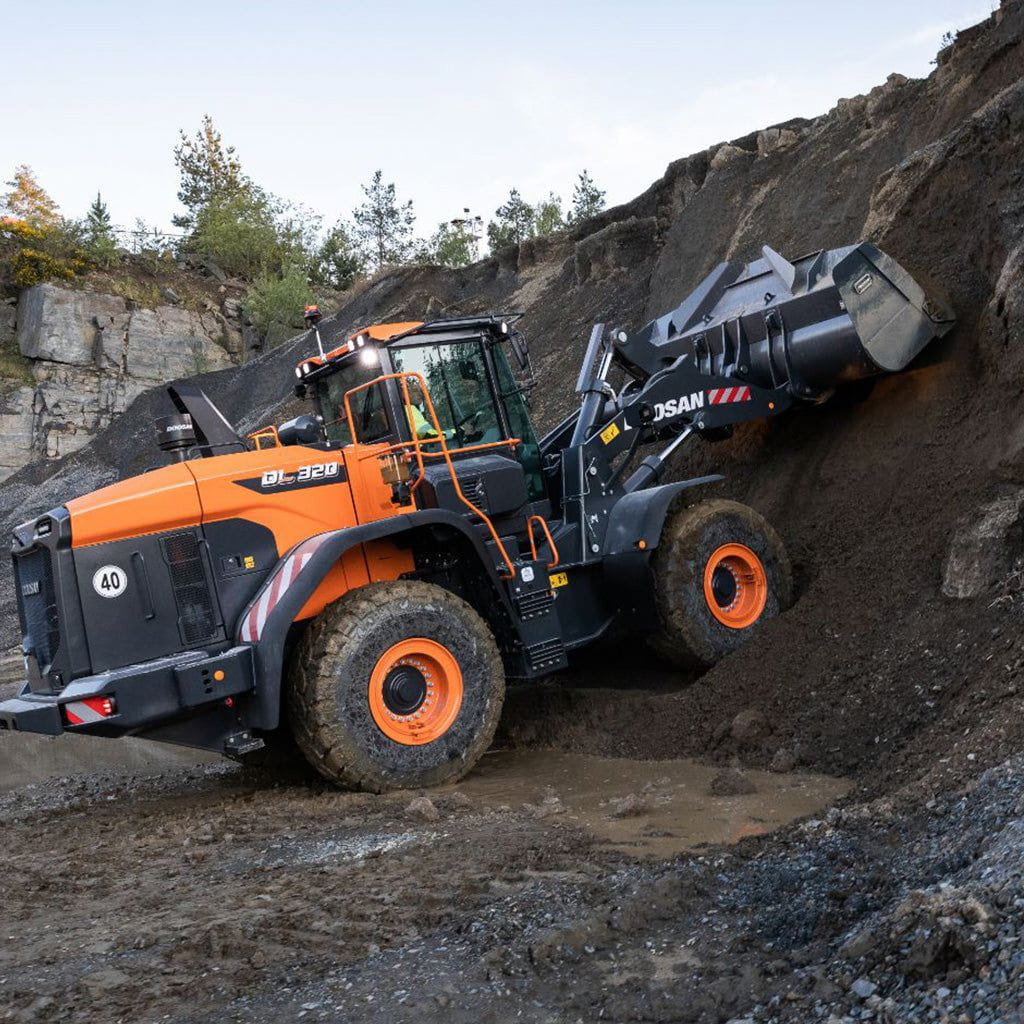

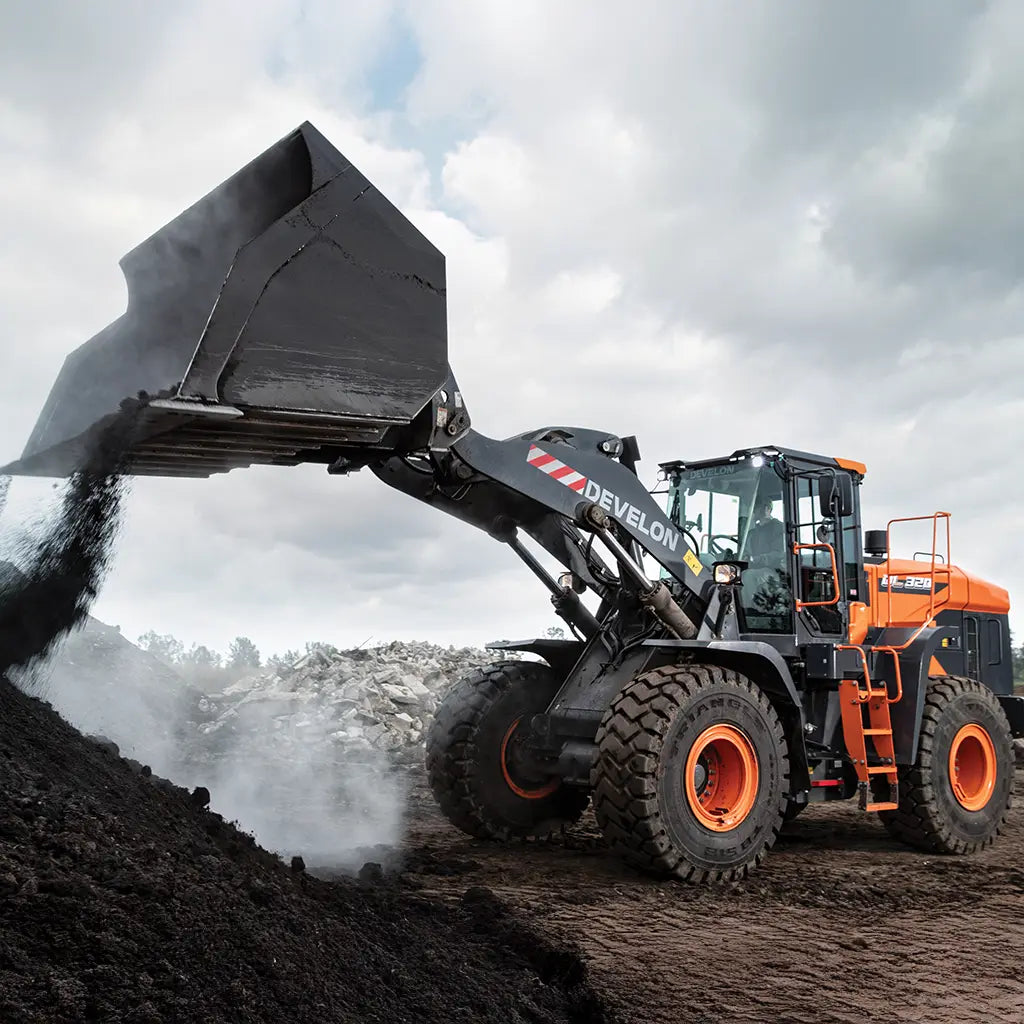

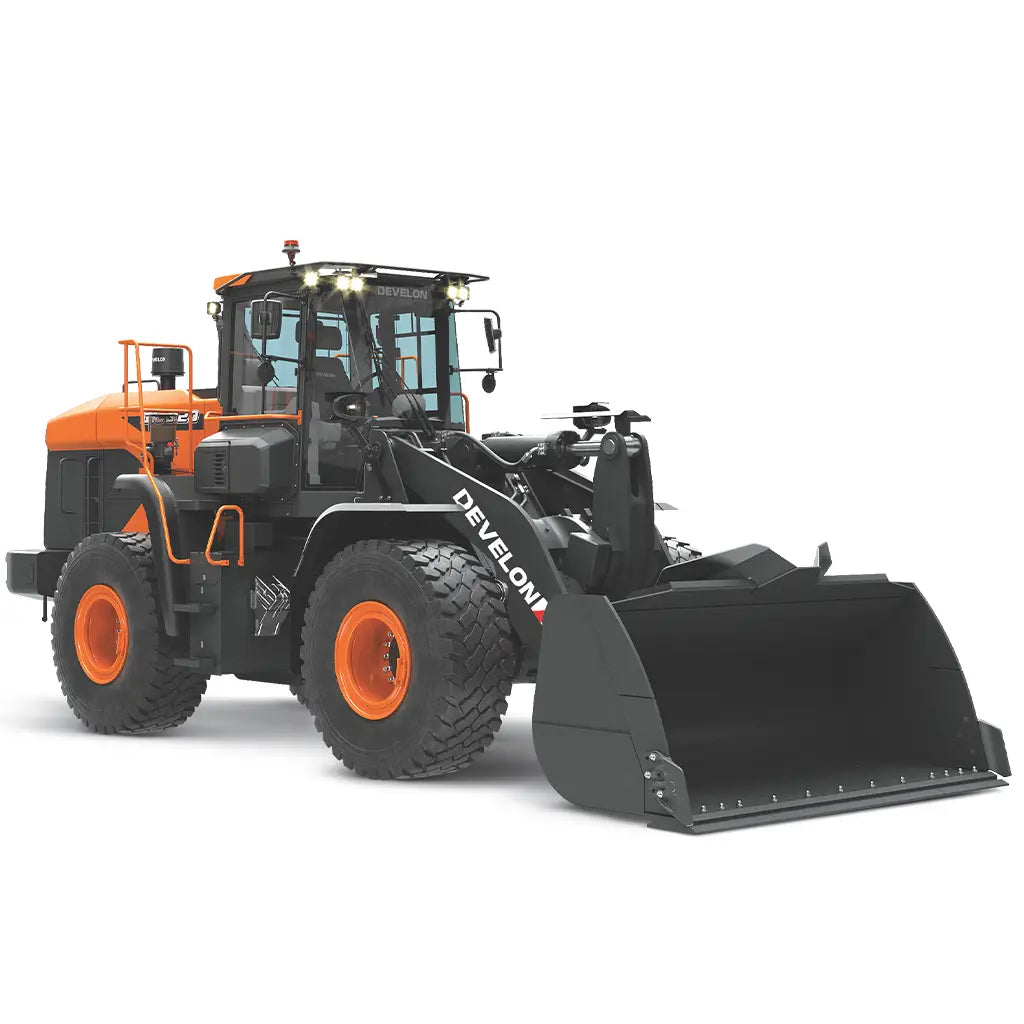

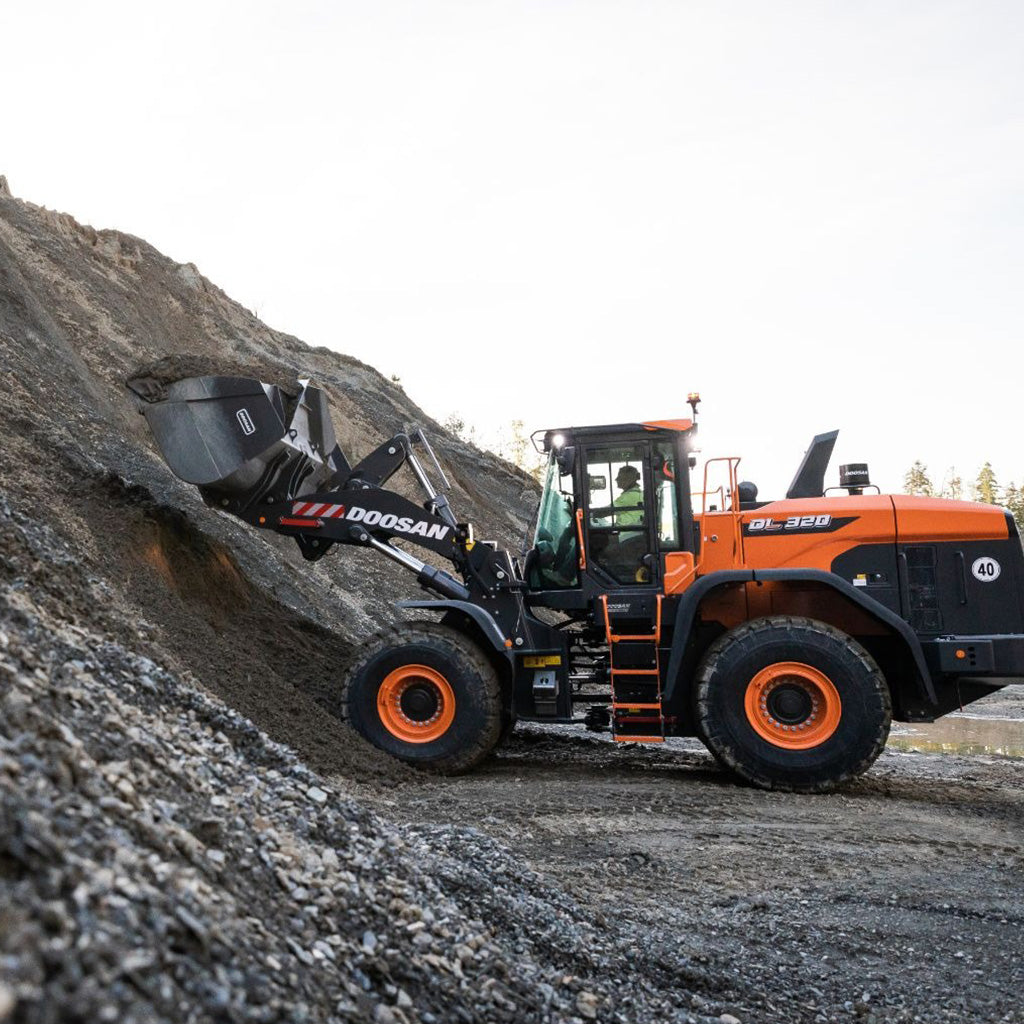

Develon DL320-7 Wheel Loader

Description

Get big performance for mid-size applications to move more material every hour with the DEVELON DL320-7. The 7% larger capacity bucket and axle upgrades help you carry and lift larger loads.

Standard features include powershift 4-speed transmission, multiple power modes, Z-bar lift arm, return to dig and limited slip differentials. Reinforced box frame is designed to endure harsh working environments. The improved cooling system features wider radiator fin spacing and a reversible fan to clear debris and reduce clogging. The wider front fender offers better windshield protection.

Configuration US10 US11 US20 US21 US50 US51
Model DL08
Rate Flywheel Power (Gross) 271 hp @ 1,800 rpm
Rated Horse Power (Net) 271 hp @ 1,800 rpm
Max Torque (Net) 940 lbf @ 1,300 rpm
Engine Emissions Tier (EPA) Tier 4
Engine After Treatment DOC+SCR
Engine Make Doosan
Number of Cylinders 6
Engine Displacement 452 in³
Configuration US10 US11 US20 US21 US50 US51
MAIN PUMP: DISPLACEMENT 4.52 in³/rev
SYSTEM PRESSURE: WORK 3626 psi
MAIN PUMP: MAX. FLOW RATE (EACH) 38 gal/min
MAIN PUMP: QUANTITY 1
MAIN PUMP: MAIN RELIEF PRESSURE 3626 psi
Configuration US10 US11 US20 US21 US50 US51
TIRE SIZE 23.5R25, L3
TREAD WIDTH 7' 0"
Configuration US10 US11 US20 US21 US50 US51
TRAVEL PERFORMANCE: GRADEABILITY 51 ° @ 27 %
TRAVELING PERFORMANCE: MAX. TRACTIVE EFFORT 41,006 lb
Configuration US10 US11 US20 US21 US50 US51
OPERATING WEIGHT 43,506 lb. 43,506 lb. 45,261 lb. 45,261 lb. 43,506 lb. 43,506 lb.
Configuration US10 US11 US20 US21 US50 US51
BUCKET CAPACITY 4.5 yd³
BUCKET WIDTH 9' 6"
HINGE PIN HEIGHT 13' 8" 13' 8" 15' 4" 15' 4" 13' 8" 13' 8"
DUMP REACH AT 45° (FULLY RAISED) 4' 0" 4' 0" 4' 8" 4' 8" 4' 0" 4' 0"
DUMP HEIGHT AT 45° (FULLY RAISED) 10' 0" 10' 0" 11' 9" 11' 9" 10' 0" 10' 0"
OVERALL HEIGHT 11' 6"
OVERALL LENGTH 27' 11"
WHEEL BASE 10' 9"
GROUND CLEARANCE 13' 1"
EXTERNAL TURNING RADIUS AT BUCKET EDGE 21' 7" 21' 7" 22' 7" 22' 7" 21' 7" 21' 7"
STATIC TIPPING LOAD (STRAIGHT) 34,496 lb. 34,496 lb. 26,312 lb. 26,312 lb. 34,496 lb. 34,496 lb.
STATIC TIPPING LOAD (FULL TURN) 30,461 lb. 30,461 lb. 23,230 lb. 23,230 lb. 30,461 lb. 30,461 lb.
BREAKOUT FORCE 35,295 lb. 35,295 lb. 34,396 lb. 34,396 lb. 35,295 lb. 35,295 lb.
REAR AXLE OSCILLATION 24°
DIGGING DEPTH 3.0" 3.0" 5.0" 5.0" 3.0" 3.0"
Configuration US10 US11 US20 US21 US50 US51
FUEL TANK 76.87 gal.
COOLING SYSTEM 11.89 gal.
HYRDAULIC SYSTEM 45.7 gal.
HYDRAULIC TANK 30.91 gal.
DEF/AD BLUE TANK 16.38 gal.

Full Specifications

Download Spec Sheet
General
ConditionShowroom
Machine TypeWheel Loader
Engine
Horsepower271.0
Performance
Hydraulics
Dimensions & Weight
Height11' 6"
Length27' 2"
Width9' 10"
Operating Weight43506 lb
Fuel Tank76.9 gal.

Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
