Develon
Option: Standard Arm
Stock:
In stock

Download Spec Sheet

Get detailed specifications, dimensions, and performance data for this DL250-7 | Develon.

Download Spec Sheet →
General Info
Condition: Showroom
Manufacturer: Develon
Model: DL250-7
Machine Type: Wheel Loader
Engine
Horsepower: 172.0
Performance
Operating Weight: 30528 lb
Hydraulics
Dimensions
Height: 10' 10"
Length: 24' 6"
Width: 8' 5"
Fuel Tank: 62.1 gal.

Description

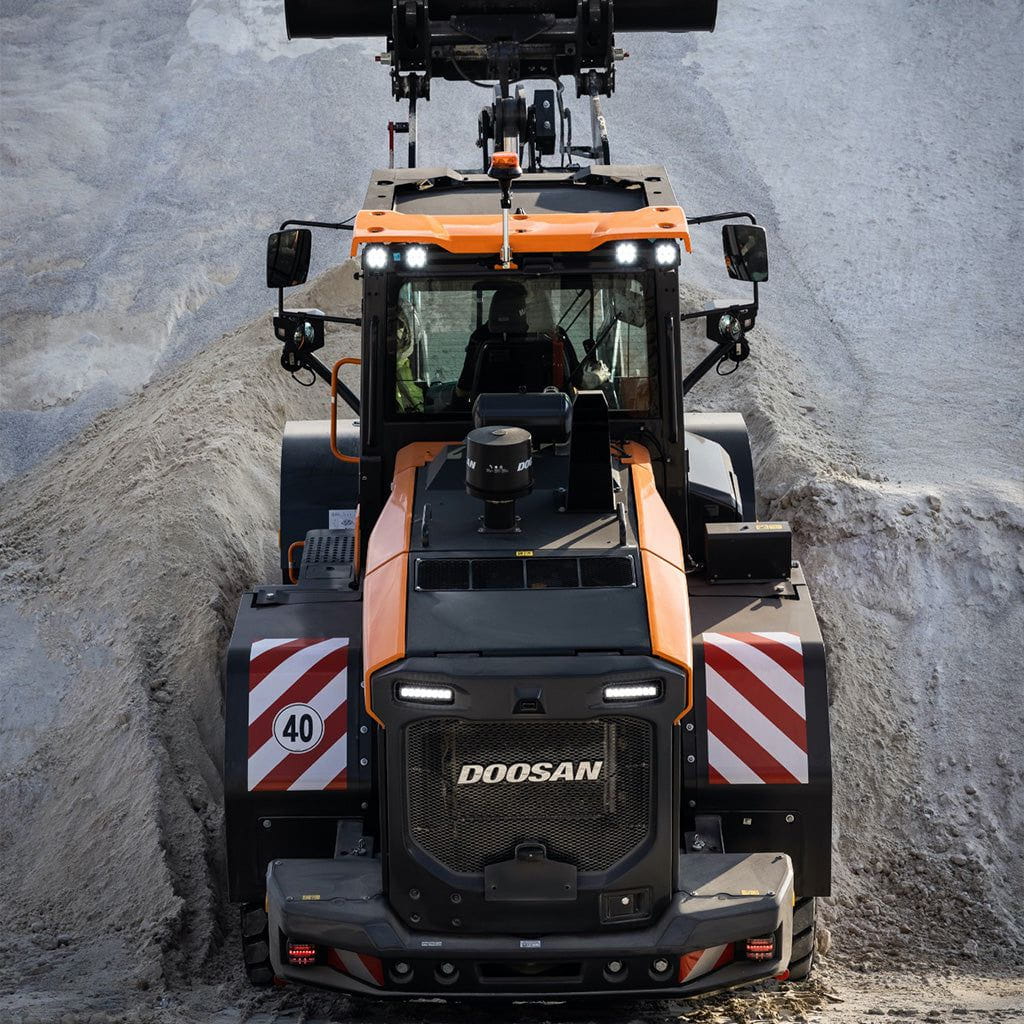

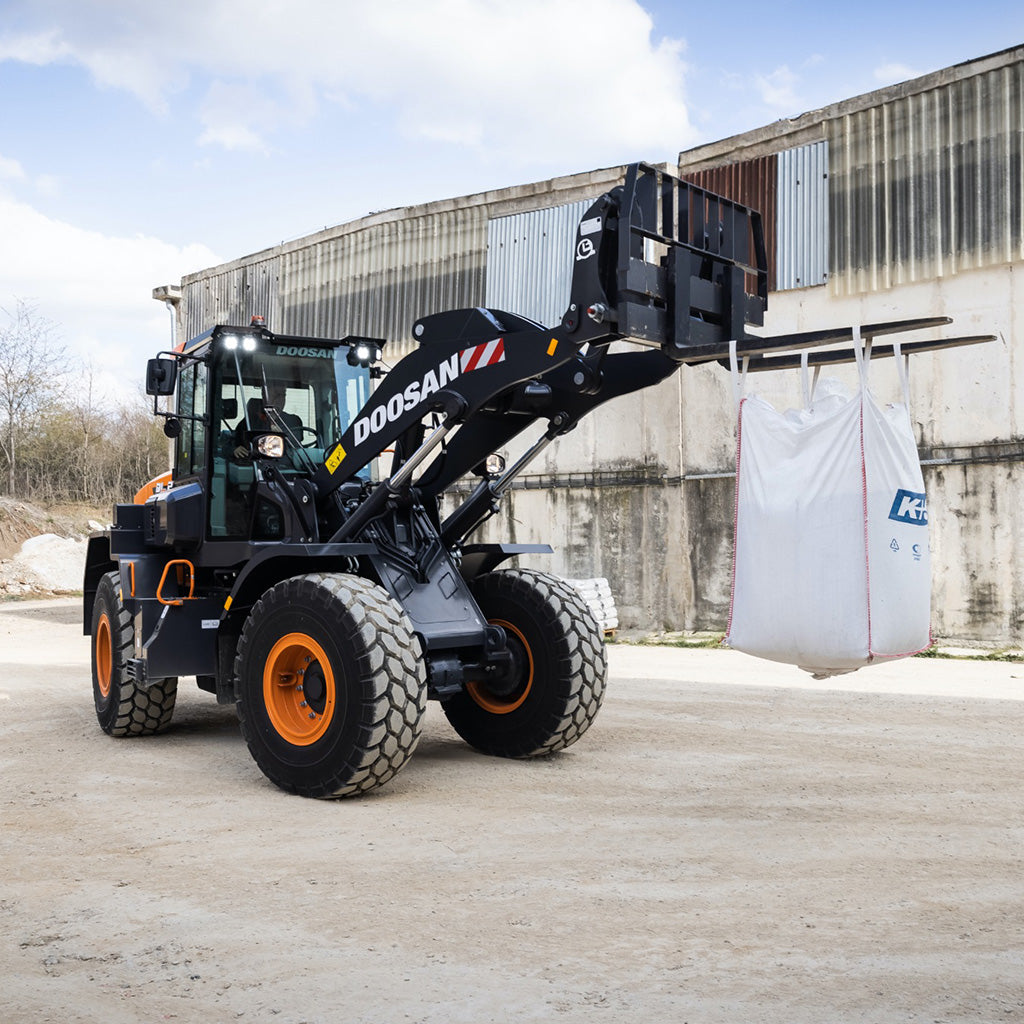

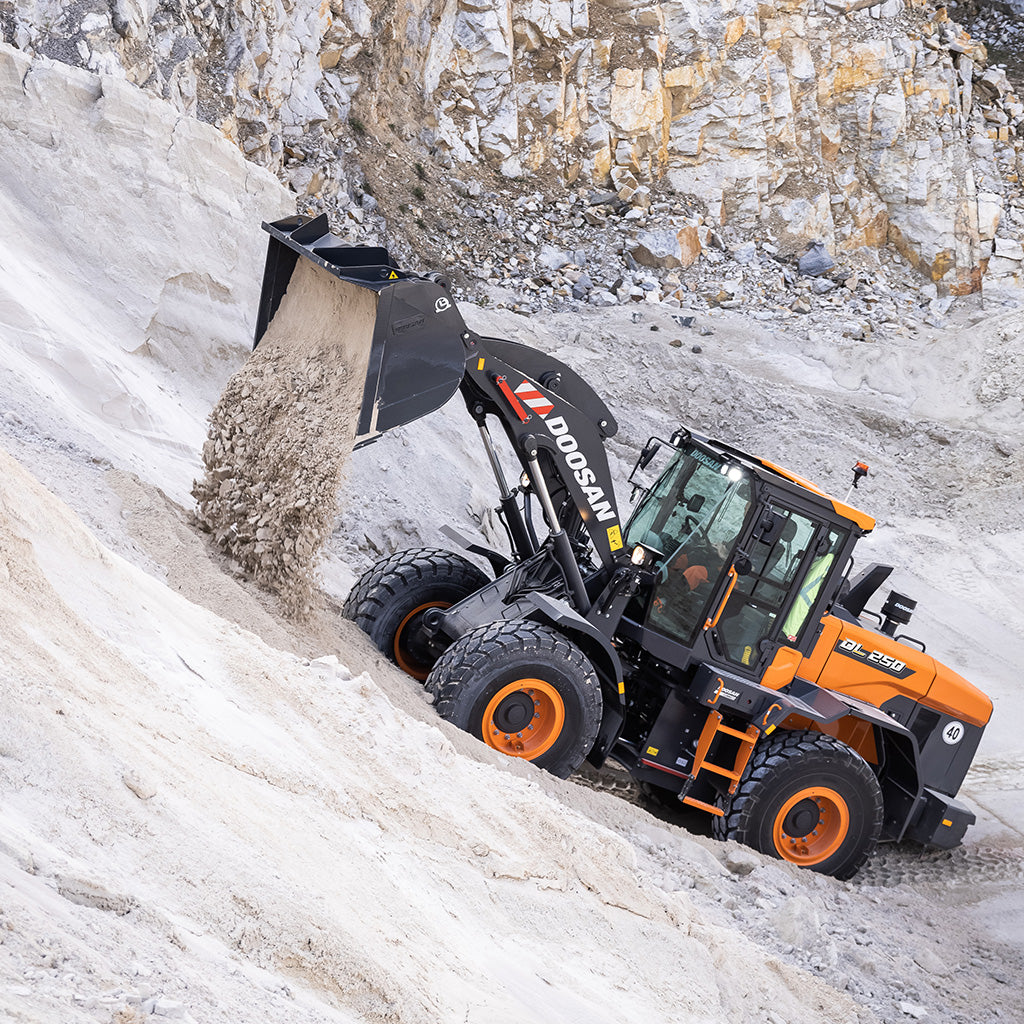

Develon DL250-7 Wheel Loader

The 3.3-cubic-foot DL250-7 articulating wheel loader offers exceptional lift heights and generous bucket capacities to help you power through the heaviest loads. A standard Z-bar lift arm delivers excellent breakout force for digging in tough materials. Add the high-lift option for maximum dumping height. Ideal for heavy lifting in loading construction and ag applications, it offers rapid bucket movement and proper angle positioning for precision performance.

The optional Load Isolation System improves stability while moving to reduce material loss.

Choose the optional quick coupler to quickly change non-hydraulic attachments.

Configuration US10 US11 US15 US20 US21
Model DL06
Rate Flywheel Power (Gross) 171.1 hp @ 2,100 rpm
Rated Horse Power (Net) 171.1 hp @ 2,100 rpm
Max Torque (Net) 593 lbf @ 1,400 rpm
Engine Emissions Tier (EPA) Tier 4
Engine After Treatment CEGR+DOC+SCR with DEF
Engine Make Doosan
Number of Cylinders 6
Engine Displacement 359 in³
Configuration US10 US11 US15 US20 US21
MAIN PUMP: DISPLACEMENT 4.52 in³/rev
SYSTEM PRESSURE: WORK 3844 psi
MAIN PUMP: MAX. FLOW RATE (EACH) 40.95 gal/min
MAIN PUMP: QUANTITY 1
MAIN PUMP: MAIN RELIEF PRESSURE 3843 psi
TOTAL CYCLE TIME 11.4 s (±0.3 s)
Configuration US10 US11 US15 US20 US21
TIRE SIZE 20.5R25, L3
TREAD WIDTH 6' 8"
Configuration US10 US11 US15 US20 US21
TRAVEL PERFORMANCE: GRADEABILITY 30 ° @ 58 %
TRAVELING PERFORMANCE: MAX. TRACTIVE EFFORT 29,101 lb
Configuration US10 US11 US15 US20 US21
OPERATING WEIGHT 30,527 lb. 30,527 lb. 30,527 lb. 30,891 lb. 30,891 lb.
Configuration US10 US11 US15 US20 US21
BUCKET CAPACITY 3.27 yd³
BUCKET WIDTH 8' 11"
HINGE PIN HEIGHT 12' 7" 12' 7" 12' 7" 14' 1" 14' 1"
DUMP REACH AT 45° (FULLY RAISED) 3' 6" 3' 6" 3' 6" 3' 4" 3' 4"
DUMP HEIGHT AT 45° (FULLY RAISED) 9' 2" 9' 2" 9' 2" 10' 7" 10' 7"
OVERALL HEIGHT 10' 10"
OVERALL LENGTH 24' 6" 24' 6" 24' 6" 25' 9" 25' 9"
WHEEL BASE 10'
GROUND CLEARANCE 1' 5"
EXTERNAL TURNING RADIUS AT BUCKET EDGE 19' 10" 19' 10" 19' 10" 20' 6" 20' 6"
STATIC TIPPING LOAD (STRAIGHT) 23,973 lb. 23,973 lb. 23,973 lb. 20,111 lb. 20,111 lb.
STATIC TIPPING LOAD (FULL TURN) 21,134 lb. 21,134 lb. 21,134 lb. 17,727 lb. 17,727 lb.
BREAKOUT FORCE 23,987 lb. 23,987 lb. 23,987 lb. 24,100 lb. 24,100 lb.
REAR AXLE OSCILLATION 22°
DIGGING DEPTH 2.0" 2.0" 2.0" 5.0" 5.0"
Configuration US10 US11 US15 US20 US21
FUEL TANK 62.08 gal.
COOLING SYSTEM 8.98 gal.
HYRDAULIC SYSTEM 31.7 gal.
HYDRAULIC TANK 22.45 gal.
DEF/AD BLUE TANK 7.93 gal.

Full Specifications

Download Spec Sheet
General
ConditionShowroom
Machine TypeWheel Loader
Engine
Horsepower172.0
Performance
Hydraulics
Dimensions & Weight
Height10' 10"
Length24' 6"
Width8' 5"
Operating Weight30528 lb
Fuel Tank62.1 gal.

Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
