General Info
Condition: Showroom
Manufacturer: Develon
Model: DL480-7
Machine Type: Wheel Loader
Engine
Engine: DC13
Horsepower: 345.0
Performance
Operating Weight: 58354 lb
Hydraulics
Dimensions
Height: 11' 11"
Length: 29' 11"
Width: 10' 9"
Fuel Tank: 87.7 gal.

Description

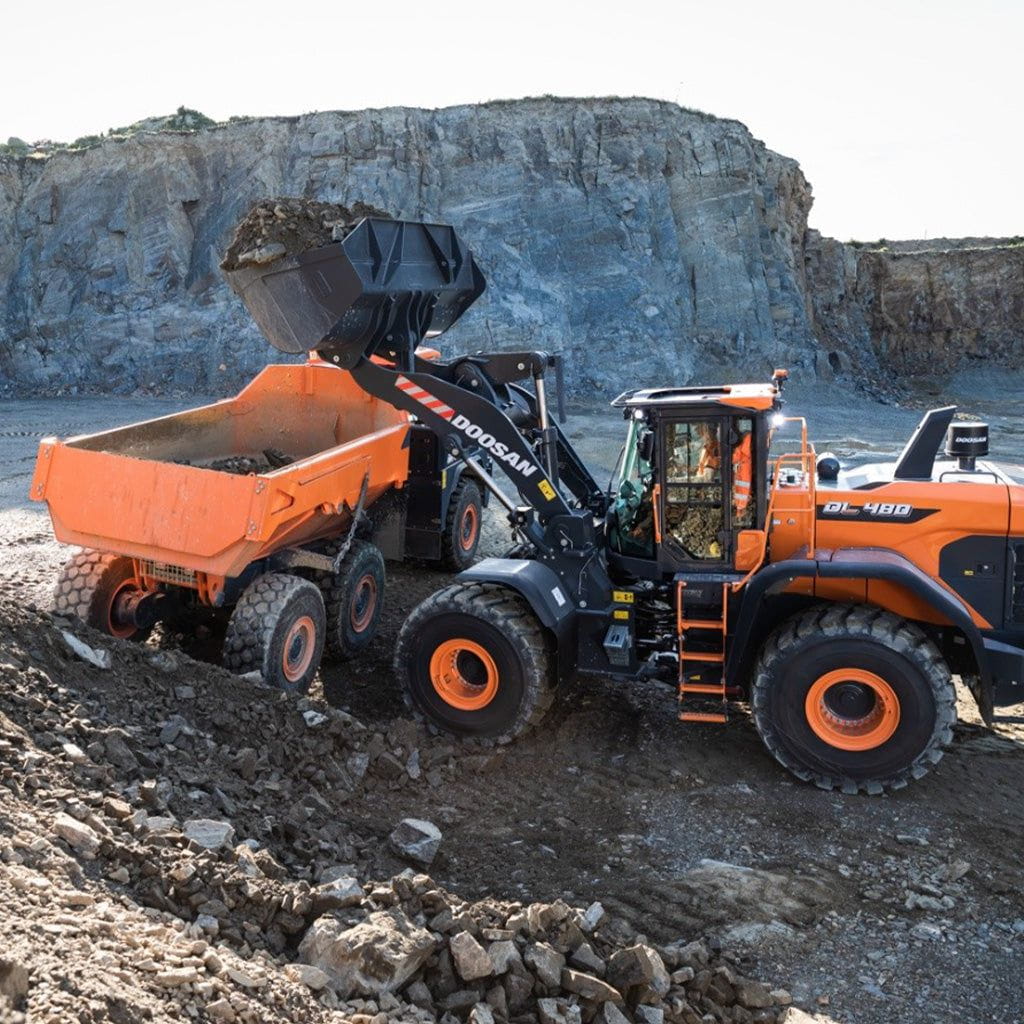

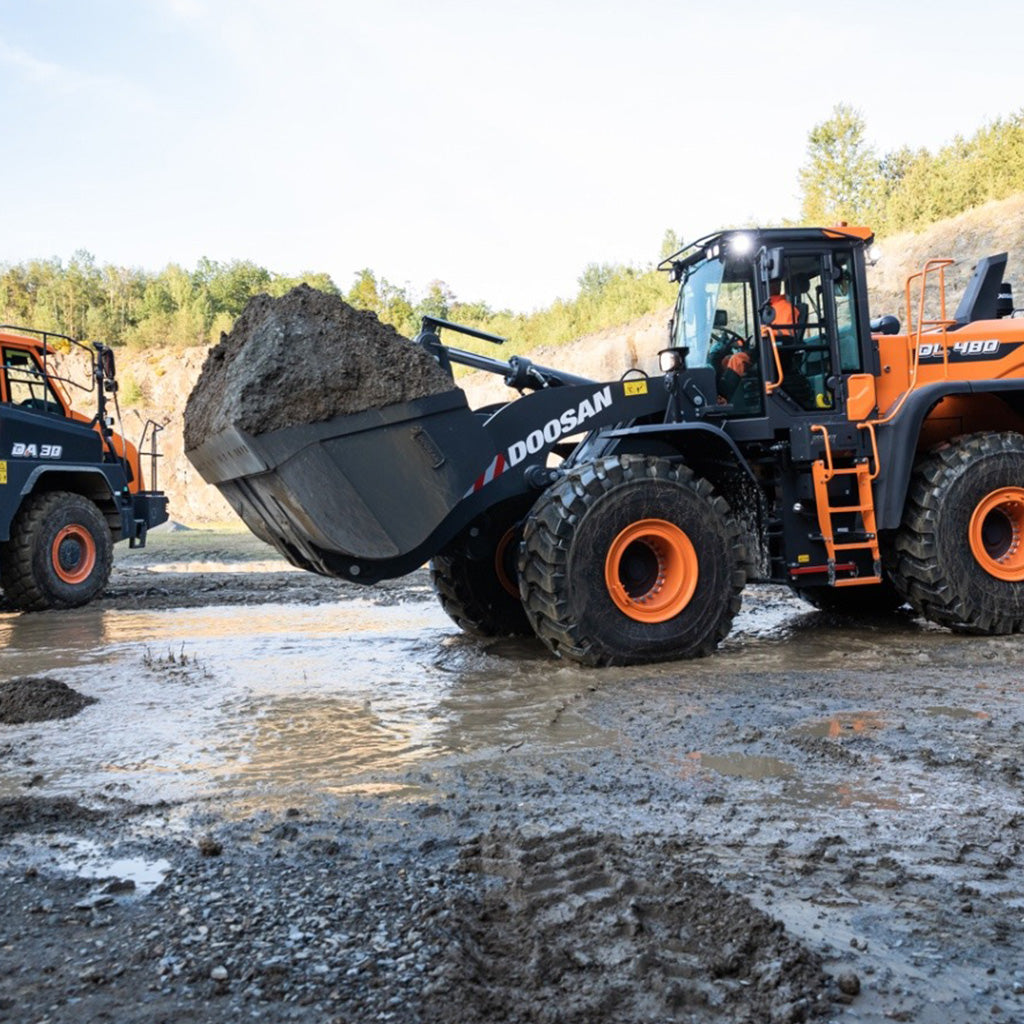

Develon DL480-7 Wheel Loader

Description

Get added horsepower and a 7% larger bucket capacity than the previous model to handle more material in challenging construction and mining applications. Axle upgrades support larger bucket capacities, and a strengthened box frame provides better balance and improved lifting capacity. With the high-lift option, you’ll gain additional height for loading into high-sided trucks. An optional Load Isolation System improves stability when moving – for even higher productivity.

Other features include powershift 4-speed transmission, multiple power modes, Z-bar lift arm, return to dig and limited slip differentials. The improved cooling system features wider radiator fin spacing and a reversible fan to clear debris and reduce clogging.

Configuration US10 US11 US20 US21 US50 US51
Model DC13
Rate Flywheel Power (Gross) 345 hp @ 1,800 rpm
Rated Horse Power (Net) 345 hp @ 1,800 rpm
Max Torque (Net) 1,180 lbf @ 1,300 rpm
Engine Emissions Tier (EPA) Tier 4
Engine After Treatment DOC + SCR with DEF
Engine Make Doosan
Number of Cylinders 6
Engine Displacement 775 in³
Configuration US10 US11 US20 US21 US50 US51
MAIN PUMP: DISPLACEMENT 140 in³/rev
SYSTEM PRESSURE: WORK 4641 psi
MAIN PUMP: MAX. FLOW RATE (EACH) 97 gal/min
MAIN PUMP: QUANTITY 1
MAIN PUMP: MAIN RELIEF PRESSURE 4641 psi
Configuration US10 US11 US20 US21 US50 US51
TIRE SIZE 26.5R25
TREAD WIDTH 7' 6"
Configuration US10 US11 US20 US21 US50 US51
TRAVEL PERFORMANCE: GRADEABILITY 27 ° @ 51 %
TRAVELING PERFORMANCE: MAX. TRACTIVE EFFORT 53,352 lb
Configuration US10 US11 US20 US21 US50 US51
OPERATING WEIGHT 58,354 lb. 58,354 lb. 58,938 lb. 58,938 lb. 58,354 lb. 58,354 lb.
Configuration US10 US11 US20 US21 US50 US51
BUCKET CAPACITY 6.3 yd³
BUCKET WIDTH 10' 9"
HINGE PIN HEIGHT 14' 9" 14' 9" 16' 4" 14' 9" 14' 9" 16' 4"
DUMP REACH AT 45° (FULLY RAISED) 4' 2" 4' 2" 4' 10" 4' 10" 4' 2" 4' 2"
DUMP HEIGHT AT 45° (FULLY RAISED) 10' 7" 10' 7" 12' 2" 12' 2" 10' 7" 10' 7"
OVERALL HEIGHT 11' 11"
OVERALL LENGTH 30' 10"
WHEEL BASE 11' 7"
GROUND CLEARANCE 1' 5"
EXTERNAL TURNING RADIUS AT BUCKET EDGE 23' 5" 23' 5" 24' 5" 24' 5" 23' 5" 23' 5"
STATIC TIPPING LOAD (STRAIGHT) 42,719 lb. 42,719 lb. 34,099 lb. 34,099 lb. 42,719 lb. 42,719 lb.
STATIC TIPPING LOAD (FULL TURN) 45,323 lb. 45,323 lb. 35,005 lb. 35,005 lb. 45,323 lb. 45,323 lb.
BREAKOUT FORCE 51,931 lbf. 51,931 lbf. 49,683 lbf. 49,683 lbf. 51,931 lbf. 51,931 lbf.
REAR AXLE OSCILLATION 22°
DIGGING DEPTH 4.0" 4.0" 6.0" 6.0" 4.0" 4.0"
Configuration US10 US11 US20 US21 US50 US51
FUEL TANK 61.29 gal.
COOLING SYSTEM 13.74 gal.
HYRDAULIC SYSTEM 59.7 gal.
HYDRAULIC TANK 33.29 gal.
DEF/AD BLUE TANK 15.85 gal.
