Download Spec Sheet
Get detailed specifications, dimensions, and performance data for this DL200TC-7 | Develon.
|
General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Develon |
| Model: | DL200TC-7 |
| Machine Type: | Wheel Loader |
|
Engine
|
|
|---|---|
| Engine: | 1204F |
| Engine Make: | Perkins |
| Horsepower: | 142.1 |
|
Performance
|
|
|---|---|
| Operating Weight: | 26867 lb |
|
Hydraulics
|
|---|
|
Dimensions
|
|
|---|---|
| Height: | 10' 10" |
| Length: | 23' 6" |
| Fuel Tank: | 62.1 gal. |
Description

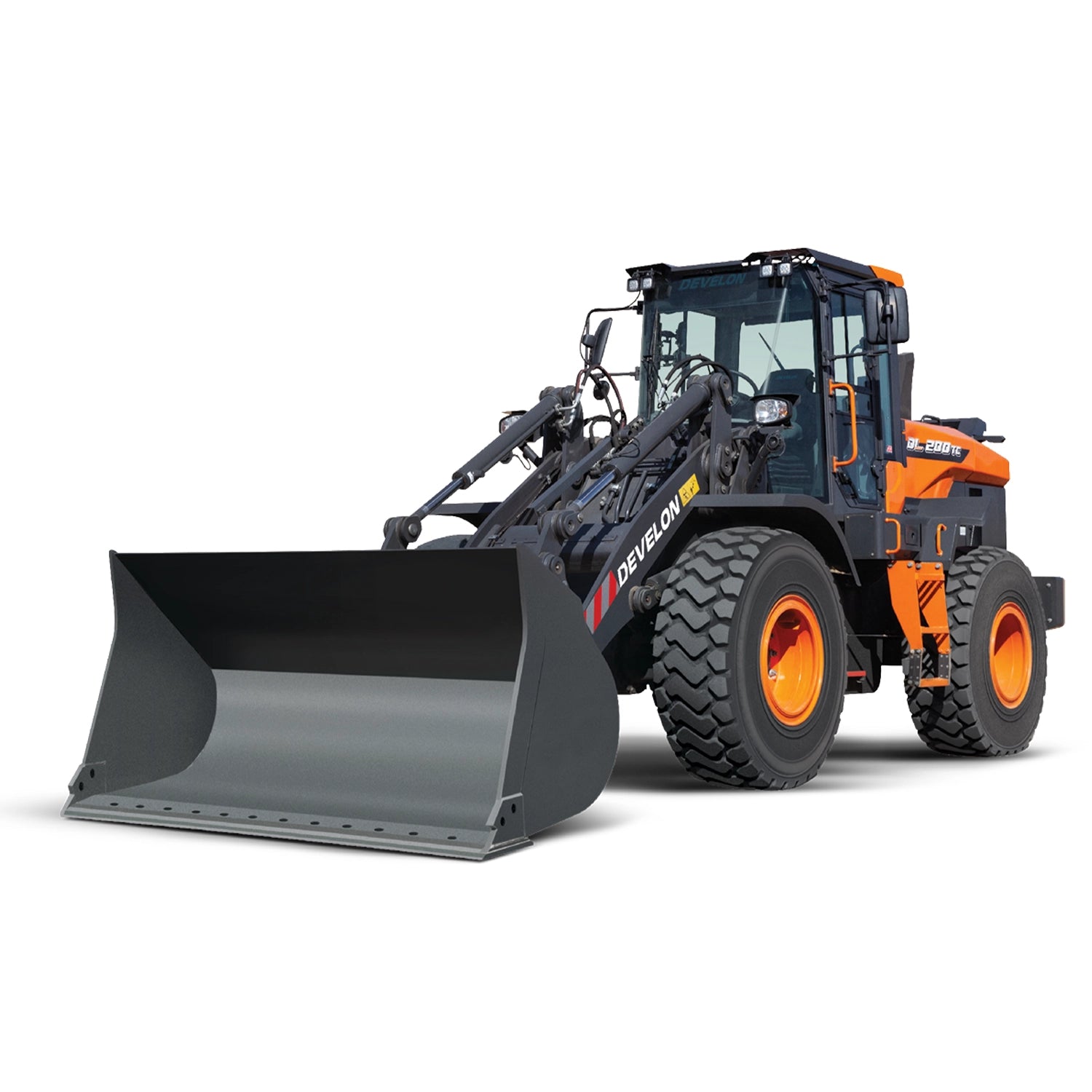

Develon DL200TC-7 Wheel Loader
Efficient Material Handling with Parallel-Lift Performance
The Develon DL200TC-7 wheel loader is designed to deliver precise lifting performance for material handling, pallet work, and lift-and-place applications. Its 2.6-cubic-yard bucket and parallel-lift linkage keep attachments level throughout the lift cycle, providing greater control when loading, stacking, or placing materials. An available quick coupler allows operators to switch non-hydraulic attachments without leaving the cab, increasing productivity across a variety of jobsite tasks. Improved lift height and excellent visibility also make loading high-sided trucks, hoppers, and mixers faster and more efficient.
Precision Control with Hydrostatic Performance
The hydrostatic transmission provides smooth power delivery, responsive operation, and excellent fuel efficiency while reducing brake wear through dynamic braking. A convenient creep function allows operators to precisely position the loader without using the accelerator, making attachment work and fine grading easier. Variable speed control offers seven preset speeds in first gear for enhanced accuracy, while the traction control management system adjusts wheel traction to match changing ground conditions for improved digging, stockpiling, and loading performance. Load-sensing hydraulics automatically regulate hydraulic flow to maximize efficiency and reduce fuel consumption.
Built for Heavy Lifting and Long-Term Durability
Engineered for demanding material handling, the DL200TC-7 features reinforced Dana axles and an additional counterweight to improve lifting capability and overall machine stability. A rugged box-frame chassis and articulated design evenly distribute loads while delivering exceptional structural strength. Wider radiator fin spacing and a standard reversible cooling fan help reduce debris buildup and maintain cooling performance in dusty environments. A deeper front fender offers additional protection for the windshield, while an available full rear fender further enhances machine durability.
Operator Comfort with Outstanding Visibility
The DL200TC-7 provides an exceptional view of the work area through its parallel-lift loader arms, allowing operators to clearly see the bucket, ground, and loading zone. Increased glass area, a full-glass entry door, larger mirrors, a standard rearview camera, and available LED work lights further improve visibility in all working conditions. Develon's exclusive Transparent Bucket technology gives operators a supplemental view beneath the bucket through the in-cab display, improving accuracy during material placement. Inside the spacious cab, intuitive controls, the DEVELON Smart Touch display, and an upgraded heating and air conditioning system help keep operators comfortable and productive throughout the workday.
Easy Maintenance and Tier 4 Performance
Routine service is simplified with convenient access to daily maintenance points, centralized lubrication locations, and easy fluid level inspections. Standard MY DEVELON fleet management allows owners to remotely monitor machine health, maintenance schedules, and operating performance through a convenient web portal or mobile app, helping reduce operating costs and maximize uptime. The DL200TC-7 meets Tier 4 emissions standards using a high-pressure common-rail fuel system, cooled exhaust gas recirculation (EGR), a diesel oxidation catalyst (DOC), selective catalytic reduction (SCR) with diesel exhaust fluid (DEF), and a diesel particulate filter (DPF), delivering clean, efficient, and reliable performance.
Loan
Lease
Cash in Lieu
Warranty
See participating dealers for details.
*Program disclosure: 0% A.P.R. financing for up to 36 months and the cash-in-lieu rebate are mutually exclusive — select one or the other. Select models also carry an additional rebate that can be combined with either financing or cash in lieu; the up to $19,500 amount shown includes it. Lease options are available separately; contact dealer for terms and custom payment structures. Financing subject to credit approval through an authorized Develon financing provider. Rebate applied at time of purchase. 3 Year / 3,000-Hour Full Coverage standard warranty included with qualifying new Develon equipment purchases. Offers valid on qualifying new Develon models through participating dealers only. See dealer for complete details, eligibility requirements, and program end dates. Offers subject to change without notice.
What Makes the DL200TC-7 Different
142.1 hp Perkins 1204F Engine
A Perkins 1204F delivers 142.1 hp (106 kW) at 2,000 rpm and meets Tier 4 emissions with a high-pressure common-rail fuel system, cooled EGR and a DOC + SCR/DEF + DPF aftertreatment package, fed by a 62.1-gal fuel tank.
Parallel-Lift Linkage, 2.6 yd³
The parallel-lift linkage keeps attachments level through the full lift cycle for greater control when loading, stacking or placing, with a 2.6 yd³ bucket, up to 21,806 lbf of breakout force and a 22,315 lb static tipping load (straight).
Hydrostatic Transmission with Creep
A hydrostatic transmission gives smooth, responsive power with excellent fuel efficiency and reduces brake wear through dynamic braking. A creep function positions the loader precisely without the accelerator, and seven preset first-gear speeds sharpen attachment work and fine grading.
Built for Lifting Large Loads
Reinforced Dana axles and an additional counterweight improve lifting capability and stability on this 26,867 lb loader, while a rugged box-frame chassis and articulated design distribute loads evenly for long-term structural strength.
Transparent Bucket & Rearview Camera
Develon's exclusive Transparent Bucket shows a supplemental view beneath the bucket on the in-cab display, while increased glass area, a full-glass entry door, larger mirrors, a standard rearview camera and available LED work lights keep the loading zone in clear view.
Standard MY DEVELON Fleet Management
Standard MY DEVELON lets owners remotely monitor machine health, maintenance schedules and operating performance through a web portal or mobile app, and centralized lubrication points and easy fluid checks simplify daily service.
Compare the Wheel Loader Family
Develon wheel loaders pair a hydrostatic transmission and Z-bar loader linkage with smart technology like the Transparent Bucket and 8" Smart Touch display. More models coming to the lineup.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| DL200-7 | DL200TC-7Viewing | DL220-7 | DL250-7 | DL250TC-7 | DL280-7 | DL320-7 | DL380-7 | DL420-7 | DL480-7 | DL550-7 | DL580-7 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications | ||||||||||||
| Rated Power (net) | 142.1 hp @ 2,200 rpm | 142.1 hp @ 2,000 rpm | 159.6 hp @ 2,100 rpm | 171.6 hp @ 2,100 rpm | 171.6 hp @ 2,100 rpm | 189.1 hp @ 2,000 rpm | 270.9 hp @ 1,800 rpm | 270.9 hp @ 1,800 rpm | 344.6 hp @ 1,800 rpm | 344.6 hp @ 1,800 rpm | 379.5 hp @ 1,800 rpm | 394.3 hp @ 1,800 rpm |
| Operating Weight | 26,559 lb (Std) / 27,189 lb (HL) | 26,867 lb | 29,099 lb (Std) / 29,462 lb (HL) | 30,527 lb (Std) / 30,891 lb (HL) | 31,605 lb | 34,550 lb (Std) / 34,892 lb (HL) | 43,572 lb (Std) / 43,975 lb (HL) | 45,022 lb (Std) / 45,728 lb (HL) | 53,414 lb (Std) / 54,017 lb (HL) | 58,354 lb (Std) / 58,938 lb (HL) | 70,598 lb (Std) / 71,390 lb (HL) | 78,674 lb (Heavy-Duty) |
| Bucket Capacity | 2.6 yd³ (2.0 m³) | 2.6 yd³ (2.0 m³) | 3.0 yd³ (2.3 m³) | 3.3 yd³ (2.5 m³) | 3.3 yd³ (2.5 m³) | 3.7 yd³ (2.8 m³) | 4.6 yd³ (3.5 m³) | 5.1 yd³ (3.9 m³) | 5.5 yd³ (4.2 m³) | 6.3 yd³ (4.8 m³) | 6.8 yd³ (5.2 m³) | 8.4 yd³ (6.4 m³) |
| Breakout Force | 21,806 lbf | 21,806 lbf | 21,544 lbf | 23,987 lbf | 25,943 lbf | 32,822 lbf | 33,946 lbf | 36,342 lbf | 41,365 lbf | 51,931 lbf | 56,202 lbf | 60,249 lbf |
| Static Tipping Load (straight) | 22,315 lb | 22,315 lb | 23,210 lb | 23,973 lb | 23,973 lb | 27,064 lb | 34,454 lb | 36,074 lb | 42,718 lb | 45,322 lb | 53,273 lb | 58,555 lb |
| Transmission | Hydrostatic (HST), dual-motor | Hydrostatic (HST) | Powershift 4F/3R (torque converter) | Powershift 4F/3R (opt 5-speed lock-up) | — | Powershift 4F/3R (opt 5-speed) | Powershift 4F/3R (opt 5-speed lock-up) | Powershift 4F/3R (opt 5-speed lock-up) | Powershift 4F/3R (opt 5-speed lock-up) | Powershift 4F/3R (opt 5-speed lock-up) | Powershift 4F/3R (opt 5-speed lock-up) | Powershift 5F/3R lock-up (standard) |
| Features | ||||||||||||
| Lift Arm Options | Standard US10 / High-Lift US20 | Parallel-lift (tool carrier) | Std US10/11/15 · HL US20/21 | Std US10/11/15 · HL US20/21 | Parallel-lift (tool carrier) | Std US10/11/15/30 · HL US20/21/40 | Std US10/11/50/51 · HL US20/21 | Std US10/11/50/51 · HL US20/21 | Std US10/11 · HL US20/21 | Std US10/11/50/51 · HL US20/21 | Std US11/50/51 · HL US20/21 | Heavy-Duty US30/31 |
| Ride Control | Standard | — | Standard | Standard | — | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Transparent Bucket | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Power Modes | P / S / E | — | P / S / E | P / S / E | — | P / S / E | P / S / E | P / S / E | P / S / E | P / S / E | P / S / E | P / S / E |
| Emissions | Tier 4 · DOC/SCR/DPF | Tier 4 | Tier 4 · DOC/SCR (no DPF) | Tier 4 · DOC/SCR (no DPF) | Tier 4 | Tier 4 · DOC/SCR (no DPF) | Tier 4 · DOC/SCR (no DPF) | Tier 4 · DOC/SCR (no DPF) | Tier 4 · DOC/SCR (no DPF) | Tier 4 · DOC/SCR (no DPF) | Tier 4 · DOC/SCR (no DPF) | Tier 4 · DOC/SCR (no DPF) |
| Standard Warranty | 3 yr / 3,000 hr | — | 3 yr / 3,000 hr | 3 yr / 3,000 hr | — | 3 yr / 3,000 hr | 3 yr / 3,000 hr | 3 yr / 3,000 hr | 3 yr / 3,000 hr | 3 yr / 3,000 hr | 3 yr / 3,000 hr | 3 yr / 3,000 hr |
Standard Arm vs High-Lift
The DL200-7 is offered with two front lift-arm configurations. The standard US10 arm maximizes lift capacity and tipping load; the optional high-lift US20 arm trades some capacity for greater reach and dump height to load taller trucks and hoppers.
| Standard ArmUS10 | High-Lift ArmUS20 | |
|---|---|---|
| Shared | ||
| Engine | Perkins 1204F · 142.1 hp @ 2,200 rpm | |
| Bucket Capacity | 2.6 yd³ (2.0 m³) | |
| Transmission | Hydrostatic (HST), dual-motor | |
| Tire Size | 20.5R25 L3 radial | |
| Reach & Lift | ||
| Max. Hinge Pin Height | 12' 3.0" | 13' 10.0" |
| Dump Height (45°) | 9' 0.0" | 10' 8.0" |
| Dump Reach (45°) | 3' 3.6" | 3' 3.2" |
| Digging Depth | 2.3" | 7.9" |
| Overall Length | 23' 6.5" | 25' 0.0" |
| Capacity | ||
| Static Tipping Load (straight) | 22,315 lb | 18,373 lb |
| Static Tipping Load (full turn) | 19,705 lb | 16,224 lb |
| Breakout Force | 21,806 lbf | 22,031 lbf |
| Operating Weight | 26,559 lb | 27,189 lb |
Specifications from the official DEVELON DL200-7 spec sheet; subject to change. Contact Carleton Equipment to confirm the right configuration.
DL200TC-7 Features & Benefits
Performance & Powertrain 3
142.1 hp Perkins 1204F Engine
A Perkins 1204F delivers 142.1 hp (106 kW) at 2,000 rpm and meets Tier 4 emissions with a high-pressure common-rail fuel system, cooled EGR, a diesel oxidation catalyst (DOC), selective catalytic reduction (SCR) with DEF and a diesel particulate filter (DPF), on a 62.1-gal fuel tank.
Hydrostatic Transmission with Creep Function
The hydrostatic transmission provides smooth power delivery, responsive operation and excellent fuel efficiency while dynamic braking reduces brake wear. A creep function lets operators position the loader precisely without using the accelerator, making attachment work and fine grading easier.
Seven Preset Speeds & Traction Control
Variable speed control offers seven preset speeds in first gear for enhanced accuracy, and the traction control management system adjusts wheel traction to match changing ground conditions for better digging, stockpiling and loading.
Loader & Hydraulics 3
Parallel-Lift Linkage
The parallel-lift linkage keeps attachments level throughout the lift cycle, giving precise control for material handling, pallet work and lift-and-place applications. Improved lift height, with a 12' 3" hinge pin height, and excellent visibility make loading high-sided trucks, hoppers and mixers faster.
High Breakout & Tipping Capacity
A 2.6 yd³ bucket backed by up to 21,806 lbf of breakout force, a 22,315 lb static tipping load (straight) and a 19,705 lb static tipping load (full turn) lets the DL200TC-7 fill heavy and lift confidently.
Load-Sensing Hydraulics & Quick Coupler
Load-sensing hydraulics automatically regulate flow to maximize efficiency and reduce fuel consumption, and an available quick coupler lets operators switch non-hydraulic attachments without leaving the cab.
Comfort & Technology 3
Outstanding Visibility
The parallel-lift loader arms give a clear view of the bucket, ground and loading zone. Increased glass area, a full-glass entry door, larger mirrors, a standard rearview camera and available LED work lights improve visibility in all working conditions.
Transparent Bucket
Develon's exclusive Transparent Bucket technology gives operators a supplemental view beneath the bucket through the in-cab display, improving accuracy during material placement.
Smart Touch Display & Upgraded HVAC
Inside the spacious cab, intuitive controls, the DEVELON Smart Touch display and an upgraded heating and air conditioning system keep operators comfortable and productive throughout the workday.
Durability & Serviceability 3
Reinforced Dana Axles & Box-Frame Chassis
Reinforced Dana axles and an additional counterweight improve lifting capability and overall stability, while a rugged box-frame chassis and articulated design distribute loads evenly for exceptional structural strength.
Reversible Fan & Wider Radiator Fins
Wider radiator fin spacing and a standard reversible cooling fan reduce debris buildup and maintain cooling performance in dusty environments. A deeper front fender protects the windshield, and an available full rear fender adds durability.
Easy Maintenance & MY DEVELON
Convenient access to daily maintenance points, centralized lubrication locations and easy fluid level inspections simplify routine service. Standard MY DEVELON fleet management monitors machine health, maintenance schedules and performance remotely through a web portal or mobile app.
Full Specifications
Engine
| Engine Model | 1204F |
| Engine Make | Perkins |
| Rated Power (gross = net) | 142.1 |
| Emissions | EPA Tier 4 Final |
| Fuel Tank | 62.1 gal. |
Bucket & Loader
| Bucket Capacity | 2.6 yd³ (2.0 m³) |
| Lift Arm | Parallel-lift (tool carrier) linkage |
| Breakout Force | 21,806 lbf |
| Max. Hinge Pin Height | 12' 3" |
Performance
| Static Tipping Load (straight) | 22,315 lb |
| Static Tipping Load (full turn) | 19,705 lb — at 40° full turn |
| Transmission | Hydrostatic (HST) |
Hydraulics
Dimensions & Weight
| Overall Length | 23' 6" |
| Overall Height | 10' 10" |
| Operating Weight | 26867 lb |
Specifications are based on the official Develon DL200TC-7 data and are subject to change. Some items are optional or vary by lift-arm configuration (Standard US10 / High-Lift US20) — contact Carleton Equipment to confirm exact specifications and availability.
