DL420-7 | Develon

Option: Standard Arm

Rebates & Special Offers

View Full Offer

Get as low as 0% for 36 months* or Up to $19,500 cash back* in lieu of financing.

Horsepower
345 hp
Operating weight
51,553 lb
Bucket capacity
5.5 yd³
Static tipping load (straight)
42,719 lb standard
34,099 lb high lift
See full specifications
More specifications
General Info
Condition: Showroom
Manufacturer: Develon
Model: DL420-7
Machine Type: Wheel Loader
Engine
Horsepower: 345.0
Performance
Operating Weight: 51553 lb
Hydraulics
Dimensions
Height: 12'
Length: 29'
Width: 10' 6"
Fuel Tank: 84 gal.

Description

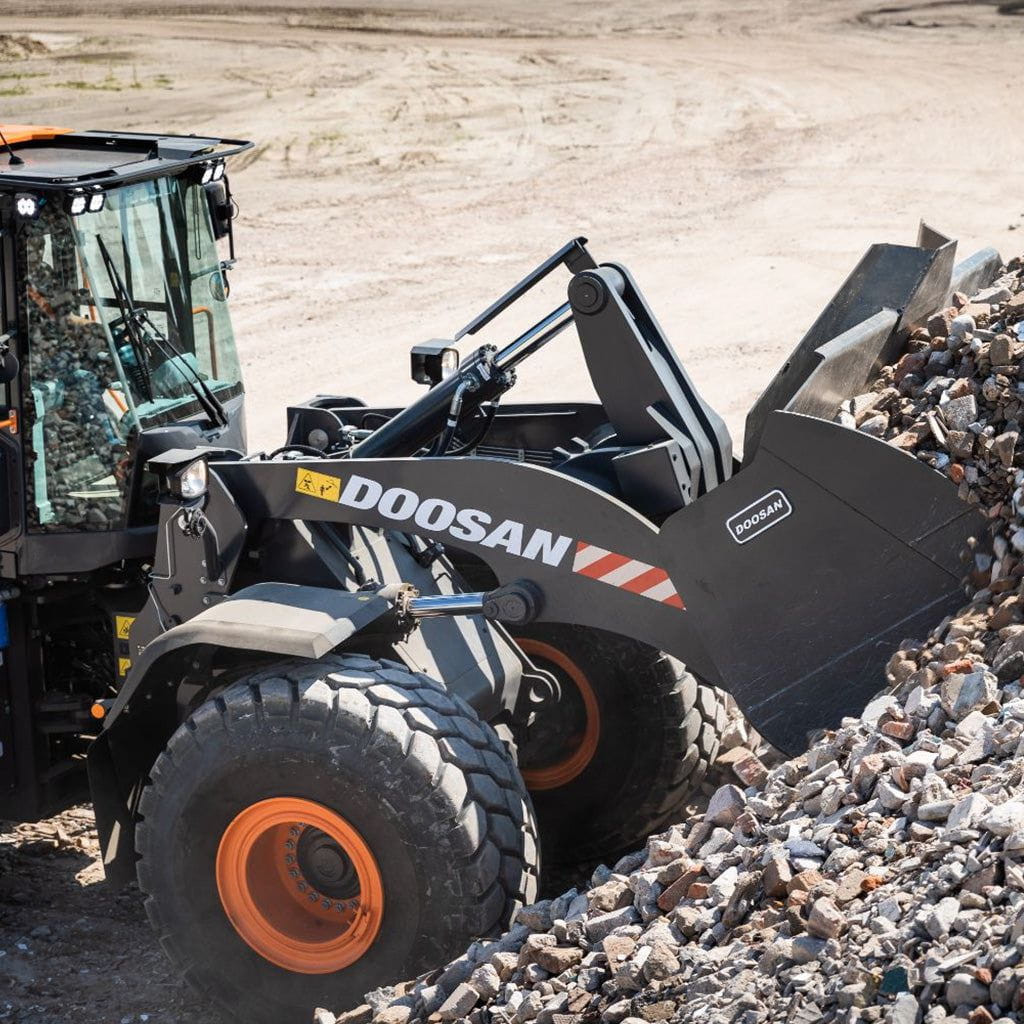

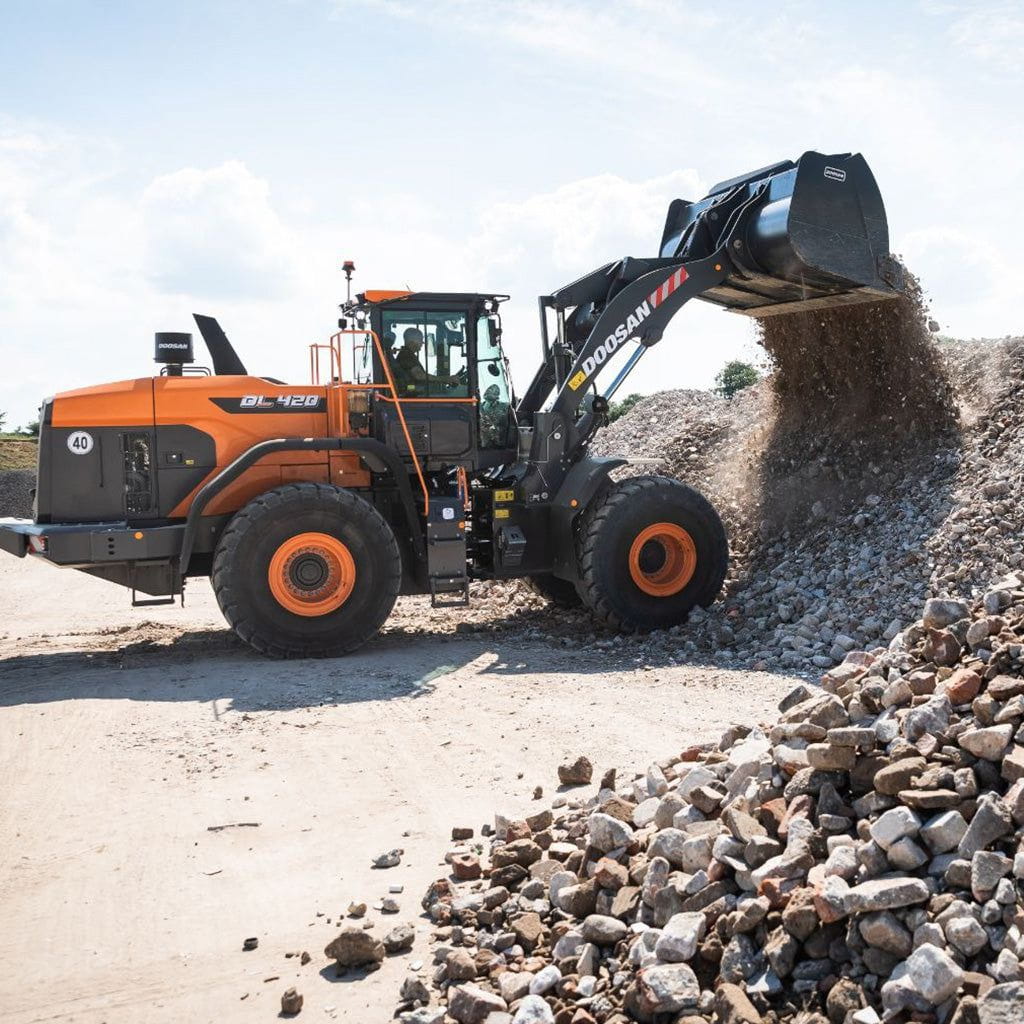

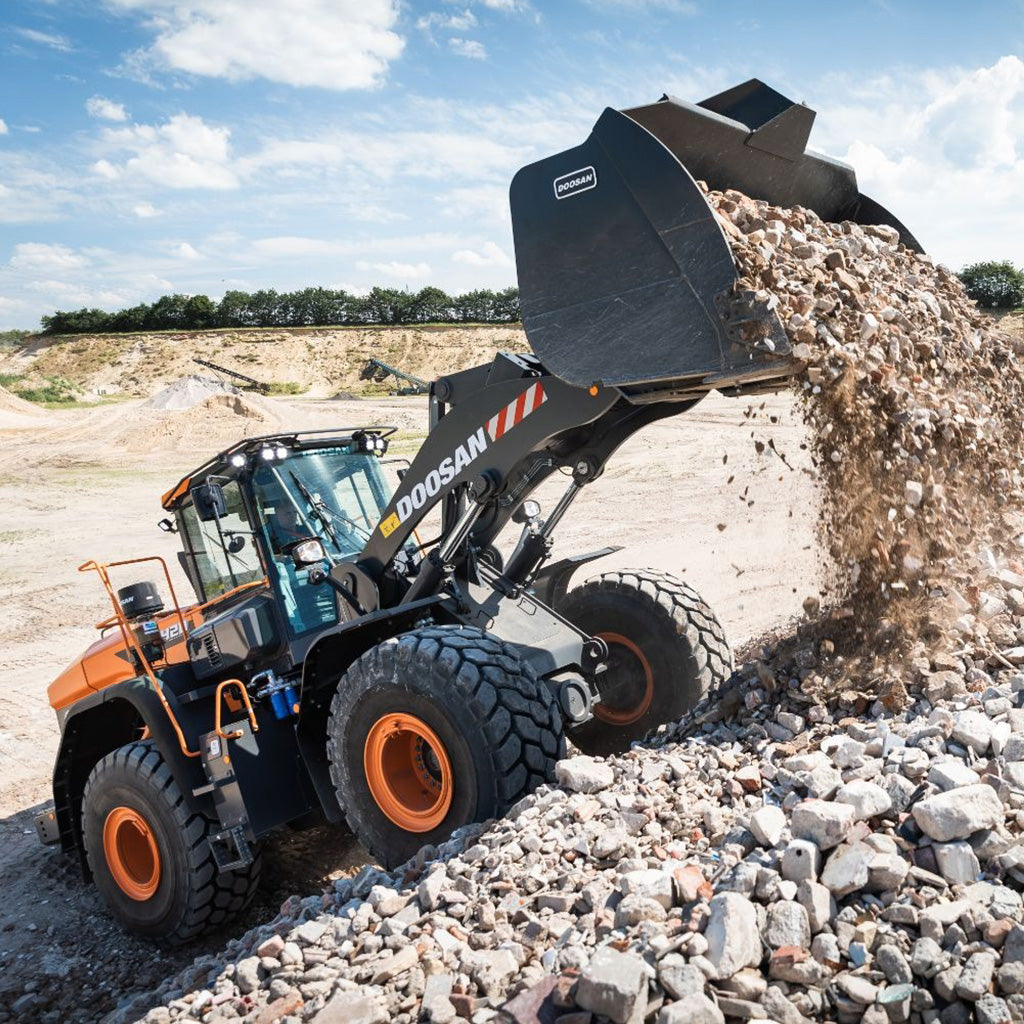

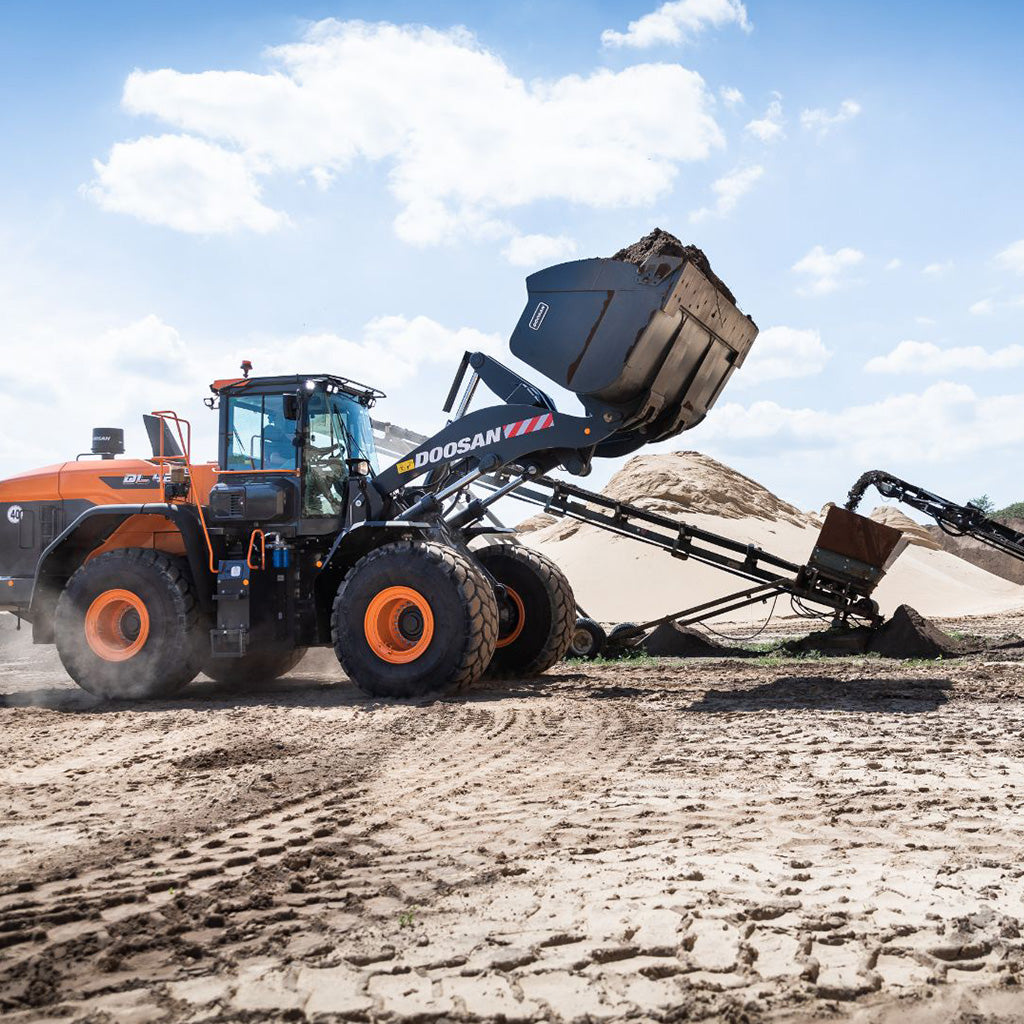

Develon DL420-7 Wheel Loader

Description

With impressive digging and high tractive power, the DEVELON DL420-7 wheel loader excels in tough applications. It's designed to take on a wide range of material handling tasks, from loading and transporting granular material (such as sand and gravel) to large general construction applications.

Powered by a powerful Tier 4 diesel engine, it can penetrate tough materials, tilt and lift with ease, and carry more in every cycle. Performance features include a powershift transmission with optimized hydraulic pumps, multiple power modes, Z-bar lift arm, return to dig, and limited slip differentials on both front and rear axles.

Loan

0%
for up to 36 months*
Financing Available

Lease

Flexible
Aggressive lease payments available. Custom or seasonal payment structures also available.
Lease Options

Cash in Lieu

Up to $19,500
cash back in lieu of financing
Customer Rebate

Warranty

3 Year / 3,000-Hour Full Coverage
Full machine coverage
Standard Included

See participating dealers for details.

*Program disclosure: 0% A.P.R. financing for up to 36 months and the cash-in-lieu rebate are mutually exclusive — select one or the other. Select models also carry an additional rebate that can be combined with either financing or cash in lieu; the up to $19,500 amount shown includes it. Lease options are available separately; contact dealer for terms and custom payment structures. Financing subject to credit approval through an authorized Develon financing provider. Rebate applied at time of purchase. 3 Year / 3,000-Hour Full Coverage standard warranty included with qualifying new Develon equipment purchases. Offers valid on qualifying new Develon models through participating dealers only. See dealer for complete details, eligibility requirements, and program end dates. Offers subject to change without notice.

DL420-7 Key Features

What Makes the DL420-7 Different

Designed for Power

The DL420-7 combines digging force and traction for sand, gravel and general construction material handling.

344.6 hp Scania DC13 Engine

A 12.7 L, 6-cylinder Scania DC13 with a variable-geometry turbo (VGT) delivers 344.6 hp and a massive 1,179 lb·ft of torque, and meets Tier 4 Final emissions with DOC + SCR/DEF and no DPF.

Z-Bar Loader, 5.5 yd³

A high-performance Z-bar linkage carries a 5.5 yd³ bucket with up to 41,365 lbf of breakout force and a 42,719 lb static tipping load, on big 26.5R25 tires in the standard-arm configuration.

High-Pressure Hydraulics

A 70.3-gpm variable axial-piston pump operating at a high 4,641 psi delivers strong breakout and lift force with fast, responsive cycles.

Redesigned Cab — 14% More Glass

A redesigned cab brings the new DEVELON Smart Touch display with an integrated rear-camera monitor, an upgraded heating and cooling system for all-day comfort, and 14% more glass area for enhanced operator visibility.

Improved Cooling & Uptime

Wider radiator fin spacing helps reduce clogging and simplifies cleaning, and a standard hydraulically driven reversing fan adjusts its speed to engine-compartment temperatures — both improving uptime protection.

Situation Awareness Technology (SAT)

Situation Awareness Technology (SAT) adjusts engine output to drivetrain and hydraulic demand in real time to help reduce fuel consumption.

Torque-Converter Powershift

A full-automatic 4F/3R torque-converter powershift delivers strong rimpull, with an optional 5F/3R transmission featuring a lock-up clutch (US50/US51 packages) for higher efficiency and road speed.

DEVELON Wheel Loaders

Compare the Wheel Loader Family

Compare DEVELON wheel loaders by capacity, power and configuration, including models with hydrostatic or powershift transmissions.

Develon DL200-7 Develon DL200TC-7 Develon DL220-7P Develon DL250-7P Develon DL250TC-7 Develon DL280-7 Develon DL320-7 Develon DL380-7 Develon DL420-7 Develon DL480-7 Develon DL550-7 Develon DL580-7
DL200-7 DL200TC-7 DL220-7P DL250-7P DL250TC-7 DL280-7 DL320-7 DL380-7 DL420-7Viewing DL480-7 DL550-7 DL580-7
Rated Power (net)142.1 hp @ 2,200 rpm142.1 hp @ 2,000 rpm159.6 hp @ 2,100 rpm171.6 hp @ 2,100 rpm171.6 hp @ 2,100 rpm189.1 hp @ 2,000 rpm270.9 hp @ 1,800 rpm270.9 hp @ 1,800 rpm344.6 hp @ 1,800 rpm344.6 hp @ 1,800 rpm379.5 hp @ 1,800 rpm394.3 hp @ 1,800 rpm
Operating Weight26,559 lb (Std) / 27,189 lb (HL)26,867 lb29,099 lb (Std) / 29,462 lb (HL)30,527 lb (Std) / 30,891 lb (HL)31,605 lb34,550 lb (Std) / 34,892 lb (HL)43,572 lb (Std) / 43,975 lb (HL)45,022 lb (Std) / 45,728 lb (HL)53,413 lb (Std) / 54,017 lb (HL)58,354 lb (Std) / 58,938 lb (HL)70,598 lb (Std) / 71,390 lb (HL)78,673 lb (Heavy-Duty)
Bucket Capacity2.6 yd³ (2.0 m³)2.6 yd³ (2.0 m³)3.0 yd³ (2.3 m³)3.3 yd³ (2.5 m³)3.3 yd³ (2.5 m³)3.7 yd³ (2.8 m³)4.6 yd³ (3.5 m³)5.1 yd³ (3.9 m³)5.5 yd³ (4.2 m³)6.3 yd³ (4.8 m³)6.8 yd³ (5.2 m³)8.4 yd³ (6.4 m³)
Breakout Force21,806 lbf21,806 lbf21,544 lbf23,987 lbf25,943 lbf32,822 lbf33,946 lbf36,342 lbf41,365 lbf51,931 lbf56,202 lbf60,249 lbf
Static Tipping Load (straight)22,315 lb20,172 lb23,210 lb23,973 lb20,324 lb27,064 lb34,453 lb36,074 lb42,719 lb45,322 lb53,272 lb60,549 lb
TransmissionHydrostatic (HST), dual-motorHydrostatic (HST)Powershift 4F/3R (torque converter)Powershift 4F/3R (opt 5-speed lock-up)—Powershift 4F/3R (opt 5-speed)Powershift 4F/3R (opt 5-speed lock-up)Powershift 4F/3R (opt 5-speed lock-up)Powershift 4F/3R (opt 5-speed lock-up)Powershift 4F/3R (opt 5-speed lock-up)Powershift 4F/3R (opt 5-speed lock-up)Powershift 5F/3R lock-up (standard)
Lift Arm OptionsStandard US10 / High-Lift US20Parallel-lift (tool carrier)Std US10/11/15 · HL US20/21Std US10/11/15 · HL US20/21Parallel-lift (tool carrier)Std US10/11/15/30 · HL US20/21/40Std US10/11/50/51 · HL US20/21Std US10/11/50/51 · HL US20/21Std US10/11 · HL US20/21Std US10/11/50/51 · HL US20/21Std US11/50/51 · HL US20/21Heavy-Duty US30/31
Ride ControlStandard—StandardStandardStandardStandardStandardStandardStandardStandardStandardStandard
Transparent BucketStandardStandardStandardStandardStandardStandardStandardStandardStandardStandardStandardStandard
Power ModesP / S / E—P / S / EP / S / E—P / N / EP / S / EP / S / EP / S / EP / S / EP / S / ENormal / Power / SAT
EmissionsTier 4 · DOC/SCR/DPFTier 4Tier 4 · DOC/SCR (no DPF)Tier 4 · DOC/SCR (no DPF)Tier 4Tier 4 · DOC/SCR (no DPF)Tier 4 · DOC/SCR (no DPF)Tier 4 · DOC/SCR (no DPF)Tier 4 · DOC/SCR (no DPF)Tier 4 · DOC/SCR (no DPF)Tier 4 · DOC/SCR (no DPF)Tier 4 · DOC/SCR (no DPF)
Standard Warranty3 yr / 3,000 hr—3 yr / 3,000 hr3 yr / 3,000 hr—3 yr / 3,000 hr3 yr / 3,000 hr3 yr / 3,000 hr3 yr / 3,000 hr3 yr / 3,000 hr3 yr / 3,000 hr3 yr / 3,000 hr
DEVELON DL420-7 Wheel Loader

Standard Arm vs High-Lift

The DL420-7 is offered with two front lift-arm configurations. The standard US10 / US11 arm maximizes lift capacity and tipping load; the optional high-lift US20 / US21 arm trades some capacity for greater reach and dump height to load taller trucks and hoppers.

Standard ArmUS10 / US11 High-Lift ArmUS20 / US21
Shared
EngineScania DC13 (VGT) · 344.6 hp @ 1,800 rpm
Bucket Capacity5.5 yd³ (4.2 m³)
TransmissionPowershift 4F/3R (opt 5-speed lock-up)
Tire Size26.5R25 L3 radial
Reach & Lift
Max. Hinge Pin Height13' 11.9"15' 6.8"
Dump Height (45°)10' 0.3"11' 7.3"
Dump Reach (45°)4' 1.4"4' 3.5"
Digging Depth3.9"4.5"
Overall Length30' 0"30' 6.7"
Capacity
Static Tipping Load (straight)42,719 lb34,099 lb
Static Tipping Load (full turn)37,686 lb30,080 lb
Breakout Force41,365 lbf39,791 lbf
Operating Weight53,413 lb54,017 lb

Specifications from the official DEVELON DL420-7 spec sheet; subject to change. Contact Carleton Equipment to confirm the right configuration.

DL420-7

DL420-7 Features & Benefits

Performance & Powertrain 8
Multiple Power Modes

Selectable power modes let operators match engine performance to the task and working conditions.

Designed for Power

The DL420-7 combines digging force and traction for sand, gravel and general construction material handling.

344.6 hp Scania DC13 Engine

A 12.7 L, 6-cylinder Scania DC13 with a variable-geometry turbo produces 344.6 hp at 1,800 rpm and a massive 1,179 lb·ft of torque at 1,300 rpm — strong, low-rpm power for the heaviest production loading.

High-Pressure Hydraulics

A 70.3-gpm variable-displacement axial-piston pump operating at a high 4,641 psi delivers strong breakout and lift force with fast, responsive cycles.

Torque-Converter Powershift

A full-automatic 4F/3R torque-converter powershift multiplies torque for strong rimpull, with an optional 5F/3R transmission featuring a torque-converter lock-up clutch (US50/US51 packages) for higher efficiency and road speed.

Tier 4 Final — No DPF

Meets EPA Tier 4 Final emissions with HPCR fuel, a variable-geometry turbo, cooled EGR and a DOC + SCR/DEF aftertreatment package — and no diesel particulate filter (DPF) to regenerate, on an 84-gal fuel tank and 15.8-gal DEF tank.

Breakout & Tipping Capacity

The Z-bar loader linkage generates up to 41,365 lbf of breakout force with a 42,719 lb static tipping load (straight) and a 5.5 yd³ bucket on 26.5R25 tires in the standard-arm configuration. High-lift straight static tipping load is 34,099 lb.

Auto Idle & Auto Shutdown

Auto idle reduces engine rpm when the steering wheel and joystick are inactive. Auto shutdown stops the engine after a selected idle period.

Loader & Hydraulics 6
Z-Bar Loader Linkage

A high-performance Z-bar lift arm maximizes breakout force and dump clearance, with standard (US10/11) and optional high-lift (US20/21) arm configurations to match your loading height and capacity needs.

Ride Control

Standard ride control cushions the loader arms over rough terrain, reducing material spillage and operator fatigue while allowing faster load-and-carry travel.

Auto Kick-Out & Return-to-Dig

In-cab adjustable boom kick-out and adjustable bucket return-to-dig help repeat working positions during loading cycles.

Closed-Center Piston Hydraulics

A variable-displacement axial-piston pump feeds a closed-center, pilot-operated system at 4,641 psi — high pressure for strong force and fast cycle times under heavy multifunction loads.

Auxiliary Hydraulics (3rd Valve)

A standard third-valve auxiliary circuit supports compatible hydraulic attachments. Boom float helps the attachment follow the ground.

Optional Quick Coupler & Smart Load

An optional quick coupler changes compatible non-hydraulic attachments from the cab. The optional DEVELON Smart Load weighing system provides bucket payload information.

Comfort, Safety & Technology 7
Redesigned Cab — 14% More Glass

The cab has 14% more glass, a full glass door, larger mirrors and optional work lights. Smart Touch displays machine settings and the rear camera, while upgraded heating and cooling support operator comfort.

Situation Awareness Technology (SAT)

Situation Awareness Technology automatically matches engine output to drivetrain and hydraulic demand to help save fuel.

Optional 3-Lever Fingertip Controls

Standard joystick control, or optional 3-lever fingertip control for precise, low-effort multifunction operation during long, high-cycle loading shifts.

Transparent Bucket

Standard Transparent Bucket provides a supplemental view through the bucket on the in-cab display to help operators monitor the work area.

Rearview Camera & AVM

The standard rearview camera feeds the Smart Touch display. An around-view monitor (AVM) is optional for additional views around the machine.

Preinstalled MY DEVELON Telematics

MY DEVELON provides app and website access to location, hours, fuel use, idle versus work time, error codes, and engine and hydraulic oil temperatures to support maintenance planning.

Smart Guidance & Smart Key

Smart Touch provides operating tips through the Smart Guidance System. The Smart Key fob unlocks the cab and enables push-button engine starts.

Durability & Serviceability 6
Reinforced Box Frame

Added frame material strengthens the articulated box frame for improved balance and lifting capacity.

Wider Radiator Fin Spacing

Wider radiator fin spacing and a reversible fan help clear debris and limit clogging in dusty material-handling applications.

Temperature-Adjusting Reversing Fan

A standard hydraulically driven reversing fan adjusts its speed depending on engine-compartment temperatures and purges the cores of debris — improving uptime protection and saving fuel.

Heavy Outboard Planetary Axles

Outboard planetary axles and standard front/rear limited-slip differentials support traction during digging and loading. A hydraulic-locking front differential is optional.

Centralized Lubrication & Easy Service

Centralized lubrication points, easy component access and convenient fluid-level checks simplify daily maintenance. Handrails, skid-resistant steps and platforms, remote drains and a laptop service port support service access.

Outboard Wet Brakes

Sealed, self-adjusting outboard wet brakes support repeated loading cycles. The parking brake uses spring application and hydraulic release.

Develon DL420-7 Wheel Loader

Why Buyers Choose the DL420-7

5.5 yd³ bucket and 53,413 lb standard-arm operating weight for production loading

344.6 hp Scania DC13 (12.7 L, VGT) — upper end of the 300–350 hp class, with 1,179 lb·ft of torque

41,365 lbf standard-arm breakout force and 42,719 lb straight static tipping load

High-pressure 4,641-psi hydraulics for strong force and fast cycle times

Tier 4 Final without a DPF (DOC + SCR/DEF only) — no regeneration to manage

Redesigned cab with 14% more glass, new Smart Touch display and upgraded HVAC

Fuel-saving SAT and remote fleet monitoring through MY DEVELON

Standard 3-year / 3,000-hour full-machine warranty and local Develon service

Customers & Applications

Who Uses the DL420-7 and What For

The Develon DL420-7 combines a Scania engine, 5.5 yd³ bucket and reinforced box frame for aggregate loading, general construction and bulk-material handling.

Aggregate & Quarry

  • Production truck and hopper loading
  • Pit, quarry and large recycling operations
  • Sustained heavy digging and loading
  • Optional DEVELON Smart Load for bucket payload information

Heavy Construction

  • Large-scale bulk material handling
  • Load-and-carry and stockpiling
  • High-lift arms for tall truck loading
  • Major site development

Bulk & Industrial

  • High-volume compost, mulch and biomass
  • Wood, scrap and industrial material yards
  • Waste and recycling handling
  • Fast loading of large trucks and trailers

Snow & Municipal

  • Large-scale snow pushing and stacking
  • Snow stockpiling and truck loading
  • Bulk salt and sand loading
  • Year-round municipal operations
DEVELON DL420-7 Wheel Loader

The DL420-7 by the Numbers

Rated Power

344.6 hpScania DC13 · at 1,800 rpm

The 12.7 L engine delivers 1,179 lb·ft of torque at 1,300 rpm for digging and production loading.

Bucket

5.5 yd³Z-bar linkage

Published heaped bucket capacity is 4.2 m³. Optional high-lift arms add reach for high-sided trucks.

Breakout Force

41,365 lbfStandard arm

Standard-arm straight static tipping load is 42,719 lb. High-lift straight static tipping load is 34,099 lb.

Main Pump

70.3 gal/minMaximum flow rate · each

A variable-displacement axial-piston pump supports loader functions, with a published work pressure of 4,641 psi.

Operating Weight

53,413 lbStandard arm

Published high-lift operating weight is 54,017 lb. Equipment and attachments affect configured weight.

Emissions

Tier 4 FinalDOC + SCR/DEF · no DPF

HPCR fuel delivery, cooled EGR and DOC + SCR/DEF aftertreatment meet Tier 4 emissions without a diesel particulate filter to regenerate.

Talk to a person about the DL420-7

Carleton Equipment is a family-owned Michigan dealer, here since 1938. Sales, rental, service and parts all come from the same team, and we’ll connect you with the location nearest you.

  • Chesterfield
  • Coldwater
  • Grand Rapids
  • Howell
  • Kalamazoo
  • Livonia
  • Saginaw

Full Specifications

Download Spec Sheet
Engine
Engine ModelScania DC13 (VGT turbo)
Engine MakeScania
Rated Power (gross = net)345.0
Max. Torque1,179 lb·ft @ 1,300 rpm
Displacement775.0 cu in (12.7 L), 6-cyl
EmissionsEPA Tier 4 Final — HPCR, VGT, cooled EGR, DOC, SCR/DEF (no DPF)
Fuel Tank84 gal.
DEF Tank15.8 gal (60 L)
Capacities
Fuel Tank84.0 gal (318 L)
DEF Tank15.8 gal (60 L)
Cooling System14.5 gal (55 L)
Engine Oil11.9 gal (45 L)
Transmission14.5 gal (55 L)
Front Axle11.1 gal (42 L)
Rear Axle11.1 gal (42 L)
Hydraulic System58.9 gal (223 L)
General
Bucket Capacity5.5 yd³ (4.2 m³) heaped ISO/SAE
Bucket Width10' 8.7" (3,270 mm)
Lift ArmZ-bar lift arm — Standard US10/US11 · High-Lift US20/US21
Breakout Force41,365 lbf (Standard) / 39,791 lbf (High-Lift)
Max. Hinge Pin Height13' 11.9" (Standard) / 15' 6.8" (High-Lift)
Dump Height10' 0.3" (Standard) / 11' 7.3" (High-Lift) — at 45°, fully raised
Dump Reach4' 1.4" (Standard) / 4' 3.5" (High-Lift)
Digging Depth3.9 in (Standard) / 4.5 in (High-Lift)
Performance
Static Tipping Load (straight)42,719 lb (Standard) / 34,099 lb (High-Lift)
Static Tipping Load (full turn)37,686 lb (Standard) / 30,080 lb (High-Lift) — at 40° full turn
TransmissionPowershift 4F / 3R, torque converter (optional 5F/3R w/ lock-up, US50/US51)
Travel Speed — Forward4.5 / 7.6 / 11.6 / 22.6 mph (4-speed); 4.5 / 7.8 / 12.1 / 17.4 / 24.9 mph (optional 5-speed, US50/US51)
Travel Speed — Reverse4.5 / 7.6 / 16.5 mph (4-speed); 4.5 / 7.8 / 17.4 mph (optional 5-speed, US50/US51)
Max. Grade51% (27°)
Hydraulics
Main PumpVariable-displacement axial piston — maximum flow (each): 70.3 gpm (266 L/min)
System Pressure4,641 psi (work) / 3,046 psi (steer)
FeaturesClosed-center, pilot main control valves; ride control; auto boom kick-out; auto return-to-dig; boom float; aux (3rd valve)
Dimensions
Overall Length30' 0" (Standard) / 30' 6.7" (High-Lift)
Overall Height12' 0" — ROPS cab
Wheelbase11' 7"
Tread Width7' 6.5" (2,300 mm)
Ground Clearance19.5 in (495 mm)
Steering Angle±40° articulation
Turning Radius23' 4" (Standard, bucket edge) / 23' 1.8" (High-Lift, bucket edge); 20' 11.4" (outside tire)
Tire Size26.5R25 L3 radial
Operating Weight51553 lb
Serviceability
LubricationCentrally located lubrication points
Fluid ServiceAccessible components and remote engine/hydraulic oil drain ports
DiagnosticsSmart Touch system monitoring and historical alerts; laptop service port
Fleet MonitoringMY DEVELON app and website for hours, fuel use, error codes and oil temperatures
Features
Z-Bar Lift ArmHigh breakout-force Z-bar loader linkage; high-lift (US20/US21) arm optional
Powershift TransmissionFull-automatic 4F/3R torque-converter powershift; optional 5F/3R w/ lock-up clutch (US50/US51)
Scania DC13 with VGTA 12.7 L 6-cylinder Scania DC13 with variable-geometry turbo — 344.6 hp and 1,179 lb·ft of torque
Differential TypeLimited slip front and rear
Reinforced Box FrameAdded frame material improves balance and lifting capacity
Bucket & Tipping Capacity5.5 yd³ bucket; straight static tipping load: 42,719 lb Standard / 34,099 lb High-Lift
High-Pressure Hydraulics70.3-gpm variable axial-piston pump at a high 4,641 psi for strong breakout and lift force
Situation Awareness Technology (SAT)Automatically adjusts engine output to drivetrain and hydraulic demand to help save fuel
Ride ControlStandard ride control smooths travel and reduces material spillage
Auto Kick-Out & Return-to-DigIn-cab adjustable boom kick-out and adjustable bucket return-to-dig
Boom Float & Aux HydraulicsBoom float plus a 3rd-valve auxiliary hydraulic circuit for attachments
Power Modes (P / S / E)Power, Standard and Economy modes plus manual / auto transmission modes
Joystick or Fingertip ControlsStandard joystick control; optional 3-lever fingertip control for precise multifunction operation
Redesigned Cab — 14% More GlassRedesigned cab with 14% more glass area, an 8" Smart Touch display with integrated rear-camera monitor and upgraded HVAC
Transparent BucketMulti-camera system with in-cab display for a see-through view past the bucket
Rearview CameraStandard rearview camera; around-view monitor (AVM) optional
Integrated Smart ScaleOptional integrated payload scale system for on-the-go weighing
Reversible Cooling Fan & Centralized LubeWider radiator fin spacing, variable-speed auto-reversible fan and centralized lubrication for uptime
Preinstalled MY DEVELON TelematicsMY DEVELON telematics for machine maintenance and productivity insight
3-Year / 3,000-Hour WarrantyStandard full-machine coverage on qualifying new Develon wheel loaders
Quick CouplerOptional; change compatible non-hydraulic attachments from the cab
Smart Guidance & Smart KeyOperating tips through Smart Touch; key-fob cab access and push-button starts
Auto Idle & Auto ShutdownStandard engine-management functions reduce unnecessary idling

Specifications are based on the official Develon DL420-7 data and are subject to change. Some items are optional or vary by lift-arm configuration (Standard US10 / High-Lift US20) — contact Carleton Equipment to confirm exact specifications and availability.

Talk to a sales expert

Fill out the form and we'll connect you with the location nearest you.

First name is required.
Last name is required.
A phone number is required.
A valid email address is required.
Helps us route you to the closest location Please enter your zip code.

Related Products

Recently viewed
