DL580-7 | Develon

Rebates & Special Offers

View Full Offer

Get as low as 0% for 36 months* or Up to $19,500 cash back* in lieu of financing.

Horsepower
394 hp
Operating weight
74,494 lb
Bucket capacity
8.4 yd³
Static tipping load (straight)
60,549 lb heavy duty
See full specifications
More specifications
General Info
Condition: Showroom
Manufacturer: Develon
Model: DL580-7
Machine Type: Wheel Loader
Engine
Horsepower: 394.0
Performance
Operating Weight: 74494 lb
Hydraulics
Dimensions
Height: 12' 7"
Length: 32' 11"
Width: 11' 2"
Fuel Tank: 116.8 gal.

Description

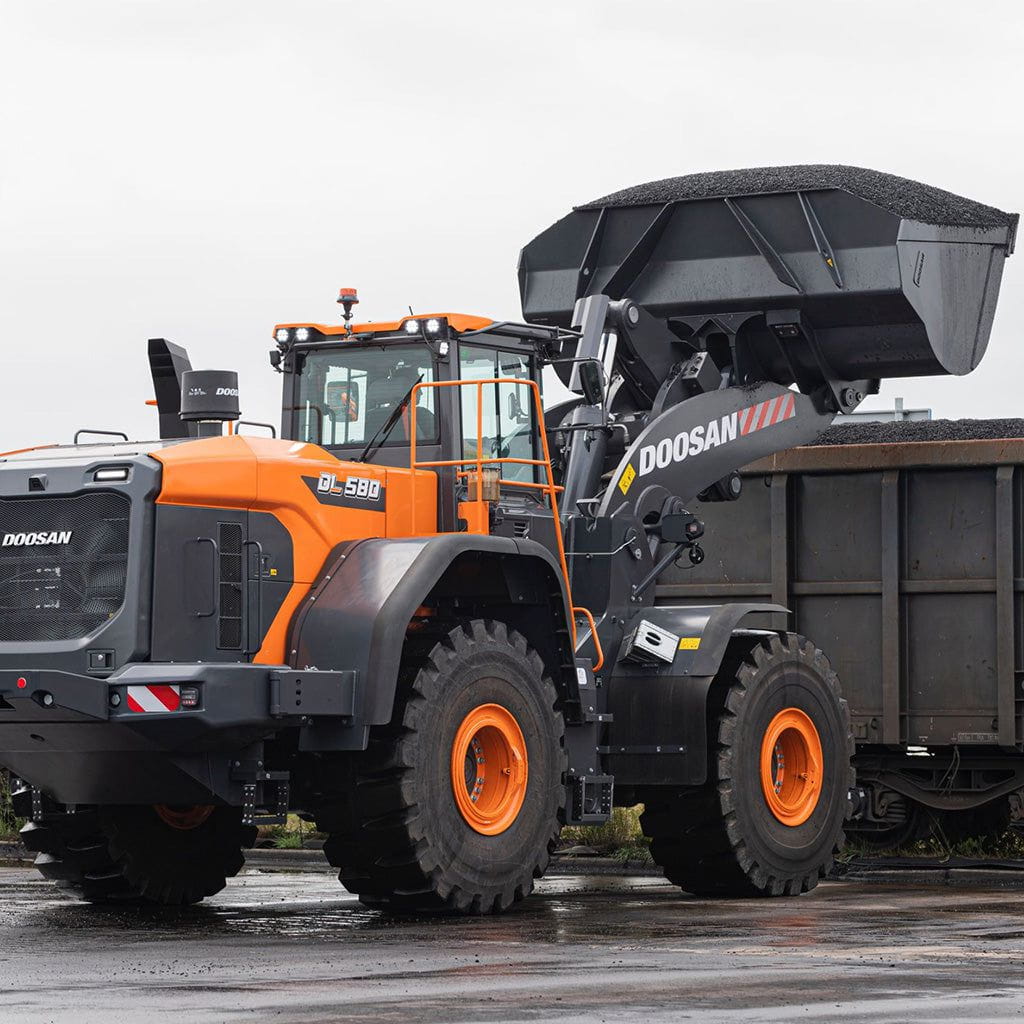

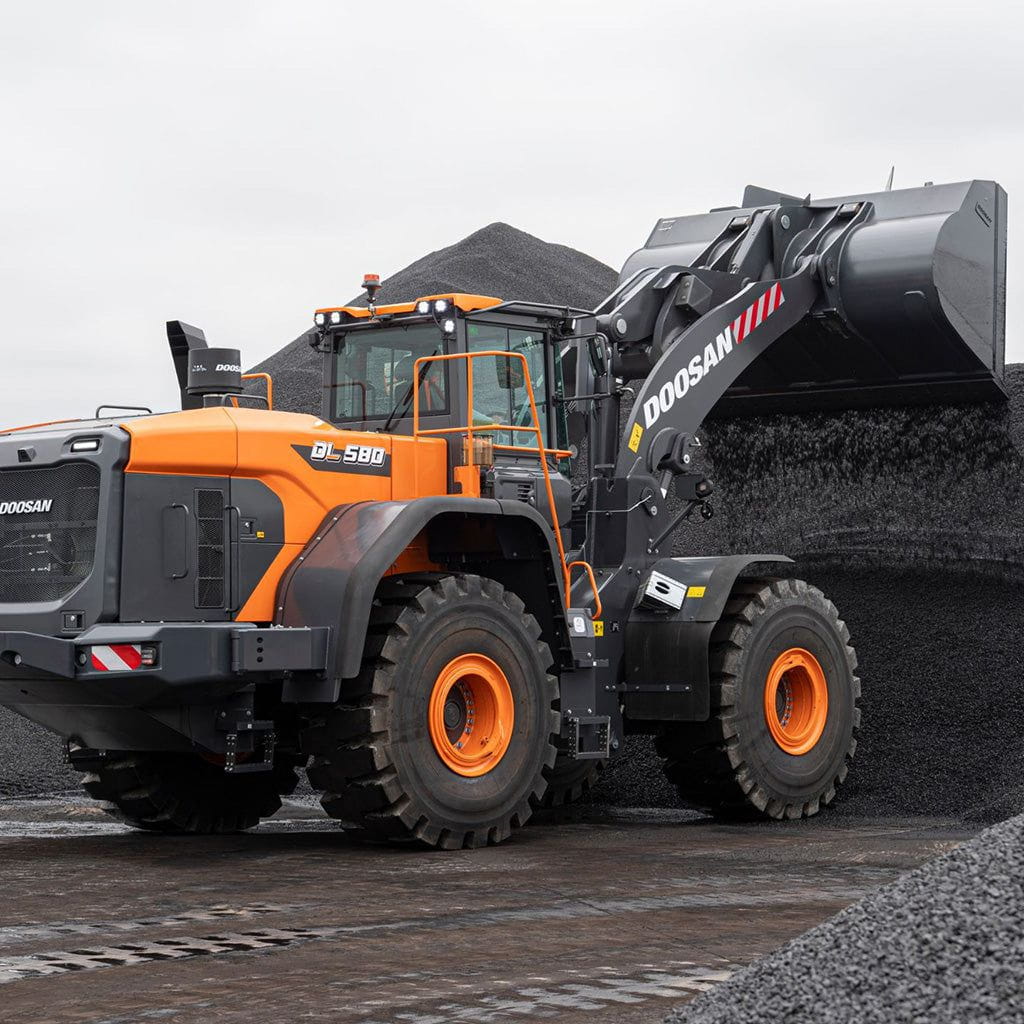

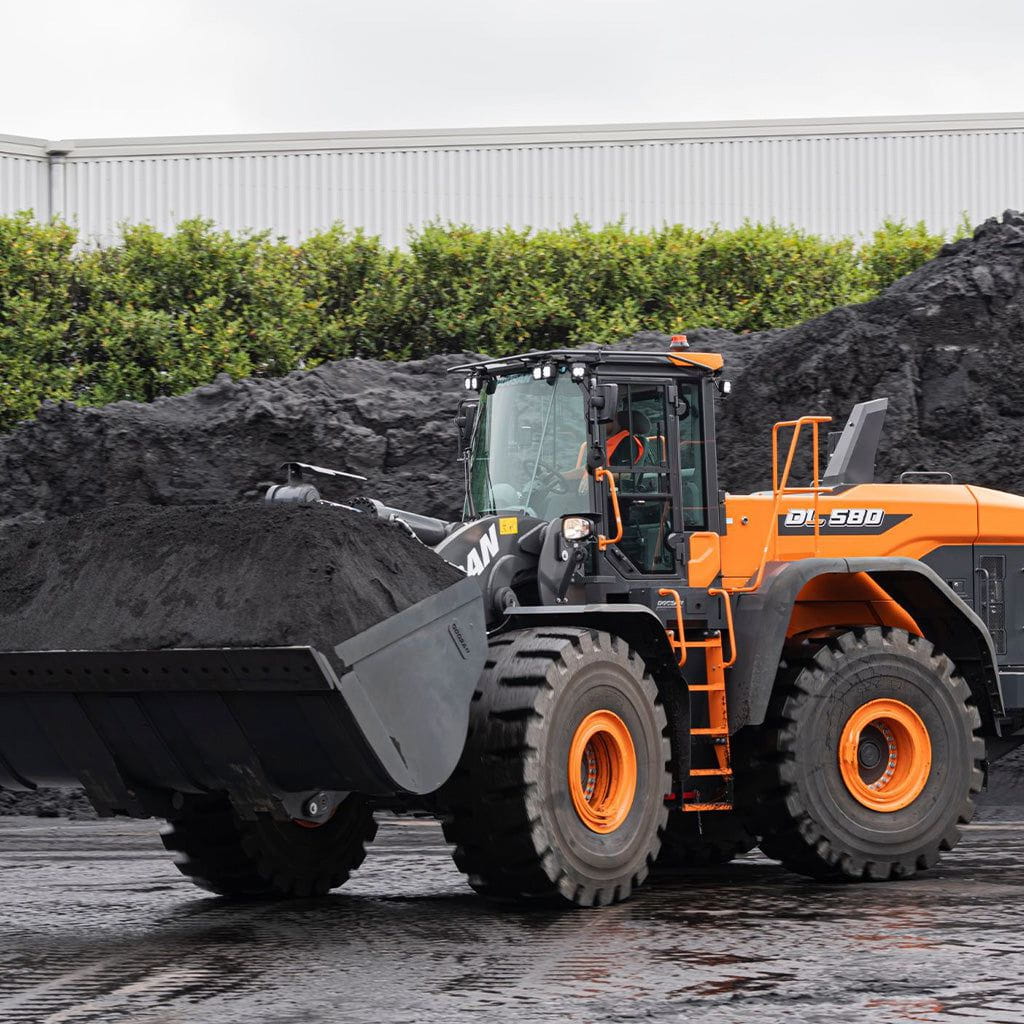

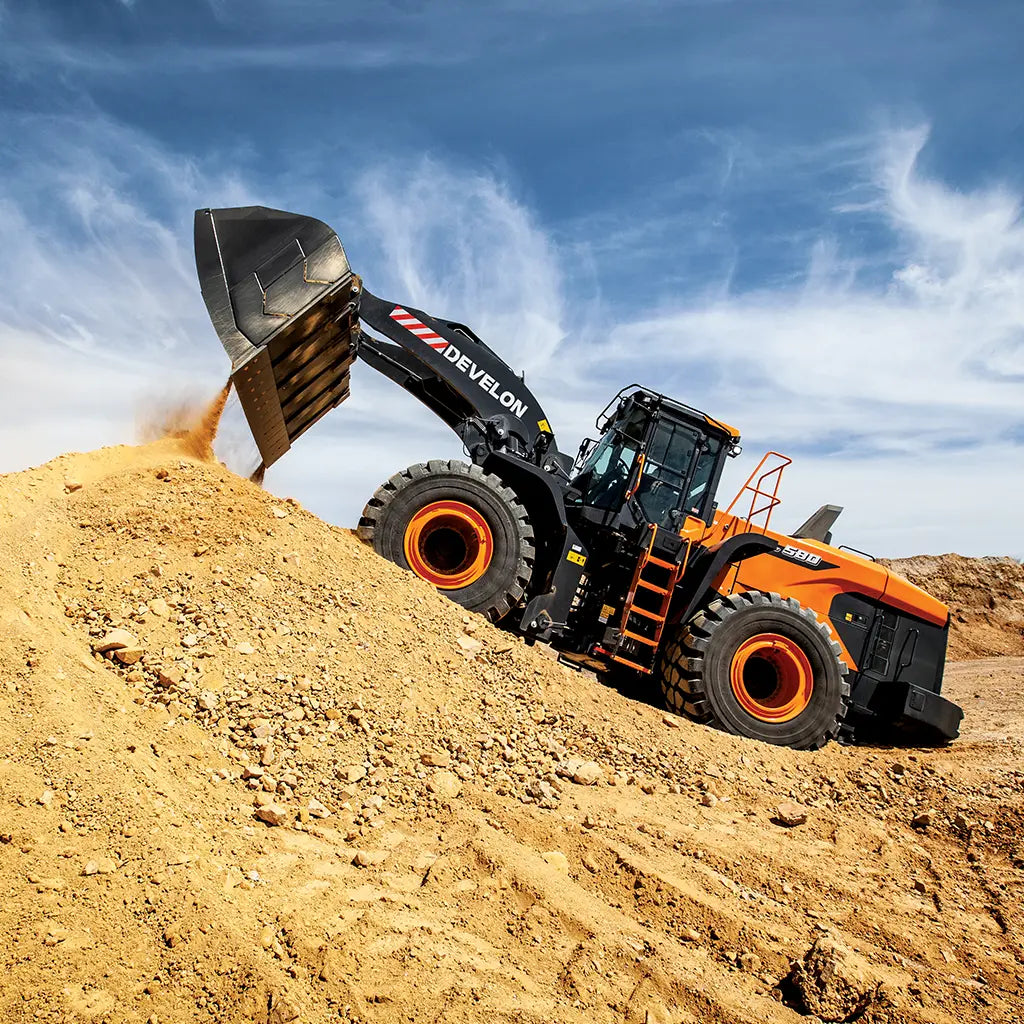

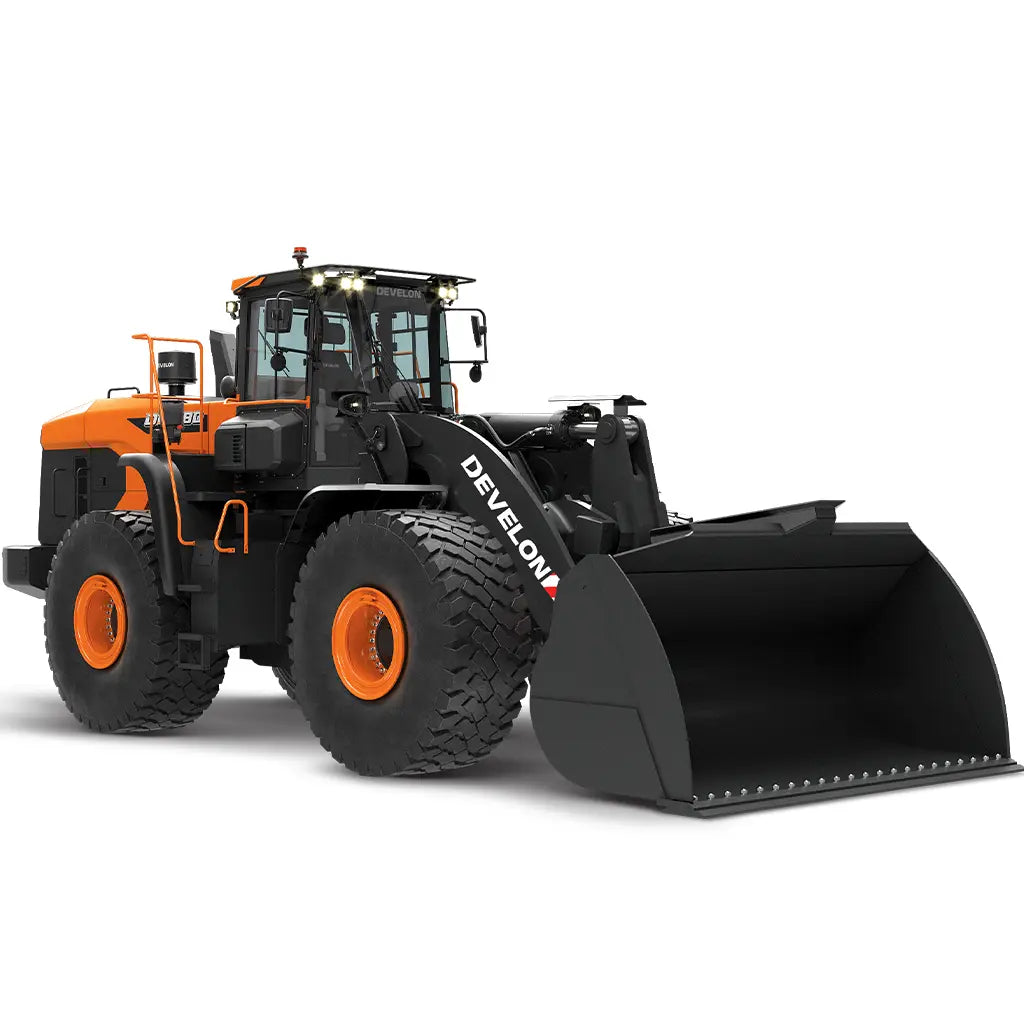

Develon DL580-7 Wheel Loader

Description

Equipped to handle the largest loads, the DEVELON DL580-7 wheel loader allows operators to efficiently fill a 24-ton capacity, over-the-road truck in just two passes. The larger load capacity reduces cycle times and makes this a perfect machine for heavy-duty jobs.
The DL580-7 also has an enhanced front work group that features a reinforced Z-bar, larger-profile arm and lift cylinder geometry that improves lifting capacity. This model is built for mining and aggregate work as well as heavy-duty construction jobsites.
Options include a quick coupler, additional larger counterweight and Load Isolation System.

The exclusive Standard Transparent Bucket option provides a supplemental visual perspective by allowing operators to “see-through” the bucket from an in-cab display.

The DEVELON Smart Load weighing system measures the weight of material in the bucket.

Loan

0%
for up to 36 months*
Financing Available

Lease

Flexible
Aggressive lease payments available. Custom or seasonal payment structures also available.
Lease Options

Cash in Lieu

Up to $19,500
cash back in lieu of financing
Customer Rebate

Warranty

3 Year / 3,000-Hour Full Coverage
Full machine coverage
Standard Included

See participating dealers for details.

*Program disclosure: 0% A.P.R. financing for up to 36 months and the cash-in-lieu rebate are mutually exclusive — select one or the other. Select models also carry an additional rebate that can be combined with either financing or cash in lieu; the up to $19,500 amount shown includes it. Lease options are available separately; contact dealer for terms and custom payment structures. Financing subject to credit approval through an authorized Develon financing provider. Rebate applied at time of purchase. 3 Year / 3,000-Hour Full Coverage standard warranty included with qualifying new Develon equipment purchases. Offers valid on qualifying new Develon models through participating dealers only. See dealer for complete details, eligibility requirements, and program end dates. Offers subject to change without notice.

DL580-7 Key Features

What Makes the DL580-7 Different

Built for Heavy-Duty Loading

The DL580-7 pairs an 8.4 yd³ heavy-duty bucket with a reinforced front work group for mining, aggregate and heavy construction loading. Its load capacity supports loading 24-ton over-the-road trucks.

394.3 hp Scania DC13 Engine

A 12.7 L, 6-cylinder Scania DC13 with a variable-geometry turbo (VGT) delivers 394.3 hp and a massive 1,591 lb·ft of torque, and meets Tier 4 Final emissions with DOC + SCR/DEF and no DPF.

Heavy-Duty Capacity

Up to 60,249 lbf of breakout force, a 60,549 lb static tipping load and a 78,673 lb operating weight on big low-sidewall tires in the heavy-duty configuration.

Standard 5-Speed Lock-Up Powershift

An automatic 5F/3R powershift transmission with a torque-converter lock-up clutch comes standard, delivering strong rimpull plus efficient, higher-speed travel up to 24.9 mph.

Standard Centralized Lubrication

Standard centralized lubrication points simplify greasing and daily maintenance of the loader linkage and articulation components.

Low-Sidewall Tires

The DL580-7 is equipped with 875/65R29 L4 low-sidewall tires, reducing sidewall deflection and enhancing traction for stable, productive operation in demanding conditions.

Heavy-Duty Driveline

A standard hydraulic-locking front differential, open rear differential and outboard planetary axles support demanding loading work. An optional axle cooler supports long carry distances and hot conditions.

Situation Awareness Technology (SAT)

Situation Awareness Technology adjusts engine output to drivetrain and hydraulic demand in real time to help reduce fuel consumption.

DEVELON Wheel Loaders

Compare the Wheel Loader Family

Compare DEVELON wheel loaders by capacity, power and configuration, including models with hydrostatic or powershift transmissions.

Develon DL200-7 Develon DL200TC-7 Develon DL220-7P Develon DL250-7P Develon DL250TC-7 Develon DL280-7 Develon DL320-7 Develon DL380-7 Develon DL420-7 Develon DL480-7 Develon DL550-7 Develon DL580-7
DL200-7 DL200TC-7 DL220-7P DL250-7P DL250TC-7 DL280-7 DL320-7 DL380-7 DL420-7 DL480-7 DL550-7 DL580-7Viewing
Rated Power (net)142.1 hp @ 2,200 rpm142.1 hp @ 2,000 rpm159.6 hp @ 2,100 rpm171.6 hp @ 2,100 rpm171.6 hp @ 2,100 rpm189.1 hp @ 2,000 rpm270.9 hp @ 1,800 rpm270.9 hp @ 1,800 rpm344.6 hp @ 1,800 rpm344.6 hp @ 1,800 rpm379.5 hp @ 1,800 rpm394.3 hp @ 1,800 rpm
Operating Weight26,559 lb (Std) / 27,189 lb (HL)26,867 lb29,099 lb (Std) / 29,462 lb (HL)30,527 lb (Std) / 30,891 lb (HL)31,605 lb34,550 lb (Std) / 34,892 lb (HL)43,572 lb (Std) / 43,975 lb (HL)45,022 lb (Std) / 45,728 lb (HL)53,413 lb (Std) / 54,017 lb (HL)58,354 lb (Std) / 58,938 lb (HL)70,598 lb (Std) / 71,390 lb (HL)78,673 lb (Heavy-Duty)
Bucket Capacity2.6 yd³ (2.0 m³)2.6 yd³ (2.0 m³)3.0 yd³ (2.3 m³)3.3 yd³ (2.5 m³)3.3 yd³ (2.5 m³)3.7 yd³ (2.8 m³)4.6 yd³ (3.5 m³)5.1 yd³ (3.9 m³)5.5 yd³ (4.2 m³)6.3 yd³ (4.8 m³)6.8 yd³ (5.2 m³)8.4 yd³ (6.4 m³)
Breakout Force21,806 lbf21,806 lbf21,544 lbf23,987 lbf25,943 lbf32,822 lbf33,946 lbf36,342 lbf41,365 lbf51,931 lbf56,202 lbf60,249 lbf
Static Tipping Load (straight)22,315 lb20,172 lb23,210 lb23,973 lb20,324 lb27,064 lb34,453 lb36,074 lb42,719 lb45,322 lb53,272 lb60,549 lb
TransmissionHydrostatic (HST), dual-motorHydrostatic (HST)Powershift 4F/3R (torque converter)Powershift 4F/3R (opt 5-speed lock-up)—Powershift 4F/3R (opt 5-speed)Powershift 4F/3R (opt 5-speed lock-up)Powershift 4F/3R (opt 5-speed lock-up)Powershift 4F/3R (opt 5-speed lock-up)Powershift 4F/3R (opt 5-speed lock-up)Powershift 4F/3R (opt 5-speed lock-up)Powershift 5F/3R lock-up (standard)
Lift Arm OptionsStandard US10 / High-Lift US20Parallel-lift (tool carrier)Std US10/11/15 · HL US20/21Std US10/11/15 · HL US20/21Parallel-lift (tool carrier)Std US10/11/15/30 · HL US20/21/40Std US10/11/50/51 · HL US20/21Std US10/11/50/51 · HL US20/21Std US10/11 · HL US20/21Std US10/11/50/51 · HL US20/21Std US11/50/51 · HL US20/21Heavy-Duty US30/31
Ride ControlStandard—StandardStandardStandardStandardStandardStandardStandardStandardStandardStandard
Transparent BucketStandardStandardStandardStandardStandardStandardStandardStandardStandardStandardStandardStandard
Power ModesP / S / E—P / S / EP / S / E—P / N / EP / S / EP / S / EP / S / EP / S / EP / S / ENormal / Power / SAT
EmissionsTier 4 · DOC/SCR/DPFTier 4Tier 4 · DOC/SCR (no DPF)Tier 4 · DOC/SCR (no DPF)Tier 4Tier 4 · DOC/SCR (no DPF)Tier 4 · DOC/SCR (no DPF)Tier 4 · DOC/SCR (no DPF)Tier 4 · DOC/SCR (no DPF)Tier 4 · DOC/SCR (no DPF)Tier 4 · DOC/SCR (no DPF)Tier 4 · DOC/SCR (no DPF)
Standard Warranty3 yr / 3,000 hr—3 yr / 3,000 hr3 yr / 3,000 hr—3 yr / 3,000 hr3 yr / 3,000 hr3 yr / 3,000 hr3 yr / 3,000 hr3 yr / 3,000 hr3 yr / 3,000 hr3 yr / 3,000 hr
DL580-7

DL580-7 Features & Benefits

Performance & Powertrain 9
Heavy-Duty Material Handling

The DL580-7 pairs an 8.4 yd³ heavy-duty bucket with a reinforced front work group for mining, aggregate and heavy construction loading. Its load capacity supports loading 24-ton over-the-road trucks.

394.3 hp Scania DC13 Engine

A 12.7 L, 6-cylinder Scania DC13 with a variable-geometry turbo produces 394.3 hp at 1,800 rpm and a massive 1,591 lb·ft of torque at 1,300 rpm — strong, low-rpm power for the heaviest production loading.

Standard 5-Speed Lock-Up Powershift

An automatic 5F/3R powershift transmission with a torque-converter lock-up clutch comes standard, delivering strong rimpull for digging plus efficient, higher-speed load-and-carry travel up to 24.9 mph.

Tier 4 Final — No DPF

Meets EPA Tier 4 Final emissions with HPCR fuel, a variable-geometry turbo, cooled EGR and a DOC + SCR/DEF aftertreatment package — and no diesel particulate filter (DPF) to regenerate, on a 116.5-gal fuel tank and 15.9-gal DEF tank.

Breakout & Tipping Capacity

The heavy-duty Z-bar loader linkage generates up to 60,249 lbf of breakout force with a 60,549 lb static tipping load and an 8.4 yd³ bucket in the US30/US31 heavy-duty configuration.

Heavy-Duty Driveline & Axle Cooler

Hydraulic-locking front/open rear differentials and outboard planetary axles are standard. An optional axle cooler supports long carry distances and high ambient temperatures.

Fuel-Saving SAT

Situation Awareness Technology automatically matches engine output to drivetrain and hydraulic demand to help save fuel.

Auto Idle & Auto Shutdown

Standard auto idle reduces engine rpm during inactivity. Adjustable auto shutdown stops the engine after a selected idle period.

Selectable Power & Transmission Modes

Normal mode supports efficient general work, Power suits demanding tasks, and SAT adapts engine output to load. Automatic transmission settings adjust gear changes to operating conditions.

Loader & Hydraulics 7
Heavy-Duty Z-Bar Loader

A reinforced Z-bar, larger-profile arm and revised lift-cylinder geometry support heavy-duty loading. The DL580-7 uses the US30/US31 heavy-duty arm configuration.

Electric Main Control Valves (EMCV)

Electric main control valves with auxiliary hydraulic detent give precise, responsive control and in-cab adjustable auto kick-out and return-to-dig for fast, repeatable cycles.

Ride Control

Standard ride control cushions the loader arms over rough terrain, reducing material spillage and operator fatigue while allowing faster load-and-carry travel.

Closed-Center Piston Hydraulics

A 74.0-gpm variable-displacement axial-piston pump feeds a closed-center system — responsive, efficient power for fast cycle times under the heaviest multifunction loads.

Auxiliary Hydraulics (3rd Valve)

Standard third-valve auxiliary hydraulics with detent support compatible hydraulic attachments. Boom float helps an attachment follow the ground.

Optional Quick Coupler & Counterweight

An optional quick coupler supports compatible attachment changes. An additional larger counterweight is available to suit the application.

Optional DEVELON Smart Load

The optional Smart Load weighing system provides bucket payload information during material handling.

Comfort, Safety & Technology 6
Sound-Suppressed Cab & Smart Touch

The ROPS/FOPS cab has more leg room, 14% more glass, a full glass door and larger mirrors. Smart Touch displays machine settings and the rearview camera. Revised heating and cooling outlets improve airflow; additional LED work lights are optional.

Smart Guidance & Smart Key

Smart Guidance provides operating tips through Smart Touch. The Smart Key fob unlocks the cab and enables push-button engine starts.

Optional 3-Lever Fingertip Controls

Standard joystick control, or optional 3-lever fingertip control for precise, low-effort multifunction operation during long, high-cycle loading shifts.

Transparent Bucket

Standard Transparent Bucket provides a supplemental visual perspective through the bucket on the in-cab display.

Rearview Camera & AVM

The standard rearview camera appears on Smart Touch. An optional around-view monitor provides additional perspectives around the machine.

Preinstalled MY DEVELON Telematics

Standard MY DEVELON provides remote fleet monitoring through its app and website to help plan service and manage operating costs.

Durability & Serviceability 6
Standard Centralized Lubrication

Standard centralized lubrication points simplify greasing and daily maintenance of the loader linkage and articulation components.

Low-Sidewall Tires

875/65R29 L4 low-sidewall tires reduce sidewall deflection and enhance traction for stable, productive operation under heavy loads.

New Radiator & Reversible Fan

A new radiator with wider fin spacing reduces clogging and simplifies daily maintenance, while a standard variable-speed reversible fan purges the cooling cores of debris — both improving uptime protection.

Easy, Safe Service Access

Accessible oil-sampling and pressure-test ports, engine and coolant drains, handrails and skid-resistant service platforms simplify checks and maintenance. A laptop service port supports diagnostics.

Outboard Brakes

Outboard brakes operate in the final reduction at lower rotation speeds to help extend brake-disc life. The machine uses sealed, self-adjusting brakes.

Reinforced Frame & Articulation Bearings

The articulated box frame, large center bearings and self-centering, double-tapered roller bearings support heavy-duty work. Dust seals, covers and vents help protect the bearings and prevent grease overfill.

Develon DL580-7 Wheel Loader

Why Buyers Choose the DL580-7

8.4 yd³ bucket and reinforced US30/US31 front work group for heavy-duty loading

394.3 hp Scania DC13 (12.7 L, VGT) with a massive 1,591 lb·ft of torque

60,249 lbf breakout force, 60,549 lb straight tipping load and 78,673 lb operating weight

Standard 5-speed lock-up powershift and standard hydraulic-locking front differential

Standard centralized lubrication points and accessible service ports

Low-sidewall 875/65R29 tires for reduced deflection and improved traction; optional axle cooler

Tier 4 Final without a DPF, fuel-saving SAT and preinstalled MY DEVELON telematics

Standard 3-year / 3,000-hour full-machine warranty and local Develon service

Customers & Applications

Who Uses the DL580-7 and What For

The Develon DL580-7 combines Scania power, an 8.4 yd³ bucket and a reinforced front work group for aggregate, mining, industrial and heavy construction loading.

Quarries & Aggregate

  • Production truck loading
  • Heavy face loading and rehandling
  • Standard locking diff for loose ground
  • Optional DEVELON Smart Load for bucket payload information

Mining & Demolition

  • Mine-site bulk material handling
  • Demolition material handling
  • Big breakout for the toughest digging
  • Low-sidewall tires for traction

Industrial

  • Steel and scrap material handling
  • Port and terminal operations
  • Bulk and material yards
  • Heavy load-and-carry

Heavy Construction

  • Large-scale earthworks and site development
  • Bulk material loading and rehandling
  • High-production stockpiling
  • Long shifts on a 116.5-gal tank
DEVELON DL580-7 Wheel Loader

The DL580-7 by the Numbers

Rated Power

394.3 hpScania DC13 · at 1,800 rpm

The 12.7 L engine delivers 1,591 lb·ft of torque at 1,300 rpm for heavy-duty loading.

Bucket

8.4 yd³Heavy-duty US30 / US31

Published heaped capacity is 6.4 m³, with a reinforced Z-bar and larger-profile lift arm.

Breakout Force

60,249 lbfHeavy-duty configuration

Straight static tipping load is 60,549 lb. Published full-turn static tipping load is 50,027 lb.

Main Pump

74.0 gal/minMaximum flow rate · each

Variable-displacement axial-piston hydraulics use electric main control valves and a published work pressure of 3,626 psi.

Operating Weight

78,673 lbHeavy-duty configuration

Low-sidewall 875/65R29 L4 tires support heavy-duty loading. Attachments and equipment affect configured weight.

Transmission

5F / 3RStandard lock-up powershift

The standard five-speed automatic transmission includes a torque-converter lock-up clutch and a published top forward speed of 24.9 mph.

Talk to a person about the DL580-7

Carleton Equipment is a family-owned Michigan dealer, here since 1938. Sales, rental, service and parts all come from the same team, and we’ll connect you with the location nearest you.

  • Chesterfield
  • Coldwater
  • Grand Rapids
  • Howell
  • Kalamazoo
  • Livonia
  • Saginaw

Full Specifications

Download Spec Sheet
Engine
Engine ModelScania DC13 (VGT turbo)
Engine MakeScania
Rated Power (gross = net)394.0
Max. Torque1,591 lb·ft @ 1,300 rpm
Displacement775.0 cu in (12.7 L), 6-cyl
EmissionsEPA Tier 4 Final — HPCR, VGT, cooled EGR, DOC, SCR/DEF (no DPF)
Fuel Tank116.8 gal.
DEF Tank15.9 gal (60 L)
Capacities
Fuel Tank116.5 gal (441 L)
DEF Tank15.9 gal (60 L)
Cooling System14.3 gal (54 L)
Engine Oil11.9 gal (45 L)
Transmission17.7 gal (67 L)
Front Axle16.5 gal (62.5 L)
Rear Axle16.9 gal (64 L)
Hydraulic System63.9 gal (242 L)
General
Bucket Capacity8.4 yd³ (6.4 m³) heaped ISO/SAE
Bucket Width11' 2.8" (3,424 mm)
Lift ArmZ-bar lift arm — Heavy-Duty US30 / US31 (single config)
Breakout Force60,249 lbf (268.0 kN)
Max. Hinge Pin Height15' 7.6" (4,765 mm)
Dump Height10' 4.6" (3,165 mm) — at 45°, fully raised
Dump Reach5' 4.2" (1,630 mm)
Digging Depth3.9 in (100 mm)
Performance
Static Tipping Load (straight)60,549 lb (27,465 kg)
Static Tipping Load (full turn)50,027 lb — at 40° full turn
TransmissionPowershift 5F / 3R, torque-converter lock-up clutch (standard)
Travel Speed — Forward3.9 / 7.5 / 12.1 / 16.9 / 24.9 mph (5-speed)
Travel Speed — Reverse3.8 / 7.5 / 16.9 mph (5-speed)
Max. Grade58% (30°)
Hydraulics
Main PumpVariable-displacement axial piston — 74.0 gpm (280 L/min), maximum flow (each)
System Pressure3,626 psi (work) / 3,118 psi (steer)
FeaturesClosed-center, ELECTRIC main control valves (EMCV); ride control; auto boom kick-out; auto return-to-dig; boom float; aux (3rd valve, detent)
Dimensions
Overall Length32' 6" (9,895 mm)
Overall Height12' 7" (3,845 mm) — ROPS cab
Wheelbase12' 2" (3,700 mm)
Tread Width7' 11.3" (2,420 mm)
Ground Clearance19.0 in (490 mm)
Steering Angle±40° articulation
Turning Radius25' 0" (bucket edge) / 21' 10.8" (outside tire)
Tire Size875/65R29 L4 (low-sidewall) radial
Operating Weight74494 lb
Serviceability
LubricationCentrally located lubrication points
Fluid ServiceAccessible components and remote engine/hydraulic oil drain ports
DiagnosticsSmart Touch system monitoring and historical alerts; laptop service port
Fleet MonitoringMY DEVELON app and website for hours, fuel use, error codes and oil temperatures
Features
Z-Bar Lift Arm (Heavy-Duty)High breakout-force Z-bar loader linkage — heavy-duty US30/US31 arm configuration
Standard 5-Speed PowershiftAutomatic 5F/3R powershift with torque-converter lock-up clutch comes standard
Scania DC13 with VGTA 12.7 L 6-cylinder Scania DC13 with variable-geometry turbo — 394.3 hp and 1,591 lb·ft of torque
Heavy-Duty Capacity8.4 yd³ bucket, 60,249 lbf breakout and a 78,673 lb operating weight — heavy-duty US30/US31 configuration
Electric Main Control Valves (EMCV)Electric main control valves with auxiliary hydraulic detent for precise, responsive control
Standard Centralized LubricationCentralized lubrication points simplify routine greasing
Low-Sidewall Tires875/65R29 L4 low-sidewall tires reduce sidewall deflection and improve traction
Standard Hydraulic-Locking Front DiffStandard hydraulic-locking front / open rear differentials; axle cooler available for sustained load-and-carry work
Situation Awareness Technology (SAT)Automatically matches engine output to drivetrain and hydraulic demand to help save fuel
Ride Control & Auto FunctionsStandard ride control, auto boom/lift kick-out and auto return-to-dig (in-cab adjustable)
Boom Float & Aux HydraulicsBoom float plus a 3rd-valve auxiliary hydraulic circuit for attachments
Power ModesNormal, Power and SAT engine settings per the current overview; manual / auto (1–5 / 2–5) transmission modes
Joystick or Fingertip ControlsStandard joystick control; optional 3-lever fingertip control for precise multifunction operation
Redesigned Cab & 8" Smart TouchSound-suppressed ROPS/FOPS cab with an 8" Smart Touch display, Transparent Bucket and automatic HVAC
Rearview CameraStandard rearview camera; around-view monitor (AVM) optional
Integrated Smart ScaleOptional integrated payload scale system for on-the-go weighing
New Radiator & Reversible FanNew radiator with wider fin spacing plus a variable-speed auto-reversible fan for uptime
Preinstalled MY DEVELON TelematicsMY DEVELON telematics for machine maintenance and productivity insight
3-Year / 3,000-Hour WarrantyStandard full-machine coverage on qualifying new Develon wheel loaders
Quick Coupler & CounterweightOptional quick coupler and additional larger counterweight for the application
Axle CoolerOptional for long carry distances and high ambient temperatures
Smart Guidance & Smart KeyOperating tips through Smart Touch; key-fob access and push-button starts
Auto Idle & Auto ShutdownStandard adjustable engine-management functions
Service AccessAccessible oil-sampling and pressure-test ports, engine/coolant drains and centralized lubrication points

Specifications are based on the official Develon DL580-7 data and are subject to change. Some items are optional or vary by lift-arm configuration (Standard US10 / High-Lift US20) — contact Carleton Equipment to confirm exact specifications and availability.

Talk to a sales expert

Fill out the form and we'll connect you with the location nearest you.

First name is required.
Last name is required.
A phone number is required.
A valid email address is required.
Helps us route you to the closest location Please enter your zip code.

Related Products

Recently viewed
