General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Develon |
| Model: | DL380-7 |
| Machine Type: | Wheel Loader |
|
Engine
|
|
|---|---|
| Horsepower: | 271.0 |
|
Performance
|
|
|---|---|
| Operating Weight: | 44919 lb |
|
Hydraulics
|
|---|
|
Dimensions
|
|
|---|---|
| Height: | 11' 6" |
| Length: | 27' 3" |
| Width: | 10' 2" |
| Fuel Tank: | 76.9 gal. |
Description

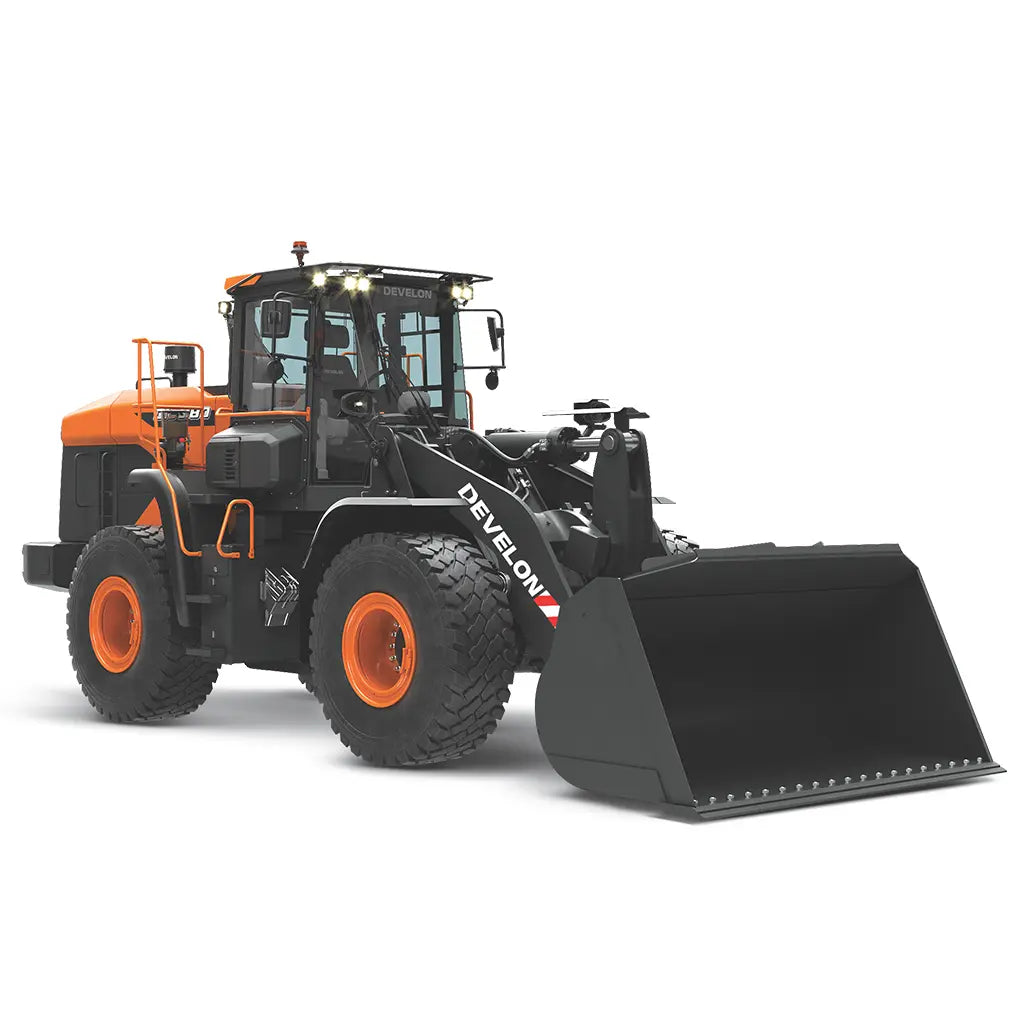

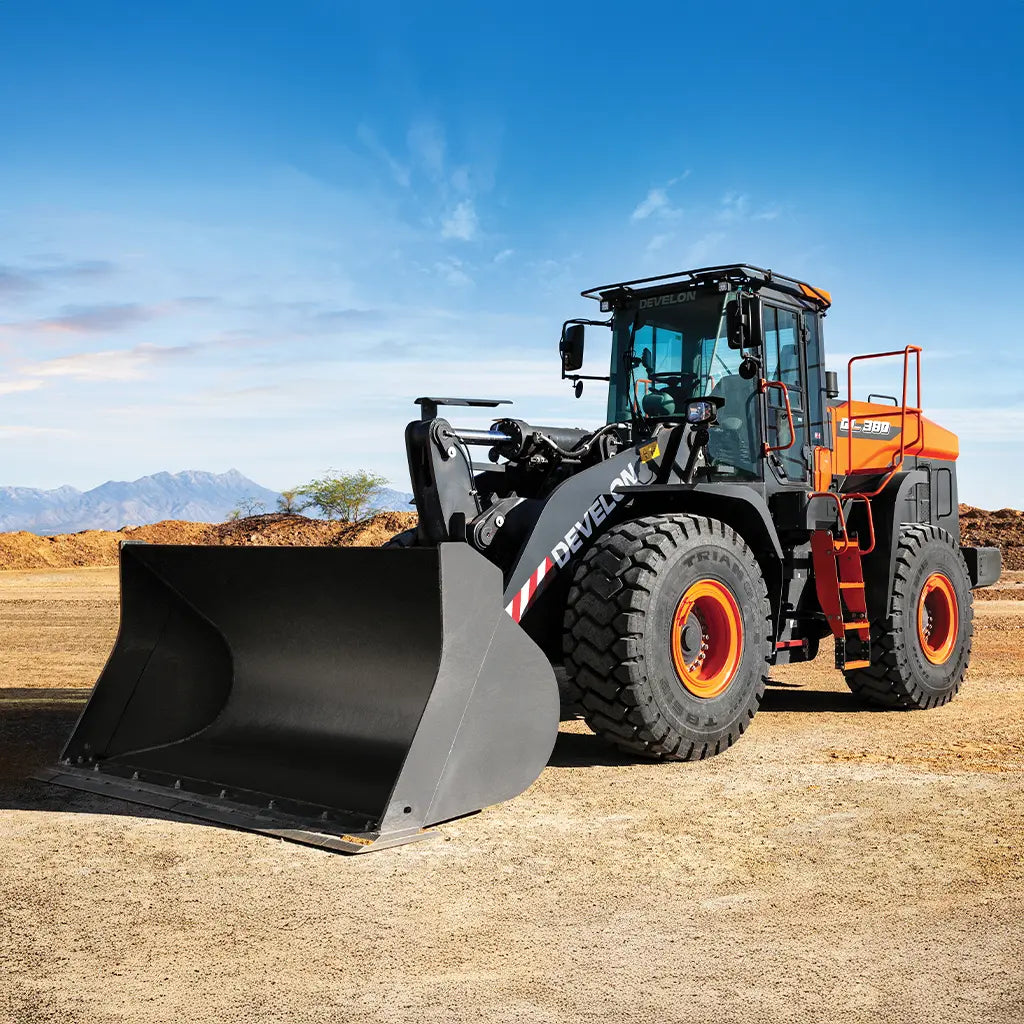

Develon DL380-7 Wheel Loader
Description
The DEVELON DL380-7 packs more horsepower and 7% larger bucket capacity than previous models to make your work easier. Axle upgrades allow you to carry and lift larger bucket capacities, and the strengthened box frame is designed for better balance and improved lifting capacity. The high-lift option provides additional height for loading into high-sided trucks. The optional Load Isolation System improves stability when moving — for even higher productivity.
The DL380-7 includes a powershift 4-speed transmission, multiple power modes, Z-bar lift arm, return to dig and limited slip differentials. The improved cooling system features wider radiator fin spacing and a reversible fan to clear debris and reduce clogging.
Loan
Lease
Cash in Lieu
Warranty
See participating dealers for details.
*Program disclosure: 0% A.P.R. financing for up to 36 months and Up to $19,500 cash-in-lieu rebate are mutually exclusive — select one or the other. Lease options are available separately; contact dealer for terms and custom payment structures. Financing subject to credit approval through an authorized Develon financing provider. Rebate applied at time of purchase. 3 Year / 3,000-Hour Full Coverage standard warranty included with qualifying new Develon equipment purchases. Offers valid on qualifying new Develon models through participating dealers only. See dealer for complete details, eligibility requirements, and program end dates. Offers subject to change without notice.
What Makes the DL380-7 Different
Replaces the DL350-5 — 7% More Bucket Capacity
The DL380-7 replaces the DL350-5. Its bucket capacity is 7% greater than the DL350-5's, which better aligns the DL380-7 with competitor models and increases machine productivity — topping the DEVELON range with a 5.1 yd³ bucket, the heaviest operating weight (45,022 lb) and the most breakout force (up to 38,442 lbf).
270.9 hp Develon DL08 with VGT
A 7.6 L, 6-cylinder Develon DL08 with a variable-geometry turbo (VGT) delivers 270.9 hp and 940 lb·ft of torque, and meets Tier 4 Final emissions with DOC + SCR/DEF and no DPF.
Strengthened Axles & Frame
New axle durability upgrades and added frame material strengthen the DL380-7 and enable it to handle the increased lift capacity, while a high-performance Z-bar linkage carries the 5.1 yd³ bucket with up to 36,342 lbf of breakout force on 23.5R25 tires.
High-Pressure Hydraulics
A 68.7-gpm variable axial-piston pump operating at a high 3,844 psi delivers strong breakout and lift force with fast, responsive boom and bucket cycles under heavy multifunction loads.
Torque-Converter Powershift
A full-automatic 4F/3R torque-converter powershift delivers strong rimpull, with an optional 5F/3R transmission featuring a torque-converter lock-up clutch (US50/US51 packages) for higher efficiency and road speed.
Improved Cooling & Uptime
A new radiator with 40% wider fin spacing reduces clogging and eases daily maintenance, and a standard hydraulically driven reversing fan adjusts its speed to engine-compartment temperatures — both improving uptime protection.
Situation Awareness Technology (SAT)
Standard Situation Awareness Technology improves all-around jobsite awareness and operating safety, complemented by a standard rearview camera and an optional 360° around-view monitor (AVM).
Comfortable Cab & Optional Fingertip Controls
A sound-suppressed 68 dB(A) cab with an 8" DEVELON Smart Touch display, Transparent Bucket and optional 3-lever fingertip controls, plus preinstalled MY DEVELON telematics.
Compare the Wheel Loader Family
Develon wheel loaders pair a hydrostatic transmission and Z-bar loader linkage with smart technology like the Transparent Bucket and 8" Smart Touch display. More models coming to the lineup.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| DL200-7 | DL220-7 | DL250-7 | DL280-7 | DL320-7 | DL380-7Viewing | DL420-7 | DL480-7 | DL550-7 | DL580-7 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Specifications | ||||||||||
| Rated Power (net) | 142.1 hp @ 2,200 rpm | 159.6 hp @ 2,100 rpm | 171.6 hp @ 2,100 rpm | 189.1 hp @ 2,000 rpm | 270.9 hp @ 1,800 rpm | 270.9 hp @ 1,800 rpm | 344.6 hp @ 1,800 rpm | 344.6 hp @ 1,800 rpm | 379.5 hp @ 1,800 rpm | 394.3 hp @ 1,800 rpm |
| Operating Weight | 26,559 lb (Std) / 27,189 lb (HL) | 29,099 lb (Std) / 29,462 lb (HL) | 30,527 lb (Std) / 30,891 lb (HL) | 34,550 lb (Std) / 34,892 lb (HL) | 43,572 lb (Std) / 43,975 lb (HL) | 45,022 lb (Std) / 45,728 lb (HL) | 53,414 lb (Std) / 54,017 lb (HL) | 58,354 lb (Std) / 58,938 lb (HL) | 70,598 lb (Std) / 71,390 lb (HL) | 78,674 lb (Heavy-Duty) |
| Bucket Capacity | 2.6 yd³ (2.0 m³) | 3.0 yd³ (2.3 m³) | 3.3 yd³ (2.5 m³) | 3.7 yd³ (2.8 m³) | 4.6 yd³ (3.5 m³) | 5.1 yd³ (3.9 m³) | 5.5 yd³ (4.2 m³) | 6.3 yd³ (4.8 m³) | 6.8 yd³ (5.2 m³) | 8.4 yd³ (6.4 m³) |
| Breakout Force | 21,806 lbf | 21,544 lbf | 23,987 lbf | 32,822 lbf | 33,946 lbf | 36,342 lbf | 41,365 lbf | 51,931 lbf | 56,202 lbf | 60,249 lbf |
| Static Tipping Load (straight) | 22,315 lb | 23,210 lb | 23,973 lb | 27,064 lb | 34,454 lb | 36,074 lb | 42,718 lb | 45,322 lb | 53,273 lb | 58,555 lb |
| Transmission | Hydrostatic (HST), dual-motor | Powershift 4F/3R (torque converter) | Powershift 4F/3R (opt 5-speed lock-up) | Powershift 4F/3R (opt 5-speed) | Powershift 4F/3R (opt 5-speed lock-up) | Powershift 4F/3R (opt 5-speed lock-up) | Powershift 4F/3R (opt 5-speed lock-up) | Powershift 4F/3R (opt 5-speed lock-up) | Powershift 4F/3R (opt 5-speed lock-up) | Powershift 5F/3R lock-up (standard) |
| Features | ||||||||||
| Lift Arm Options | Standard US10 / High-Lift US20 | Std US10/11/15 · HL US20/21 | Std US10/11/15 · HL US20/21 | Std US10/11/15/30 · HL US20/21/40 | Std US10/11/50/51 · HL US20/21 | Std US10/11/50/51 · HL US20/21 | Std US10/11 · HL US20/21 | Std US10/11/50/51 · HL US20/21 | Std US11/50/51 · HL US20/21 | Heavy-Duty US30/31 |
| Ride Control | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Transparent Bucket | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Power Modes | P / S / E | P / S / E | P / S / E | P / S / E | P / S / E | P / S / E | P / S / E | P / S / E | P / S / E | P / S / E |
| Emissions | Tier 4 · DOC/SCR/DPF | Tier 4 · DOC/SCR (no DPF) | Tier 4 · DOC/SCR (no DPF) | Tier 4 · DOC/SCR (no DPF) | Tier 4 · DOC/SCR (no DPF) | Tier 4 · DOC/SCR (no DPF) | Tier 4 · DOC/SCR (no DPF) | Tier 4 · DOC/SCR (no DPF) | Tier 4 · DOC/SCR (no DPF) | Tier 4 · DOC/SCR (no DPF) |
| Standard Warranty | 3 yr / 3,000 hr | 3 yr / 3,000 hr | 3 yr / 3,000 hr | 3 yr / 3,000 hr | 3 yr / 3,000 hr | 3 yr / 3,000 hr | 3 yr / 3,000 hr | 3 yr / 3,000 hr | 3 yr / 3,000 hr | 3 yr / 3,000 hr |
Standard Arm vs High-Lift
The DL380-7 is offered with two front lift-arm configurations. The standard US10 / US11 / US50 / US51 arm maximizes lift capacity and tipping load; the optional high-lift US20 / US21 arm trades some capacity for greater reach and dump height to load taller trucks and hoppers.
| Standard ArmUS10 / US11 / US50 / US51 | High-Lift ArmUS20 / US21 | |
|---|---|---|
| Shared | ||
| Engine | Develon DL08 (VGT) · 270.9 hp @ 1,800 rpm | |
| Bucket Capacity | 5.1 yd³ (3.9 m³) | |
| Transmission | Powershift 4F/3R (opt 5-speed lock-up) | |
| Tire Size | 23.5R25 L3 radial | |
| Reach & Lift | ||
| Max. Hinge Pin Height | 13' 8.2" | 15' 4.6" |
| Dump Height (45°) | 9' 11.7" | 11' 8.2" |
| Dump Reach (45°) | 4' 0.0" | 4' 8.1" |
| Digging Depth | 3.3" | 5.7" |
| Overall Length | 27' 2.6" | 28' 7.9" |
| Capacity | ||
| Static Tipping Load (straight) | 36,074 lb | 26,733 lb |
| Static Tipping Load (full turn) | 31,855 lb | 23,609 lb |
| Breakout Force | 36,342 lbf | 38,442 lbf |
| Operating Weight | 45,022 lb | 45,728 lb |
Specifications from the official DEVELON DL380-7 spec sheet; subject to change. Contact Carleton Equipment to confirm the right configuration.
DL380-7 Features & Benefits
Performance & Powertrain 6
Replaces the DL350-5 — 7% More Bucket Capacity
The DL380-7 replaces the DL350-5. Its bucket capacity is 7% greater than the DL350-5's, which better aligns the DL380-7 with competitor models and increases machine productivity — topping the range with a 5.1 yd³ bucket, the heaviest operating weight (45,022 lb) and the most breakout force (up to 38,442 lbf high-lift).
270.9 hp Develon DL08 with VGT Turbo
A 7.6 L, 6-cylinder Develon DL08 with a variable-geometry turbo produces 270.9 hp at 1,800 rpm and 940 lb·ft of torque at 1,300 rpm — strong, low-rpm power for heavy production work.
High-Pressure Hydraulics
A 68.7-gpm variable-displacement axial-piston pump operating at a high 3,844 psi delivers strong breakout and lift force with fast, responsive boom and bucket cycles under heavy multifunction loads.
Torque-Converter Powershift
A full-automatic 4F/3R torque-converter powershift multiplies torque for strong rimpull, with an optional 5F/3R transmission featuring a torque-converter lock-up clutch (US50/US51 packages) for higher efficiency and road speed.
Tier 4 Final — No DPF
Meets EPA Tier 4 Final emissions with HPCR fuel, a variable-geometry turbo, cooled EGR and a DOC + SCR/DEF aftertreatment package — and no diesel particulate filter (DPF) to regenerate, on a 76.9-gal fuel tank and 16.4-gal DEF tank.
Strong Breakout & Tipping Capacity
The Z-bar loader linkage generates up to 36,342 lbf of breakout force with a 36,074 lb static tipping load (straight) and a 5.1 yd³ bucket on 23.5R25 tires — the most digging and lifting capacity in the family.
Loader & Hydraulics 5
Z-Bar Loader Linkage
A high-performance Z-bar lift arm maximizes breakout force and dump clearance, with standard (US10/11/50/51) and optional high-lift (US20/21) arm configurations to match your loading height and capacity needs.
Ride Control
Standard ride control cushions the loader arms over rough terrain, reducing material spillage and operator fatigue while allowing faster load-and-carry travel.
Auto Kick-Out & Return-to-Dig
In-cab adjustable automatic boom/lift kick-out and bucket return-to-dig repeat your set heights and bucket angle automatically, speeding up repetitive loading cycles.
Closed-Center Piston Hydraulics
A variable-displacement axial-piston pump feeds a closed-center, pilot-operated system at 3,844 psi — high pressure for strong force and fast cycle times under heavy multifunction loads.
Auxiliary Hydraulics (3rd Valve)
A standard 3rd-valve auxiliary circuit and boom float expand attachment versatility — run grapples, snow blowers, brooms and more beyond the standard bucket.
Comfort, Safety & Technology 6
Situation Awareness Technology (SAT)
Standard Situation Awareness Technology enhances all-around jobsite awareness and operating safety, helping the operator detect people and obstacles around the machine.
Quiet, Comfortable Cab
A sound-suppressed ROPS/FOPS cab (68 dB(A) inside) with an air-suspension seat, adjustable control stands and fully automatic HVAC keeps operators comfortable through long production shifts.
Optional 3-Lever Fingertip Controls
Standard joystick control, or optional 3-lever fingertip control for precise, low-effort multifunction operation during long, high-cycle loading shifts.
8" DEVELON Smart Touch & Transparent Bucket
A height- and angle-adjustable 8-inch DEVELON Smart Touch screen centralizes settings, smart guidance and fuel data, and a multi-camera Transparent Bucket shows a see-through view past the bucket.
Rearview Camera & AVM
A standard rearview camera improves visibility; an optional around-view monitor (AVM) stitches a 360° bird's-eye view for confident operation in tight or busy jobsites.
Preinstalled MY DEVELON Telematics
MY DEVELON telematics is preinstalled — tracking machine location, hours, fuel use and health remotely to help manage maintenance, security and fleet utilization. An optional smart scale weighs loads on the go.
Durability & Serviceability 5
New Radiator — 40% Wider Fin Spacing
A new radiator with 40% wider fin spacing reduces clogging and makes daily maintenance easier, improving cooling performance and uptime in hot, dirty conditions.
Temperature-Adjusting Reversing Fan
A standard hydraulically driven reversing fan adjusts its speed depending on engine-compartment temperatures and purges the cores of debris — improving uptime protection and saving fuel.
New Axle Durability Upgrades & Stronger Frame
New axle durability upgrades and added frame material strengthen the DL380-7 and enable it to handle the increased lift capacity. Outboard planetary axles with front/rear limited-slip differentials (optional hydraulic-locking front) deliver traction and durability.
Centralized Lubrication & Easy Service
Standard centralized lubrication, handrails (including roof-mounted), skid-resistant steps and platforms, remote drains and a laptop service port make daily checks and maintenance quick and safe.
Spring-Applied Hydraulic-Release Brakes
Sealed, self-adjusting outboard wet brakes with spring-applied hydraulic release deliver fade-free stopping and long service life in demanding duty cycles.
Why Buyers Choose the DL380-7
Replaces the DL350-5 with 7% more bucket capacity — the largest, highest-capacity loader in the lineup (5.1 yd³, 45,022 lb)
270.9 hp Develon DL08 (7.6 L, VGT) with new axle durability upgrades and added frame material
The most breakout force in the family — up to 36,342 lbf (38,442 lbf high-lift)
High-pressure 3,844-psi hydraulics for strong force and fast cycle times
Tier 4 Final without a DPF (DOC + SCR/DEF only) — no regeneration to manage
Heavy, stable production machine on 23.5R25 tires with reinforced axles
Standard Situation Awareness Technology, quiet cab and preinstalled MY DEVELON
Standard 3-year / 3,000-hour full-machine warranty and local Develon service
Who Uses the DL380-7 and What For
The Develon DL380-7 is the family's largest, highest-capacity wheel loader — a 5.1 yd³ bucket, DL08 VGT power and class-leading breakout make it a high-production machine for aggregate, mining-adjacent and large-scale material handling.
- High-production truck and hopper loading
- Pit, quarry and large recycling operations
- Sustained heavy digging and loading
- Integrated smart scale for accurate loads
- Bulk material handling and load-and-carry
- Stockpiling and rehandling
- High-lift arms for tall truck loading
- Large-scale site development
- High-volume compost, mulch and biomass
- Wood, scrap and industrial material yards
- Waste and recycling handling
- Fast loading of large trucks and trailers
- Large-scale snow pushing and stacking
- Snow blower and pusher attachments
- Bulk salt and sand loading
- Year-round municipal operations
What Makes the DL380-7 Different
Replaces the DL350-5 with 7% more bucket capacity on a high-performance Z-bar linkage — better aligned with competitors and more productive.
A 7.6 L 6-cylinder DL08 with a variable-geometry turbo and 940 lb·ft of torque delivers strong, low-rpm production power.
The most digging force in the family (up to 38,442 lbf high-lift), with a 36,074 lb static tipping load for heavy filling and lifting.
High-pressure hydraulics deliver strong breakout and lift force with fast, responsive cycles under heavy multifunction loads.
The heaviest, most stable machine in the lineup, on 23.5R25 tires — with a quiet cab and standard Situation Awareness Technology.
Meets Tier 4 Final with HPCR fuel, the VGT, cooled EGR and DOC + SCR/DEF — and no diesel particulate filter to regenerate.
Full Specifications
Engine
| Engine Model | Develon DL08 (VGT turbo) |
| Engine Make | Develon |
| Rated Power (gross = net) | 271.0 |
| Max. Torque | 940.0 lb·ft @ 1,300 rpm |
| Displacement | 466.0 cu in (7.6 L), 6-cyl |
| Emissions | EPA Tier 4 Final — HPCR, VGT, cooled EGR, DOC, SCR/DEF (no DPF) |
| Fuel Tank | 76.9 gal. |
| DEF Tank | 16.4 gal (62 L) |
Bucket & Loader
| Bucket Capacity | 5.1 yd³ (3.9 m³) heaped ISO/SAE |
| Bucket Width | 10' 2.4" (3,110 mm) |
| Lift Arm | Z-bar lift arm — Standard US10/US11/US50/US51 · High-Lift US20/US21 |
| Breakout Force | 36,342 lbf (Standard) / 38,442 lbf (High-Lift) |
| Max. Hinge Pin Height | 13' 8.2" (Standard) / 15' 4.6" (High-Lift) |
| Dump Height | 9' 11.7" (Standard) / 11' 8.2" (High-Lift) — at 45°, fully raised |
| Dump Reach | 4' 0.0" (Standard) / 4' 8.1" (High-Lift) |
| Digging Depth | 3.3 in (Standard) / 5.7 in (High-Lift) |
Performance
| Static Tipping Load (straight) | 36,074 lb (Standard) / 26,733 lb (High-Lift) |
| Static Tipping Load (full turn) | 31,855 lb (Standard) / 23,609 lb (High-Lift) — at 40° full turn |
| Transmission | Powershift 4F / 3R, torque converter (optional 5F/3R w/ lock-up, US50/US51) |
| Travel Speed — Forward | 3.7 / 7.3 / 14.5 / 22.4 mph (4-speed; optional 5-speed w/ US50/US51) |
| Travel Speed — Reverse | 4.0 / 7.6 / 15.2 mph |
| Max. Grade | 51% (27°) |
Hydraulics
| Main Pump | Variable-displacement axial piston — 68.7 gpm (260 L/min) |
| System Pressure | 3,844 psi (work) / 3,118 psi (steer) |
| Features | Closed-center, pilot main control valves; ride control; auto boom kick-out; auto return-to-dig; boom float; aux (3rd valve) |
Dimensions & Weight
| Overall Length | 27' 2.6" (Standard) / 28' 7.9" (High-Lift) |
| Overall Height | 11' 6.2" (3,511 mm) — ROPS cab |
| Wheelbase | 10' 9.9" (3,300 mm) |
| Tread Width | 7' 0.6" (2,150 mm) |
| Ground Clearance | 15.7 in (400 mm) |
| Steering Angle | ±40° articulation |
| Turning Radius | 21' 10.0" (bucket edge) / 19' 6.6" (outside tire) |
| Tire Size | 23.5R25 L3 radial |
| Operating Weight | 44919 lb |
Standard Equipment
| Z-Bar Lift Arm | High breakout-force Z-bar loader linkage; high-lift (US20/US21) arm optional |
| Powershift Transmission | Full-automatic 4F/3R torque-converter powershift; optional 5F/3R w/ lock-up clutch (US50/US51) |
| Develon DL08 with VGT | A 7.6 L 6-cylinder DL08 with variable-geometry turbo — 270.9 hp and 940 lb·ft of torque |
| Highest Capacity in the Family | 5.1 yd³ bucket and up to 38,442 lbf breakout (high-lift) — the most bucket and digging force in the lineup |
| High-Flow Hydraulics | 68.7-gpm variable axial-piston pump at 3,844 psi for strong force and fast cycle times |
| Situation Awareness Technology (SAT) | Standard SAT system enhances all-around jobsite awareness and operating safety |
| Ride Control | Standard ride control smooths travel and reduces material spillage |
| Auto Kick-Out & Return-to-Dig | In-cab adjustable automatic boom/lift kick-out and bucket return-to-dig |
| Boom Float & Aux Hydraulics | Boom float plus a 3rd-valve auxiliary hydraulic circuit for attachments |
| Power Modes (P / S / E) | Power, Standard and Economy modes plus manual / auto transmission modes |
| Joystick or Fingertip Controls | Standard joystick control; optional 3-lever fingertip control for precise multifunction operation |
| 8" Smart Touch Display | Height/angle-adjustable 8-inch DEVELON Smart Touch screen with smart guidance and fuel data |
| Transparent Bucket | Multi-camera system with in-cab display for a see-through view past the bucket |
| Rearview Camera | Standard rearview camera; around-view monitor (AVM) optional |
| Integrated Smart Scale | Optional integrated payload scale system for on-the-go weighing |
| ROPS/FOPS Air-Suspension Cab | Sound-suppressed steel cab (68 dB(A)), ROPS/FOPS, automatic HVAC, Bluetooth® audio |
| Reversible Cooling Fan & Centralized Lube | Variable-speed auto-reversible fan and centralized lubrication for uptime |
| Preinstalled MY DEVELON Telematics | MY DEVELON telematics for machine maintenance and productivity insight |
| 3-Year / 3,000-Hour Warranty | Standard full-machine coverage on qualifying new Develon wheel loaders |
Specifications are based on the official Develon DL380-7 data and are subject to change. Some items are optional or vary by lift-arm configuration (Standard US10 / High-Lift US20) — contact Carleton Equipment to confirm exact specifications and availability.
Download Spec Sheet
Get detailed specifications, dimensions, and performance data for this DL380-7 | Develon.
|
General Info
|
|
|---|---|
| Condition: | Showroom |

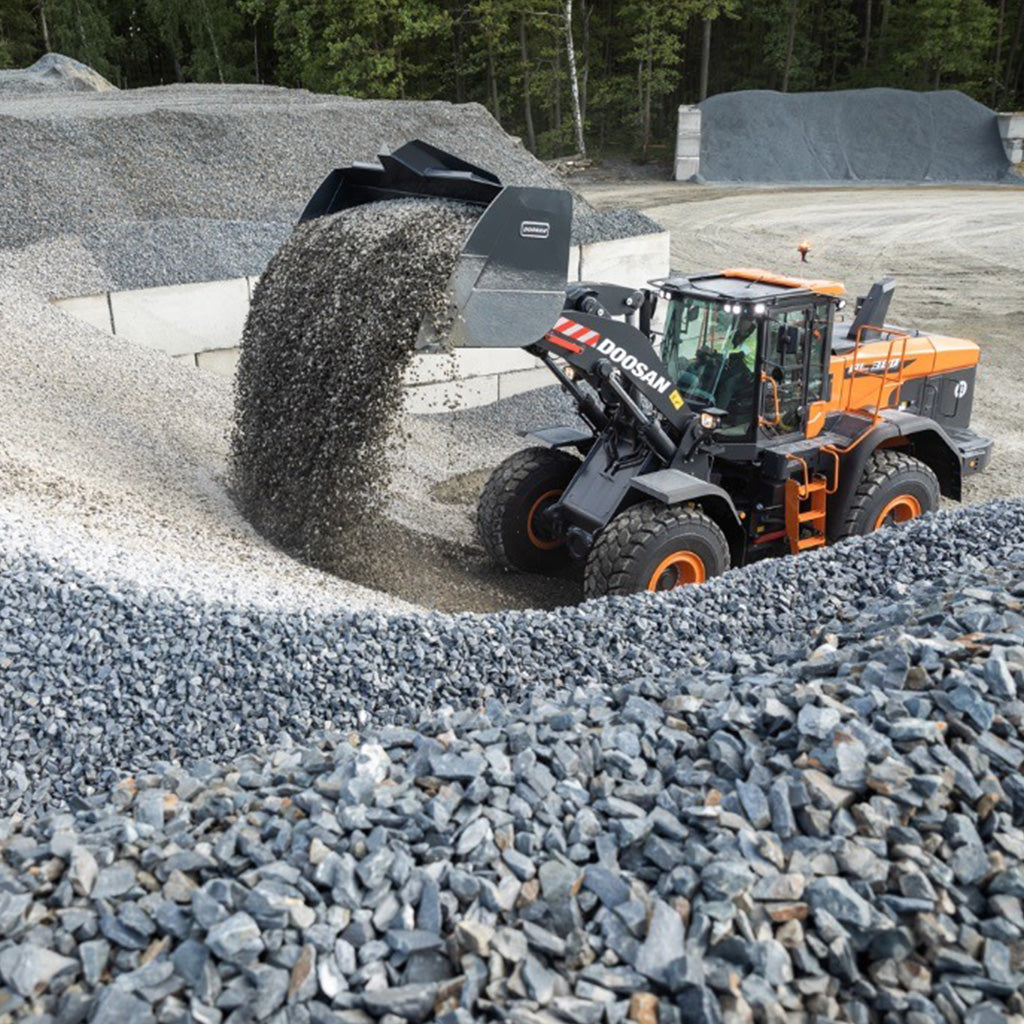

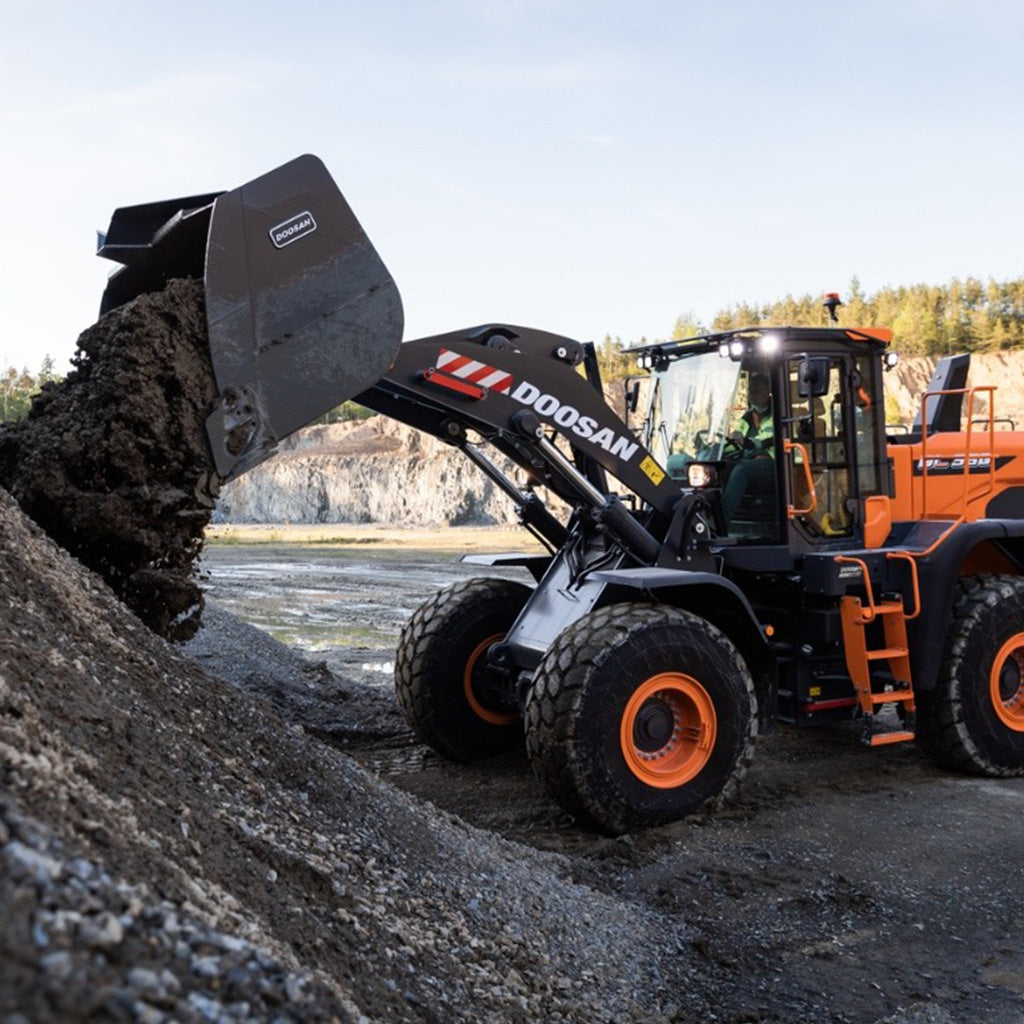

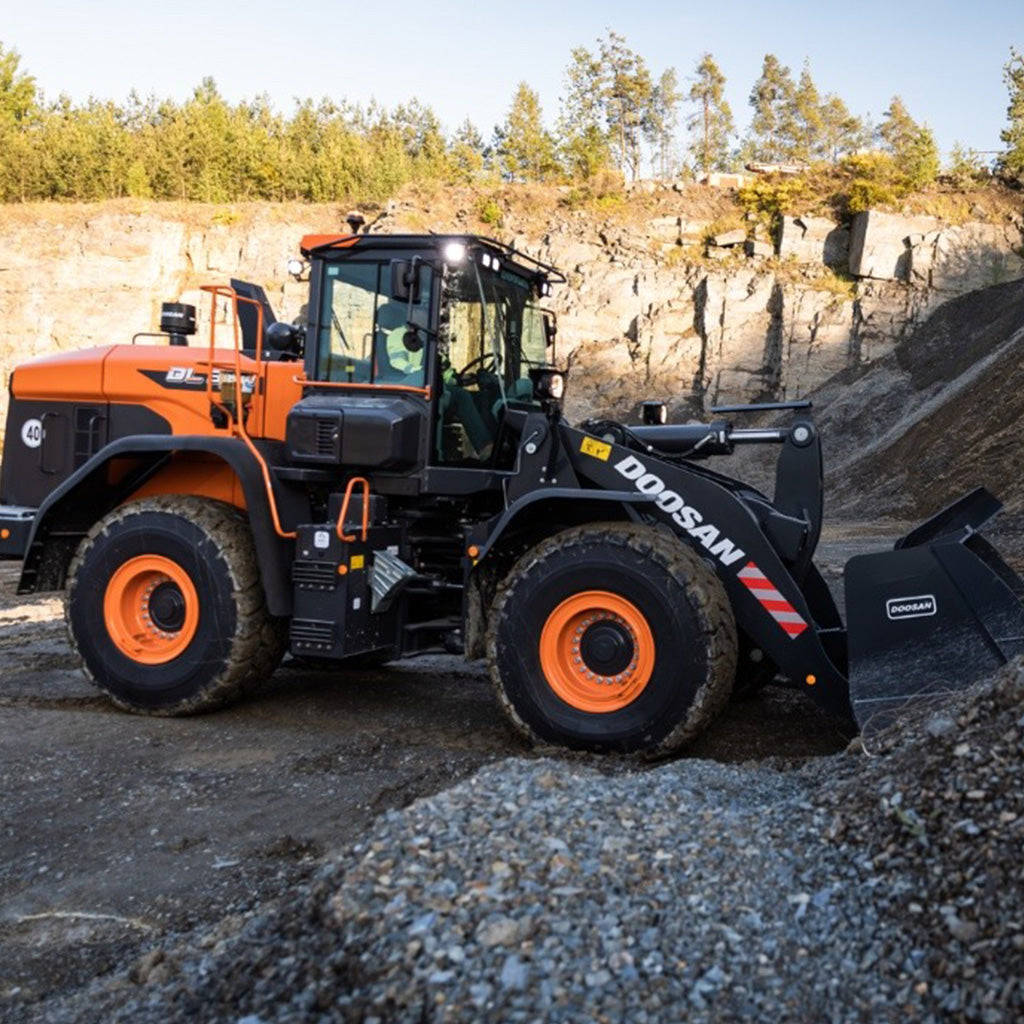

| Manufacturer: | Develon |
| Model: | DL380-7 |
| Machine Type: | Wheel Loader |
|
Engine
|
|
|---|---|
| Horsepower: | 271.0 |
|
Performance
|
|
|---|---|
| Operating Weight: | 44919 lb |
|
Hydraulics
|
|---|
|
Dimensions
|
|
|---|---|
| Height: | 11' 6" |
| Length: | 27' 3" |
| Width: | 10' 2" |
| Fuel Tank: | 76.9 gal. |
