More specifications
|
General Info
|
|
|---|---|
| Condition: | Rental |
| Manufacturer: | Develon |
| Model: | DL250 |
| Machine Type: | Wheel Loader |
|
Engine
|
|---|
|
Performance
|
|---|
|
Hydraulics
|
|---|
|
Dimensions
|
|---|
Description

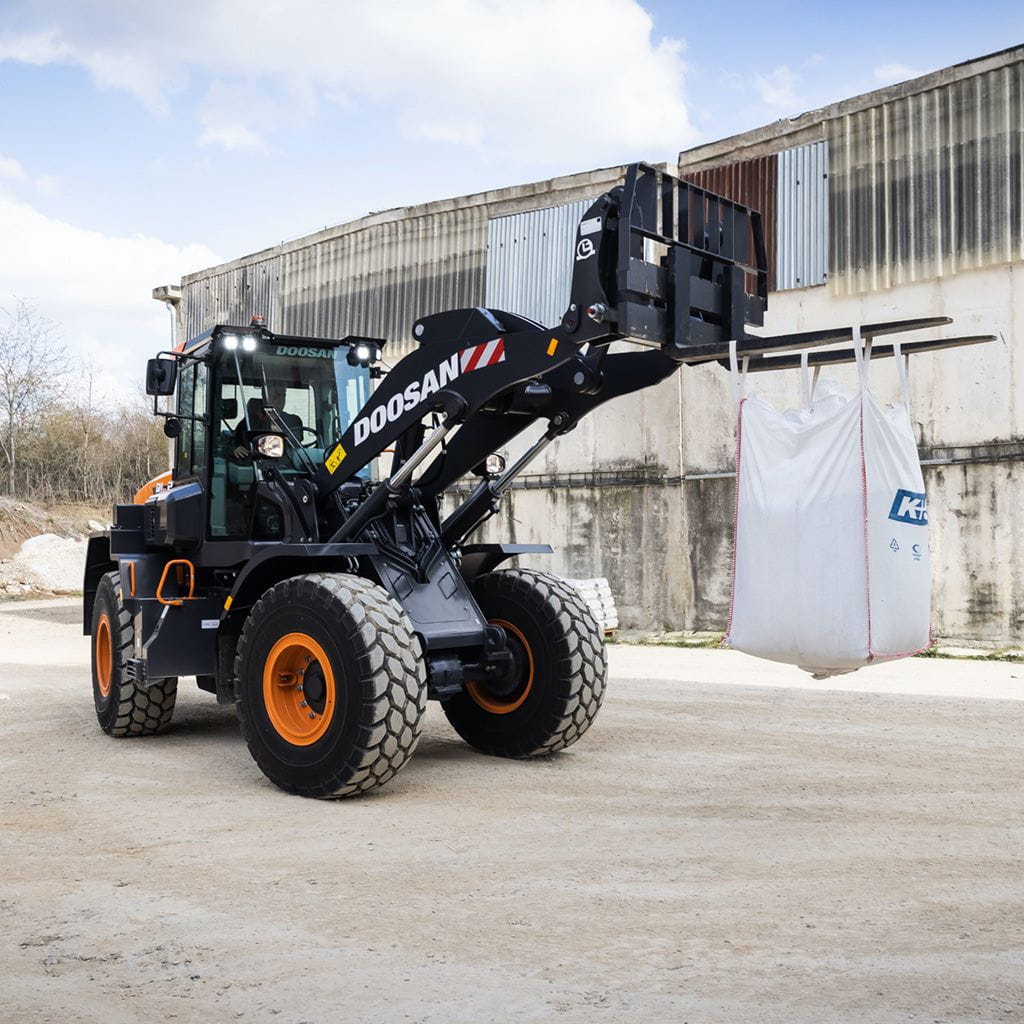

Develon DL250 Series - Rental
Experience a versatile and reliable wheel loader designed to tackle many jobsite challenges with ease. The Develon DL250 Series - Rental combines dependable power, convenient handling, and impressive capacity to help you move materials quickly and efficiently. Built by Develon, this mid-sized loader features a generous 3.5 cubic yard bucket capacity and a robust 189 HP engine, making it ideal for tasks such as construction site clean-up, loading, and stockpile management. Its sturdy design, along with an operating weight of 32,000 lb., helps deliver stability and comfort for operators. Explore the specs and pricing below to see how the DL250 can serve your project’s needs.
Specs
| Bucket Capacity | 3.5 Yd |
| Weight | 32,000 lb. |
| Tip Load | 23,801 lb. |
| Horsepower | 189 HP |
| Lift Height | 12' 7" |
Develon DL250 Series Rental Pricing
| Daily | Weekly | Monthly |
| $575 |
$2,100 | Call for Pricing Plans |
Compare the Wheel Loader Family
Compare DEVELON wheel loaders by capacity, power and configuration, including models with hydrostatic or powershift transmissions.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| DL200-7 | DL200TC-7 | DL220-7P | DL250-7P | DL250TC-7 | DL280-7 | DL320-7 | DL380-7 | DL420-7 | DL480-7 | DL550-7 | DL580-7 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Power (net) | 142.1 hp @ 2,200 rpm | 142.1 hp @ 2,000 rpm | 159.6 hp @ 2,100 rpm | 171.6 hp @ 2,100 rpm | 171.6 hp @ 2,100 rpm | 189.1 hp @ 2,000 rpm | 270.9 hp @ 1,800 rpm | 270.9 hp @ 1,800 rpm | 344.6 hp @ 1,800 rpm | 344.6 hp @ 1,800 rpm | 379.5 hp @ 1,800 rpm | 394.3 hp @ 1,800 rpm |
| Operating Weight | 26,559 lb (Std) / 27,189 lb (HL) | 26,867 lb | 29,099 lb (Std) / 29,462 lb (HL) | 30,527 lb (Std) / 30,891 lb (HL) | 31,605 lb | 34,550 lb (Std) / 34,892 lb (HL) | 43,572 lb (Std) / 43,975 lb (HL) | 45,022 lb (Std) / 45,728 lb (HL) | 53,413 lb (Std) / 54,017 lb (HL) | 58,354 lb (Std) / 58,938 lb (HL) | 70,598 lb (Std) / 71,390 lb (HL) | 78,673 lb (Heavy-Duty) |
| Bucket Capacity | 2.6 yd³ (2.0 m³) | 2.6 yd³ (2.0 m³) | 3.0 yd³ (2.3 m³) | 3.3 yd³ (2.5 m³) | 3.3 yd³ (2.5 m³) | 3.7 yd³ (2.8 m³) | 4.6 yd³ (3.5 m³) | 5.1 yd³ (3.9 m³) | 5.5 yd³ (4.2 m³) | 6.3 yd³ (4.8 m³) | 6.8 yd³ (5.2 m³) | 8.4 yd³ (6.4 m³) |
| Breakout Force | 21,806 lbf | 21,806 lbf | 21,544 lbf | 23,987 lbf | 25,943 lbf | 32,822 lbf | 33,946 lbf | 36,342 lbf | 41,365 lbf | 51,931 lbf | 56,202 lbf | 60,249 lbf |
| Static Tipping Load (straight) | 22,315 lb | 20,172 lb | 23,210 lb | 23,973 lb | 20,324 lb | 27,064 lb | 34,453 lb | 36,074 lb | 42,719 lb | 45,322 lb | 53,272 lb | 60,549 lb |
| Transmission | Hydrostatic (HST), dual-motor | Hydrostatic (HST) | Powershift 4F/3R (torque converter) | Powershift 4F/3R (opt 5-speed lock-up) | — | Powershift 4F/3R (opt 5-speed) | Powershift 4F/3R (opt 5-speed lock-up) | Powershift 4F/3R (opt 5-speed lock-up) | Powershift 4F/3R (opt 5-speed lock-up) | Powershift 4F/3R (opt 5-speed lock-up) | Powershift 4F/3R (opt 5-speed lock-up) | Powershift 5F/3R lock-up (standard) |
| Lift Arm Options | Standard US10 / High-Lift US20 | Parallel-lift (tool carrier) | Std US10/11/15 · HL US20/21 | Std US10/11/15 · HL US20/21 | Parallel-lift (tool carrier) | Std US10/11/15/30 · HL US20/21/40 | Std US10/11/50/51 · HL US20/21 | Std US10/11/50/51 · HL US20/21 | Std US10/11 · HL US20/21 | Std US10/11/50/51 · HL US20/21 | Std US11/50/51 · HL US20/21 | Heavy-Duty US30/31 |
| Ride Control | Standard | — | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Transparent Bucket | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Power Modes | P / S / E | — | P / S / E | P / S / E | — | P / N / E | P / S / E | P / S / E | P / S / E | P / S / E | P / S / E | Normal / Power / SAT |
| Emissions | Tier 4 · DOC/SCR/DPF | Tier 4 | Tier 4 · DOC/SCR (no DPF) | Tier 4 · DOC/SCR (no DPF) | Tier 4 | Tier 4 · DOC/SCR (no DPF) | Tier 4 · DOC/SCR (no DPF) | Tier 4 · DOC/SCR (no DPF) | Tier 4 · DOC/SCR (no DPF) | Tier 4 · DOC/SCR (no DPF) | Tier 4 · DOC/SCR (no DPF) | Tier 4 · DOC/SCR (no DPF) |
| Standard Warranty | 3 yr / 3,000 hr | — | 3 yr / 3,000 hr | 3 yr / 3,000 hr | — | 3 yr / 3,000 hr | 3 yr / 3,000 hr | 3 yr / 3,000 hr | 3 yr / 3,000 hr | 3 yr / 3,000 hr | 3 yr / 3,000 hr | 3 yr / 3,000 hr |
Standard Arm vs High-Lift
The DL200-7 is offered with two front lift-arm configurations. The standard US10 arm maximizes lift capacity and tipping load; the optional high-lift US20 arm trades some capacity for greater reach and dump height to load taller trucks and hoppers.
| Standard ArmUS10 | High-Lift ArmUS20 | |
|---|---|---|
| Shared | ||
| Engine | Perkins 1204F · 142.1 hp @ 2,200 rpm | |
| Bucket Capacity | 2.6 yd³ (2.0 m³) | |
| Transmission | Hydrostatic (HST), dual-motor | |
| Tire Size | 20.5R25 L3 radial | |
| Reach & Lift | ||
| Max. Hinge Pin Height | 12' 3.0" | 13' 10.0" |
| Dump Height (45°) | 9' 0.0" | 10' 8.0" |
| Dump Reach (45°) | 3' 3.6" | 3' 3.2" |
| Digging Depth | 2.3" | 7.9" |
| Overall Length | 23' 6.5" | 25' 0.0" |
| Capacity | ||
| Static Tipping Load (straight) | 22,315 lb | 18,373 lb |
| Static Tipping Load (full turn) | 19,705 lb | 16,224 lb |
| Breakout Force | 21,806 lbf | 22,031 lbf |
| Operating Weight | 26,559 lb | 27,189 lb |
Specifications from the official DEVELON DL200-7 spec sheet; subject to change. Contact Carleton Equipment to confirm the right configuration.
Talk to a person about the DL250
Carleton Equipment is a family-owned Michigan dealer, here since 1938. Sales, rental, service and parts all come from the same team, and we’ll connect you with the location nearest you.
