- Max dig depth
- 21 ft 11 in
- Bucket force
- 36,376 lbf
More specifications
|
General Info
|
|
|---|---|
| Condition: | New |
| Manufacturer: | Develon |
| Model: | DX235LCR-7 |
| Machine Type: | Excavator |
| Year: | 2026 |
| Stock Number: | 82782 |
|
Engine
|
|---|
|
Performance
|
|---|
|
Hydraulics
|
|---|
|
Dimensions
|
|---|
Description

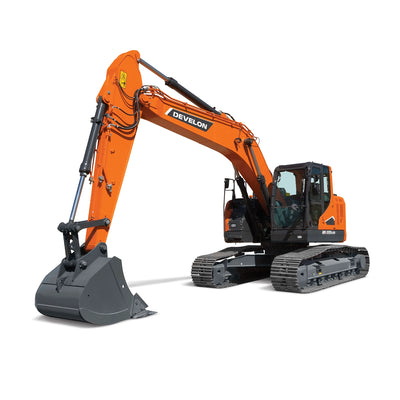

The 2026 Develon DX235LCR-7 is a high-performance large excavator engineered to deliver exceptional power and precision on the most demanding job sites. As a brand-new unit, this machine offers the latest in Develon technology, ensuring maximum productivity and reliability for heavy-duty earthmoving, site preparation, and large-scale infrastructure projects.
Designed with a reduced tail swing configuration, the DX235LCR-7 provides superior maneuverability in confined spaces without compromising on lifting capacity or breakout force. This versatile excavator is built to withstand rigorous daily use, offering contractors a robust solution for complex excavation tasks while maintaining the efficiency and operator comfort expected from the Develon lineup.
Loan
Lease
Cash in Lieu
Warranty
See participating dealers for details.
*Program disclosure: 0% A.P.R. financing for up to 60 months and the cash-in-lieu rebate are mutually exclusive — select one or the other. Select models also carry an additional rebate that can be combined with either financing or cash in lieu; the up to $43,500 amount shown includes it. Lease options are available separately; contact dealer for terms and custom payment structures. Financing subject to credit approval through an authorized Develon financing provider. Rebate applied at time of purchase. 3 Year / 3,000-Hour Full Coverage standard warranty included with qualifying new Develon equipment purchases. Offers valid on qualifying new Develon models through participating dealers only. See dealer for complete details, eligibility requirements, and program end dates. Offers subject to change without notice.
What Makes the DX235LCR-7 Different
Reduced-Tail-Swing Design
A reduced-tail-swing counterweight and tight front minimum swing radius improve maneuverability on congested roadways and transfer-station jobsites.
170.3 hp DEVELON Engine
The 5.9 L DEVELON DL06P produces 170.3 net hp at 1,900 rpm, with four power modes to balance output and fuel consumption.
21 ft 11 in Dig Depth
The standard 9 ft 6.2 in arm provides productive reach for digging, truck loading and demanding site-development work.
One-Touch Power Boost
Power boost momentarily increases hydraulic force to deliver 36,376 lbf of bucket digging force in difficult conditions.
Fine Swing Function
Fine swing minimizes shaking at the end of swing movement for smoother, more controlled lifting.
360-Degree Visibility
A rearview camera and seven LED lights are standard, with an optional all-around view monitoring system for five perspectives around the cab.
Optional Dozer Blade
The available blade adds backfilling capability and increases productivity and stability in confined work areas.
Compare the Crawler Excavator Lineup
See where the DX235LCR-7 fits among nearby DEVELON crawler excavators. Values are published North American base-machine figures.
 |
 |
 |
 |
 |
 |
 |
 |
|

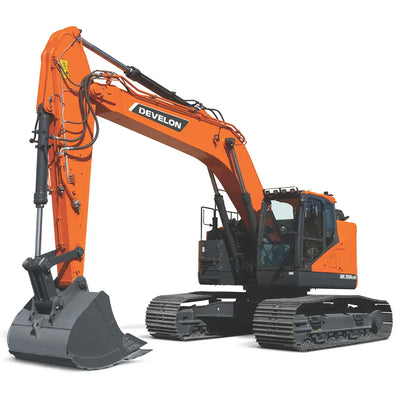

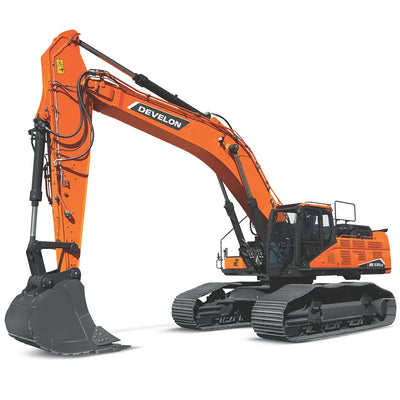

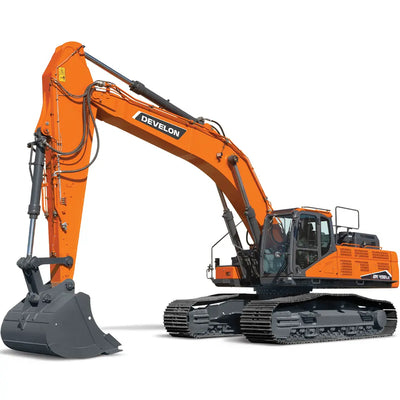

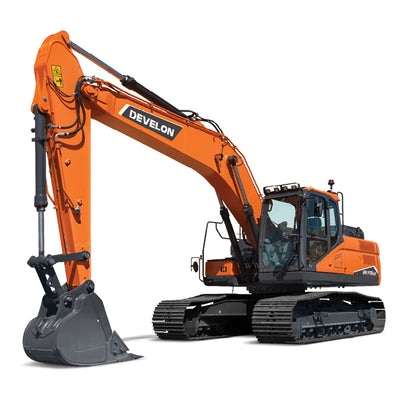

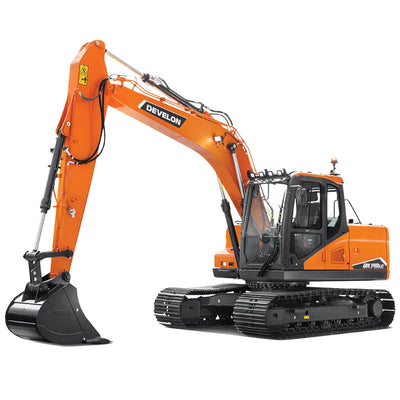

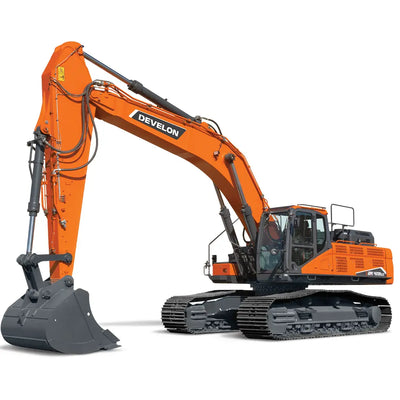

| DX140LC-7K | DX170LC-7 | DX180LC-5 | DX235LCR-7 Viewing | DX350LCR-7 | DX420LC-7 | DX490LC-7 | DX530LC-7 | |
|---|---|---|---|---|---|---|---|---|
| Rated Power (net) | 107.3 hp @ 2,000 rpm | 115.0 hp @ 2,000 rpm | 127.3 hp @ 2,000 rpm | 170.3 hp @ 1,900 rpm | 266.9 hp @ 1,800 rpm | 344.6 hp @ 1,800 rpm | 379.5 hp @ 1,800 rpm | 379.5 hp @ 1,800 rpm |
| Operating Weight | 31,746 lb | 38,360 lb | 41,667 lb | 57,132 lb | 79,701 lb | 94,527 lb | 121,676 lb | 121,804 lb |
| Maximum Dig Depth | 20 ft 1 in | 20 ft 2.9 in | 20 ft 0 in | 21 ft 11 in | 22 ft 10 in | 27 ft 3 in (long arm) | 27 ft 7 in (long arm) | 24 ft 0 in |
| Model Generation | -7K | -7 | -5 | -7 LCR | -7 LCR | -7 | -7 | -7 SLR available |
Specifications vary by configuration and are subject to change. Contact Carleton Equipment to confirm the machine for your application.
DX235LCR-7 Features & Benefits
Performance & Efficiency 6
DEVELON DL06P Engine
The turbocharged 5.9 L six-cylinder produces 170.3 net hp and 593 lb-ft of gross torque for demanding digging and lifting.
Four Power Modes
P+, Power, Standard and Economy settings help operators balance machine power with fuel consumption for changing conditions.
Smart Power Control
SPC monitors machine systems to reduce unnecessary engine load while maintaining productive hydraulic response.
Auto Idle
The engine automatically returns to idle when machine functions are inactive, helping reduce unnecessary fuel consumption.
Auto Shutdown
Time-adjustable automatic shutdown saves fuel and helps reduce accumulated warranty hours during extended idle periods.
Tier 4 Technology
The high-pressure common-rail engine uses Tier 4 emissions technology for efficient North American operation.
Digging, Lifting & Hydraulics 6
21 ft 11 in Dig Depth
The standard-arm configuration reaches 21 ft 11 in deep and 31 ft 7.7 in at ground level.
Dual 59 gpm Main Pumps
Two high-capacity main pumps support smooth combined functions and responsive hydraulic attachments.
One-Touch Power Boost
Power boost delivers up to 36,376 lbf of bucket force and 24,692 lbf of arm force for difficult digging.
Fine Swing Function
Fine swing reduces movement of suspended loads at the end of a swing for greater accuracy and control.
Five-Ton Cast Push Link
An upgraded cast push link with a reinforced lifting eye provides five-metric-ton lifting capacity.
Optional Dozer Blade
The available blade supports backfilling, cleanup and added machine stability in confined applications.
Comfort, Visibility & Technology 6
Smart Touch Display
The multilingual display consolidates operating information, machine settings and camera views on one intuitive screen.
Ergonomic Joystick Controls
Intuitive, low-effort joystick controls help operators work precisely while reducing fatigue during long shifts.
Quiet, Low-Vibration Cab
Low noise and vibration levels help operators stay comfortable and focused throughout long shifts.
Automatic Climate Control
Automotive-style heating and cooling support all-season comfort, with an optional heated and cooled seat.
Camera and LED Visibility
A rearview camera and seven LED lights are standard; an optional 360-degree AVM adds five surrounding perspectives.
MY DEVELON Fleet Management
Standard telematics lets owners monitor machine location, utilization, health and maintenance needs remotely.
Durability & Serviceability 5
Robust Working Group
A heavy-duty boom and arm are engineered for demanding excavation, lifting and attachment work.
Enhanced Undercarriage
The strengthened undercarriage structure is designed to withstand punishing work environments.
Bolt-On Wear Plates
Durable wear plates bolt onto the end of the arm to protect high-contact areas and simplify replacement.
Ground-Level Inspection Points
Regular inspection and maintenance points are accessible from ground level for faster daily service.
Fleet-Assisted Maintenance
MY DEVELON helps owners track machine location, hours and maintenance needs through its mobile app and website.
Why Buyers Choose the DX235LCR-7
Reduced-tail-swing design for roadway, transfer-station and confined jobsites
170.3 net hp in a 57,132 lb standard-arm configuration
21 ft 11 in dig depth and 31 ft 7.7 in ground-level reach
36,376 lbf bucket force and 24,692 lbf arm force with power boost
Dual 59 gpm pumps plus fine swing control for productive, precise operation
Four power modes, Smart Power Control, auto idle and auto shutdown
Rearview camera, seven LED lights and optional 360-degree AVM
Heavy-duty workgroup, enhanced undercarriage and ground-level service access
Who Uses the DX235LCR-7 and What For
The DX235LCR-7 combines 25.9-metric-ton digging and lifting capability with reduced tail swing for contractors who need high production where rear clearance is limited.
Road & Urban Work
- Roadway excavation and repair
- Bridge and infrastructure projects
- Congested commercial sites
- Work alongside traffic barriers
Utilities
- Deep water and sewer trenching
- Stormwater installations
- Manhole and structure placement
- Pipeline and drainage projects
Site Development
- Foundation and mass excavation
- Truck loading and spoil removal
- Backfilling with optional blade
- Commercial site preparation
Transfer & Material Handling
- Transfer-station loading
- Grapple and thumb applications
- Precision lifting with fine swing
- Sorting and placement work
The DX235LCR-7 by the Numbers
A compact rear profile for congested and confined jobsites.
DEVELON DL06P net output at 1,900 rpm.
The standard-arm US20 configuration.
Paired with 31 ft 7.7 in of reach at ground level.
Power-boost digging force for difficult conditions.
Dual pumps support combined functions and attachments.
Talk to a person about the DX235LCR-7
Carleton Equipment is a family-owned Michigan dealer, here since 1938. Sales, rental, service and parts all come from the same team, and we’ll connect you with the location nearest you.
- Chesterfield
- Coldwater
- Grand Rapids
- Howell
- Kalamazoo
- Livonia
- Saginaw
Full Specifications
General
| Machine Type | Reduced-tail-swing crawler excavator |
| Operating Weight | 57,132 lbs (US20) |
| Operating Weight With Blade | 59,439 lbs (US40) |
| Ground Pressure | 7.7 psi (US20) / 8.0 psi (US40) |
| Standard Bucket | 1.2 yd³ |
| Standard Boom | 18 ft 8.4 in |
| Standard Arm | 9 ft 6.2 in |
| Counterweight | 16,390 lbs |
Engine
| Engine | DEVELON DL06P |
| Displacement | 5.9 L |
| Cylinders | 6 |
| Net Power | 170.3 hp @ 1,900 rpm |
| Gross Power | 189.1 hp @ 1,900 rpm |
| Maximum Torque | 593 lb-ft @ 1,400 rpm |
| Emissions | Tier 4 Final |
| Alternator | 24 V, 80 A |
| Battery | 2 × 12 V, 100 Ah |
Performance
| Maximum Digging Depth | 21 ft 11 in |
| Maximum Reach | 32 ft 3 in |
| Maximum Reach at Ground | 31 ft 7.7 in |
| Maximum Loading Height | 26 ft 0.6 in |
| Maximum Digging Height | 35 ft 5.4 in |
| Maximum Vertical Wall Depth | 17 ft 6.2 in |
| Maximum Vertical Radius | 21 ft 6.9 in |
| Maximum Depth to 8-Foot Line | 21 ft 2.1 in |
| Bucket Digging Force | 36,376 lbf with power boost |
| Arm Digging Force | 24,692 lbf with power boost |
| Maximum Swing Torque | 69,625 lbf·ft |
| Swing Speed | 0–11.5 rpm |
| Travel Speed | 2.0–3.6 mph |
| Maximum Traction Force | 64,375 lbf |
| Gradeability | 35° / 70% |
Hydraulics
| Main Pumps | 2 variable-displacement axial-piston pumps |
| Main Pump Flow | 2 × 59 gpm |
| Pilot Pump Flow | 6.9 gpm |
| Normal Implement Pressure | 4,978 psi |
| Power-Boost Pressure | 5,263 psi |
| Travel Pressure | 5,263 psi |
| Swing Pressure | 4,267 psi |
| Pilot Pressure | 569 psi |
Capacities
| Fuel Tank | 81.1 gal |
| DEF Tank | 8.3 gal |
| Cooling System | 8.5 gal |
| Engine Oil With Filter | 7.1 gal |
| Swing Drive | 1.3 gal |
| Final Drive, Each Side | 1.1 gal |
| Hydraulic System | 50.2 gal |
| Hydraulic Tank | 34.3 gal |
Dimensions
| Tail Swing Radius | 5 ft 7.9 in |
| Tail Swing Overhang, Rear | -1 ft 7.6 in |
| Tail Swing Overhang, Side | 5.1 in |
| Shipping Length | 29 ft 5.1 in |
| Shipping Width | 10 ft 5.6 in |
| Shipping Height, Boom | 9 ft 5 in |
| Shipping Height, Hose | 9 ft 9.3 in |
| Cabin Height | 10 ft 3 in |
| Upper Structure Width | 9 ft 5 in |
| Overall Track Length | 14 ft 7 in |
| Undercarriage Width | 10 ft 5.6 in |
| Track Gauge Width | 7 ft 10.1 in |
| Standard Track Shoe Width | 31.5 in |
| Car Body Clearance | 1 ft 5.7 in |
Operator Environment
| Exterior Sound Level | 103 dB(A) |
| Cab Sound Level | 72 dB(A) |
| Display | Smart Touch display |
| Climate Control | Automotive-style heating and cooling |
| Rearview Camera | Standard |
| LED Work Lights | 7 standard |
| 360-Degree AVM | Optional |
Features
| Power Modes | P+ / P / S / E |
| One-Touch Power Boost | Standard |
| Fine Swing Function | Standard |
| Smart Power Control | Standard |
| Auto Idle and Auto Shutdown | Standard |
| MY DEVELON Fleet Management | Standard |
| Heated and Cooled Seat | Optional |
| Dozer Blade | Optional |
Values are from the current DEVELON North America DX235LCR-7 product page and official sales specifications for the standard-arm US20 configuration unless labeled otherwise. Current web values take precedence over more precise converted PDF figures. Specifications vary by attachment, track and blade configuration. Contact Carleton Equipment to confirm details.
