- Horsepower
- 387.6 hp
- Max dig depth
- 24' 0"
- Operating weight
- 115,081 lb
- Bucket digging force
- 60,698 lbf
More specifications
|
General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Develon |
| Model: | DX530LC-7 |
| Machine Type: | Other |
|
Engine
|
|
|---|---|
| Engine: | DC13 |
| Engine Make: | Scania |
| Horsepower: | 387.6 |
| Emissions: | Tier 4 |
|
Performance
|
|
|---|---|
| Bucket Digging Force: | 60,698 lbf. |
| Arm Digging Force: | 55,303 lbf. |
| Max Digging Reach (Ground): | 37' 6" |
| Max Digging Depth: | 24' 0" |
| Operating Weight: | 115081 lb |
|
Hydraulics
|
|---|
|
Dimensions
|
|
|---|---|
| Fuel Tank: | 165.37 gal. |
Description

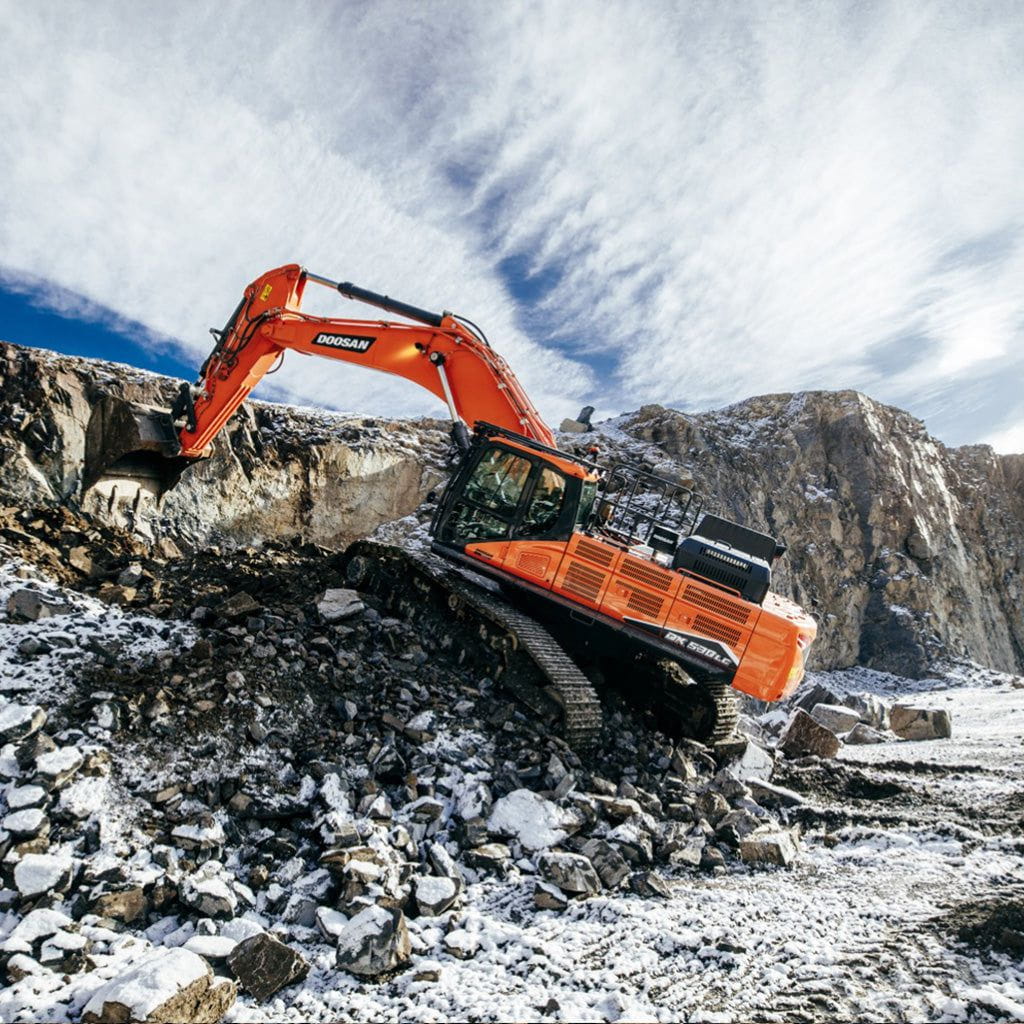

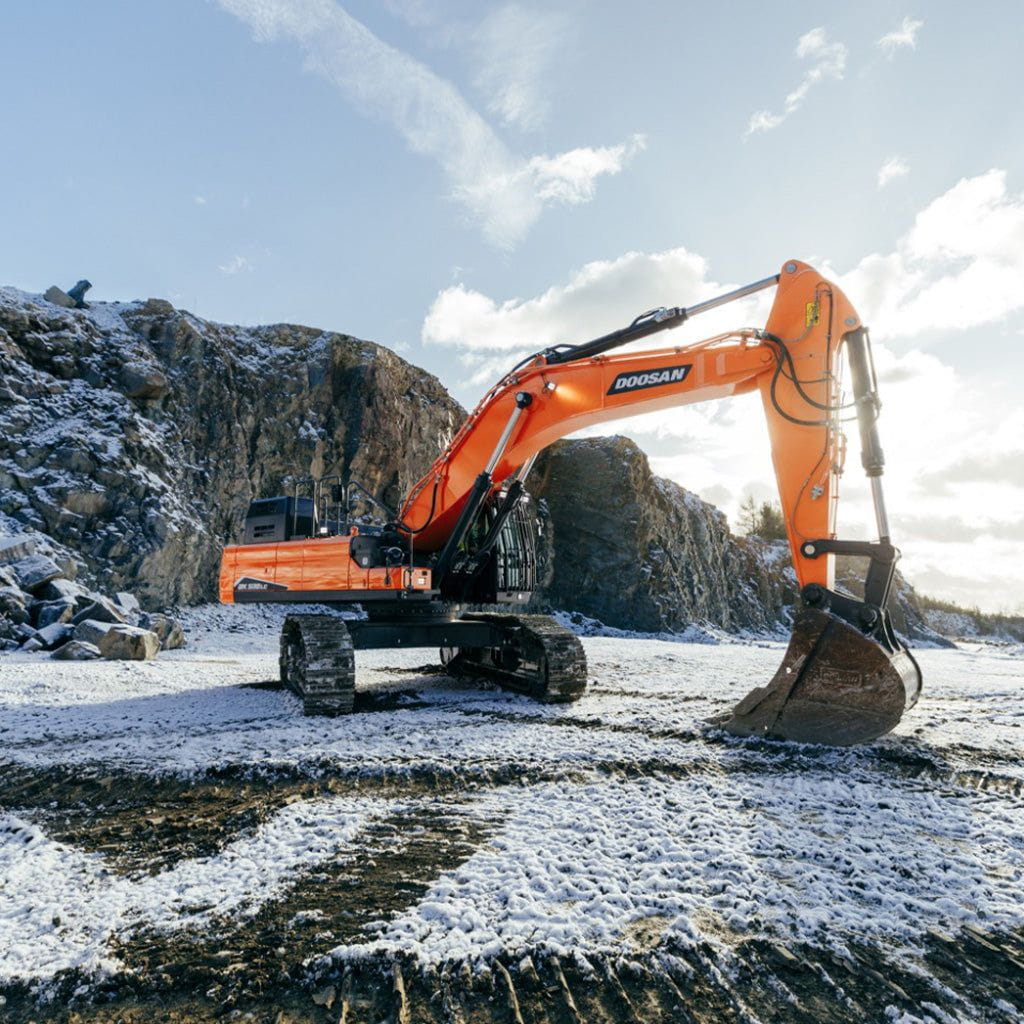

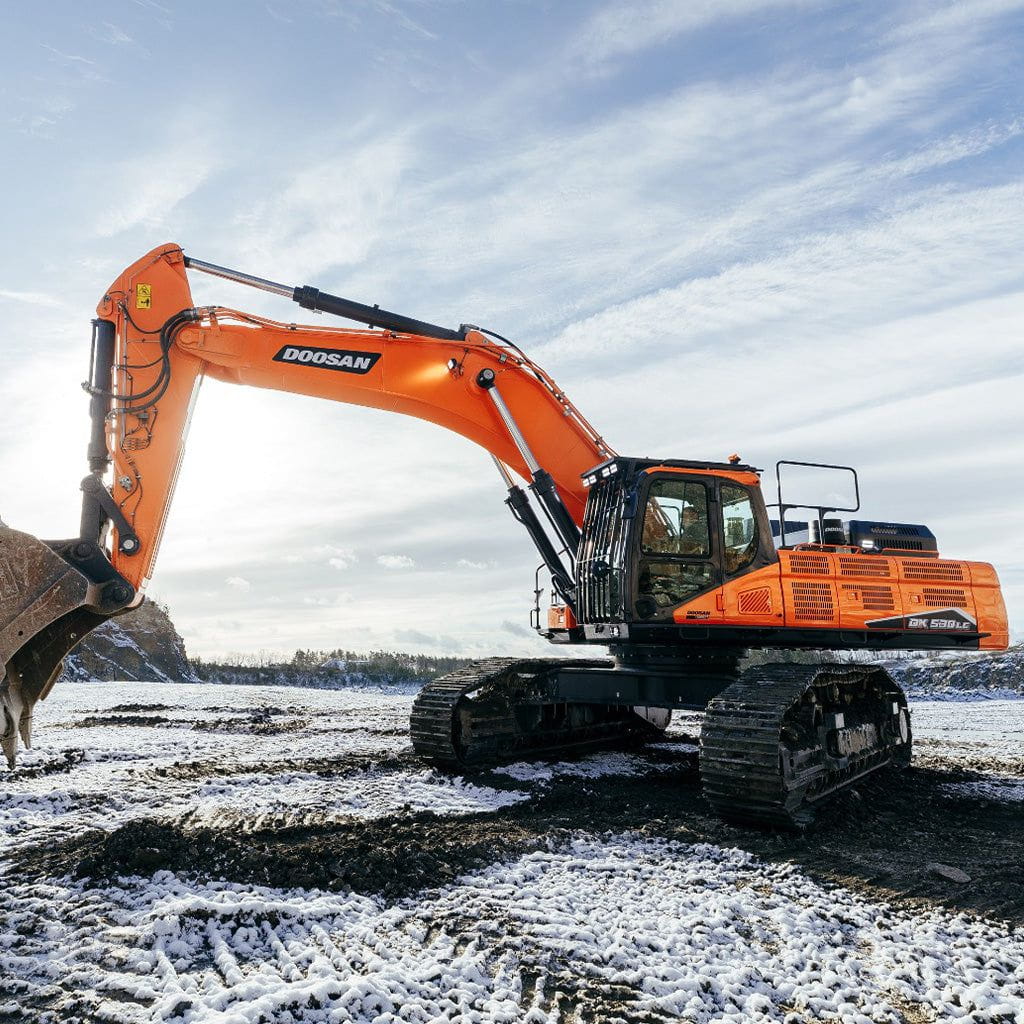

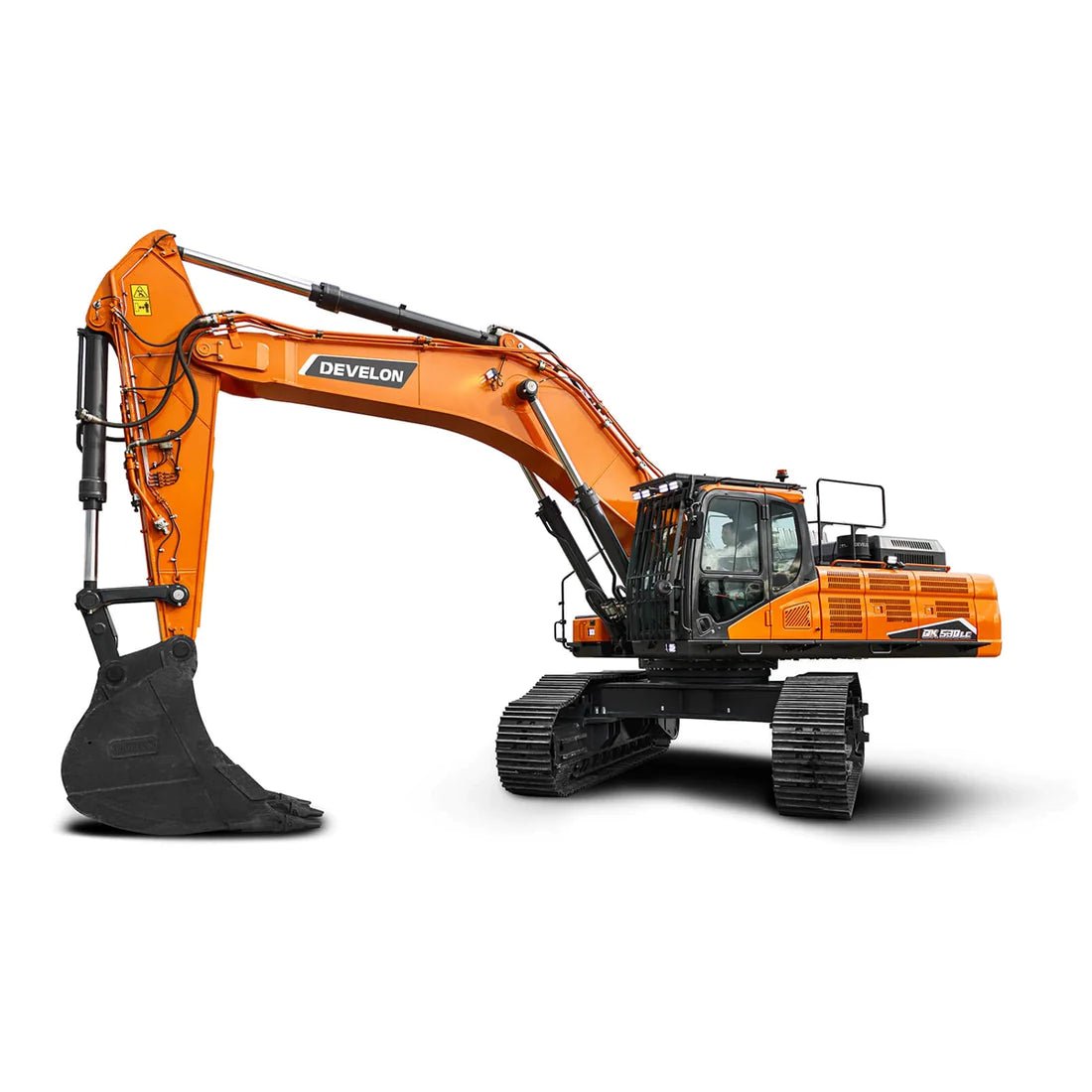

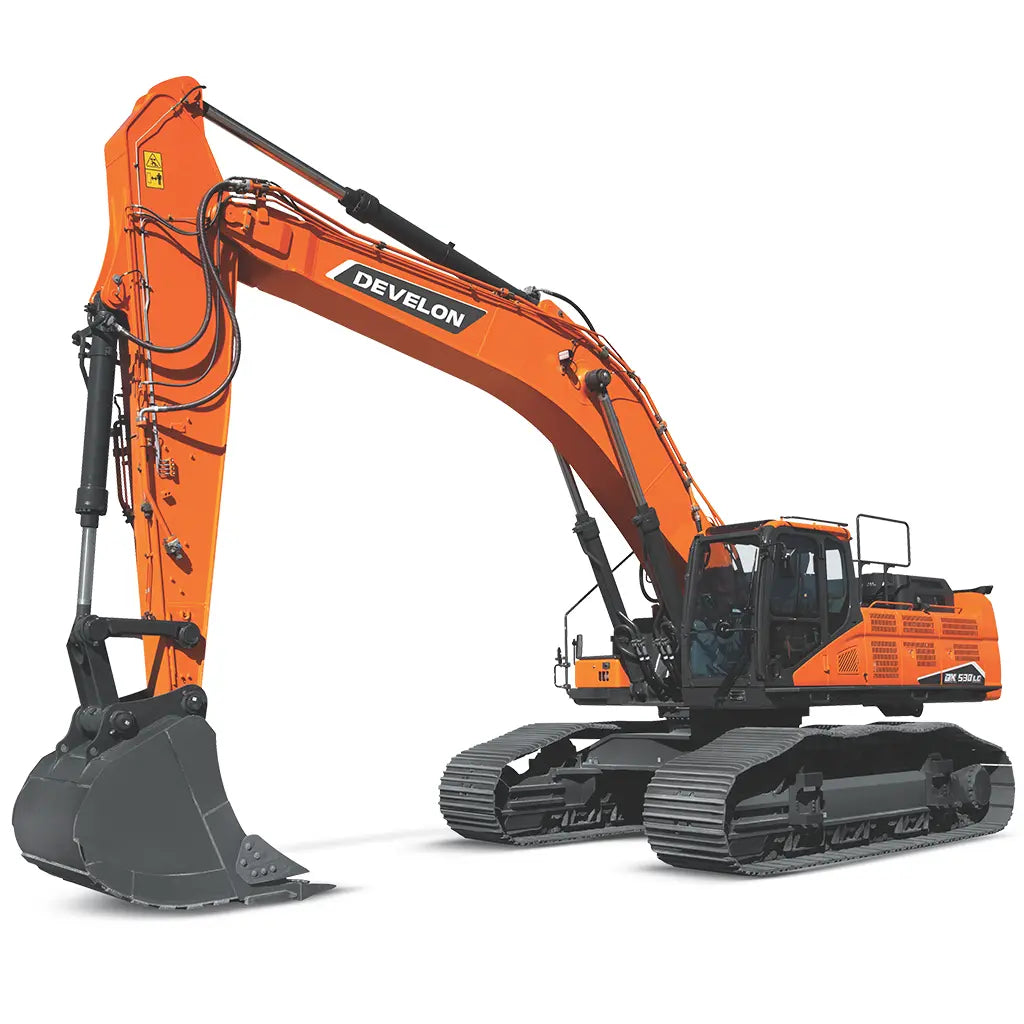

Develon DX530LC-7
Big Productivity and Jobsite Efficiency
Upgrade your earthmoving capabilities with the large DEVELON DX530LC-7 crawler excavator. The conventional tail swing design offers the strength and leverage needed for bigger excavating applications. Lift more weight with each cycle and complete the job faster thanks to a strong workgroup that maximizes lifting capability. Choose from standard arm or super-long reach configurations.
The standard removable counterweight provides improved machine stability when using heavier attachments — and can be hydraulically lowered to its own trailer for easy transport to the jobsite. With an optimal swing radius, lift height and tilt position, you can lift and place loads and dig with greater productivity. The one-touch power boost momentarily increases hydraulics for even more digging power.
Rugged Construction and Durable Parts
A DX530LC-7 crawler excavator’s X-Chassis undercarriage offers improved strength and stability. Added material to the mainframe delivers higher performance to prolong machine durability.
The innovative D-channel upper structure frame design and an optional side impact protector add strength to withstand more side impact, protecting vital machine components.
All the major pin points on the excavator boom and arm are steel castings for extra strength in tough working conditions. Heavy-duty wear plates bolt on at the end of the machine arm to maximize machine durability and reliability.
Recessed drive motors are protected from potential damage, resulting in more uptime.
Reduced Fuel Usage, Maximized Performance
The DX530LC-7 delivers increased torque, faster cycle times and efficient fuel consumption.
Several systems help improve fuel efficiency. The exclusive Smart Power Control (SPC) is implemented through two systems: Variable speed control reduces the engine rpm during low workload to reduce the energy used to perform a task, and the pump torque control efficiently matches hydraulic pump torque and engine response to the task.
The Mechatronics Design optimizes machine performance while reducing fuel consumption. Auto idle and auto shutdown features also help reduce fuel usage.
An optional boom float mode allows the boom to move freely with the contours of the ground. When engaged the boom does not use hydraulic flow, saving fuel and improving cycle times.
Loan
Lease
Cash in Lieu
Warranty
See participating dealers for details.
*Program disclosure: 0% A.P.R. financing for up to 60 months and the cash-in-lieu rebate are mutually exclusive — select one or the other. Select models also carry an additional rebate that can be combined with either financing or cash in lieu; the up to $43,500 amount shown includes it. Lease options are available separately; contact dealer for terms and custom payment structures. Financing subject to credit approval through an authorized Develon financing provider. Rebate applied at time of purchase. 3 Year / 3,000-Hour Full Coverage standard warranty included with qualifying new Develon equipment purchases. Offers valid on qualifying new Develon models through participating dealers only. See dealer for complete details, eligibility requirements, and program end dates. Offers subject to change without notice.
What Makes the DX530LC-7 Different
379.5 hp Scania Engine
The 12.7 L Scania DC13 delivers 379.5 net hp at 1,800 rpm with high torque and fast cycle performance.
Three Workgroup Configurations
Choose short-arm, standard-arm or super-long-reach arrangements with dig depths from 24 ft to 49 ft 7 in.
67,901.7 lbf Bucket Force
Short- and standard-arm configurations use one-touch power boost for demanding digging and breakout work.
Removable Counterweight
The standard 24,471 lb counterweight can be hydraulically lowered onto its own trailer for transport.
Heavy-Duty X-Chassis
Added mainframe material, a D-channel upper frame and recessed drive motors improve strength and protection.
Smart Power Control
Variable speed and pump torque control match engine and hydraulic output to the work for efficient production.
Ground-Level Service Access
Engine oil, fuel and pilot filters are grouped at ground level in the pump compartment.
Compare the Crawler Excavator Lineup
See where the DX530LC-7 fits among nearby DEVELON crawler excavators. Values are published North American base-machine figures.
 |
 |
 |
 |
 |
 |
 |
|
|
| DX140LC-7K | DX170LC-7 | DX180LC-5 | DX235LCR-7 | DX350LCR-7 | DX420LC-7 | DX490LC-7 | DX530LC-7 Viewing | |
|---|---|---|---|---|---|---|---|---|
| Rated Power (net) | 107.3 hp @ 2,000 rpm | 115.0 hp @ 2,000 rpm | 127.3 hp @ 2,000 rpm | 170.3 hp @ 1,900 rpm | 266.9 hp @ 1,800 rpm | 344.6 hp @ 1,800 rpm | 379.5 hp @ 1,800 rpm | 379.5 hp @ 1,800 rpm |
| Operating Weight | 31,746 lb | 38,360 lb | 41,667 lb | 57,132 lb | 79,701 lb | 94,527 lb | 121,676 lb | 121,804 lb |
| Maximum Dig Depth | 20 ft 1 in | 20 ft 2.9 in | 20 ft 0 in | 21 ft 11 in | 22 ft 10 in | 27 ft 3 in (long arm) | 27 ft 7 in (long arm) | 24 ft 0 in |
| Model Generation | -7K | -7 | -5 | -7 LCR | -7 LCR | -7 | -7 | -7 SLR available |
Specifications vary by configuration and are subject to change. Contact Carleton Equipment to confirm the machine for your application.
DX530LC-7 Features & Benefits
Performance & Efficiency 6
Scania DC13 Engine
The Tier 4-compliant 12.7 L six-cylinder produces 379.5 net hp and 1,374 lb-ft of gross torque.
Fast Cycle Performance
High torque and responsive hydraulics help complete heavy digging, lifting and loading cycles quickly.
Smart Power Control
Variable speed control reduces rpm during light workloads while pump torque control matches hydraulic demand.
Mechatronics Design
Electronic engine and hydraulic coordination optimizes machine response while reducing fuel consumption.
Auto Idle and Shutdown
Automatic idle and time-adjustable shutdown reduce unnecessary fuel use during inactive periods.
Optional Boom Float
The boom follows ground contours without hydraulic flow to save fuel and improve finishing cycle times.
Digging, Lifting & Versatility 6
Short-Arm Production
The US20 configuration pairs a 9 ft 6.1 in arm with a 3.13 yd³ bucket for heavy production work.
Standard-Arm Versatility
The US30 standard arm provides 25 ft 6 in of dig depth and 38 ft 11.1 in of ground-level reach.
Super-Long-Reach Capability
The US50 configuration reaches 49 ft 7 in deep and 63 ft 9.9 in at ground level.
Dual 103 gpm Main Pumps
Two high-capacity pumps support fast combined functions and demanding hydraulic attachments.
One-Touch Power Boost
Power boost provides 67,901.7 lbf of bucket force on short- and standard-arm machines.
Optimized Lifting Geometry
The conventional-tail design, removable counterweight and workgroup geometry support productive lifting and placement.
Durability & Transport 6
X-Chassis Undercarriage
Added mainframe material improves strength, stability and service life in demanding applications.
D-Channel Upper Frame
The upper structure resists side impacts, with an optional side-impact protector for added component protection.
Cast Boom and Arm Pin Points
Steel castings at major pin locations add strength for tough working conditions.
Bolt-On Wear Plates
Heavy-duty plates protect the end of the arm and simplify replacement in high-contact areas.
Recessed Drive Motors
Protected motor placement reduces exposure to jobsite damage and supports uptime.
Hydraulically Removable Counterweight
The counterweight lowers onto its own trailer to simplify transport between jobsites.
Technology & Serviceability 5
Smart Touch Display
Operators can monitor critical systems and review historical machine alerts from the standard display.
MY DEVELON Fleet Management
Standard telematics provides remote access to location, health, productivity and maintenance information.
Ground-Level Filters
Engine oil, fuel pre-filters, fuel filters and the pilot filter are grouped in the pump compartment.
Longer Maintenance Intervals
Extended service intervals and convenient access reduce planned time in the shop.
Broad Attachment Support
Bucket, coupler, thumb and grapple choices expand capability across heavy excavation and handling tasks.
Why Buyers Choose the DX530LC-7
379.5 net hp for large-scale earthmoving, lifting and loading
Short, standard and super-long-reach workgroup configurations
Up to 49 ft 7 in dig depth and 63 ft 9.9 in ground reach
67,901.7 lbf bucket force on short- and standard-arm machines
Dual 103 gpm pumps and 145,600.5 lbf-ft swing torque
Hydraulically removable 24,471 lb counterweight
X-Chassis, D-channel frame, cast pin points and recessed drive motors
Ground-level filters, Smart Touch monitoring and MY DEVELON telematics
Who Uses the DX530LC-7 and What For
The DX530LC-7 combines heavy-production earthmoving capability with a super-long-reach option for contractors working across mass excavation, infrastructure and specialized reach applications.
Heavy Civil
- Highway and bridge construction
- Large infrastructure excavation
- Deep utility installation
- Heavy structure placement
Mass Excavation
- High-volume truck loading
- Foundation excavation
- Large commercial sites
- Overburden removal
Long-Reach Work
- Deep channel excavation
- Slope shaping
- Retention pond maintenance
- Work beyond standard reach
Quarry & Handling
- Rock and aggregate digging
- Crusher feeding
- Heavy lifting and placement
- Grapple and attachment work
The DX530LC-7 by the Numbers
Scania DC13 output at 1,800 rpm.
The headline short-arm US20 configuration.
Available with the optional US50 workgroup; headline US20 dig depth is 24 ft.
Power-boost force for short and standard arms.
Dual pumps support fast cycles and attachments.
Hydraulically removable for easier transport.
Talk to a person about the DX530LC-7
Carleton Equipment is a family-owned Michigan dealer, here since 1938. Sales, rental, service and parts all come from the same team, and we’ll connect you with the location nearest you.
- Chesterfield
- Coldwater
- Grand Rapids
- Howell
- Kalamazoo
- Livonia
- Saginaw
Full Specifications
Download Spec SheetGeneral
| Machine Type | Conventional-tail-swing crawler excavator |
| Operating Weight, Short Arm | 121,804 lbs (US20) |
| Operating Weight, Standard Arm | 122,049 lbs (US30) |
| Operating Weight, Super Long Reach | 121,167 lbs (US50) |
| Ground Pressure | 9.1 psi |
| Counterweight | 24,471 lbs, hydraulically removable |
| Track Type | Wide, retractable |
Engine
| Engine | Scania DC13 |
| Displacement | 12.7 L |
| Cylinders | 6 |
| Net Power | 379.5 hp @ 1,800 rpm |
| Gross Power | 379.5 hp @ 1,800 rpm |
| Maximum Torque | 1,374.0 lb-ft @ 900–1,500 rpm |
| Alternator | 28 V, 100 A |
| Battery | 2 × 12 V, 200 Ah |
Performance
| Maximum Dig Depth | 24 ft 0 in (US20) / 25 ft 6 in (US30) / 49 ft 7 in (US50) |
| Maximum Reach | 38 ft 5.4 in (US20) / 39 ft 9.4 in (US30) / 64 ft 4.2 in (US50) |
| Maximum Reach at Ground | 37 ft 6.9 in / 38 ft 11.1 in / 63 ft 9.9 in |
| Maximum Loading Height | 25 ft 4.1 in / 25 ft 9.6 in / 39 ft 0.1 in |
| Maximum Digging Height | 35 ft 9.9 in / 36 ft 3 in / 47 ft 4.3 in |
| Bucket Digging Force | 67,901.7 lbf (US20/US30) / 37,478.2 lbf (US50) |
| Arm Digging Force | 56,878.7 lbf / 50,044.4 lbf / 26,234.7 lbf |
| Maximum Swing Torque | 145,600.5 lbf·ft |
| Swing Speed | 0–9.2 rpm |
| Travel Speed | 1.9–3.4 mph |
| Maximum Traction Force | 100,750.2 lbf |
| Gradeability | 35° / 70% |
Hydraulics
| Main Pumps | 2 variable-displacement axial-piston pumps |
| Main Pump Flow | 2 × 103.0 gpm |
| Pilot Pump Flow | 6.3 gpm |
| Normal Implement Pressure | 4,980 psi |
| Power-Boost Pressure | 5,262 psi |
| Travel Pressure | 4,694 psi |
| Swing Pressure | 4,267 psi |
| Pilot Pressure | 586 psi |
Capacities
| Fuel Tank | 162.7 gal |
| DEF Tank | 16.6 gal |
| Cooling System | 13.9 gal |
| Engine Oil With Filter | 11.9 gal |
| Swing Drives | 2 × 1.3 gal |
| Final Drive, Each Side | 2.4 gal |
| Hydraulic System | 145.3 gal |
| Hydraulic Tank | 70.0 gal |
Dimensions & Configurations
| US20 | 23 ft 3.5 in boom, 9 ft 6.1 in arm, 3.13 yd³ bucket |
| US30 | 23 ft 3.5 in boom, 10 ft 11.9 in arm, 2.80 yd³ bucket |
| US50 | 36 ft 1.1 in boom, 26 ft 3 in arm, 1.20 yd³ bucket |
| Tail Swing Radius | 12 ft 5.6 in |
| Shipping Length | 40 ft 5.4 in standard / 53 ft 1.6 in SLR |
| Track Shoe Width | 35.4 in |
| Overall Track Length | 17 ft 11.7 in |
| Undercarriage Width | 11 ft 11 in retracted / 13 ft 9 in extended |
| Car Body Clearance | 2 ft 4.5 in |
Features & Service
| Display | DEVELON Smart Touch |
| Smart Power Control | Standard |
| Auto Idle and Auto Shutdown | Standard |
| Boom Float | Optional |
| Side-Impact Protector | Optional |
| MY DEVELON | Standard |
| Cab Sound Level | 72 dB(A) |
| Exterior Sound Level | 106 dB(A) |
Values are from the current DEVELON North America DX530LC-7 product page, model-specification API and official sales specifications. US20 is the headline short-arm configuration; standard-arm US30 and super-long-reach US50 differences are labeled separately. Current web values take precedence over more precise PDF conversions where they differ. Specifications vary by workgroup, bucket and attachment configuration. Contact Carleton Equipment to confirm details.
