- Horsepower
- 107.3 hp
- Operating weight
- 31,746 lb
- Bucket digging force
- 24,504 lbf
- Max dig depth
- 20 ft 1 in
More specifications
|
General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Develon |
| Model: | DX140LC-7K |
| Machine Type: | Other |
|
Engine
|
|
|---|---|
| Engine: | G2 DM03-D34 |
| Horsepower: | 107.3 |
| Emissions: | Tier 4 |
|
Performance
|
|
|---|---|
| Bucket Digging Force: | 24,504 lbf |
| Arm Digging Force: | 13,264 lbf |
| Max Digging Reach (Ground): | 27' 11" |
| Operating Weight: | 31746 lb |
|
Hydraulics
|
|---|
|
Dimensions
|
|
|---|---|
| Fuel Tank: | 68.7 gal. |
Description

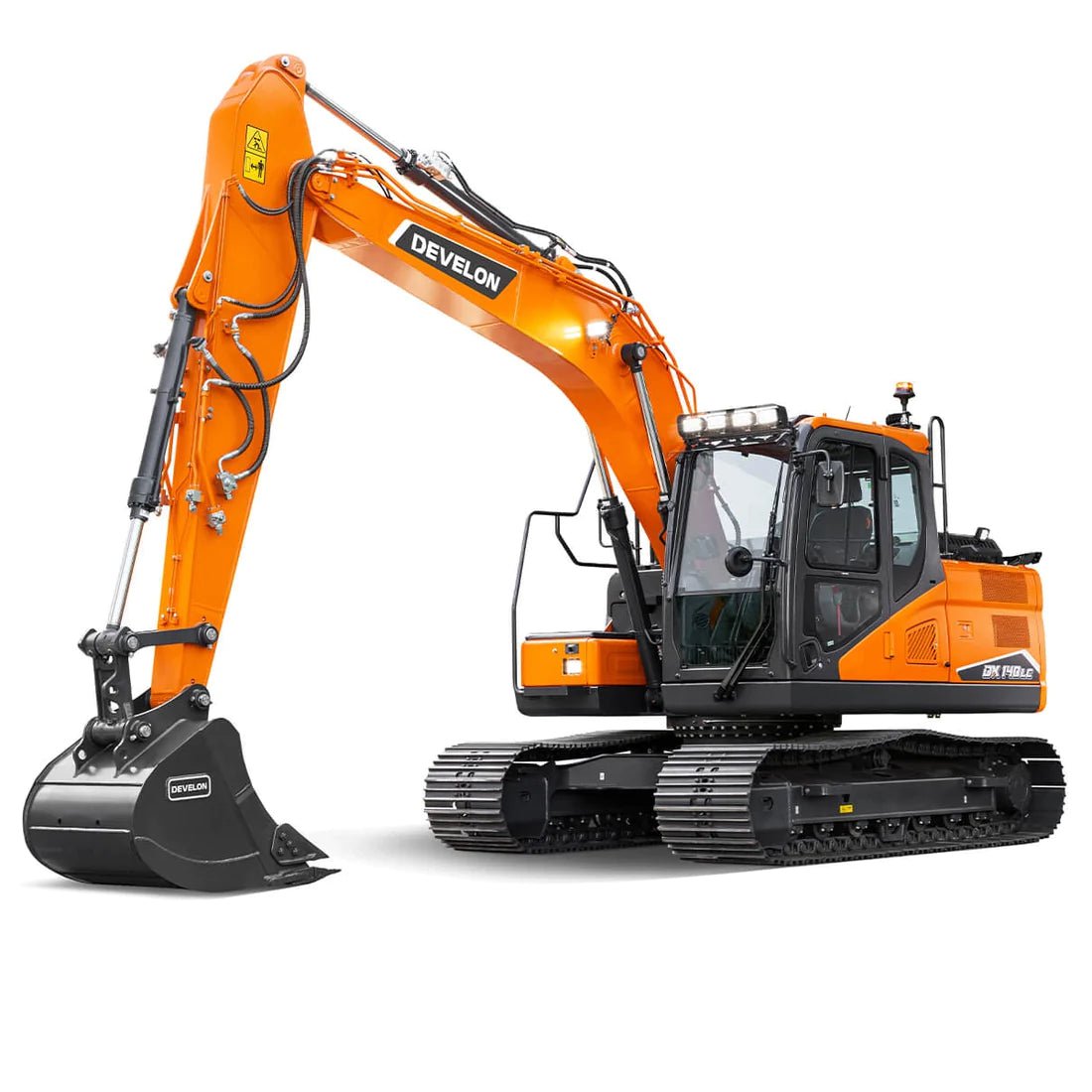

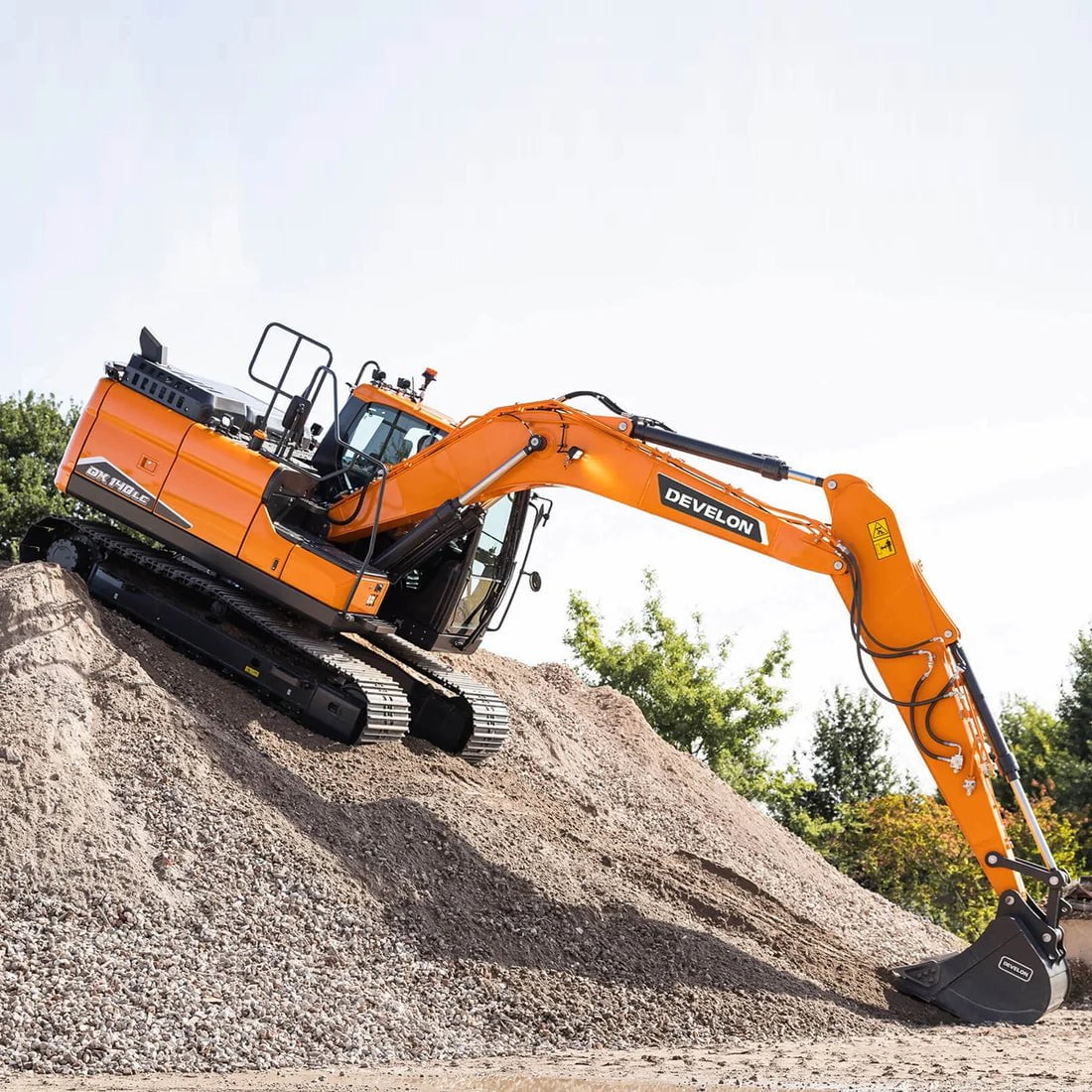

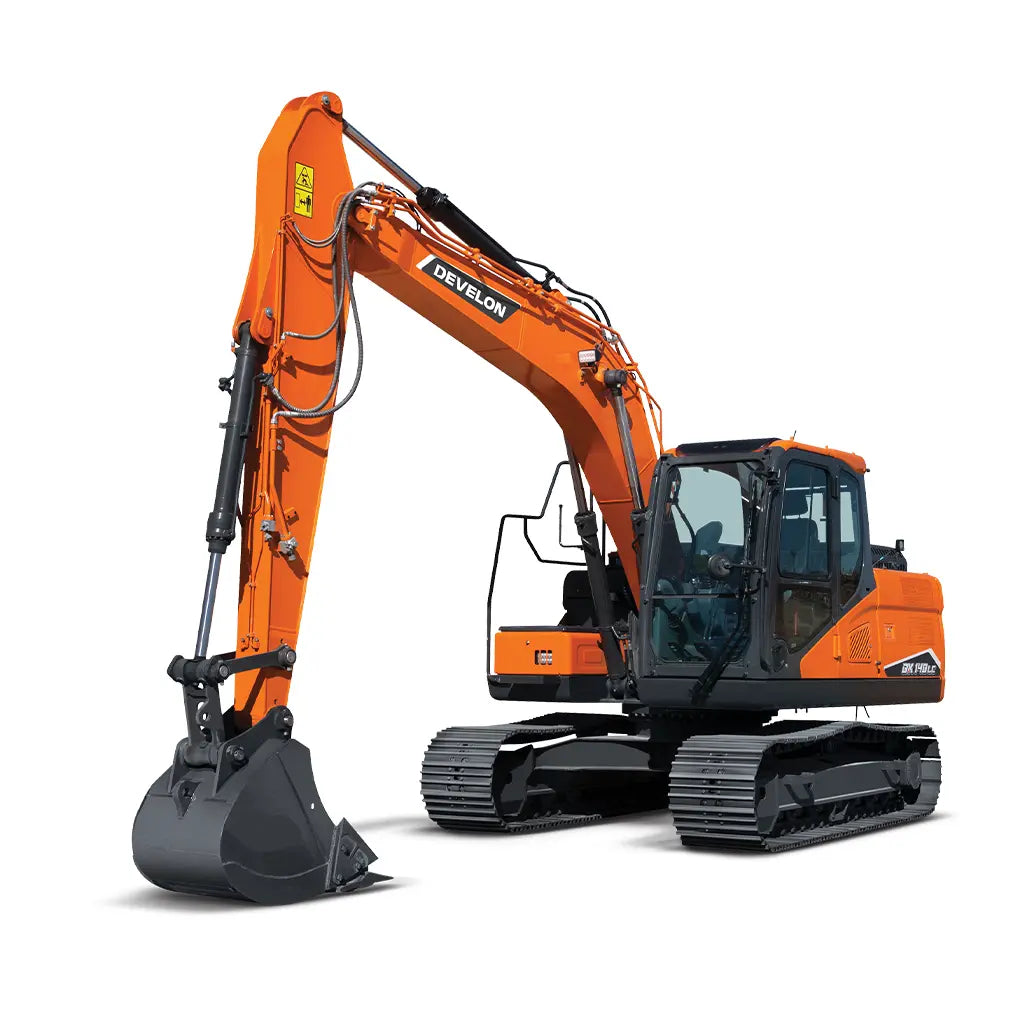

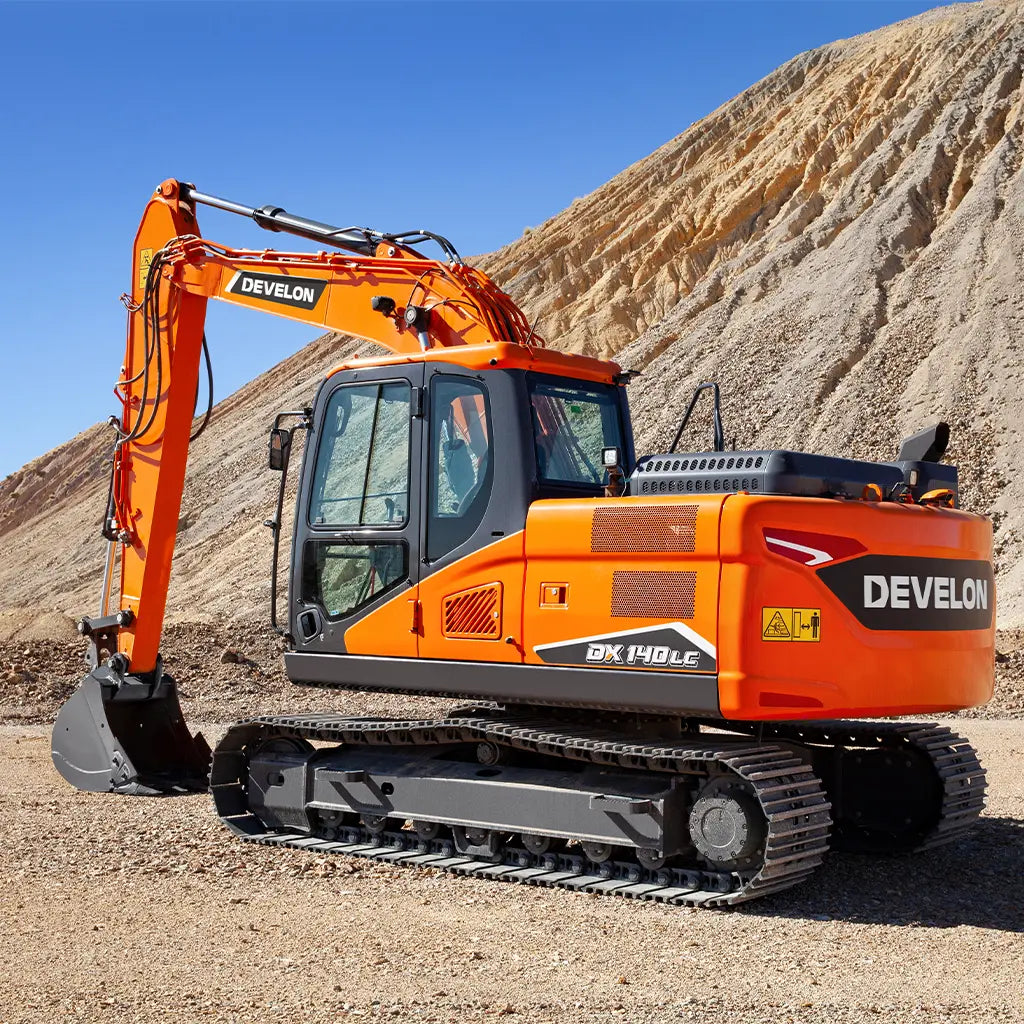

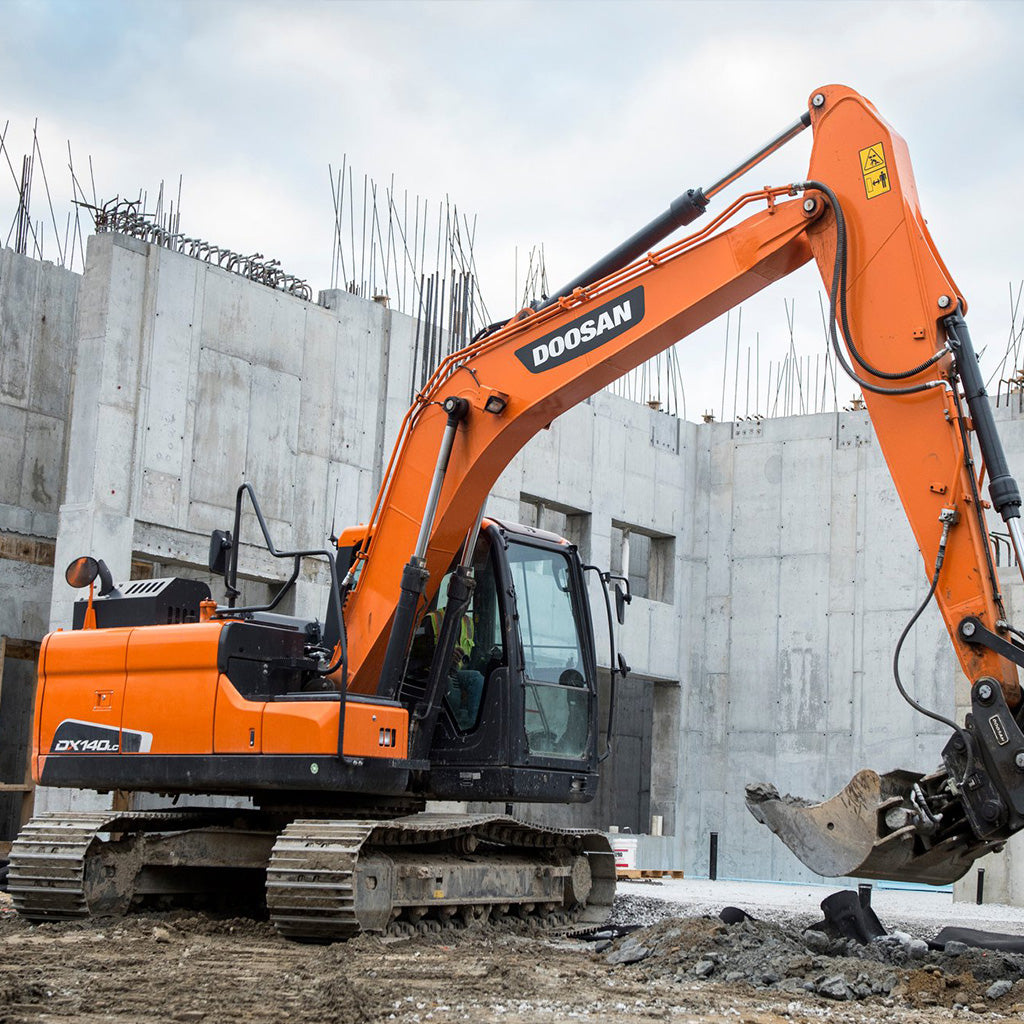

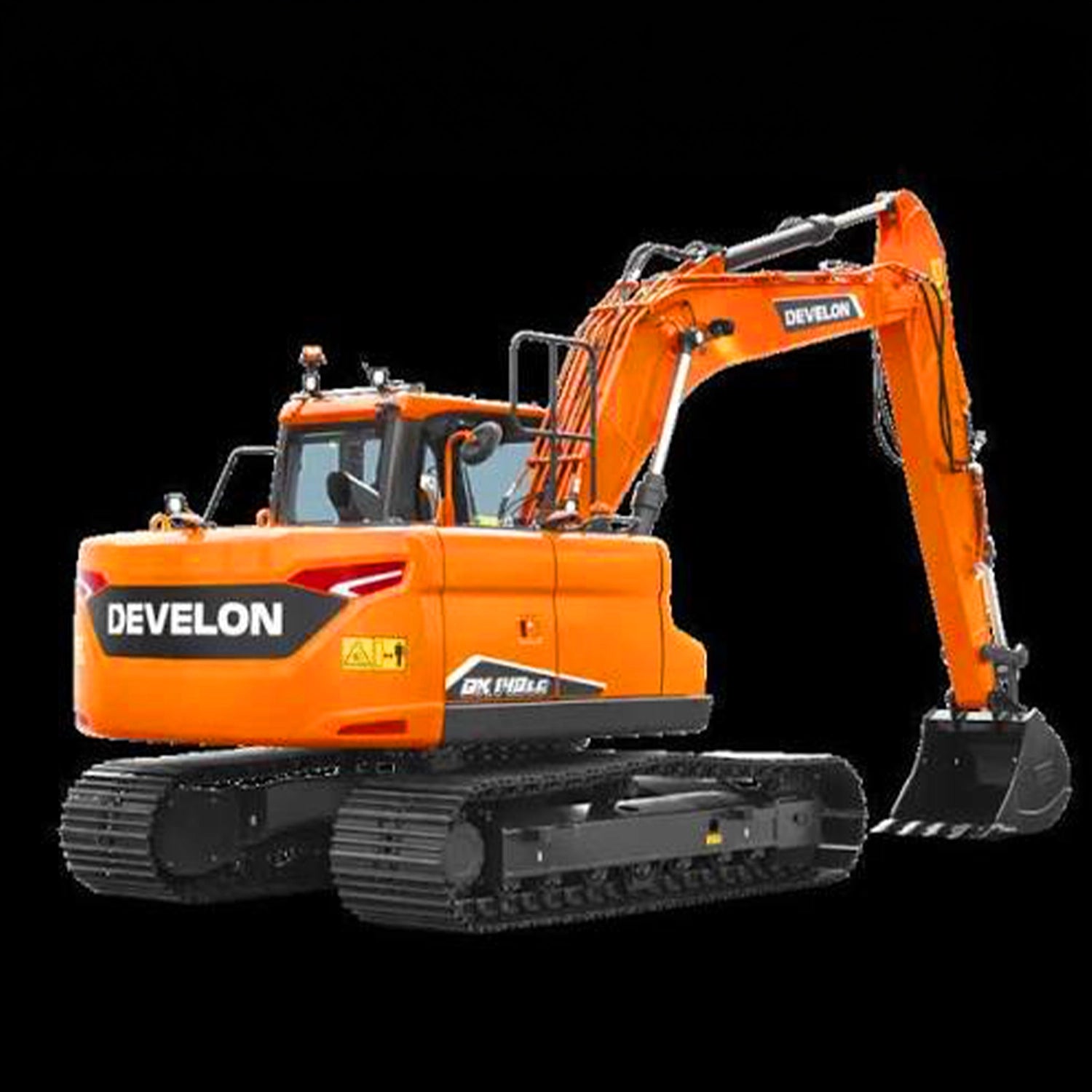

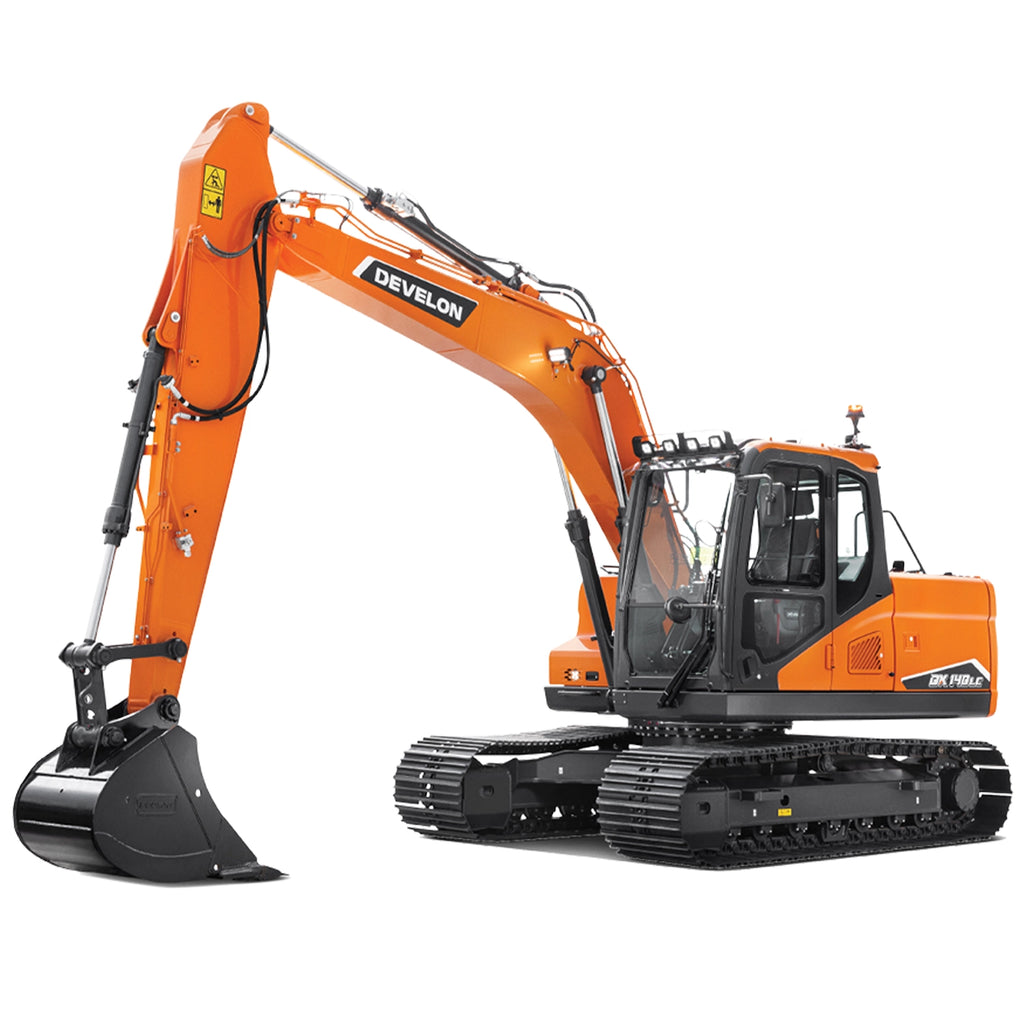

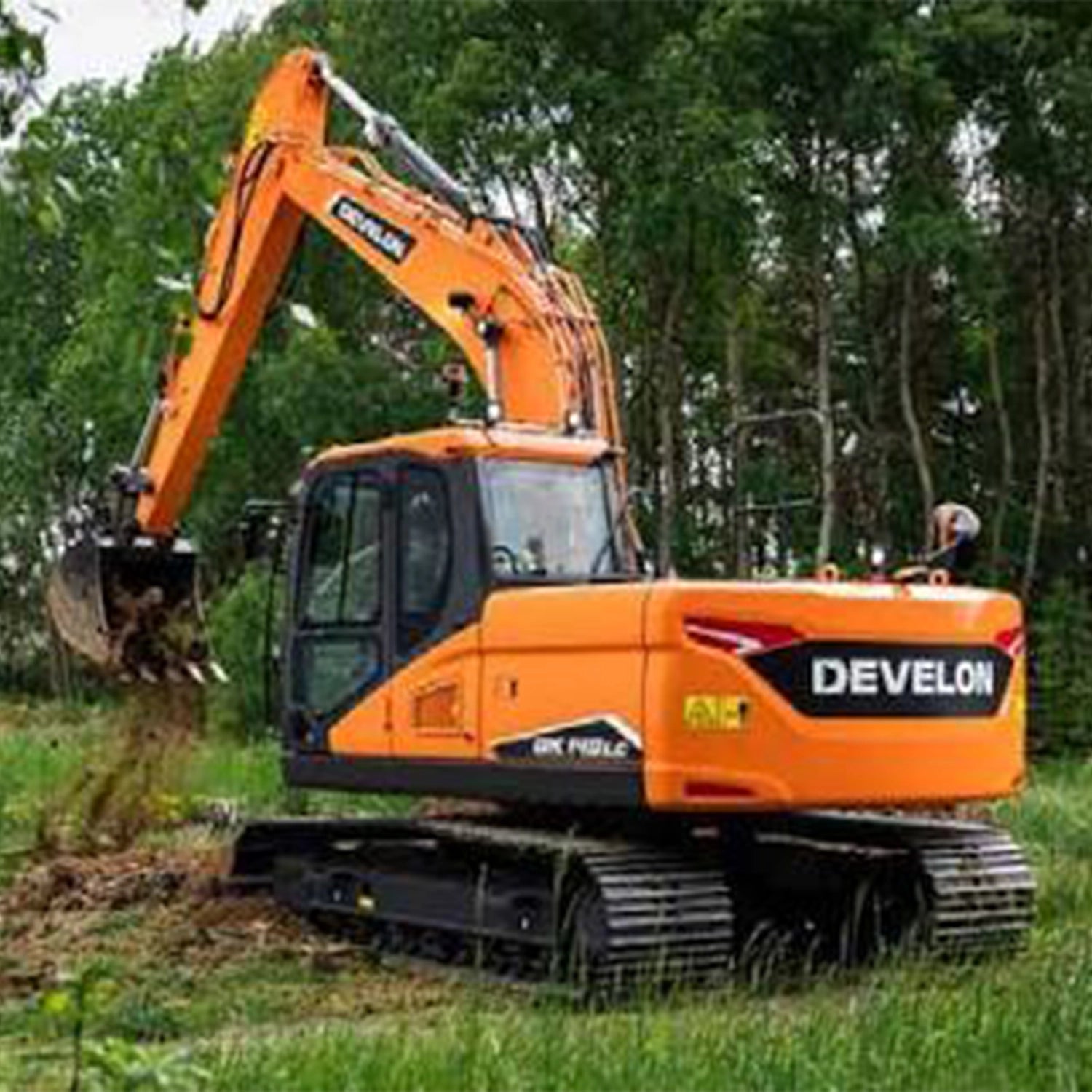

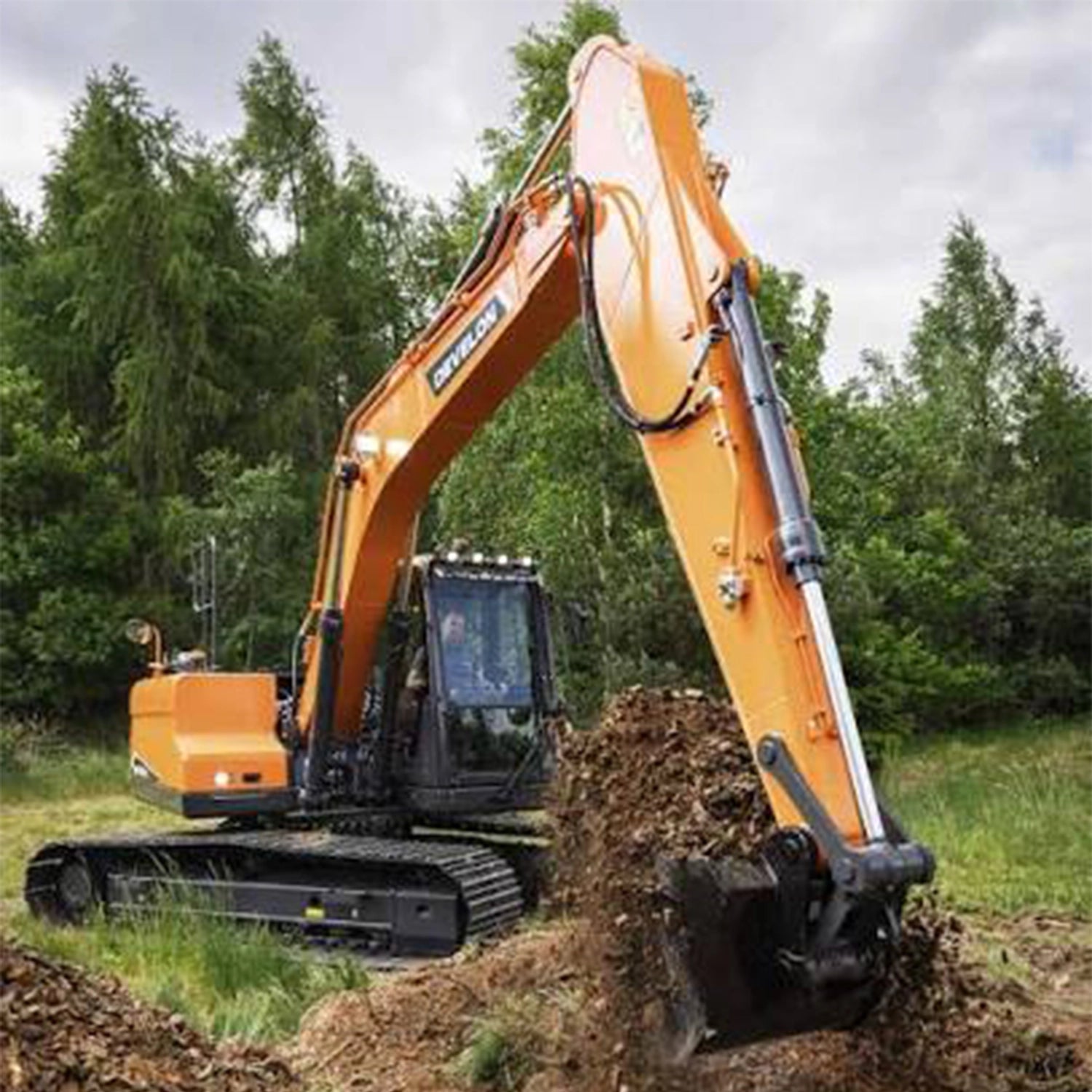

Develon DX140LC-7K
Powerful Performance in Tight Work Areas
The Develon DX140LC-7K is built to deliver exceptional performance in confined jobsites where maneuverability is essential. Ideal for work near bridges, along roadways, and in congested urban environments, this crawler excavator features four selectable power modes, a standard arm configuration, and an available dozer blade for added stability and efficient backfilling. Powerful hydraulics provide impressive digging and lifting performance, while the standard one-touch power boost temporarily increases hydraulic force for demanding excavation conditions. Boom cylinder holding valves, mounted on the rear of the hydraulic cylinders, enhance safety during lifting and digging while helping reduce the risk of machine damage.
Operator Comfort and Outstanding Visibility
Designed to maximize operator comfort throughout long workdays, the DX140LC-7K features a quiet cab with sound-isolating seals, automotive-style heating and air conditioning, and a standard heated air-suspension seat. An available heated and cooled air-suspension seat provides even greater comfort in extreme weather conditions. A large tablet-style display offers intuitive machine controls and easy access to operating information, while low-effort joystick controls reduce fatigue when operating hydraulic attachments. Standard rearview cameras, excellent right-side visibility, and an available 360-degree Around View Monitor (AVM) camera system help improve operator awareness and jobsite safety.
Advanced Machine Functionality
The DX140LC-7K incorporates advanced technologies that improve productivity and versatility across a wide range of applications. An available boom float function allows the boom to follow ground contours for more efficient finish grading, while the automatic downshift feature increases traction and drawbar pull during uphill travel. A hydraulic quick coupler enables fast attachment changes without leaving the cab, and an electric two-way foot pedal simplifies hydraulic attachment operation, allowing operators to complete more work with greater efficiency.
Simplified Maintenance and Fuel Efficiency
Routine maintenance is fast and convenient thanks to ground-level access to the diesel exhaust fluid (DEF) tank and fuel refill point, along with safe access to the upper structure through strategically placed handrails and anti-slip steps. The exclusive Smart Power Control (SPC) and Mechatronics Design systems automatically optimize hydraulic and engine performance to improve fuel efficiency without sacrificing productivity. Standard auto idle and auto shutdown functions further reduce fuel consumption, helping lower operating costs while ensuring compliance with current North American emissions standards.
Loan
Lease
Cash in Lieu
Warranty
See participating dealers for details.
*Program disclosure: 0% A.P.R. financing for up to 60 months and the cash-in-lieu rebate are mutually exclusive — select one or the other. Select models also carry an additional rebate that can be combined with either financing or cash in lieu; the up to $43,500 amount shown includes it. Lease options are available separately; contact dealer for terms and custom payment structures. Financing subject to credit approval through an authorized Develon financing provider. Rebate applied at time of purchase. 3 Year / 3,000-Hour Full Coverage standard warranty included with qualifying new Develon equipment purchases. Offers valid on qualifying new Develon models through participating dealers only. See dealer for complete details, eligibility requirements, and program end dates. Offers subject to change without notice.
What Makes the DX140LC-7K Different
107.3 hp DEVELON Engine
The 3.4 L G2 DM03-D34 delivers 107.3 net hp at 2,000 rpm with 339.3 lb-ft of torque for responsive digging, lifting and attachment work.
20-Foot Dig Depth
A 15 ft 1.1 in boom and 9 ft 10.1 in standard arm reach 20 ft 1 in deep and 27 ft 11.8 in at ground level.
Compact 14.4-Ton Platform
A 31,746 lb operating weight and 8 ft 6 in shipping width make the DX140LC-7K well suited to roadways, bridges and congested urban jobsites.
Four Power & Work Modes
P+, Power, Standard and Economy modes pair with digging, lifting, breaker and shear settings to match output and hydraulic response to the task.
Smart Power Control
SPC and Mechatronics Design coordinate engine speed and hydraulic demand to maintain productivity while reducing unnecessary fuel use.
Optional Dozer Blade
An available blade adds stability, backfilling capability and stronger lifting performance over the front while keeping the machine compact.
Premium Cab & Visibility
A heated air-suspension seat, Smart Touch display and standard rearview camera support comfortable, confident operation throughout the shift.
Compare the Crawler Excavator Lineup
See where the DX140LC-7K fits among nearby DEVELON crawler excavators. Values are published North American base-machine figures.
 |
 |
|
 |
 |
 |
 |
 |
|
| DX140LC-7K Viewing | DX170LC-7 | DX180LC-5 | DX235LCR-7 | DX350LCR-7 | DX420LC-7 | DX490LC-7 | DX530LC-7 | |
|---|---|---|---|---|---|---|---|---|
| Rated Power (net) | 107.3 hp @ 2,000 rpm | 115.0 hp @ 2,000 rpm | 127.3 hp @ 2,000 rpm | 170.3 hp @ 1,900 rpm | 266.9 hp @ 1,800 rpm | 344.6 hp @ 1,800 rpm | 379.5 hp @ 1,800 rpm | 379.5 hp @ 1,800 rpm |
| Operating Weight | 31,746 lb | 38,360 lb | 41,667 lb | 57,132 lb | 79,701 lb | 94,527 lb | 121,676 lb | 121,804 lb |
| Maximum Dig Depth | 20 ft 1 in | 20 ft 2.9 in | 20 ft 0 in | 21 ft 11 in | 22 ft 10 in | 27 ft 3 in (long arm) | 27 ft 7 in (long arm) | 24 ft 0 in |
| Model Generation | -7K | -7 | -5 | -7 LCR | -7 LCR | -7 | -7 | -7 SLR available |
Specifications vary by configuration and are subject to change. Contact Carleton Equipment to confirm the machine for your application.
DX140LC-7K Features & Benefits
Performance & Efficiency 5
G2 DM03-D34 Engine
The turbocharged 3.4 L four-cylinder produces 107.3 net hp and 339.3 lb-ft of torque, with high-pressure common-rail injection and electronic engine control.
One-Touch Power Boost
Power boost raises implement pressure from 4,694 to 4,978 psi for difficult digging, delivering up to 24,471 lbf of bucket force.
Smart Power Control
SPC adjusts engine speed and pump torque to actual load, helping reduce fuel consumption while preserving productive hydraulic response.
Four Power Modes
Choose P+, Power, Standard or Economy mode to prioritize maximum workgroup speed, everyday performance or lower fuel consumption.
Auto Idle & Auto Shutdown
Standard automatic idle and time-adjustable shutdown reduce unnecessary fuel use and accumulated engine hours when controls are inactive.
Digging, Hydraulics & Versatility 6
20 ft 1 in Dig Depth
The standard 9 ft 10.1 in arm provides 20 ft 1 in of depth, 27 ft 11.8 in of ground reach and 21 ft 1.5 in of loading height.
Dual 30 gpm Main Pumps
Tandem variable-displacement axial-piston pumps support smooth combined operations and responsive attachment performance.
Four Work Modes
Digging, lifting, breaker and shear modes configure machine response for common applications and hydraulic attachments.
Attachment Presets
Adjustable auxiliary flow and pressure with ten presets helps operators change attachments while retaining preferred hydraulic settings.
Optional Intelligent Floating Boom
The available floating-boom system helps the workgroup follow ground contours during finishing and lets a breaker descend under its own weight.
Optional Dozer Blade
Add the available blade for backfilling, jobsite cleanup and greater stability when lifting over the front.
Comfort, Visibility & Technology 5
DEVELON Smart Touch Display
The tablet-style screen centralizes machine information, settings, climate controls, audio, Bluetooth and the rearview-camera image.
Heated Air-Suspension Seat
A heated air-suspension seat is standard; an optional deluxe seat adds active heating and cooling for year-round comfort.
Standard Rearview Camera
Large windows, narrow pillars and a standard rear camera improve awareness; an optional 360-degree AVM system expands the view.
Low-Effort Attachment Control
Joystick switches and an electric two-way pedal simplify proportional attachment operation and help reduce operator fatigue.
MY DEVELON Fleet Management
Standard telematics remotely tracks location, machine health, hours, utilization and maintenance information.
Durability & Serviceability 4
Reinforced Front Group
High-strength cylinder rods and bodies, cushioned cylinders and reinforced stress points support long service life in demanding excavation.
Boom Holding Valves
Boom-cylinder holding valves are positioned to improve safety and help reduce the risk of damage and downtime during digging.

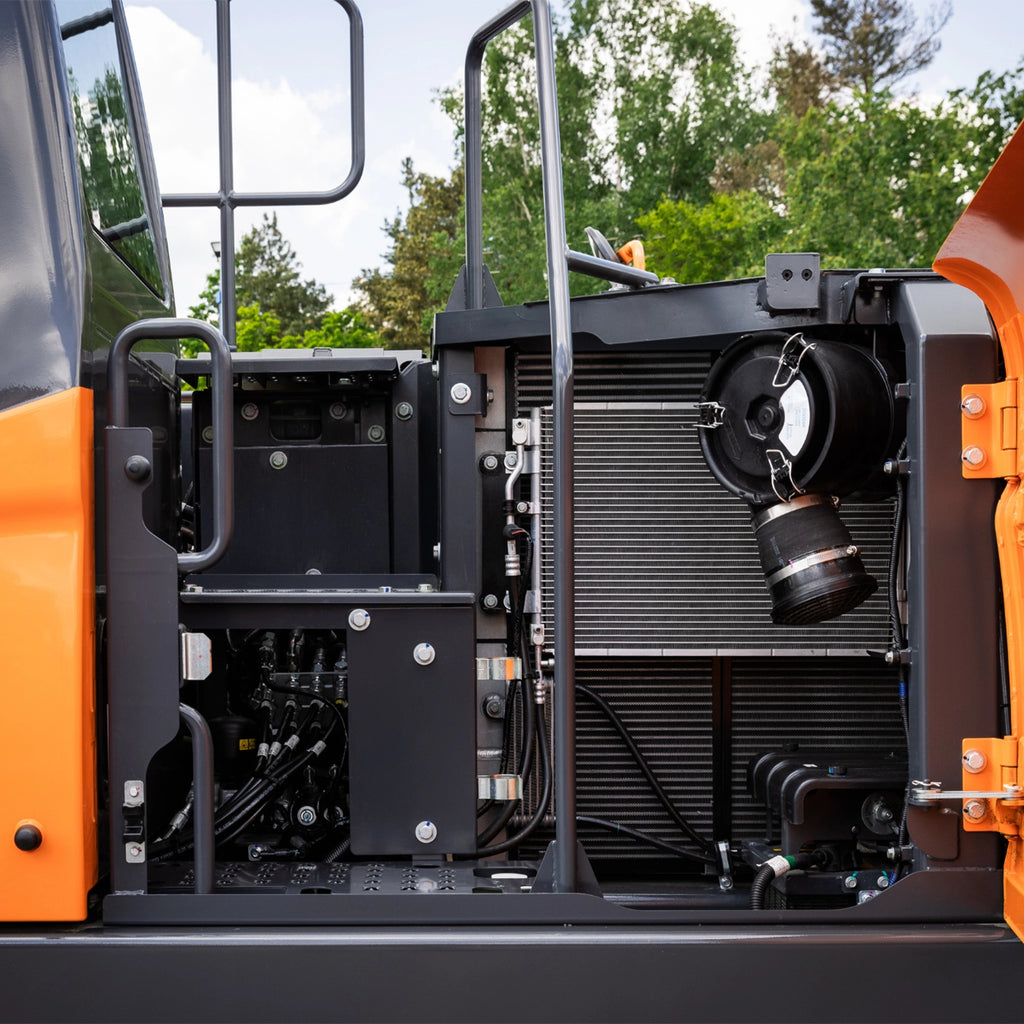

Ground-Level Fluid Access
The DEF tank and fuel-refilling hose are accessible from ground level, with handrails and anti-slip steps for upper-structure service access.
3-Year / 3,000-Hour Warranty
DEVELON backs the machine with a standard full-coverage warranty for 36 months or 3,000 hours, whichever comes first.
Why Buyers Choose the DX140LC-7K
107.3 net hp in a transportable 31,746 lb crawler-excavator platform
20 ft 1 in dig depth and 27 ft 11.8 in ground-level reach
Only 8 ft 6 in wide for congested urban, roadway and bridge work
Optional dozer blade adds backfilling capability and lifting stability
Four power modes, four work modes and one-touch hydraulic power boost
Dual 30 gpm pumps with ten auxiliary attachment presets
Heated air-suspension seat, Smart Touch display and rearview camera
Standard MY DEVELON telematics and 3-year / 3,000-hour warranty
Who Uses the DX140LC-7K and What For
The DX140LC-7K brings full crawler-excavator reach and hydraulic versatility to a compact 14.4-ton package, making it especially useful where access, transportability and precise control matter as much as production.
Urban & Road Work
- Congested commercial sites
- Roadway and bridge projects
- Lane-side excavation and repair
- Optional blade for cleanup
Utilities
- Water, sewer and storm trenching
- Service and drainage installation
- Manhole and structure placement
- Straight-travel trench work
Site Development
- Foundation excavation
- Loading and material placement
- Backfilling and finish grading
- Landscape and retaining-wall work
Attachments & Demolition
- Hydraulic breaker operation
- Thumb and grapple handling
- Quick-coupler attachment changes
- Selective demolition and sorting
The DX140LC-7K by the Numbers
DEVELON G2 DM03-D34 power at 2,000 rpm with 339.3 lb-ft of torque.
A compact 14.4-ton standard configuration built for constrained jobsites.
Paired with 27 ft 11.8 in of reach at ground level.
A narrow footprint for road, bridge and urban access.
Power-boost digging force for difficult material and demanding excavation.
Dual pumps support smooth combined functions and hydraulic attachments.
Talk to a person about the DX140LC-7K
Carleton Equipment is a family-owned Michigan dealer, here since 1938. Sales, rental, service and parts all come from the same team, and we’ll connect you with the location nearest you.
- Chesterfield
- Coldwater
- Grand Rapids
- Howell
- Kalamazoo
- Livonia
- Saginaw
Full Specifications
Download Spec SheetGeneral
| Machine Type | Crawler excavator |
| Operating Weight | 31,746 lbs |
| Operating Weight With Blade | 34,092 lbs |
| Standard Bucket | 0.67 yd³ |
| Standard Boom | 15 ft 1.1 in |
| Standard Arm | 9 ft 10.1 in |
Engine
| Engine | DEVELON G2 DM03-D34 |
| Displacement | 3.4 L |
| Cylinders | 4 |
| Net Power | 107.3 hp @ 2,000 rpm |
| Gross Power | 115.3 hp @ 2,000 rpm |
| Maximum Torque | 339.3 lb-ft @ 1,400 rpm |
| Emissions | Tier 4 Final |
Performance
| Maximum Dig Depth | 20 ft 1 in |
| Maximum Reach at Ground | 27 ft 11.8 in |
| Maximum Loading Height | 21 ft 1.5 in |
| Bucket Digging Force | 24,471 lbf with power boost |
| Arm Digging Force | 13,228 lbf with power boost |
| Maximum Swing Torque | 35,355 lbf·ft |
| Swing Speed | 10.1 rpm |
| Travel Speed | 1.8–2.9 mph |
| Traction Force | 33,510 lbf |
| Gradeability | 35° / 70% |
Hydraulics
| Main Pumps | 2 variable-displacement axial-piston pumps |
| Main Pump Flow | 2 × 30 gpm |
| Normal Implement Pressure | 4,694 psi |
| Power-Boost Pressure | 4,978 psi |
| Travel Pressure | 4,978 psi |
| Swing Pressure | 3,911 psi |
| Pilot Pump Flow | 7.9 gpm |
Capacities
| Fuel Tank | 68.7 gal |
| DEF Tank | 6.6 gal |
| Hydraulic System | 44.9 gal |
| Hydraulic Tank | 25.6 gal |
| Cooling System | 4.7 gal |
| Engine Oil | 3.3 gal |
Dimensions
| Shipping Length | 25 ft 2.4 in |
| Shipping Width | 8 ft 6 in |
| Shipping Height | 10 ft 5.2 in |
| Cab Height | 9 ft 3 in |
| Tail Swing Radius | 7 ft 4.4 in |
| Car Body Clearance | 1 ft 3 in |
| Overall Track Length | 12 ft 3.8 in |
| Track Shoe Width | 23.6 in |
Features
| Power Modes | P+ / P / S / E |
| Work Modes | Digging / Lifting / Breaker / Shear |
| Smart Power Control | Standard |
| Intelligent Floating Boom | Optional |
| Straight Travel | Optional |
| Rearview Camera | Standard |
| Heated Air-Suspension Seat | Standard |
| Dozer Blade | Optional |
Values are from the official North American DX140LC-7K sales specifications for the standard-arm US20 configuration unless labeled otherwise. Specifications vary by attachment and blade configuration. Contact Carleton Equipment to confirm details.
