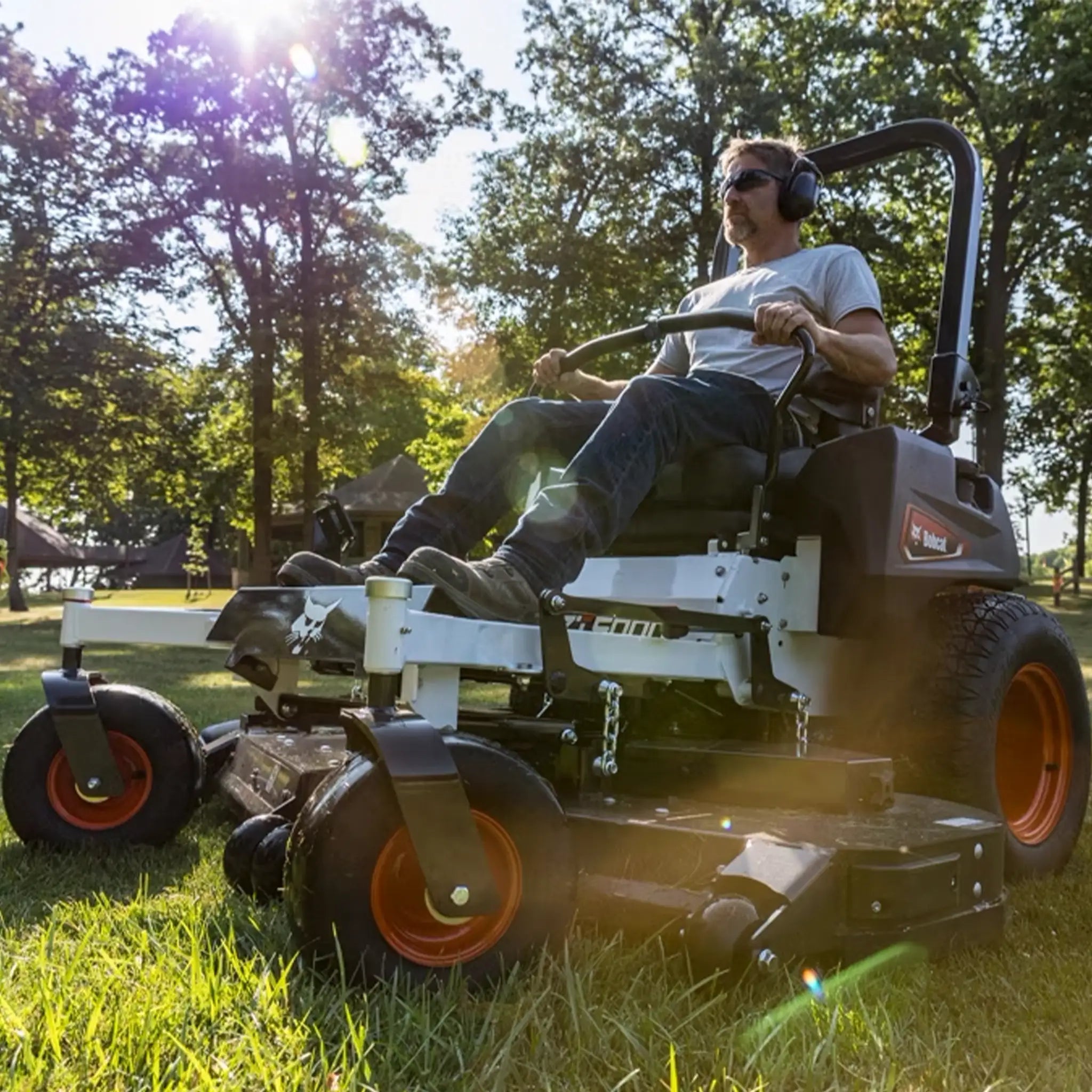

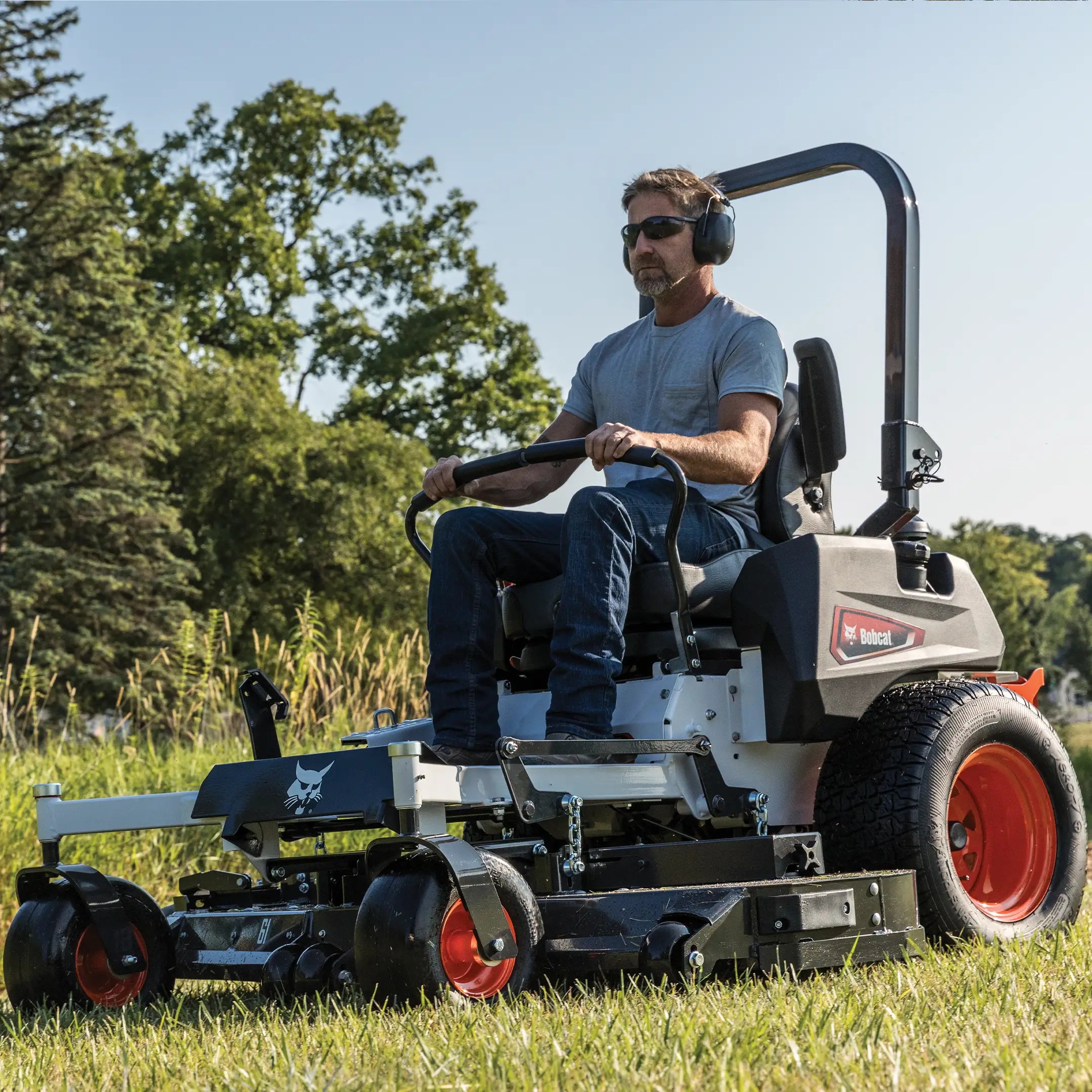

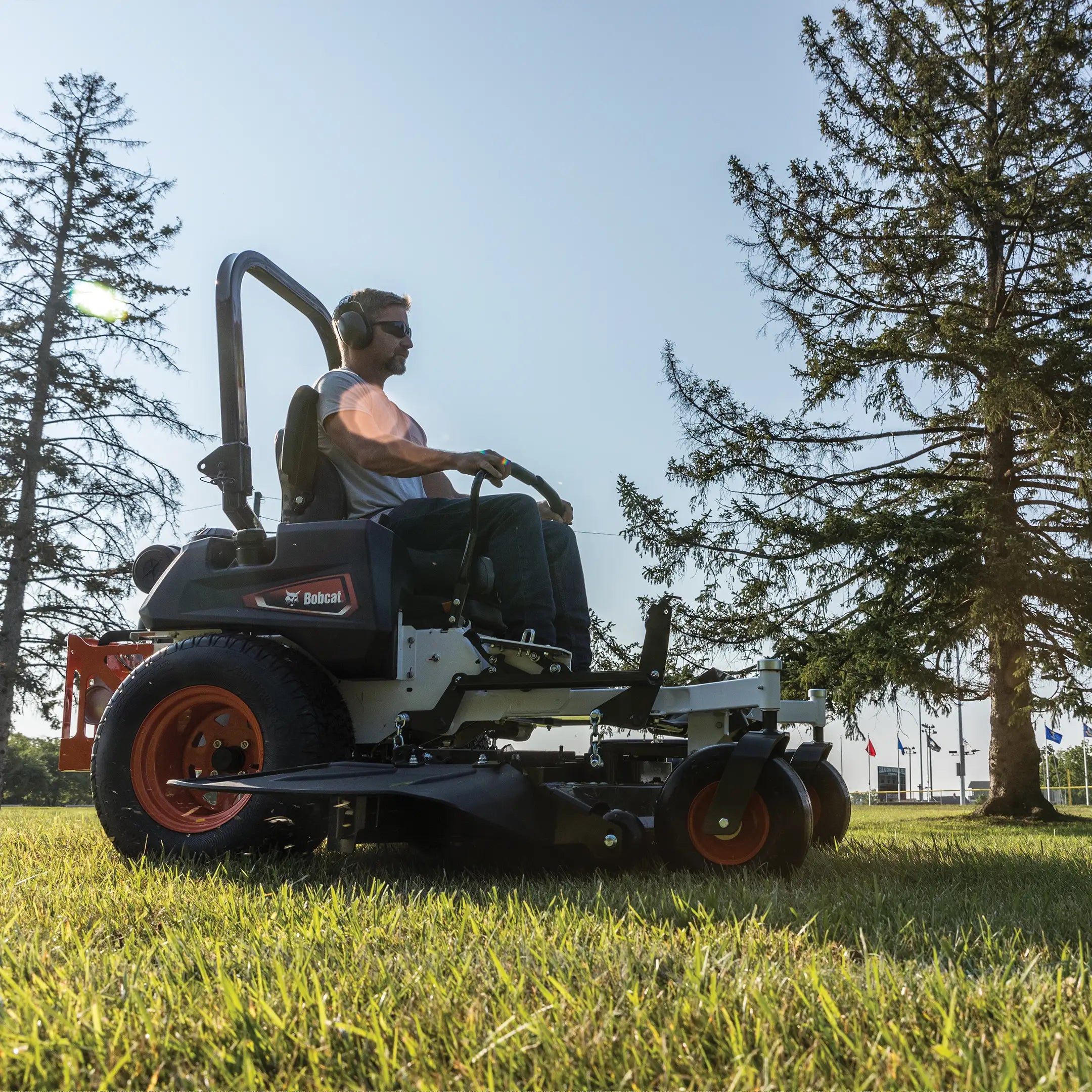

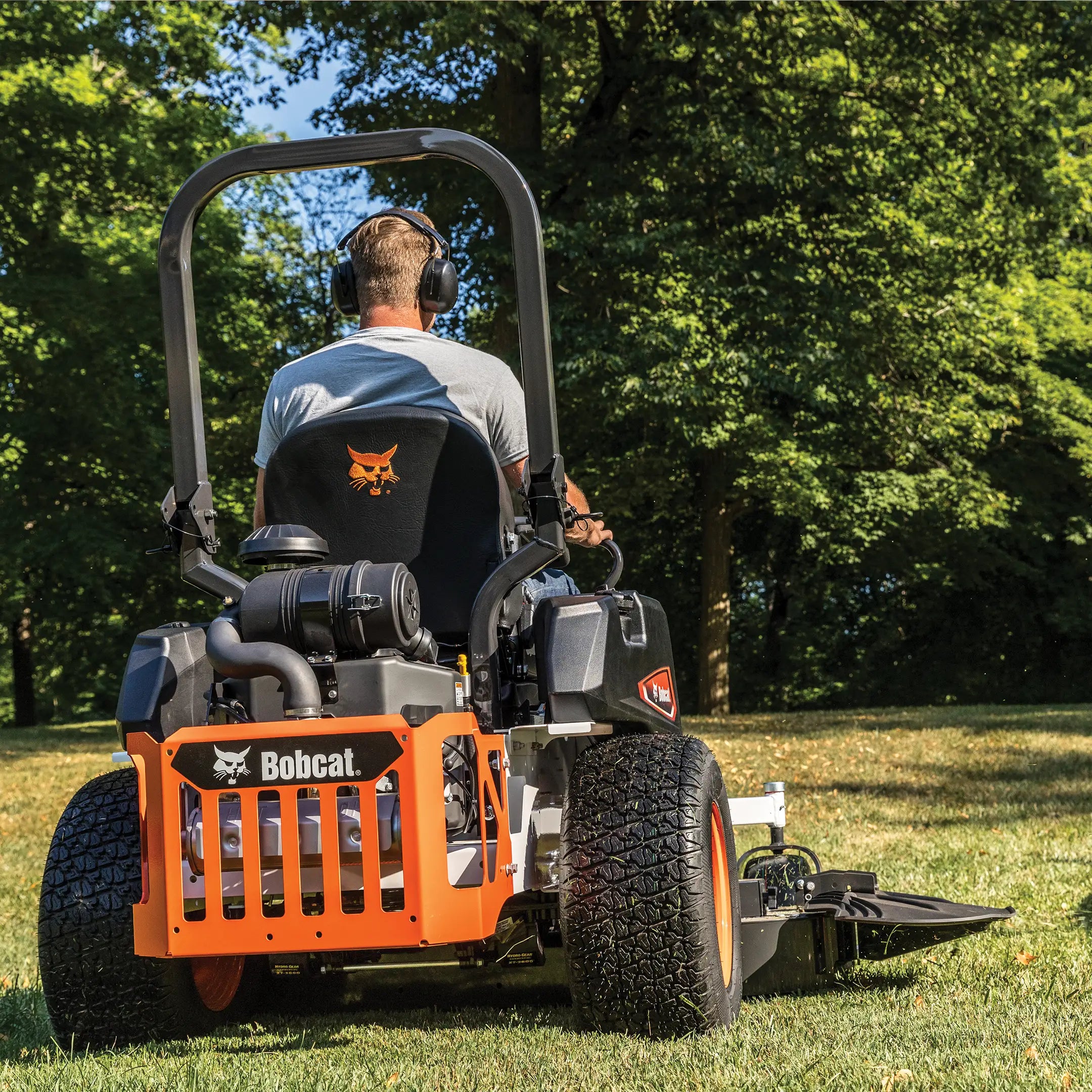

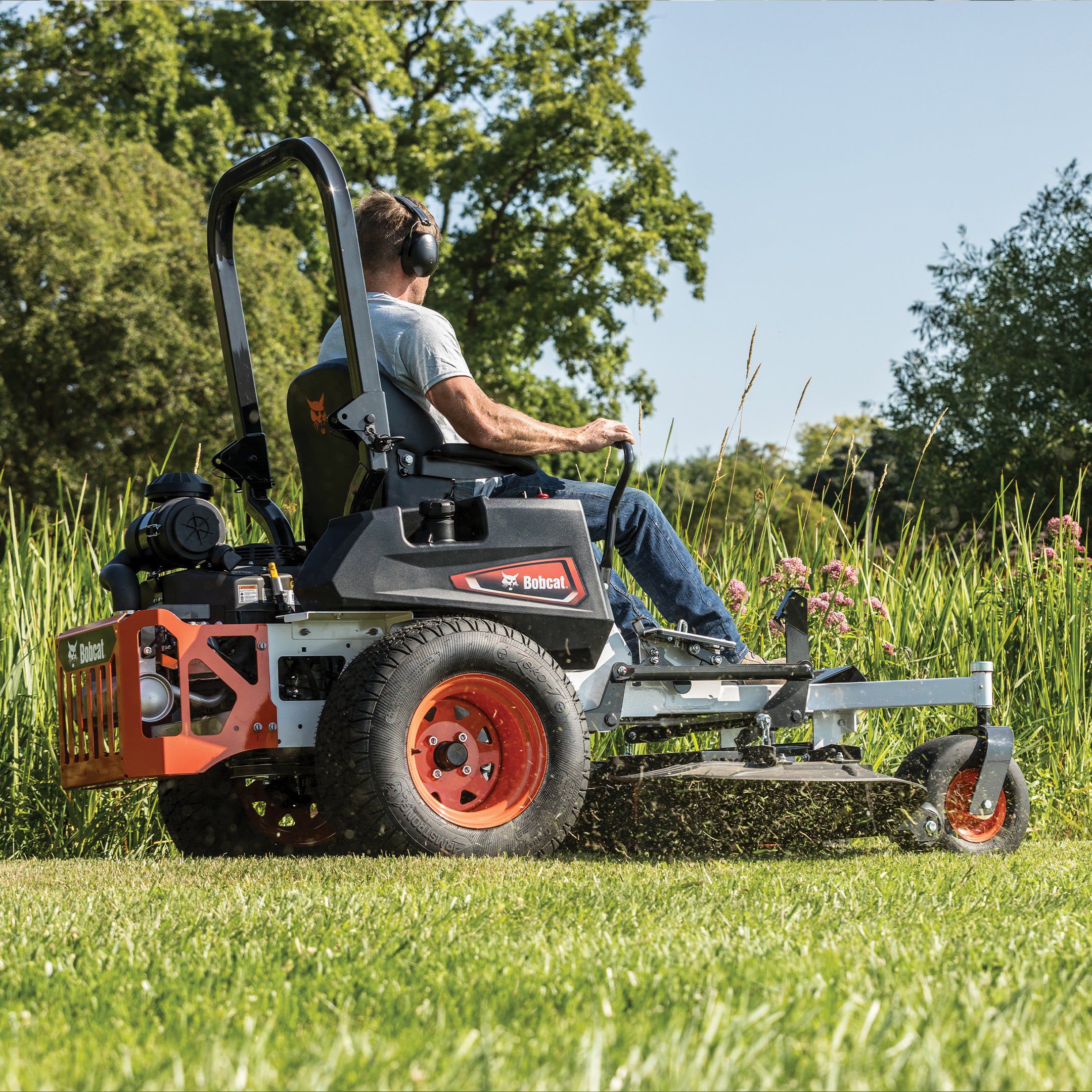

The ZT5000 combines a robust 23.5-hp Kawasaki® engine, capable of speeds up to 11 mph, with Hydro-Gear® ZT-3800 hydrostatic transaxles for precise, efficient mowing. Its AirFX™ cutting system enhances vacuum for a cleaner cut and professional finish, supported by steel-fabricated spindles for durability under commercial demands. It offers two deck sizes: 52-inch or 61-inch, catering to various landscaping needs.
Features:
Large, 24-inch drive tires for a smooth ride, ample ground clearance and minimal ground disturbance
Heavy-duty, tubed-steel frame for increased durability
Conveniently located tie-down points for simple trailering and transportation
Dual fuel tanks provide 7.8 gallons of total capacity for fewer stops and more mowing time
Ergonomic controls for greater operator comfort and reduced fatigue
Tool-free oil drain for quick and easy oil changes
Large variety of optional features including a grass-collection system, laser-edge blades, grass-striping kit, mulching kit and light kit
ZT5061SH
ZT5052SH
Mower Deck
AirFX Dual 10-gauge layer top with 3-gauge and 7-gauge brackets throughout
Width
61 In.
52 In.
Cutting Height
1.5-4.8 in.
Engine Model
Kaw FX730V Gas Engine
Kaw FX730V Gas Engine
Horsepower
25.5 hp
25.5 hp
Displacement
726cm³
Transmission Type
HG ZT-3800 Hydrostatic Transaxles
Pump Displacement
11cm³
Weight
1,043 lb
995 lb
Fuel Capacity
7.8 gal

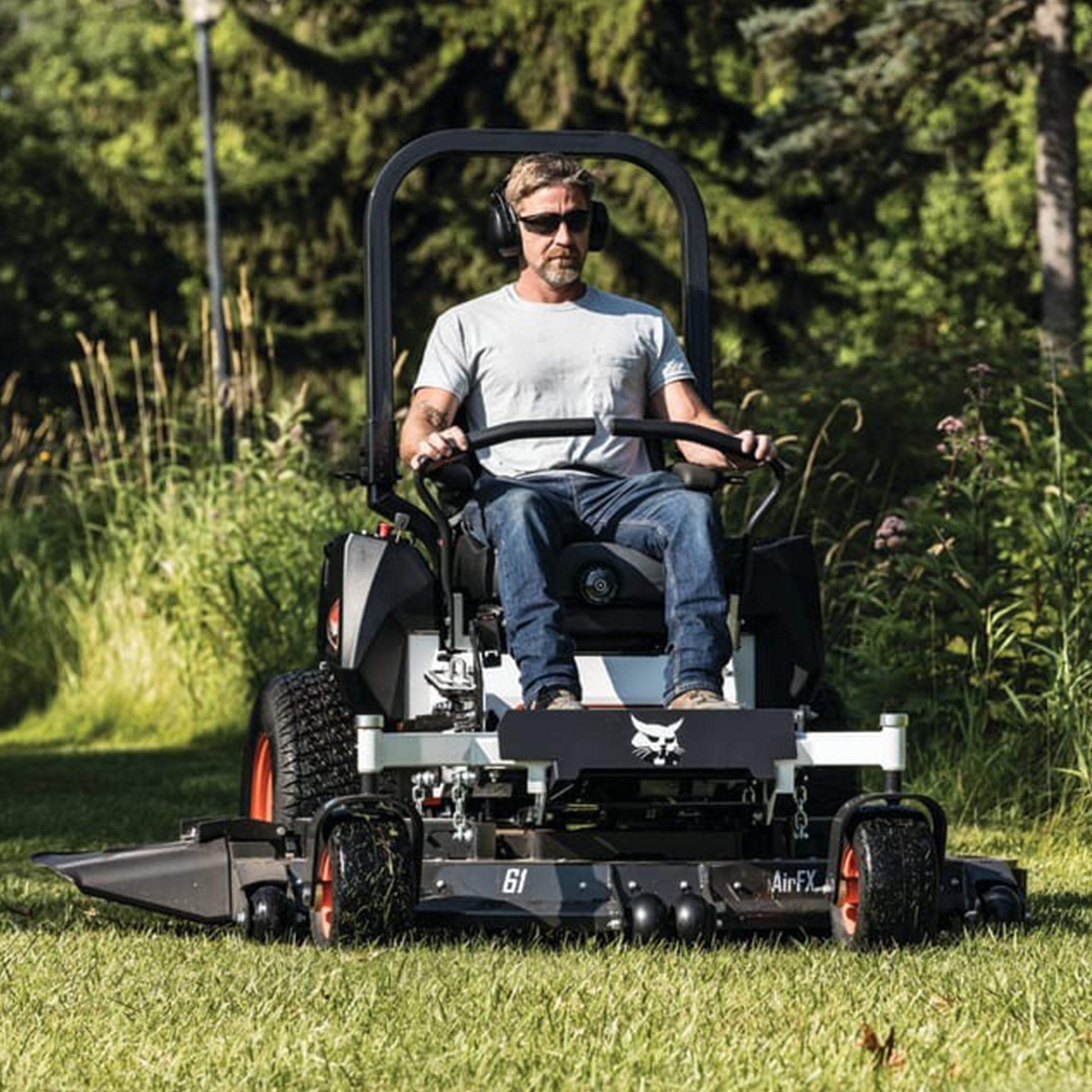

The ZT5000 platform offers three deck widths. A 48", 52", or 61" Deck are all available.
The mower's dual fuel tanks, with a combined capacity of 7.8 gallons, ensure extended operation times and reduce the need for frequent refueling, enhancing overall productivity.
Your Bobcat mower gives you all-day comfort in the operator station. Its extra high back seat provides unbeatable support and comfort while you work. It features weight adjustment with fore and aft mechanical adjustment.
Designed for demanding jobs, the Hydro-Gear® ZT-3800 transaxles deliver all the performance and torque you need for all-day mowing at a productive speed.
