General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Bobcat |
| Model: | ZT3500 |
| Machine Type: | Zero-Turn Mower |
|
Engine
|
|---|
|
Performance
|
|---|
|
Hydraulics
|
|---|
|
Dimensions
|
|
|---|---|
| Fuel Tank: | 7.8 gal. |
Description

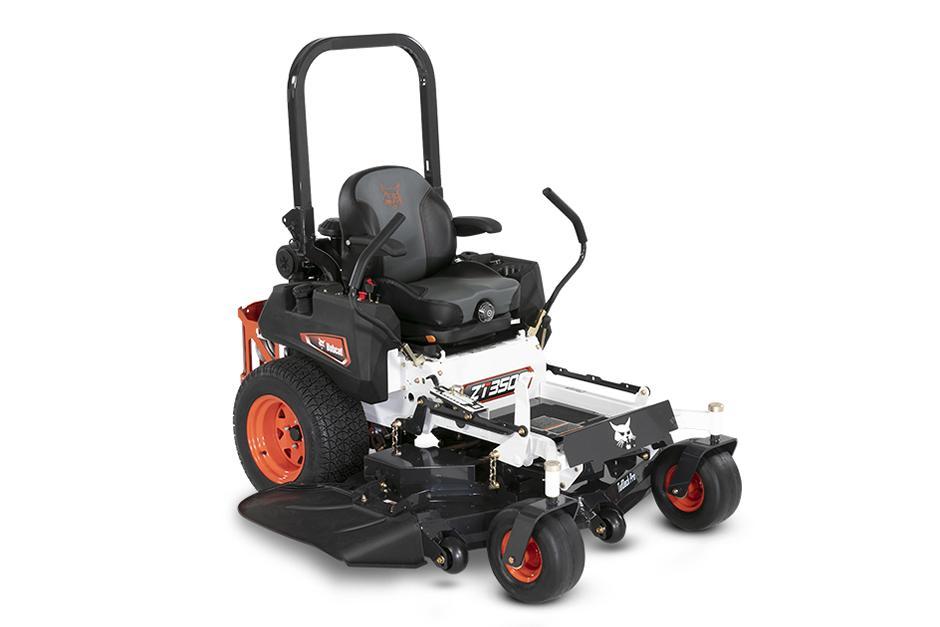

Bobcat ZT3500 Zero Turn Mower
Crafted for both durability and performance at a value price, the ZT3500 zero-turn mower combines a robust 7-gauge steel frame with the Hydro-Gear® ZT-3400 hydrostatic transaxle and a comfortable high-back, full-mechanical suspension seat. It's engineered for easy maintenance, exceptional cutting quality, and comfort for extended mowing sessions, making it the go-to choice for tackling challenging lawns.
- When you need a lift in power, the ZT3500 lets you command it with the Kawasaki® FX series engine.
- The deep profile TufDeck™ Pro cutting system is designed with welded, cast aluminum spindles and replaceable, bolt-on baffles for a clean, reliable cut every time.
- Rely on smooth and steady mowing power even at your fastest speeds with the superior Hydro-Gear® ZT-3400 hydrostatic transaxle. Delivering more torque, more output and more speed whenever you need it.
- Make quick work of big jobs with ground speeds up to 10 mph.
- The ZT3500 offers great control and a smooth, comfortable ride for traversing over even the toughest terrains.
Features:
- Convenient maintenance
- Standard 7-gauge steel frame
- 23 inch drive tires offer great control and a smooth ride
- Designed for maximum comfort
- High-back, full-mechanical suspension seat
ZT3500 Key Features
What Makes the ZT3500 Different
Commercial-grade capability for larger properties and demanding mowing routes.
Kawasaki® FX-Series Power
Commercial-grade FX engines deliver 21.5, 22 or 23.5 hp across the ZT3500 deck configurations.
10 MPH Hydro-Gear® ZT-3400 Drive
Dual ZT-3400 transaxles provide smooth, responsive zero-turn control and up to 10 mph forward travel speed.
TufDeck™ Pro & Large Tires
A TufDeck™ Pro fabricated deck and 23 x 10.5-12 drive tires help the ZT3500 hold up to longer hours and tougher terrain.
7.8-Gallon Fuel Capacity
Dual fuel tanks provide 7.8 gallons of capacity to support productive extended mowing sessions.
Controls Built Around the Operator
Centralized controls, adjustable handle height, quick-access fine-tune adjustments and deck lift assist help operators work comfortably and make fast, tool-free corrections as conditions change.
Rugged, Service-Friendly Construction
A reinforced tubular steel frame, structural caster support, welded steel spindles and steel belt covers are designed for dependable performance and durable component protection.
3-Year / 1,000-Hour Warranty
The ZT3500 is backed by a 36-month / 1,000-hour limited warranty and local Carleton Equipment support.

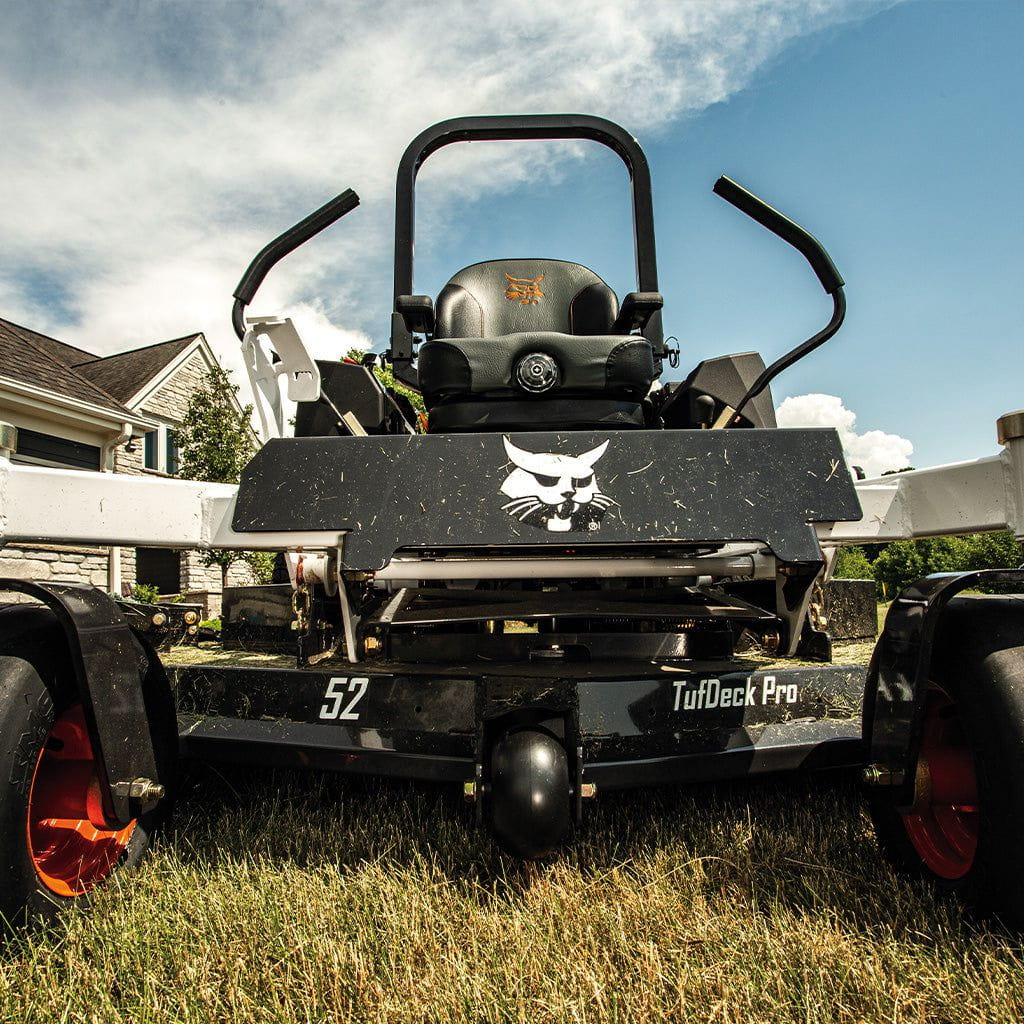

TufDeck™ Pro Cutting Deck
Available On ZT3500
Commercial-grade fabricated-deck construction for consistent cut quality through longer hours and tougher mowing conditions.
- 10-gauge steel top with 7-gauge spindle supports and side skirts.
- 48-, 52- and 61-inch widths match deck coverage to the property and workload.
- Adjustable anti-scalp rollers help protect turf on uneven ground.
Bobcat Cutting Deck Lineup
Choose Your Cutting Deck
Residential▸▸▸Commercial
The ZT3500 uses the TufDeck™ Pro cutting system across its 48″, 52″ and 61″ deck options.
Your Deck
Residential
TufDeck™
The TufDeck™ owes its consistent cutting power to a chain-hung design, allowing the deck to float and easily follow ground contours while reducing stress from uneven terrain and obstacles.
- Chain-hung floating deck follows ground contours and shrugs off uneven terrain and obstacles.
- Bullnose design lifts grass up before it reaches the blade for a cleaner cut.
- Double-wave baffle system optimizes airflow inside the deck for a clean, professional finish.
Your Deck
Heavy-Duty
TufDeck™ Pro
Engineered to stand up to more demanding workloads with less downtime, the TufDeck™ Pro builds on the TufDeck™ foundation with upgraded durability for extended run times and tougher conditions.
- 6-bolt steel-fabricated spindles with heavy-duty bearings for demanding workloads.
- Toolless belt-cover access for faster routine service and less downtime.
- Built on the TufDeck™ foundation — better suited to extended run times and challenging conditions.
Your Deck
True Commercial
AirFX™
A leader in true commercial-grade power, durability and professional performance. The AirFX™ deck’s unrivaled bull-nose, deep-deck design creates a powerful vacuum to lift grass to meet the blade, holding cut quality at faster mowing speeds.
- Deep, bull-nose deck design creates a powerful vacuum that lifts grass at higher speeds.
- Patented bolt-on Air Gap™ baffles drive efficient airflow to move clippings evenly and prevent clumping.
- Dual-layer, 10-gauge steel — nothing on turf is tougher.
Operator Comfort
Stay Focused. Stay Comfortable. Stay Productive.
From high-back suspension seats to weight-adjustable engineering, Bobcat designs every seat to absorb rough terrain while reducing operator strain — so you can mow longer with less fatigue.
Your Seat
Spring Suspension Seat
The standard Bobcat seat provides exceptional comfort on uneven or bumpy terrain. The spring suspension and standard armrests add support for all-day operation.
Platforms:
Your Seat
Full Mechanical Suspension Seat
An adjustable suspension system with dial-based weight adjustment, fore-and-aft positioning and standard padded armrests — uniquely designed to absorb bumps and vibration from rough terrain.
Platforms:
Bobcat Zero-Turn Mower Lineup
Compare the Zero-Turn Mower Family
From an entry-level homeowner machine to all-day commercial mowers — see how the Bobcat® ZT series steps up in deck, power, speed and durability across the lineup.
Better▸▸▸Best
← Swipe to compare models →
| Model |  ConsumerZT2000ZT2042SA · ZT2048SA · ZT2052SB |
 ConsumerZT3000ZT3048SC · ZT3052SD · ZT3061SE |
 Pro-sumerZT3500ZT3548SF · ZT3552SG · ZT3561SHYou're viewing |
 Pro-sumerZT5000ZT5052SH · ZT5061SH |
 CommercialZT6000ZT6052SL · ZT6061SL |
 CommercialZT6100ZT6161SN |
 CommercialZT7000ZT7061SP · ZT7061SW · ZT7072SP · ZT7072SW |
|---|---|---|---|---|---|---|---|
| Mower Deck | TufDeck™42" / 48" / 52" | TufDeck™ Pro48" / 52" / 61" | TufDeck™ Pro48" / 52" / 61" | AirFX™52" / 61" | AirFX™52" / 61" | AirFX™61" | AirFX™61" / 72" |
| Engine | Kawasaki FR651V / FR691V21.5 / 23 hp | Kawasaki FT Series20 / 22 / 24 hp | Kawasaki FX Series20.5 / 22 / 23.5 hp | Kawasaki FX730V23.5 hp | Kawasaki FX801V25.5 hp | Kawasaki FX850V EFI29.5 hp | Kawasaki FX1000V / EFI35 / 38.5 hp |
| Transmission | HG ZT-2800 | HG ZT-3100 | HG ZT-3400 | HG ZT-3800 | HG ZT-4400 | HG ZT-4400 | HG ZT-54002-Speed |
| Fuel Capacity | 3.8 gal | 3.8 gal | 7.8 gal | 7.8 gal | 15 galDual tanks | 15 galDual tanks | 15 galDual tanks |
| Mowing Speed | Up to 7 mph | Up to 8 mph | Up to 10 mph | Up to 11 mph | Up to 12 mph | Up to 12 mph | Up to 13 mph19 mph transport |
| Seat | High-BackSpring Suspension | High-BackSpring Suspension | High-BackFull Mechanical Suspension | High-BackFull Mechanical Suspension | High-BackFull Mechanical Suspension | Extra High-BackFull Mechanical Suspension | Extra High-BackFull Mechanical Suspension |
| Warranty | 500 hrs / 3 yrs | 1,000 hrs / 3 yrs | 1,000 hrs / 3 yrs | 1,000 hrs / 3 yrs | 2,000 hrs / 3 yrs | 2,000 hrs / 3 yrs | 2,000 hrs / 3 yrs |
Specifications represent the range across each model's configurations and are subject to change without notice.
ZT3500
ZT3500 Features & Benefits
Commercial-Grade Performance 3
Kawasaki® FX-Series Engines
Kawasaki® FX651V, FX691V and FX730V engines deliver 21.5 to 23.5 hp for reliable power through longer hours and demanding mowing.

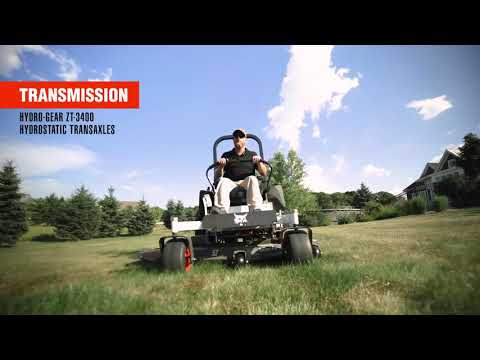

Hydro-Gear® ZT-3400 Drive
Commercial-grade ZT-3400 hydrostatic transaxles provide responsive zero-turn control and speeds up to 10 mph forward.
TufDeck™ Pro Cutting System
The fabricated 48-, 52- or 61-inch TufDeck™ Pro cutting system delivers a durable, consistent finish in tougher mowing conditions.
Comfort & Durability 2
Centralized, Adjustable Controls
A concise control panel keeps essential controls within easy reach, while adjustable handle height and fine-tune controls help operators establish a balanced, confident position across long hours and multiple operators.
Full Mechanical Suspension
The 52- and 61-inch models feature a high-back full mechanical suspension seat to reduce fatigue on rougher ground and longer days. Deck lift assist puts height adjustments within easy reach.
Durability & Service 3
Pro-Grade Tubular Steel Construction
A reinforced tubular steel frame and thick structural tubing supporting the front casters are designed to protect machine alignment, component life and cut quality on uneven terrain.
Roto-Molded Fuel Tank
The impact-resistant, corrosion-resistant fuel tank is integrated into the chassis. Its sloped design supports consistent fuel delivery on uneven terrain.
Heavy-Duty Service Components
Welded steel mower spindles and rugged steel belt covers help protect critical components from debris, impacts and heavy use while supporting straightforward maintenance.
Bobcat ZT3500 Zero-Turn Mower
Why Buyers Choose the ZT3500
Commercial-grade FX engines and ZT-3400 drive for more demanding mowing
TufDeck™ Pro deck options from 48 to 61 inches
10 mph forward speed and a 7.8-gallon fuel capacity for productive days
Full mechanical suspension on 52- and 61-inch models
Customers & Applications
Who Uses the ZT3500 and What For
The ZT3500 is built for acreage owners, estate managers and part-time professionals who need commercial-grade capability for larger properties and tougher terrain.
- Maintaining larger residential properties and estate grounds
- Choosing 48-, 52- or 61-inch deck coverage to fit the property
- Managing open turf, tree lines and uneven terrain
- Reducing mowing time while maintaining a clean finish
- Keeping large yards, drive approaches and property edges tidy
- Using commercial-grade power for longer mowing sessions
- Handling rougher ground with large drive tires and a durable frame
- Maintaining a polished appearance around homes, barns and outbuildings
- Serving a growing list of residential and light-commercial clients
- Mowing HOA, common-area and small commercial properties
- Using 10 mph travel speed and 7.8-gallon fuel capacity for productive routes
- Stepping up to commercial-grade components without a full fleet mower
Accessories & Attachments
ZT3500 Accessories
Purpose-built accessories help tailor the ZT3500 for professional-looking lawn finish, clipping management and property-specific work.ZT3500 for the work you do — from a flawless striped finish to clean clipping collection and safe, productive operation.
Deck Striping Kit
Create a crisp, professional striped finish.
ROPS Kit
Add commercial-grade rollover protection for qualifying operating conditions.
Fits ZT2000 · ZT3000 · ZT3500
Full Specifications
Specifications vary by deck width. Compare all available ZT3500 deck configurations below.
Deck
| Specification | ZT3500 48" Deck | ZT3500 52" Deck | ZT3500 61" Deck |
|---|---|---|---|
| Mower Deck | TufDeck Pro 10-ga Top, 7-ga Spindle Supports & Side Skirts | TufDeck Pro 10-ga Top, 7-ga Spindle Supports & Side Skirts | TufDeck Pro 10-ga Top, 7-ga Spindle Supports & Side Skirts |
| Cutting Height Range | 1.5–4.875 in | 1.5–4.9 in (38–124 mm) | 1.5–4.9 in (38–124 mm) |
| Cutting Width | 48 in | 52 in | 61 in |
| Blade Tip Speed | 17,365 ft/min | 18,142 ft/min | 18,809 ft/min |
Engine
| Specification | ZT3500 48" Deck | ZT3500 52" Deck | ZT3500 61" Deck |
|---|---|---|---|
| Engine Model | Kawasaki FX651V | Kawasaki FX691V | Kawasaki FX730V |
| Horsepower | 21.5 hp | 22 hp | 23.5 hp |
| Fuel Tank | 7.8 gal | 7.8 gal | 7.8 gal |
Performance
| Specification | ZT3500 48" Deck | ZT3500 52" Deck | ZT3500 61" Deck |
|---|---|---|---|
| Machine Weight | 773 lbs | 789 lbs | 832 lbs |
Power/Electrical
| Specification | ZT3500 48" Deck | ZT3500 52" Deck | ZT3500 61" Deck |
|---|---|---|---|
| Charging System | 15 amp | 15 amp | 15 amp |
| Clutch | 125 ft-lb | 125 ft-lb | 125 ft-lb |
Transmission
| Specification | ZT3500 48" Deck | ZT3500 52" Deck | ZT3500 61" Deck |
|---|---|---|---|
| Transmission Type | HG ZT-3400 Hydrostatic Transaxles | HG ZT-3400 Hydrostatic Transaxles | HG ZT-3400 Hydrostatic Transaxles |
| Oil Capacity | 4 qt | 4 qt | 4 qt |
| Travel Speed (Fwd) | 10 mph | 10 mph | 10 mph |
| Travel Speed (Rev) | 3.5 mph | 3.5 mph | 3.5 mph |
Wheels
| Specification | ZT3500 48" Deck | ZT3500 52" Deck | ZT3500 61" Deck |
|---|---|---|---|
| Drive Wheel Size | 23 x 10.5-12 | 23 x 10.5-12 | 23 x 10.5-12 |
| Front Caster Wheel Size | 13 x 6.5-6 | 13 x 6.5-6 | 13 x 6.5-6 |
| Caster Arm Attachment | Welded to Frame | Welded to Frame | Welded to Frame |
Frame
| Specification | ZT3500 48" Deck | ZT3500 52" Deck | ZT3500 61" Deck |
|---|---|---|---|
| Length | 76 in | 80 in | 81.9 in |
Seat
| Specification | ZT3500 48" Deck | ZT3500 52" Deck | ZT3500 61" Deck |
|---|---|---|---|
| Seat | High-Back, Spring Suspension Seat | High-Back, Mechanical Suspension Seat | High-Back, Mechanical Suspension Seat |
| Fore-Aft Adjustment | Seat Slide Lever | Seat Slide Lever | Seat Slide Lever |
Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
