Description

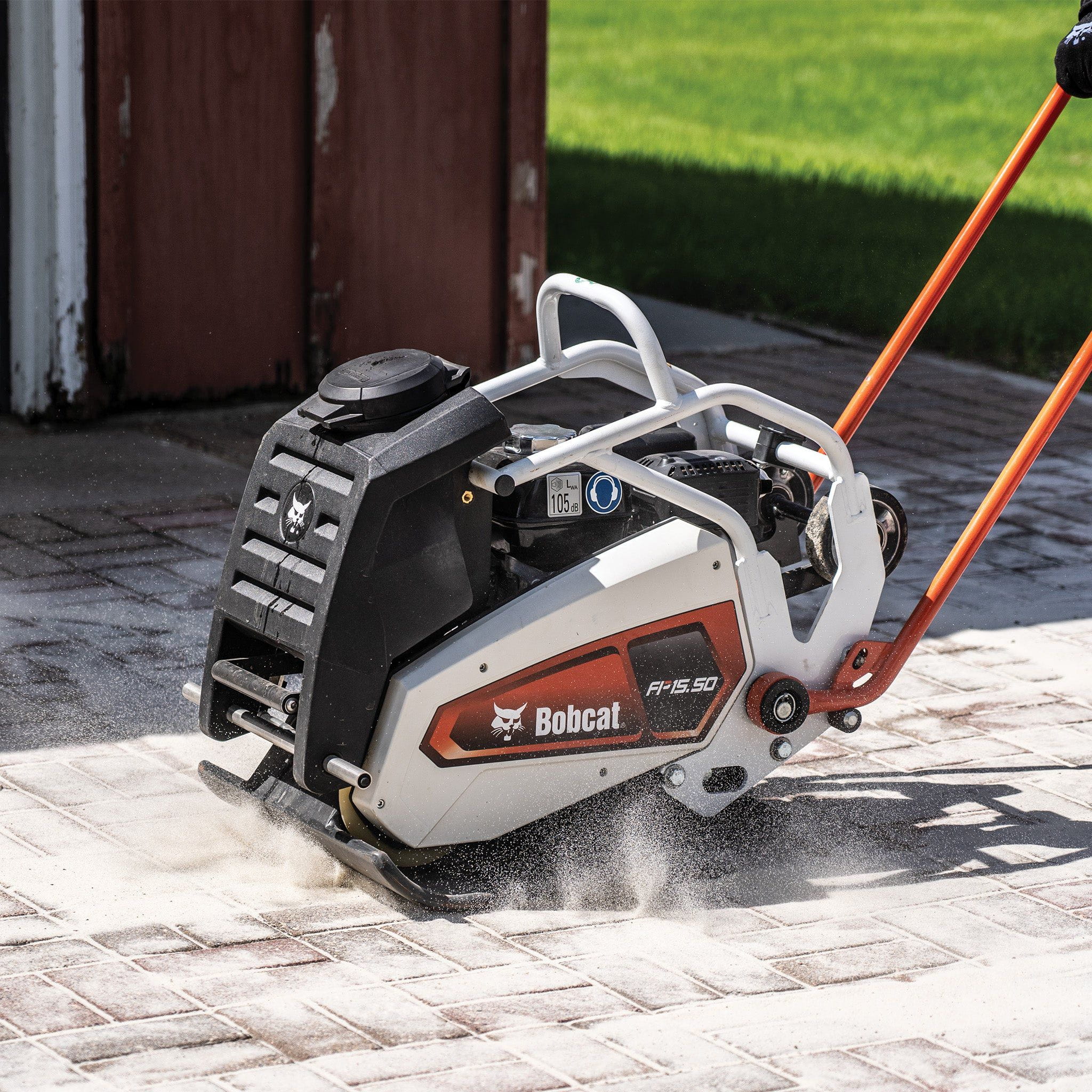

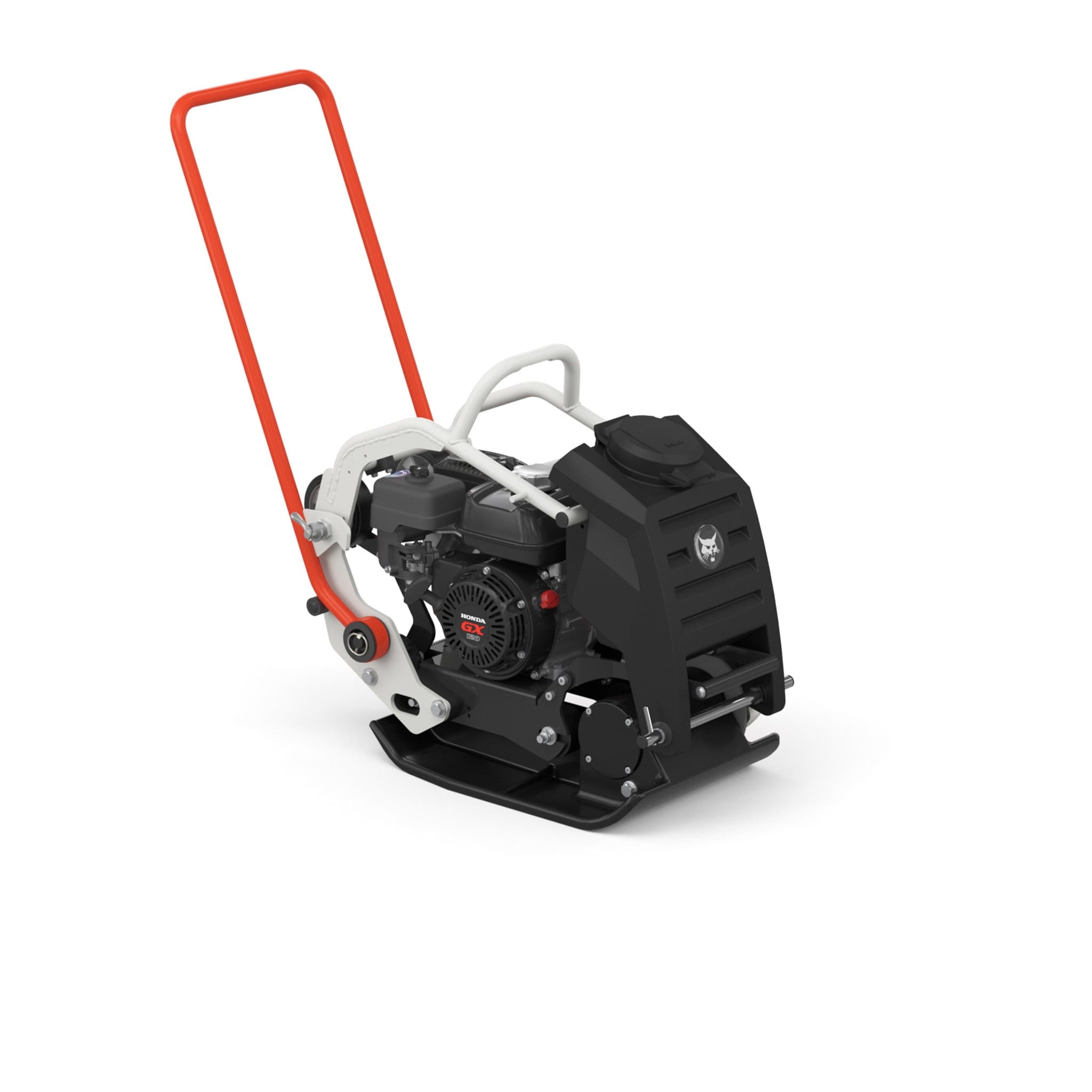

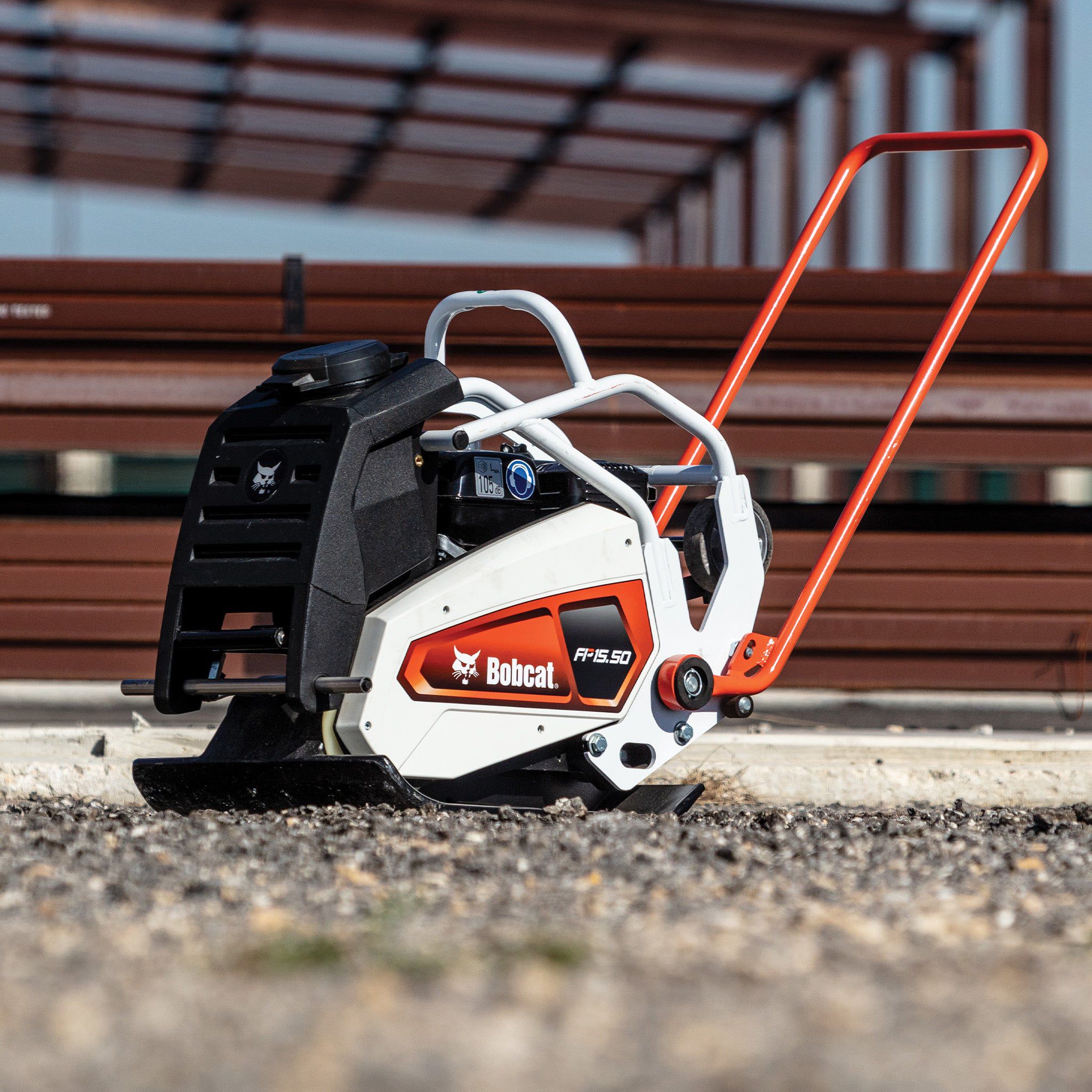

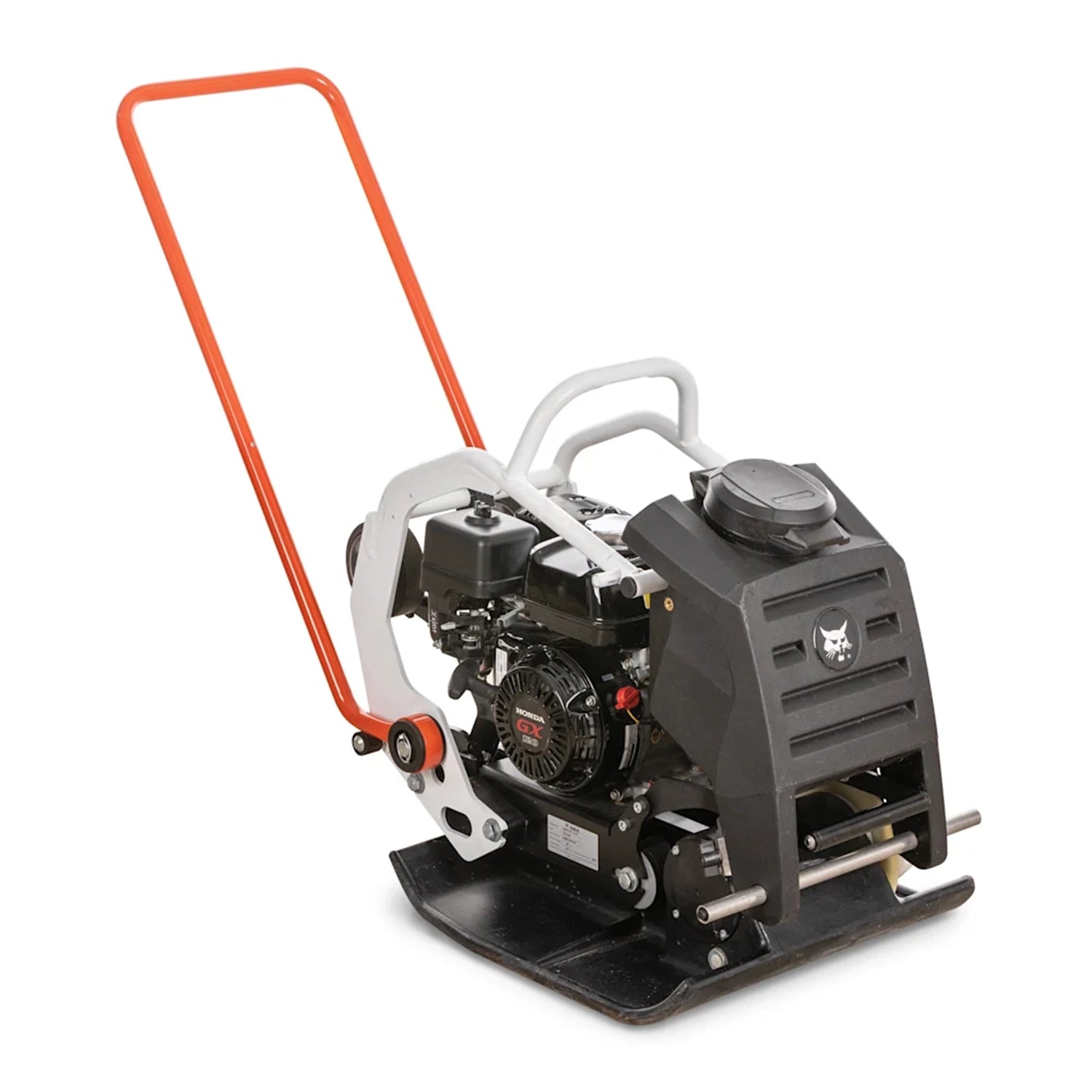

Bobcat FP15.50 Forward Plate Compactor

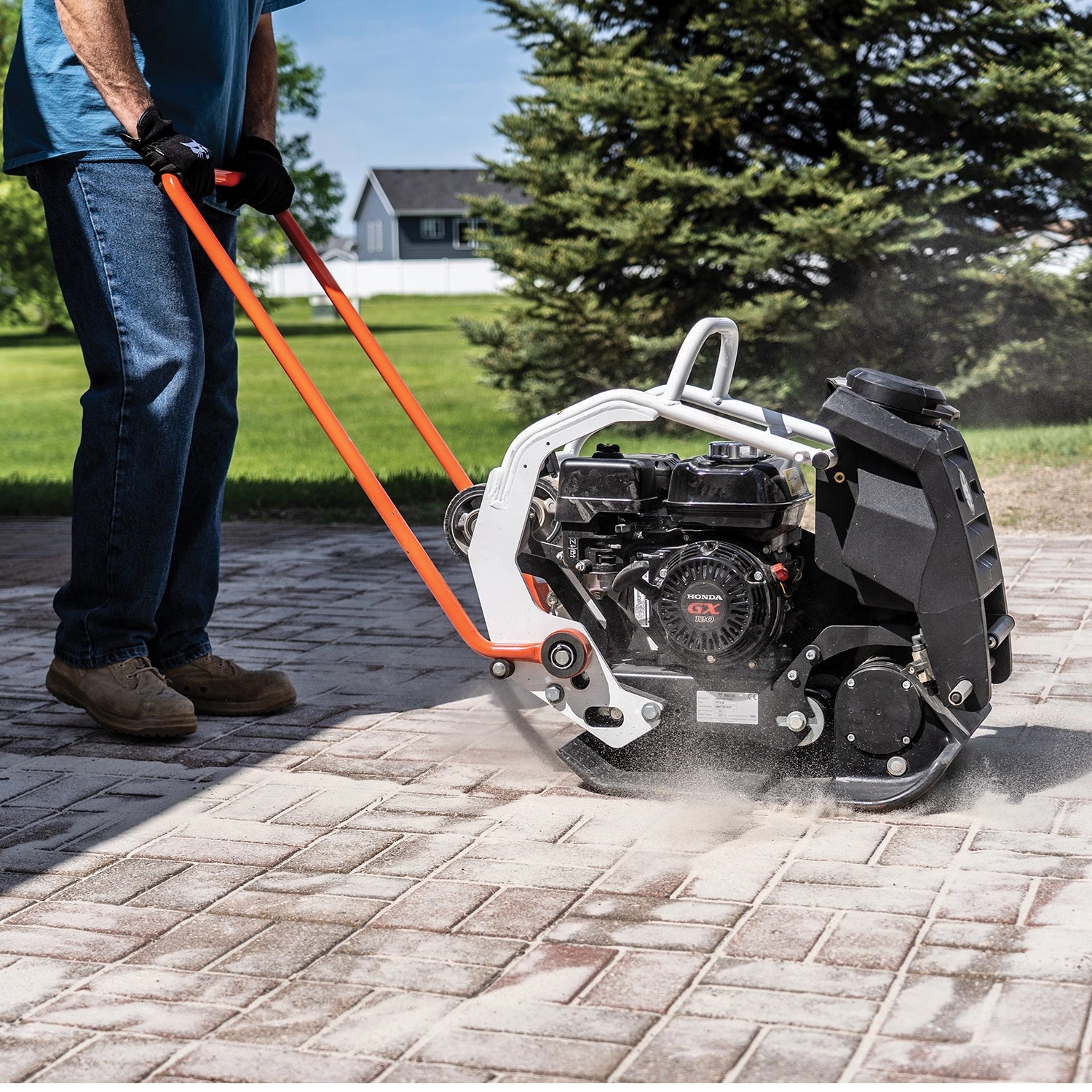

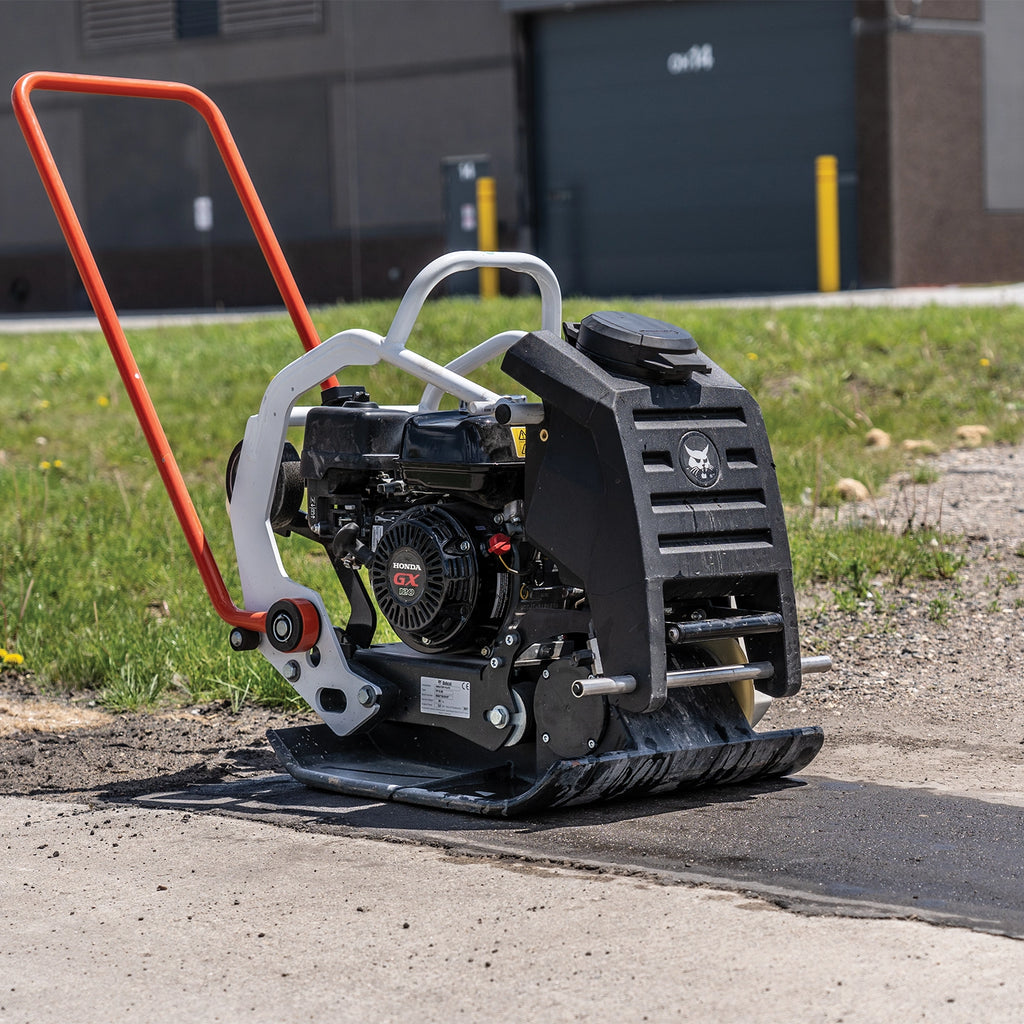

The FP15.50 forward plate compactor is equipped with a durable and efficient Honda engine that provides easy starts and maximum power while minimizing fuel consumption.
- Consistent compaction results on a variety of materials
- Easy access to service points
- Extended service intervals reduce operation costs
- A robust tubular frame surrounds the engine
- Standard water tank and sprayer kit
Overview:
- Put the FP15.50 forward plate compactor to work in a wide range of applications and leave behind high-compaction results.
- Designed to isolate plate vibrations from the operator’s handle, Bobcat forward plate compactors minimize hand-arm vibration and fatigue.

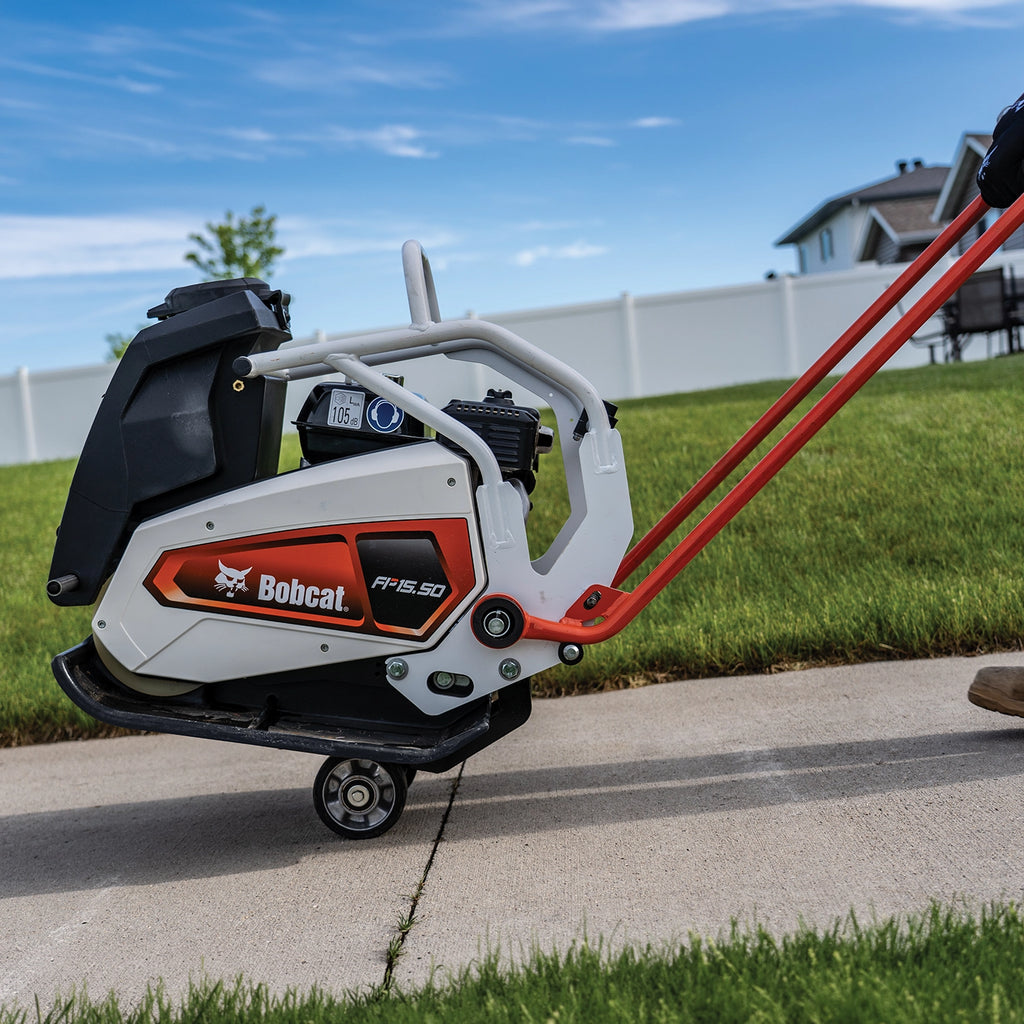

- Moving a Bobcat forward plate compactor from one jobsite to another is easy with the optional, toolless transport wheels and central lift bar.

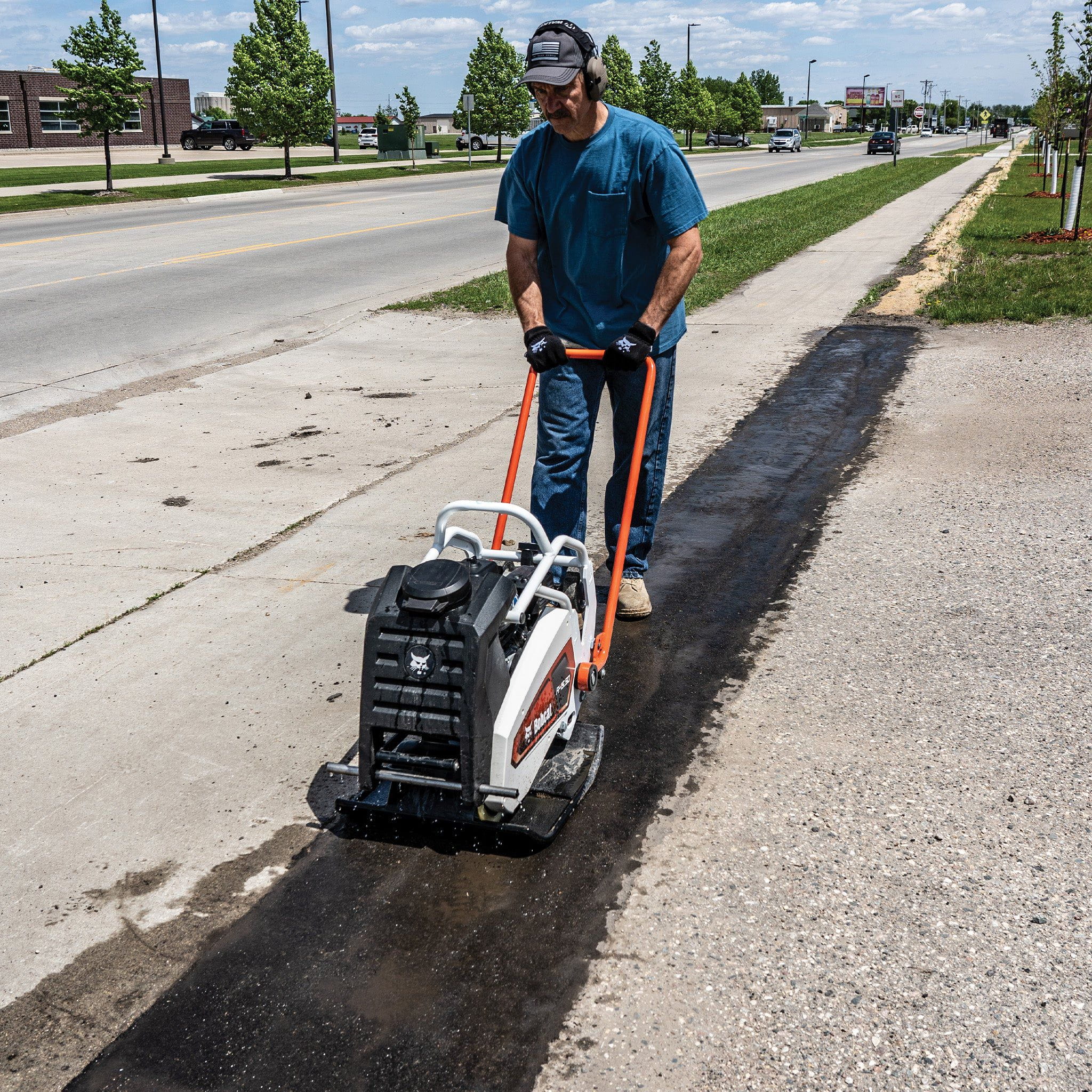

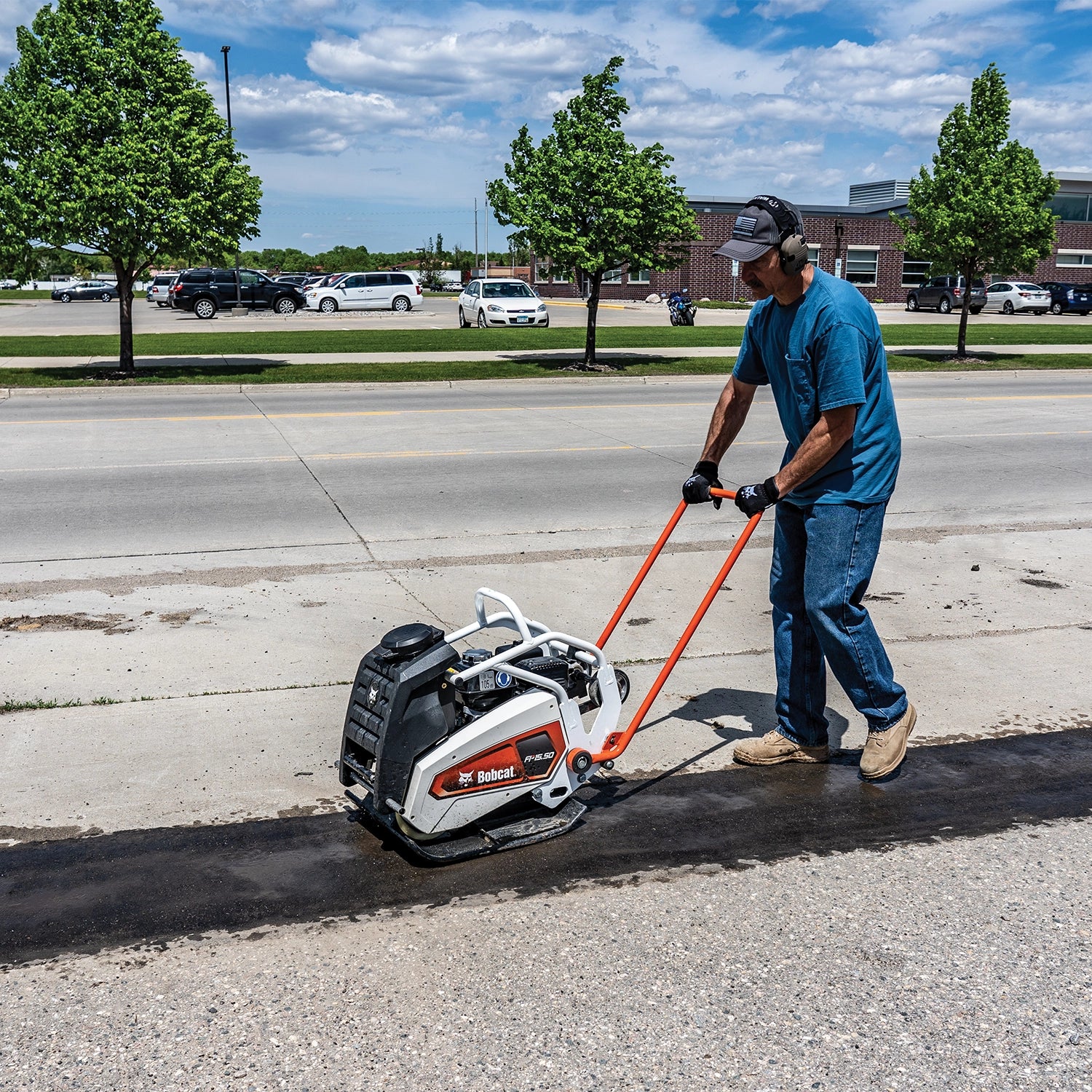

- Control dust or keep the vibratory base plate free of hot asphalt buildup with the standard water tank and sprinkler system.
- The one-piece cast base plate is designed with no connection points that can weaken over time. The base plate is also thicker in the rear, where most wear occurs.
| Bobcat Forward Plate Compactors | |||
|---|---|---|---|
| Model | FP10.33 | FP15.40 | FP15.50 |
| Dimensions | |||
| Machine Weight | 119 lb. | 176 lb. | 185 lb. |
| Engine | |||
| Make & Model | Honda GX 120 | ||
| Fuel Type | Gas | ||
| Fuel Consumption | 0.26 gal./hr. | ||
| Engine Output | 3.5 hp @ 3,600 RPM | ||
| Compaction Forces | |||
| Max Vibration Frequency | 100 Hz | ||
| Max Centrifugal Force | 2,360 lbf. | 3,372 lbf. | 3,372 lbf. |
| Surface Capacity | 4,689 ft.²/hr. | 6,975 ft.²/hr. | 7,750 ft.²/hr. |
| Surface Pressure | 13.5 psi | 15.5 psi | 12.4 psi |
| Miscellaneous | |||
| Hand-Arm Vibration on Handle | 36 ft/s² | <8.2 ft/s² | <8.2 ft/s² |
| Speed | 0.8 mph | 1.0 mph | 0.9 mph |
| Gradeability | 30% | ||
| Max Incline | 20° | ||
| Fuel Tank Capacity | 0.53 gal. | ||
| Water Tank Capacity | 1.32 gal | 3.17 gal | 3.17 gal |
| Machine Features | |||
| Rubber Mat | Optional | Optional | |
| Transport Wheels | Optional | Optional | |
| Hour Counter | Optional | Optional | |
