Rebates & Special Offers
Get as low as 0% for 24 months* or $100 cash rebate* in lieu of financing.
Download Spec Sheet
Get detailed specifications, dimensions, and performance data for this FP15.40 Plate Compactor | Bobcat.
|
General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Bobcat |
| Model: | FP15.40 |
| Machine Type: | Plate Compactor |
|
Engine
|
|
|---|---|
| Engine: | GX120 |
| Horsepower: | 3.5 |
|
Performance
|
|
|---|---|
| Operating Weight: | 176 lb |
|
Hydraulics
|
|---|
|
Dimensions
|
|
|---|---|
| Fuel Tank: | 0.26 gal. |
Description

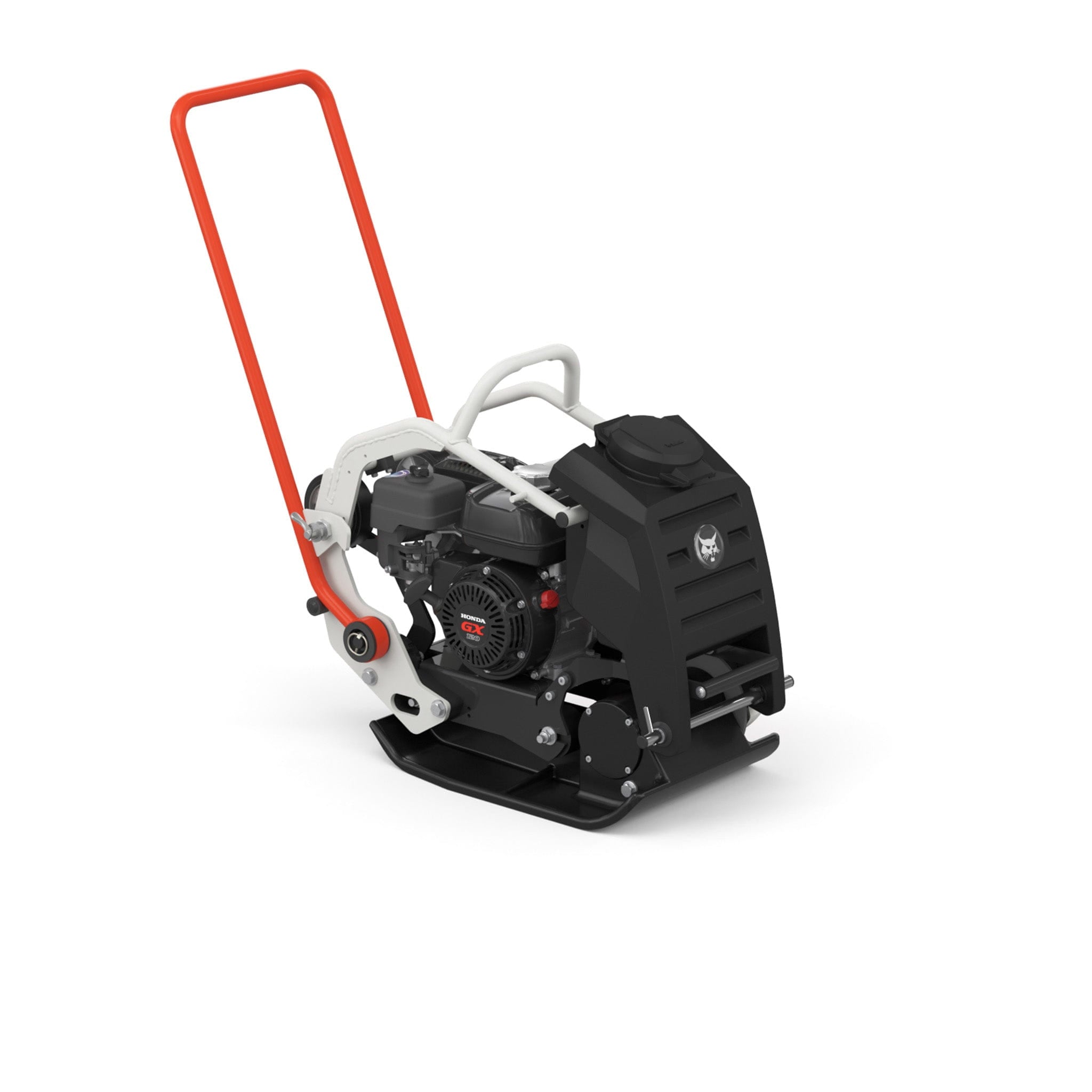

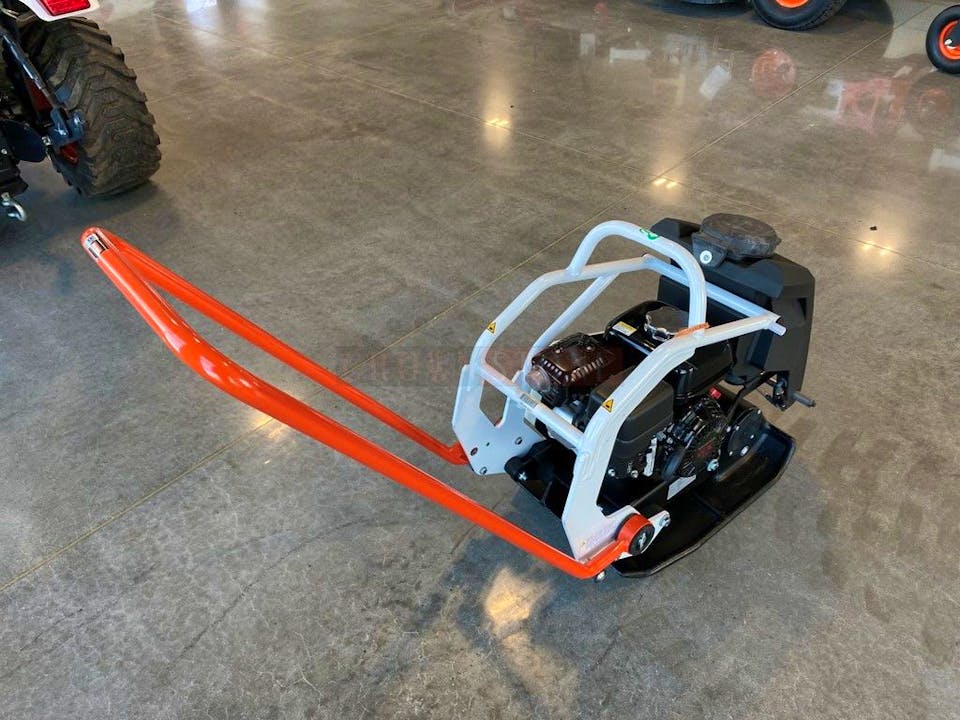

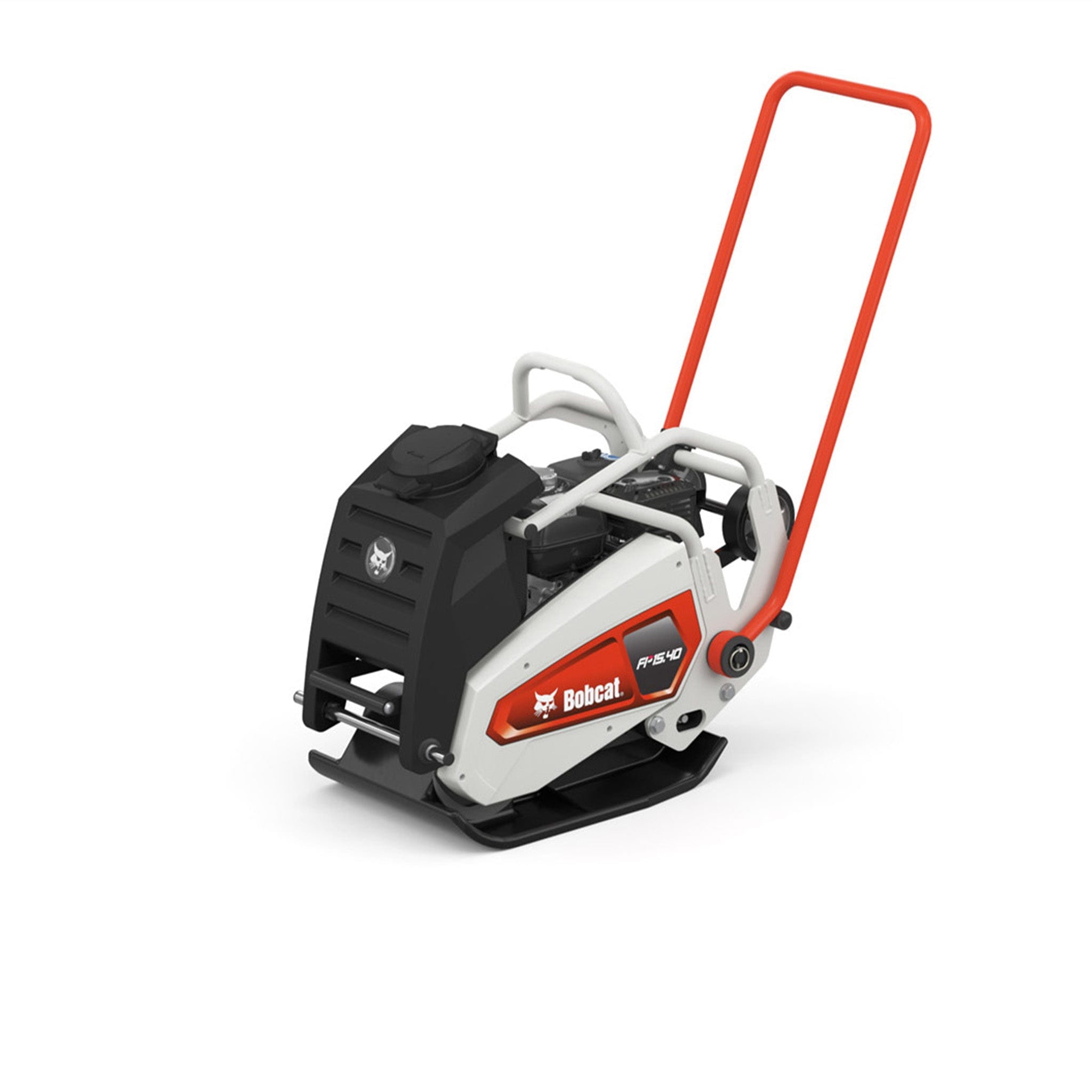

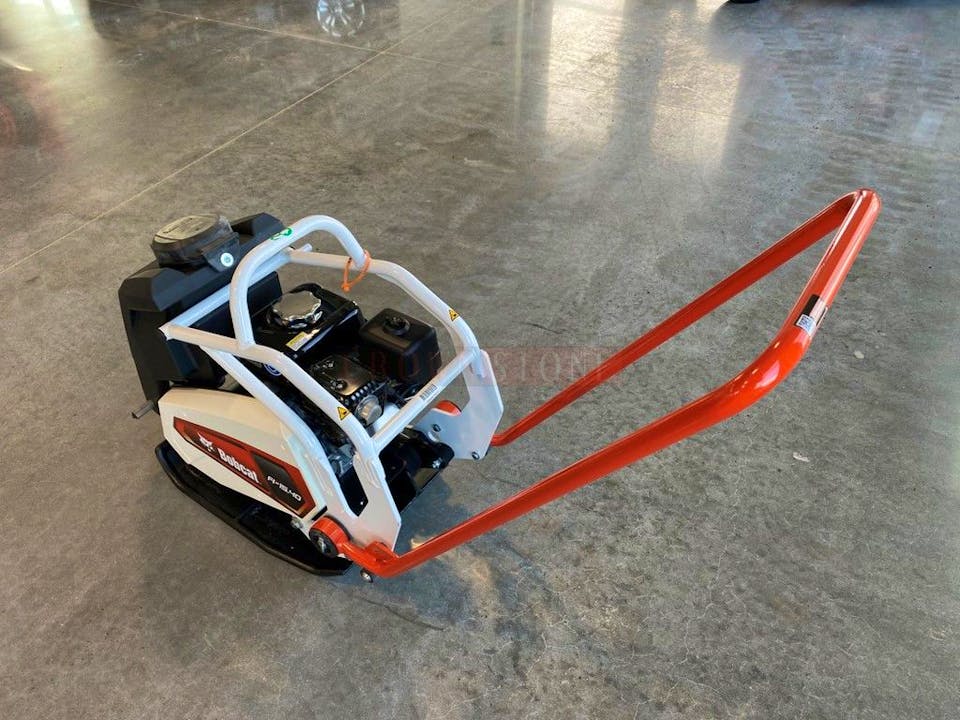

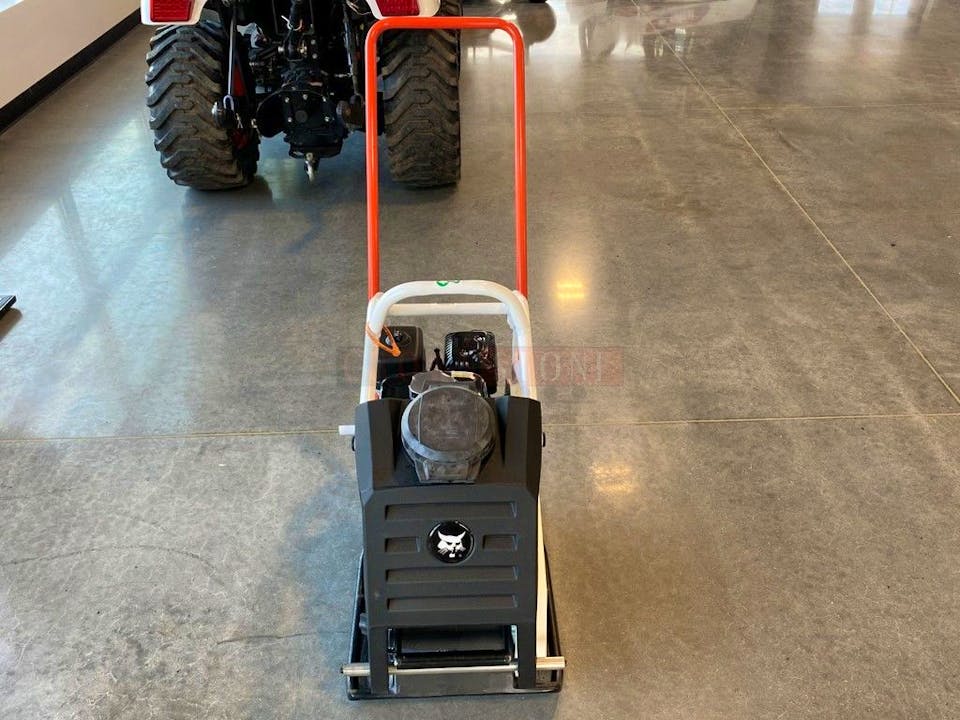

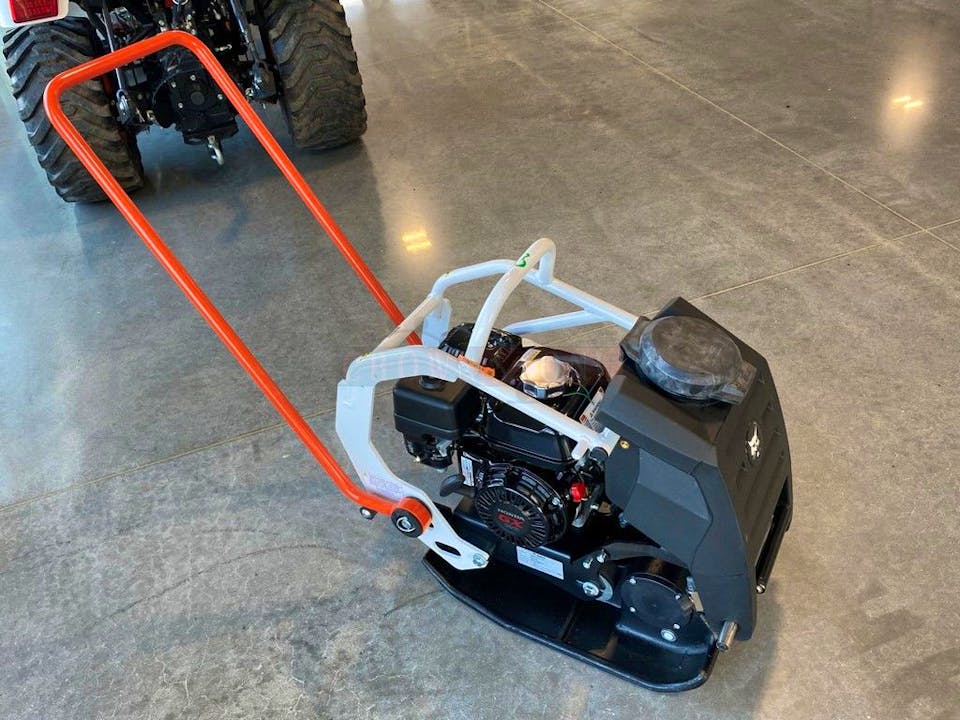

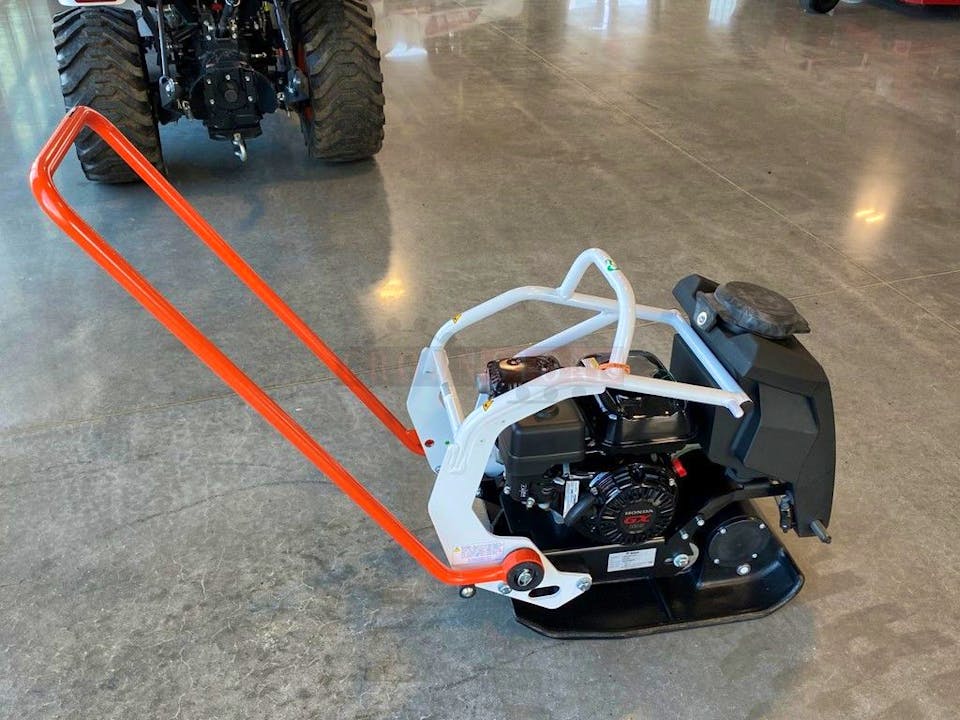

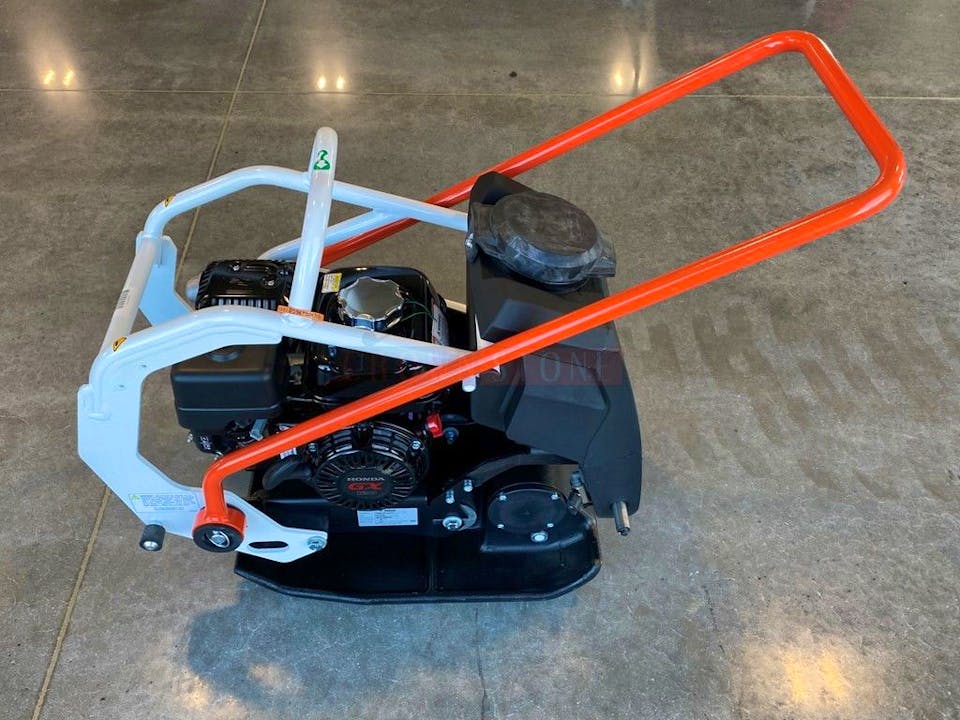

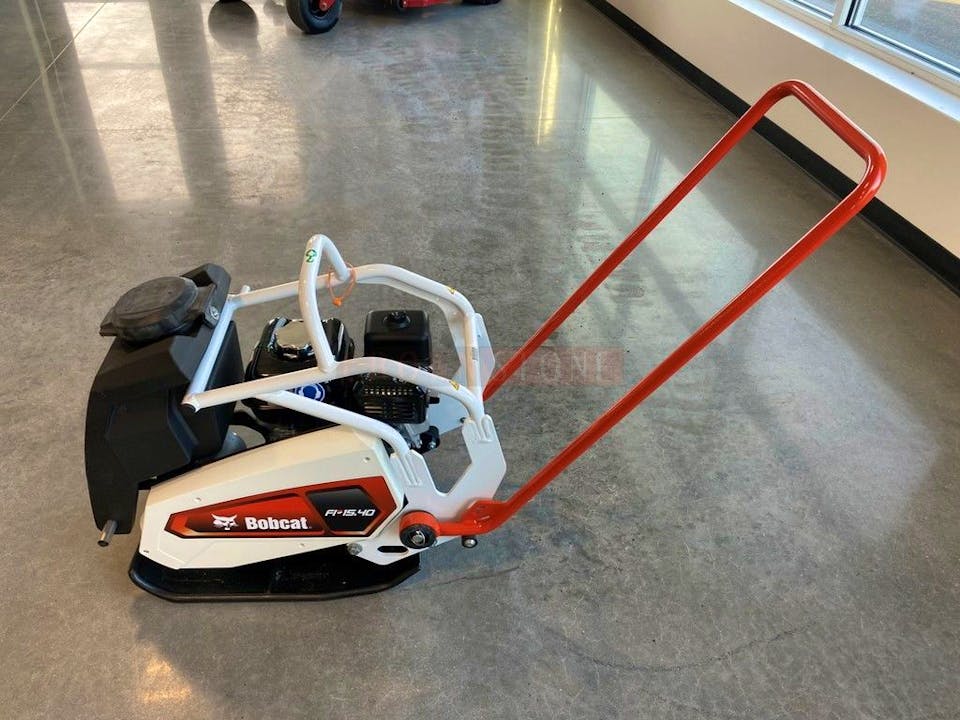

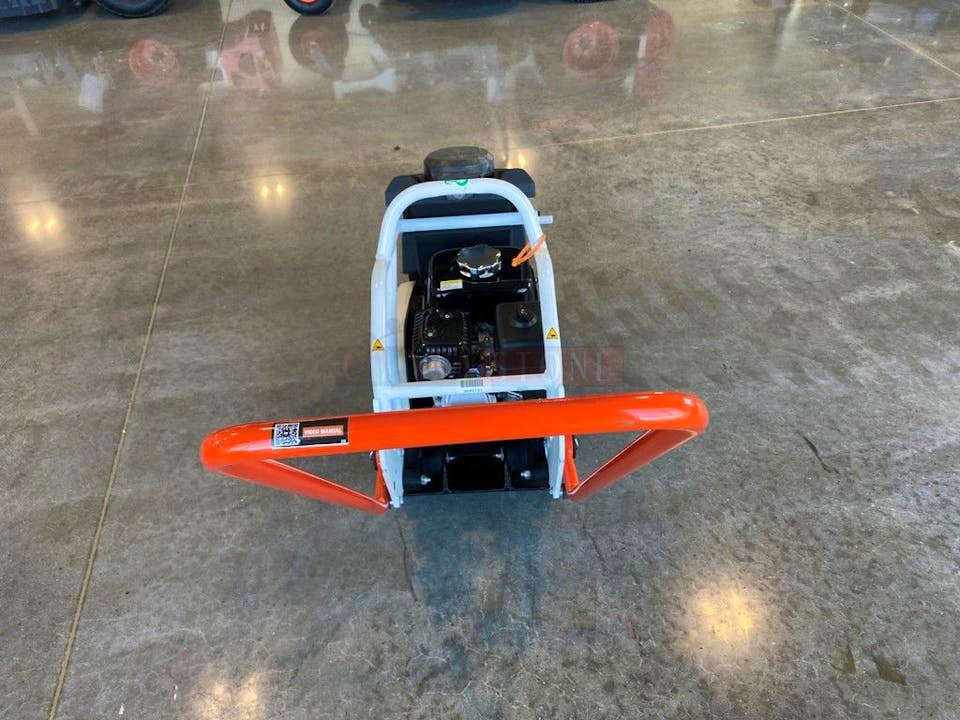

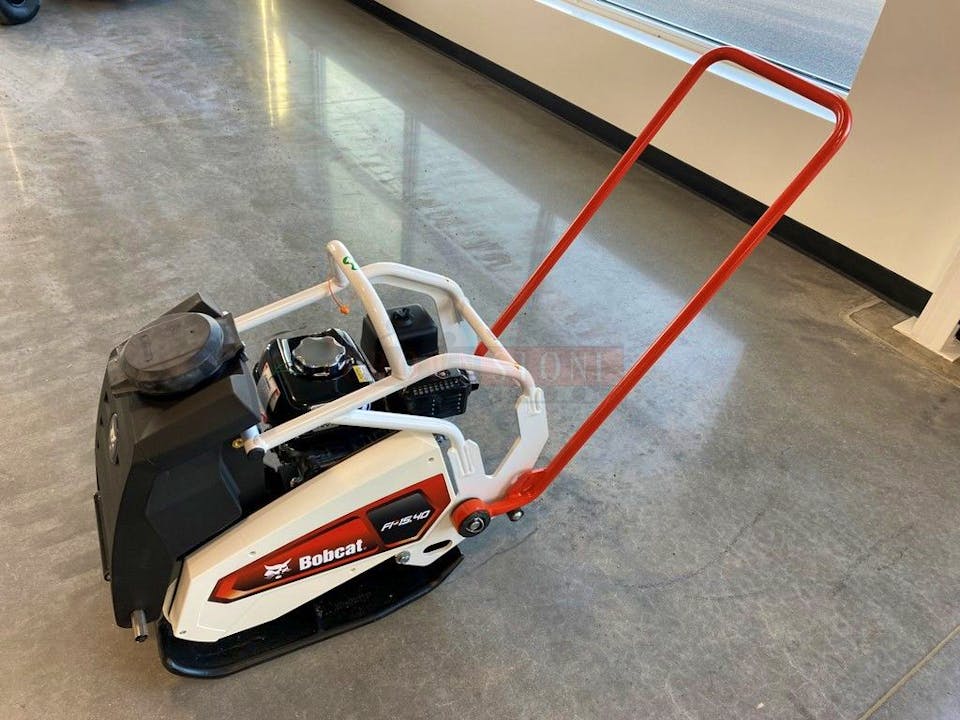

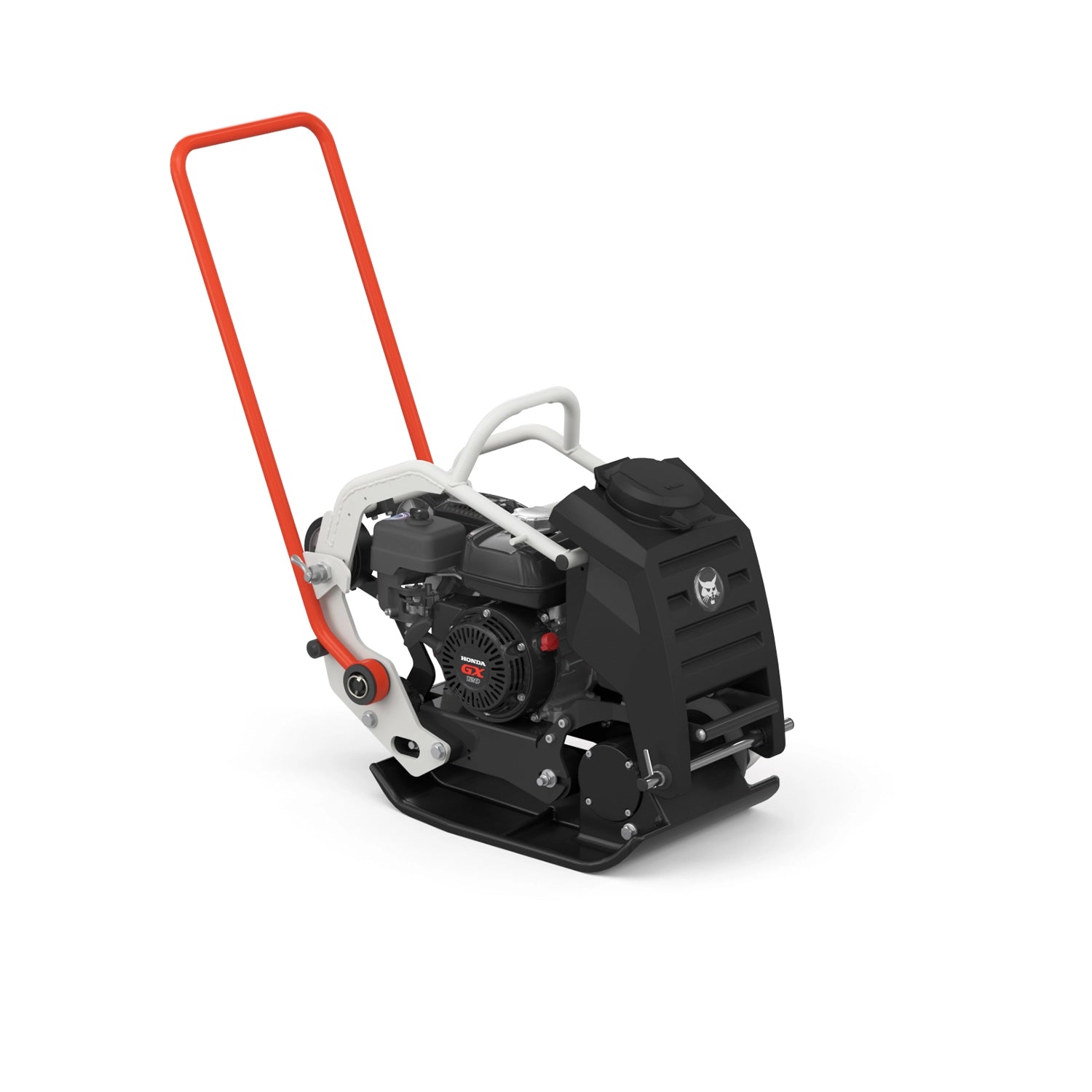

Bobcat FP15.40 Forward Plate Compactor
The versatile FP15.40 forward vibratory plate compactor achieves optimal compaction results on a variety of granular materials including sand, gravel and hot-mix asphalt.
- Reliable Honda engine
- Easy transport with optional, toolless wheels
- Industry-leading forward movement
- Standard water tank and sprayer kit
Overview:
- Put this Bobcat forward vibratory plate compactor to work in a wide range of applications, including base compaction within trenches or surface material compaction.
- The FP15.40 forward plate compactor is equipped with a durable and efficient Honda engine that provides easy starts and maximum power while minimizing fuel consumption.
- Quickly attach the optional, toolless mat to operate the plate compactor on paving stones without cracking or chipping the surface.
- Designed to isolate plate vibrations from the operator’s handle, Bobcat forward plate compactors minimize hand-arm vibration and fatigue.
- Control dust or keep the vibratory base plate free of hot asphalt buildup with the standard water tank and sprinkler system.
Key Features
Maneuverable forward compaction for granular materials, trench bases and asphalt work.

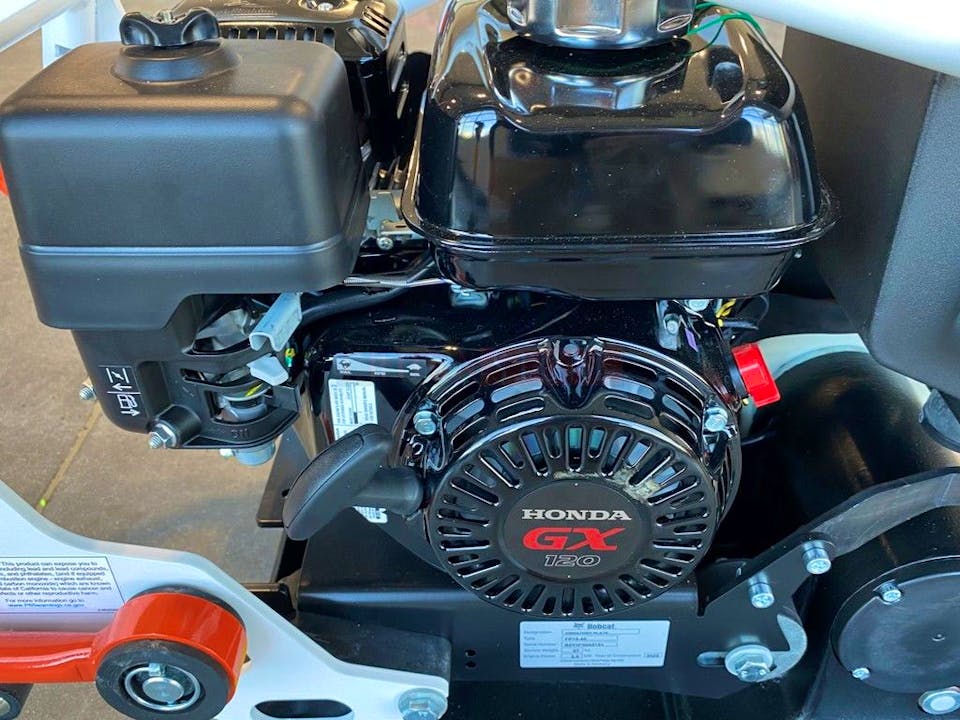

3.5 hp Honda Engine
A Honda GX120 provides reliable, fuel-efficient power.
3,372 lbf Compaction Force
The 22-inch base plate delivers productive compaction in a 15.7-inch-wide package.
One-Piece Cast Plate
A wear-resistant plate sheds material and is thicker where wear is greatest.
Standard Water System
The water tank and sprinkler help with dust control and asphalt work.
Transport & Paver Options
A central lift bar, optional wheels, rubber mat and hour meter add jobsite versatility.
Bobcat Forward Plate Compactors
Match plate width, compaction force and machine weight to the work you do.
 |  |  | |
| Model | FP10.33Compact access | FP15.40Viewing | FP15.50Widest coverage |
|---|---|---|---|
| Engine | Honda GX120 | Honda GX120 | Honda GX120 |
| Centrifugal Force | 2,360 lbf | 3,372 lbf | 3,372 lbf |
| Operating Weight | 119 lbs | 176 lbs | 185 lbs |
| Plate Width | 13.0 in | 15.7 in | 19.7 in |
| Base Plate Length | 19.5 in | 22.0 in | 22.0 in |
| Best For | Tight-access, lighter-duty work | Balanced access and coverage | Wider coverage and asphalt work |
Features & Benefits
Performance
Industry-Leading Forward Design
Bobcat forward plate compactors offer industry-leading forward movement, great compaction results and less operator fatigue.
Reliable Engine Performance
Equipped with a durable and efficient Honda engine, the FP15.40 forward plate compactor delivers reliable starts, maximum power and low fuel consumption.
High-Compaction Performance
The FP15.40 features a 22-inch base plate that delivers maximum compaction force of 3,372 lbf. (50,000 N).
High Maneuverability
The compact size and high maneuverability make Bobcat forward plate compactors ideal for compaction work in tight-fitting areas.
Comfort
Minimized Hand-Arm Vibration
Bobcat forward plate compactors are designed to isolate plate vibrations from the operator’s handle, significantly reducing hand-arm vibration and fatigue. The handle also folds for convenient transport and storage.
Convenient Lift Bar
Easily lift and load the forward plate compactor to and from the jobsite using the convenient, central-point lift bar.
Easy Transport
Moving a Bobcat forward plate compactor from one jobsite to another is easy with the optional, toolless transport wheels and central lift bar.
Uptime Protection
Durable Frame
A robust, tubular frame surrounds the engine and durable covers protect key components for reliable performance on the jobsite day after day.

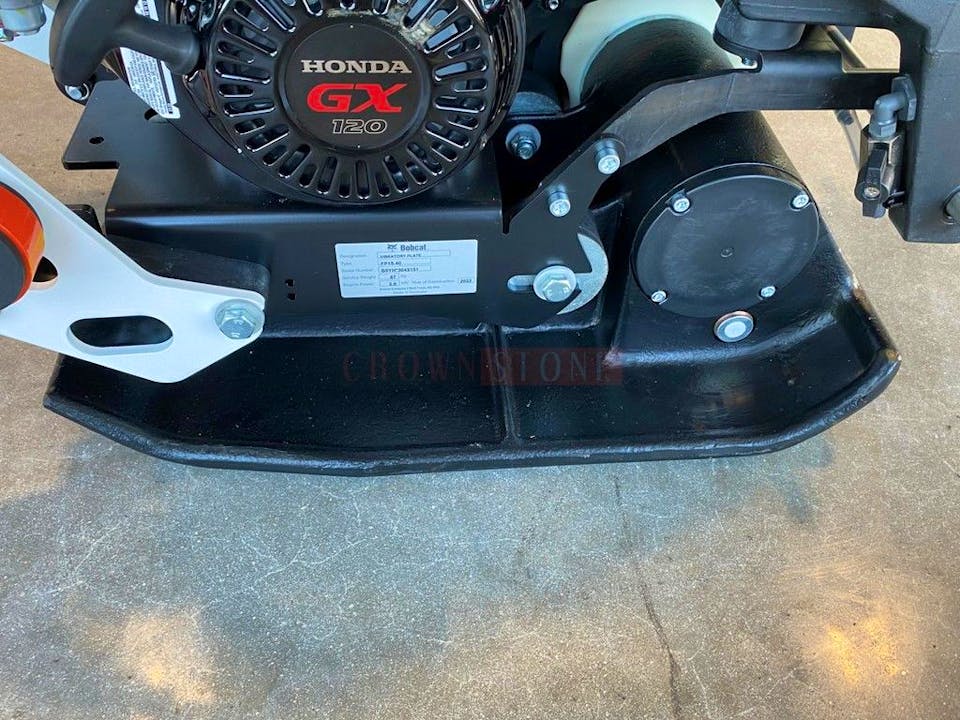

Casted, One-Piece Plate
Bobcat forward plate compactors feature a one-piece, cast base plate with no connection points that can weaken over time. Other brands weld or assemble components for their base plates. Bobcat forward plate compactors also feature base plates that are thicker in the rear, where most wear occurs.
Material-Shedding Base Plate
Bobcat forward plate compactors feature base plates that are designed to shed dirt and reduce material buildup for greater operator uptime.
Serviceability
Easy Maintenance
Easy access to service points makes maintenance easy and increases your uptime.
Wear-Resistant Base Plate
Bobcat forward plate compactors are equipped with wear-resistant base plates that are thicker in the rear, where most wear occurs. This means the forward plate compactor, operated under typical working conditions, requires no base plate service during their lifetime.
Optional Hour Meter
An optional vibration-activated hour meter monitors work hours to ensure timely maintenance.
Versatility
Optimum Versatility
Tackle a wide range of applications, including open-area compaction work, trench work and compacting materials in tight spaces.

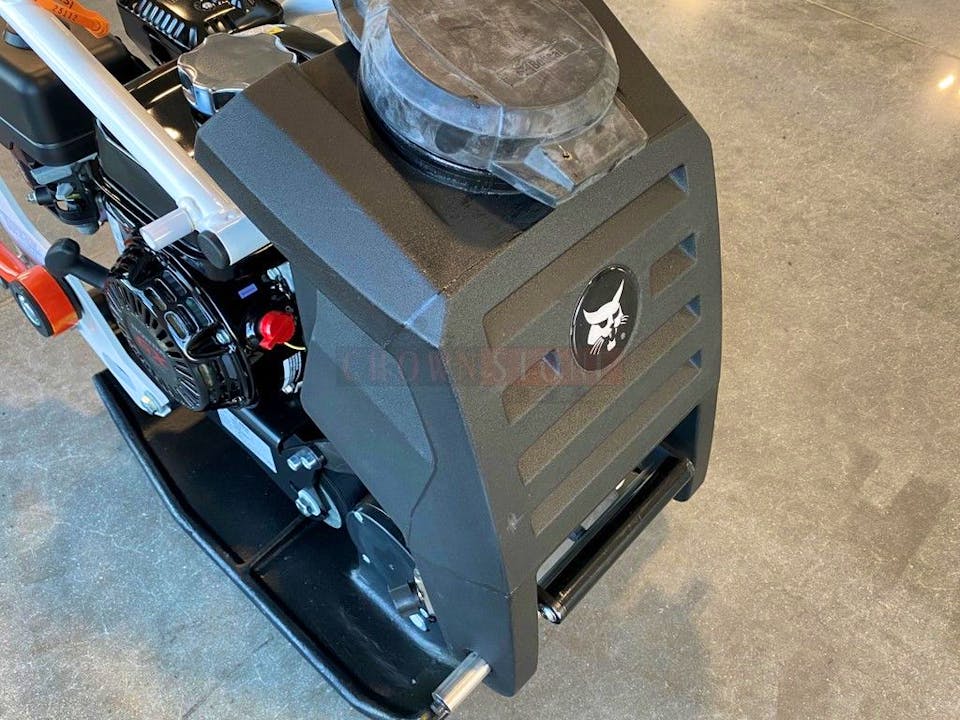

Standard Water Tank and Sprinkler System
Control dust or keep the vibratory base plate free of material buildup while compacting asphalt using the standard water tank and sprinkler system. The durable, yet lightweight tank can be removed without tools for convenient refills.
Optional Toolless Rubber Mat
Slip on the optional rubber mat to operate the plate compactor on paving stones without cracking or chipping the stones or other expensive surfaces.
Why Buyers Choose the FP15.40
3,372 lbf of centrifugal force in a 176 lb compact plate
15.7-inch width for a balance of access and coverage
1 mph travel speed with durable Honda GX120 power
Standard water tank and sprinkler for asphalt work and dust control
One-piece cast plate and tubular frame for day-after-day durability
Optional wheels, rubber mat and hour meter match diverse jobs
Who Uses the FP15.40 and What For
Paving & Hardscape
- Asphalt patching
- Paver and patio bases
- Sidewalk and driveway prep
Construction & Utilities
- Trench-base compaction
- Granular soil and aggregate
- Confined access work
Landscape & Rental
- Paths and surface preparation
- Property repairs
- Portable forward compaction
What Makes the FP15.40 Different
The FP15.40 balances 3,372 lbf of compaction force, a 15.7-inch working width and a standard water system for productive work in confined areas.
Full Specifications
General
| Machine Type | Forward Plate Compactor |
| Operating Weight | 176 lbs |
Engine
| Engine Model | GX 120 |
| Horsepower | 3.5 hp |
Performance
| Travel Speed | 1 mph |
| Centrifugal Force | 3372 lbf |
| Amplitude | 1.3 mm |
| Hand | 8.2 ft/sec |
| Surface Capacity | 6975 square feet/hour |
| Surface Pressure | 15.5 psi |
Dimensions
| Ground Contact Length | 13.9 in |
| Base Plate Length | 22 in |
| Max Incline | 20 deg |
| Gradeability | 3000% |
| Length | 27.6 in |
| Width | 15.7 in |
| Height | 26.3 in |
