General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Bobcat |
| Model: | FP10.33 |
| Machine Type: | Plate Compactor |
|
Engine
|
|
|---|---|
| Engine: | GX120 |
| Engine Make: | Honda |
| Horsepower: | 3.5 |
|
Performance
|
|
|---|---|
| Operating Weight: | 119 lb |
|
Hydraulics
|
|---|
|
Dimensions
|
|
|---|---|
| Fuel Tank: | 0.26 gal. |
Description

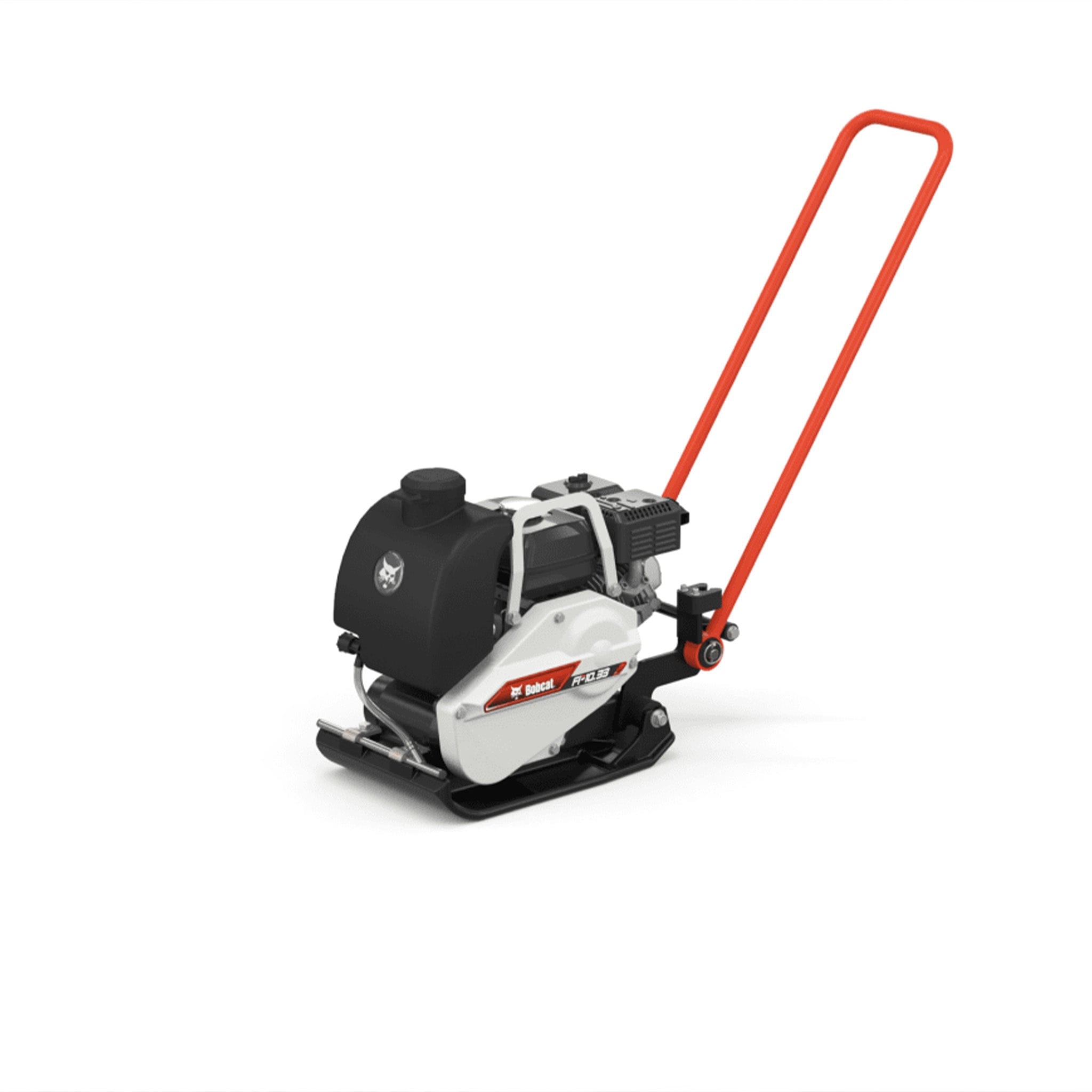

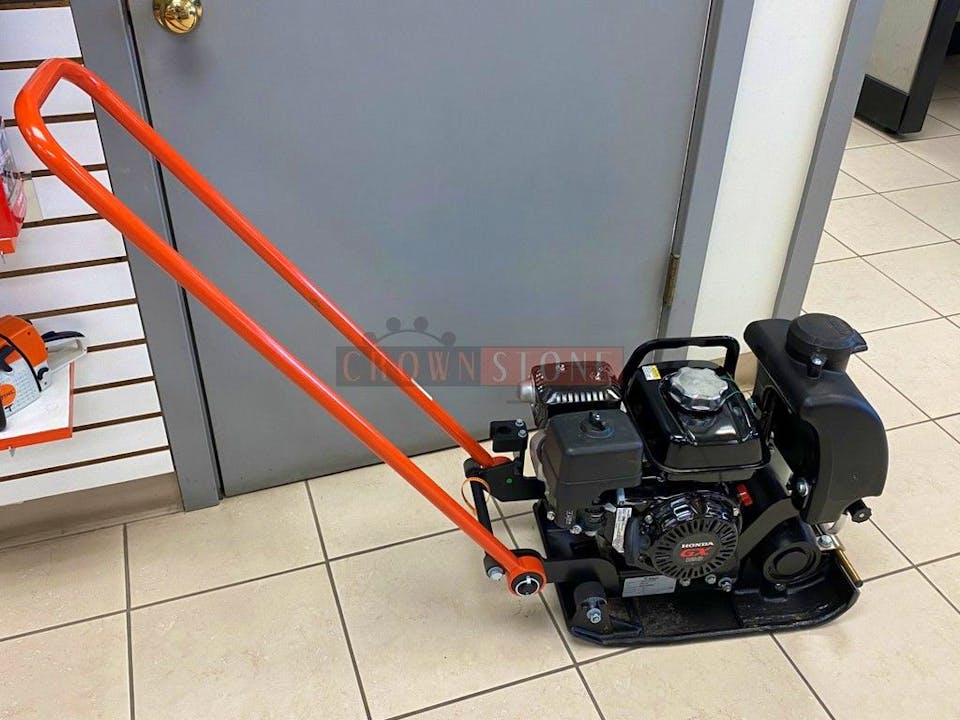

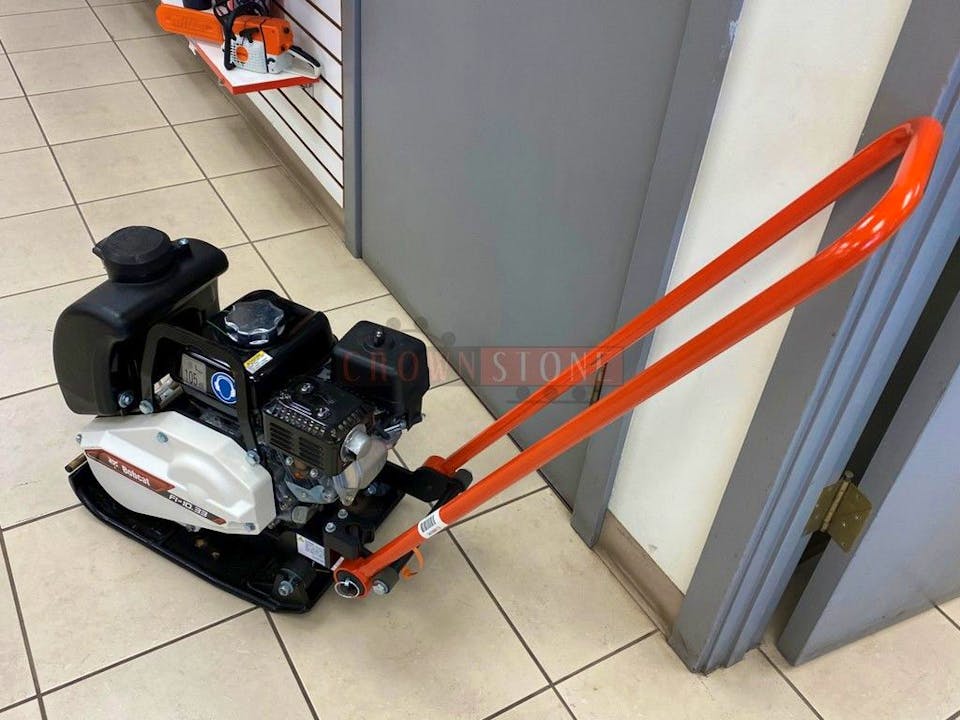

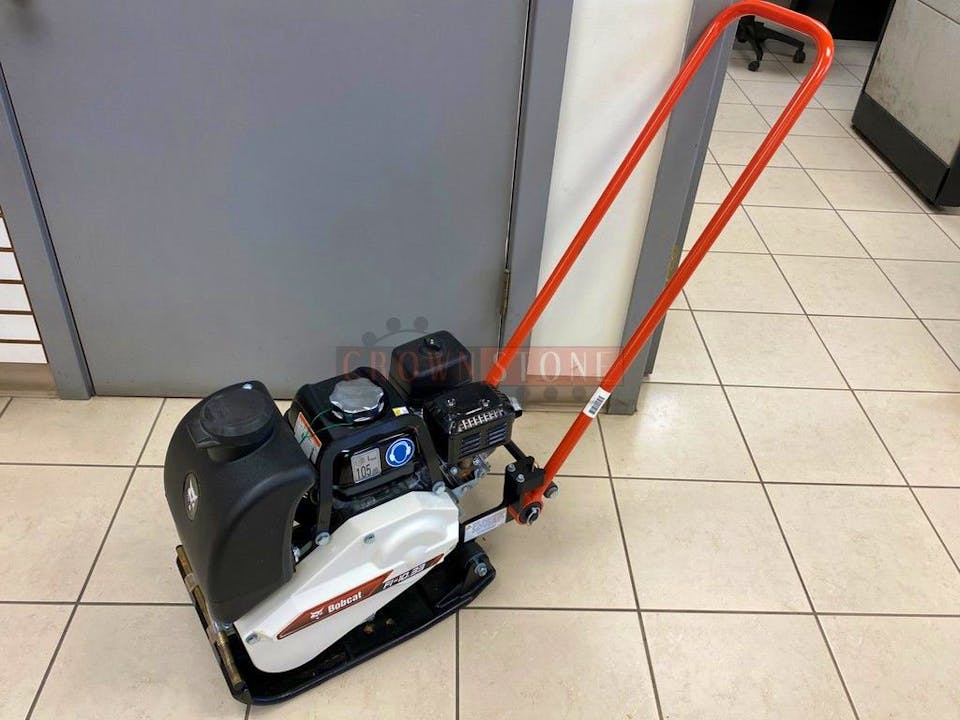

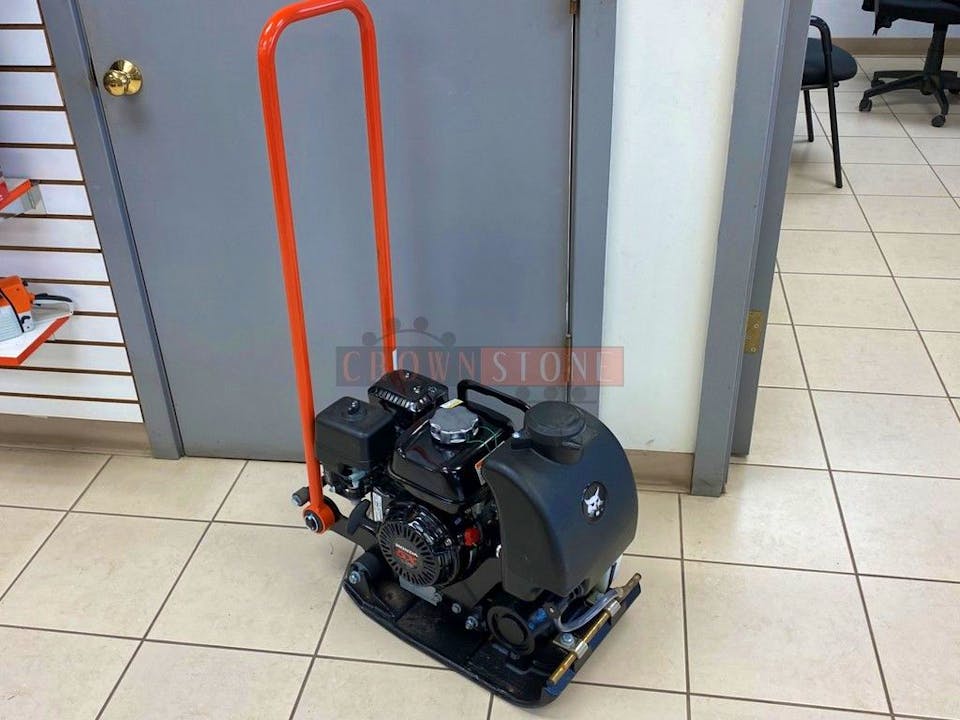

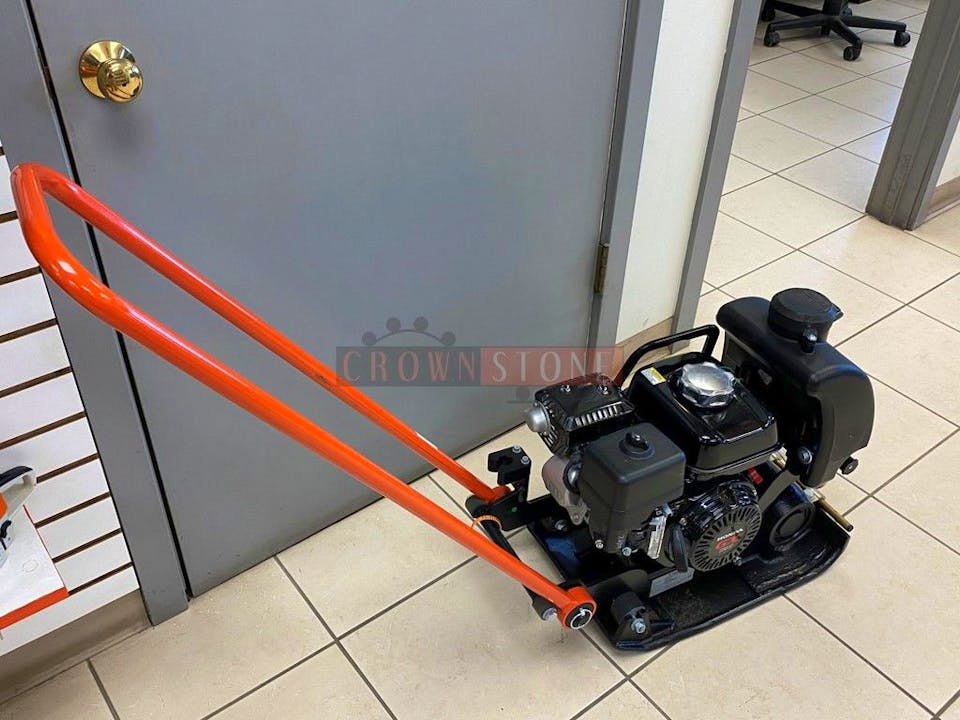

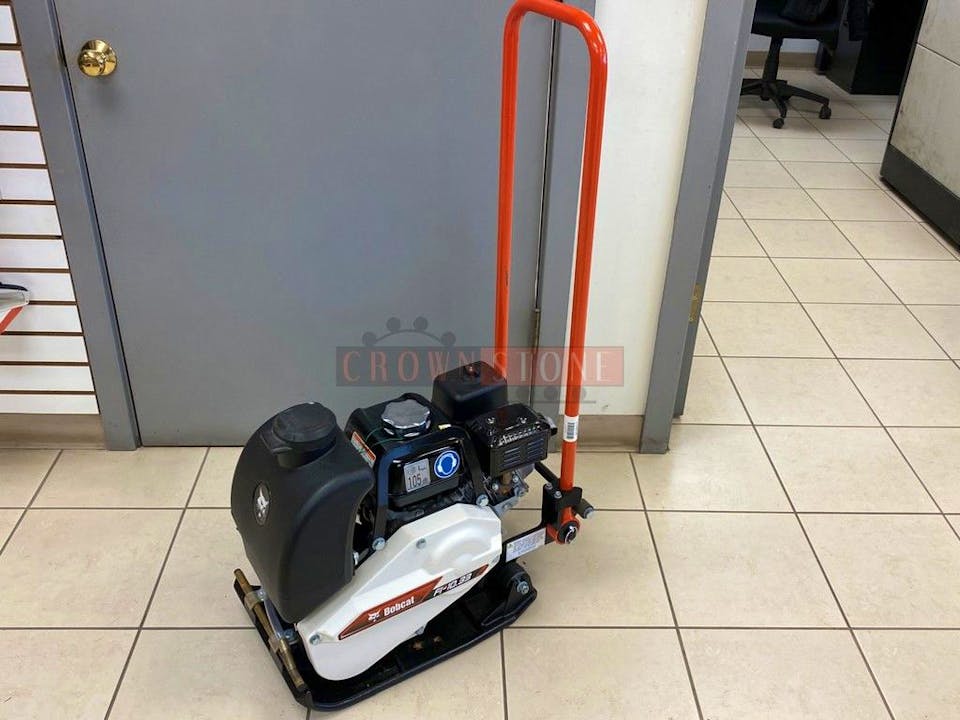

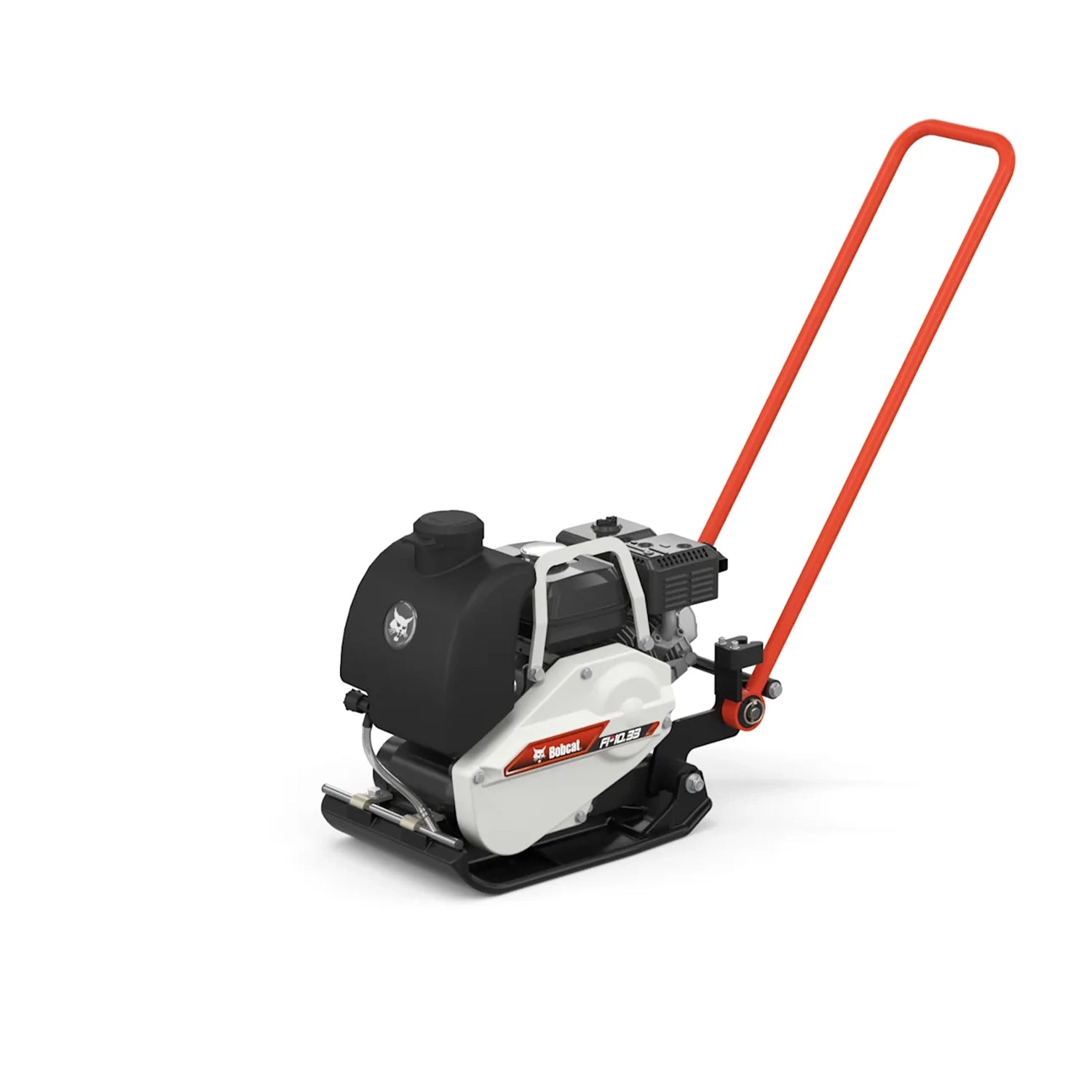

Bobcat FP10.33 Forward Plate Compactor
Its compact size and maneuverability make the Bobcat® FP10.33 forward vibratory plate compactor especially suitable for compaction work in tight-fitting areas.
- A wide range of compaction applications
- Standard water tank and sprinkler system
- Durable Honda engine
- Easy to maintain and transport
Overview:

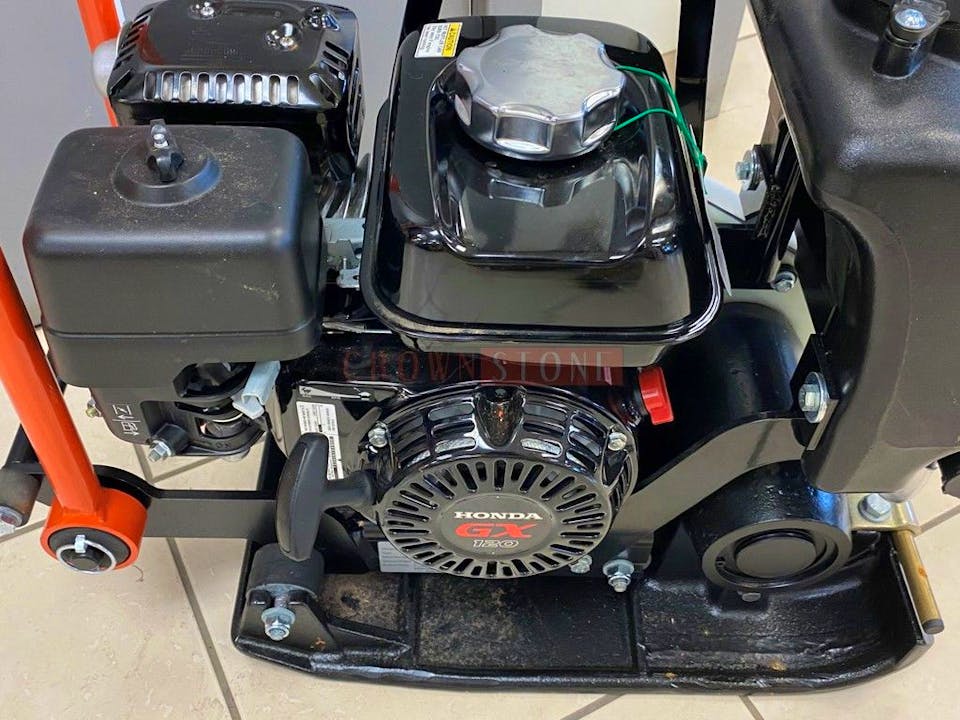

- Equipped with a durable and efficient Honda engine, the FP10.33 forward plate compact delivers reliable starts, maximum power and low fuel consumption.
- The versatile FP10.33 forward plate delivers efficient compaction of a wide range of materials including granular soils, crushed aggregates and hot mix asphalt.
- The FP10.33 forward plate compactor is designed to provide industry-leading forward movement for great compaction results and less operator fatigue.
- Casted, one-piece plates: Bobcat forward plate compactors feature a one-piece, cast base plate with no connection points that can weaken over time. Other brands weld or assemble components for their base plates.
- Minimal hand-arm vibration: Bobcat forward plates are designed to isolate plate vibrations from the operator’s handle, significantly reducing hand-arm vibration and fatigue. The handle also folds for convenient transport and storage.

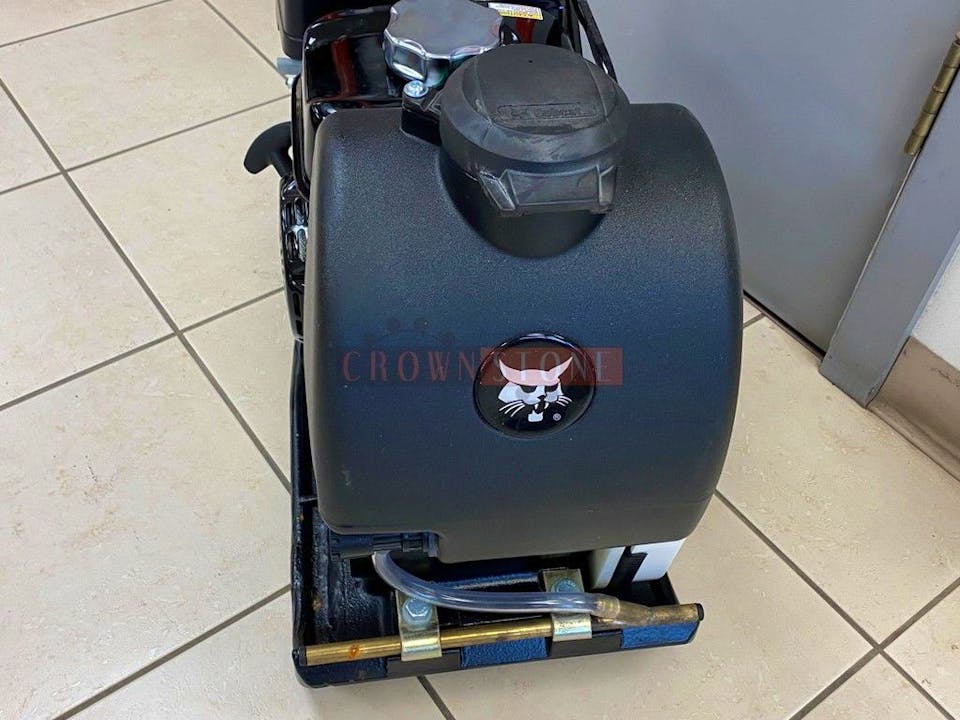

- Water tank and sprinkler system: Control dust or keep the vibratory base plate free of material buildup while compacting asphalt using the fixed water tank and sprinkler system. The durable, yet light-weight tank can be removed without the need for tools for convenient refills.
- Toolless Rubber Mat: Slip on the optional rubber mat to operate the plate compactor on paving stones without cracking or chipping the stones or other expensive surfaces.
| Bobcat Forward Plate Compactors | |||
|---|---|---|---|

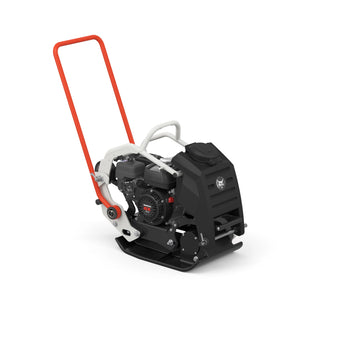

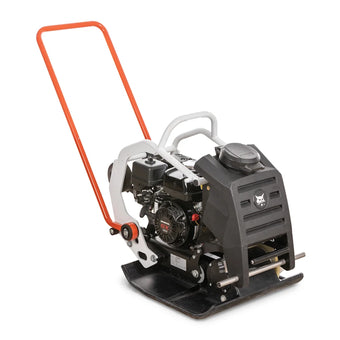

| Model | FP10.33 | FP15.40 | FP15.50 |
| Dimensions | |||
| Machine Weight | 119 lb. | 176 lb. | 185 lb. |
| Engine | |||
| Make & Model | Honda GX 120 | ||
| Fuel Type | Gas | ||
| Fuel Consumption | 0.26 gal./hr. | ||
| Engine Output | 3.5 hp @ 3,600 RPM | ||
| Compaction Forces | |||
| Max Vibration Frequency | 100 Hz | ||
| Max Centrifugal Force | 2,360 lbf. | 3,372 lbf. | 3,372 lbf. |
| Surface Capacity | 4,689 ft.²/hr. | 6,975 ft.²/hr. | 7,750 ft.²/hr. |
| Surface Pressure | 13.5 psi | 15.5 psi | 12.4 psi |
| Miscellaneous | |||
| Hand-Arm Vibration on Handle | 36 ft/s² | <8.2 ft/s² | <8.2 ft/s² |
| Speed | 0.8 mph | 1.0 mph | 0.9 mph |
| Gradeability | 30% | ||
| Max Incline | 20° | ||
| Fuel Tank Capacity | 0.53 gal. | ||
| Water Tank Capacity | 1.32 gal | 3.17 gal | 3.17 gal |
| Machine Features | |||
| Rubber Mat | Optional | Optional | |
| Transport Wheels | Optional | Optional | |
| Hour Counter | Optional | Optional | |
Options and Accessories
- Hour meter: A vibration-activated hour meter can be fitted to monitor working hours and display maintenance intervals to ensure that maintenance needs are met on time.
- Toolless rubber mat: Quickly attach the optional, toolless mat to operate the plate compactor on paving stones without cracking or chipping the surface.
- Toolless transport wheels: Move your reversible plate around the jobsite with ease. The transport wheels can be easily attached or removed without the use of any tools.
- Water tank and sprinkler system: Control dust or keep the vibratory base plate free of material buildup while compacting asphalt using the fixed water tank and sprinkler system. The durable, yet light-weight tank can be removed without the need for tools for convenient refills. (Standard on the FP10.33, FP15.40 and FP15.50).
