- Horsepower
- 528.6 hp
- Max dig depth
- 27' 5"
- Operating weight
- 181,000 lb
- Bucket digging force
- 8,678 lbf
More specifications
|
General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Develon |
| Model: | DX800LC-7 |
| Machine Type: | Other |
|
Engine
|
|
|---|---|
| Engine: | 2506J |
| Engine Make: | Perkins |
| Horsepower: | 528.6 |
| Emissions: | Tier 4 |
|
Performance
|
|
|---|---|
| Bucket Digging Force: | 8,678 lbf. |
| Arm Digging Force: | 6,542 lbf. |
| Max Digging Reach (Ground): | 42' 5" |
| Max Digging Depth: | 27' 5" |
| Operating Weight: | 181000 lb |
|
Hydraulics
|
|---|
|
Dimensions
|
|
|---|---|
| Fuel Tank: | 232.47 gal. |
Description

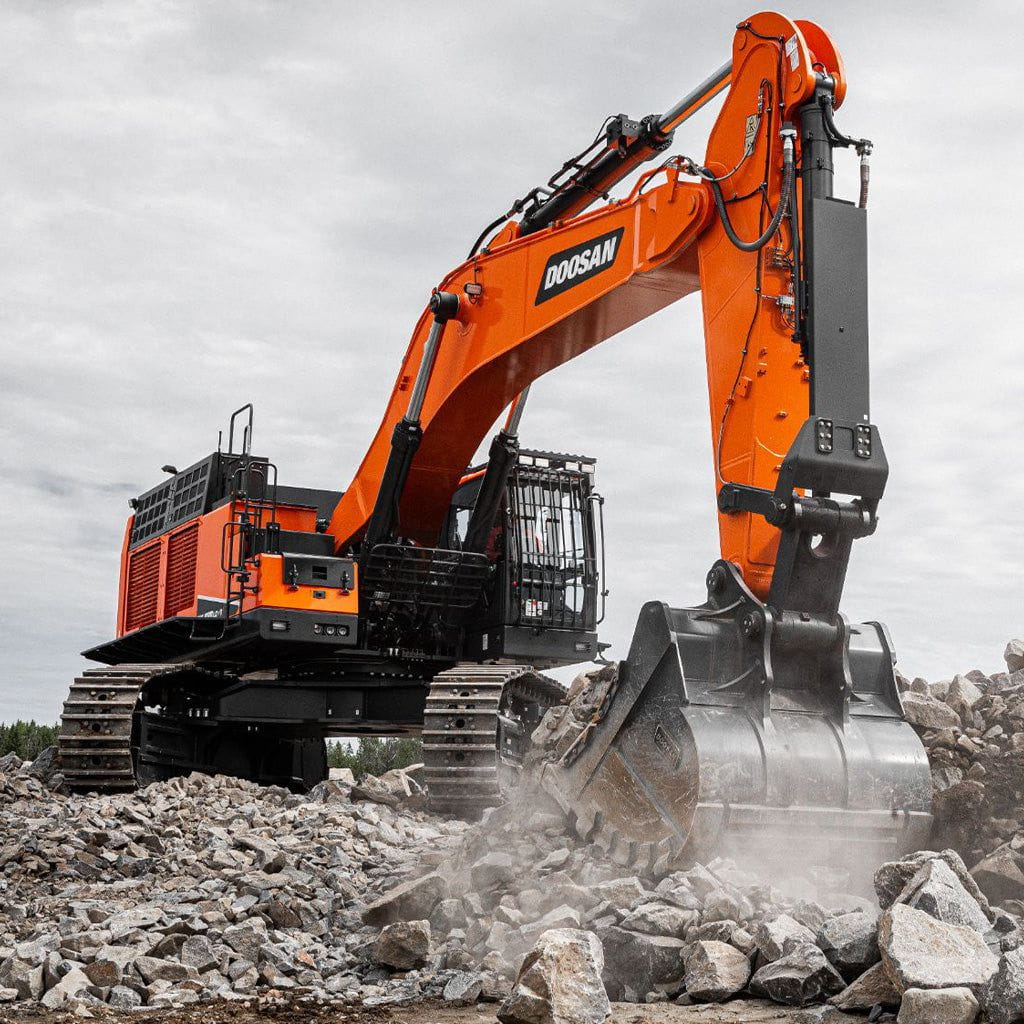

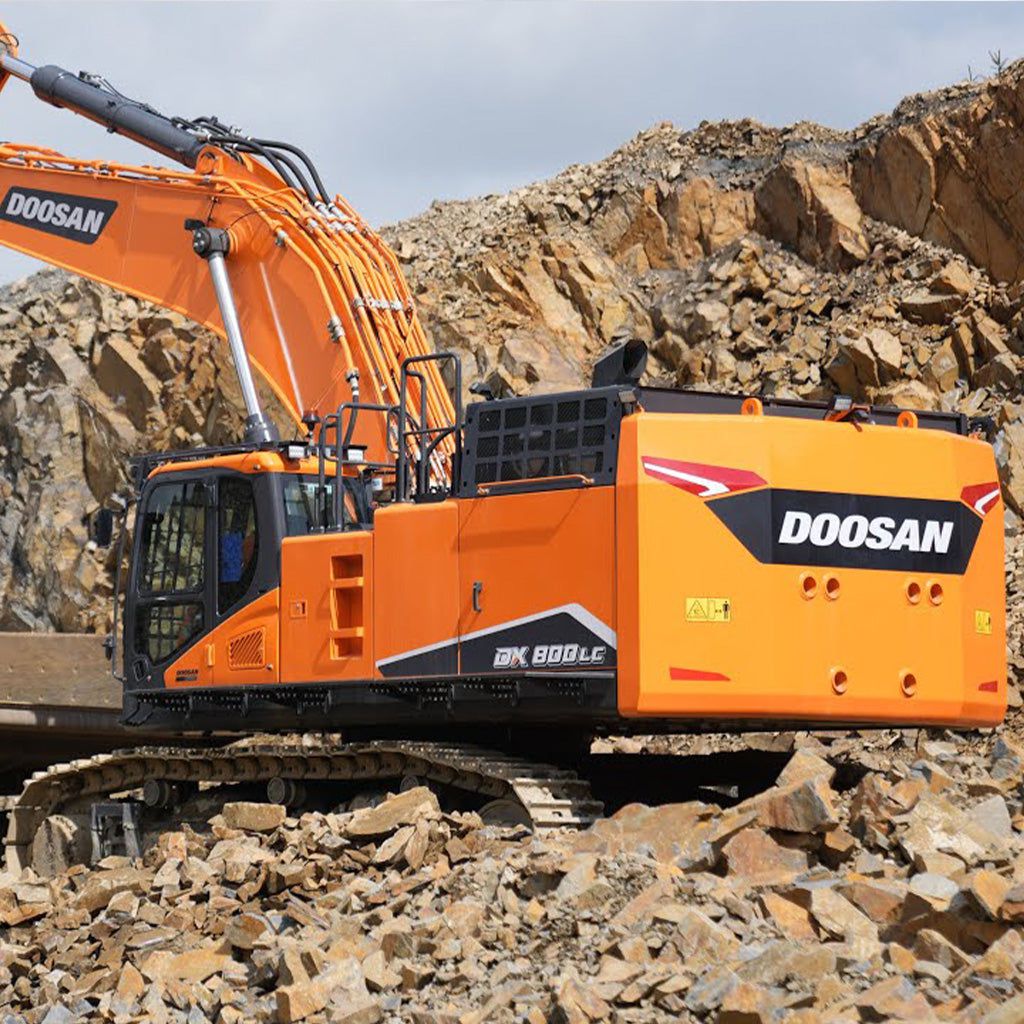

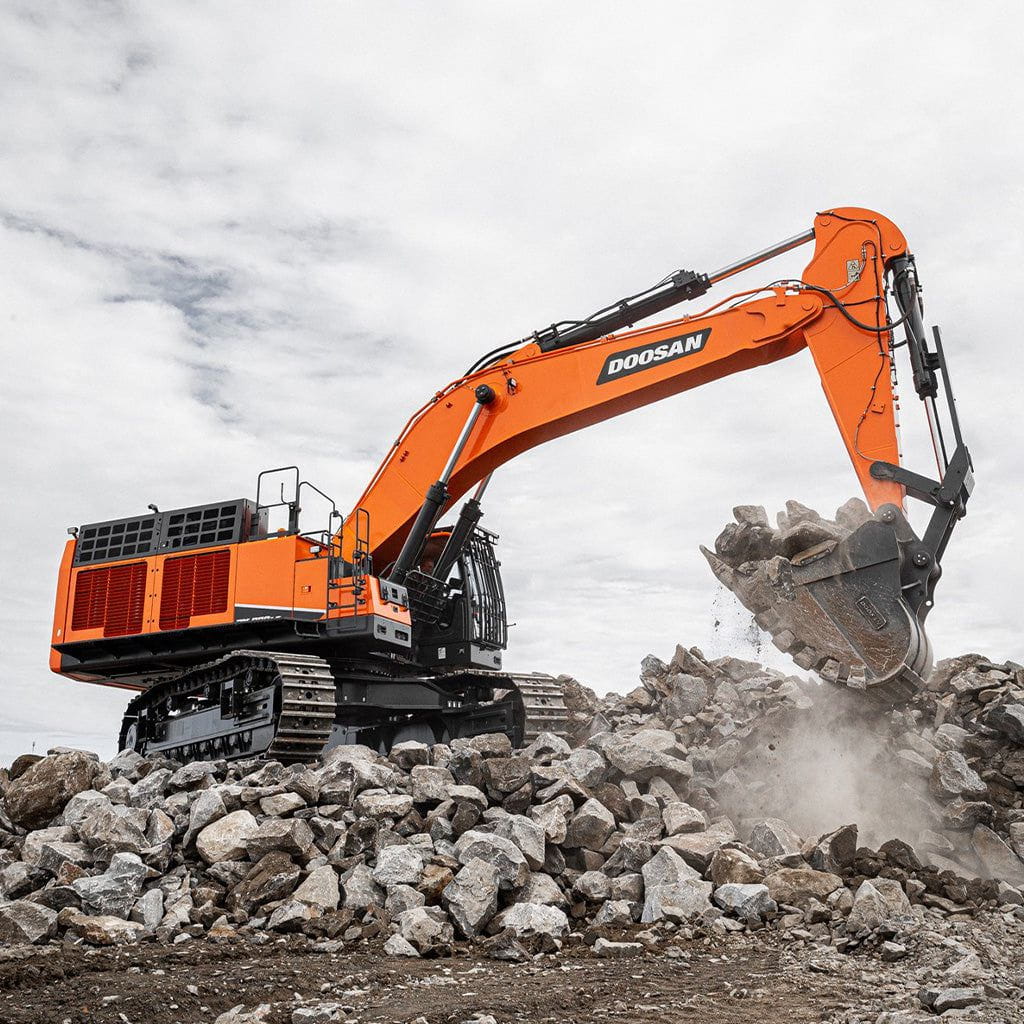

Develon DX800LC-7
Smart Durability
The 80-ton DX800LC-7 large excavator includes smarter technology and a tougher design for maximum uptime protection. The machine excels in mining, quarry and construction infrastructure.
An innovative double-foot boom design prevents single-side wear patterns by dividing strain between dual boom pins.
Quickly move material with a 5.1-cubic-yard bucket and choose from three excavator arm options — standard, long and mass-excavation. All three include a heavy-duty front design with additional reinforcement on key stress points.
Smarter turning force distribution from the crossed-design swing bearing adds durability and uptime protection.
Productive Performance
Innovative fuel savings and enhanced performance come from the DEVELON exclusive D-ECOPOWER system. The system precisely optimizes hydraulic oil flow with the excavator’s available horsepower to maximize your machine’s efficiency.
Operators can also upgrade productivity by selecting either boom priority or swing priority mode. Choose whichever option best aids your current application, whether that be digging over the front, dumping over the side, or dumping over the rear of your machine.
A 360-degree all-around view monitor provides a bird’s-eye view. It enhances your visibility at large construction jobs and quarry operations.
Intuitive Controls and Comfort
Quickly navigate your settings on the DX800LC-7 excavator's easy-to-read 8-inch touch screen. The screen is 30% larger than previous models.
A push-button start with a smart key fob gives you added security on and off the job. The fob can also be linked to other DEVELON machines.
Larger foot pedals offer improved comfort and precision. Additional comfort comes from a heated seat.
Operators can also activate pre-selected functions in a snap thanks to a customizable shortcut button located on the excavator's joystick.
Rugged Reliability
The DX800LC-7's Tier 4-compliant engine provides robust fuel delivery for ultra-reliable performance. A three-stage fuel filtration system extends the diesel engine’s life while protecting essential fuel components.
Plus, an optional auto-lube system minimizes wear and tear while boosting your uptime protection.
To comply with Tier 4 emissions standards, the DX800LC-7 incorporates a mechanical actuated electronically controlled unit injection (MEUI).
The machine’s aftertreatment systems include cooled exhaust gas recirculation (CEGR) combined with a diesel oxidation catalyst (DOC), diesel particulate filter (DPF) and selective catalyst reduction (SCR) which uses diesel exhaust fluid (DEF).
Loan
Lease
Cash in Lieu
Warranty
See participating dealers for details.
*Program disclosure: 0% A.P.R. financing for up to 60 months and the cash-in-lieu rebate are mutually exclusive — select one or the other. Select models also carry an additional rebate that can be combined with either financing or cash in lieu; the up to $43,500 amount shown includes it. Lease options are available separately; contact dealer for terms and custom payment structures. Financing subject to credit approval through an authorized Develon financing provider. Rebate applied at time of purchase. 3 Year / 3,000-Hour Full Coverage standard warranty included with qualifying new Develon equipment purchases. Offers valid on qualifying new Develon models through participating dealers only. See dealer for complete details, eligibility requirements, and program end dates. Offers subject to change without notice.
What Makes the DX800LC-7 Different
80-Ton Production Excavator
The DX800LC-7 pairs 539.1 net hp with a 179,428 lb operating weight for mining, quarry and major infrastructure work.
133.1 gpm Hydraulic Flow
Twin main pumps deliver a published maximum flow rate of 133.1 gpm, managed by D-ECOPOWER to match hydraulic demand with available engine power.
Heavy-Duty Front
Standard, long and mass-excavation arm choices use additional reinforcement at key stress points, while the double-foot boom spreads loads across dual pins.
360-Degree Visibility
The all-around view monitor provides a bird's-eye view to help operators work more confidently on large jobsites.
8-Inch Smart Touch Display
An easy-to-read touch screen, customizable joystick shortcut and Smart Key put machine settings and frequently used functions close at hand.
MY DEVELON Fleet Management
Standard telematics lets owners remotely monitor machine health, location and productivity.
Compare Heavy Excavators
 |  |  |  | |
| DX420LC-7 | DX490LC-7 | DX530LC-7 | DX800LC-7 Viewing | |
|---|---|---|---|---|
| Rated Power (net) | 344.6 hp @ 1,800 rpm | 379.5 hp @ 1,800 rpm | 379.5 hp @ 1,800 rpm | 539.1 hp @ 2,100 rpm |
| Operating Weight | 94,527 lb | 121,676 lb | 121,804 lb | 179,428 lb |
| Maximum Dig Depth | 27 ft 3 in (long arm) | 27 ft 7 in (long arm) | 25 ft 6 in (standard arm) | 27 ft 5 in |
| Main Pump Flow | 2 × 95.1 gpm | 2 × 103.0 gpm | 2 × 103.0 gpm | 133.1 gpm |
| Bucket Digging Force | 64,374.3 lbf (standard arm) | 67,901.7 lbf (power boost) | 67,901.7 lbf (power boost) | 84,877 lbf (power boost) |
| Model Generation | -7 | -7 | -7 | -7 |
Published North American headline specifications; arm and workgroup configurations vary. Contact Carleton Equipment to confirm the right machine.
DX800LC-7 Features & Benefits
Performance & Efficiency 5
539.1 Net Horsepower
The Tier 4 Perkins 2506J engine develops 539.1 net hp at 2,100 rpm for demanding production work.
133.1 gpm Main-Pump Flow
Twin main pumps provide a maximum published flow rate of 133.1 gpm for fast combined functions and demanding attachments.
Selectable Work Priority
Choose boom-priority or swing-priority mode to match digging over the front or dumping over the side or rear.
Three Arm Choices
Standard, long and mass-excavation configurations let the machine prioritize reach, depth or high-volume digging.
5.1-Cubic-Yard Bucket
The published North American configuration quickly moves high volumes of material in quarry and mass-excavation work.
Durability & Uptime 5
Double-Foot Boom
Dual boom pins divide strain to help prevent single-side wear patterns.
Heavy-Duty Front Design
All three arm configurations add reinforcement at key stress points for severe applications.
Crossed-Design Swing Bearing
Improved turning-force distribution supports durability and uptime protection.
Three-Stage Fuel Filtration
The filtration system protects essential fuel components and supports long engine life.
Optional Auto-Lube
Automatic lubrication can reduce manual service demands, wear and avoidable downtime.
Operator & Jobsite Awareness 5
360-Degree Around View
A bird's-eye camera view improves awareness around the large machine.
8-Inch Touch Screen
The easy-to-read display is 30% larger than the previous model's screen.
Smart Key and Push-Button Start
The key fob adds security and can be linked to other DEVELON machines.
Customizable Joystick Shortcut
Operators can activate selected functions without leaving the controls.
Heated Seat and Larger Pedals
A heated seat and larger pedals support comfort and precise control through long shifts.
Technology & Emissions 3
MY DEVELON
Fleet management provides remote access to machine health, location and productivity data.
Tier 4 Compliance
The North American engine uses CEGR, DOC, DPF and SCR/DEF aftertreatment.
MEUI Fuel System
Mechanically actuated electronically controlled unit injection supports reliable fuel delivery.
Why Buyers Choose the DX800LC-7
539.1 net hp and 179,428 lb operating weight for 80-ton production work
27 ft 5 in published dig depth with standard, long and mass-excavation arm choices
133.1 gpm main-pump flow with D-ECOPOWER hydraulic management
Double-foot boom, reinforced front and crossed-design swing bearing
360-degree around-view monitor for large-jobsite awareness
8-inch touch display, Smart Key, heated seat and customizable controls
84,877 lbf power-boost bucket force and 155,792.5 lbf maximum traction force
MY DEVELON remote health, location and productivity monitoring
Who Uses the DX800LC-7 and What For
The DX800LC-7 is a high-production crawler excavator for contractors and material producers who need 80-ton digging, loading and handling capability.
Mining & Quarry
- Production excavation
- Rock and overburden removal
- Crusher and hopper feeding
- High-volume truck loading
Infrastructure
- Highway and bridge projects
- Large utility excavation
- Major site development
- Heavy structure placement
Mass Excavation
- Commercial and industrial sites
- Foundation excavation
- Bulk earthmoving
- High-cycle loading
Heavy Attachments
- Severe-duty buckets
- Hydraulic couplers
- Thumbs and grapples
- Specialized production tools
The DX800LC-7 by the Numbers
Perkins 2506J output at 2,100 rpm.
An 80-ton-class production excavator.
Published North American headline depth.
Maximum flow from the twin main pumps.
ISO digging force with power boost.
Maximum published swing torque.
Talk to a person about the DX800LC-7
Carleton Equipment is a family-owned Michigan dealer, here since 1938. Sales, rental, service and parts all come from the same team, and we’ll connect you with the location nearest you.
- Chesterfield
- Coldwater
- Grand Rapids
- Howell
- Kalamazoo
- Livonia
- Saginaw
Full Specifications
Download Spec SheetGeneral
| Machine Type | Conventional-tail-swing crawler excavator |
| Operating Weight | 179,428 lbs |
| Bucket Capacity | 5.1 yd³ |
| Arm Choices | Standard, long and mass-excavation |
Engine
| Engine | Perkins 2506J |
| Net Power | 539.1 hp @ 2,100 rpm |
| Rated Power | 402 kW @ 2,100 rpm |
| Emissions | Tier 4; CEGR, DOC, DPF and SCR/DEF |
| Fuel System | MEUI |
Performance
| Maximum Dig Depth | 27 ft 5 in |
| Bucket Digging Force, Power Boost | 84,877 lbf |
| Maximum Swing Torque | 228,563.1 lbf·ft |
| Maximum Traction Force | 155,792.5 lbf |
| Work Priority | Boom priority or swing priority |
Hydraulics
| Main Pumps | 2 |
| Maximum Main-Pump Flow | 133.1 gpm |
| Hydraulic Management | D-ECOPOWER |
Durability
| Boom Design | Double-foot boom with dual pins |
| Front Design | Heavy duty with reinforced stress points |
| Swing Bearing | Crossed design |
| Fuel Filtration | Three stage |
| Auto-Lube | Optional |
Operator Environment
| Display | 8-inch touch screen |
| Camera | 360-degree all-around view monitor |
| Starting | Push-button start with Smart Key |
| Seat | Heated |
| Joystick Shortcut | Customizable |
Technology
| Fleet Management | MY DEVELON |
| Remote Data | Machine health, location and productivity |
Values are from the current DEVELON North America DX800LC-7 product page and published sales specifications. Specifications vary by arm, bucket and workgroup configuration. Contact Carleton Equipment to confirm details.
