- Horsepower
- 628.9 hp
- Max dig depth
- 27' 5"
- Operating weight
- 221,280 lb
- Bucket digging force
- 8,678 lbf
More specifications
|
General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Develon |
| Model: | DX1000LC-7 |
| Machine Type: | Other |
|
Engine
|
|
|---|---|
| Engine: | 2806J |
| Engine Make: | Perkins |
| Horsepower: | 628.9 |
| Emissions: | Tier 4 |
|
Performance
|
|
|---|---|
| Bucket Digging Force: | 8,678 lbf. |
| Arm Digging Force: | 6,542 lbf. |
| Max Digging Reach (Ground): | 42' 5" |
| Max Digging Depth: | 27' 5" |
| Operating Weight: | 221280 lb |
|
Hydraulics
|
|---|
|
Dimensions
|
|
|---|---|
| Fuel Tank: | 300.6 gal. |
Description

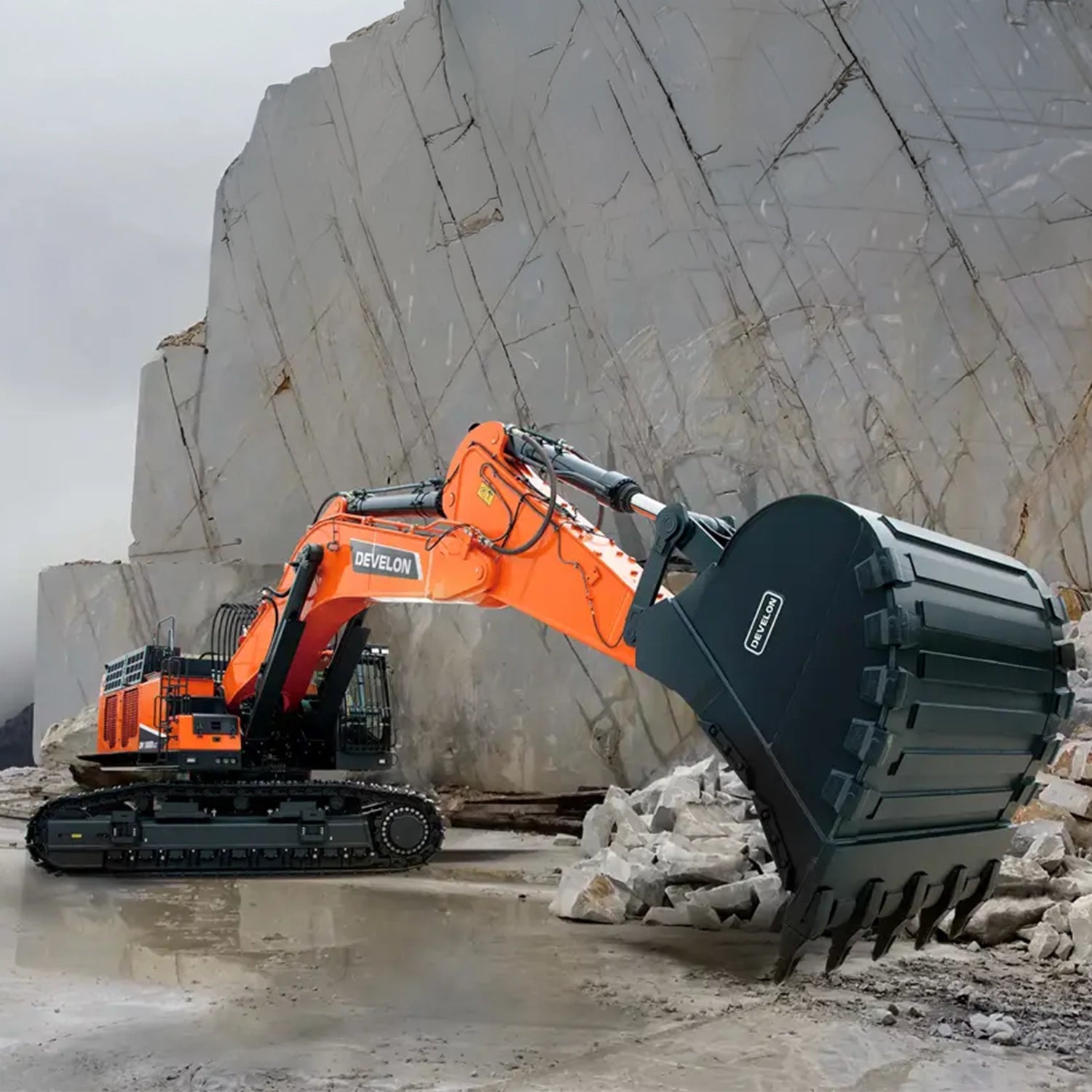

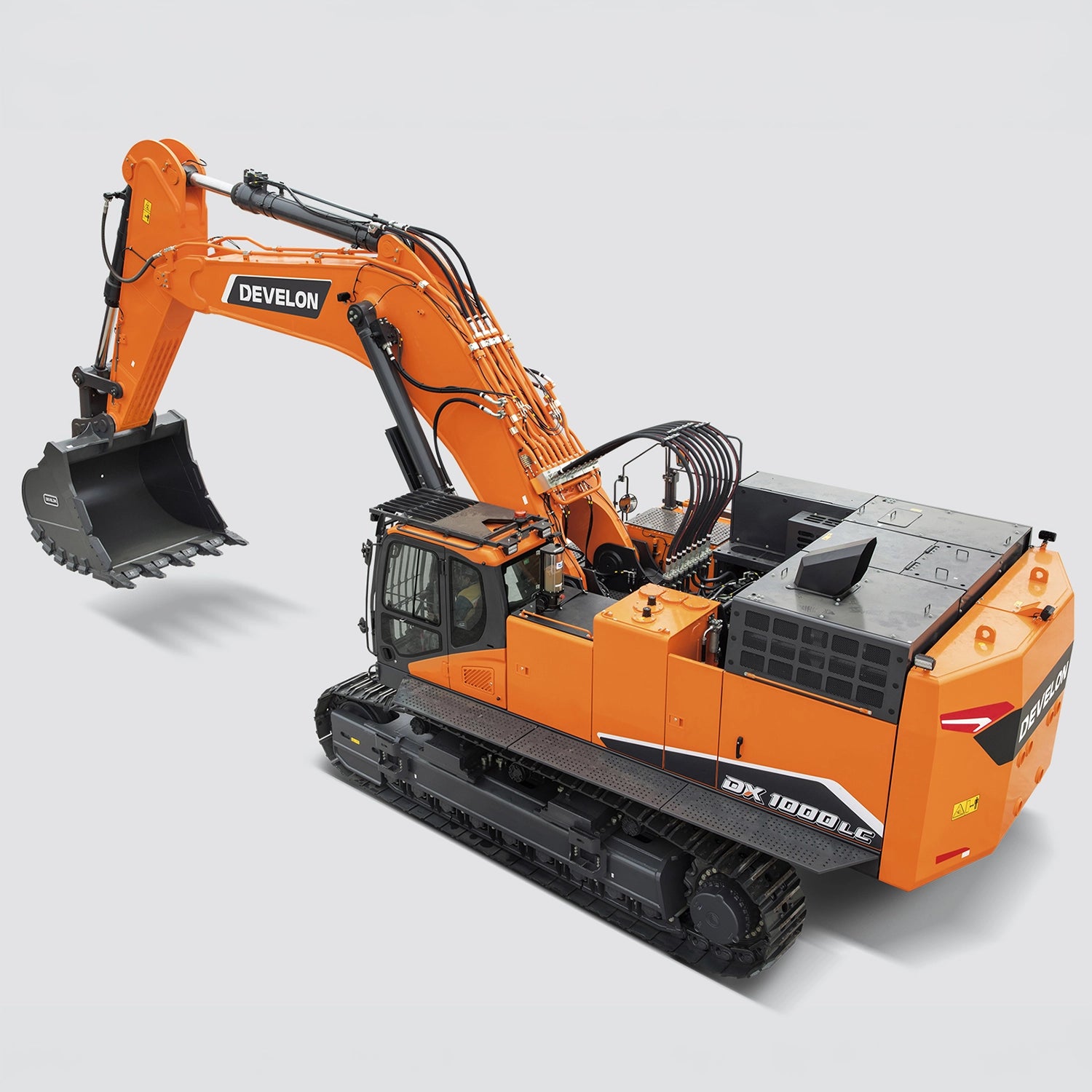

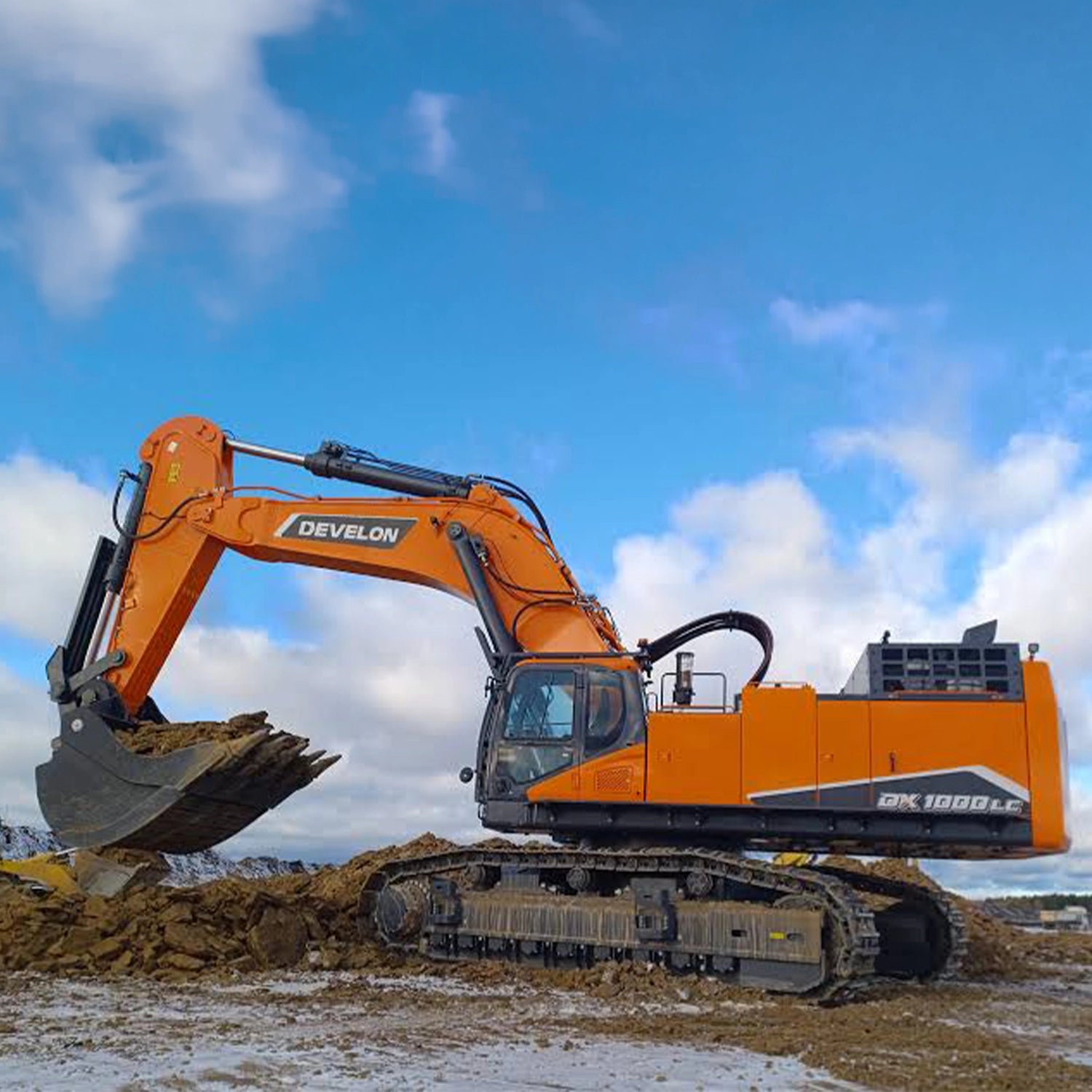

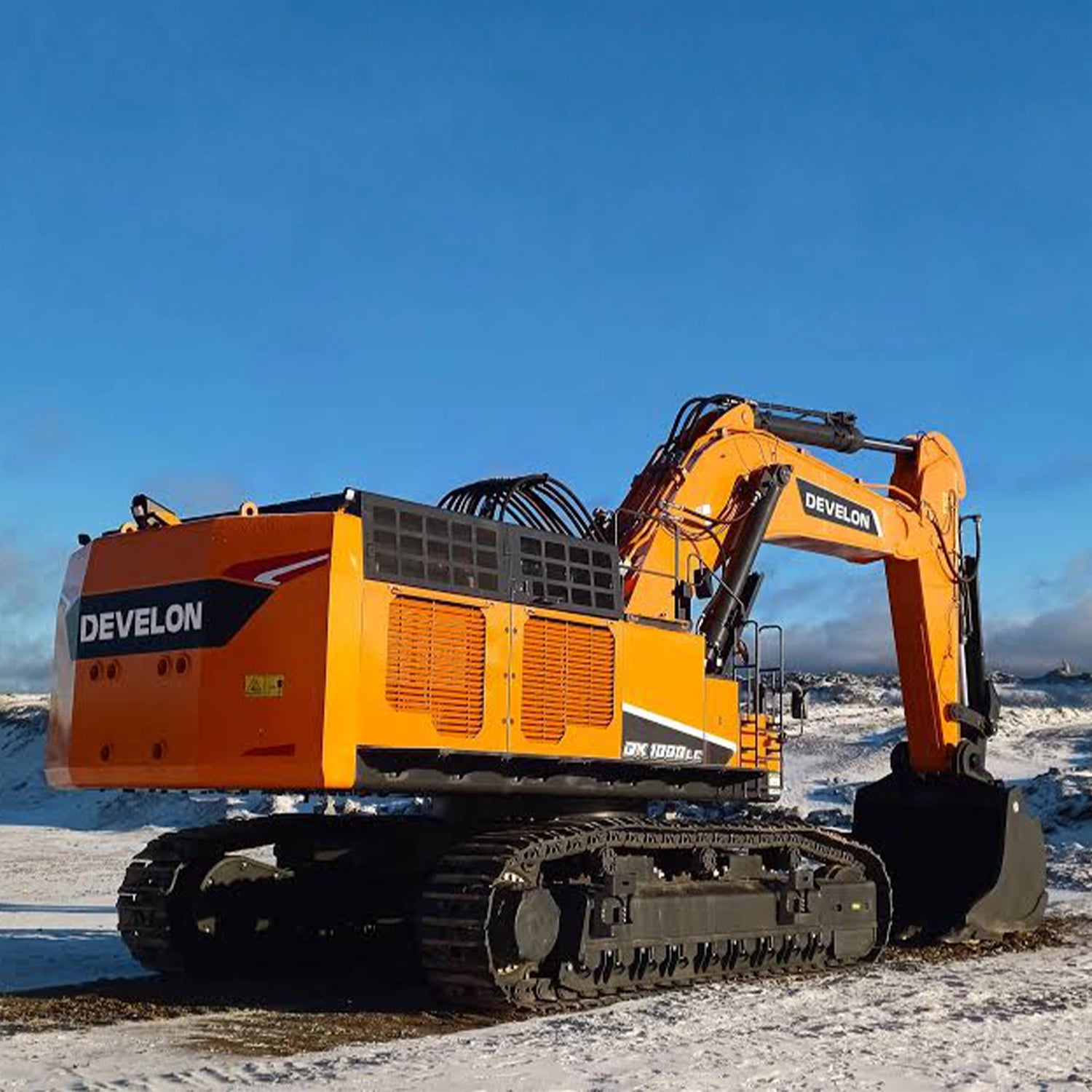

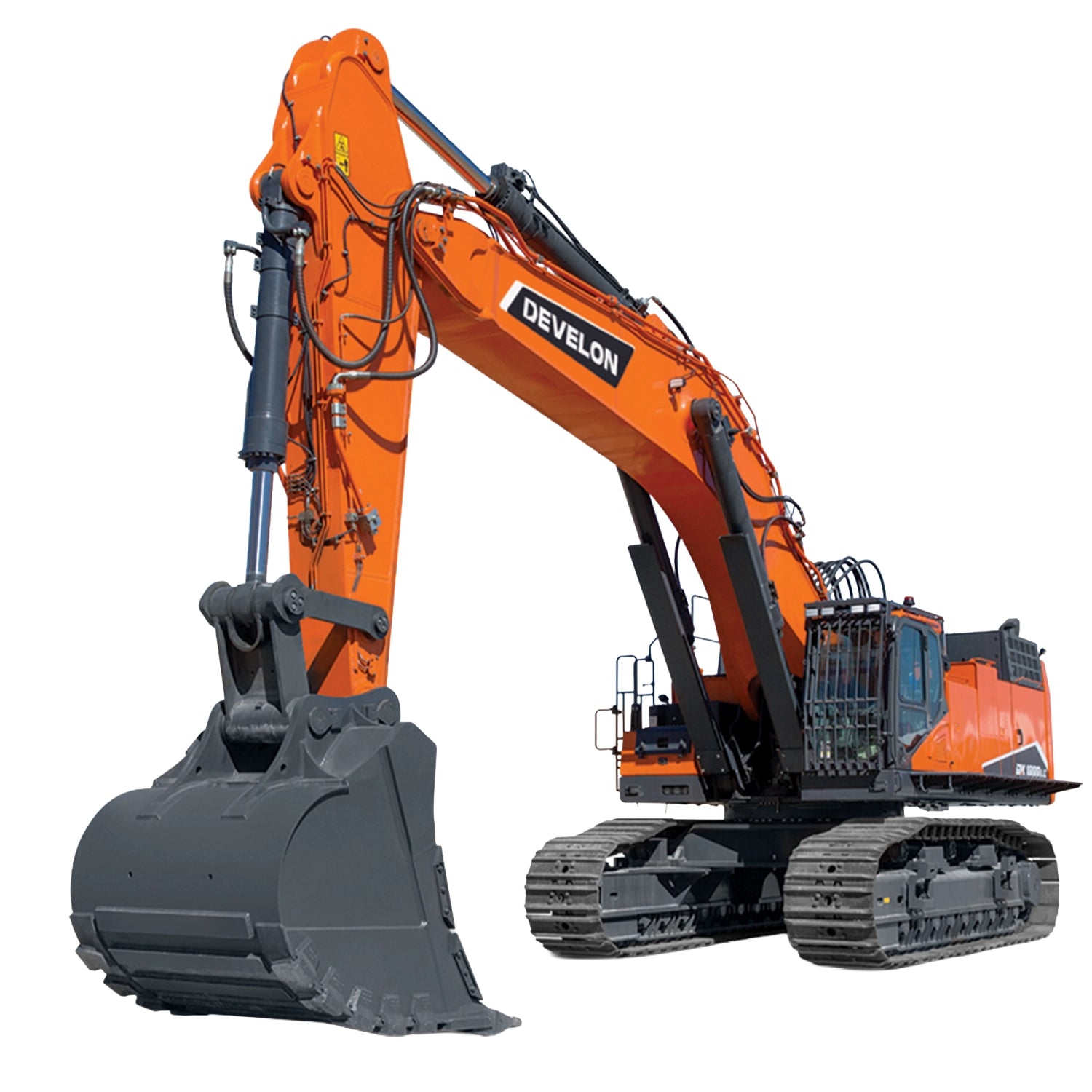

Develon DX1000LC-7
Maximum Uptime and Heavy-Duty Performance
Built for demanding quarry, mining, and large-scale infrastructure projects, the Develon DX1000LC-7 mass excavation crawler excavator delivers exceptional digging force, lifting capacity, and long-term durability. Its reinforced heavy-duty front attachment is engineered to withstand extreme operating conditions while maximizing breakout performance. A unique crossed swing-bearing design distributes stress more evenly for increased service life, while ultra-hard, wear-resistant bolt-on plates protect high-impact areas and help maintain powerful digging performance. The innovative D-channel upper frame and available side-impact protection provide additional structural strength to safeguard critical machine components in the harshest environments.
Intelligent Power with Maximum Efficiency
The DX1000LC-7 combines massive hydraulic performance with advanced technologies designed to improve productivity and reduce fuel consumption. Standard auto idle and auto shutdown functions minimize unnecessary engine operation, while Smart Power Control (SPC) automatically optimizes engine speed and hydraulic output for greater efficiency. Develon's exclusive D-ECOPOWER™ hydraulic system continuously balances engine and hydraulic performance to maximize fuel economy without compromising production. Standard MY DEVELON fleet management enables remote monitoring of machine health, location, maintenance, and overall fleet productivity.
Premium Operator Comfort and Control
Designed for long shifts in demanding applications, the DX1000LC-7 provides a spacious, comfortable operator environment with intuitive controls. Automotive-style heating and air conditioning, large foot pedals, and an available heated and cooled seat help reduce fatigue throughout the workday. The multilingual DEVELON Smart Touch display provides quick access to machine settings and operating information, while ergonomically designed low-effort joysticks and a jog shuttle control allow precise operation with minimal effort. Standard rearview cameras and an available 360-degree Around View Monitor (AVM) system further enhance visibility and operator confidence on busy jobsites.
Versatile Performance for Changing Jobsite Demands
The DX1000LC-7 offers flexible operating modes that allow operators to adapt machine performance to a wide range of applications. Four selectable power modes optimize performance for varying working conditions, while selectable boom priority and swing priority functions improve efficiency based on the task at hand. Swing priority increases swing speed for applications such as bank cutting and wide-angle loading, while boom priority delivers faster boom lift performance for heavy digging and loading operations.
Designed for Easier Transport
Despite its impressive size, the DX1000LC-7 is engineered to simplify transportation between jobsites. A hydraulically removable counterweight can be safely lowered directly onto a trailer or the ground for transport, while the retractable undercarriage reduces overall transport dimensions. These features make moving the machine more efficient while reducing setup time and transportation challenges for large-scale projects.
Loan
Lease
Cash in Lieu
Warranty
See participating dealers for details.
*Program disclosure: 0% A.P.R. financing for up to 60 months and the cash-in-lieu rebate are mutually exclusive — select one or the other. Select models also carry an additional rebate that can be combined with either financing or cash in lieu; the up to $43,500 amount shown includes it. Lease options are available separately; contact dealer for terms and custom payment structures. Financing subject to credit approval through an authorized Develon financing provider. Rebate applied at time of purchase. 3 Year / 3,000-Hour Full Coverage standard warranty included with qualifying new Develon equipment purchases. Offers valid on qualifying new Develon models through participating dealers only. See dealer for complete details, eligibility requirements, and program end dates. Offers subject to change without notice.
What Makes the DX1000LC-7 Different
100-Metric-Ton Production
The DX1000LC-7 combines 628.9 net hp and a 221,280 lb operating weight for quarry, mining and large infrastructure work.
94,709.6 lbf Bucket Force
Power boost delivers high breakout force for mass excavation and difficult digging conditions.
Class-Leading Swing Strength
Maximum swing torque of 284,474.3 lbf·ft supports productive uphill swinging, bank cutting and truck loading.
Heavy-Duty Structure
A reinforced front, crossed-design swing bearing, D-channel upper frame and bolt-on wear plates protect high-stress areas.
Transport-Focused Design
A hydraulically removable counterweight and retractable undercarriage help simplify moves between jobsites.
Smart Power and Monitoring
D-ECOPOWER, Smart Power Control and standard MY DEVELON telematics support efficient production and fleet visibility.
Compare Heavy Excavators
 |  |  | |
| DX530LC-7 | DX800LC-7 | DX1000LC-7 Viewing | |
|---|---|---|---|
| Rated Power (net) | 379.5 hp @ 1,800 rpm | 539.1 hp @ 2,100 rpm | 628.9 hp @ 2,100 rpm |
| Operating Weight | 121,804 lb | 179,428 lb | 221,280 lb |
| Maximum Dig Depth | 25 ft 6 in (standard arm) | 27 ft 5 in | 28 ft 10 in |
| Bucket Force, Power Boost | 67,901.7 lbf | 84,877 lbf | 94,709.6 lbf |
| Maximum Swing Torque | 145,600.5 lbf·ft | 228,563.1 lbf·ft | 284,474.3 lbf·ft |
| Maximum Traction Force | 100,750.2 lbf | 155,792.5 lbf | 173,550.5 lbf |
| Configuration Focus | Standard / SLR available | Standard / long / mass excavation | Mass excavation |
Published North American specifications; arm and workgroup configurations vary. Contact Carleton Equipment to confirm the right machine.
DX1000LC-7 Features & Benefits
Production & Efficiency 6
628.9 Net Horsepower
The engine produces 628.9 net hp at 2,100 rpm for 100-metric-ton production applications.
D-ECOPOWER
The exclusive system optimizes hydraulic and engine power in changing digging conditions to improve fuel efficiency and productivity.
Smart Power Control
ECU-managed engine speed and pump torque control improve efficiency without sacrificing performance.
Four Power Modes
Operators can match machine response and fuel use to changing working conditions.
Boom or Swing Priority
Choose boom priority for demanding front digging and swing priority for bank cutting or large swing angles.
Auto Idle and Shutdown
Automatic engine controls reduce unnecessary fuel use when the machine is not working.
Digging, Swing & Travel 5
94,709.6 lbf Bucket Force
ISO power-boost bucket force supports hard digging and high-volume production.
284,474.3 lbf-ft Swing Torque
High swing torque supports uphill rotation, fast loading cycles and strong backfilling performance.
173,550.5 lbf Traction Force
Maximum traction force helps move the large excavator confidently around severe jobsites.
28 ft 10 in Dig Depth
The published North American configuration balances deep digging with mass-excavation capability.
Mass-Excavation Configuration
The workgroup is designed for tremendous digging and lifting capability in mines, quarries and major earthmoving.
Durability & Transport 6
Heavy-Duty Front
Additional reinforcement at key stress points supports demanding digging and lifting.
Crossed-Design Swing Bearing
Improved stress distribution supports longer-life swing performance.
Bolt-On Wear Plates
Ultra-hard wear-resistant plates protect the arm end while helping maintain breakout performance.
D-Channel Upper Frame
The upper structure resists side impacts, with an optional protector for additional component protection.
Removable Counterweight
The counterweight can be hydraulically lowered to the ground or transport trailer.
Retractable Undercarriage
The undercarriage frame retracts to simplify transport planning.
Comfort, Visibility & Fleet Control 6
DEVELON Smart Touch
The multilingual touch screen provides clear access to machine information and settings.
Low-Effort Controls
An ergonomic joystick and jog-shuttle keypad provide precise command of machine functions.
Climate-Controlled Cab
Automotive-style heating and air conditioning, large pedals and an optional heated/cooled seat support long shifts.
Rearview and Optional AVM
A rearview camera and optional 360-degree all-around view monitor improve jobsite awareness.
MY DEVELON
Standard fleet management remotely tracks health, location and productivity.
Optional Auto-Lube
Automatic lubrication simplifies daily maintenance and supports uptime.
Why Buyers Choose the DX1000LC-7
628.9 net hp and 221,280 lb operating weight for 100-metric-ton production
94,709.6 lbf power-boost bucket force for severe digging
284,474.3 lbf-ft maximum swing torque for fast loading and uphill rotation
173,550.5 lbf maximum traction force and 28 ft 10 in dig depth
D-ECOPOWER, Smart Power Control and four selectable power modes
Reinforced front, crossed swing bearing, D-channel frame and wear plates
Hydraulically removable counterweight and retractable undercarriage
Smart Touch controls, camera visibility and MY DEVELON fleet management
Who Uses the DX1000LC-7 and What For
The DX1000LC-7 is built for owners who need maximum production, breakout and swing performance in mines, quarries and the largest construction projects.
Mining & Quarry
- Production excavation
- Rock and overburden removal
- Face and bench work
- Crusher feeding
Truck Loading
- High-volume dump-truck loading
- Uphill swing cycles
- Stockpile management
- Aggregate handling
Heavy Infrastructure
- Major highway projects
- Large foundations
- Deep utility excavation
- Dam and industrial work
Mass Earthmoving
- Bulk cut-and-fill
- Large commercial sites
- Heavy lifting and placement
- Severe-duty attachments
The DX1000LC-7 by the Numbers
Rated at 2,100 rpm.
A 100-metric-ton production excavator.
Published North American configuration.
ISO digging force with power boost.
Maximum published swing torque.
Maximum published travel traction.
Talk to a person about the DX1000LC-7
Carleton Equipment is a family-owned Michigan dealer, here since 1938. Sales, rental, service and parts all come from the same team, and we’ll connect you with the location nearest you.
- Chesterfield
- Coldwater
- Grand Rapids
- Howell
- Kalamazoo
- Livonia
- Saginaw
Full Specifications
Download Spec SheetGeneral
| Machine Type | Conventional-tail-swing crawler excavator |
| Operating Weight | 221,280 lbs |
| Configuration | Mass excavation |
Engine
| Net Power | 628.9 hp @ 2,100 rpm |
| Rated Power | 469 kW @ 2,100 rpm |
| Power Modes | 4 |
| Efficiency Systems | D-ECOPOWER and Smart Power Control |
| Auto Idle / Auto Shutdown | Standard |
Performance
| Maximum Dig Depth | 28 ft 10 in |
| Bucket Digging Force, Power Boost | 94,709.6 lbf |
| Maximum Swing Torque | 284,474.3 lbf·ft |
| Maximum Traction Force | 173,550.5 lbf |
| Work Priority | Boom priority or swing priority |
Durability
| Front Design | Heavy duty with reinforced stress points |
| Swing Bearing | Crossed design |
| Upper Frame | D-channel |
| Wear Plates | Ultra-hard, bolt-on |
| Side-Impact Protector | Optional |
Transport
| Counterweight | Hydraulically removable |
| Undercarriage | Retractable frame |
| Straight Travel | Optional |
Operator Environment
| Display | Multilingual DEVELON Smart Touch |
| Climate Control | Automotive-style heat and air conditioning |
| Seat | Heated/cooled option |
| Rearview Camera | Standard |
| 360-Degree AVM | Optional |
Technology & Service
| Fleet Management | MY DEVELON |
| Remote Data | Health, location and productivity |
| Auto-Lube | Optional |
Values are from the current DEVELON North America DX1000LC-7 product page. Current web values take precedence over older launch-release figures. Specifications vary by workgroup, bucket and attachment configuration. Contact Carleton Equipment to confirm details.
