Get detailed specifications, dimensions, and performance data for this RP30.50 Plate Compactor | Bobcat.

Performance
Operating Weight:	439 lb

Hydraulics

Dimensions
Fuel Tank:	0.55 gal.

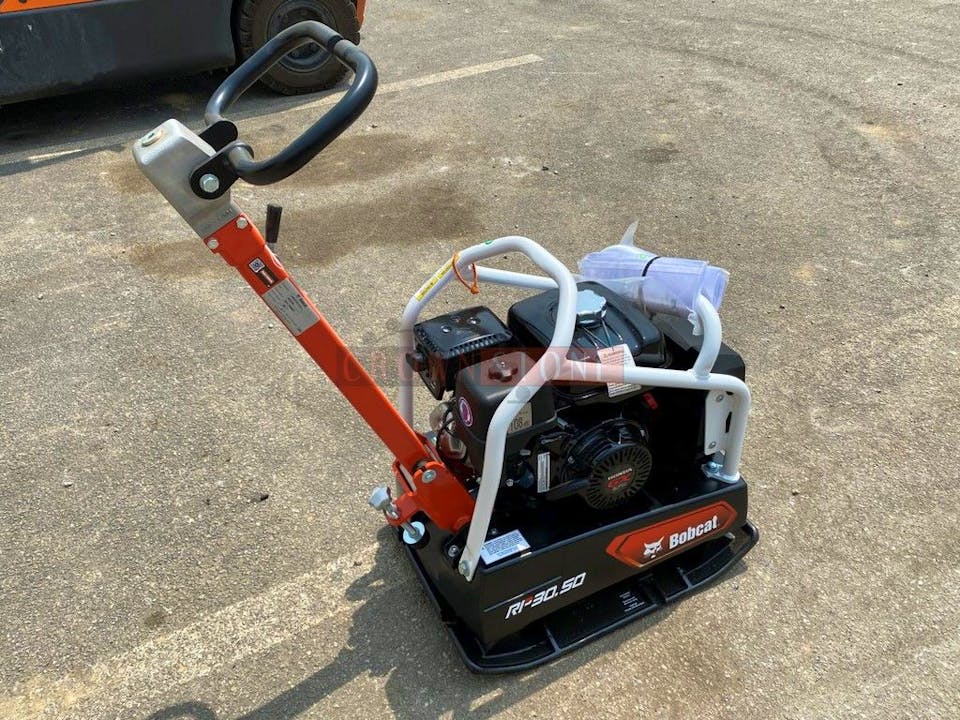

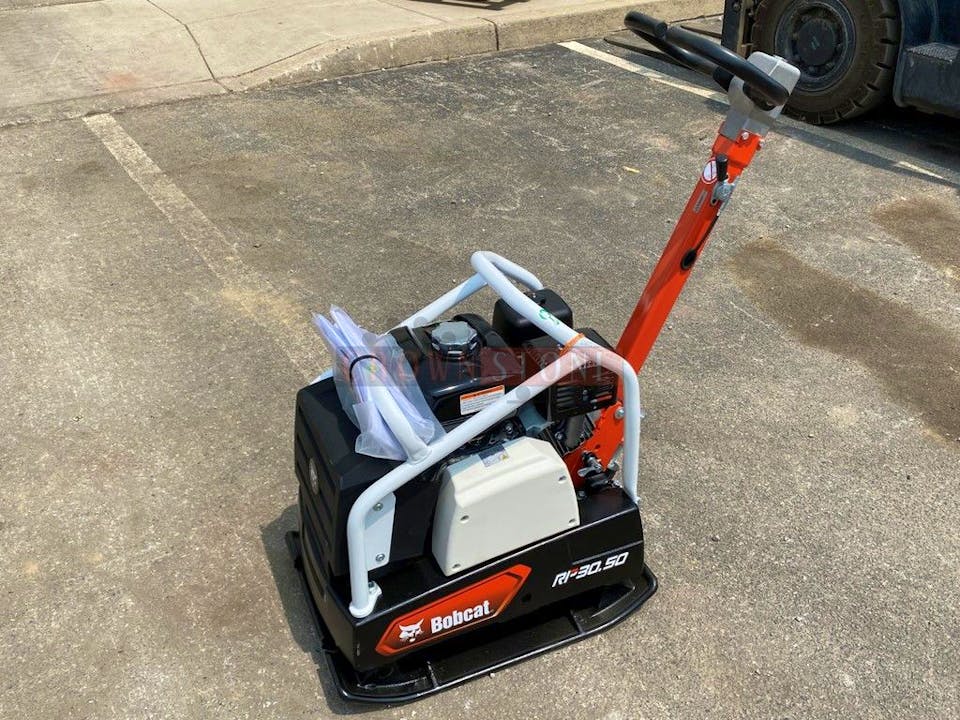

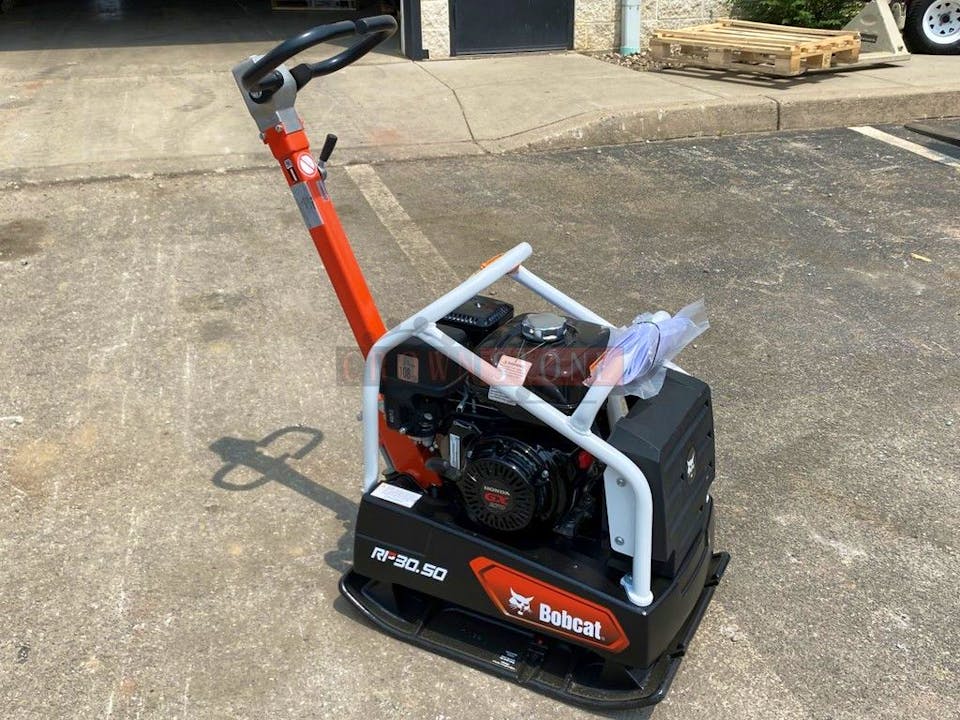

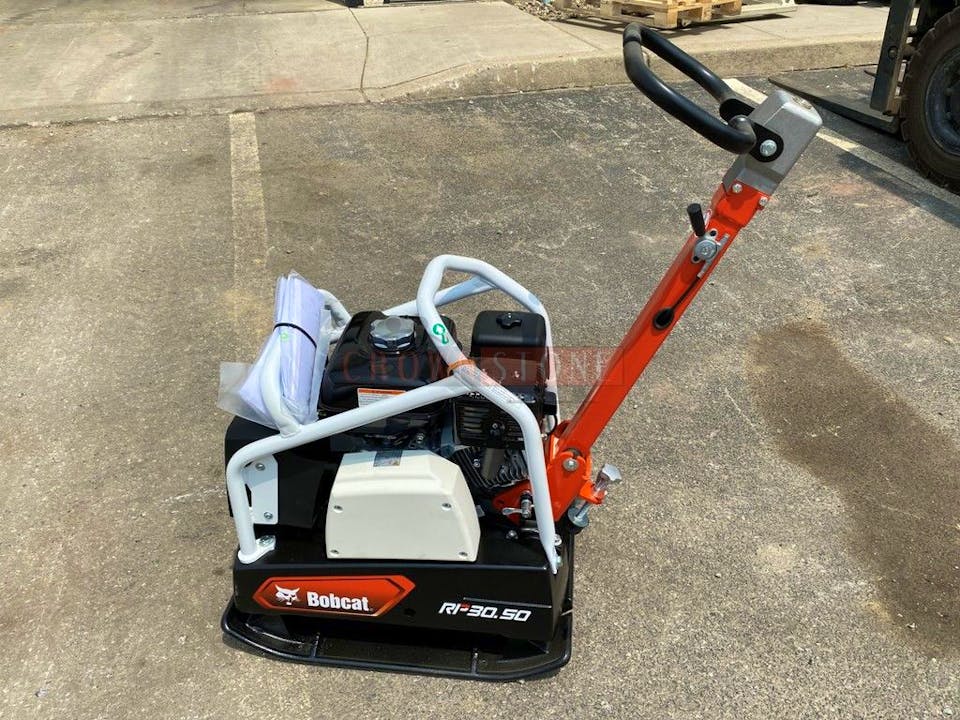

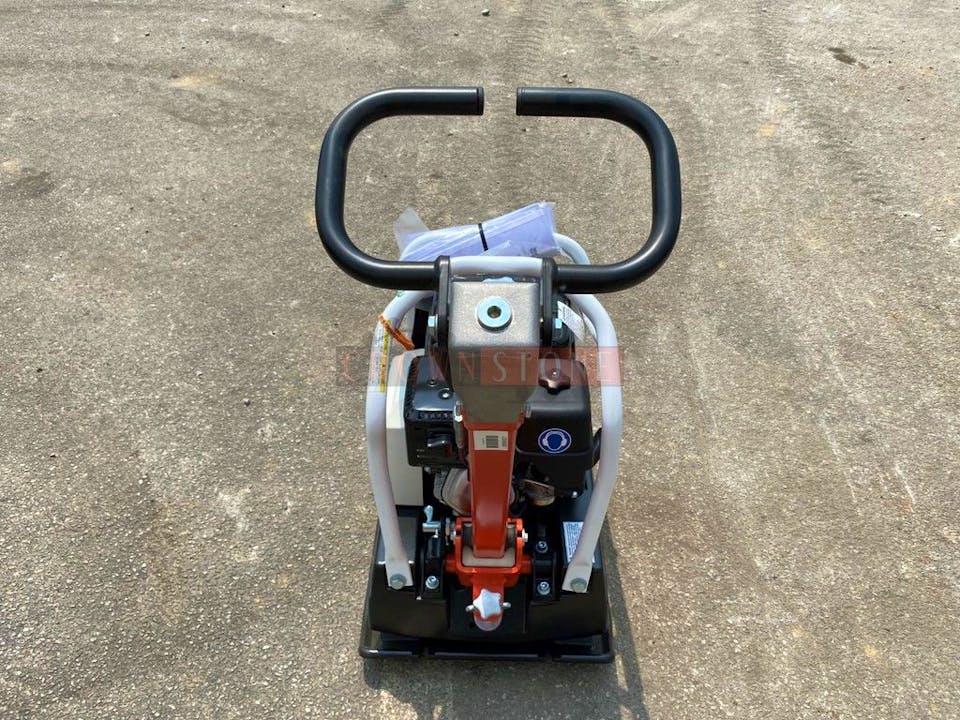

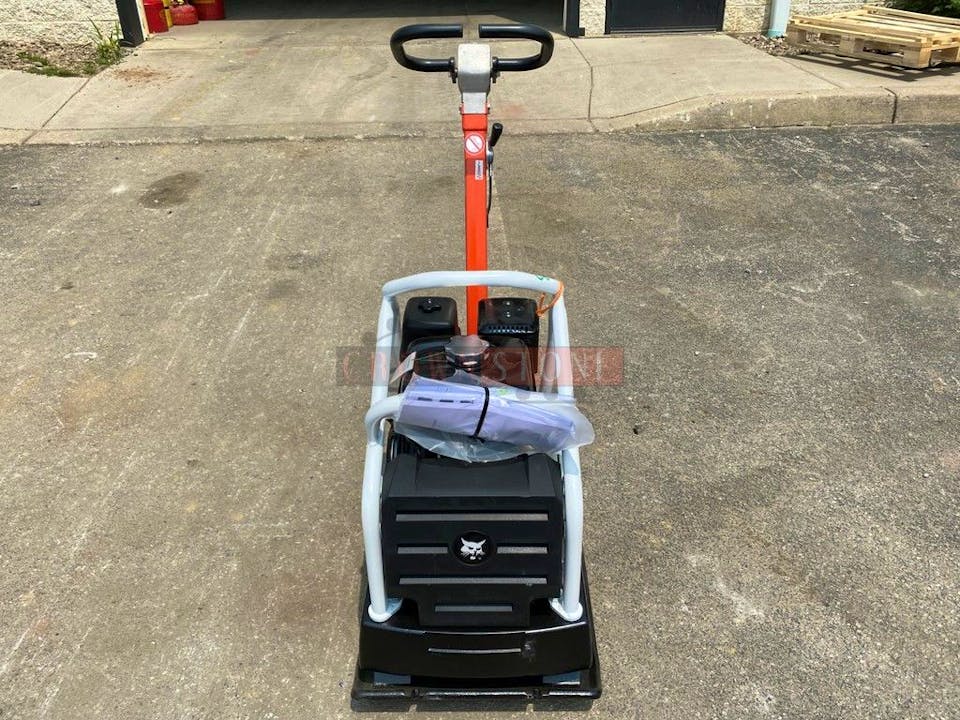

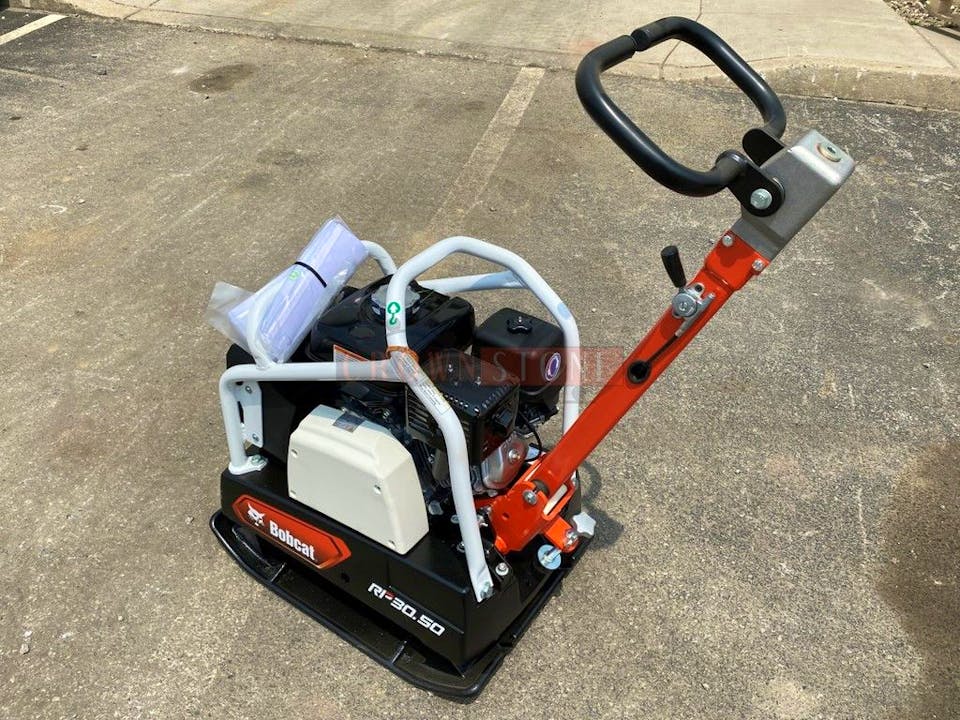

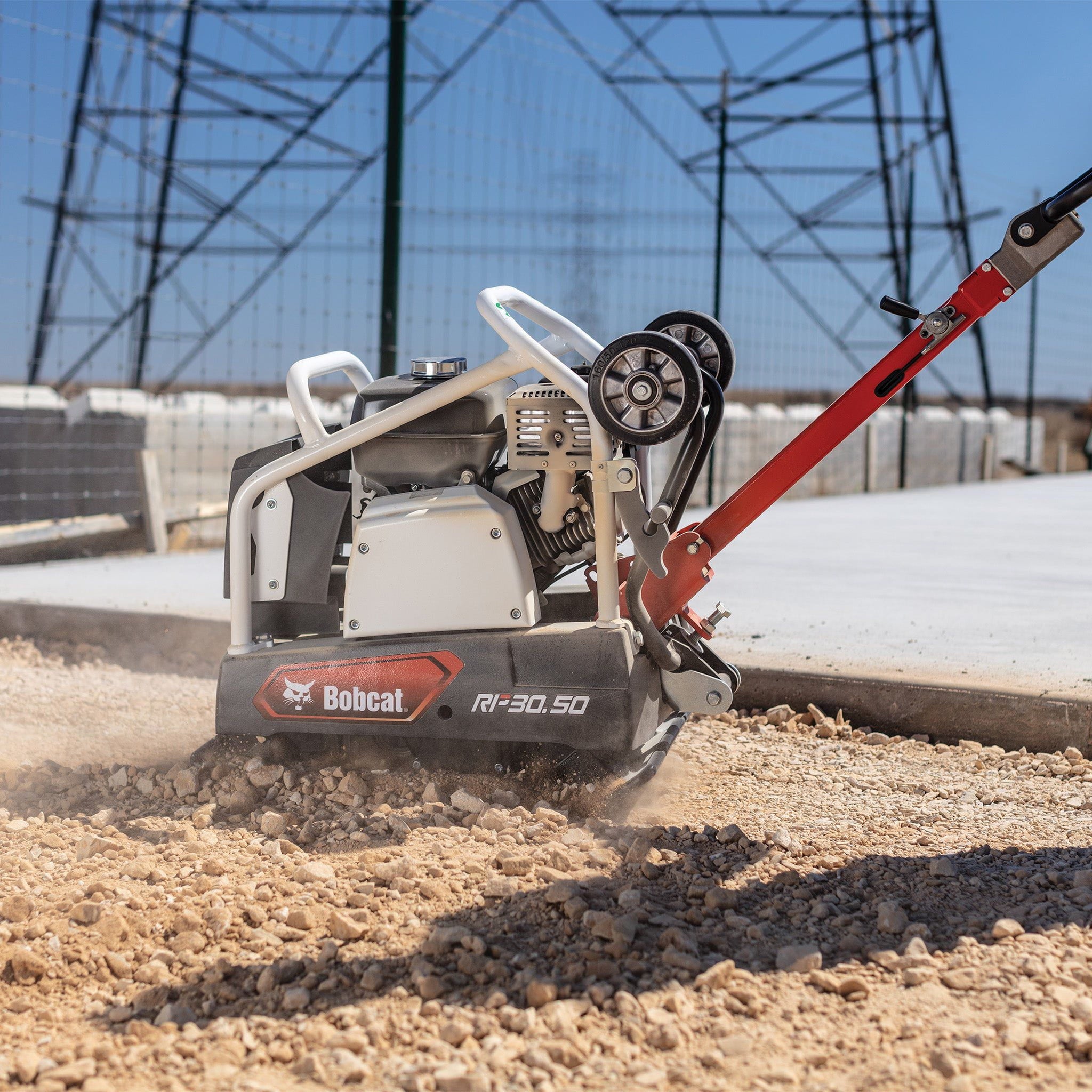

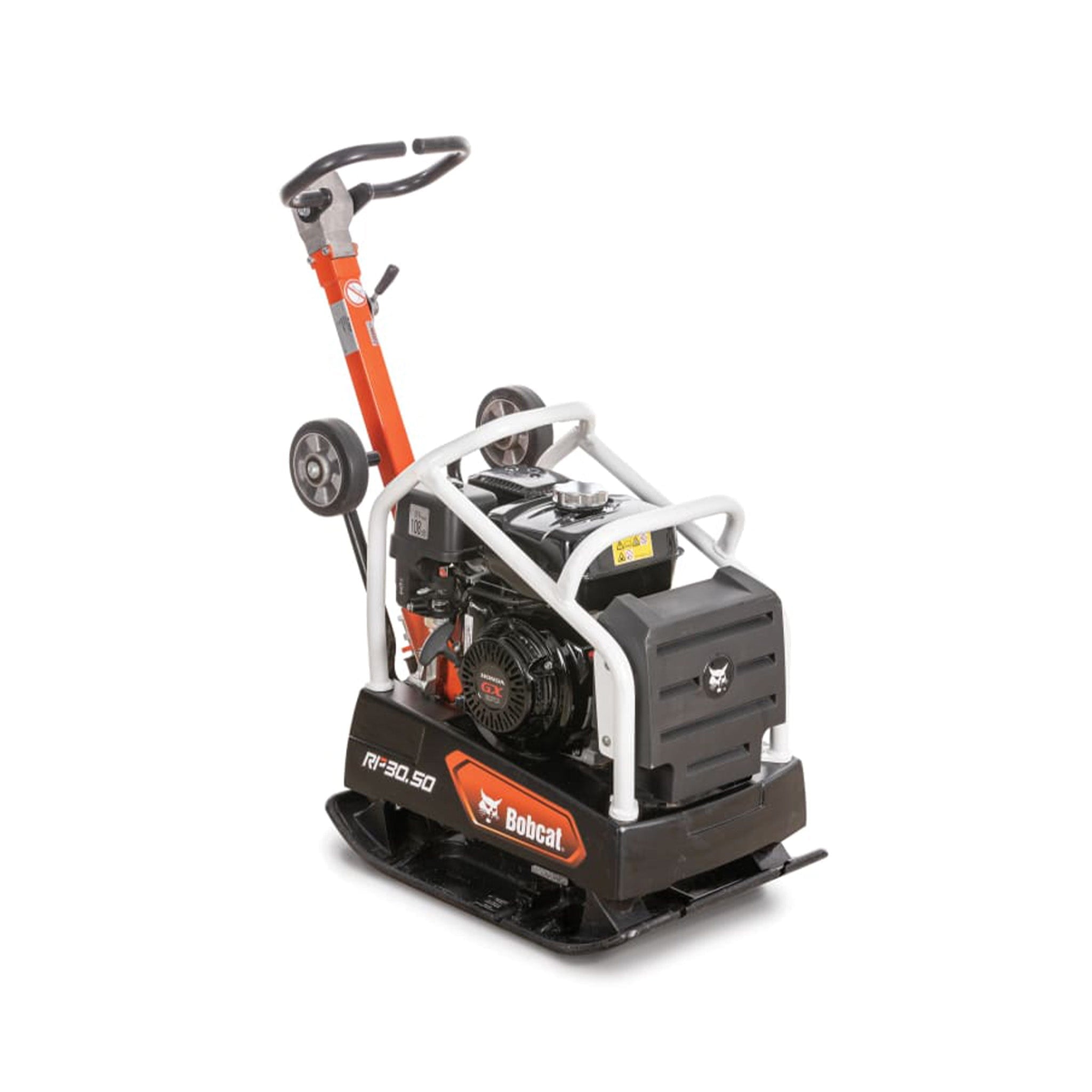

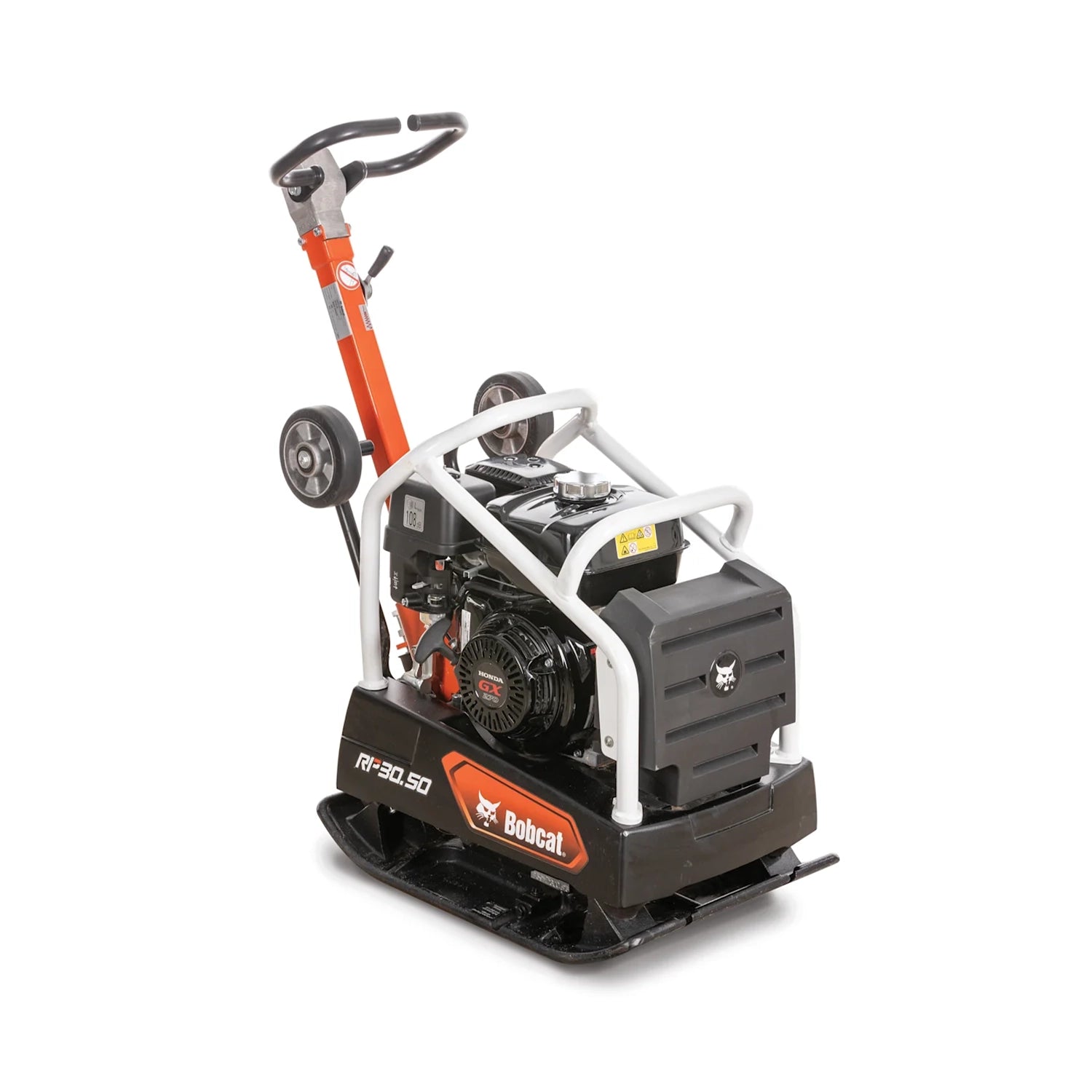

Bobcat RP30.50 Reversible Plate Compactor

Quick and easy direction changes and consistent compaction results are built into every Bobcat® RP30.50 reversible plate compactor.

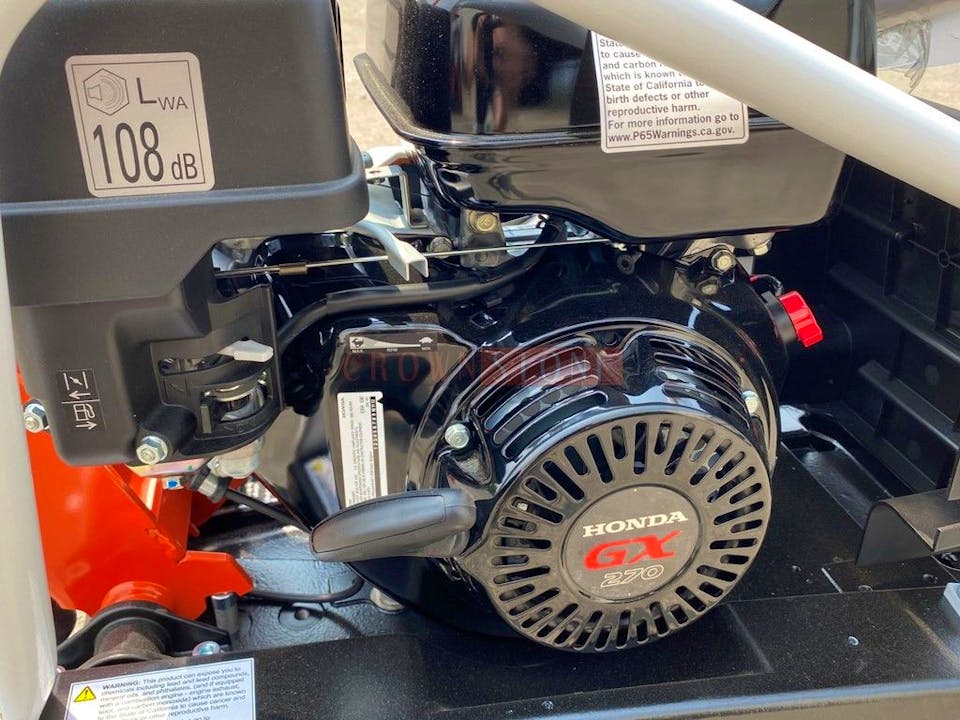

The Bobcat RP30.50 reversible plate is equipped with a durable, 8-hp Honda engine that delivers reliable starts and powerful compaction forces.

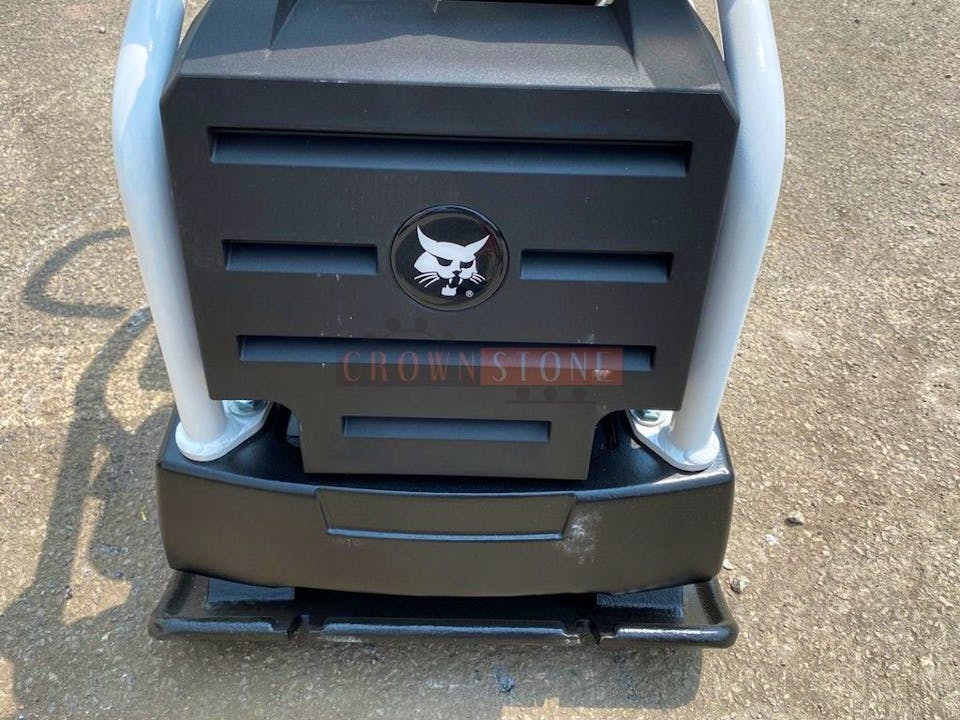

A robust, tubular frame surrounds the engine, keeping the RP30.50 reversible plate in the field day after day.
Isolators minimize hand-arm vibrations for reduced operator fatigue and enhanced comfort.

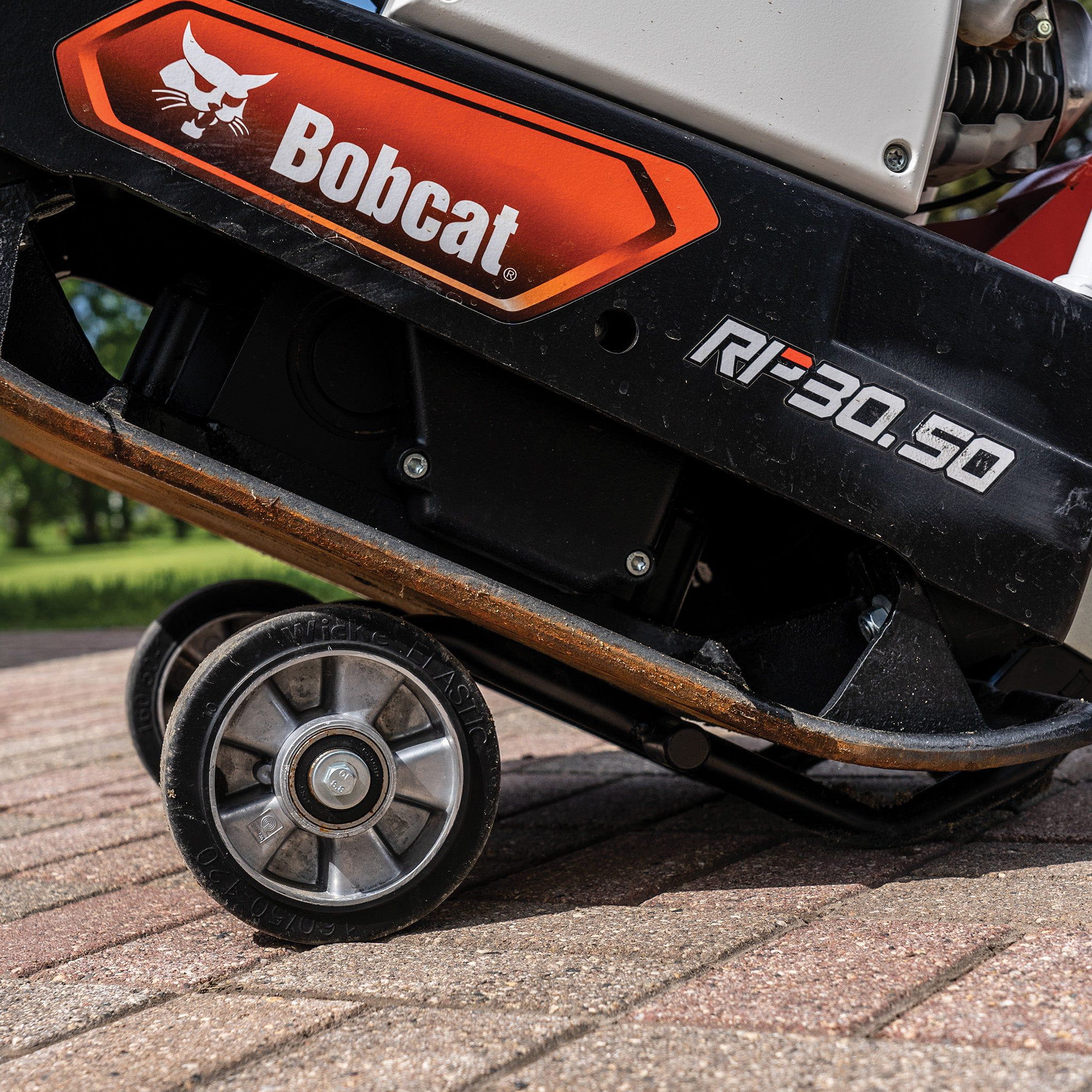

Optional features include toolless transport wheels, a protective mat for compaction work on paving stones, and a vibration-activated hour meter.

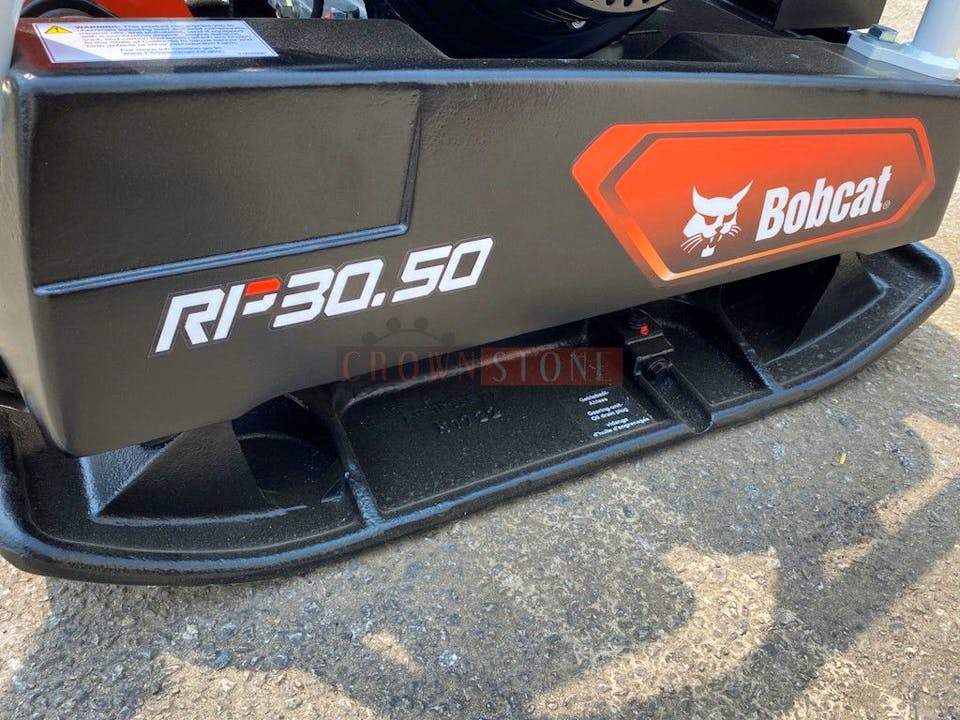

The well-balanced base plate distributes compaction power evenly, for efficient operation and consistent results on a variety of materials and grades.

Bobcat Reversible Plate Compactors

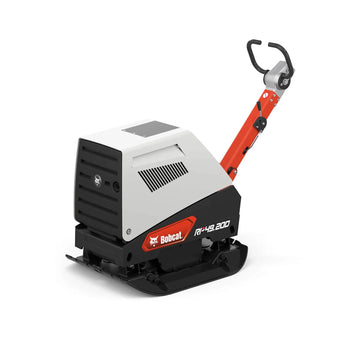

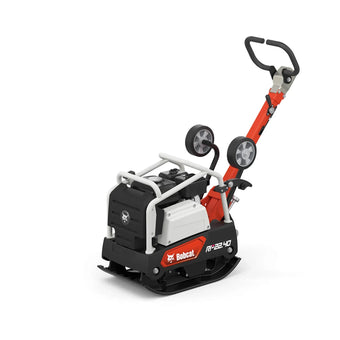

Model	RP22.40	RP30.50	RP49.20D
Dimensions
Machine Weight	220 lb.	439 lb.	1,049 lb.
Engine
Make & Model	Honda GX 160	Honda GX 270	Hatz 1B50 E
Fuel Type	Gas		Diesel
Fuel Consumption	0.36 gal./hr.	0.55 gal./hr.	0.40 gal./hr.
Engine Output	4.8 hp @ 3,600 RPM	8.0 hp @ 3,100 RPM	8.8 hp @ 2,900 RPM
Compaction Forces
Max Vibration Frequency	98 Hz	90 Hz	65 Hz
Max Centrifugal Force	5,171 lbf.	7,194 lbf.	11,016 lbf.
Surface Capacity	5,683 ft.²/hr.	8,396 ft.²/hr.	16,953 ft.²/hr.
Surface Pressure	32.8 psi	28.1 psi	35.1 psi
Miscellaneous
Hand-Arm Vibration on Handle	<8.2 ft/s²	<8.2 ft/s²	<8.2 ft/s²
Speed	0.8 mph	0.9 mph	1.3 mph
Gradeability	35%		30%
Max Incline	20°		25°
Fuel Tank Capacity	0.8 gal.	1.4 gal.	1.3 gal.
Amplitude	0.9 mm	1.2 mm	2.4 mm
Machine Features
Rubber Mat	Optional	Optional
Transport Wheels	Optional	Optional
Hour Counter	Optional	Optional

Full Specifications

General

Condition	Showroom
Machine Type	Plate Compactor

Engine

Performance

Hydraulics

Dimensions & Weight

Operating Weight	439 lb
Fuel Tank	0.55 gal.

Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
