General Info
|
|
---|---|
Condition: | Showroom |
Manufacturer: | Bobcat |
Model: | RP22.40 |
Machine Type: | Plate Compactor |
Engine
|
|
---|---|
Engine: | GX160 |
Engine Make: | Honda |
Horsepower: | 4.8 |
Performance
|
|
---|---|
Operating Weight: | 220 lb |
Hydraulics
|
---|
Dimensions
|
|
---|---|
Fuel Tank: | 0.8 gal. |
Description

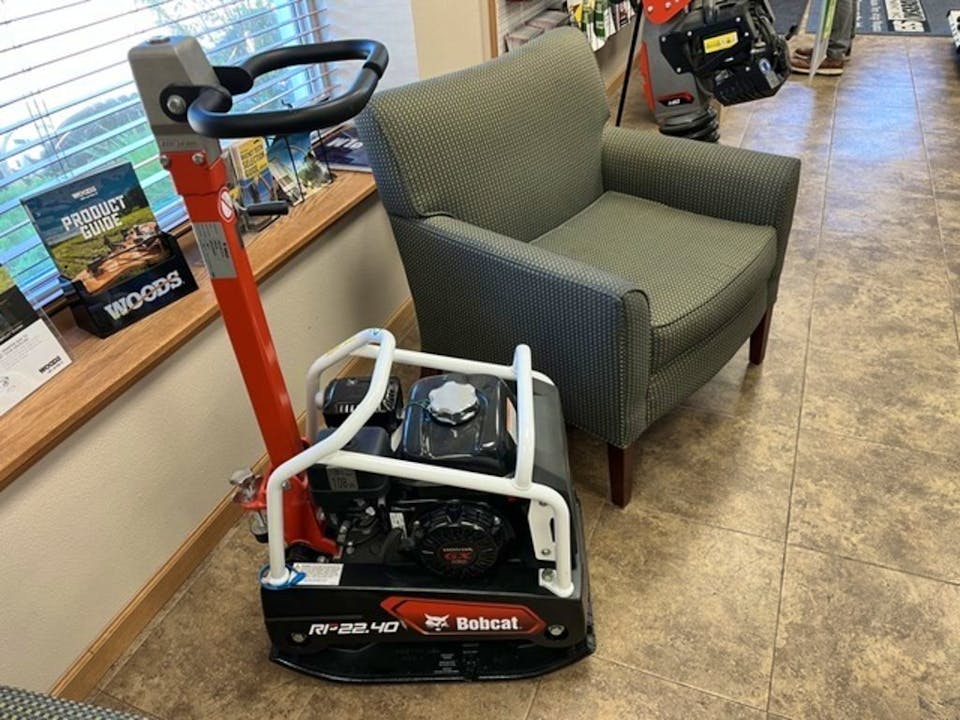

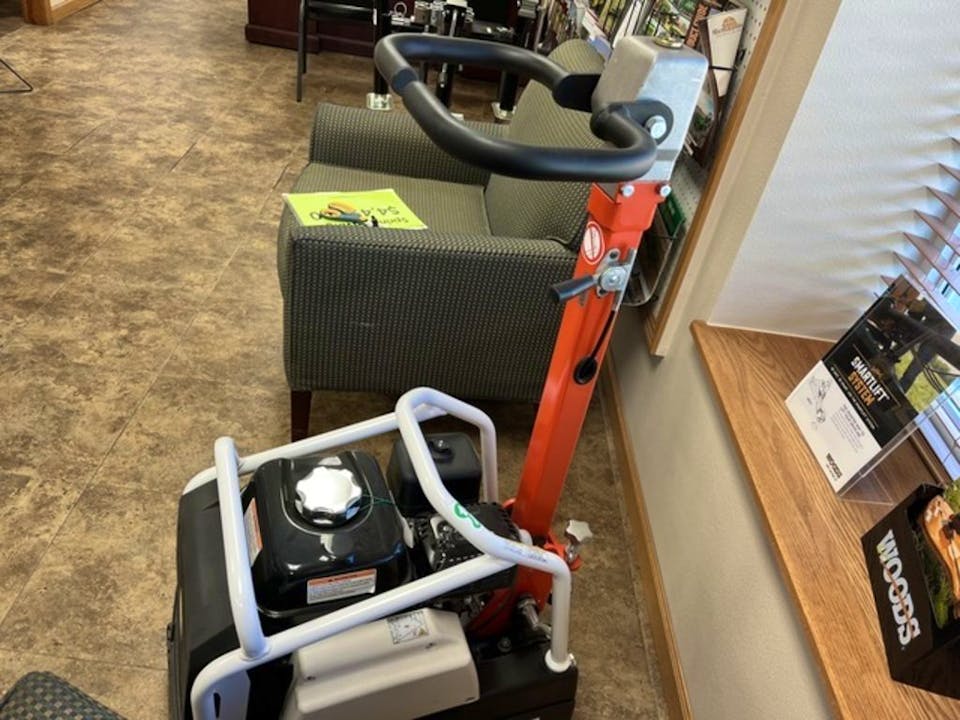

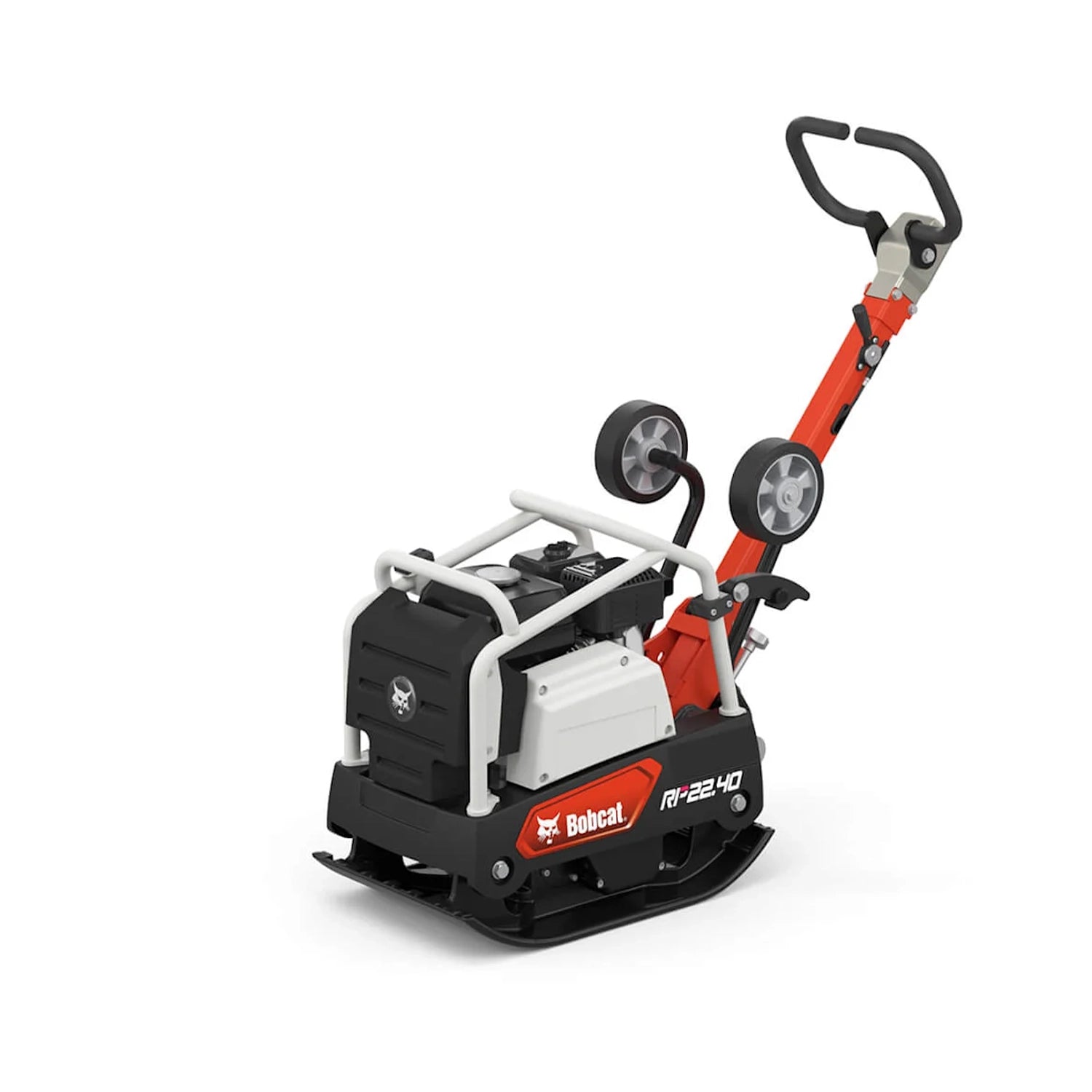

Bobcat RP22.40 Reversible Plate Compactor
The Bobcat RP22.40, the smallest reversible vibratory plate compactor in the Bobcat lineup, delivers great compaction results in a wide range of applications.
- Quick directional changes
- Built to last
- Easy to operate and transport
- Optimum compaction forces
Overview:
- Equipped with a durable, 4.8-hp Honda engine, the Bobcat RP22.40 reversible plate compactor delivers powerful compaction forces in a small package.
- The operator handle is designed for intuitive machine operation and minimal hand-arm vibration.
- With optimum machine balance, the base plate distributes power evenly.
- Continuous movement compaction and stationary work are equally productive, efficient and easy on the operator.
- Optional features include toolless transport wheels, a rubber, slip-on mat for compaction work on paving stones, and a vibration-activated hour meter.
Bobcat Reversible Plate Compactors | |||
---|---|---|---|

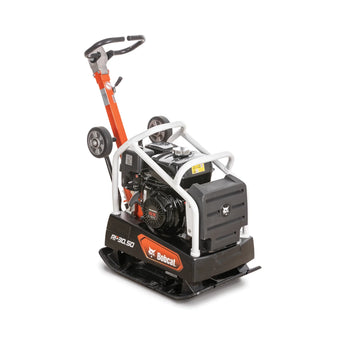

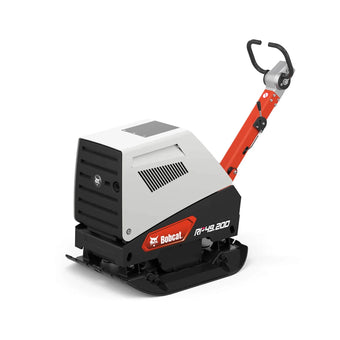

Model | RP22.40 | RP30.50 | RP49.20D |
Dimensions | |||
Machine Weight | 220 lb. | 439 lb. | 1,049 lb. |
Engine | |||
Make & Model | Honda GX 160 | Honda GX 270 | Hatz 1B50 E |
Fuel Type | Gas | Diesel | |
Fuel Consumption | 0.36 gal./hr. | 0.55 gal./hr. | 0.40 gal./hr. |
Engine Output | 4.8 hp @ 3,600 RPM | 8.0 hp @ 3,100 RPM | 8.8 hp @ 2,900 RPM |
Compaction Forces | |||
Max Vibration Frequency | 98 Hz | 90 Hz | 65 Hz |
Max Centrifugal Force | 5,171 lbf. | 7,194 lbf. | 11,016 lbf. |
Surface Capacity | 5,683 ft.²/hr. | 8,396 ft.²/hr. | 16,953 ft.²/hr. |
Surface Pressure | 32.8 psi | 28.1 psi | 35.1 psi |
Miscellaneous | |||
Hand-Arm Vibration on Handle | <8.2 ft/s² | <8.2 ft/s² | <8.2 ft/s² |
Speed | 0.8 mph | 0.9 mph | 1.3 mph |
Gradeability | 35% | 30% | |
Max Incline | 20° | 25° | |
Fuel Tank Capacity | 0.8 gal. | 1.4 gal. | 1.3 gal. |
Amplitude | 0.9 mm | 1.2 mm | 2.4 mm |
Machine Features | |||
Rubber Mat | Optional | Optional | |
Transport Wheels | Optional | Optional | |
Hour Counter | Optional | Optional |
